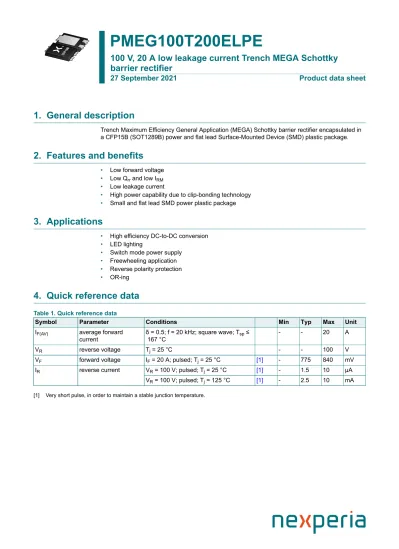

PMEG100T200ELPE. 1. General description. 2. Features and benefits. 3. Applications. 4. Quick reference data

(1)

barrier rectifier

27 September 2021 Product data sheet

1. General description

Trench Maximum Efficiency General Application (MEGA) Schottky barrier rectifier encapsulated in a CFP15B (SOT1289B) power and flat lead Surface-Mounted Device (SMD) plastic package.

2. Features and benefits

• Low forward voltage

• Low Q_rr and low I_RM

• Low leakage current

• High power capability due to clip-bonding technology

• Small and flat lead SMD power plastic package

3. Applications

• High efficiency DC-to-DC conversion

• LED lighting

• Switch mode power supply

• Freewheeling application

• Reverse polarity protection

• OR-ing

4. Quick reference data

Table 1. Quick reference data

Symbol Parameter Conditions Min Typ Max Unit

I_F(AV) average forward

current δ = 0.5; f = 20 kHz; square wave; T_sp ≤

167 °C - - 20 A

V_R reverse voltage T_j = 25 °C - - 100 V

V_F forward voltage I_F = 20 A; pulsed; T_j = 25 °C [1] - 775 840 mV

V_R = 100 V; pulsed; T_j = 25 °C [1] - 1.5 10 µA

I_R reverse current

V_R = 100 V; pulsed; T_j = 125 °C [1] - 2.5 10 mA [1] Very short pulse, in order to maintain a stable junction temperature.

(2)

5. Pinning information

Table 2. Pinning information

Pin Symbol Description Simplified outline Graphic symbol

1 A anode

2 A anode

3 K cathode

1 2

3

CFP15B (SOT1289B)

aaa-009063

K AA

6. Ordering information

Table 3. Ordering information

Package Type number

Name Description Version

PMEG100T200ELPE CFP15B plastic, thermal enhanced ultra thin SMD package; 3 leads;

2.13 mm pitch; 5.8 x 4.3 x 0.95 mm body SOT1289B

7. Marking

Table 4. Marking codes

Type number Marking code

PMEG100T200ELPE 100T

L20E

8. Limiting values

Table 5. Limiting values

In accordance with the Absolute Maximum Rating System (IEC60134).

Symbol Parameter Conditions Min Max Unit

V_R reverse voltage T_j = 25 °C - 100 V

I_F forward current δ = 1; T_sp ≤ 165 °C - 28.2 A

I_F(AV) average forward current δ = 0.5; f = 20 kHz; square wave; T_sp ≤

167 °C - 20 A

I_FSM non-repetitive peak

forward current t_p = 8.3 ms; half sine wave; T_j(init) = 25 °C - 260 A

[1] - 1.66 W

P_tot total power dissipation T_amb ≤ 25 °C

[2] - 2.15 W

T_j junction temperature - 175 °C

T_amb ambient temperature -55 175 °C

T_stg storage temperature -65 175 °C

[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.

[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm².

(3)

9. Thermal characteristics

Table 6. Thermal characteristics

[1] [2] - - 90 K/W

R_th(j-a) thermal resistance from

junction to ambient in free air

[1] [3] - - 70 K/W

R_th(j-sp) thermal resistance from

junction to solder point [4] - - 7 K/W

[1] For Schottky barrier diodes thermal runaway has to be considered, as in some applications the reverse power losses P_R are a significant part of the total power losses.

[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.

[3] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm². [4] Soldering point of cathode tab.

aaa-033799

t_p (s)

10^-3 10^-2 10^-1 1 10 10² 10³

1

10^-1 10²

10 10³ Zth(j-a)

(K/W)

10^-2

duty cycle = 1

0 0.02 0.01 0.50 0.75 0.25 0.20 0.10

0.05 0.33

FR4 PCB, standard footprint

Fig. 1. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values

aaa-033800

tp (s)

10^-3 10^-2 10^-1 1 10 10² 10³

1

10^-1 10²

10 10³ Z_th(j-a)

(K/W)

10^-2 0 0.02 0.01 0.10

0.05 duty cycle = 1 0.50 0.75 0.25 0.330.20

FR4 PCB, mounting pad for cathode 1 cm²

Fig. 2. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values

(4)

10. Characteristics

Table 7. Characteristics

V_(BR)R reverse breakdown

voltage I_R = 1 mA; T_j = 25 °C [1] 100 - - V

I_F = 1 A; pulsed; T_j = 25 °C [1] - 430 505 mV I_F = 5 A; pulsed; T_j = 25 °C [1] - 540 620 mV I_F = 10 A; pulsed; T_j = 25 °C [1] - 640 720 mV I_F = 15 A; pulsed; T_j = 25 °C [1] - 720 800 mV I_F = 20 A; pulsed; T_j = 25 °C [1] - 775 840 mV I_F = 20 A; pulsed; T_j = -40 °C [1] - 775 840 mV I_F = 20 A; pulsed; T_j = 125 °C [1] - 655 725 mV

V_F forward voltage

I_F = 20 A; pulsed; T_j = 150 °C [1] - 620 690 mV V_R = 60 V; pulsed; T_j = 25 °C [1] - 0.6 3.6 µA V_R = 100 V; pulsed; T_j = 25 °C [1] - 1.5 10 µA V_R = 100 V; pulsed; T_j = 125 °C [1] - 2.5 10 mA

I_R reverse current

V_R = 100 V; pulsed; T_j = 150 °C [1] - 9.5 48 mA

V_R = 1 V; f = 1 MHz; T_j = 25 °C - 1600 - pF

C_d diode capacitance

V_R = 10 V; f = 1 MHz; T_j = 25 °C - 450 - pF

reverse recovery time

step recovery I_F = 0.5 A; I_R = 0.5 A; I_R(meas) = 0.1 A;

T_j = 25 °C - 55 - ns

t_rr

reverse recovery time

ramp recovery - 18 - ns

I_RM peak reverse recovery

current - 1.8 - A

Q_rr reverse recovery charge

dI_F/dt = 200 A/µs; I_F = 6 A; V_R = 26 V;

T_j = 25 °C

- 23 - nC

V_FRM peak forward recovery

voltage I_F = 0.5 A; dI_F/dt = 20 A/µs; T_j = 25 °C - 410 - mV [1] Very short pulse, in order to maintain a stable junction temperature.

(5)

10^-1

10^-2 10

1 10² IF (A)

10^-3

V_F (V)

0 0.2 0.4 0.6 0.8 1.0

(2) (6)

(7) (4)

(1) (3) (5)

pulsed condition (1) Tj = 175 °C (2) Tj = 150 °C (3) Tj = 125 °C (4) Tj = 100 °C (5) Tj = 85 °C (6) Tj = 25 °C (7) Tj = -40 °C

Fig. 3. Forward current as a function of forward voltage; typical values

10^-1 10^-2 10^-3 10^-4 10^-5 10^-6 10^-7 10^-8 10^-9 I_R (A)

10^-10

V_R (V)

0 20 40 60 80 100

(1) (2) (3)

(4) (5)

(6)

(7)

pulsed condition (1) T_j = 175 °C (2) T_j = 150 °C (3) T_j = 125 °C (4) T_j = 100 °C (5) T_j = 85 °C (6) T_j = 25 °C (7) T_j = -40 °C

Fig. 4. Reverse current as a function of reverse voltage; typical values

VR (V)

0 20 40 60 80 100

aaa-033803

800 1600 2400 C_d (pF)

0

f = 1 MHz; T_amb = 25 °C

Fig. 5. Diode capacitance as a function of reverse voltage; typical values

aaa-033804

IF(AV) (A)

0 10 20 30

12

6 18 24 PF(AV)

(W)

0

(1) (2)

(5)

(3) (4)

T_j = 100 °C (1) δ = 0.1 (2) δ = 0.2 (3) δ = 0.5 (4) δ = 0.8 (5) δ = 1; DC

Fig. 6. Average forward power dissipation as a function of average forward current; typical values

(6)

V_R (V)

0 20 40 60 80 100

0.02 0.04 0.06 P_R(AV) (W)

0

(4) (5)

(2) (1)

(3)

T_j = 100 °C (1) δ = 1; DC (2) δ = 0.9 (3) δ = 0.8 (4) δ = 0.5 (5) δ = 0.2

Fig. 7. Average reverse power dissipation as a function of reverse voltage; typical values

T_amb (°C)

0 50 100 150 200

2 4 6 I_F(AV)

(A)

0 (3) (4) (2) (1)

FR4 PCB, standard footprint T_j = 175 °C

(1) δ = 1; DC

(2) δ = 0.5; f = 20 kHz (3) δ = 0.2; f = 20 kHz (4) δ = 0.1; f = 20 kHz

Fig. 8. Average forward current as a function of ambient temperature; typical values

T_amb (°C)

0 50 100 50 200

aaa-033807

4 5

3 2 1 6 I_F(AV)7

(A)

0 (3) (4) (2) (1)

FR4 PCB, mounting pad for cathode 1 cm² T_j = 175 °C

(1) δ = 1; DC

Fig. 9. Average forward current as a function of ambient temperature; typical values

Tsp (°C)

0 50 100 150 200

aaa-033808

10 20 30 IF(AV)

(A)

0 (3) (2) (1)

(4)

Tj = 175 °C (1) δ = 1; DC

Fig. 10. Average forward current as a function of solder point temperature; typical values

(7)

T_j (°C)

0 50 100 150 200

40 80 120 V_R (V)

0

FR4 PCB, standard footprint R_th = 90 K/W

Fig. 11. Derated maximum reverse voltage as a function of junction temperature; typical values

T_j (°C)

0 50 100 150 200

40 80 120 V_R (V)

0

FR4 PCB, mounting pad for cathode 1 cm² R_th = 70 K/W

Fig. 12. Derated maximum reverse voltage as a function of junction temperature; typical values

Tj (°C)

0 50 100 150 200

aaa-033811

40 80 120 VR (V)

0

Soldering point of cathode tab R_th = 7 K/W

Fig. 13. Derated maximum reverse voltage as a function of junction temperature; typical values

(8)

11. Test information

time I_F

I_R

t_rr

IR(meas)

006aad022

Fig. 14. Reverse recovery definition; step recovery

003aac562 t_rr

time

100 % 25 %

IF dlF

dt

IR IRM

Qrr

Fig. 15. Reverse recovery definition; ramp recovery

001aab912 time

time V_FRM V_F

IF

V_F

Fig. 16. Forward recovery definition

(9)

t1 t₂ P

t 006aaa812 duty cycle δ = t1

t2

Fig. 17. Duty cycle definition

The current ratings for the typical waveforms are calculated according to the equations: I_F(AV) = I_M × δ with I_M defined as peak current, I_RMS = I_F(AV) at DC, and I_RMS = I_M × √δ with I_RMS defined as RMS current.

12. Package outline

19-01-10 Dimensions in mm

6.96.7

0.240.16 0.990.91

5.95.7 4.44.2

1.31.1

4.23.8 4.964.56

1.441.04

2.151.95 3.5 3.1 0.60.4

0.60.4 2.13

2 1

3

Fig. 18. Package outline CFP15B (SOT1289B)

(10)

13. Soldering

occupied area solder lands

solder resist solder paste

0.4

0.4 0.6 2.83

1.07

1.93

3.8 1.4 2.13

1.6 0.53

1.8 4.6 0.33

1.3 0.4

1.34 1.54 1.74

5.26 7.7

5.06

recommended stencil thickness: 0.1 mm

Footprint information for reflow soldering of CFP15B package SOT1289B

sot1289b_fr Dimensions in mm

Issue date 19-06-1320-02-05

Fig. 19. Reflow soldering footprint for CFP15B (SOT1289B)

(11)

14. Revision history

Table 8. Revision history

Data sheet ID Release date Data sheet status Change notice Supersedes

PMEG100T200ELPE v.1 20210927 Product data sheet - -

(12)
