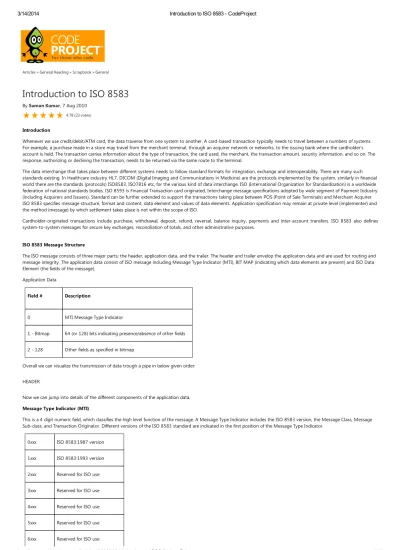

Introduction

Whenever we use credit/debit/ATM card, the data traverse from one system to another. A card-based transaction typically needs to travel between a numbers of systems. For example, a purchase made in a store may travel from the merchant terminal, through an acquirer network or networks, to the issuing bank where the cardholder's account is held. The transaction carries information about the type of transaction, the card used, the merchant, the transaction amount, security information, and so on. The response, authorizing or declining the transaction, needs to be returned via the same route to the terminal.

The data interchange that takes place between different systems needs to follow standard formats for integration, exchange and interoperability. There are many such standards existing. In Healthcare industry HL7, DICOM (Digital Imaging and Communications in Medicine) are the protocols implemented by the system, similarly in financial world there are the standards (protocols) ISO8583, ISO7816 etc, for the various kind of data interchange. ISO (International Organization for Standardization) is a worldwide federation of national standards bodies. ISO 8593 is Financial Transaction card originated, Interchange message specifications adopted by wide segment of Payment Industry (including Acquirers and Issuers). Standard can be further extended to support the transactions taking place between POS (Point of Sale Terminals) and Merchant Acquirer. ISO 8583 specifies message structure, format and content, data element and values of data elements. Application specification may remain at private level (implementer) and the method (message) by which settlement takes place is not within the scope of ISO.

Cardholder-originated transactions include purchase, withdrawal, deposit, refund, reversal, balance inquiry, payments and inter-account transfers. ISO 8583 also defines system-to-system messages for secure key exchanges, reconciliation of totals, and other administrative purposes.

ISO 8583 Message Structure

The ISO message consists of three major parts; the header, application data, and the trailer. The header and trailer envelop the application data and are used for routing and message integrity. The application data consist of ISO message including Message Type Indicator (MTI), BIT MAP (indicating which data elements are present) and ISO Data Element (the fields of the message).

Application Data

Field # Description

0 MTI Message Type Indicator

1 - Bitmap 64 (or 128) bits indicating presence/absence of other fields 2 - 128 Other fields as specified in bitmap

Overall we can visualize the transmission of data trough a pipe in below given order: HEADER

Now we can jump into details of the different components of the application data. Message Type Indicator (MTI)

This is a 4 digit numeric field, which classifies the high level function of the message. A Message Type Indicator includes the ISO 8583 version, the Message Class, Message Sub-class, and Transaction Originator. Different versions of the ISO 8583 standard are indicated in the first position of the Message Type Indicator.

0xxx ISO 8583:1987 version 1xxx ISO 8583:1993 version 2xxx Reserved for ISO use 3xxx Reserved for ISO use 4xxx Reserved for ISO use 5xxx Reserved for ISO use 6xxx Reserved for ISO use

(2)

http://www.codeproject.com/Articles/100084/Introduction-to-ISO?display=Print 2/11 7xxx Reserved for ISO use

8xxx Reserved for national use 9xxx Reserved for private use

Message Class

Message Sub-class

Incrementing the fourth position by one indicates a repeat request (except in x300 messages). For example: 1100 = Authorization Request; 1101 Authorization Request Repeat. Transaction Originator Transaction Originator Description 0 Acquirer 1 Acquirer repeat 2 Card issuer

3 Card issuer repeat

4 Other

5 Other repeat

6 - 9 Reserved for ISO use

So by knowing the MTI value we can identify the type of message. For Example: If MTI value is 1200, then from the table above we can find other details. First position is for Version Number and value in MTI is 1, so message version is based on ISO 8583:1993. Second Position is for Message Class and value in MTI is 2, so message is a financial message. Third position is for message sub-class/function and the value in MTI is 0, so the given message is a request message. Fourth position is for Transaction Originator and value in MTI is 0, so the message is coming from Acquirer. When we consolidate all these we do find that message with MTI value 1200 is an ISO 1993 Financial Request Message sent by Acquirer.

So if we summarize, then Message Class/Type is (a n4 - 4 Digits Numeric Value) required for all ISO 8583 messages in order to identify the message class and the Message Type can be one of the following values (this is a partial list):

MTI Description x100 Authorization Request x101 Authorization Request Repeat x102 Authorization completion confirmation x103 Authorization completion confirmation repeat x110 Authorization Response

x112 Authorization completion response x120 Authorization Advice

x121 Authorization advice repeat

x122 Authorization advice completion confirmation x123 Authorization advice completion confirmation Report x130 Authorization Advice Response

(3)

3/14/2014 Introduction to ISO 8583 - CodeProject x132 Authorization advice completion response

x200 Financial Request x210 Financial Response x220 Financial Advice x230 Financial Advice Response x300 Acquirer File Update Request x302 Issuer File Update Request x310 Acquirer File Update Response x312 Issuer File Update Response x320 Acquirer File Update Advice x322 Issuer File Update Advice

x330 Acquirer File Update Advice Response x332 Issuer File Update Advice Response x400 Acquirer Reversal Request x402 Issuer Reversal Request

x410 Acquirer Reversal Request Response x412 Issuer Reversal Request Response x420 Acquirer Reversal Advice x422 Issuer Reversal Advice

x430 Acquirer Reversal Advice Response x432 Issuer Reversal Advice Response x5xx Reconciliation Request Messages x6xx Administrative Request Messages x800 Network Management Request x810 Network Management Request Response Bitmap(s)

A bitmap is an indexing technique used in an ISO 8583 message to indicate which Data Elements are present. The presence of a data element in a specific message is indicated by a one (1) in the assigned position; a zero (0) indicates the absence of a data element in the assigned position. Each application transaction includes one (1) bit map. A bit map consists of 64 bits numbered from the left starting with bit 1. The first bit of the bit map represents a secondary bit map. If any ISO message does not support secondary bit map processing, then the first bit of the bit map is '0'.

Bit 1 Bit 2 Bit 3 Bit 4 … Bit 64

Field 1

Secondary bit map. ‘1’ if present else ‘0’

Field 2 Primary Account Number

Field 3 Processing Code Field 4 Amount, Trans Field 64 Message Auth Code A message contains at least one bitmap called the Primary Bitmap, indicating the presence of Data Elements 1 up to 64.

A Secondary Bitmap may be located at Data Element one, and hence the first bit in Primary Bitmap tells us whether there is a secondary bitmap or not. The secondary bitmap indicates the presence of Data Elements 65 up to 128.

(4)

http://www.codeproject.com/Articles/100084/Introduction-to-ISO?display=Print 4/11 A message can contain up to three bitmaps in the latest version of the ISO 8583 standard. The bitmap may be transmitted as 8 bytes (binary), or sometimes with the 8 bytes unpacked into 16 hexadecimal characters 1-9, A-F (ASCII).

Data Elements

Data Elements are fields carrying the information of the transaction itself. There are up to 128 Data Elements in the original ISO 8583 (1987) standard, and up to 192 Data Elements in later releases. Each Data Element has a specified meaning and format. ISO 8583 also includes some general purpose Data Elements and system-specific Data Elements that are used in different ways by different standards derived from ISO 8583.

For example: Bit value 2 is assigned to Primary Account Number, 3 is assigned to Processing Code, 4 is for Transaction Amount similarly, and so on. And bit value 128 is for Message Authentication Code Field. For each data element ISO specifies the data format and size. ISO also specifies which all data elements are mandatory or optional for a particular message.

Data Element Format

ISO-8583 specifies different kind of fields that basically fall in following categories: • Fixed length • Numeric • Alphanumeric • Binary • Variable length • Max-length 99 • Numeric • Alphanumeric • Binary • Max-length 999 • Numeric • Alphanumeric • Binary • Nested message

Each Data Element has a standard format. This consists of the allowed content of the field (numeric, binary, etc) as well as the allowed length. This is indicated by the convention of allowed content followed by length as described in the following sections.

Field Type Attributes

Abbreviation Meaning

a Alphabetic, including Blanks

n Numeric Values only

s Special Characters only

an Alphanumeric

as Alphabetic & Special Characters only ns Numeric and Special Characters only ans Alphabetic, numeric & Special Characters

b Binary Data

z Tracks 2 & 3 code set as defined in ISO 7811 & ISO 7813

h Hex Data

LL, LLL Length of variable field that follows. ‘LL’ - Two-digit length indicator (1 byte BCD) ‘LLL - 3-_{digit length indicator (2 bytes BCD)}

..17

Variable field of up to 17. The ‘..’ is a two-digit length indicator (1 byte BCD) specifying the number of digits defining the length of the variable data to follow.

(5)

3/14/2014 Introduction to ISO 8583 - CodeProject ..125 BCD), specifying the number of digits defining the length of the variable data to follow.

A Data Element may have a fixed or variable length. A length indicator precedes a variable length field in a message.

Fixed Length Data Element

Fixed-length Data Elements have a defined length in the ISO 8583 standard, and no length indicator is required in the message. These are indicated by including the length after the allowed content e.g. Data Element 3 has format 'n6', which means a fixed-length field of 6 numeric digits.

Variable Length Data Element

Other data elements may have variable length, and a length indicator is included before the data element in the message. The length indicator itself has a defined length: for example, a 1-digit length indicator is only sufficient for a variable-length field with a length from 1 up to 9, while a 3-digit length indicator can support field values up to 999. Variable length fields are indicated by two dots '..' followed by the maximum length of the field. The length indicator is represented by a number of 'L' characters corresponding to the length of the length indicator e.g. Data Element 2 has format n..19, LLVAR which means a field with a maximum of 19 numeric digits with a 2-digit length indicator.

The problem is not complexity but diversity, ISO-8583 is not specific about how a given field is represented, so you can have a numeric field represented as a sequence of ASCII characters, EBCDIC characters, BCD, etc.

Variable length fields have a prefix specifying its length, but how this is represented is not defined, different vendors uses different representations (i.e. BCD, EBCDIC, binary value).

Sample Messages

[Refer Appendix A for number system basics]

Sample 1: 0800 Message

# Name Value Hex Value

0 MTI 0800 08 00

1 PRIMARY BITMAP Indicates presence of fields

3, 11 and 41 20 20 00 00 00 80 0000

3 PROCESSING CODE 000000 00 00 00

11 SYSTEM TRACE AUDIT_NUMBER 000001 00 00 01

41 CARD ACCEPTOR TERMINAL

IDENTIFICATION 29110001

32 39 31 31 30 30 30 31

Here is the binary representation of our 0800 message: 080020200000008000000000000000013239313130303031

In above example, 0800 is the message type indicator; first position represents version number: • 0 is for version 1987

Second position is message class: • 8 is for network management

Third position is message sub-class/function: • 0 is for request

And last position is used to describe transaction originator: • 0 is for acquirer

So "0800" is a version 1987 network management request. Next we have field 1, primary bitmap:

Primary Bitmap

Byte Hex Value Bit Value Field #

(6)

http://www.codeproject.com/Articles/100084/Introduction-to-ISO?display=Print 6/11 1 20 0010 0000 11 2 00 0000 0000 3 00 0000 0000 4 00 0000 0000 5 80 1000 0000 41 6 00 0000 0000 7 00 0000 0000

So we've parsed MTI, (0800) bitmap (2020000000800000), we know fields 3, 11 and 41 are present, so our next field is number 3.

In our example, field #3 is using a BCD representation, so a value of "000000" is represented with just three bytes whose values are "00 00 00". Same goes for field #11 whose value is "000001", it's represented as "00 00 01". In our example, field #41 is an 8-byte alphanumeric field represented as 8 ASCII characters

Message: 08002020 00000080 00000000 00000001 32393131 30303031 MTI: 0800 Bitmap: 20200000 00800000 Field 03: 000000 Field 11: 000001

Field 41: 3239313130303031 (ASCII for "29110001")

Sample 2: Another 0800 message

In above sample, two new fields#60 and #70 are present. Here is our message representation: Message: 0800A020 00000080 00100400 00000000

00000000 00000001 32393131 30303031 00105445 5354204D 45535347 0301 MTI: 0800

Primary bitmap: A0200000 00800010 Secondary bitmap: 04000000 00000000 Field 03: 000000

Field 11: 000001

Field 41: 3239313130303031 (ASCII for "29110001")

Field 60: 0010 54455354204D45535347 (length=10, value="TEST MESSG") Field 70: 0301

Let's break down this bitmap: Primary Bitmap

0 A0 1010 0000 Secondary bitmap present plus #3

1 20 0010 0000 11 2 00 0000 0000 3 00 0000 0000 4 00 0000 0000 5 80 1000 0000 41 6 00 0000 0000

(7)

7 10 0001 0000 60

Secondary Bitmap

0 04 0000 0100 70 1 00 0000 0000 2 00 0000 0000 3 00 0000 0000 4 00 0000 0000 5 80 0000 0000 6 00 0000 0000 7 00 0000 0000

To make things complex to developers, different vendors choose different padding styles when handling odd length BCD fields. So in order to represent "003" one vender may use two bytes with the values "00 03" while another may use "00 30".

Same goes for variable length fields, field length as well as field values can be padded right or left, that's not defined by ISO-8583, it's just a matter of fact of different implementations.

Then we have nested fields, some implementations use reserved for private use fields to carry other ISO-8583 messages. These messages are usually packed as variable length binary fields as seen by outer message.

Real Life Samples

A real example may help us to understand what kind of information is exchanged during an authorization request, and response: Sample Authorization Request

Field # Description Value Comments

0 MTI 0100 Authorization request

2 Primary Account Number 4321123443211234

3 Processing Code 000000

4 Transaction Amount 000000012300 i.e. 123.00

7 Transmission data/time 0304054133 MMYYHHMMSS

11 System trace audit number 001205

14 Expiration date 0205 YYMM

18 Merchant Type 5399

22 POS Entry Mode 022 Swiped Card

25 POS Condition Code 00

35 4321123443211234=02051 2312312332 Track 2

37 Retrieval Reference Number 206305000014

(8)

http://www.codeproject.com/Articles/100084/Introduction-to-ISO?display=Print 8/11

42 Merchant ID 1001001

49 Currency 840 American Dollars

Sample Authorization Response Transmission protocol

Once we have a binary representation of a given ISO-8583 message we have to transmit it over the wire using some communication protocol (i.e. TCP/IP, UDP/IP, X.25, SDLC, SNA, ASYNC, QTP, SSL, etc.).

ISO-8583 does not define any communication protocol; so different vendors have chosen different protocols. Many implementations (specially old ones) require support for some kind of routing information (i.e. a CICS transaction name), so they use different sorts of headers. A few of them (specially stream based ones) require some kind of trailers as well.

Transmission protocol is composed of an • Optional header

• ISO-8583 message data • Optional trailers

A TCP/IP based implementations may use a couple of bytes to indicate message length, so our 0800 example described earlier would be sent as: 00 46 08 00 A0 20 00 00 00 80 00 10 04 00 00 00

00 00 00 00 00 00 00 00 00 01 32 39 31 31 30 30 30 31 00 10 54 45 53 54 20 4D 45 53 53 47 03 01 0046 is the message length expressed in network byte order.

But this is just one way of specifying message length, other implementation may choose to send four ASCII bytes, i.e. 30 30 34 36 08 00 A0 20 00 00 00 80 00 10 04 00

00 00 00 00 00 00 00 00 00 00 00 01 32 39 31 31 30 30 30 31 00 10 54 45 53 54 20 4D 45 53 53 47 03 01

30303436 being the ASCII representation of "0046".

A few of them perform odd things with those headers, flagging rejected messages (i.e. you send a 0100 and instead of receiving a 0110 with a suitable response code you get back your own 0100 with some proprietary flag in the header indicating for example a temporarily failure such as destination unreachable).
