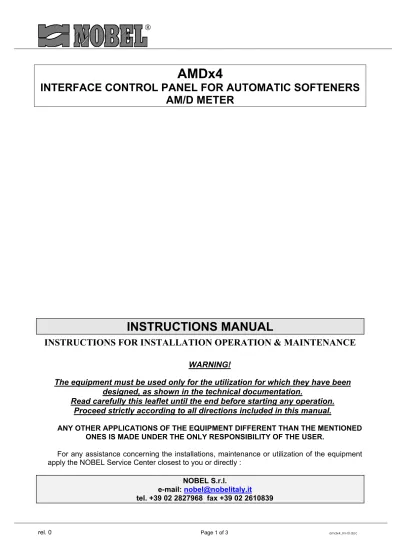

rel. 0 Page 1 of 3 amdx4_mi-r0.doc
AMDx4
INTERFACE CONTROL PANEL FOR AUTOMATIC SOFTENERS
AM/D METER
INSTRUCTIONS MANUAL
INSTRUCTIONS FOR INSTALLATION OPERATION & MAINTENANCE
WARNING!
The equipment must be used only for the utilization for which they have been
designed, as shown in the technical documentation.
Read carefully this leaflet until the end before starting any operation.
Proceed strictly according to all directions included in this manual.
ANY OTHER APPLICATIONS OF THE EQUIPMENT DIFFERENT THAN THE MENTIONED ONES IS MADE UNDER THE ONLY RESPONSIBILITY OF THE USER.
For any assistance concerning the installations, maintenance or utilization of the equipment apply the NOBEL Service Center closest to you or directly :
NOBEL S.r.l. e-mail: [email protected]
INSTRUCTIONS MANUAL AMDx4
s.r.l. - ITALY Page 2 of 3 amdx4_mi-r0.doc - r.0
1.
Norme di sicurezza
1.1. CE mark, declaration of conformity
The equipment is designed to meet state-of-the-art safety requirements, has been tested and left the factory in a condition in which it is safe to operate.
The equipment complies with the applicable standards and regulations as listed in the CE declaration of conformity and thus complies with the statutory requirements of the CE Directives.
NOBEL confirms the successful testing of the equipment by sticking to it the CE mark.
1.2. Elettricità
Before starting any operation on electrical devices, be sure that main power supply is OFF. All operations must be performed by skilled and authorized operators, using proper tools and personal protection devices if required (CE marked), according to safety regulations for working areas.
In case of liquid leakage, switch off the main power supply before operation. Before the switching ON, be sure all the parts of the system are perfectly dry. Check that the available electrical power is correct, as shown on technical data
Do not make preliminary wiring connections.
2. Technical
characteristics
2.1. Caratteristiche
generali
• max ambient temperature °C 40
• power supply V ph/Hz W 110÷240 1/50÷60 20
• weight (approx) kg 3
• dimensions mm 300 x 260 x 150 (p)
2.2. Placing and electrical wiring connections
• Fix the control board to the wall near the softener columns.
• Make wiring connections in the control board according to the annex wiring diagram); the power supply is connected directly to the input terminals of the general
INSTRUCTIONS MANUAL AMDx4
s.r.l. - ITALY Page 3 of 3 amdx4_mi-r0.doc - r.0
3.
Principles of working
The interface panel AMDx4 allows to connect the automatic controls of 4 softeners series AM/D Meter, in order that they can work on parallel, featuring the regeneration in succession, one after the other one. Hence, 3 softeners are on service while the fourth one is on regeneration or stand-by.
Whether only 3 softeners are installed , it is required to make a bridge connection between the clamp +R and the input I8. According to that, 2 softeners will be on service while the third one is on regeneration or stand-by.
The system does not allow to run automatically more than one regeneration in the same time.
4. Programmer
The logical programmer handles the logical working of the whole unit. Its does not require configuration; if desired it is possible to set the current time and day
The programmer is equipped with internal clock, keeping exact time for 80 hours in case of power failure. To set the current time and day, proceed as follows :
1. push the button ESC
2. push the button until the pointer > indicates "Set …" 3. push the button OK
4. the pointer indicates “Clock..”, push the button OK
5. the pointer indicates “Set Clock..”, push the button OK
6. push the button to point the day or the number to be modified
7. when the pointer blinks on the day or the number to be modified, push the buttonor until the new desired day or value is shown (symbols related to days of week are
explained at following chapter)
8. repeat the same operation with other values, if required 9. push the button OK to confirm (save) the modifications
10.push twice the button ESC to go back to the visualization of service.
The programmer is already factory set for automatic updating with european summer time (S/W Time ON = EU)
s.r.l.
TEL. +39 02 2827968 FAX +39 02 2610839 e-mail [email protected] via G.Galilei, 5 20090 Segrate (MI) - ITALY
AZIENDA CON SISTEMA QUALITÁ CERTIFICATO DA DNV
UNI EN ISO 9001/2008
www.nobelitaly.it società italiana per lo studio e la realizzazione di apparecchiature ed impianti per il trattamento acqua
engineering and manufacturing of equipments and plants for water treatment
M3.6-r2
sede legale : via Monfalcone 8 20132 Milano
C.C.I.A.A. 1250687 - EXPORT MI 044905 - Reg. Trib. Milano nº 272528 vol.7032 fasc.28 società a responsabilità limitata - cap. soc. € 99.000 i.v. - C.F. e P.I. : IT 08829620155
rev. 0
DICHIARAZIONE
DI CONFORMITÀ
DECLARATION OF CONFORMITY
La Nobel srl dichiara che l’apparecchiatura (vedi etichetta in prima pagina)
delle serie
Nobel srl hereby declares that the equipment (see label on first page)
of series
AMDx4
è conforme alle seguenti Direttive Europee:
2006/42/CE – 2006/95/CE – 2004/108/CE
Principali Norme armonizzate osservate durante la progettazione e costruzione:
UNI EN ISO 12100:2010 – UNI EN 60204-1 (CEI 44-5)
Il direttore tecnico è autorizzato alla costituzione del fascicolo tecnico.
complies to the requirement of the following European Directives :
2006/42/CE – 2006/95/CE – 2004/108/CE
Besides, the main regulations followed for the design and manufacturing are :
UNI EN ISO 12100:2010 – UNI EN 60204-1 (CEI 44-5)
