(1)

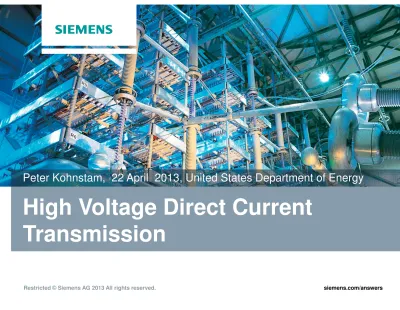

Restricted © Siemens AG 2013 All rights reserved. siemens.com/answers

High Voltage Direct Current

Transmission

(2)

HVDC Classic – LCC Technology

HVDC Classic – LCC Technology

(3)

HVDC Classic- Siemens Experience

Gezhouba-Nan Qiao Etzenricht

1993

Wien Südost

1993

Dürnrohr

1983

2014

Moyle

2013

Black Sea Transmission

1989

2004

2010

EstLink 2

2007

Neptune BritNed

2011

Storebælt

2013

Hudson

2010

Ballia-Bhiwadi

2012

2014

Western Alberta Transmission Link Poste Châteauguay Poste Châteauguay

1984

1997/2004

Nelson River

1977/2004

Western Link

2015

2001

2013-04-22

Restricted © Siemens AG 2013 All rights reserved.

Page 3 Peter Kohnstam / HVDC Business Development

Guizhou-Guangdong Basslink Acaray

1981

Lamar

2005

Virginia Smith

1987

Sylmar East

1995

2008

1975/1998

Cahora Bassa Welsh

1995

2006

2000

COMETA

2012

Inter Island Connector Pole 3

2014

2004

Tianshengqiao-Guangzhou Guizhou-Guangdong II Ballia-Bhiwadi

2003/2007

East-South Interconnector Adani Thailand-Malaysia

2001

2013

BtB Bangladesh

2012

2013

Xiloudu-Guangdong East DC Link Project

2014

Celilo

(4)

Hudson Transmission Project

Ridgefield (New Jersey), USA, 2013

Ridgefield

Pennsylvania

Customer Hudson Transmission Partners

LLC.

Project Name Hudson Transmission Project

Location Ridgefield, NJ Power Rating 600 MW

New Jersey

Ridgefield

USA

Pennsylvania

Type of Plant HVDC Classic B2B, monopolar

Voltage Levels 170 kV DC

345/230 kV AC, 60/60 Hz

(5)

Hudson Transmission Project

Ridgefield (New Jersey), USA, 2013

2013-04-22

Restricted © Siemens AG 2013 All rights reserved.

(6)

Black Sea Transmission Project,

Georgia, 2013

Customer Energotrans Ltd.

Project Name Black Sea Transmission Network

Location Akhaltsikhe, Georgia

Power Rating 2 x 350 MW

Type of Plant HVDC Classic

Type of Plant HVDC Classic Back-to-Back

Voltage Levels 96 kV DC

500/400 kV AC, 50/50 Hz

(7)

Black Sea Transmission Project,

Georgia, 2013

2013-04-22

Restricted © Siemens AG 2013 All rights reserved.

(8)

Yunnan-Guangdong, China, 2010

Customer China Southern Power Grid

Project Name Yunnan-Guangdong

Location Chuxiong City/Yunnan Zengcheng City/Guangdong

Power Rating 5000 MW

Type of Plant UHV DC Bipolar 1418 km long distance

World's first UHV DC transmission

project with 800 kV in commercial

operation.

1418 km long distance

Voltage Levels ±±±±800 kV DC 525 kV AC, 50 Hz

(9)

Yunnan-Guangdong, China, 2010

2013-04-22

Restricted © Siemens AG 2013 All rights reserved.

(10)

HVDC PLUS – VSC Technology

HVDC PLUS – VSC Technology

(11)

HVDC PLUS – Siemens Experience

HVDC PLUS – Siemens Experience

BorWin2

SylWin1

2013

2013 -- 2015

2015

Trans Bay Cable

2010

2014

HelWin1

HelWin2

2013-04-22

Restricted © Siemens AG 2013 All rights reserved.

Page 11 Peter Kohnstam / HVDC Business Development

Trans Bay Cable

INELFE

(12)

INELFE, France-Spain, 2014

Customer INELFE (Rte and REE)

Project Name INELFE

Location Baixas, France to Santa Llogaia,

Spain

Power Rating 2 x 1000 MW

Type of Plant 60 kM HVDC PLUS

World's first HVDC Project in VSC

Technology with each 1000 MW

transmission capacity (HVDC PLUS).

Underground Cable

Voltage Levels ±±±±320 kv DC 400 kV AC, 50 Hz

(13)

INELFE, France-Spain, 2014

2013-04-22

Restricted © Siemens AG 2013 All rights reserved.

(14)

2 Global Tech 1 Global Tech 1

BorWin

1 3 Hohe See Hohe See Albatros Albatros Meerwind Meerwind 1

SylWin

Nördlicher Grund Nördlicher Grund Sandbank 24

Sandbank 24 Dan TyskDan Tysk

HelWin

Butendiek Butendiek 2 Amrumbank West Amrumbank West Nordsee Ost Nordsee Ost

TenneT Clusters

In Service

BorWin1 400MW

In Construction

Siemens

SylWin1 864MW

HelWin1 576MW

BorWin2 800MW

HelWin2 690MW

4 Deutsche Bucht Deutsche Bucht 1 2

North Sea Projects in Germany

UW Büttel

UW Diele

UW Hagermarsch

Veja Mate Veja Mate Bard Bard Borkum West 2 Borkum West 2

DolWin

2 1 3 1 MeerwindMeerwind Innogy Nordsee 1 Innogy Nordsee 1 Borkum Riffgrund 2 Borkum Riffgrund 2 MEG 1 MEG 1 Godewind 2 Godewind 2

HelWin2 690MW

In Construction

ABB

DolWin1 800MW

DolWin2 924MW

Proposed

DolWin3 900MW

BorWin3 900MW

BorWin4 900MW

DolWin4 900MW

BorWin5 900MW

SylWin2 900MW

3 Deutsche Bucht Deutsche Bucht Borkum Riff. 2 Borkum Riff. 2 5 4 Godewind 1Godewind 1 Borkum Riff. 1 Borkum Riff. 1
(15)

BorWin2, Germany, 2013

Customer TenneT

Project Name BorWin2

Location Diele, Germany

Power Rating 800 MW

Type of Plant 200 km HVDC Plus

2013-04-22

Restricted © Siemens AG 2013 All rights reserved.

Page 15 Peter Kohnstam / HVDC Business Development

On-/Offshore Cable

Voltage Level ±±±±300 kV DC 400 kV/155 kV AC, 50 Hz

(16)

BorWin2 Offshore Windfarm

800 MW offshore HVDC PLUS link

Year of Award 2010

Wind Capacity 800 MW

Top Side Dimensions App. 70 x 50 x 35 m

Weight Top Side > 10,000 t

Voltage ±±±±300 kV

Transmission Type HVDC PLUS

Export Cables 2

Length of Export Cables 200 km

Service Life 30 years

Client TenneT TSO

Platform Fabricator Nordic Yards

Fabrication Location Warnemunde, GER

(17)

More Information

Peter Kohnstam

HVDC Business Development

Manager

110 MacAlyson Court

Cary, NC 27511

2013-04-22

Restricted © Siemens AG 2013 All rights reserved.

Page 17 Peter Kohnstam / HVDC Business Development

Phone: +1 (978) 577 6413

Fax: +1 (978) 577 6413

Mobile: +1 (919) 917 8096

E-mail:

[email protected]

http://www.energy.siemens.com/us/e

n/power-transmission/
