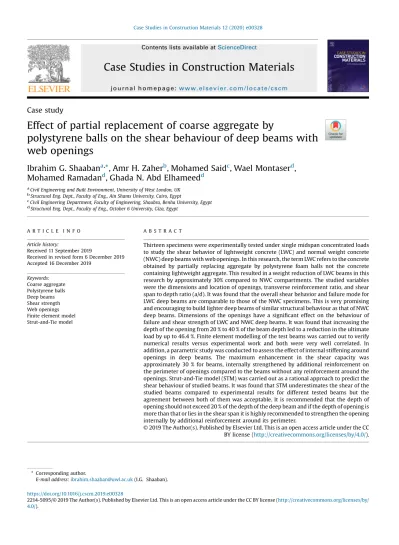

Case
study
Effect
of
partial
replacement
of
coarse
aggregate
by
polystyrene
balls
on
the
shear
behaviour
of
deep
beams
with
web
openings
Ibrahim
G.
Shaaban
a,*
,
Amr
H.
Zaher
b,
Mohamed
Said
c,
Wael
Montaser
d,
Mohamed
Ramadan
d,
Ghada
N.
Abd
Elhameed
da
CivilEngineeringandBuiltEnvironment,UniversityofWestLondon,UK b
StructuralEng.Dept.,FacultyofEng.,AinShamsUniversity,Cairo,Egypt
cCivilEngineeringDepartment,FacultyofEngineering,Shoubra,BenhaUniversity,Egypt dStructuralEng.Dept.,FacultyofEng.,October6University,Giza,Egypt
ARTICLE INFO
Articlehistory:
Received11September2019
Receivedinrevisedform6December2019 Accepted16December2019
Keywords: Coarseaggregate Polystyreneballs Deepbeams Shearstrength Webopenings Finiteelementmodel Strut-and-Tiemodel
ABSTRACT
Thirteenspecimenswereexperimentallytestedundersinglemidspanconcentratedloads tostudytheshearbehavioroflightweightconcrete(LWC)andnormalweightconcrete (NWC)deepbeamswithwebopenings.Inthisresearch,thetermLWCreferstotheconcrete obtained bypartially replacingaggregate by polystyrenefoam ballsnot the concrete containinglightweightaggregate.ThisresultedinaweightreductionofLWCbeamsinthis researchbyapproximately30%comparedtoNWCcompartments.Thestudiedvariables werethedimensionsandlocationofopenings,transversereinforcementratio,andshear spantodepthratio(a/d).Itwasfoundthattheoverallshearbehaviorandfailuremodefor LWCdeepbeamsarecomparabletothoseoftheNWCspecimens.Thisisverypromising andencouragingtobuildlighterdeepbeamsofsimilarstructuralbehaviourasthatofNWC deepbeams.Dimensionsoftheopeningshaveasignificanteffectonthebehaviourof failureandshearstrengthofLWCandNWCdeepbeams.Itwasfoundthatincreasingthe depthoftheopeningfrom20%to40%ofthebeamdepthledtoareductionintheultimate loadbyupto46.4%.Finiteelementmodellingofthetestbeamswascarriedouttoverify numerical resultsversus experimental workand bothwere very well correlated. In addition,aparametricstudywasconductedtoassesstheeffectofinternalstiffeningaround openings in deep beams. The maximum enhancement in the shear capacity was approximately30%forbeams,internallystrengthenedbyadditionalreinforcement on theperimeterofopeningscomparedtothebeamswithoutanyreinforcementaroundthe openings.Strut-and-Tiemodel(STM)wascarriedoutasarationalapproachtopredictthe shearbehaviourofstudiedbeams.ItwasfoundthatSTMunderestimatestheshearofthe studied beamscompared toexperimental resultsfor different testedbeams but the agreementbetweenbothofthemwasacceptable.Itisrecommendedthatthedepthof openingshouldnotexceed20%ofthedepthofthedeepbeamandifthedepthofopeningis morethanthatorliesintheshearspanitishighlyrecommendedtostrengthentheopening internallybyadditionalreinforcementarounditsperimeter.
©2019TheAuthor(s).PublishedbyElsevierLtd.ThisisanopenaccessarticleundertheCC BYlicense(http://creativecommons.org/licenses/by/4.0/).
*Correspondingauthor.
E-mailaddress:[email protected](I.G. Shaaban).
https://doi.org/10.1016/j.cscm.2019.e00328
2214-5095/©2019TheAuthor(s).PublishedbyElsevierLtd.ThisisanopenaccessarticleundertheCCBYlicense(http://creativecommons.org/licenses/by/ 4.0/).
ContentslistsavailableatScienceDirect
Case
Studies
in
Construction
Materials
andf2
ft Ultimateuniaxialtensilestrength fc Ultimateuniaxialcompressivestrength
fcc Concretepeakstress
fcb Ultimatebiaxialcompressivestrength
f1 Ultimatecompressivestrengthforastateofbiaxial compressionsuperimposed onhydrostatic stress state
f2 Ultimatecompressivestrengthforastateof uni-axial compression superimposed on hydrostatic stressstate
fcu Cubecompressivestrengthofconcrete fc0 Cylindercompressivestrength
a/d Shearspan-to-depthratio
fsand
e
s The average stress and strain of steel bars, respectivelyfyand
e
y Theyieldstressandstrainofsteelbars, respective-lyEs Theyoung'smodulusofsteelreinforcement
fcr Thecrackingstrengthofconcrete
e
c Concretestraine
c1 Concretestrainatultimatestresse
cc1 Concretestrainatpeakstresse
n StraininsteelbarsFEM Finiteelementmethod
h Thebeamheight
d Thebeamdepth
b Thebeamwidth
a Theshearspan
a1 TheheightofnodeN1
a2 TheheightofnodeN2
b1 Thelengthofbearingplate1
b2 Thelengthofbearingplate2
Ld TheinternalleverarmbetweenthetieforceT,and compressionstrutS2
S TheforceinstrutS
N1 ThenodeN1 N2 ThenodeN2
W11 The width of strut S at node N1, measured
perpendiculartostrutcenterline
W12 The width of strut S at node N2, measured
perpendiculartostrutcenterline
W1av TheaveragewidthofstrutW11andW12;
L Thebeameffectivelength
α TheinclinationofstrutS
C Theconcretecover
1.Introduction
Deepbeamsareusedinspecialstructuressuchastransferfloorsofhigh-risebuildings,offshorestructuresandcomplex foundationsystems.Theshearcapacityisthegoverningdesignfactorfordeepbeams.Insimpledeepbeams,thezoneof highshearcoincideswiththedistrictoflowmoment.Differentvaluesofthespantodepthratio(Le/d)andtheshearspan
todepthratio(a/d)areproposedbydifferentdesigncodestodefinedeepbeams[35,40].Openingsinthewebareaare oftenprovidedforcriticalservicesandaccessibility.Theventilatingslotsaretheidealexamplefortheopeningindeep beams.Suchopeningsmayaffectthecapacityorthestressesdistribution,particularlywhenopeningsexistinthecritical regions.Theshearcapacityofbeamswithopeningsisbasedonnumerousfactors,suchas:location,dimensionsofthe opening, andpropertiesof used materials (e.g.concrete andsteel)[1,2].Simplified designmethodsfor deep beams withoutspecialconsiderationtotheinfluenceofwebopeningsaredescribedinmostoftheavailableinternationaldesign codes[35,40].
Extensiveanalytical,numerical,andexperimentalinvestigationshavebeencarriedoutforstudyingdeepbeamswith webopenings[3–11].MansurandAlwist[12]experimentallytested12reinforcedfiberconcretedeepbeams(1300650 mm)withsmallsizeopenings(175125mm).Theirresultsindicatedthattheamountofwebreinforcement(fibersor continuoussteelreinforcement),andthelocationofopeningaretheprincipalparametersthataffectthestrengthofdeep beams. They predicted the strength using equations for non-fiber concrete deep beams with reasonable accuracy. ShanmugamandSwaddiwudhipong[13]developedanempiricalformulatopredicttheultimatestrengthofexperimentally testedfiberreinforcedconcretedeepbeamscontainingopenings.Theirresultsshowedthattheultimatestrengthprimarily depends upontheextenttowhichtheopeningintercepts thenatural loadpath.Ashour[14]developeda modelfora mechanismofshearfailureofanalyzedspecimens.Themodelpresentedthata/dratiohasahigherinfluenceontheshear capacitythanthatoftheLe/dratio.
Sahooetal.[15]investigatedtheperformanceoftwoRCandtwosteelfiber-reinforcedconcrete(SFRC)deepbeams withlargeopeningsundermonotonicallyincreasedconcentratedloads.Theboundaryregionsnearthesupportsoftwo studiedspecimens werestrengthenedwith steelcagesformedbysteelreinforcementbars. Theyfoundthatthe RC specimen with strengthened boundariesexhibited a ductile mode of failure and hadsignificantly higher ultimate strengththanthatpredictedbyStrutandTieModels(STMs).TheyfoundalsothattheSFRCspecimenswith1.5%volume fraction of fibers reached much higher strength than the design load and exhibited significant postpeak residual strengthandaductilemodeoffailure.Dohetal.[16]carriedoutaparametricstudyforhighstrengthconcretedeep beamswithvariouswebopeningsconfigurationsusingnonlinear-layeredfiniteelementmethod(LFEM).Theirresults confirmed thatthe current designmethodsare inadequatein predicting the maximumshear strength whenweb openingsarepresent.
Abduljalil [17]carried outanexperimental worktostudyshearresistanceof reinforcedconcretedeepbeamswith openingstrengthenedbyCFRPstrips.HefoundthatexternallyCFRPstripssignificantlyincreasedtheultimateshearcapacity andtheylimitedtheshearcrackwidthofthedeepbeamswithopenings.Adametal.[18]carriedoutexperimentalandfinite elementstudyforself-compactedconcretesoliddeepbeamswithfibers.Theyfoundthatbothverticalandhorizontalweb reinforcementare efficient in shearcapacity enhancementof studiedspecimens. Theyalsofoundthat ultimateshear capacitywasincreasedbyabout47%withincreasingthelongitudinalsteelratiofrom1.0%to2.2%.Hussain[19]developeda finiteelementmodelusingANSYSsoftwarerelease12.0programtostudytheultimateloadandcrackpropagationfor reinforcedNSCspecimensprovidedwithopenings.Hisresultspresentedacceptableagreementwithexperimentalresultsof ultimatebeamcapacity,correspondingmidspandeflection,anddetectedinclinedcracks.
TheuseofLWCstructures,especiallydeepbeams,isincreasingwidely.Thesebeamsareefficientsincetheirultimate strengthcanbecomparabletoNWCcounterpartsatanapproximateweightofonlysixtypercentofthatforNWCdeep beams.Huangetal.[20]studiedexperimentalshearbehavioroffulldimensionLWCsoliddeepbeamspecimens.Their resultsconcludedthatthefailuremodesofLWCbeamsaresimilartothoseofNWCbeams,includingshear-compression failureandshear-tensionfailure.Sathiyamoorthy[21]foundthatshearstrengthofLWCbeamsincreasedwiththedecrease ofa/dratio.HereportedthatLWCbeamsshowedhighernumberofcracksandwidercrackwidthatfailurecomparedtotheir NWCcounterparts.Healsomentionedthattheinternationaldesignbuildingcodes[35,40]areconservativeinpredicting shearstrengthofshear/non-shearreinforcedLWCbeams.Backin1973,KongandSharp[22]studiedtheshearstrengthof
’
i Thelongitudinalsteeldiametern Thenumberofsteellayers
s Thespacingbetweensteellayers
As Theareaofthereinforcement
V Theshearforceatsupport
fsce The effective concrete compressive strength for
strutS
fN1ce EffectiveconcretecompressivestrengthatnodeN1
LWCdeepbeamswithsmallsizeoftheiropeningsandtheydevelopedasemi-empiricalmethodfortheanalysisofdeep beamswithsmallopenings.ItisworthmentioningthatLWCdeepbeamsstudiedinliteratureandmentionedaboveare thosecontaininglightweightaggregates.
Itcan be seen from the review above that further research is needed for accurate prediction of strength and behaviourofLWCdeepbeamscastbypartiallyreplacingcoarseaggregatesbypolystyrenefoamballswithopeningsof large dimensions. The authors of the current investigation started a project in 2015, funded by two Egyptian universities, namely: Ain Shams and October6, to study the LWC deep beams containing polystyrene balls with openings[23,24].Thecurrentstudyinvestigatestheeffectofopeningsize,locationandnumberofopeningsonthe shearbehaviorofbothLWCandNWCdeepbeamssubjectedtoconcentratedloads.Otherstudiedvariablesincludethe transversereinforcementratioanda/dratio.Experimentalworkiscarriedoutandtheoreticalworkincludedprediction of experimentalresults using therational method, Strut-and-Tie Model (STM), andthe more accurateone, three-dimensionalFiniteElementModeling(FEM).STMapproachfollowsFosterandLanGilbert[25]whileFEMisdeveloped usingANSYSpackage(ANSYS13.0)topredicttheresultsandtoevaluateitssensitivitytothestudiedparameters.In addition,aparametricstudyiscarriedouttofurtherstudytheeffectofincreasingthelongitudinalmainreinforcement ratio,theinternalstiffeningoftheopeningperimeterusingadditionalreinforcementontheshearbehaviorofLWCdeep beamswithopenings.Ultimately,recommendationsareintroducedfortheanalysisanddesignofLWCdeepbeamswith openings.
2.Experimentalprogram
2.1.Preparationoftestspecimens
TheprogramincludesthirteenLWCandNWCdeepbeams.Beamsweretestedunderasinglemidspanconcentrated load.Deformedsteel,grade40/60wereusedforlongitudinaltopandbottomreinforcement.Thebottombarsconsisted offourdeformedbarsof16mmdiameterintwolayerswhilethetopreinforcementconsistedoftwobarsof10mm diameter.Thespecimensweredesignedtoensurethatshearfailureoccurs.Adequateanchoragewasprovidedtothe longitudinalbars. Mildsteel,grade 24/35,of 6-mmand8-mmdiameter wasusedas horizontalandvertical shear reinforcement.Additionalprecautionsweretakenatthesupportsbyplacingbearingplates(10010015mm)under theloadpositioninordertopreventlocalfailurebybearing.Specimensweredividedintothreegroupsasindicatedin
Table1.Allthetestedspecimenshadthesamerectangularcross-sectionof80mmwidthand400mmtotalheightas showninFigs.1–2.Mixdesign,ofbothofNWCandLWC,wascarriedouttoachievesimilartargetcubestrengthafter28 days.Lightweightconcrete(LWC)weremadebypartiallyreplacingcoarseaggregatebypolystyrenefoamballs.This resultedinareductionofoverallweightoftheLWCtestbeamsbyapproximately30%comparedtotheircounterpartsof NWCones. Table2 displays themixdesignfor LWCand NWC.Mechanical propertiesof LWC andNWCmixes are recordedinTable3.
BNWC8 1.63 160 6 0.442 1B22
BNWC9 2.08 160 6 0.442 1B22
2.2.Descriptionoftestspecimens
Table1andFig.2showthattheopeningsarrangementswereeithersinglerowofopenings,havingaheightequalsto20% ofthebeamtotalheight;ordoublerowsofopeningshavingaheightequalsto40%ofthebeamtotalheight.Threedifferent locationsoftheopeningsweretested;location1,2and3.Forlocation1,theopeningliesbetweenthefirststirrupatthe supportandthesecondone.Forlocation2,theopeningliesbetweenthesecondstirrupfromthesupportandthethirdone. Regardinglocation3,theopeningliesbetweenthethirdstirrupfromthesupportandthefourthone.Thelocationsofweb openingswereselectedtotestthreedifferentloadflowstothesupport.Spacing(Sv)betweentheverticalwebreinforcement
was100mmand200mm.Threedifferentvaluesofa/dratio;0.97,1.63and2.08,wereconsidered.Thebeamnotation,as indicatedinTable1,includedfourparts.Thefirstpartreferstothenumberofopeningsintheshearspan(1or2)andthe secondpartindicatedthesizeofopening(A=widthxheight=8080mmandB=14080mm).Thethirdpartreferredto thewebreinforcementarrangement(1forSv=100mmand2forSv=200mm)andthefourthpartreferredtothepositionof
theopenings(location1,2and3).
2.3.Loadingandtestprocedure
Specimens wereloadedin increments uptofailure.Specimenswereinstrumented tomeasure theirdeformational behavior.Therecordeddataincludemeasurementsofstraininconcrete,mainsteel,transversereinforcement(stirrups)and longitudinalbars strain;deflection and crackpropagation.The straingaugewas shownin Fig.1.Thedeflectionswere recordedusingthreeLVDT,Fig.3.LVDTwerearrangedtomeasurethedeflectiondistribution.Thecracksweretracedateach increment.
3.Experimentalresultsanddiscussion
Crack pattern and failure modes, deflections, and steel strains for horizontal, vertical stirrups and main bars reinforcementwerenotedforeachofthethirteenspecimensandtherelationshipsareplottedinFigs.4–11.Theultimate loadsanddeflectionsarerecorded,Table4.
3.1.Crackpatternandfailuremodes
Fig.4displaysthecrackpatternswhichwereintermsofflexuralandshearcrackingforallthetestspecimens.Forall specimens,theflexuralcrackwasinitiatedatthecentralofthebeamspan.Flexuralcracksweredistributedastheload increased.ForsolidbeamBLWC1,thetensilecracksinitiatedonthetensionsideofthebeamspan.Thecrackspropagated
upwardwiththeincreaseofloading.Diagonalcrackssuddenlydevelopedattheshearspan.Thecracksweredetected parallel to the compressionstrut. The cracks werespread towards the loadingregion and supports. A typical shear compressionfailureofbeamBLWC1occurredsuddenlybycrushingintheconcretecompressionstrutsresultingalsoinaloud
noise.Finally,suddenshearfailureoccurredinstantlyaftermaindiagonalcracksformedwithinoneortwosideoftheshear spanasshowninFig.4.
Forthestudiedbeamswithsmallopeningsize,BLWC2andBLWC3;thefirstobservedcrackswereflexuralonthetension
sideatthemiddleofthebeamspan.Thesecracksrapidlypropagatedwiththeloadincreasetowardsthelowercornersofthe opening.Withtheincreaseoftheappliedload,sheardiagonalcrackswereinitiatedandextendedfromthesupportplatesto theedgesoftheopenings.Athigherloadingstages,thewidthofthemaindiagonalcrackincreasedasshowninFig.4.For
thesebeams,failureoccurredabovethewebopeningwithinclinedcracksstartingformloadedplatetotheuppercornersof theopening.Alsaeq[26]reportedsimilarobservationsfordeepbeamswithopenings.
Forthespecimenswithlargeopenings,BLWC5andBLWC6,inclinedcracksappearedfirstfromloadingpointtillcornerofthe
upperopeningparalleltothecompressionstrut,andthenfurtherdiagonalcrackswereinitiatedatopeningcorners.Then, crackspropagatedtowardsloadingzoneandsupports.Morediagonalcracksappearedparalleltothestrut,passingthrough theopeningcornersandpropagatedtowardstheloadingregionandthesupportingplates.Threea/dratiowerechosen,the firstratiowas0.97,beamBLWC5,thesecondratiowas1.63,beamBLWC8,andthethirdratiowas2.08,beamsBLWC9.The
developmentofflexuralcrackswasfasterinsampleswithalargevalueofa/dratio;beamsBLWC9andBLWC5(seeFig.4).The
recordedultimatestrengthofspecimenBLWC5testedata/dequals0.97wasmorethanthatofSpecimensBLWC8andBLWC9
by11%and18%,respectively.ReferringtoFigs.4and5,itisclearthatthedimensionsandpositionoftheopeningshave majoreffectsonthecrackpattern,ultimatestrengthandfailureofstudiedspecimens.ThisagreeswiththefindingsofJasim etal.[27]whoreportedinhisexperimentalandtheoreticalstudyofdeepbeamswitha/dratioequals1.1thatthelargeweb openingshaveagreateffectontheshearstrengthofdeepbeams.Itcanbeseenfromtheaboveobservationsthatwhenthe openingsinterrupttheloadpathbetweentheloadingandreactionpoints,thecrackpathchangestoamorecomplexone.Itis worthmentioningthatfailureofalltestedspecimenswasshearfailureasshowninFig.4).
3.2.Crackingloadsandultimateloads
Fig.5displaysthecrackingloadsandultimateloadsofthestudiedspecimens.ItcanbeseenthatthecrackingloadofLWC specimens,BLWC6,BLWC7,BLWC8andBLWC9,arenearlyequaltothecrackingloadofNWCspecimens,BNWC6,BNWC7,BNWC8and Table2
Mixproportions.
Concretetype Cement (kg=m3)
Sand (kg=m3)
Gravel (kg=m3)
w/cratio Super-Plasticizer (liter=m3)
Silicafume (kg=m3)
PolystyreneFoam (liter=m3)
Lightweight 420 630 630 0.30 2.8 40 330
Normalweight 350 630 1260 0.5 – – –
Table3
Mechanicalpropertiesofconcrete.
Concretetype Targetfcu
(N/mm2
)
Cubestrength(N/mm2) Cylindricalcompressivestrength(N/mm2)
28days
7days 28days
LWC 25 19.7 26.3 20.16
NWC 25 17.6 25.6 19.62
BNWC9.Ontheotherhand,ultimateloadsofLWCspecimenswereapproximately90–96%oftheultimateloadsofNWC
counterparts.ThecrackingloadofspecimensBLWC2,BLWC3andBLWC4was70%,65%,and60%ofthecrackingloadsofsolid
specimens.Asfarasthespecimenswithdoublerowsofopeningsofdepth,40%,ofthebeamdepth,theultimateloadsof specimensBLWC6andBLWC7wereapproximately41%and46%oftheultimateloadofthesolidspecimenBLWC1.Generally,
increasingthewidthoftheopeningintheshearzoneledtodropintheultimateloadofthespecimens.Theultimateloadof specimensBLWC6was66%ofthatBLWC4.Itshouldbenotedthatthedimensionsandpositionofthewebopeninghave
significanteffectonthemodeoffailureandultimatestrengthofLWCandNWCdeepbeams.Thepresenceofopeningsinthe shearspanconsiderablyreducedtheultimatestrengthofthespecimens.Similarobservationswerereportedby[2],who
Fig.7. Effectofwideopeningonload-midspandeflectionofspecimens. Fig.5.Crackandultimateloadoftesteddeepbeams.
foundthattheultimateshearstrengthofHSCdeepbeamswithopeningsreducedrapidlywiththepresenceofopeningsin theshearspan.
3.3.Load-midspandeflectionoftestspecimens
Thedeflection atmid-spanwasmeasured andrecordedateachloadincrementduringtestingofeachbeam. Load-deflectionrelationshipsareshowninFigs.6–10foralltestbeams.ItcanbeseenfromFig.6thatforspecimenBLWC1,the
beamsbehavedinatrulyelasticmanneratearlystagesofloading.Inaddition,beamswithsmallwebopenings;BLWC2and
BLWC3showedloaddeflectionbehaviorverysimilartothatofthesolidbeam.Fig.7showsthattheultimateloadofspecimens
decreasedwithincreasingthesizeofopenings.Itwasnoticedalsothatspecimenswithsmallopenings,BLW2,BLW3,andBLW4 Fig.9.Effectofnumberofrowsofopeningsontheload-midspandeflectionofspecimens.
Fig.8.Effectofconcretetypesonload-midspandeflectionofspecimens.
(seeFig.6)havestiffnesshigherthanthosewithlargeopenings,BLW5,BLW6,andBLW7,showninFig.7.Forexample,the
ultimateloadofBLWC2equalsto1.06thatofBLWC3withopeningnearthesupport(seeFig.6).Theeffectofconcretetypeon
themidspandisplacementfordeepbeamswithwebopeningsisshowninFig.8.Itcanbeseenfromthefigurethatthe ultimateloadsandstiffnessofLWCstudiedbeams,BLWC6,BLWC7,BLWC8,BLWC9andtheircounterpartsNWCspecimens,BNWC6,
BNWC7,BNWC8,BNWC9,haveasimilarpattern.Fig.9displaystheinfluenceofopeningsonthereductionofstiffnessofthe
studieddeepbeams.Forexample,theultimateloadsofspecimenswithopeningheightrepresent40%ofthedepthofbeams, BLWC4andBLWC6,wereapproximately75%and63%ofthatofthebeamsofopeningheightequals20%ofthebeamdepth.For
Fig.11.Straininsteelreinforcementofdifferentstudiedspecimens.
Table4
Experimentalandfiniteelementanalysisresults.
Group Beam Experimental NLFEA NLFEA/Experimental
Ultimateload(2Vu)KN Deflectionmm Ultimateload(2Vu)KN Deflectionmm Ultimateloadratio Deflectionratio
1 BLWC1 193.81 1.42 185.00 1.36 0.95 0.96
BLWC2 170.64 2.18 170.00 2.03 1.00 0.93
BLWC3 162.00 2.34 155.00 2.20 0.95 0.94
BLWC4 122.00 1.95 117.00 1.89 0.96 0.97
2 BLWC5 130.89 1.98 119.75 1.92 0.92 0.97
BLWC6 82.00 2.13 73.50 1.81 0.89 0.85
BLWC7 83.00 1.5 75.00 1.49 0.90 0.98
BLWC8 125.00 2.43 120.00 2.37 0.96 0.97
BLWC9 110.25 2.99 110.00 2.87 1.00 0.96
3 BNWC6 70.00 1.56 66.80 1.55 0.95 0.99
BNWC7 75.00 1.29 70.00 1.34 0.93 1.04
BNWC8 120.45 2.66 120.00 2.02 1.00 0.75
BNWC9 110.66 2.96 107.26 2.81 0.97 0.95
BLWC6withlargeopening(openingsizenotation,2B22),themidspandeflectionwashigherthanthatofBLWC4withopening
sizenotation,2A12,andBLWC5withopeningsizenotation,1B22.ThisagreeswiththefindingsofIbrahimetal.[28]who
reportedtherelationshipbetweenopeningdimensions,position,thestiffnessandultimatecapacity.Fig.10showsthatthe reductionintheultimateloadofthestudiedspecimenwas16%withincreasinga/dratiofrom0.97to2.08.
3.4.Steelstrains
Straingaugeswereattachedtothetensilesteelreinforcementofspecimenstoexaminethedisparityofstraininbottom reinforcement.Thesegaugeswereattachedatmid-spanofspecimens.Fig.11 displaysatypicalmeasuredstrainofthe specimens.Thestraindeviationintensilereinforcementwasnearlycomparableforalltestbeams.Thedevelopmentofa tie-actionwasdetectedandthestrainincreasedrapidlyinthelocalityofthefirstcrack.Finally,thestrainswereincreasedat almostconstantloadingleveluntilthefailureoccurred.Themaximumstraininflexuralreinforcementwaslessthanthatof
Fig.14.Stress-straincurveforconcrete[30].
theyieldstrainvalue.Themeasuredstrainswererangedfrom25%to50%ofyieldstrainofthelongitudinalreinforcement. Therecordedstrainintensionbarsshowedthatthetensionfailurewasprotectedforallofthespecimenstopermitforshear failuremode.Themaximumrecordedstraininlongitudinalbarswas0.0009forSpecimenBLWC8(seeFig.11).Similar
load-tensilesteelreinforcementstrainwasobservedbyIbrahimetal.[28].Fig. 11showsalsothatthestraininverticalstirrupswas recordedatthecriticalshearlocations.Priortotheoccurrenceofthefirstcrack,theinternalshearresistancewasprovidedby thebeamsection.Oncethediagonalcracksoccurred,strainsoftheverticalstirrupswererecorded,representingshear resistancerolebytheverticalstirrups.Themaximumstraininverticalstirrupswasapproximately0.002forSpecimenBLWC9.
Theyieldingofverticalstirrupsoccurredbeforefailureofdeepbeams.Themaximumhorizontalstirrups’strainwas0.00046 forSpecimenBLWC7asshowninFig.11.
4.Finiteelementmodellingofdeepbeams
Theexperimentallytestedthirteenspecimenswerenumericallymodeledusing[29]),packagetopredicttheirresults versustheexperimentalresultsforthemainstudiedparameters,dimensionandpositionofopening,thedesignconcrete compressivestrength,thetransversereinforcementratio,anda/dratio.Detailsofthefiniteelementmodelling,predictions oftheresultsusingthetestedmodelarereportedanddiscussedinthefollowingsections.
4.1.Elementtypes,materialpropertiesandconstitutivemodels
Concreteandsteelarethetwomainmaterialsusedinthenumericalanalysisofthedeepbeaminwhichtheirproperties andconstitutivemodelsarepresented.ThesolidelementusedinthisstudywasSolid65whichisoneoftheelementsin ANSYSprogramtomodelthethree-dimensionalbehaviorofconcrete.Solid65wasassumedtomodeltheconcreteasitis capableofcrackingintensionandcrushingincompression.Thegeometricalcharacteristicsofthe3-DSolid65elementare showninFig.12.Theelementisdefinedbyeightnodesandeachnodehasthreedegreesoffreedom.Theflexuralandshear reinforcementinthetestedbeamswereidealizedusingtheLink8elementasshowninFig.13.Theaxialstressisassumedto beuniformovertheentireelement.Fullbondwasassumedbetweenconcreteandreinforcingsteel.Bothlinearand non-linearbehaviorsoftheconcretewereconsidered.Forthelinearstage,theconcreteisassumedtobeanisotropicmaterialup tocracking.Forthenon-linearsegment,theconcretemayundergoplasticity.Thenumericalsolutionschemeadoptedfor non-linearanalysiswasanincrementalloadprocedurebasedontheiterativesolutionusingNewton-Raphsonmethod.The convergencecriterioncurrentlyusedwasbasedontheiterativenodaldisplacementwhereonlytransitionaldegreesof freedomwereconsidered.
4.1.1.Constitutivemodelingforconcrete
TheconcretematerialmodelassignedforSolid65elementusedthroughoutthisstudyischaracterizedbyitscapabilityto predictthefailureofbrittlematerials.Bothcrackingandcrushingfailuremodesareaccountedfor.Thecriterionforfailureof concreteduetoamulti-axialstressstatecanbeexpressedintheform:
F
fcS0 ð1Þ
Tomodelconcretebehavior,nonlinearstress-straincurveswereusedincompressionandtension[30].Suchmodels accountfor compression&tensionsoftening,tensionstiffening andsheartransfermechanismsincracked concreteas presentedinFig.14.
4.1.2.Constitutivemodelingforsteel
Theaveragestress-straincurvedevelopedearlierbySoroushianandLee[31]forsteelbarsembeddedinconcreteisused inthecurrentresearch(seeFig.15).Thestress-strainrelationshipisexpressedbytwostraightlinesasfollows:
For
e
se
n:fs¼Es
e
s ð2Þandfor
e
se
n:fs¼fy ð0:912BÞþ 0:02þ0:25B
e
se
y
ð3Þ
Where
e
n¼e
yð0:932BÞ.AndtheparameterBisgivenasfcr=fy1:5=r. Therecommendedvalueoffcrisgivenas:
fcr¼0:31
ffiffiffiffiffi
f=c
q
4.2.1.Predictionofcrackpatternsandfailuremode
Fig.18showsacomparisonbetweenfiniteelementpredictionandexperimentallyobservedcrackpatternsforselective specimens,whichwerepreviouslyintroducedinFig.5.Inaddition,Table4showsthepredictedvaluesfortheultimateloads andcorrespondingdeflectionforthestudiedbeams.ItcanbeseenfromFig.18 thatthecrackpatternsfordeepbeams predictedbyfiniteelementmodelareingoodagreementwiththeexperimentallyobservedones.Atapproximately43%of theultimateloadofcapacityofspecimens,arapidmaininclinedtensioncrackformednearlyinthemiddlepartoftheshear span.Inaddition,inclinedcracksspreadtothebeamsupport.Forbeamswithopenings,thecracksspreadaboveopeningsto thepointload.Thenthecrackextendeddownfromtheopeningstosupports.Finally,failureoccurredinopeningregion. Compressionstresseswereconcentratedalongtheloadpath.Thetensilestresseswereeliminatedinthefiniteelement analysisgeneratingcracksinconcreteandtheywererelocatedtosteelcrossingthisregion.Thestressleveldependsmostly onthedimensionandpositionoftheopening.Inaddition,theconcretestrengthhasagreatereffectwithadecreasinga/d ratio.Thehighercompressivestressesoccurredatnodalzones,whilstareductioninthecompressivestressesoccurredinthe inclinedstrutslinkingthepointsloadandsupports.Thisreductionisduetotheopeningintheloadpath.Fig.19displaysthe deformedshapeandverticaldisplacementbeforefailureforselectedbeams.Theabovecomparisonshowsalsothatthe ultimateloadofLWCisslightlyhigherthanthatofNWCandthismaybeattributedtothefactthatactualconcretecube strengthforLWCspecimenswasslightlyhigherthanthatofNWCcompanionsinthisstudy.
4.2.2.PredictionofLoad-deflectionrelations
Fig. 20shows comparisons between experimental load-deflection relationships and those predicted numerically. In addition,Table4 showscomparisonsbetweenexperimentalandnumericalresultsforultimateloadsandcorresponding
deflection.Fig.20andTable4revealthatthereisaverygoodagreementbetweenthenumericalandtheexperimentaltest results.Theratioofthepredictedultimateloadstotheexperimentalonesforthetesteddeepbeamsrangedbetween0.89-1.0.
4.2.3.Parametricstudy(Effectofinteriorstrengthening)
Aparametricstudywascarriedoutbyaddingmoreparameters,otherthanthoseusedintheexperimentalstudyinthis research,toexaminetheperformanceofLWCdeepbeamswithopeningshavingdifferentconfigurations.Theextrastudied parametersreportedinTable5werechangingthebottom(tensile)reinforcementratioforsoliddeepbeamsandthosewith openings,addingtopandbottomreinforcementadjacenttotheedgesoftheopening,addingrightandleftreinforcement
adjacenttotheopeningedges,andaddingreinforcementatallsidesoftheopening.Itisworthmentioningthattheopening notationisthesameasthatforexperimentallytestedbeamsinTable1.Fig.21ashowsthenumericalload-deflectionforsolid deepbeamspecimenswithdifferentbottomreinforcement.Itcanbeseenfromthefigurethattheincreaseoflongitudinal bottomreinforcementledtoareasonableincreaseintheultimatecapacity.Forexample,SpecimenDA3ofhighertensile reinforcementratioof0.54%(4Ø22bottomreinforcement)exhibitedmoreductilebehaviorcomparedtothatofspecimen DA1of0.16%tensilereinforcementratio(4Ø12bottomreinforcement).TheincreaseinultimateloadofspecimensDA3was approximately18%.ThesamechangeinbottomreinforcementwasappliedtoSpecimens,DC1,DC2,andDC3asindicatedin
Table5.Fig.21bshowstheload-deflectionrelationshipsforthosespecimens.Thetensilesteelreinforcementhasaprofound effectonthepost-peakresponseoftheseLWCspecimens.Themaximumincreaseintheultimateloadwas11%asthetensile reinforcementratioincreasedfrom0.16%(4Ø12)to0.54%(4Ø22).
Fig.21cshowsthat,SpecimensDK2andDK3,providedwithadditionalsteelreinforcementaboveandbelowopening, exhibitedmoreductilebehaviorcomparedtothatofSpecimenDC2,whichhadnoadditionalreinforcement.Theincreasein ultimate load of Specimens DK2 and DK3 was approximately 9 % and 15 %, respectively. Adding 2Ø16 additional reinforcementforSpecimenDK3aboveandbelowtheopeningledtoanincreaseintheultimatedeflectionby30%overthat ofSpecimenDC2,whichhasnoadditionalreinforcementaroundedgesoftheopening. Fig.21dshowsloaddeflection relationshipsforspecimenswithadditionalverticalbarsleftandrighttheopening.Theenhancementintheultimateload was13%and23%,forSpecimensDR2andDR3overthatofSpecimenDC2,whichhasnoadditionalreinforcement.Fig.21e showstheload-deflectionrelationshipsforspecimensprovidedwithadditionalreinforcementatallsides.Itcanbeseen fromthefigurethattheloadcarryingcapacityincreaseswithincreasingadditionreinforcementaroundallsideofthe opening.Forexample,theincreaseintheultimateloadandcorrespondingultimatedeflectionforSpecimenDY2were18% and12%,comparedtothose ofSpecimenDC2,whichhasnoadditionalreinforcement.Inaddition,theincreaseinthe ultimateloadandcorrespondingultimatedeflectionofSpecimenDY3were30%and28%overthoseofSpecimenDC2,which hasnoadditionalreinforcement.Theparametricresultsshowedthataddingadditionalreinforcementaroundtheopenings couldbeconsideredasinternalstiffeningofthebeamsaroundopenings.
5.Rationalpredictionofresults(Strut-andTie-modelling)
MostofStrut-and-tiemodels(STM)forsimpledeepbeamswithopeningsinliteraturearebasedonexperimentalresults forcrackpatternsandmodesoffailure[32–36].Inthecurrentresearch,theSTMwasappliedtothestudiedspecimens similartotheanalysiscarriedoutearlierbyFosterandLanGilbert[25];[34];El-Demerdashetal.[36]whohadsingle midspanloading(TypeI)whichissimilartotheappliedloadsinthecurrentresearch.Fig.22showsasimpledeepbeamwith asingletoppointloadatitsmid-spanalongwiththeproposedStrut-and-Tiemodel(Fig.22a).Themodelhastwoconcrete struts,S,onetensiontieT,andthreenodesN1andN2(Figs.22bandc).Theloadtransferreddirectlyfrompointloadto supportthroughtheconcrete,S(Fig.22c).Thestepsforsolvingthebeamsbythenumericalprocedureforoneconcentrated pointLoadsisdetailedasfollows:
(a)Inputdata
Thetermsofbeamsize(h,b,b1,andb2),(a/d),andtheusedconcreteandreinforcementstrength(f0c,andfy)areknown
asinputdata.
(a)TheinternalleverarmLd
a1¼2ðcþ
fstr
ÞþXn
i¼1
fi
þs ð5Þ
Thus
Ld¼h0:50ða1þa2Þ ð6Þ
Anda2=0.80a1
(a)InclinationofstrutS
a
¼tan1Lda ð7Þ
(a)StrutwidthsW1avandW2:
FromthedetailsofnodeN1,showninFig.22c,W11maybeobtainedfrom:
W11¼a1cos
a
þb1sina
ð8Þfromequilibriumoftrussforces,
T=Scos(a) (9)
Atnode1
T=0.80fca1b (10)
Wherethevalue(0.80),representstheeffectivenessfactorofthenodalzone(
n
n)[25]atnodeN2:Scos
a
¼1:0fca2b ð11ÞWherethevalue(1.0),representstheeffectivenessfactorofthenodalzone(
n
). a2=0.8a1Also,fromthegeometryofnodeN2,W12isgivenby:
W12¼a2cos
a
þb2
2sin
a
ð12ÞW1av¼W11þ2W12 ð13Þ
DR2 1A12 4Ø16 2Ø10 – 2Ø12
DR3 1A12 4Ø16 2Ø10 – 2Ø16
DY2 1A12 4Ø16 2Ø10 2Ø12 2Ø12
(a)Trussforces
Assumingthatthesteelbarsreachtheiryieldstrength(fs=fy),thecompressiveandtensileforcesinthetrussmembers
areasfollows:
T=Asfy (14)
V=Ssinα (15)
(a)Checkofthestresslimits
-Concretestruts:
Theeffectiveconcretecompressivestrengthintheconcretestrutscanbeobtainedfrom:
fce¼vs
f
f0
c ð16Þ
Wherethevaluesofeffectivenessfactor(
n
s)forstrutsS1andS2arechosen[25],thencheckifSfsceW1avb ð17Þ
-Nodes:
Theeffectiveconcretecompressivestrengthinthenodalzonescanbeobtainedfrom:
fce¼vn
f
f0
c ð18Þ
Wherethevaluesofeffectivenessfactor(
n
n)fornodesN1andN2arechosen[25].CheckthefollowingconditionsatnodeN1:
SfNce1W11b ð19Þ
VfNce1b1b ð20Þ
TfNce1a1b ð21Þ
SfNce2W12b ð22Þ
PfNce2b2b ð23Þ
Iftheabove-mentionedchecksaresatisfied,therequiredultimateshearcapacitycanbeobtained.
Theproposed(STMs)fortesteddeepbeamsareplottedinFig.23wherethedottedlinesindicatethecompression memberswhilecontinuouslinesindicatethetensionmembers.Alltheexperimentallytestedbeamsweresolvedusing STMapproachusingthestepsintheaboveequationsandthemodelsfortestedbeamsaredetailedinFig.23.Results obtainedbytheSTMarerecordedinTable6.ItcanbeseenfromTable6thattheSTMunderestimatestheshearofthe studiedbeamscomparedtoexperimentalresultsfordifferenttestedbeams.Inaddition,theexperimentalresultswerein acceptableagreementwiththoseobtainedusingSTMinmostcases.Moreover,comparingtheresultsinTable4withthose inTable6showsthatthefiniteelementresultsaremoreaccuratethanthoseobtainedbySTM.However,theSTMcanbe usedasarationalapproachfortheanalysisofLWCdeepbeamswithopeningswhichcontainpolystyreneballsascoarse aggregates.
6.Conclusions
Thispapercoversthegapintheliteraturesinceitcontainsmorestudiedvariablessuchaspartialreplacementofcoarse aggregatebypolystyrenefoamballs,thenumberofopenings,webreinforcementratioandpositioningtheopeningsinshear zone.Theauthorscarriedoutexperimentalwork,finiteelementtechnique,andrationalSTMapproachinthisresearchto studytheshearbehaviorofstudiedbeamssubjectedtosinglemidspanconcentratedloads.Thefollowingconclusionscanbe drawnfromthisstudy:
1Theoverallweightofdeepbeamscontainingpolystyrenefoamballsaspartialreplacementofcoarseaggregatewasless thantheircounterpartsofNWCdeepbeamsbyapproximately30%whiletheirshearbehaviorandmodeoffailurewere almostsimilartotheircounterpartsofNWCones.Thisisveryinterestingandpromisingtobuildlighterdeepbeamswith efficientstructuralbehaviour.
2Shearspan-to-depthratio(a/d)hasaconsiderableeffectonthecrackingandtheultimateshearstrengthofdeepbeams withopenings.Thedevelopmentofinitialflexuralcrackswasmorerapidinspecimenswithalargervalueofshear-span-to depthratio.Increasinga/dratiofrom0.97to2.08ledtoreductionofthecrackingandtheultimateshearstrengthsby approximately50%and12%,respectively.
3Thepresenceofopeningsintheshearspanconsiderablyreducedtheultimatestrengthofthespecimens.Sizeoftheweb openingshasamajorimpactonthefailuremodeandultimateshearstrengthofreinforcedLWCdeepbeams.Increasing thedepthoftheopeningfrom20%to40%ofthetotalbeamdepthledtoreductionintheultimateloadby28%and46.4% comparedtothatofsimilarsoliddeepbeams.
4Locatingtheopeninginmidshearspanzoneleadstoahighreductioninshearstrength.Increasingthewidthofthe openingintheshearzoneledtoreductionoftheultimateloadofthespecimensupto66%.
5Applicationoffiniteelementmodellingtotestbeams,yieldedverygoodpredictionofload-carryingcapacities,cracking patternandload-deflectionrelationships.
6Theparametricstudycarriedoutbyfiniteelementshowed thatincreasingtensilesteelreinforcementratio(bottom reinforcement)ledtoanincreaseoftheultimateshearcapacityandultimatedisplacement.Inaddition,internalstiffening ofthebeamsaroundopeningsincreasedtheshearcapacityandthedisplacementductility.Theenhancementofshear capacitywasapproximatelyupto30%.
7Prediction of experimental results using strut-and-tie model was carried out successfully and the agreementwas acceptableinmostcasesbutthefiniteelementresultsweremoreaccuratethanthoseobtainedbySTM.However,theSTM canbeusedasarationalapproachfortheanalysisofLWCdeepbeamswithopeningswhichcontainpolystyreneballsas coarseaggregates.
8Basedontheresultsofthisresearch,itisrecommendedthatthedepthofopeningshouldnotexceed20%ofthedeepbeam depth.Ifthedepthofopeningismorethanthatorliesintheshearspanitishighlyrecommendedforstrengtheningthe openinginternallybyadditionalreinforcementaroundperimeteroftheopening.
DeclarationofCompetingInterest
Thisistodeclarethatalltheauthorshavenoconflictofinterest.
Acknowledgement
October6Universitiesisacknowledgedforfundingthisresearchproject.Theexperimentalworkwascarriedoutinthe reinforcedconcretelaboratoryatAinShamsUniversity.Techniciansandstaffareacknowledgedfortheirvaluableassistance.
References
[1]I.G.Shaaban,Structuralbehaviourofreinforcedconcretedeepbeamswithandwithoutopenings,Civ.Eng.Res.Mag.(CERM)21(4)(1999)879–899 Al-AzharUniversity,Cairo,Egypt.
[2]K.-H.Yang,H.-C.Eun,H.-S.Chung,Theinfluenceofwebopeningsonthestructuralbehaviourofreinforcedhigh-strengthconcretedeepbeams,Eng. Struct.28(13)(2006)1825–1834.
[3]M.Haque,Rasheeduzzafar,A.H.Al-Tayyib,Stressdistributionindeepbeamswithwebopenings,J.Struct.Eng.112(5)(1986)1147–1165. [4]T.ElMaaddawy,S.Sherif,FRPcompositesforshearstrengtheningofreinforcedconcretedeepbeamswithopenings,Compos.Struct.89(1)(2009)60–
69.
[5]S.Amiri,R.Masoudnia,M.A.Ameri,AreviewofdesignspecificationsofopeninginthewebforsimplysupportedRCbeams,J.Civ.Eng.Constr.Technol.2 (April(4))(2011)82–89.http://www.academicjournals.org/jcect.
[6]A.Ahmed,M.M.Fayyadh,S.Naganathan,K.Nasharuddin,Reinforcedconcretebeamswithwebopenings:astateoftheartreview,Mater.Des.40(2012) 90–102,doi:http://dx.doi.org/10.1016/j.matdes.2012.03.001.
[7]F.B.A.Beshara,I.G.Shaaban,T.S.Mustafa,Strut-and-TiemodellingofR.C.continuousdeepbeams,ASEC2015ConferenceinAlgeria,12-15December 2015(2015).
[8]J.L.Lafta,K.Ye,Specificationofdeepbeamsaffecttheshearstrengthcap,Civ.Environ.Res.8(2)(2016)2016.ISSN2224-5790(Paper)ISSN2225-0514 (Online)www.iiste.org.
[20]C.H.Huang,L.H.Chen,Y.C.Kan,C.H.Wu,T.Yen,ShearBehaviorofFullSizeReinforcedLightweightConcreteBeam,DahanInstituteofTechnology, Hualien,Taiwan,2011.
[21]K.Sathiyamoorthy,ShearandFlexuralBehaviourofLightweightSelf-ConsolidatingConcreteBeams,APhDThesisPresentedtoRyersonUniversityIn PartialFulfillmentoftheRequirementsfortheDegreeofMasterofAppliedScienceIntheProgramofCivilEngineeringToronto,Ontario,Canada,2016. [22]F.Kong,G.Sharp,Shearstrengthoflightweightreinforcedconcretedeepbeamswithwebopenings,Struct.Eng.51(8)(1973)267–275. [23]M.Ramadan,“ExperimentalStudyofBehaviorofReinforcedLightweightConcreteDeepBeamsWithWebOpenings”,MSc.Thesis,AinShams
University,2017115pp..
[24]G.AbdElhameed,“AnalyticalStudyforBehaviorofReinforcedLightweightConcreteDeepBeamsWithandWithoutWebOpenings”,MScThesis,Ain ShamsUniversity,Egypt,2018140pp..
[25]J.S.Foster,R.LanGilbert,ExperimentalStudiesonHigh-StrengthConcreteDeepBeams,ACIStruct.J.95(July(4))(1998)382–390.
[26]H.M.Alsaeq,EffectsofopeningshapeandlocationonthestructuralstrengthofR.C.Deepbeamswithopenings,WorldAcad.Sci.Eng.Technol.Int.J.Civ. Environ.Struct.Construct.Architect.Eng.7(6)(2013)494–499.
[27]W.A.Jasim,A.Allawi,N.K.Oukaili,Effectofsizeandlocationofsquarewebopeningsontheentirebehaviorofreinforcedconcretedeepbeams,Civ.Eng. J.5(1)(2019)209–226.
[28]M.A.Ibrahim,A.ElThakeb,A.A.Mostafa,H.A.Kottb,Experimentalstudyofnewreinforcementdetailsforreinforcedconcretedeepbeamswithshear opening,Al-AzharUniv.Civ.Eng.Res.Mag.(CERM)40(1)(2018)347–367.
[29]ANSYS13.0,CoupledStructural/ThermalAnalysis,(ANSYSTutorials)Copyright2010by,UniversityofAlberta,2010.
[30]E.Montoya,F.J.Vecchio,S.A.Sheikh,Compressionfieldmodelingofconfinedconcrete,Struct.Eng.Mech123(2001)231–248.
[31]P.Soroushian,C.D.Lee,‘Constitutivemodelingofsteelfiberreinforcedconcreteunderdirecttensionandcompression’,fiberreinforcedcementsand concrete:recentdevelopments,ProceedingsofInternationalConference,Cardiff,UK,1989,pp.363–377.
[32]P.Marti,Trussmodelsindetailing,Concr.Int.7(12)(1985)66–73.
[33]K.H.Tan,K.Tong,C.Y.Tang,Consistentstrut-and-tiemodelofdeepbeamswithwebopenings,Mag.Concr.Res.55(1)(2003)65–75.
[34]M.F.Elazab,“BehaviorofReinforcedHighStrengthConcreteDeepBeamsWithWebOpenings”,MSc.Thesis,MansouraUniversity,2007169pp.. [35]ACICommittee318,BuildingCodeRequirementsforReinforcedConcreteandCommentary(ACI318-14),AmericanConcreteInstitute,Farmington,
Hills,MI,2014.
[36]W.E.El-Demerdash,S.E.El-Metwally,M.E.El-Zoughiby,A.A.Ghaleb,BehaviorofRCshallowanddeepbeamswithopeningsviatheStrut-and-Tiemodel methodandnonlinearfiniteelement,Arab.J.Sci.Eng.(2015),doi:http://dx.doi.org/10.1007/s13369-015-1678-xISSN1319-8025.
