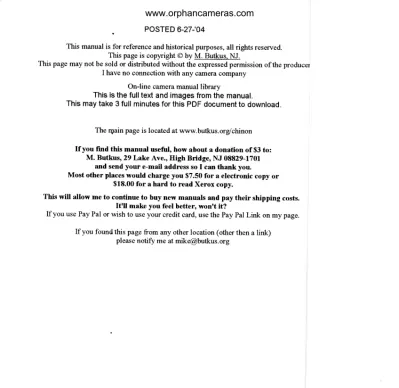

(1)www.orphancameras.com .. POSTED 6-27-' 04. This manual is for reference and historical purposes, all rights reserved. This page is copyright @ by M. Butkus. NJ. This page may not be sold or distributed without the expressedpermission ofthe producer I have no connection with any camera company On-line camera manual library This is the fulltext and images from the manual. This may take 3 full minutes for this PDF document to download.. The r4ain page is located at www.butkus.org/chinon If you find this manual useful, how about a donation of $3 to: M. Butkus, 29 La,ke Ave., High Bridge, NJ 08829-1701 and send your e-mail address so I can thank you. Most other places would charge you $7.50 for a electronic copy or $18.00 for a hard to read Xerox copy. This will allow me to continue to buy new manuals and pay their shipping costs. Itrll make you feel better, wontt it? If you use Pay Pal or wish to use your credit card, use the Pay pal Link on my page. Ifyou found this page from any other location (other then a link) please notify me at [email protected].

(2) www.orphancameras.com . . . and for showing your slides at their best, of course a Voigtliinder proiector. Whether semi-automatic or fully automatic with remote control, all miniature slide projectors of the Voigtldnder Perkeo series live up entirely to the quality and ease of operation of the Voigtldinder came.ras.. bessy s 28x28mm. Bo 1 1 0 0 -91 3 A/ 1 0 6 6. Subjectto modification Printed in West Germany. I N S T R U C T I O NFSO R U S E.

(3) www.orphancameras.com. @. bessy s. Miniature camera for Kodapak cartridges 28x28 mm and for use with flash cubes. Settingring for subjectdistance Symbols f o r d i s t a n c es e t t i n g s r i i : p o r t r a i t s ,g r o u p s , f l a s h 1A : landscapes Shutter setting key X :1/200th second :1/30th second , 4 Shutter release for exposure q Circular socket f o r f l a s hc u b e o Bright-frame viewf inder with fixed parallaxc o m p e n s a t i n gm a r k s Film-transportwheel Screw socket f o r c a b l e r e l e a s eo r delayedaction device Lock f o r o p e n i n ga n d c l o s i n go f cameraback ,IA Indicator window f o r f r a m e c o u n t e ra n d f i l m type t l Arrow marking for removalof base plate 12 Tripod socket.

(4) F o r i n s t a n tl o a d i n g of film into the camera . . .. www.orphancameras.com Photographyis so very easy with the bessy s. Open camera back Push lock (9) u p w a r d s ,a n d t h e cameraback w i l l s p r i n go p e n .. Distance There are two distinct distance settings: For photographyat close range (portraits,groups and flash) set the setting ring (1) to the iymbol iii, and for distant shots (landscapes) to the symbol -{A. Bright-frame viewf inder.. Insert Kodapak cartridge .. . as shownin the i l l u s t r a t i o nT. h e n push camera-back homeuntilit l o c k sc l o s e d .. Turn film-transport wheel until it comes to a stop " 1" Thenumber will now be visible in the indicator window, and you are ready to e x p o s et h e f i l m . Turn the film t r a n s p o r tw h e e l againafter each e x p o s u r e ,a s I a r as it will go. Having made the last exposure . . . continue to turn the film transport wheel (7) until the yellow paper trailer on the film has passed t h e i n d i c a t o r w i n d o w ( 1 0 ) .T h e n o p e n c a m e r a a n d remove Kodapak cartridge.. The bright frame in the viewfinder (6) clearly i n d i c a t e st h e i m a g e a r e a y o u w i l l g e t o n t h e f i l m . The four short lines represent the parallax compensation, in both vertical and horizontal directions, when working at a close range (i. e. portraits, groups, flash). Do not come closer to your s u b j e c tt h a n 1 . 5 m e t e r s .. The flash symbol will appear in the lower right-hand corner of the viewf inder only when the shutter setting key (3) has been set to t/30th second (see "Flash Photography" on next page.. a--l !. l. L__),. Shooting in sunlight Set the shutter setting key (3) to the symbol X. Depress the shutter release (4) gently (do not jerk). . . and your exposure is made. The exposure will be 1/200th second at a fixed aperture of fl8. P l e a s en o t e : l f y o u s e t t h e s h u t t e rs e t t i n g k e y t o t h e f l a s h s y m b o l( s e e " F l a s h P h o t o g r a p h yo"n next page), the shutter will operate at 1 / 3 0 tshe c o n dT. h i s i n c r e a s e de x p o s u r et i m e i s t o b e r e c o m m e n d eudn d e r ' d u l l .o v e r cast conditicns..

(5) www.orphancameras.com W. Flash Photography. . . . simple and rapid with flash cubes All the flash cubes on the market can be fitted into the circular socket (5), (see illustration on front page). After making the exposure and permitting the shutter release (4) to return to its normal position, the flash cube automatically rotates to bring the next bulb into the firing position. Do not attempt to rotate the flash cube forcefully (bV hand) in its socket, as this will damagethe base of the cube, so that it will no longer be held securily in the socket on the camera, When all four lamps have been fired, pull the flash cube from the circular socket and replace it with a new one. Shutter setting: Set the shutter setting key (3) to the symbol I . This sets the shutter to 1/30th second, and at the same time the flash symbol appears in the lower right-hand corner of the v i e w fi n d e r . Do not attempt to use flash while the shutter setting key is set to the sun symbol.While the flash cube would fire perfectly at this setting, the short exposuretime of 1/200thsecondwould lead to incorrectflash exposure. Satisfactory distance zones for flash:. 1eDrN(64ASA) c o l o u rr e v e r s afli l m 19DrN(64ASA) c o l o u rn e g a t i v ef i l m . 22 DrN(12sASA) film . black-and-white 23 DrN(160ASA) c o l o u rr e v e r s afli l m. f r o m 2 . 5t o 4. meters.. from2. t o 4 . 5m e t e r s .. from3. to7. meters.. f r o m 3 . 5t o 6 . 5 m e t e r s .. Service. There are official Voigtltinder service agencies throughout the world. Wherever you might be, qualified , just in case technicians are ready to serve you your camera presents you with some kind of problem. Please consult only a Voigtliinder branch or one of the authorised Voigtliinder service agencies. V o i g t li i n d e r - K u n d e n d i e n s t 3 Hannover, UhlemeyerstralJe5, Tel. 29643 V o i o t lt i n d e r - K u n d e n d i e n s t 6 Fiankfurt/Main, Mainzer Landstr. 241, Te|.338547/48 V o i g t l d n d e r - K u n d e n ide n s t 5 K i i f n , T h e o d o r - H e u s s - R i n g1 0 , T e l . 7 3 3 6 2 8 Vo i gtl tinder-Kundendi enst 8 Miinchen 2, Marsstral3e21, Te|.552665/6 F i r m a M a r l a n d G e s e l l s c h a f t ,M a r l o w & C o . o H G . 1 Berlin-Friedenau, Handjerystral'Je18, Tel. 832891 Firma Arthur Schubert. Werksttitten ftir Feinmechanik 4 Diisseldorf, Weiherstralle 10, Tel. 23575 Firma Ludwig Lanckow Nachf. GmbH. Werkstatt fLir Feinmechanik 2 Hamburg 36, ABC-StralJe 59, Tel. 34 87 93 Firma Eberhard Haustein. Werkstatt ftir Feinmechanik 7 Stuttgart-W, Ludwigstralle 6, Tel. 63989. Attraco S. A. Atlantic Trading Comp. 294 Rue Royale Br0ssel Vertragswerkstatt: Pierre Lauwers 3l Welvaartstraat Antwerpen Firma Georg Rauh F i n s e n s v e j8 0 Kopenhagen F Vertragswerkstatt: Fa. Carl Kvelland l. G. SmithsAllee 11 Kopenhagen-Hvidovre J o h n s o n so f H e n d o n L t d . 970, North Circular Fld. London NW 2. Battery: The power for the capacitor ignition is provided by a 15 Volt battery. To insert the battery, push the base plate in the direction of the arrow marking (11) and then lift off the plate at the end o p p o s i t e t h e a r r o w .T h e p o s i t i v e p o l e o f t h e b a t t e r y must engage with the spring catch.. Ze iss I kon-Voigtl tinder Nederland N. V. H e e m r a a d s i n g e6 l 4 Rotterdam Gerh. Ludvigsen A/S R a d h u s g a t e nI Oslo Zeiss lkon-Voigtliinder VertriebsgeselI schaft mbH. R o o s e v e l t p l a t z2 Wien lX Zeiss lkon-Voigtliinder Svenska AB B o x 1 0 5 2 ,S o l n a I Solna. Voigtliinder France 34 rue de I'Universit6 Paris 7e. Voigtliinder-Zeiss lkon AG Manessestrasse 170 Zirich. Zeiss I kon-Voigtliinder ITALIA S. P. A. Vra Andrea Costa 31 Milano. Negra Industrial S. A. Mallorca480 Mallorcastr.464 Barcelona 13.
