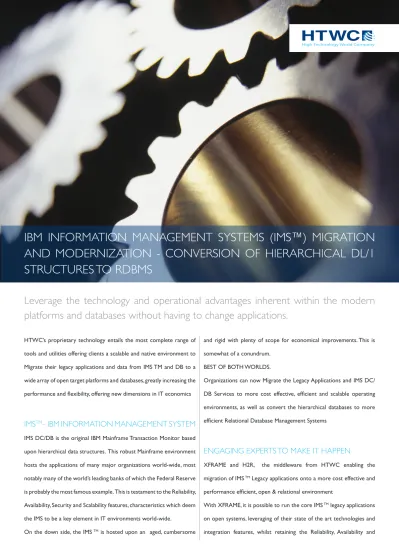

IBM INFORMATION MANAGEMENT SYSTEMS (IMS™) MIGRATION
AND MODERNIZATION - CONVERSION OF HIERARCHICAL DL/1
STRUCTURES TO RDBMS
Leverage the technology and operational advantages inherent within the modern
platforms and databases without having to change applications.
HTWC’s proprietary technology entails the most complete range of tools and utilities offering clients a scalable and native environment to Migrate their legacy applications and data from IMS TM and DB to a wide array of open target platforms and databases, greatly increasing the performance and flexibility, offering new dimensions in IT economics
IMS
TM– IBM INFORMATION MANAGEMENT SYSTEM
IMS DC/DB is the original IBM Mainframe Transaction Monitor based upon hierarchical data structures. This robust Mainframe environment hosts the applications of many major organizations world-wide, most notably many of the world’s leading banks of which the Federal Reserve is probably the most famous example. This is testament to the Reliability, Availability, Security and Scalability features, characteristics which deem the IMS to be a key element in IT environments world-wide.
On the down side, the IMS TM is hosted upon an aged, cumbersome
and rigid with plenty of scope for economical improvements. This is somewhat of a conundrum.
BEST OF BOTH WORLDS.
Organizations can now Migrate the Legacy Applications and IMS DC/ DB Services to more cost effective, efficient and scalable operating environments, as well as convert the hierarchical databases to more efficient Relational Database Management Systems
ENGAGING EXPERTS TO MAKE IT HAPPEN
XFRAME and H2R, the middleware from HTWC enabling the migration of IMS TM Legacy applications onto a more cost effective and
performance efficient, open & relational environment
With XFRAME, it is possible to run the core IMS TM legacy applications
on open systems, leveraging of their state of the art technologies and integration features, whilst retaining the Reliability, Availability and
Servicability characteristics of the IMS environment.
In essence, the XFRAME suite, replicates the functionality of IMSTM,
enabling the seamless integration of legacy applications and data into the new environment without any changes to underlying logic, communication or processes. It contains a transaction server to execute IMS TM and a complete batch environment.
XFRAME supports the most important compilers for COBOL, PL/I and C as well as many standard middleware solutions such as, IBM WebSphere, MQ and LDAP servers. Through its Extended Architecture (XA) interface, XFRAME supports all RDBMS.
TCP/IP and SOAP based services offer the possibility to deliver legacy services across the enterprise, providing the foundation for developing modern infrastructures such as a Service Oriented Architecture (SOA). With a complete set of tools and utilities, along with support for a wide range of target platforms, XFRAME offers the most complete migration solution on the market today.
ENABLES DIRECT, RELATIONAL SQL ACCESS TO
IMS DATA
H2R (Hierarchical to Relational) from HTWC is a sophisticated application which facilitates the transformation of data from ims db hierarchical data structures to RDBMS such as SQL, db2 and oracle, whilst creating automatically a gateway which enables the applications to continue to interface with the data without any changes.
Data transformation and target environment definition:
H2R is equipped with a powerful analyzer to perform the automated data migration. The analyzer collects all the necessary information from hierarchical data structures, allowing H2R to generate a set of import programs for the relational database.
These programs resolve differences between source and target databases, such as data coding, field type, redefines, dirty fields, and more. If necessary, import programs allow you to retain specified fields when moving from an EBCDIC to an ASCII environment, maintaining
the same processing sequence. without any changes to applications or business logic.
AS well as the Transformation component, H2R also generates an application Gateway which ensures no changes are required to applications.
Benchmarks display a major improvement of performance as well as the greater availability of qualified administrators and compatible standard applications.
CLIENT
MAINFRAME MAINFRAMECLIENT
APPLICATIONS APPLICATIONS
HTWC-UNIX ENVIRONMENT
GATEAWAY
AS A SOLUTION, OR AS STEP TOWARDS
IMPLEMENTING WINNING APPLICATION
STRATEGY
The incremental savings generated by eliminating annual IBM IMS software licenses and related mainframe third-party software utilities can be directly applied to an organization’s bottom line or redirected to new IT initiatives
such as end user interface modernization, Service Oriented Architecture (SOA) and Application Modernisation or rewrite.
Advantages:
• Annual cost reduction of between 40–80%
applications and data on open systems
• Minimizes risk by preserving existing application and business logic Enables direct, relational SQL access to legacy IBM IMS data • Supports IBM IMS Connect and MFS screen functionality • Provides a proven platform for future application evolution
HTWC SOLUTION STACK
HTWC has been engineering migration solutions for more that quarter of a century resulting in the widest array of proprietary Software, Tools, and Methodologies designed to efficiently migrate, consolidate and operate a myriad of application and data types from diverse Mainframe environments, into a homogenous, efficient, scalable and more cost effective Windows environment.
The HTWC highly automated project methodology is completely scalable, with each step adding immediate value to the application environment
100% 0% 10% 20% 30% 40% 50% 60% 70% 80% 90%
Time
Milestone
Assesment Source Migration Unit System Testing Application Test Go Live
Assesment Source Migration Unit System Testing Application Test Go Live
Value
Modernization Roadmap APPLICATION
OBJECT MINING
DATABASE
MODERNIZATION RE-HOSTING
APPLICATION MODERNIZATION
ICON Software Understanding Studio
HTWC Services 2Change
V2R VSAM To Relational
Audit your entire application landscape
Migrating data and database to “the state of the art” technology
Converting applications into mondern homogenous languages
Complete emulation of IT environment on cost effective open systems
Application Assessment through Application object mining and evaluation
Legacy data conversion from VSAM or IMS/DB to RDBMS SQL
Language Conversion from a myriad or Legacy languages to COBOL
TP HIGHLIGHTS
• XCICS/XIMS Features Highlights • Full CICS / IMS DB DC/ UTM source
compatibility
• High performance scalable architecture • Transaction integrity/recovery • Full BMS
• Temporary Storage & Transient Data • File services
• Program & Transaction services • Multiple DB connectivity • Inter-System Communication • TN3270 Server
• Easy configuration
• Remote GUI based administration • JSP based web wrapper
CONNECTIVITY
• Java Clients • tn3270 • telnet • TCP Sockets • eb Browsers • HLLAPI • LU62 • SNA
• Host integration server
TP HIGHLIGHTS
• XCICS Features Highlights • Full IBM CICS source compatibility • High performance scalable • architecture
• Transaction integrity/recovery • Full BMS
• Temporary Storage & Transient Data • File services
• Program & Transaction services • Multiple DB connectivity • Inter-System Communication • TN3270 Server
• Easy configuration
• Remote GUI based administration • JSP based web wrapper
LANGUAGES
• Assembler To COBOL, C or C# • PL/I To COBOL, C or C# • CSP/VAG To COBOL or C# • CA-Easytrieve To COBOL • RPGII To COBOL •
CODE
• VSAM to SQL for COBOL and PL/I • BMS 2 CWI (CICS Web Interface) • BMS 2 JSF (CICS BMS integrated with
J2EE/JSF)
• Field enlargement (i.e. EURO, ZIP CODE, etc.)
• BMS 2 CWI (CICS Web Interface)
BATCH FEATURE HIGHLIGHTS
• z/OS, OS/390, MVS & VSE jobs conversion
• Customizable JCL batch converter • Pure Shell scripting
• Mainframe logic preservation • Runtime VSAM support VSAM • utilities support
• Legacy compatible SORT utility • ASA & AFP printing support • Dynamic PROC parameters • substitution support
• XCICS integration for on-line generated jobs
• XBM Features
SPOOL ENVIRONEMENT
• Batch feeding system
• Web based printout distribution • Browse, Search & View
• No client-side software
Absolute market leader in mainframe re-hosting and migration
97% of migration fully automated
Over 30 years experience
Truly global
All sectors
© HTWC®, 2012
à
+39 06 51964253
à
[email protected]
à
www.htwc.com
à
We are HTWC
®Absolute market leader in mainframe re-hosting and migration
97% of migration fully automated
Over 30 years experience
Truly global
All sectors
© HTWC®, 2012
à
+39 06 51964253
à
[email protected]
à
www.htwc.com
à
We are HTWC
®SAMPLE CASE STUDY
UPIM
Customer •
• Italian mid-market retail outlet • Good quality, moderate costs • 17000 Employees nationwide
• Several hundred direct and Franchise outlets
Challenge
• IBM IMS DB/DC
• IBM Cobol and Assembler • VSAM Datasets
Solution Customer Benefits
• Migrate to HP-UX using the XFRAME Enterprise edition • Conversion of all application to COBOL Unix
• DL/I to DB2
Customer Benefits
• Immediate costs reduction • Improved availability and scalability
• Improvement of the programmers productivity (50%)
ThalesAlenia Space
Customer •
• French Aerospace company • 7200 employees
• Revenue approx €2Bn
• Operation France, Italy, Spain, Belgium and USA
Challenge
• IBM IMS DB/DC • DL/I
• IBM Cobol and Assembler
Solution Customer Benefits
• Migrate to HP-UX using the XFRAME Enterprise edition • Conversion of all application to COBOL Unix
• DL/I to Oracle
Customer Benefits
• Improved system performance
• Undisclosed but significant cost reduction • Easier integration with and of new applications
