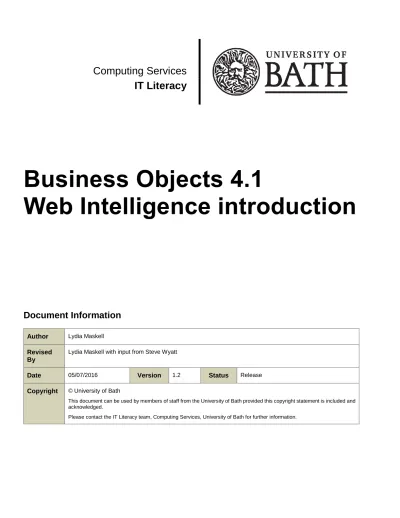

(1)

Computing Services

IT Literacy

Business Objects 4.1

Web Intelligence introduction

Document Information

Author Lydia Maskell

Revised By

Lydia Maskell with input from Steve Wyatt

Date 05/07/2016 Version 1.2 Status Release

Copyright © University of Bath

This document can be used by members of staff from the University of Bath provided this copyright statement is included and acknowledged.

(2)

Contents

Course Objectives ... 4

About Business Objects Web Intelligence ... 5

Universes ... 6

Objects and classes ... 6

Queries ... 6

Analysing Query Results ... 6

Getting started ... 7

Logging in for the first time ... 7

Timeout ... 8

Open a document from the server ... 8

In Web Intelligence ... 8

To search within the list of documents ... 9

Open a document from the Documents tab ... 9

Documents toolbar ... 10

View a report... 10

Schedule a report to run ... 11

History ... 13

Create a link to a report for other users ... 14

Create a shortcut to a report you use frequently ... 14

Refresh a report ... 14

Select a query to refresh ... 16

Add a description and keywords to your report ... 16

Save a report ... 17

Pin tabs ... 17

Open in a new window ... 17

Switching between Reading, Design and Data mode ... 18

Cut, copy and paste ... 18

Side panel tabs ... 19

Quick display/page mode ... 19

Freeze headers, rows and columns ... 20

To unfreeze ... 20

Find text in a report ... 20

Track data ... 21

Drill data ... 22

Fold and unfold report data ... 23

Formatting your report ... 24

Format tab ... 24

(3)

Alignment tab ... 24

Font tab ... 24

Border tab ... 24

Appearance tab ... 24

Changing the Width of a Column... 25

Changing the Height of Rows ... 25

Merge cells ... 25

Input controls ... 25

Insert Filter ... 27

Create a section from a column... 27

Insert Break ... 28

Insert Sort (Ascending Order)... 28

Insert Sort (Descending Order) ... 29

Insert Sum ... 29

Insert Count ... 30

Alerters ... 30

Create a chart from scratch ... 31

Turn a table into a chart ... 33

Page Setup tab ... 33

Insert cells with pre-defined properties ... 34

Print a report ... 34

Sending and Receiving Reports ... 35

To retrieve a report that someone has sent you ... 35

Export a report ... 36

Log off ... 36

Example of scheduling ... 37

Retrieve a java-enabled version of the report you scheduled ... 39

Retrieve a scheduled report via the Documents tab ... 41

Change your view preferences ... 42

Help ... 43

Where to get help ... 43

Email ... 43

(4)

Course Objectives

Who this course is for... Business Objects Web Intelligence is a general purpose enquiry and reporting tool

which allows users to access information in the University's administration databases, including iTrent (the Human Resources system) and the Student and Applicant Management Information System (SAMIS).

The objectives of this guide…

At the end of this training session you will be able to:  Log in to BI Launchpad

 Search for and open documents  Schedule reports to run

 Refresh and save reports  Find text in a report  Track data

 Drill data  Format reports  Use input controls  Use alerters  Create basic charts  Use page setup options  Print reports

 Export reports

 Send reports to other Business Objects users

What you'll need to have before commencing this course...

You will need to be able to log into Business Objects Web Intelligence. Access to Business Objects Web Intelligence must be requested by your line manager using this form

http://www.bath.ac.uk/bucs/services/mis/misuserform.shtml

As you work through this guide…

(5)

About Business Objects Web Intelligence

Business Objects Web Intelligence enables you to report on and analyse

information in the University's administration databases, including iTrent and the Student and Applicant Management Information System (SAMIS).

You can run queries which have been pre–defined by Computing Services MIS and then edit the resulting reports, filter data, drill down to reveal greater detail or display data in charts.

In this session you will:

Log in to BI Launchpad

 Search for and open documents  Schedule reports to run

 Refresh and save reports  Find text in a report  Track data

 Drill data  Format reports  Use input controls  Use alerters  Create basic charts  Use page setup options  Print reports

 Export reports

(6)

Universes

Business Objects revolves around the concept of the Universe. A Universe uses meaningful language to

describe a user-orientated representation of a relational database, in this case iTrent (the Human Resources system) or the Student and Applicant Management Information System (SAMIS).

Objects and classes

Each Universe is constructed with a set of Objects and Classes of Object. An Object is an item of information which is of interest to a user of the information. It corresponds to a selection of data from the database and is, most usually, a column in a database table. For example, the following are Objects in the SAMIS Universe - Surname, Forename, Full Programme Name.

Queries

Data is retrieved from a database by a query. In Business Objects Web Intelligence a query is built using the Query Panel. The Query Panel is a window which enables you to construct a query quickly and easily which will search for information in a particular Universe. Using point and click techniques, the query is built by selecting:–

 The Objects to be viewed

 Any conditions the data must satisfy

 The order in which information should be sorted for viewing

This manual is not concerned with building queries however, we look at using queries that have already been built.

Analysing Query Results

Once a query has been executed, the results are presented for immediate viewing in the Universe Workspace window. In many instances, such a simple presentation of the information will satisfy a user's needs. In other cases, however, where the requirements are more sophisticated Business Objects Web

Intelligence enables the query results to be analysed and processed in a number of ways. It has the

following capabilities:–

 Report generation.  Chart generation.

 Exporting query results to other applications such as spreadsheets and word processors.

(7)

Getting started

Logging in for the first time

1. Open your browser and open the following web page: https://businessobjects.bath.ac.uk/BOE/BI

2. Login to BI Launchpad with your University username and password.

Note: System should be set to @boprd

You will need to type this in the first time you log on. The Authentication is Windows AD

Once entered the first time, the system should remember these details whenever you log in. Passwords are case sensitive. BI Launchpad will allow you 3 attempts to enter your correct username and password. After the third incorrect attempt, you need to contact the Service Desk (ext. 3434) so that your username can be re-instated.

3. You will see the Home screen.

(8)

Timeout

Please note that your Web intelligence session will time out after a set period if you are not actively working in a screen.

Five minutes before the time out occurs, the system will prompt you to ask if you wish to continue working in

Web Intelligence.

Open a document from the server

There are several ways to open documents.

In Web Intelligence

1. On the Web Intelligence tab, select Open Menu.

2. Select the Folders tab.

3. Navigate to the Public Folders.

4. Navigate to the SAMIS folder and browse the relevant sub-folder for the reports.

(9)

 Clicking once on the column header Title will sort the reports into alphabetical order.  Double clicking on the right hand edge of the column header Name will resize the column so

that you can see the full name of the report.

6. Either double click on the name of the report you require, right click and select View or single click on the name of the report then click [Open]

To search within the list of documents

If you click into the list of reports and start to type the first few letters of the report title, you will move down to that section of the list.

Above the list is a Quick Search pane. Type the word you wish to search for and press the Enter key on the keyboard.

The Search only looks at the titles of the reports and your results will only show you reports you have permissions to view from the repository.

Open a document from the Documents tab

Once you have Web intelligence open, you can open subsequent documents by selecting the Documents tab.

My Favorites folder is listed here under My Documents.

(10)

Never delete the folder called ~WebIntelligence as this stores any reports that have timed out and any auto saved reports so that you can recover these if necessary. If you are timed out it will save your reports even if they are blank or half built. This is a similar function to document recovery in Microsoft Office.

Alerts folders are solely for staff administering the system, so you can ignore these.

Near the bottom of the Documents window, select Folders.

You can then browse down through the Public Folders as before, to view documents on the server. To search the list of reports, click Search.

You can filter the search results by Type, Location or Refresh Time.

There is still a Quick Search pane at the top of the window but this will search the whole of Web

intelligence, not just the list of reports.

Documents toolbar

Once you have selected a report in the list, you can select actions from the Documents toolbar or you can right click to find the same options.

View a report

(11)

Schedule a report to run

If you have reports that take a couple of hours to run, or if you wish to run a report whilst you are away at a meeting, you can schedule these reports to run.

Scheduling a report will free up your PC to do other work and you can also schedule reports to be sent to others.

Scheduling reports builds up a history of reports you have run. Once a report is scheduled, Web Intelligence will keep working through the scheduling queue until your report is run.

Please note: You cannot schedule a report from the central repository folders. Reports can only be scheduled from your own area or a shared area.

Copy a report to your favourites

1. Click the Documents tab.

2. Near the bottom of the Documents window, select Folders.

3. You can then browse down through the Public Folders to view documents on the server. 4. Right click on the report you require, point to Organize, then select Copy.

5. Select My Documents in the left-hand pane 6. Right click on My Favorites.

7. Point to Organize then select Paste.

(12)

Schedule a report from your favourites folder

1. Right click on the version of the report you have in your Favorites and select Schedule.

2. Leave the Instance Title.as the default.

3. Set Recurrence to Now to retain a snapshot of the data at that point, or for reports that take a long time to run, that you wish to run today.

Or set a report to run regularly, weekly, monthly etc.

(13)

5. Select Formats to choose a format for the report to save in, for example an Excel spreadsheet or a pdf file.

6. Ignore Caching, Events and Scheduling Server Group. Do not change the values for any of these settings.

7. Select the Destination for the report, either the Default Enterprise Location (History) or your BI

Inbox.

A scheduled instance of a report is stored in the history of the public document.

Do not schedule to the File System (this would be your X and H drive) as you will run into problems. If you choose the Excel spreadsheet format, once you have the Excel file, you will be able to save this to your networked drives using the Excel program.

8. Click Schedule.

History

You can view the history of when instances of a report were scheduled and re-open these. Select the Documents tab, right click over the report in the list and select History.

(14)

Create a link to a report for other users

You can generate a hyperlink to a report in your My Favorites folder which you can then distribute to other Business Objects users via email.

1. Find the report you wish to generate a link for then right click over the report and select Document

Link.

2. Copy the link text and past it into an email.

3. When the recipient clicks the link they will be presented with the log in screen and after logging in the report will be loaded.

4. If the report is moved or deleted the system will inform the user that the report is no longer available.

Create a shortcut to a report you use frequently

1. Right click over the report in the list and point to Organize then select Create Shortcut in My

Favorites.

2. The report is listed in your Favorites on the Home page.

Refresh a report

1. Once the report has opened, click on the Refresh icon to update and change (if required) the information displayed.

Clicking on the Refresh icon is the command to Web intelligence to update the information the report displays directly from the database.

2. You will now be presented with another window which will ask you to select the relevant values for your report. The fields on this window will vary according to which report you are opening.

(15)

 When entering the values for your report, you can often choose from a list of the report values by clicking the Refresh Values button in the middle of the Refresh window.  Select the value you require, and click the right hand pointing arrow to select this value.  You can search within the returned prompt values by using the search box beneath the

values. Enter the value you are interested in obtaining and press return or click the binoculars.

 Some report prompts allow you to select more than one value. Others let you select one value only.

 It is often appropriate to enter the % wildcard in a prompt, which represents any number of unknown characters.

4. You can save a selection of prompt variants to re-use quickly another time. These will be available to you only in that document only.

5. Select your prompts then click the Create prompt variant icon next to Available prompt variants.

(16)

8. Web intelligence will now re-query the database, give you an estimated wait time, and produce the report.

9. Now that the report has run, you can filter the report if you have access to do so. 10. Once you have finished with your report you can close it by closing the tab.

Web Intelligence keeps a record of when a report was last refreshed.

The refresh date and time is displayed in the bottom right corner of the task bar.

Select a query to refresh

When a document contains multiple queries, you can select a specific query to refresh rather than being required to refresh them all.

Add a description and keywords to your report

It is good practice to add a description and search keywords to your report. 1. Open your report in Web Intelligence and switch to Design mode. 2. Open the Document Summary side panel tab.

(17)

Save a report

1. Select Save As.

2. Click the grey bar labelled Favorites Folder.

3. Right click to create a sub-folder under your Favorites Folder. 4. Type a File Name for your report and click [Save]

Save a report if you wish to re-run that version of the report.

If what you want to save is the data, export the report to Excel and save in a secure area.

Pin tabs

If you wish reports to remain open on their tabs, you can click the pin on the tab to pin them in place.

Open in a new window

(18)

Switching between Reading, Design and Data mode

Depending upon your role and your access permissions, you may be able to switch between Reading,

Design and Data mode by clicking the links in the top right hand corner.

Reading Reading mode allows you to view reports, track changes and

drill down on report data.

You have just one simple toolbar. The tabbed toolbars do not appear in this mode.

Design Design mode allows you to edit reports and add tables or

charts, use conditional formatting and add calculations. Additional tabbed toolbars appear in this mode. The tabs are contextualised for what you are currently doing in your report.

Data Data mode allows you to create, edit and manage queries based on one of the University’s administration databases, for example, iTrent or Samis.

Cut, copy and paste

(19)

Side panel tabs

Depending upon your role and your access permissions, the side panel tabs give you access to these features:

Document Summary

Gives you information about the author of the report, when it was last refreshed and the prompts it contains.

Report Map

Shows you the different tabs in the report and enables you to move between them.

Input Controls

Act like filters in the report. It is possible to set up controls like radio buttons and drop-down lists.

User Prompt Input

Lists the default values for all prompts.

Available Objects

Shows the objects used in the report.

Document Structure and Filters

This tab is good for navigating around a report. It displays the structure of the document in a tree view, and shows which filters are applied to different report elements. You can select one element from an existing report, for example, a table, and then copy that whole element into a new report. Or you can select a higher level from the tree and copy everything below that. You can also use it to insert new columns into a report.

Quick display/page mode

Quick Display gives a display that is based on the data, rather than the physical size of report pages.

Because the Quick Display view mode restricts the number of horizontal and vertical rows, a report might not contain all possible data.

Use the Quick Display view mode when you want to focus on analysing results, add calculations or formulas, or add breaks or sorts to tables to organize results.

(20)

Freeze headers, rows and columns

1. Select the drop arrow next to the Freeze icon. 2. Check the box to Freeze Header Rows.

3. To freeze columns, select the number of columns counting from the left.

For example, if you select 2, the two first left columns remain displayed while you scroll sideways in the table.

You can freeze up to 5 data rows or columns.

To unfreeze

1. Select a cell in a table that contains frozen rows or columns. 2. Select the drop arrow next to the Freeze icon.

3. Uncheck the box Freeze Header Rows. 4. To unfreeze columns and rows, select 0.

Find text in a report

1. Click the Find icon.

2. The Search Bar opens at the bottom of the window. 3. Type the text you wish to search for.

4. Select Ignore case or Match case if required. 5. Press the Enter key on the keyboard.

(21)

Track data

When you track data changes, you select a particular data refresh as a reference point. This data is known as the reference data. When you activate data tracking, you see your data in relation to the reference data. Data tracking makes the current data more meaningful by placing it in context with older data.

Tracking allows you to assess change in the data over time, helping you to identify trends. You can track the following types of data change:

 Inserted data  Deleted data  Changed data  Increased values  Decreased values

In the Auto-update data tracking mode, you always compare the current data with the data before the last refresh.

This is achieved by automatically setting the current data as the reference data just before each refresh. The reference data is always one refresh behind the current data.

Automatic data tracking is appropriate for scheduled documents when you want to compare the current data with the data before the last refresh. This may be of particular interest to Business Objects users from the Finance Department who run regular updates of the same report.

1. In any mode, click Track changes on the status bar at the bottom of the window.

In Reading mode, click Track.

In Design mode, in the Analysis tab, select the Data Tracking subtab and click Track.

2. In the Data Tracking dialog box, select the Data tab.

3. To compare the data with the last refresh, select Compare with last data refresh.

When you select this option, the current data becomes the reference data after each data refresh. The report always shows the difference between the most recent data and the data before the last refresh.

If this option is selected, the status bar displays Track changes: Auto-update.

4. To compare the data with a specific data refresh, select Compare with data refresh from and select the date of the data refresh from the list.

(22)

5. Select the reports that you want to display data tracking from the Reports with data tracking

shown list.

6. Select Refresh data now to refresh the data when the dialog box closes. 7. Click [OK] to close the Data Tracking dialog box.

The information in the Status Bar at the bottom of the report indicates the document level status. An asterisk on a report tab indicates that change tracking is activated on the report.

When tracking a report, you can choose whether to show the changes in the data or choose not to show them. This option appears next to the Track option on the toolbar. When the Show Changes icon is highlighted, you are viewing changes.

To turn off track changes, select the Track icon so that it is no longer highlighted or turn tracking off in the

Data Tracking dialog box.

Drill data

Drilling up or down in the data allows you to interact with the data to change granularity. For example, you could drill down from a yearly subtotal to individual months, or you could drill up from a quarterly subtotal to the annual total.

1. Select Drill.

(23)

As you hover over any item of information that enables you to drill up or down, the Drill icon will appear on the cursor arrow and a tool tip will appear describing how you can drill.

3. Click on the item of data to activate the drill.

4. The data changes to reflect the increased or decreased level of detail.

5. To take a snapshot of the data, click the drop arrow next to Drill then select Snapshot.

6. An additional tab opens in the report with your snapshot of the data shown on this tab.

7. To stop drilling click the drop arrow next to Drill then select End drill.

The data will remain in the last state that it was in when you drilled, so make sure you drill back up or down before ending the drill, if you still need to work with the report.

Fold and unfold report data

Folding or unfolding a section, table or break in a report is like hiding or unhiding those elements of the report.

1. Click anywhere in the report. 2. In Reading mode, select Outline.

In Design mode, on the Analysis tab, select the Interact subtab then select Outline.

3. The fold and unfold bars appear to the side of and above the report panel, depending on the report structure.

(24)

Formatting your report

Once you have retrieved a report, you can build on it. A variety of commands enable you to format the data in different ways; you can easily change the basic structure of the report; you can display its data in charts or graphs; you can easily add data and remove data.

The commands for formatting reports apply to individual cells, ranges of cells or whole sections of a report. The general procedure is to click the element(s) of the report that you want to format - it will be highlighted. Then, select the required formatting command.

The commands can be found in the Format menu. Shortcuts to many of the Format menu commands are also available on the Formatting Toolbar.

Format tab

The Format tab allows you to change the font, size, colour, justification and other formatting properties of selected text.

Formatting a Cell

1.

Click once inside the cell you wish to format. The cell will be highlighted.

2.

Click the right mouse button, and select Format Cell from the list which appears.

Format Cell dialog box

The Format Cell dialog box allows you to modify the format of the contents of cell(s) you have selected. The Format Cell dialog box consists of five tabs.

Select the tab for the options you want.

General tab

Defines how data is displayed in the cells you selected and allows you set values for width and height.

Alignment tab

Allows you to align data in relation to cell borders. This tab also shows the Wrap Text option which is often useful for displaying more than one line of text within a cell.

Font tab

Allows you to specify the font, font size and font formats of the text in the selected cells.

Border tab

Allows you to place borders around selected cells so that you can highlight parts of your report.

Appearance tab

(25)

Changing the Width of a Column

1.

In some cases, a column may be too narrow or too wide for the information contained within it. 2. To change the width of a column, move the mouse pointer to the right hand edge of the column until

the mouse pointer changes into the horizontal resize symbol.

3.

Drag the border to the right or left, or double click to resize automatically.

Changing the Height of Rows

1.

Sometimes you may want to increase or decrease the row heights.

2.

To change the row heights, move the mouse pointer to the lower edge of a row until the mouse pointer changes into the vertical resize symbol.

3.

Drag the border to up or down, or double click to resize automatically: This will change the height of all of the rows on that sheet of the report.

Merge cells

In Design mode you can merge cells. 1. Select the cells you wish to merge. 2. Select the Format tab.

3. Select the Cell sub-tab. 4. Select Merge.

Input controls

You can filter a report or test different scenarios using input controls.

You can select values from the report using check boxes, radio buttons or select them from a list or slider control.

1. Select Design mode.

2. Select Input Controls from the tab on the left. 3. Select New.

(26)

6. Select the type of control you wish to use, for example, list box or check boxes. 7. Click Next.

8. Check the box next to the part of the report (for example, the table) that will be filtered by the control.

(27)

Insert Filter

1. Click Filter Bar to show the Report Filter toolbar. 2. Click the Add simple report filter icon.

3. Point to the item of information that you wish to filter. 4. This creates a drop-down list that acts as a filter. 5. Repeat to create additional drop-down lists. 6. Click Remove to remove a filter.

7. If you save the report to your Favorites folder, the filters will be available for use next time.

Create a section from a column

Sections are a way of grouping data within a report. 1. Select Design mode.

(28)

Insert Break

Applies a break on the variable currently selected in the report.

A break effectively breaks the report in to smaller tables. For example, if you were to highlight a column showing the programme name and click on the Break icon, the report would break up into smaller tables showing one programme name per table.

1. Select Design mode. 2. Select the Analysis tab. 3. Select the Display tab.

4. Select the column you wish to apply a break to. 5. Select Break.

To remove the break, click on the column which has the break applied, select the Break icon, then select

Remove Break.

The Manage Breaks option gives you more control over how breaks are formatted in relation to headings and page breaks.

It also allows you to put the breaks in a different order. You will lose your subtotals if the order of the breaks is changed because the subtotals relate to where the breaks were originally applied.

Insert Sort (Ascending Order)

1. Select Design mode. 2. Select the Analysis tab. 3. Select the Display tab.

4. Select the column you wish to apply a sort to. 5. Select Sort.

To remove the sort, click on the column which has the sort applied, select the Sort icon, then either select

(29)

The Advanced option allows you to sort in a Custom order. A custom sort is used where the data will not sort in a helpful way if you sort it alphabetically, for example, the months of the year.

Insert Sort (Descending Order)

1. Select Design mode. 2. Select the Analysis tab. 3. Select the Display tab.

4. Select the column you wish to apply a sort to. 5. Select Sort.

6. Select Descending.

To remove the sort, click on the column which has the sort applied, select the Sort icon, then either select

None or Remove All Sorts.

Insert Sum

This button inserts the total value of the variable selected at each break in the report and at the very end of the report.

1. Select Design mode. 2. Select the Analysis tab. 3. Select the Functions tab.

4. Select the column you wish to count. 5. Select Sum.

(30)

Insert Count

This button inserts the number of occurrences of the variable selected at each break in the report and at the very end of the report.

1. Select Design mode. 2. Select the Analysis tab. 3. Select the Functions tab.

4. Select the column you wish to count. 5. Select Count.

To remove the count, just click back on the same button.

Alerters

Alerters can be used to highlight values in a report that you are interested in, for example, average marks above a certain grade.

1. Select Design mode. 2. Select the Analysis tab 3. Select Conditional. 4. Select New Rule. 5. Type a name for the rule.

6. Under Filtered object or cell, click the ellipsis to select an object or variable. (This is the type of thing you wish to look for, for example, Average Mark.)

7. Select the Operator. (Whether it is equal to, greater than etc.)

8. Under Operands, click the ellipsis to select the values in these cells that you want to look for, or type a specific value.

9. Click [Format] to change the formatting applied to these values. (For example, you want to them to display in bold, red text.)

(31)

Create a chart from scratch

1. Select Design mode.

2. Select the Report Element tab.

3. Select the Chart sub tab or the Others sub-tab. 4. Select the type of chart you require.

(32)

Initially the chart appears in grey. The colours will appear when you assign data objects to the chart.

6. To assign data to the chart, right click over the chart and select Assign Data. 7. Select Pick to pick variables to add to the chart.

(33)

Hover over a data series to see the values for that series.

To change the chart type, right click over the chart, point to Turn Into and select the new chart type. To format a chart, right click over the chart and select Format Chart.

To delete a chart, right click over the chart frame and select Delete.

Turn a table into a chart

1. Right click over the table and select Turn Into then select the chart type. 2. The chart will replace the table.

3. Right click to Assign Data or Format Chart as described above.

Page Setup tab

In some reports, it may be necessary to change page settings, such as the margin size, and whether a report is printed in portrait or landscape

To change the page settings of a report, select Design mode then select the Page Setup tab.

(34)

Insert cells with pre-defined properties

You can use the Cell sub tab to insert pre-defined properties of your report, for example, the document name, last refresh date or page numbers.

1. Select the Report Element tab. 2. Select the Cell sub tab.

3. Select Pre-Defined.

4. Select the document property you require.

5. Click and drag to insert a cell containing this property.

Print a report

1. To print the report, click the Print icon.

(35)

Sending and Receiving Reports

You can send reports to other Web intelligence users. This allows the reports to be sent and received within a secure environment.

1. On the Documents tab, select the reports in the list that you wish to send.

2. Either click Send and select BI Inbox or right click, point to Send and select BI Inbox. 3. Under Available Recipients type a user name into the Search box then click the Find icon. 4. Select the user and click the arrow pointing to the right.

5. The user should now show in the right hand column under Selected Recipients. 6. Click Send.

To retrieve a report that someone has sent you

1. Click the Home tab.

(36)

Export a report

1. Click the Export icon.

2. Select Export Document As or Export Current Report As. 3. Choose the format to export.

Log off

Always select Log off in the top right hand corner of the screen when you finish your Web intelligence session.

(37)

Example of scheduling

This is a worked example of scheduling which will be of particular interest to Business Objects users who deal with assessment period reports.

You can schedule multiple reports to run. You do not have to wait for one to complete before scheduling another. For example, you could schedule the same report to run for different courses or different course years.

1. Click the Documents tab.

2. From the Public Folders select SAMIS Academic Departments.

3. Browse down to the Faculty, Department and list of students that you require.

(38)

6. Instance Title Leave the default Instance Title

7. Recurrence - Leave the default selection Now to schedule the report straight away.

8. Prompts – Select Modify, edit the prompts you require and click Apply.

(39)

10. Destinations – Leave the Default Enterprise Location (which is the report History).

11. Click Schedule.

Retrieve a java-enabled version of the report you scheduled

Use this option if you need to modify the report extensively, for example, if you need to use the Data option in Web Intelligence.

Once scheduling has been used on a report, you will not see the “latest” version of the report when you view the default view again, and therefore you need to be in the habit of checking whether a report has been scheduled and then selecting the most recent version as described below.

1. Click the Web Intelligence tab. 2. Select Open Menu.

3. From the Public Folders select SAMIS Academic Departments.

4. Browse down to the Faculty, Department and list of students that you require. 5. Click the report you scheduled to select it.

6. Click the ellipsis in the Instances column.

(40)

7. Highlight the instance you require and click Add.

(41)

Retrieve a scheduled report via the Documents tab

Use this option if you only need to make minor changes to the report, for example, viewing or filtering the report.

Once scheduling has been used on a report, you will not see the “latest” version of the report when you view the default view again, and therefore you need to be in the habit of checking whether a report has been scheduled and then selecting the most recent version as described below.

1. Click the Documents tab.

2. From the Public Folders select SAMIS Academic Departments.

3. Browse down to the Faculty, Department and list of students that you require. 4. Right click over the report you scheduled.

5. Select History.

6. Click on the instance of the report you wish to view.

(42)

Change your view preferences

If you always want the java-enabled view of your reports, you can change your preferences to go straight to this view.

1. From the top of the home page select Preferences.

(43)

Help

Click the Help icon in the top right hand corner of the main toolbar. Visit www.sap.com/LearnBI to view online videos and documentation Visit www.youtube.com and search for Web Intelligence 4.1

There are many other resources on the web for Web Intelligence. Just search for “Web Intelligence” and some relevant key words.

Where to get help

Email

If you are having an issue with the service, please send an email to [email protected] and this will create

a ticket for the Business Objects team.

Alternatively, use the online help form at: https://bath.topdesk.net/tas/public

Computing Services Service Desk

Visit us at the kiosk on Library Level 2

Open Mon, Tue, Thur, Fri 9am - 5pm

Wed 10am - 5pm

References

Related documents

All regressions include country and wave fixed effects, as well as individual-level controls: age, age-squared, education level, gender, marital status.. Supplementary

efficiency factor = ________ Total cost for RENOVATED BUILDING - per year of use for program and support spaces- Cost per sq.ft. (total cost/gross bldg.

Locally advanced prostate cancer (LAPC), androgen deprivation therapy (ADT), androgen receptor (AR), dose-escalation, external beam radiotherapy (EBRT), conformal radiotherapy

En efecto, así como los libertarianos ven en cual- quier forma de intervención del Estado una fuente inevitable de interferencias arbitrarias –con la excepción de aquella acción

Higher competition increases the number of job offers that firms make at the internship stage relative to the full-time stage, increasing the importance of probationary employment as

Select the picture cells and with the Home tab selected select the arrow at the bottom corner of the font section then click on the Protection tab on the Format Cells dialog

This synthesis illustrates that in the absence of stringent policies, i.e., if historical trends of the global energy production and consumption hold into the future, it is
