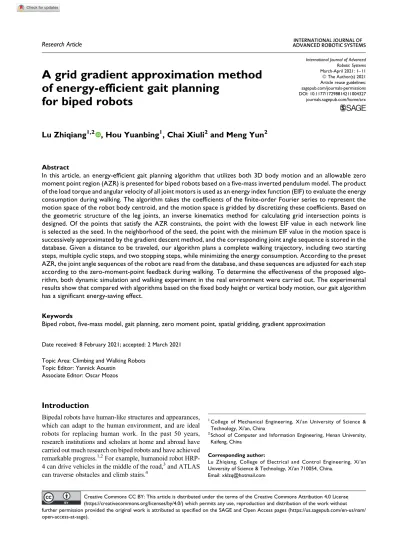

A grid gradient approximation method of energy-efficient gait planning for biped robots
11
0
0
Full text
(2) 2 Bipedal walking is the most important and challenging problem in research on biped robot motion. According to different research ideas, the proposed biped walking methods can be divided into three approaches. One is to utilize high-speed optical motion capture systems to obtain data on human motion according to external characteristics of human walking and apply these features to the generation of robot motion modes.5,6 The other approach is to use a central pattern generator to simulate the neural network control of human walking to generate rhythmic signals, thereby solving the problem of robot gait generation.7-9 The third approach is to simplify the biped robot into a linear inverted pendulum model consisting of a point mass and a massless telescopic leg10-13 or a cart-table model consisting of a table without mass and a cart driving on the table with all the mass concentrated in it.14 At present, the structural complexity of existing biped robots is much less than that of humans, which indicate that gait methods based on human characteristics and central pattern generators have limitations. Researchers prefer to adopt the method that involves simplifying the biped robot model. The accuracy of the simplified model determines the accuracy of the control effect. Based on the single-mass inverted pendulum model and considering the weight of the legs, Shimmyo et al. proposed biped walking pattern generation using preview control based on a three-mass model.15 Luo and Chen presented a three-mass angular momentum model16 and a five-mass momentum model17 using model predictive control to obtain better motion control accuracy. However, as model complexity increases, model nonlinearity increases and gait control becomes more difficult. Considering that the leg mass of the motor-driven biped robot is mainly distributed according to the position of the motor, the five-mass model, which includes five mass points representing the body, legs, and feet, is regarded as the best tradeoff. To simplify the complexity of the algorithm used in gait control for biped robots, constraint conditions for the robot body are introduced, which cause unnatural walking motions, consume large amounts of energy, and limit the operation time of battery-powered robots.18 Hong et al. allowed vertical body motion and alleviated the problem of bending knee joints.19 Shin and Kim further removed constraints on the motion trajectory, which improved walking speed and reduced actuator energy consumption.20 If the robot body is allowed to move with more degrees of freedom, a better control effect can be expected. In this article, the bipedal body center of mass is allowed to move in three dimensions. Fewer constraint conditions result in an increase in parameter space in gait control. It would be optimal if a solution could be found by artificial intelligence. Dau et al. applied a genetic algorithm to optimize the seven key parameters defining the hip and foot trajectories.21 Elhosseinia et al. designed a whale optimization algorithm with a random parameter “a” and weight parameter “C” to find the. International Journal of Advanced Robotic Systems. Figure 1. (a, b) Link structure of the experimental robot.. optimal setting for the hip parameters.22 Wu and Li used fuzzy logic to control the dynamic gait pattern generator of a humanoid robot, resulting in better responses to external force disturbances.23 Wright and Jordanov summarized the commonly used intelligent approaches to robot locomotion control.24 Generally, the range and accuracy of parameters need to be included in the optimization algorithm. This article presents a hierarchical optimization algorithm, that is, the grid computing method, to find the best region in a large range of parameter value spaces. Then, the gradient approximation method is used to find the optimal gait parameters for the robot with high accuracy. The rest of this article is organized as follows. In the second section, we describe the simplified biped robot model and formulate the problem of gait planning. The third section focuses on the gait planning algorithm from two aspects: optimal minimization of energy consumption and real-time motion planning. According to the algorithm in this article and various control methods proposed in the related literature, the fourth section presents the simulation and experimental results for the performance analysis of the proposed algorithm. In the fifth section, the algorithm is summarized, and possible follow-up work is presented.. Problem formulation System structure The humanoid robot used in this article has two arms and two legs, thereby imitating the walking motion of the human body. Each leg has five degrees of freedom (DoFs), including two DoFs at the hip, one DoF at the knee, and two DoFs at the ankle, and the joint vector can be expressed as q ¼ ½ q1 q2 q10 T . The forward, lateral, and vertical directions of the robot are defined as the x-axis, y-axis, and z-axis, respectively. The origin in the global coordinate system is located at the midpoint of the two legs when the robot is upright. The structure of the experimental robot is shown in Figure 1. Four force-sensing resistor (FSR).
(3) Zhiqiang et al.. 3. Table 1. Basic parameters of the experimental robot. Symbol. Description. mb mru mrd lh l1 l2 l3 l4 lf l lf w. Upper body mass Right leg mass Right foot mass Hip width Link length from q1 Link length from q2 Link length from q3 Link length from q4 Foot length Foot width. Value. to to to to. q2 q3 q4 foot. 1.2 kg 0.2 kg 0.2 kg 0.08 m 0.04 m 0.085 m 0.075 m 0.04 m 0.12 m 0.06 m. sensors are installed under the sole of each foot to measure the distribution of force on the feet. The parameters for the body and right leg are summarized in Table 1, and the parameters for the left leg are the same as those for the right leg. In general, some constraints are needed to simplify the scope of an analysis of robot walking. The proposed walking gait assumes the following conditions: (a) The upper body remains upright at all times. The pitch rotation of the human trunk is small, within 3 ,25 and energy consumption increases as the trunk is leaned forward. 26 Therefore, most relevant research studies 4,5,10-23 have shown that this assumption is acceptable. (b) Both feet are always parallel to the ground. Most common humanoid robots have no toes and cannot utilize the toes to improve driving the lifting and planting of the feet.27,28 (c) One step of duration T contains a double support phase (DSP) T DSP and a single support phase (SSP) T SSP and defines the duty ratio of the DSP as s T TDSP . In the process of human walking, s is approximately 15–25%25; s ¼ 25% was selected for the algorithm proposed in this study.. Zero moment point equations Among various dynamic stability standards for biped robots, the most widely used technique is the zero moment point (ZMP).29 The ZMP is the point on the ground where the horizontal component of the total moment generated by gravity and inertia forces is zero. The five mass points of the biped robot are the body b, the left leg lu, the left foot ld, the right leg ru, and the right foot rd, and they constitute set Pc ¼ fb; lu; ld; ru; rd g. The positions of the six joints form a position set Rl ¼ rlh ; rlk ; rlf ; rrh ; rrk ; rrf . These positions are shown in Figure 2. At ZMP position r ZMP ¼ ½x ZMP ; y ZMP ; 0 T , the resultant moment M ZMP is generated by the resultant ground reaction force F. The resultant moment M s is exerted on the robot body due to gravity and inertia of all centers of mass. Figure 2. Five-mass biped robot model: (a) Sagittal plane and (b) frontal plane.. (CoMs). The moment balance equation for r ZMP is expressed as n M ZMP ¼ n ðM s r ZMP FÞ ¼ 0. (1). where F¼. X. mi ðg €r i Þ. (2). i2Pc. Ms ¼. X € i ½ri mi ðg €r i Þ I i q. (3). i2Pc. Here, n ¼ [0,0,1]T is the ground-surface unit normal vector, g ¼ [0,0,-g]T is the gravitational acceleration vec€ i are the rotational inertia tor, g ¼ 9.80 m/s2, and Ii and q and angular acceleration at position i, respectively. Kajita € is small and can be et al. proved that the influence of q ignored.10 By substituting equations (2) and (3) into equation (1), the simplified ZMP equations are 8 X > mi ð€zi xi þ gxi zi€xi Þ > > > > i2P c > X > x zmp ¼ > > mi ð€zi þ gÞ > > < i2P c X (4) > mi ð€zi yi þ gyi zi€yi Þ > > > > i2Pc > > X > y zmp ¼ > > mi ð€zi þ gÞ > : i2P c. Allowable zero moment point region Modeling errors inevitably exist when modeling biped robots. Hong et al. set the ZMP trajectory near the centerline of the support foot to achieve the greatest stability during walking, 11 but this is not an energy-efficient method. In the region of the support foot, some edge.
(4) 4. International Journal of Advanced Robotic Systems where t g(t) ¼ [t 1(t) t 2(t) . . . t 10(t)]T and t i(t) can be written as follows t i ðtÞ ¼ l i T ðtÞC i ðtÞm; i ¼ 1; 2; ; 10. Figure 3. AZR of biped robots. AZR: allowable zero moment point region.. regions are drawn out to compensate for the modeling errors,20 and the ZMP trajectory is located in the allowable ZMP region (AZR) of the middle subregion of the support foot. This is a better method for balancing modeling errors and walking efficiency. For a biped robot with foot length lf l and foot width lf w , the step length is s, and the y-axis distance between the two feet is w. The AZR when the left foot (LF) is supporting and the right foot (RF) is swinging is shown in Figure 3. The AZR during the first DSP is a hexagon with (r1, r2, . . . r6), that during the SSP is a square with (r3, r4, r5, r6), and that during the second DSP is a hexagon with (r5, r6 . . . r10). In our gait planning algorithm, hiAZR ¼ lal =lf l and hwAZR ¼ law =lf w are used to represent the unit values of the AZR subregions on the x and y axes, respectively, hlAZR takes a constant value, so the default is h ¼ hwAZR .. Energy consumption index function The energy consumption E of a biped robot can be divided into two parts: the energy consumption Em for robot motion and the energy consumption Ea for nonmotion. Em is the main component of E, which is the integral of the instantaneous power consumption vector pm ðtÞ for all joint motors over time t. Ea is used for sensors, controllers, and so on. Their power Pa is relatively stable during operation and can be expressed as a linear function of time. E can be described by ðt (5) E ¼ Em þ Ea ¼ pm ðxÞdx þ Pa t 0. In general, Em can be significantly reduced through gait trajectory optimization,30 which is suitable for evaluating the performance of the gait algorithm. For biped robots with many motors, it is difficult to accurately measure pm(t). pm(t) is equal to the sum of the output power consumption p2(t) and subsidiary electrical loss ploss(t); p2(t), its main component, can be calculated by multiplying the motor output torque t 2(t) and angular velocity q_ ðtÞ.31 When the robot is moving, t 2(t) is used to overcome the load moment t g(t) formed by all CoMs on the motor rotor,. (6). where m ¼ ½ mb mlu mld mru mrd T is the CoM vector, l i ðtÞ is the effective distance vector between m and the i’th rotor, and C i ðtÞ is the 5 5 diagonal matrix describing the proportion of m acting on the rotor. It is assumed that the sampling period ts of the control system is small enough between the two sampling points with t i ðnÞ ¼ t i ðn ts Þ tððn 1Þ ts Þ, and q_ i ðn ts Þ qi ðnts Þqi ððn1Þts Þ , where i ¼ 1; 2; ; 10. In general, the ts joint motors of the robot carry out cyclical motion with the period N, and even if gravity and the direction of motion are the same, most robots are not able to regenerate energy. Therefore, we define the energy consumption index function E for the gait algorithm as follows E¼. N X 10 1X t i ðnÞ½qi ðnÞ qi ðn 1Þ ts n¼1 i¼1. (7). Problem definition Based on the previous analysis, our energy-efficient gait planning problem can be formulated as follows: (a) Given the step length and AZR of a biped robot, find the optimal gait parameters, that is, the parameters that minimize E, while allowing 3D body motion and satisfying the constraints in “System structure” section. (b) For a goal distance d of bipedal walking, control the value of h for the AZR in real time, thereby minimizing the total energy consumption of the complete gait trajectory, including two starting steps, multiple cyclic steps, and two stopping steps.. Gait planning algorithm Overview (a) In the gait planning optimization (GPO) algorithm, given the step length set S and the AZR set H for bipedal walking, 18 parameters are represented by the body trajectory s 2 S, and the range Us of the parameters is gridded. After the inverse kinematics calculation, the parameter subset Rs satisfying the stability and physical constraints is obtained, and the seed set Phs meeting the h 2 H requirement is selected from R s . Then, in the neighborhood of p 2 Phs , thejoint angle sequence h h gs ¼ qs ðnÞjn ¼ 1; 2; ; N with minimum E is obtained by iterative calculation according to the gradient descent method and stored in an offline database. The GPO algorithm takes a long time and.
(5) Zhiqiang et al.. 5. is suitable for offline operation. It completes the calculation of S and H and copies the offline database to the online database, which is called in real time in the gait synthesis (GSYN) algorithm. (b) Given the required walking distance d and the value of h for the AZR, the GSYN algorithm plans the step sequence S* to achieve the minimum E. Each step length si 2 S and initial value h^ of the AZR are removed in turn, and the online database is queried to obtain the motor angle sequence gi for gait control. By inputting gi into the joint controllers, the robot can walk. During walking, according to the foot pressure set Fi, the real-time ZMP trajectory is calculated. In the AZR control, the deviation between rZMP and rAZR is calculated from rAZR, which is required for stability, and the PI correction method is used to correct hi, optimizing the tradeoff between low energy consumption and robustness of robot motion.. Gait planning optimization algorithm The GPO algorithm is used to generate a low-energy joint angle sequence gns for gait control; this is the core of our proposed algorithm. According to the accuracy requirements of bipedal walking, the range in step length, from minimum to maximum, is discretized to constitute the set S. H selects several levels from the interval [0,1] to adapt to different robustness requirements. The GPO algorithm selects the elements s and h from S and H, respectively, to calculate the distribution gradient and obtain gns for the minimum E. Gridding method. Our proposed gridding method is a process of discretizing multidimensional parameters by appropriate intervals, constructing parameter space grids, and then calculating the value of the function for each gridded line intersection point. If the walking step length is s, the robot body b performs a 3D cyclic motion satisfying the constraint (a) in “System structure” section, and the position rb ðnÞ ¼ ½ xb ðnÞ yb ðnÞ zb ðnÞ T can be expressed by a Fourier series of finite terms as follows 8 3 X > s > > ak sinðk!0 nÞ > xb ðnÞ ¼ n þ > > N > k¼1 > > > > 6 > X > > > ak cos ðk 3Þ!0 n þ > > > > k¼4 > > > < 11 X (8) yb ðnÞ ¼ ak sin ðk 6Þ!0 n > > k¼7 > > > > 15 > X > > > z ðnÞ ¼ a þ a sin ðk 12Þ! n > b 12 k 0 > > > k¼13 > > > 18 > X > > > þ a cos ðk 15Þ! n > k 0 : k¼16. where N is the gait period, !0 ¼ p=N , n ¼ 1; 2; ; 2N , and rb ðnÞ are represented by the parameters fak jk ¼ 1; 2; ; 18g. If ak 2 ½d k ; uk is discretized according to the interval k and its range is the set Ak ¼ fd k ; d k þ k ; d k þ 2k ; ; uk g, then the intersection set Us formed by the gridding method is the Cartesian product of Ak, that is, U s ¼ A 1 A2 A18 . Inverse kinematics calculation. To utilize the parallel acceleration of the GPU, the inverse kinematics algorithm is designed for the geometric structure of the robot leg. Without loss of generality, suppose that the robot starts walking during the DSP with the left leg in front and the right leg in the rear; then, the right leg swings forward. The starting position of the RF rf is rrf ð0Þ ¼ ½ 0 0 0 T , and the motion satisfies constraint (c) in “System structure” section; then, the motion trajectory of rrf ðnÞ ¼ ½ xrf ðnÞ yrf ðnÞ zrf ðnÞ T is 8 8 0; 1 n N1 > > > > > > 0 1 > > > > < > > ðn N 1 Þp A > > x ðnÞ ¼ ; N1 < n N2 s@1 cos > rf > > > Kþ1 > > > > > > > > > : > > 2s; N 2 < n 2N > > < ws yrf ðnÞ ¼ ; 1 n 2N > 2 > > > > 8 > > 0; 1 n N1 > > > > > > > > > < > ðn N 1 Þp > > N1 < n N2 > zrf ðnÞ ¼ hs sin K þ 1 ; > > > > > > > > > : : 0; N 2 < n 2N (9) where ws is the step width, hs is the step height, N is the gait cycle, N 1 ¼ N =8, and N 2 ¼ 7N =8. Cyclic bipedal walking has the property of symmetry, and the LF trajectory is rlf ðnÞ ¼ ½ xrf ðn þ N Þ þ s yrf ðn þ N Þ zrf ðn þ N Þ T . Given rb ðnÞ, according to constraint (a) in “System structure” section, the right hip joint trajectory is rrh ðnÞ ¼ rb ðnÞ ½ 0 0:5lh lb T . Figure 4 shows the geometric relations between the joint angles of the robot leg. Combining rh ¼ ½rrh ; rlh and rf ¼ ½rrf ; rlf that need to be calculated, the process for obtaining the inverse kinematics solution presented in this article is shown in Algorithm 1. Generally, Us has a large number of elements. Considering the locomotion characteristics of rb ðnÞ, unreasonable elements in Us can be excluded, thus reducing the number of inverse kinematics calculations needed. Common characteristics of rb ðnÞ include the following (a) xb ðnÞ increases predictably during bipedal walking. (b) yb ðnÞ is convex during RF swing N and concave during LF swing N..
(6) 6. International Journal of Advanced Robotic Systems (b) ZMP condition: the ZMP trajectory corresponding to as satisfies the stability requirement. The wider AZR consumes less energy but yields less walking stability.20 In gait control of the biped robot, multiple h values are taken to constitute the set H. The dynamic adjustment of h during walking can achieve a better compromise between energy consumption and stability. The element ahs in Rs that meets the requirement of h is used to calculate Eðahs Þ according to equation (7). If the range of Eðahs Þ contains a finite number of convex sets, the seed set Phs ¼ fp1 ; p2 ; ; pL g, where pl 2 Phs , satisfies the following:. Figure 4. Geometric relations between r rh and r rf . Algorithm 1. Inverse kinematics algorithm. (c) zb ðnÞ increases predictably and then decreases predictably during N. (d) During walking, the given rh ðnÞ and rf ðnÞ distance are less than the leg length, that is, 4 P maxjjrh ðnÞ rf ðnÞjj 2. lj ; n ¼ 1; 2; . . . N . j¼1. Seed extraction. For 8a 2 U s , the map a ! fqð0Þ; qð1Þ; ; qðN Þg is formed by inverse kinematics calculation, and then, the corresponding ZMP trajectory can be obtained. Rs U s , where as 2 Rs , is defined, which satisfies the following: (a) Physical constraint: for as ! qs ðnÞ, maxjqs ðnÞ qs ðn 1Þj ts q max , where n ¼ 1; 2; N , and q max is the maximum angular velocity of the joint motors.. (a) There is a linear relationship between the number of seeds L and the number of parameters. That is, L n1 þ n2 þ þ n18 , where nk is the number of ak values in 8ahs and k ¼ 1; 2; ; 18. (b) The energy consumption of the same column grid is the lowest. Namely, pl ¼ ajk if and only if Eðajk Þ ¼ min½EðAjk Þ, where Ajk is the set containing the j’th value of ak in 8ahs , where j ¼ 1; 2; ; nk .. Gradient optimization. Obviously, the seed pl 2 Phs is a gridded intersection in U s . If Eðpl Þ of pl ¼ ½a 1 a 2 a 18 achieves convexity in adjacent grids, then the search space Ll ¼ B1 B 2 B18 is formed with pl as the center and dl ¼½d 1 d 2 d 18 as the search interval, where Bk ¼ fak dk ; ak þ dk g and k ¼ 1; 2; ; 18. For x 2 Ll , the inverse kinematics and E are calculated. If x satisfies Eðx Þ ¼ minfEðxÞjx 2 Ll g and its ZMP meets the requirements of h, then taking the gradient rEðx Þ ¼ x pl ¼½ b 1 b 2 b 18 , a new search space Ll ¼ B 1 B 2 B 18 is obtained, where Bk ¼ Bk þbk . The specific calculation process is shown in Algorithm 2. Given pl , Algorithm 2 is progressive in the finite grid neighborhood, according to d l , so it must converge. In the algorithm, e is the approximation accuracy of E. After all, pl is calculated, the seed with the minimum E can be used to obtain the optimal gait ghs corresponding to s and h.. Gait synthesis algorithm For a given walking distance d, there is a sequence S ¼fs 1 ; s 2 ; ; sc g with minimum E. To make the walking process smooth, both s1 and s2 are planned as starting steps, both sc1 and sc are stopping steps, and sm is a cyclic step, where m ¼ 3; 4; ; c 2. We let s 1 ¼sc , s 2 ¼sc1 , 8sm cover equal distances and d b ¼ 2s 1 þ 2s 2 be controlled in 1*2sm , that is, sm < d b 2sm . When sm is known, the calculation of s1 and s2 is shown in equation (10).
(7) Zhiqiang et al.. 7. Algorithm 2. Gradient optimization algorithm. where y ZMP ðnÞ ¼. cn P j¼1. . yji ðnÞf ji ðnÞ. cn P j¼1. f ji ðnÞ, yji ðnÞ, and. f ji ðnÞ 2 F i ðnÞ correspond to the sensor position and pressure in the Y direction, respectively. For the SSP, cn ¼ 4, and for the DSP, cn ¼ 6. When y AZR ðnÞ
(8) 0, co ¼ 1; when y AZR ðnÞ < 0, co ¼ 1. The incremental PI regulator with transfer function DðsÞ ¼ k P 1 þ T1I s is used to calculate hiþ1 , that is hiþ1 ¼ hi þ Dhiþ1. 8 c ¼ dd=sm e þ 2 > > > < d ¼ d s ðc 4Þ b m > s ¼ ðd sm Þ=3 1 b > > : s 2 ¼ ðd b þ2sm Þ=6. where Dhiþ1 ¼ k P ðei ei1 Þ þ k P TT SI ei . Because ðei ei1 Þ easily causes high frequency interference, the first-order inertia link GðsÞ ¼ T L 1sþ1 is introduced to smooth its output, so that (10). (11). where Eha ðsm Þ ¼ Ehs ðs 1 Þ þ 2Ehs ðs 2 Þ þ Ehb ðs 1 Þ þ Ehe ðsc Þ. Obviously, 9s m 2 S, such that J hs ðs m Þ ¼ min½J hs ðSÞ. As shown in Figure 5, when the robot moves initially, the AZR should use a smaller h^ to ensure robustness during walking, but such walking will consume more energy.32 The GSYN algorithm uses closed-loop control to query gait trajectory gi from the database according to the si and hi of each step. While the robot is walking, the ZMP data r ZMP ðnÞ are calculated from the feedback FSR data F i ðnÞ33 and sent to the AZR controller to calculate hiþ1 . In the AZR controller, the time Ts of each step is taken as the control period, that is, Ts ¼ N ts, which includes the underactuated SSP and the overactuated DSP, which are applicable to different algorithms.34 As shown in equation (9), N1 < n < N2 is the SSP, and both 1 n N1 and N2 < n. N are the DSP. We let the AZR position during the i’th step satisfy robot walking stability as rAZR (n). During the DSP, the AZR control algorithm requires rZMP(n) to be located in the AZR. During the SSP, the algorithm requires x ZMP (N 1 þ1)
(9) x AZR (N 1 þ1), x ZMP (N 2 ). xAZR(N2), and hiþ1 is calculated from the deviation ei in the Y direction, that is ei ¼. Dhiþ1 ¼ K a Dhi þ K 1 ei þ K 2 ei1 L where K a ¼ T LTþT , K 1 ¼ kP S. If the robot’s walking starts and ends with two feet standing side by side, the AZR is required to be h, Ehs ðsm Þ is the energy consumption of cycle step sm, Ehb ðs 1 Þ is the energy consumption of starting step s1, and Ehe ðsc Þ is the energy consumption of the stopping step sc. Then, the total energy consumption J hs ðsm Þ is J hs ðsm Þ ¼ ðc 4ÞEhs ðsm Þ þ Eha ðsm Þ. (13). 2 minfco ðy ZMP ðnÞ yAZR ðnÞÞjN 1 < n N 2 g lf w (12). . TS T L þT S. þ. TS TI. (14). . S , and K 2 ¼ k P T LTþT . S. Experimental evaluation According to the structure of the biped robot described in “System structure” section, a 3D simulation model is constructed in Webots to evaluate our proposed algorithm. In the GPO algorithm, we take S ¼ fsjs ¼ 1; 2; 13g and H ¼ fhjh ¼ 0:1; 0:2; 1g and calculate the gait trajectory gns from their combination. Taking s ¼ 10 as an example, rb(n) is described by ak, as shown in equation (8), where N ¼ 16, k ¼ 0:2 cm, and k ¼ 1, 2, . . . 18; rrf(n) is shown in equation (9), where ws ¼ 8 cm and hs ¼ 1 cm. Using the features extracted from rb(n), the number of effective grid elements is 1 763 449 134, and the inverse kinematics calculation is carried out with Algorithm 1. According to the physical constraints and ZMP conditions in “Seed extraction” section, 17 024 963 elements of Rs are obtained, and the seeds corresponding to different h are selected. When h ¼ 0:8, the number of seeds selected is L ¼ 102, as presented in Table 2, where k is the label of ak, and n k is the actual number of seeds obtained by removing the. repeatedly selected seeds. Pk P0:8 10 and contains nk seeds, and E min ðPk Þ is the minimum E of seeds in Pk. To obtain a gait with lower energy consumption, gradient optimization is performed twice with Algorithm 2 with dk1 ¼ 0:05 cm and dk2 ¼ 0:01 cm. E 1min ðPk Þ and D1 % and E 2min ðPk Þ and D2 % are the minimum values of E and the percent reduction in E in the two calculations, respectively. The E min curve of p1 *p20 in the gradient optimization calculation is shown in Figure 6. In the first gradient optimization calculation, 1 0:8 8pl 2 P0:8 10 , E min ðP 10 Þ ¼ 182:3 mJ, and the results are marked with “*.” In the second calculation, E 2min ðP 0:8 10 Þ ¼ 178:4 mJ, and the results are marked with “*.” To compare the performance of different algorithms, the fixed hip height (FHH) is taken as the FHH algorithm,16 the.
(10) 8. International Journal of Advanced Robotic Systems. H. S Step Length Assignment. d. AZR Assignment. s. η. Trajectory Planning. η. si. η̂ AZR Controller. Generating Grid. UZMP. Us. ZMP Calculation. Inverse Kinematics. Fi. Rs Seed Extraction η. Ps. Gradient Search. gsη η Es. Offline G data E base. GPO. Online data base. ηi gi. qi Joint Controllers. GSYN. Figure 5. Overall gait planning algorithm.. Table 2. Analysis of E min during gradient optimization. k. nk. n k. Emin ðPk Þ. E1min ðPk Þ. D 1 ð%Þ. E 2min ðPk Þ. D 2 ð%Þ. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18. 5 9 2 3 1 1 34 1 9 1 8 11 11 14 5 5 3 3. 5 7 0 1 0 0 33 0 8 0 5 9 10 13 3 4 2 2. 197.2 197.2 — 210.7 — — 210.2 — 202.8 — 212.2 198.3 200.2 201.7 219.1 213.3 247.4 246.3. 182.8 182.3 — 182.3 — — 182.8 — 182.8 — 182.8 182.3 182.3 182.3 183.0 182.8 183.0 183.0. 7.30 7.75 — 13.48 — — 13.01 — 9.83 — 13.81 8.06 8.93 9.62 16.48 14.27 26.05 25.72. 178.4 178.4 — 179.8 — — 178.4 — 178.4 — 178.4 178.4 179.8 178.4 178.9 179.5 178.9 178.9. 2.42 2.14 — 1.36 — — 2.42 — 2.42 — 2.42 2.14 1.40 2.14 2.20 1.81 2.20 2.20. vertical variation in the hip height (VHH) according to the cosine waveform is taken as the VHH algorithm,20 and the other conditions are the same as the algorithm in this article. After optimization, E min ¼ 222:8 m J for FHH. Figure 6. Convergence curve for E min during gradient optimization.. algorithm and 198:7 mJ for VHH algorithm, which means that the energy consumption is reduced by 19:93% and 10:22%, respectively. In a single gait cycle, the x ZMP ðnÞ trajectories of the three algorithms and the corresponding E of each sampling point are identified in Figure 7, where s ¼ 0:25, N ¼ 16, and ts ¼ 0:1 s. It can be seen from the.
(11) Zhiqiang et al.. 9. Figure 7. Comparison of the EðnÞ and x ZMP ðnÞ of the three algorithms.. Figure 10. Dynamic simulation of robot walking.. Figure 11. Video frames of robot walking.. Figure 8.. E min. corresponding to s 2 S and h 2 H.. Figure 9. Jhs ðSÞ analysis when d ¼ 100 cm.. figure that compared with that of both FHH algorithm and VHH algorithm, the E distribution of our algorithm is more balanced, and the total energy consumption value is lower.. According to the GPO algorithm, 8sm 2 S and 8h ¼ H, the calculated E min is shown in Figure 8. Obviously, as the value of h decreases, the required E min gradually increases to achieve the same s. In the GSYN algorithm, if d ¼ 100 cm and 8sm 2 S, according to equations (10) and (11), J hs ðSÞ can be calculated, as shown in Figure 9, where h ¼ 0:2; 0:3; ; 1, and sm ¼ 10 cm, J hs ðSÞ is the minimum in the same column data. In this case, c ¼ 8, s 1 ¼ 3 cm and s 2 ¼ 7 cm, that is, S ¼ f3; 7; 10; 10; 10; 10; 10; 10; 10; 10; 7; 3g. If we let h ¼ 0.8 and set the starting and stopping positions of walking to be two feet standing side by side, the swing length of the RF is Lrf ¼ f3,17,20,20,17,3g, and the swing length of the LF is Llf ¼ f10,20,20,20,20,10g. The two 3-cm elements in Lrf correspond to the starting step and stopping step, respectively, where Eb0:8 ð3Þ ¼ 65:2 and Ee0:8 ð3Þ ¼ 66:8 m J. There are two 17-cm elements in Lrf and two 10-cm elements in Llf, which correspond to the case when the movement distance of the swing foot is unequal before and after it becomes the support foot. From equation (11), J s0:8 ð10Þ ¼ 1:8967 J, where Ea0:8 ð10Þ ¼ 515:9 mJ. The gait array for each step gi ¼ [q1 q2 . . . q16], which is obtained from the database, is used to control the.
(12) 10. International Journal of Advanced Robotic Systems. Table 3. GSYN data for robot walking, d ¼ 100 cm. i 2 3 4–10 11 12 13. si ðcmÞ. ei. Dhi. hi. Ehs ðmJÞ. 3(0þ3) 7(3þ7) 10(7þ10) 10(10þ10) 7(10þ3) 3(7þ3) 3(3þ0). 0.25 0.09 0.03 0.02 0.01 0.03 0.02. 0 0.219 0.079 0.02 0.009 0.029 0.016. 0.5 0.7 0.8 0.8 0.8 0.8 0.8. 90.5 111.0 153.7 178.4 153.7 104.3 65.2. Es0:5 ðmJÞ 90.5 127.7 176.0 200.3 176.0 127.7 94.8. GSYN: gait synthesis.. joint motion of the robot, where i ¼ 1, 2, . . . 13. The dynamic simulation of the corresponding biped robot walking is shown in Figure 10, and the black dots in the figure are the trajectory of rb ðnÞ. According to the above simulation data, the actual robot walking experiment is shown in Figure 11. In the experiment, we set d ¼ 100 cm, h^ ¼ 0:5, T S ¼ 1:6 s, k P ¼ 0:875, T I ¼ 3:2 s, T L ¼ 1:6 s, and we set y AZR ðnÞ along the h ¼ 0: 8 sideline during the SSP. The initial conditions for walking are e 0 ¼ e1 ¼ 0 and h0 ¼ h^ ¼ 0:5. The h value of the AZR controller is stable at 0:8 after the third step. The calculation data are presented in Table 3, where the data in parentheses in the column titled si correspond to the movement distance of the swinging leg in front of and behind the support foot, Ehs is the energy consumption calculated according to the actual hi , and Es0:5 is the energy consumption value when h^ ¼ 0:5. It is calculated that J hs ð10Þ ¼ 1:929 and J s0:5 ð10Þ ¼ 2:195J ; that is, the AZR controller adjusts hi to reduce the energy consumption by 12:13%.. Conclusion In this article, we have proposed a gait planning algorithm for biped robots that improve the energy efficiency of robot walking. The algorithm has universal applicability for different forms of biped robots. The following conclusions can be drawn from the theoretical analysis and experimental results: (a) The motor-driven robot has a dispersed mass, and the established five-mass robot model describes the physical characteristics of the robot better than other models. To balance the great computational complexity caused by the multimass model, we designed an energy consumption function with load torque as the main parameter; it could calculate the energy consumption index of the biped robot quickly during the simulation. (b) In the process of gridding the parameter space with the GPO algorithm, it is required that no grid has multiple peaks. If the appropriate mesh gap is selected, this method is suitable for optimizing most systems. During gradient approximation with the GPO algorithm, the step size of the successive. approximations is determined according to the accuracy requirements. When the mesh size is large, the mesh can be meshed again to accelerate the approximation process. GPO requires many calculations during the optimization process. Using a GPU to accelerate the calculation can help determine the optimal value quickly. With the advancement of computer science, compared with many random optimization algorithms, our algorithm will show increasingly superior performance. (c) Given the walking distance of the robot, the GSYN algorithm plans the whole motion process, including the starting step, the intermediate steps, and the stopping step, while minimizing the energy consumption. In the process of robot walking, the algorithm adjusts the gait parameters according to the feedback ZMP data, and the AZR is set to overcome perturbations due to modeling and environmental errors. The algorithm can optimize the tradeoff between low energy consumption and high robustness and solve the problem of walking in biped robots with highly nonlinear characteristics.. Declaration of conflicting interests The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.. Funding The author(s) received no financial support for the research, authorship, and/or publication of this article.. ORCID iD Lu Zhiqiang. https://orcid.org/0000-0001-8137-5506. References 1. Saeedvand S, Jafari M, Aghdasi HS, et al. A comprehensive survey on humanoid robot development. Knowl Eng Rev 2019; 34(20): 1–18. 2. Robio F, Valero F, and Llopis-albert C. A review of mobile robots: concepts, methods, theoretical framework, and applications. Int J Adv Robot Syst 2019; 16: 1–22. 3. Paolillo A, Cherubini A, Keith F, et al. Toward autonomous car driving by a humanoid robot: a sensor-based framework. In: 2014 IEEE-RAS international conference on humanoid robots, Madrid, Spain, 18–20 November 2014, pp. 451–456. IEEE. ISBN: 978-1-4799-7174-9. 4. Koolen T, Bertrand S, Thomas G, et al. Design of a momentum-based control framework and application to the humanoid robot Atlas. Int J Humanoid Robot 2016; 13(1): 1650007. 5. Boutin L, Eon A, Zeghloul S, et al. From human motion capture to humanoid locomotion imitation application to the robots HRP-2 and HOAP-3. Robotica 2011; 29(2): 325–334..
(13) Zhiqiang et al. 6. Esfanabadi VS, Rostami M, Rahmati SM, et al. The average speed of motion and optimal power consumption in biped robots. Knowl Eng Rev 2019; 34(e25): 1–13. 7. Juang C and Yeh Y. Multiobjective evolution of biped robot gaits using advanced continuous ant-colony optimized recurrent neural networks. IEEE Trans Cybern 2018; 48(6): 1910–1922. 8. Lin C, Yang J, An K, et al. Rhythmic-reflex hybrid adaptive walking control of biped robot. J Intell Robot Syst 2019; 94: 603–619. 9. He B, Si Y, Wang Z, et al. Hybrid CPG–FRI dynamic walking algorithm balancing agility and stability control of biped robot. Autonom Robot 2019; 43: 1855–1865. 10. Kajita S, Kanehiro F, Kaneko K, et al. The 3D linear inverted pendulum mode: a simple modeling for a biped walking pattern generation. In: 2001 IEEE/RSJ international conference on intelligent robots and systems, Maui, HI, USA, 29 October–3 November 2001, pp. 239–246. IEEE. ISBN: 0-7803-6612-2. 11. Hong S, Oh Y, Kim D, et al. Real-time walking pattern generation method for humanoid robots by combining feedback and feedforward controller. IEEE Trans Ind Electron 2014; 61(1): 355–364. 12. Akhond S, Herzig N, Wegiriya H, et al. A method to guide local physical adaptations in a robot based on phase portraits. IEEE Access 2019; 7: 78830–78841. 13. Pi M, Kang Y, Xu C, et al. Adaptive time-delay balance control of biped robots. IEEE Trans Ind Electron 2020; 67(4): 2936–2944. 14. Shafii N, Abdolmaleki A, Lau N, et al. Development of an omnidirectional walk engine for soccer humanoid robots. Int J Adv Robot Syst 2015; 12: 193. 15. Shimmyo S, Sato T, and Ohnishi K. Biped walking pattern generation by using preview control based on three-mass model. IEEE Trans Ind Electron 2013; 60(11): 5137–5147. 16. Luo RC and Chen CC. Biped walking trajectory generator based on three-mass with angular momentum model using model predictive control. IEEE Trans Ind Electron 2016; 63(1): 268–276. 17. Luo RC and Chen CC. Quasi-natural humanoid robot walking trajectory generator based on five-mass with angular momentum model. IEEE Trans Ind Electron 2018; 65(4): 3355–3364. 18. Kuo AD. Choosing your steps carefully. IEEE Robot Autom Mag 2007; 14(2): 18–29. 19. Hong Y, Park C, and Kim J. Stable bipedal walking with a vertical center-of-mass motion by an evolutionary optimized central pattern generator. IEEE Trans Ind Electron 2014; 61(5): 2346–2355.. 11 20. Shin HK and Kim BK. Energy-efficient gait planning and control for biped robots utilizing vertical body motion and allowable ZMP region. IEEE Trans Ind Electron 2015; 62(4): 2277–2286. 21. Dau VH, Chew C, and Poo A. Achieving energy- efficient bipedal walking trajectory through GA-based optimization of key parameters. Int J Humanoid Robot 2009; 6(4): 609–629. 22. Elhosseinia MA, Haikal AY, Badawy M, et al. Biped robot stability based on an A-C parametric whale optimization algorithm. J Comput Sci 2019; 31: 17–32. 23. Wu L and Li TS. Fuzzy dynamic gait pattern generation for real-time push recovery control of a teen-sized humanoid robot. IEEE Access 2020; 8: 36441–36453. 24. Wright J and Jordanov I. Intelligent approaches in locomotion: a review. J Intell Robot Syst 2015; 80(2): 255–277. 25. Bertram JEA. Constrained optimization in human walking: cost minimization and gait plasticity. J Exp Biol 2005; 208(6): 979–991. 26. Paparisabet MA, Dehghani R, and Ahmadi AR. Knee and torso kinematics in generation of optimum gait pattern based on human-like motion for a seven-link biped robot. Multibody Syst Dynam 2019; 47: 117–136. 27. Sellaouti R, Stasse O, Kajita S, et al. Faster and smoother walking of humanoid HRP-2 with passive toe Joints. In: 2006 IEEE/RSJ international conference on intelligent robots and systems, Beijing, China, 9–15 October 2006, pp. 4909–4914. IEEE. ISBN: 1-4244-0258-1. 28. Mobinipour V. Gate planning and control of a nine-link biped robot with toe joints via impact effects. Int J Humanoid Robot 2019; 16(1): 1950001. 29. Vukobratovic M and Borovac B. Zero-moment point - thirty five years of its life. Int J Humanoid Robot 2004; 01(01): 157–173. 30. Srinivasan M and Ruina A. Computer optimization of a minimal biped model discovers walking and running. Nature 2006; 439(5): 72–75. 31. Lee G, Park S, Lee D, et al. Minimizing energy consumption of parallel mechanisms via redundant actuation. IEEE/ASME Trans Mechatron 2015; 20(6): 2805–2812. 32. Lee BJ, Stonier D, Kim YD, et al. Modifiable walking pattern of a humanoid robot by using allowable ZMP variation. IEEE Trans Robot 2008; 24(4): 917–925. 33. Kim J. Multi-axis force-torque sensors for measuring zeromoment point in humanoid robots: a review. IEEE Sensors J 2020; 20(3): 1126–1141. 34. Dehghani R, Fattah A, and Abedi E. Cyclic gait planning and control of a five-link biped robot with four actuators during single support and double support phases. Multibody Syst Dynam 2015; 33: 389–411..
