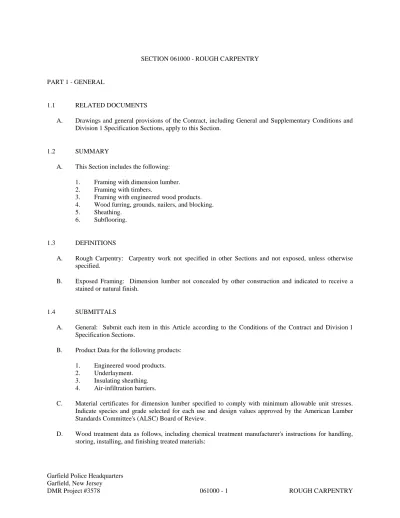

SECTION ROUGH CARPENTRY

(1)

Garfield Police Headquarters Garfield, New Jersey

DMR Project #3578 061000 - 1 ROUGH CARPENTRY SECTION 061000 - ROUGH CARPENTRY

PART 1 - GENERAL

1.1 RELATED DOCUMENTS

A. Drawings and general provisions of the Contract, including General and Supplementary Conditions and Division 1 Specification Sections, apply to this Section.

1.2 SUMMARY

A. This Section includes the following: 1. Framing with dimension lumber. 2. Framing with timbers.

3. Framing with engineered wood products. 4. Wood furring, grounds, nailers, and blocking. 5. Sheathing.

6. Subflooring.

1.3 DEFINITIONS

A. Rough Carpentry: Carpentry work not specified in other Sections and not exposed, unless otherwise specified.

B. Exposed Framing: Dimension lumber not concealed by other construction and indicated to receive a stained or natural finish.

1.4 SUBMITTALS

A. General: Submit each item in this Article according to the Conditions of the Contract and Division 1 Specification Sections.

B. Product Data for the following products: 1. Engineered wood products. 2. Underlayment.

3. Insulating sheathing. 4. Air-infiltration barriers.

C. Material certificates for dimension lumber specified to comply with minimum allowable unit stresses. Indicate species and grade selected for each use and design values approved by the American Lumber Standards Committee's (ALSC) Board of Review.

D. Wood treatment data as follows, including chemical treatment manufacturer's instructions for handling, storing, installing, and finishing treated materials:

(2)

DMR Project #3578 061000 - 2 ROUGH CARPENTRY 1. For each type of preservative-treated wood product, include certification by treating plant stating type of preservative solution and pressure process used, net amount of preservative retained, and compliance with applicable standards.

1.5 QUALITY ASSURANCE

A. Testing Agency Qualifications: To qualify for approval, an independent testing agency must demonstrate to Architect's satisfaction, based on evaluation of agency-submitted criteria conforming to ASTM E 699, that it has the experience and capability to satisfactorily conduct the testing indicated without delaying the Work.

B. Single-Source Responsibility for Engineered Wood Products: Obtain each type of engineered wood product from one source and by a single manufacturer.

1.6 DELIVERY, STORAGE, AND HANDLING

A. Keep materials under cover and dry. Protect from weather and contact with damp or wet surfaces. Stack lumber, plywood, and other panels. Provide for air circulation within and around stacks and under temporary coverings.

1. For lumber and plywood pressure treated with waterborne chemicals, place spacers between each bundle to provide air circulation.

PART 2 - PRODUCTS

2.1 MANUFACTURERS

A. Available Manufacturers: Subject to compliance with requirements, manufacturers offering products that may be incorporated into the Work include, but are not limited to, the following:

1. Wood-Preservative-Treated Materials: a. Baxter: J. H. Baxter Co. b. Chemical Specialties, Inc.

c. Continental Wood Preservers, Inc. d. Osmose Wood Preserving, Inc. 2. Laminated-Veneer Lumber:

a. Alpine Structures. b. Georgia-Pacific Corp. c. Trus Joist MacMillan. 3. Prefabricated Wood I-Joists:

a. Trus Joist MacMillan. b. Alpine Structures. c. Georgia-Pacific Corp. 4. Gypsum Sheathing Board:

a. Georgia-Pacific Corp.

b. National Gypsum Co.; Gold Bond Building Products Division. c. United States Gypsum Co.

(3)

DMR Project #3578 061000 - 3 ROUGH CARPENTRY 5. Air-Infiltration Barriers:

a. Celotex Corporation (The); Building Products Division. b. DuPont Company; Fibers Department.

2.2 LUMBER, GENERAL

A. Lumber Standards: Comply with DOC PS 20, "American Softwood Lumber Standard," and with applicable grading rules of inspection agencies certified by ALSC's Board of Review.

B. Inspection Agencies: Inspection agencies, and the abbreviations used to reference them, include the following:

1. NELMA - Northeastern Lumber Manufacturers Association. 2. NLGA - National Lumber Grades Authority (Canadian). 3. RIS - Redwood Inspection Service.

4. SPIB - Southern Pine Inspection Bureau.

5. WCLIB - West Coast Lumber Inspection Bureau. 6. WWPA - Western Wood Products Association.

C. Grade Stamps: Provide lumber with each piece factory marked with grade stamp of inspection agency evidencing compliance with grading rule requirements and identifying grading agency, grade, species, moisture content at time of surfacing, and mill.

D. Where nominal sizes are indicated, provide actual sizes required by DOC PS 20 for moisture content specified. Where actual sizes are indicated, they are minimum dressed sizes for dry lumber.

1. Provide dressed lumber, S4S, unless otherwise indicated.

2. Provide dry lumber with 19 percent maximum moisture content at time of dressing for 2-inch nominal (38-mm actual) thickness or less, unless otherwise indicated.

2.3 WOOD-PRESERVATIVE-TREATED MATERIALS

A. General: Where lumber or plywood is indicated as preservative treated or is specified to be treated, comply with applicable requirements of AWPA C2 (lumber) and AWPA C9 (plywood). Mark each treated item with the Quality Mark Requirements of an inspection agency approved by ALSC's Board of Review.

B. Pressure treat wood members in contact with ground or freshwater with waterborne preservatives to a minimum retention of 0.40 lb/cu. ft. (6.4 kg/cu. m).

2.4 DIMENSION LUMBER

A. General: Provide dimension lumber of grades indicated according to the ALSC National Grading Rule (NGR) provisions of the inspection agency indicated.

B. Non-Load-Bearing Interior Partitions: Provide framing of the following grade and species: 1. Grade: No. 2.

2. Species: Eastern softwoods; NELMA. 3. Species: Northern species; NLGA. 4. Species: Mixed southern pine; SPIB.

(4)

DMR Project #3578 061000 - 4 ROUGH CARPENTRY 5. Species: Western woods; WCLIB or WWPA.

6. Species: Any species above.

C. Exterior and Load-Bearing Walls: Provide framing of the following grade and species:

D. Framing Other than Non-Load-Bearing Partitions: Provide framing of the following grade and species: 1. Grade: No. 2.

2. Species: Spruce-pine-fir south; NELMA. 3. Species: Hem-fir north; NLGA.

4. Species: Spruce-pine-fir north; NLGA. 5. Species: Mixed southern pine; SPIB. 6. Species: Hem-fir; WCLIB or WWPA. 7. Species: Any species above.

2.5 BOARDS

A. Exposed Boards: Where boards will be exposed in the finished work, provide the following: 1. Moisture Content: 19 percent maximum.

2. Species and Grade: Spruce-pine-fir, C & Btr per WCLIB rules or C Select per NLGA or WWPA rules.

3. As noted on plans by Architect.

B. Concealed Boards: Where boards will be concealed by other work, provide lumber with 19 percent maximum moisture content and of following species and grade:

1. Species and Grade: Eastern softwoods, No. 3 Common per NELMA rules. 2. Species and Grade: Mixed southern pine, No. 2 per SPIB rules.

3. Species and Grade: Spruce-pine-fir, Standard per WCLIB rules or No. 3 Common per WWPA rules.

4. Species and Grade: Western woods, Standard per WCLIB rules or No. 3 Common per WWPA rules.

5. Species and Grade: Any species above.

2.6 MISCELLANEOUS LUMBER

A. General: Provide lumber for support or attachment of other construction, including rooftop equipment curbs and support bases, cant strips, bucks, nailers, blocking, furring, grounds, stripping, and similar members.

B. Fabricate miscellaneous lumber from dimension lumber of sizes indicated and into shapes shown.

C. Moisture Content: 19 percent maximum for lumber items not specified to receive wood preservative treatment.

D. Grade: For dimension lumber sizes, provide No. 3 or Standard grade lumber per ALSC's NGRs of any species. For board-size lumber, provide No. 3 Common grade per NELMA, NLGA, or WWPA; No. 2 grade per SPIB; or Standard grade per NLGA, WCLIB or WWPA of any species.

(5)

DMR Project #3578 061000 - 5 ROUGH CARPENTRY A. General: Provide engineered wood products acceptable to authorities having jurisdiction and for which current model code research or evaluation reports exist that evidence compliance with building code in effect for Project.

1. Allowable Design Stresses: Provide engineered wood products with allowable design stresses, as published by manufacturer, that meet or exceed those indicated. Manufacturer's published values shall be determined from empirical data or by rational engineering analysis, and demonstrated by comprehensive testing performed by a qualified independent testing agency.

B. Laminated-Veneer Lumber: Lumber manufactured by laminating wood veneers in a continuous press using an exterior-type adhesive complying with ASTM D 2559 to produce members with grain of veneers parallel to their lengths and complying with the following requirements:

1. Extreme Fiber Stress in Bending: 2500 psi (17 MPa) for 12-inch nominal- (286-mm actual-) depth members.

2. Modulus of Elasticity: 2,000,000 psi (13 800 MPa). 3. Tension Parallel to Grain: 1850 psi (13 MPa). 4. Compression Parallel to Grain: 2800 psi (19 MPa).

5. Compression Perpendicular to Grain: 400 psi (3 MPa) perpendicular to and 500 psi (3.5 MPa) and parallel to glue line.

6. Horizontal Shear: 285 psi (2 MPa) perpendicular to and 190 psi (1.3 MPa) parallel to glue line. C. Prefabricated Wood I-Joists: Units manufactured by bonding stress-graded lumber flanges to

wood-based structural-use panel webs with exterior-type adhesives complying with ASTM D 2559, to produce I-shaped joists complying with the following requirements:

1. Flange Material: Laminated-veneer lumber.

2. Web Material: Oriented-strand board (OSB) complying with DOC PS 2. 3. Web Material: Plywood complying with DOC PS 2.

4. Web Material: Either material indicated above, as standard with joist manufacturer.

5. Structural Capacities: Establish and monitor structural capacities according to ASTM D 5055. 6. Sizes: Depths and widths as indicated, with flanges not less than 1-1/2 inches (38 mm) in actual

width.

7. I-Joists shall be installed with all required anchors, stiffeners and bracing in accordance with manufacturer requirements.

2.8 CONCEALED, PERFORMANCE-RATED STRUCTURAL-USE PANELS

A. General: Where structural-use panels are indicated for the following concealed types of applications, provide APA-performance-rated panels complying with requirements designated under each application for grade, span rating, exposure durability classification, and edge detail (where applicable).

1. Thickness: Provide panels meeting requirements specified but not less than thickness indicated. 2. Span Ratings: Provide panels with span ratings required to meet "Code Plus" provisions of APA

Form No. E30, "APA Design/Construction Guide: Residential & Commercial." B. Subflooring: APA-rated sheathing.

1. Exposure Durability Classification: Exposure 1. 2. Span Rating: 48/24.

3. Minimum thickness: ¾ inch.

4. Floor sheathing shall be tongue and groove and installed with both construction adhesive and required nailing.

(6)

DMR Project #3578 061000 - 6 ROUGH CARPENTRY 1. Exposure Durability Classification: Exposure 1.

2. Span Rating: As required to suit stud spacing indicated. 3. Minimum thickness indicated on plan.

D. Roof Sheathing: APA-rated sheathing.

1. Exposure Durability Classification: Exposure 1. 2. Minimum Span Rating: 32/16.

3. Minimum thickness: 5/8 inch.

4. Roof sheathing shall be installed with panel clips.

2.9 STRUCTURAL-USE PANELS FOR BACKING

A. Plywood Backing Panels: For mounting electrical or telephone equipment, provide fire-retardant-treated plywood panels with grade, C-D Plugged Exposure 1, in thickness indicated or, if not otherwise indicated, not less than 15/32 inch (11.9 mm) thick.

2.10 AIR-INFILTRATION BARRIER

A. Air retarder complying with ASTM E 1677; made from polyolefins; either cross-laminated films, woven strands, or spunbonded fibers; coated or uncoated; with or without perforations to transmit water vapor but not liquid water; and as follows:

1. Minimum Thickness: 3 mils (0.08 mm).

2. Minimum Water-Vapor Transmission: 10 perms (575 ng/Pa x s x sq. m) when tested according to ASTM E 96, Procedure A.

3. Maximum Flame Spread: 25 per ASTM E 84. 4. Minimum Allowable Exposure Time: 3 months.

2.11 FASTENERS

A. General: Provide fasteners of size and type indicated that comply with requirements specified in this Article for material and manufacture.

1. Where rough carpentry is exposed to weather, in ground contact, or in area of high relative humidity, provide fasteners with a hot-dip zinc coating per ASTM A 153 or of Type 304 stainless steel.

B. Nails, Wire, Brads, and Staples: FS FF-N-105. C. Power-Driven Fasteners: CABO NER-272. D. Wood Screws: ASME B18.6.1.

E. Lag Bolts: ASME B18.2.1. (ASME B18.2.3.8M)

F. Bolts: Steel bolts complying with ASTM A 307, Grade A (ASTM F 568, Property Class 4.6); with ASTM A 563 (ASTM A 563M) hex nuts and, where indicated, flat washers.

(7)

DMR Project #3578 061000 - 7 ROUGH CARPENTRY A. General: Provide galvanized steel framing anchors of structural capacity, type, and size indicated and as

follows:

1. Research or Evaluation Reports: Provide products for which model code research or evaluation reports exist that are acceptable to authorities having jurisdiction and that evidence compliance of metal framing anchors for application indicated with building code in effect for Project.

2. Allowable Design Loads: Provide products with allowable design loads, as published by manufacturer, that meet or exceed those indicated. Manufacturer's published values shall be determined from empirical data or by rational engineering analysis, and demonstrated by comprehensive testing performed by a qualified independent testing agency.

B. Galvanized Steel Sheet: Hot-dip, zinc-coated steel sheet complying with ASTM A 653, G60 (ASTM A 653M, Z180) coating designation; structural, commercial, or lock-forming quality, as standard with manufacturer for type of anchor indicated.

C. Joist Hangers: U-shaped joist hangers with 2-inch- (50-mm-) long seat and 1-1/4-inch- (32-mm-) wide nailing flanges at least 85 percent of joist depth.

1. Thickness: 0.064 inch (1.6 mm).

D. Top Flange Hangers: U-shaped joist hangers, full depth of joist, formed from metal strap with tabs bent to extend over and be fastened to supporting member.

1. Strap Width: 2 inches (50 mm). 2. Thickness: 0.064 inch (1.6 mm).

E. Bridging: Rigid, V-section, nailless type, 0.064 inch (1.6 mm) thick, length to suit joist size and spacing. F. Rafter Tie-Downs (Hurricane Ties): Bent strap tie for fastening rafters or roof trusses to wall studs

below, 1-5/8 inches (41 mm) wide by 0.052 inch (1.3 mm) thick minimum. Tie-Downs must be selected to meet uplift forces as calculated in the wood truss design.

PART 3 - EXECUTION

3.1 INSTALLATION, GENERAL

A. Discard units of material with defects that impair quality of rough carpentry and that are too small to use with minimum number of joints or optimum joint arrangement.

B. Set rough carpentry to required levels and lines, with members plumb, true to line, cut, and fitted.

C. Fit rough carpentry to other construction; scribe and cope as required for accurate fit. Correlate location of furring, nailers, blocking, grounds, and similar supports to allow attachment of other construction. D. Apply field treatment complying with AWPA M4 to cut surfaces of preservative-treated lumber and

plywood.

E. Securely attach rough carpentry work to substrate by anchoring and fastening as indicated, complying with the following:

1. CABO NER-272 for power-driven staples, P-nails, and allied fasteners. 2. Published requirements of metal framing anchor manufacturer.

3. "Recommended Nailing Schedule" of referenced framing standard and with AFPA's "National Design Specifications for Wood Construction."

(8)

DMR Project #3578 061000 - 8 ROUGH CARPENTRY 4. "Table 2305.2--Fastening Schedule" of the BOCA National Building Code.

F. Use common wire nails, unless otherwise indicated. Use finishing nails for finish work. Select fasteners of size that will not fully penetrate members where opposite side will be exposed to view or will receive finish materials. Make tight connections between members. Install fasteners without splitting wood; predrill as required.

G. Use hot-dip galvanized or stainless-steel nails where rough carpentry is exposed to weather, in ground contact, or in area of high relative humidity.

H. Countersink nail heads on exposed carpentry work and fill holes with wood filler.

3.2 WOOD FRAMING, GENERAL

A. Framing Standard: Comply with AFPA's "Manual for Wood Frame Construction," unless otherwise indicated.

B. Framing with Engineered Wood Products: Install engineered wood products to comply with manufacturer's written instructions.

C. Install framing members of size and at spacing indicated. D. Do not splice structural members between supports.

E. Firestop concealed spaces of wood-framed walls and partitions at each floor level and at ceiling line of top story. Where firestopping is not inherent in framing system used, provide closely fitted wood blocks of 2-inch nominal- (38-mm actual-) thickness lumber of same width as framing members.

3.3 AIR-INFILTRATION BARRIER

A. Cover sheathing with air-infiltration barrier as follows:

1. Apply air retarder to comply with manufacturer's written instructions.

2. Apply air-infiltration barrier to cover upstanding flashing with 4-inch (100-mm) overlap.

(9)

DMR Project #3578 061600 - 1 Sheathing

SECTION 061600 - SHEATHING

PART 1 - GENERAL

1.2 SUMMARY

A. Section Includes: 1. Roof sheathing. B. Related Requirements:

1. Section 072500 "Weather Barriers" for water-resistive barrier applied over wall sheathing.

1.3 ACTION SUBMITTALS

A. Product Data: For each type of process and factory-fabricated product. Indicate component materials and dimensions and include construction and application details.

1. Include data for wood-preservative treatment from chemical treatment manufacturer and certification by treating plant that treated plywood complies with requirements. Indicate type of preservative used and net amount of preservative retained.

2. Include data for fire-retardant treatment from chemical treatment manufacturer and certification by treating plant that treated plywood complies with requirements. Include physical properties of treated materials.

3. For fire-retardant treatments, include physical properties of treated plywood both before and after exposure to elevated temperatures, based on testing by a qualified independent testing agency according to ASTM D 5516.

4. For products receiving a waterborne treatment, include statement that moisture content of treated materials was reduced to levels specified before shipment to Project site.

5. Include copies of warranties from chemical treatment manufacturers for each type of treatment.

1.4 INFORMATIONAL SUBMITTALS

A. Evaluation Reports: For following products, from ICC-ES: 1. Preservative-treated plywood.

2. Fire-retardant-treated plywood. 3. Foam-plastic sheathing.

A. Testing Agency Qualifications: For testing agency providing classification marking for fire-retardant-treated material, an inspection agency acceptable to authorities having jurisdiction that periodically

(10)

performs inspections to verify that the material bearing the classification marking is representative of the material tested.

A. Stack panels flat with spacers beneath and between each bundle to provide air circulation. Protect sheathing from weather by covering with waterproof sheeting, securely anchored. Provide for air circulation around stacks and under coverings.

PART 2 - PRODUCTS

2.1 PERFORMANCE REQUIREMENTS

A. Fire-Test-Response Characteristics: For assemblies with fire-resistance ratings, provide materials and construction identical to those of assemblies tested for fire resistance per ASTM E 119 by a testing and inspecting agency acceptable to authorities having jurisdiction.

1. Fire-Resistance Ratings: Indicated by design designations from UL's "Fire Resistance Directory.".

2.2 WOOD PANEL PRODUCTS

A. Emissions: Products shall meet the testing and product requirements of the California Department of Health Services' "Standard Practice for the Testing of Volatile Organic Emissions from Various Sources Using Small-Scale Environmental Chambers."

B. Certified Wood: For the following wood products, provide materials produced from wood obtained from forests certified by an FSC-accredited certification body to comply with FSC STD-01-001, "FSC Principles and Criteria for Forest Stewardship":

1. Plywood. C. Plywood: DOC PS 1.

D. Thickness: As needed to comply with requirements specified, but not less than thickness indicated. E. Factory mark panels to indicate compliance with applicable standard.

2.3 PRESERVATIVE-TREATED PLYWOOD

A. Preservative Treatment by Pressure Process: AWPA U1; Use Category UC23b.

1. Preservative Chemicals: Acceptable to authorities having jurisdiction and containing no arsenic or chromium.

B. Mark plywood with appropriate classification marking of an inspection agency acceptable to authorities having jurisdiction.

(11)

2.4 FIRE-RETARDANT-TREATED PLYWOOD

A. General: Where fire-retardant-treated materials are indicated, use materials complying with requirements in this article that are acceptable to authorities having jurisdiction and with fire-test-response characteristics specified as determined by testing identical products per test method indicated by a qualified testing agency.

B. Fire-Retardant-Treated Plywood by Pressure Process: Products with a flame-spread index of 25 or less when tested according to ASTM E 84, and with no evidence of significant progressive combustion when the test is extended an additional 20 minutes, and with the flame front not extending more than 10.5 feet beyond the centerline of the burners at any time during the test.

1. Use treatment that does not promote corrosion of metal fasteners.

2. Exterior Type: Treated materials shall comply with requirements specified above for fire-retardant-treated plywood by pressure process after being subjected to accelerated weathering according to ASTM D 2898. Use for exterior locations and where indicated.

3. Interior Type A: Treated materials shall have a moisture content of 28 percent or less when tested according to ASTM D 3201 at 92 percent relative humidity. Use where exterior type is not indicated.

4. Design Value Adjustment Factors: Treated lumber plywood shall be tested according ASTM D 5516 and design value adjustment factors shall be calculated according to ASTM D 6305. Span ratings after treatment shall be not less than span ratings specified. For roof sheathing and where high-temperature fire-retardant treatment is indicated, span ratings for temperatures up to 170 deg F shall be not less than span ratings specified.

C. Kiln-dry material after treatment to a maximum moisture content of 15 percent. Do not use material that is warped or does not comply with requirements for untreated material.

D. Identify fire-retardant-treated plywood with appropriate classification marking of qualified testing agency.

E. Application: Treat plywood indicated on Drawings, and the following: 1. Roof sheathing.

2.5 ROOF SHEATHING

A. Plywood Roof Sheathing: Exterior, Structural I. 1. Span Rating: Not less than 48/24.

2. Nominal Thickness: Not less than 3/4 inch.

2.6 FASTENERS

A. General: Provide fasteners of size and type indicated that comply with requirements specified in this article for material and manufacture.

1. For roof sheathing, provide fasteners with hot-dip zinc coating complying with ASTM A 153/A 153M.

B. Nails, Brads, and Staples: ASTM F 1667. C. Power-Driven Fasteners: NES NER-272.

(12)

D. Wood Screws: ASME B18.6.1.

E. Screws for Fastening Wood Structural Panels to Cold-Formed Metal Framing: ASTM C 954, except with wafer heads and reamer wings, length as recommended by screw manufacturer for material being fastened.

1. For wall and roof sheathing panels, provide screws with organic-polymer or other corrosion-protective coating having a salt-spray resistance of more than 800 hours according to ASTM B 117.

F. Screws for Fastening Gypsum Sheathing to Cold-Formed Metal Framing: Steel drill screws, in length recommended by sheathing manufacturer for thickness of sheathing to be attached, with organic-polymer or other corrosion-protective coating having a salt-spray resistance of more than 800 hours according to ASTM B 117.

1. For steel framing less than 0.0329 inch thick, use screws that comply with ASTM C 1002. 2. For steel framing from 0.033 to 0.112 inch thick, use screws that comply with ASTM C 954. G. Screws for Fastening Oriented-Strand-Board-Surfaced, Polyisocyanurate-Foam Sheathing to Metal Roof

Deck: Steel drill screws, in type and length recommended by sheathing manufacturer for thickness of sheathing to be attached, with organic-polymer or other corrosion-protective coating having a salt-spray resistance of more than 800 hours according to ASTM B 117. Provide washers or plates if recommended by sheathing manufacturer.

2.7 MISCELLANEOUS MATERIALS

A. Adhesives for Field Gluing Panels to Framing: Formulation complying with APA AFG-01 that is approved for use with type of construction panel indicated by manufacturers of both adhesives and panels.

1. Adhesives shall have a VOC content of 50 g/L or less when calculated according to 40 CFR 59, Subpart D (EPA Method 24).

2. Adhesives shall comply with the testing and product requirements of the California Department of Health Services' "Standard Practice for the Testing of Volatile Organic Emissions from Various Sources Using Small-Scale Environmental Chambers."

PART 3 - EXECUTION

3.1 INSTALLATION, GENERAL

A. Do not use materials with defects that impair quality of sheathing or pieces that are too small to use with minimum number of joints or optimum joint arrangement. Arrange joints so that pieces do not span between fewer than three support members.

B. Cut panels at penetrations, edges, and other obstructions of work; fit tightly against abutting construction unless otherwise indicated.

C. Securely attach to substrate by fastening as indicated, complying with the following: 1. NES NER-272 for power-driven fasteners.

(13)

3. Table R602.3(1), "Fastener Schedule for Structural Members," and Table R602.3(2), "Alternate Attachments," in ICC's "International Residential Code for One- and Two-Family Dwellings." D. Use common wire nails unless otherwise indicated. Select fasteners of size that will not fully penetrate

members where opposite side will be exposed to view or will receive finish materials. Make tight connections. Install fasteners without splitting wood.

E. Coordinate roof sheathing installation with flashing and joint-sealant installation so these materials are installed in sequence and manner that prevent exterior moisture from passing through completed assembly.

F. Do not bridge building expansion joints; cut and space edges of panels to match spacing of structural support elements.

G. Coordinate sheathing installation with installation of materials installed over sheathing so sheathing is not exposed to precipitation or left exposed at end of the workday when rain is forecast.

(14)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 1 INTERIOR ARCHITECTURAL WOODWORK

SECTION 064023 - INTERIOR ARCHITECTURAL WOODWORK

PART 1 - GENERAL

1.2 SUMMARY

A. This Section includes the following: 1. Interior standing and running trim. 2. Flush wood paneling.

3. Plastic-laminate cabinets. 4. Plastic-laminate countertops. 5. Solid-surfacing-material countertops. 6. Closet and utility shelving.

7. Shop finishing of interior woodwork. 8. Wood handrail.

B. Related Sections include the following:

1. Division 06 Section "Rough Carpentry" for wood furring, blocking, shims, and hanging strips required for installing woodwork and concealed within other construction before woodwork installation.

2. Division 06 Section "Finish Carpentry" for interior carpentry exposed to view that is not specified in this Section.

3. Division 06 Section "Wood Paneling."

1.3 DEFINITIONS

A. Interior architectural woodwork includes wood furring, blocking, shims, and hanging strips for installing woodwork items unless concealed within other construction before woodwork installation.

1.4 SUBMITTALS

A. Product Data: For panel products, high-pressure decorative laminate, adhesive for bonding plastic laminate, solid-surfacing material, cabinet hardware and accessories and finishing materials and processes.

1. Include data for fire-retardant treatment from chemical treatment manufacturer and certification by treating plant that treated materials comply with requirements.

B. Shop Drawings: Show location of each item, dimensioned plans and elevations, large-scale details, attachment devices, and other components.

(15)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 2 INTERIOR ARCHITECTURAL WOODWORK

1. Show details full size.

2. Show locations and sizes of furring, blocking, and hanging strips, including concealed blocking and reinforcement specified in other Sections.

3. Show locations and sizes of cutouts and holes for plumbing fixtures, faucets and other items installed in architectural woodwork.

4. Show veneer leaves with dimensions, grain direction, exposed face, and identification numbers indicating the flitch and sequence within the flitch for each leaf.

5. Apply WI-certified compliance label to first page of Shop Drawings. C. Samples for Initial Selection:

1. Shop-applied transparent finishes. 2. Shop-applied opaque finishes. 3. Plastic laminates.

4. PVC edge material. 5. Solid-surfacing materials. D. Samples for Verification:

1. Lumber with or for transparent finish, not less than 5 inches (125 mm) wide by 10 inches (250 mm) long, for each species and cut, finished on 1 side and 1 edge.

2. Veneer leaves representative of and selected from flitches to be used for transparent-finished woodwork.

3. Veneer-faced panel products with or for transparent finish, 8 by 10 inches (200 by 250 mm), for each species and cut. Include at least one face-veneer seam and finish as specified.

4. Lumber and panel products with shop-applied opaque finish, 50 sq. in. (300 sq. cm) for lumber and 8 by 10 inches (200 by 250 mm) for panels, for each finish system and color, with exposed surface finished.

5. Plastic laminates, 4 by 5 inches (100 by 125 mm), for each type, color, pattern, and surface finish, with 1 sample applied to core material and specified edge material applied to 1 edge]. 6. Solid-surfacing materials, 6 inches (150 mm) square.

7. Corner pieces as follows:

a. Cabinet-front frame joints between stiles and rails, as well as exposed end pieces, 18 inches (450 mm) high by 18 inches (450 mm) wide by 6 inches (150 mm) deep.

b. Miter joints for standing trim.

8. Exposed cabinet hardware and accessories, one unit for each type and finish. E. Product Certificates: For each type of product, signed by product manufacturer.

F. Woodwork Quality Standard Compliance Certificates: AWI Quality Certification Program certificates. G. Qualification Data: For Installer and fabricator.

A. Fabricator Qualifications: Shop that employs skilled workers who custom-fabricate products similar to those required for this Project and whose products have a record of successful in-service performance. Shop is a certified participant in AWI's Quality Certification Program.

(16)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 3 INTERIOR ARCHITECTURAL WOODWORK

C. Source Limitations: Engage a qualified woodworking firm to assume undivided responsibility for

production of interior architectural woodwork with sequence-matched wood veneers and transparent-finished wood doors that are required to be of same species as woodwork.

D. Quality Standard: Unless otherwise indicated, comply with AWI's "Architectural Woodwork Quality Standards" for grades of interior architectural woodwork indicated for construction, finishes, installation, and other requirements.

1. Provide AWI Quality Certification Program certificates indicating that woodwork, including installation, complies with requirements of grades specified.

E. Fire-Test-Response Characteristics: Where fire-retardant materials or products are indicated, provide materials and products with specified fire-test-response characteristics as determined by testing identical products per test method indicated by UL, ITS, or another testing and inspecting agency acceptable to authorities having jurisdiction. Identify with appropriate markings of applicable testing and inspecting agency in the form of separable paper label or, where required by authorities having jurisdiction, imprint on surfaces of materials that will be concealed from view after installation.

F. Mockups: Build mockups to verify selections made under sample submittals and to demonstrate aesthetic effects and set quality standards for materials and execution.

1. Approved mockups may become part of the completed Work if undisturbed at time of Substantial Completion.

G. Preinstallation Conference: Conduct conference at Project site to comply with requirements in Division 01 Section "Project Management and Coordination."

A. Do not deliver woodwork until painting and similar operations that could damage woodwork have been completed in installation areas. If woodwork must be stored in other than installation areas, store only in areas where environmental conditions comply with requirements specified in "Project Conditions" Article.

1.7 PROJECT CONDITIONS

A. Environmental Limitations: Do not deliver or install woodwork until building is enclosed, wet work is complete, and HVAC system is operating and maintaining temperature and relative humidity at occupancy levels during the remainder of the construction period.

B. Environmental Limitations: Do not deliver or install woodwork until building is enclosed, wet work is complete, and HVAC system is operating and maintaining temperature between 60 and 90 deg F (16 and 32 deg C) and relative humidity between 25 and 55 percent during the remainder of the construction period.

C. Field Measurements: Where woodwork is indicated to fit to other construction, verify dimensions of other construction by field measurements before fabrication, and indicate measurements on Shop Drawings. Coordinate fabrication schedule with construction progress to avoid delaying the Work. 1. Locate concealed framing, blocking, and reinforcements that support woodwork by field

(17)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 4 INTERIOR ARCHITECTURAL WOODWORK

2. Established Dimensions: Where field measurements cannot be made without delaying the Work,

establish dimensions and proceed with fabricating woodwork without field measurements. Provide allowance for trimming at site, and coordinate construction to ensure that actual dimensions correspond to established dimensions.

1.8 COORDINATION

A. Coordinate sizes and locations of framing, blocking, furring, reinforcements, and other related units of Work specified in other Sections to ensure that interior architectural woodwork can be supported and installed as indicated.

B. Hardware Coordination: Distribute copies of approved hardware schedule specified in Division 08 Section "Door Hardware (Scheduled by Describing Products)" to fabricator of architectural woodwork; coordinate Shop Drawings and fabrication with hardware requirements.

PART 2 - PRODUCTS

2.1 WOODWORK FABRICATORS

A. Available Fabricators: Subject to compliance with requirements, fabricators offering interior architectural woodwork that may be incorporated into the Work include, but are not limited to, the following:

B. Fabricators: Subject to compliance with requirements, provide interior architectural woodwork by one of the following:

2.2 MATERIALS

A. General: Provide materials that comply with requirements of AWI's quality standard for each type of woodwork and quality grade specified, unless otherwise indicated.

B. Wood Species and Cut for Transparent Finish: as indicated in drawings. C. Wood Species for Opaque Finish: Any closed-grain hardwood.

D. Wood Products: Comply with the following:

1. Recycled Content of Medium-Density Fiberboard: Provide products with an average recycled content so postconsumer recycled content plus one-half of preconsumer recycled content is not less than 10 percent.

2. Hardboard: AHA A135.4.

3. Medium-Density Fiberboard: ANSI A208.2, Grade MD, made with binder containing no urea formaldehyde.

4. Veneer-Faced Panel Products (Hardwood Plywood): HPVA HP-1, made with adhesive containing no urea formaldehyde.

E. High-Pressure Decorative Laminate: NEMA LD 3, grades as indicated or, if not indicated, as required by woodwork quality standard.

1. Manufacturer: Subject to compliance with requirements, provide high-pressure decorative laminates by one of the following:

(18)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 5 INTERIOR ARCHITECTURAL WOODWORK

a. Formica Corporation.

b. Nevamar Company, LLC; Decorative Products Div. c. Wilsonart International; Div. of Premark International, Inc.

F. Solid-Surfacing Material: Homogeneous solid sheets of filled plastic resin complying with ISSFA-2. 1. Manufacturers: Subject to compliance with requirements, provide products by one of the

following:

a. Meganite Inc.; a division of the Pyrochem Group. b. E. I. du Pont de Nemours and Company.

c. LG Chemical, Ltd.

d. Samsung; Cheil Industries Inc.

2. Type: Standard type, unless Special Purpose type is indicated.

3. Colors and Patterns: As selected by Architect from manufacturer's full range.

2.3 FIRE-RETARDANT-TREATED MATERIALS

A. General: Where fire-retardant-treated materials are indicated, use materials complying with requirements in this Article, that are acceptable to authorities having jurisdiction, and with fire-test-response characteristics specified.

1. Do not use treated materials that do not comply with requirements of referenced woodworking standard or that are warped, discolored, or otherwise defective.

2. Use fire-retardant-treatment formulations that do not bleed through or otherwise adversely affect finishes. Do not use colorants to distinguish treated materials from untreated materials.

3. Identify fire-retardant-treated materials with appropriate classification marking of UL, U.S. Testing, Timber Products Inspection, or another testing and inspecting agency acceptable to authorities having jurisdiction.

B. Fire-Retardant-Treated Lumber and Plywood by Pressure Process: Comply with performance requirements of AWPA C20 (lumber) and AWPA C27 (plywood). Use the following treatment type: 1. Exterior Type: Organic-resin-based formulation thermally set in wood by kiln drying. 2. Interior Type A: Low-hygroscopic formulation.

3. Mill lumber after treatment within limits set for wood removal that do not affect listed fire-test-response characteristics, using a woodworking plant certified by testing and inspecting agency. 4. Mill lumber before treatment and implement special procedures during treatment and drying

processes that prevent lumber from warping and developing discolorations from drying sticks or other causes, marring, and other defects affecting appearance of treated woodwork.

5. Kiln-dry materials before and after treatment to levels required for untreated materials.

2.4 CABINET HARDWARE AND ACCESSORIES

A. General: Provide cabinet hardware and accessory materials associated with architectural cabinets, except for items specified in Division 08 Section "Door Hardware (Scheduled by Describing Products)."

B. Frameless Concealed Hinges (European Type): BHMA A156.9, B01602, 135 degrees of opening, self-closing.

(19)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 6 INTERIOR ARCHITECTURAL WOODWORK

D. Catches: Magnetic catches, BHMA A156.9, B03141.

E. Adjustable Shelf Standards and Supports: BHMA A156.9, B04071; with shelf rests, B04081. F. Shelf Rests: BHMA A156.9, B04013; metal, two-pin type with shelf hold-down clip. G. Drawer Slides: BHMA A156.9, B05091.

1. Heavy Duty (Grade 1HD-100 and Grade 1HD-200): Side mounted; full-extension type; zinc-plated steel ball-bearing slides.

2. Box Drawer Slides: Grade 1HD-100; for drawers not more than 6 inches (150 mm) high and 24 inches (600 mm) wide.

H. Door Locks: BHMA A156.11, E07121. I. Drawer Locks: BHMA A156.11, E07041.

J. Grommets for Cable Passage through Countertops:

1. Product: Subject to compliance with requirements, provide " BRV2 series" by Doug Mockett & Company, Inc.

K. Exposed Hardware Finishes: For exposed hardware, provide finish that complies with BHMA A156.18 for BHMA finish number indicated.

1. Satin Chromium Plated: BHMA 626 for brass or bronze base; BHMA 652 for steel base.

L. For concealed hardware, provide manufacturer's standard finish that complies with product class requirements in BHMA A156.9.

2.5 MISCELLANEOUS MATERIALS

A. Furring, Blocking, Shims, and Hanging Strips: Fire-retardant-treated softwood lumber, kiln dried to less than 15 percent moisture content.

B. Anchors: Select material, type, size, and finish required for each substrate for secure anchorage. Provide nonferrous-metal or hot-dip galvanized anchors and inserts on inside face of exterior walls and elsewhere as required for corrosion resistance. Provide toothed-steel or lead expansion sleeves for drilled-in-place anchors.

C. Adhesives, General: Do not use adhesives that contain urea formaldehyde.

D. VOC Limits for Installation Adhesives and Glues: Use installation adhesives that comply with the following limits for VOC content when calculated according to 40 CFR 59, Subpart D (EPA Method 24): 1. Wood Glues: 30 g/L.

2. Contact Adhesive: 250 g/L.

2.6 FABRICATION, GENERAL

A. Interior Woodwork Grade: Unless otherwise indicated, provide Premium grade interior woodwork complying with referenced quality standard.

(20)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 7 INTERIOR ARCHITECTURAL WOODWORK

B. Wood Moisture Content: Comply with requirements of referenced quality standard for wood moisture

content in relation to ambient relative humidity during fabrication and in installation areas.

C. Sand fire-retardant-treated wood lightly to remove raised grain on exposed surfaces before fabrication. D. Fabricate woodwork to dimensions, profiles, and details indicated. Ease edges to radius indicated for the

following:

1. Corners of Cabinets and Edges of Solid-Wood (Lumber) Members 3/4 Inch (19 mm) Thick or Less: 1/16 inch (1.5 mm).

2. Edges of Rails and Similar Members More Than 3/4 Inch (19 mm) Thick: 1/8 inch (3 mm). 3. Corners of Cabinets and Edges of Solid-Wood (Lumber) Members and Rails: 1/16 inch (1.5 mm). E. Complete fabrication, including assembly, finishing, and hardware application, to maximum extent

possible before shipment to Project site. Disassemble components only as necessary for shipment and installation. Where necessary for fitting at site, provide ample allowance for scribing, trimming, and fitting.

1. Notify Architect seven days in advance of the dates and times woodwork fabrication will be complete.

2. Trial fit assemblies at fabrication shop that cannot be shipped completely assembled. Install dowels, screws, bolted connectors, and other fastening devices that can be removed after trial fitting. Verify that various parts fit as intended and check measurements of assemblies against field measurements indicated on Shop Drawings before disassembling for shipment.

F. Shop-cut openings to maximum extent possible to receive hardware, appliances, plumbing fixtures, electrical work, and similar items. Locate openings accurately and use templates or roughing-in diagrams to produce accurately sized and shaped openings. Sand edges of cutouts to remove splinters and burrs. 1. Seal edges of openings in countertops with a coat of varnish.

2.7 INTERIOR STANDING AND RUNNING TRIM FOR TRANSPARENT FINISH A. Grade: Premium.

B. Wood Species and Cut: Mahogany, plain sawn.

1. Provide split species on trim that faces areas with different wood species, matching each face of woodwork to species and cut of finish wood surfaces in areas finished.

C. For trim items wider than available lumber, use veneered construction. Do not glue for width.

D. For rails wider or thicker than available lumber, use veneered construction. Do not glue for width or thickness.

E. Backout or groove backs of flat trim members and kerf backs of other wide, flat members, except for members with ends exposed in finished work.

F. Assemble casings in plant except where limitations of access to place of installation require field assembly.

G. Assemble moldings in plant to maximum extent possible. Miter corners in plant and prepare for field assembly with bolted fittings designed to pull connections together.

(21)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 8 INTERIOR ARCHITECTURAL WOODWORK

2.8 INTERIOR STANDING AND RUNNING TRIM FOR OPAQUE FINISH

A. Grade: Premium.

B. Wood Species: Any closed-grain hardwood.

C. Backout or groove backs of flat trim members and kerf backs of other wide, flat members, except for members with ends exposed in finished work.

D. Assemble casings in plant except where limitations of access to place of installation require field assembly.

E. Assemble moldings in plant to maximum extent possible. Miter corners in plant and prepare for field assembly with bolted fittings designed to pull connections together.

2.9 FLUSH WOOD PANELING

A. Grade: Premium Custom.

B. Wood Species and Cut: As indicated on drawing F1.2.

1. Lumber Trim and Edges: At fabricator's option, trim and edges indicated as solid wood (except moldings) may be either lumber or veneered construction compatible with grain and color of veneered panels.

C. Matching of Adjacent Veneer Leaves: Book match. D. Veneer Matching within Panel Face: Balance match.

E. Panel-Matching Method: No matching between panels is required. Select and arrange panels for similarity of grain pattern and color between adjacent panels.

F. Vertical Panel-Matching Method: Continuous match; veneer leaves of upper panels are continuations of veneer leaves of lower panels.

G. Fire-Retardant-Treated Paneling: Provide panels consisting of wood veneer and fire-retardant particleboard or fire-retardant medium-density fiberboard. Panels shall have flame-spread index of 25 or less and smoke-developed index of 450 or less per ASTM E 84.

H. Custom built in furniture: all “inside” surfaces shall be provided with same finish veneer as the exterior.

2.10 PLASTIC-LAMINATE CABINETS A. Grade: Premium.

B. AWI Type of Cabinet Construction: Flush overlay.

C. Laminate Cladding for Exposed Surfaces: High-pressure decorative laminate complying with the following requirements:

1. Horizontal Surfaces Other Than Tops: Grade HGS. 2. Postformed Surfaces: Grade HGP.

(22)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 9 INTERIOR ARCHITECTURAL WOODWORK

3. Vertical Surfaces: Grade VGS.

4. Edges: Grade HGS.

D. Materials for Semi-exposed Surfaces:

1. Surfaces Other Than Drawer Bodies: High-pressure decorative laminate, Grade VGS.

a. Edges of Plastic-Laminate Shelves: PVC tape, 0.018-inch (0.460-mm) minimum thickness, matching laminate in color, pattern, and finish.

b. For semiexposed backs of panels with exposed plastic-laminate surfaces, provide surface of high-pressure decorative laminate, Grade VGS.

2. Drawer Sides and Backs: Thermoset decorative panels. 3. Drawer Bottoms: Thermoset decorative panels.

E. Concealed Backs of Panels with Exposed Plastic Laminate Surfaces: High-pressure decorative laminate, Grade BKL.

F. Colors, Patterns, and Finishes: Provide materials and products that result in colors and textures of exposed laminate surfaces complying with the following requirements:

1. As selected by architect from manufacturer full range.

G. Provide dust panels of 1/4 inch (6.4 mm) plywood or tempered hardboard above compartments and drawers, unless located directly under tops.

2.11 PLASTIC-LAMINATE COUNTERTOPS A. Grade: Premium.

B. High-Pressure Decorative Laminate Grade: HGS.

C. Colors, Patterns, and Finishes: Provide materials and products that result in colors and textures of exposed laminate surfaces complying with the following requirements:

1. As selected by architect from manufacturer full range. D. Grain Direction: Parallel to cabinet fronts.

E. Edge Treatment: As indicated on drawings. F. Core Material: Medium-density fiberboard. G. Core Material at Sinks: exterior-grade plywood.

H. Backer Sheet: Provide plastic-laminate backer sheet, Grade BKL, on underside of countertop substrate. I. Paper Backing: Provide paper backing on underside of countertop substrate.

2.12 SOLID-SURFACING-MATERIAL COUNTERTOPS A. Grade: Premium.

(23)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 10 INTERIOR ARCHITECTURAL WOODWORK

B. Solid-Surfacing-Material Thickness: 1/2 inch (13 mm).

C. Colors, Patterns, and Finishes: Provide materials and products that result in colors of solid-surfacing material complying with the following requirements:

1. As selected by Architect from manufacturer's full range of styles and colors.

D. Fabricate tops in one piece, unless otherwise indicated. Comply with solid-surfacing-material manufacturer's written recommendations for adhesives, sealers, fabrication, and finishing.

1. Fabricate tops with shop-applied edges of materials and configuration indicated. 2. Fabricate tops with shop-applied backsplashes.

E. Drill holes in countertops for plumbing fittings and soap dispensers in shop.

2.13 CLOSET AND UTILITY SHELVING A. Grade: Economy.

B. High-Pressure Decorative Laminate Grade: HGS.

C. Shelf Material: 3/4-inch (19-mm) thermoset decorative panel with solid-lumber edge. D. Cleats: 3/4-inch (19-mm) thermoset decorative panel.

E. Core material: medium density fiberboard.

2.14 SHOP FINISHING

A. Grade: Provide finishes of same grades as items to be finished.

B. General: Finish architectural woodwork at fabrication shop as specified in this Section. Defer only final touchup, cleaning, and polishing until after installation.

C. General: Shop finish transparent-finished interior architectural woodwork at fabrication shop as specified in this Section. Refer to Division 09 painting Sections for finishing opaque-finished architectural woodwork.

D. General: Drawings indicate items that are required to be shop finished. Finish such items at fabrication shop as specified in this Section. Refer to Division 09 painting Sections for finishing architectural woodwork not indicated to be shop finished.

E. Shop Priming: Shop apply the prime coat including backpriming, if any, for transparent-finished items specified to be field finished. Refer to Division 09 painting Sections for material and application requirements.

F. Preparation for Finishing: Comply with referenced quality standard for sanding, filling countersunk fasteners, sealing concealed surfaces, and similar preparations for finishing architectural woodwork, as applicable to each unit of work.

1. Backpriming: Apply one coat of sealer or primer, compatible with finish coats, to concealed surfaces of woodwork. Apply two coats to back of paneling and to end-grain surfaces. Concealed

(24)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 11 INTERIOR ARCHITECTURAL WOODWORK

surfaces of plastic-laminate-clad woodwork do not require backpriming when surfaced with plastic laminate, backing paper, or thermoset decorative panels.

G. Transparent Finish:

1. Grade: [Premium] [Custom] [Economy]. 2. AWI Finish System: Synthetic penetrating oil. 3. AWI Finish System: Nitrocellulose lacquer. 4. AWI Finish System: Catalyzed lacquer. 5. AWI Finish System: Acrylic lacquer. 6. AWI Finish System: Conversion varnish. 7. AWI Finish System: Catalyzed vinyl. 8. AWI Finish System: Catalyzed polyurethane. 9. AWI Finish System: Two-component polyester. 10. Staining: Match Architect's sample.

11. Wash Coat for Stained Finish: Apply wash-coat sealer to woodwork made from closed-grain wood before staining and finishing.

12. Open Finish for Open-Grain Woods: Do not apply filler to open-grain woods.

13. Sheen: submit samples with Flat 15-30, Satin 31-45, Semigloss 46-60, Gloss 61-100 gloss units measured on 60-degree gloss meter per ASTM D 523 for architect’s selection.

2.15 WOOD HANDRAIL

A. Grade: Premium custom hardwood.

B. Species and Finish: Mahogany, finish to match architect’s control sample. C. Size and length: Per architectural drawing, sheet A12.1

D. Fasten rail per detail drawings, sheet A12.1

PART 3 - EXECUTION

3.1 PREPARATION

A. Before installation, condition woodwork to average prevailing humidity conditions in installation areas. B. Before installing architectural woodwork, examine shop-fabricated work for completion and complete

work as required, including removal of packing and backpriming.

3.2 INSTALLATION

A. Grade: Install woodwork to comply with requirements for the same grade specified in Part 2 for fabrication of type of woodwork involved.

B. Assemble woodwork and complete fabrication at Project site to comply with requirements for fabrication in Part 2, to extent that it was not completed in the shop.

C. Install woodwork level, plumb, true, and straight. Shim as required with concealed shims. Install level and plumb (including tops) to a tolerance of 1/8 inch in 96 inches (3 mm in 2400 mm).

(25)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 12 INTERIOR ARCHITECTURAL WOODWORK

D. Scribe and cut woodwork to fit adjoining work, refinish cut surfaces, and repair damaged finish at cuts. E. Fire-Retardant-Treated Wood: Handle, store, and install fire-retardant-treated wood to comply with

chemical treatment manufacturer's written instructions, including those for adhesives used to install woodwork.

F. Anchor woodwork to anchors or blocking built in or directly attached to substrates. Secure with countersunk, concealed fasteners and blind nailing as required for complete installation. Use fine finishing nails for exposed fastening, countersunk and filled flush with woodwork and matching final finish if transparent finish is indicated.

G. Paneling: Anchor paneling to supporting substrate with concealed panel-hanger clips. Do not use face fastening.

1. Install flush paneling with no more than 1/16 inch in 96-inch (1.5 mm in 2400-mm) vertical cup or bow and 1/8 inch in 96-inch (3 mm in 2400-mm) horizontal variation from a true plane.

H. Cabinets: Install without distortion so doors and drawers fit openings properly and are accurately aligned. Adjust hardware to center doors and drawers in openings and to provide unencumbered operation. Complete installation of hardware and accessory items as indicated.

1. Install cabinets with no more than 1/8 inch in 96-inch (3 mm in 2400-mm) sag, bow, or other variation from a straight line.

2. Maintain veneer sequence matching of cabinets with transparent finish.

3. Fasten wall cabinets through back, near top and bottom, at ends and not more than 16 inches (400 mm) o.c. with No. 10 wafer-head sheet metal screws through metal backing or metal framing behind wall finish.

I. Countertops: Anchor securely by screwing through corner blocks of base cabinets or other supports into underside of countertop.

1. Align adjacent solid-surfacing-material countertops and form seams to comply with manufacturer's written recommendations using adhesive in color to match countertop. Carefully dress joints smooth, remove surface scratches, and clean entire surface.

2. Install countertops with no more than 1/8 inch in 96-inch (3 mm in 2400-mm) sag, bow, or other variation from a straight line.

3. Secure backsplashes to tops with concealed metal brackets at 16 inches (400 mm) o.c. and to walls with adhesive.

4. Calk space between backsplash and wall with sealant specified in Division 07 Section "Joint Sealants."

J. Touch up finishing work specified in this Section after installation of woodwork. Fill nail holes with matching filler where exposed.

K. Refer to Division 09 Sections for final finishing of installed architectural woodwork.

3.3 ADJUSTING AND CLEANING

A. Repair damaged and defective woodwork, where possible, to eliminate functional and visual defects; where not possible to repair, replace woodwork. Adjust joinery for uniform appearance.

(26)

Garfield Police Headquarters

Garfield, New Jersey

DMR Project #3578 064023 - 13 INTERIOR ARCHITECTURAL WOODWORK

C. Clean woodwork on exposed and semi-exposed surfaces. Touch up shop-applied finishes to restore

damaged or soiled areas.
