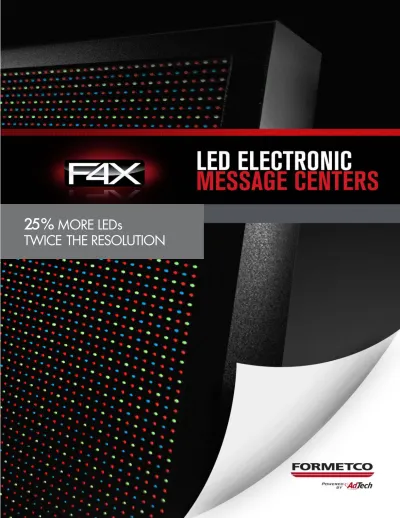

25% MORE LEDs TWICE THE RESOLUTION

(1)

25% MORE LEDs

(2)

A

40

YEAR HISTORY OF

OUTDOOR INNOVATION

For over 40 years Formetco, headquartered in Atlanta, GA

has been the leading and largest full service supplier to the

Outdoor Advertising Industry. By acquiring AdTech in 2007,

Formetco became the leader in digital billboard innovation.

By implementing this same technology (F4X) into the design

and development of Electronic Message Centers, Formetco

has become one of the most credible suppliers for EMC signs,

offering customers the best value in EMC signage. To show

our sustain ability and commitment to you as a customer,

Formetco opened in November of 2012 a new 40,000 sq. ft.

Manufacturing and Technology Digital Campus in Atlanta, GA.

(3)

6.25mm 2 Red, 1 Green, 1 Blue 2,378 Sq. Ft / 25,600 Sq. M. 9,000 Nits 160+ Horizontally 60 Vertically 18 Quintillion 64 Bit Processing 8 by 16 Pixels 100,000 Hrs to 50% Brightness Outdoor Front Service Door

7” Aluminum Black Yes Yes Yes Yes Yes Yes Angle Brackets Fans 2400 Pixels / 1,176’ 5 Year Parts Yes 8mm 2 Red, 1 Green, 1 Blue 1,451 Sq.Ft. / 15,624 Sq. M. 9,000 Nits 160+ Horizontally 60 Vertically 18 Quintillion 64 Bit Processing 8 by 16 Pixels 100,000 Hrs to 50% Brightness Outdoor Front Service Door

7” Aluminum Black Yes Yes Yes Yes Yes Yes Angle Brackets Fans 2400 Pixels / 1,512’ 5 Year Parts Yes 10mm 2 Red, 1 Green, 1 Blue 929 Sq.Ft. / 10,000 Sq. M. 9,000 Nits 160+ Horizontally 60 Vertically 18 Quintillion 64 Bit Processing 8 by 16 Pixels 100,000 Hrs to 50% Brightness Outdoor Front Service Door

7” Aluminum Black Yes Yes Yes Yes Yes Yes Angle Brackets Fans 2400 Pixels / 1,896’ 5 Year Parts Yes Pixel Pitch

Visual Pixel Pitch Pixel Type

LED’’s Per Sq.Ft / Meter Brightness Viewing Angle Number of Colors Image Processing Tile Resolution Lifetime LED’s Environment Service Access Cabinet Depth Cabinet Material Cabinet Color Photo Cell Temperature Probe Communications Fiber optic Wireless RF Wireless

Internet (Cellular /DSL / Cable)

Mounting Cooling

Maximum Length Warranty Spare Parts Kit

12.5 MM

16 MM

12.5 MM

16 MM

20 MM

16 MM

20 MM

F

4 X EMC FULL COLOR

(4)

There’s nothing else out there like it today. More LEDs

mean a superior and a more detailed image. F4X’s

breakthrough image presentation offers four LEDs

per pixel design. In fact, the dynamic F4X EMC Signs

offers up to 25 to 48% more LEDs per square foot

and a greater fill factor than any of our competitor’s

displays. With this technology we are able to offer a

greater resolution sign at a lower cost.

pIxEL SpaCINg avaILabLE

IN a vaRIETy Of DENSITIES.THE

CLOSER yOUR SIgN WILL bE vIEWED

THE TIgHTER THE pIxEL DENSITy

SHOULD bE.

POwERFUL CREATIVE DESERVES FLAwLESS PRESENTATION.

THE F4X, THE

FINEST IMAgE qUALITY

IN THE bUSINESS.

12.5 MM

16 MM

20 MM

Competitor Pixel Spacing F4X Pixel Spacing

(5)

IMAgE ENHANCEMENT VISUAL

PIXEL

TECHNOLOgY

TM

By driving our 4 LEDs in each pixel

independently, we are able to share adjacent pixels and LED’s horizontally and vertically which enhances our display resolution by doubling the pixel density. It is this enhanced pixel technology that provides our customers with superior image quality at the cost of our competitor’s lower resolution displays.

Excellent off angle readership without any color shift, because of our single bin LED technology we have 100% uniformity when viewing the LED screen at different angles up to almost 170 degrees. As a result, the viewing audience has a better looking image for a longer read time.

Formetco’s F4X digital EMC signs only use LEDs with the same binning for the red, blue and green diodes. This produces an image that remains consistent in color and clarity at extreme viewing angles without unnecessary calibration. Using single binned LED’s is a more expensive way to manufacture EMC signs, but in doing so we know we are offering our customers the highest quality and longest life EMC’s on the market.

Our Full Color LED signs have 64-bit processing, 18 quintillion colors - Formetco has the most advanced color processing technology with extreme color depth, that benefits from the 4 LED pixel and single LED bin advantages.

MULTI-PIXEL RE-SAMPLING

ENHANCED VIEWING ANGLE (160+%) SINGLE BIN LED SELECTION

64-BIT COLOR PROCESSING

WaTCH a vIDEO ON

OUR vISUaL pIxEL

TECHNOLOgy

Visual Pixel

Enhancement Applied Standard LED Screen Resolution

(6)

Our EMC Signs can stand up to the

most challenging environments and

most destructive atmospheres. That’s

because our F4X LED products undergo

the most brutal testing in the most

severe conditions.

LED components are tested for

resistance to a multitude of

unexpected events or extreme

weather scenarios:

• 6 Month Under Water Emersion

• Vibration

• Sea Water Spray

• High Pressure Spray

• Accurate Brightness

• Lighting Angle Consistency

• Thermal Shock (-50 to 120 degrees)

• On/Off Cycling

WaTCH a vIDEO ON

DIgITaL SIgN HaZaRD

TESTINg

FORMETCO’S LED SIgN

RELIAbILITY & PEACE OF MIND

STRENgTH aND DURabILITy

TEST pERfORMED ON EvERy

SIgN bEfORE IT LEavES

OUR TESTINg faCILITy. NO

OTHER MaNUfaCTURER

pERfORMS THIS DETaIL Of

TESTINg.

(7)

Designed specially to be easy to

operate, simple to create eye

catching messages with a very

well-designed message schedule.

There are two main parts: the

message manager, and the

schedule manager. The message

manager gives you the ability to

make multiple slide messages

with eye catching transitions and

variable message and transition

hold times.

The schedule manager gives you

the ability to schedule multiple

messages to be displayed by date

range, time of day, and day of

week, with an easy to understand

graphical presentation.

PRIMEVUE

TM

2 EMC SCHEDULINg &

CONTROL SOFTwARE

CUSTOMIZED CONTROL

SOfTWaRE TO MaNagE

aLL Of THE CONTENT

aND SCHEDULE Of yOUR

LED SIgNS. SpECIfICaLLy

pROgRaMMED TO

CONTROL THE f4x EMC LED

DIgITaL DISpLayS.

Key Features and Benefits of PrimeVue

TM

_{2 software:}

• Ability to import graphics and video files

• Display Time, Temperature and Date

• Scrolling Text

• All Windows fonts with eye popping font customizing

• Custom back grounds with gradients

• 32 bit color, giving a vivid pallet of colors

• Graphical scheduler, with easy intuitive scheduling

• Easy to create slide animations and transitions between slides

• Red signs have 8 bit (256 shades) color

• Messages are rendered with visual pixel technology for

unsurpassed quality

• Software has an intuitive and easy to use interface

• Compatible with Windows Vista/7/8

(8)

SUPERIOR PRODUCT

SERVICE

& TECHNICAL SUPPORT

FORMETCO’s NEW DIGITAL SIGN MONITORING CENTER

• Formetco Message Centers are covered

by a manufactures 5 year Warranty on

Power Supplies, Tiles and internal Control

Components

• Formetco has an on staff R&D team,

dedicated to providing the best in Message

Center control and programming for today

and tomorrow

• On staff Network Engineers are available to

help design a network configuration to fit

your needs

• Signs can be shipped from the factory with

your artwork pre-loaded

• Assistance with programming and design

available to help create content that POP’s

• Remote Training and Support Available

(9)

Dedicated LAN Connection (Hard Wire Connection)

A dedicated Ethernet or Fiber connection can be run to the sign which connects to your existing network or a private network to your scheduling PC. Fiber connections are recommended for distances over 180 feet. The internal sign PC can be programmed prior to shipment with the appropriate IP schema to integrate to an existing network.

Wireless Bridge

A wireless bridge is used in locations where there is not a dedicated LAN connection to the sign structure. A wireless radio is mounted on the outside of the sign structure pointing back to another wireless radio mounted on the outside of the building. The wireless radio is then wired to a dedicated port on the scheduling PC or into an existing network. The wireless radios can operate up 1000’ in an unobstructed line of site. For installations into an existing LAN, z information will need to be obtained prior to shipment for setup into the wireless bridge radios and the sign PC.

Wireless Router

A wireless 802.11 Router / Access Point is placed internally in the sign. A laptop is then used to connect to the sign Wi-Fi network for content updates. A wireless network name and password will be sent with the data sheet for the sign.

RF SIGNAL

DEDICATED LAN CONNECTION WI-FI SIGNAL RF SIGNAL WI-FI SIGNAL RF SIGNAL

DEDICATED LAN CONNECTION WI-FI

SIGNAL

9

(10)

EMC DIgITAL SIgNS AVAILAbLE IN

TwO wEEKS FROM STOCK

* Call your Formetco representative for updated inventory and actual cabinet size. All inventory ships from Atlanta, Georgia. Subject to availability.

Cabinets

P= Primary - Includes Controller S= Secondary - Controlled by Primary

RED

RED 24 x 11240 x 112

20 MM

16 MM

PIXEL PITCH

MATRIX

CABINETS

COMMON SIZE

PIXEL PITCH

FULL COLOR

2’ x 8’

2’6”x 6’

2’ x 8’

P/S

FULL COLOR

4’ x 6’

P/S

FULL COLOR

3’ x 8’

P/S

FULL COLOR

4’ x 10’

P/S

FULL COLOR

3’ x 6’

3’ x 8’

P/S

FULL COLOR

4’ x 8’

P/S

FULL COLOR

3’ x 10

3’6”x 8’

P/S

FULL COLOR

5’ x 10’

P/S

24 x 112

32 x 80

48 x 112

56 x 80

40 x 112

56 x 144

40 x 80

56 x 112

40 x 144

72 x 144

FULL COLOR

3’6”x 8’

P/S

FULL COLOR

4’ x 10’

P/S

FULL COLOR

4’ x 6’

P/S

3’ x 8’

3’ x 10’

FULL COLOR

5’ x 10’

P/S

56 x 176

64 x 144

72 x 176

72 x 112

56 x 144

88 x 176

PIXEL PITCH

10

(11)

20mm Full color 144 x 320

16mm Full Color 56 x 160 Pixel

A

DIgITAL SIgN

FOR EVERY MEDIUM

20mm Full color 40 x 112

20mm Full Color 72 x 144

(12)

www.FORMETCO.com

(800) 367-6382 | 2963 PLEASANT HILL ROAD | DULUTH, GA 30096
