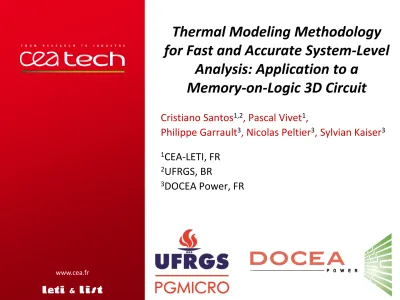

Thermal Modeling Methodology for Fast and Accurate System-Level Analysis: Application to a Memory-on-Logic 3D Circuit

(1)

www.cea.fr

Cristiano Santos

1,2

_{, Pascal Vivet}

1

_,

Philippe Garrault

3

_{, Nicolas Peltier}

3

_{, Sylvian Kaiser}

3 1

_{CEA-LETI, FR}

2

_{UFRGS, BR}

3

_{DOCEA Power, FR}

Thermal Modeling Methodology

for Fast and Accurate System-Level

Analysis: Application to a

Memory-on-Logic 3D Circuit

(2)

Cliquez pour modifier le style du titre

P. Vivet | DAC’14 User Track | 2-5 June 14

|

2

&

Thermal issues in modern SoCs

Increasing thermal issues

Technology scaling =

↑

higher power density

3D stacking with TSVs =

↑↑

even higher power density

and

↓

reduced heat dissipation properties

 Higher lateral thermal resistance due to thinned wafers

 Poor conductive materials used to bond stacked dies

Temperature impacts

Power consumption

Peak performance

Ageing

Package costs

How to perform thermal modeling to enable early

exploration of thermal issues including 3D?

(3)

Cliquez pour modifier le style du titre

Thermal Analysis: state of the art

Low-level tools:

Multiphysics simulation : FloTherm (Mentor Graphics), Icepack (ANSYS), Marc (MSC) , COMSOL

 General-purpose FEM solutions with no specific support for IC design flows

Post-layout level : HeatWave (Gradient DA), Apache (ANSYS)

 Adapted for short term analysis at die level but long simulation times for multiple power scenarios

Those solutions are time consuming methods thus not suitable for system-level simulations

High-level tools:

Architectural and system-level thermal simulators must support:

 Fast transient thermal analysis to be used in power-thermal coupled simulations

 Different granularity scales: from large structures (package, interposer and board) to very fine-grain elements (TSVs, C4-bumps and copper pillars) with both high impact on model accuracy

Existing solutions:

 Mostly academic tools like HotSpot (Virginia) and 3D-ICE (EPFL)

 No support for fine-grain structures with heterogeneous distribution

No solution for fast transient thermal simulation of complex systems with unrestricted support for fine

grain structures required for 3D integration, flip-chip designs or BGA-like packaged circuits

(4)

Cliquez pour modifier le style du titre

|

4

&

Outline

Introduction

State of the Art

Thermal Modeling Methodology using ATM

WIOMING : a Memory-on-Logic 3D Circuit

Correlation of Thermal model wrt Silicon Measurements

System Level Exploration of Thermal Impact of 3D

(5)

Cliquez pour modifier le style du titre

Thermal Modeling Methodology

 Four main contributions:

Automation of thermal model construction by parsing Design Floorplan (LEF/DEF format)

Automated homogenization methodology to reduce complexity while preserving accuracy

Validation of proposed approach on a Memory-on-Logic 3D circuit

System Level Exploration of 3D Thermal effects

Thermal modeling based on DOCEA™ ATM tool:

Based on a numerical finite difference method

Heat transfer modeled via full 3D heat diffusion in solid

materials with no restriction to heat flow paths

Highly compacted thermal model (CTM) with good

tradeoff between accuracy and efficiency

API + GUI for easy model creation/updates

(6)

Cliquez pour modifier le style du titre

|

6

&

Thermal Model : input data

LEF/DEF parser implemented within ATM

Die size and placement of power sources, TSVs, u-bumps and C4-bumps can be read into ATM from initial explorative

floorplans or final layout databases

Input data organized as follows:

Material thermal property library: CSV file

Circuit description: parsed from floorplan (LEF/DEF format) and saved as CSV files

Technology settings: thickness, diameter and material used for every structure of a specific technology

CSV format is widely used for system-level

exploration

(7)

Cliquez pour modifier le style du titre

Thermal Model: Material Homogenization

Material Homogenization:

This technique consists in calculating the equivalent

anisotropic material properties for a heterogeneous

layer containing multiple structures

A set of geometries are identified to go through

material homogenization

Once the equivalent material is calculated, those

original geometries are then replaced by simplified

structures

Objective is to reduce the number of geometries

going for extraction while keeping the spatial accuracy

Fully Automated using Python API

Package solder balls Array of TSVs and u-bumps

Material homogenization applied to :

(8)

Cliquez pour modifier le style du titre

|

8

&

WIOMING, a Memory-on-Logic 3D Circuit

 WIOMING circuit instrumented with

 8 Heaters [Can generate each 1Watt]

 7 Thermal Sensors [Accuracy ~1°C after calibration]

 Full Thermal Software Control on chip & board

to perform accurate 3D Thermal Characterization

D. Dutoit, et al. "A 0.9 pJ/bit, 12.8 GByte/s WideIO Memory Interface in a 3D-IC NoC-based MPSoC“, VLSI-Symposium, 2013.

 WIOMING circuit

 Many-core architecture, STMicroelectronics 65nm

 TSV middle (diam 10µm), µ-bumps (diam 20um)

 3D Assembly : Die2Wafer, Face2Back, FlipChip

 Stacking a WideIO compatible DRAM

(9)

Cliquez pour modifier le style du titre

WIOMING ATM model: from board to chip level



+6K circuit structures



Board-level including PCB,

socket and package



Chip-level with stacked

dies, TSVs and u-bumps



27 power sources



26 areas for heat exchange



Multi-corner CTM generation

(10)

Cliquez pour modifier le style du titre

|

10

&

Material Homogenization & Model Reduction Results

130x less geometries after material homogenization

60x less nodes after material homogenization

570x less nodes after model reduction

ATM Tool Performances

Model Compaction Results & Tool Performance Results

Highly compacted thermal model for static and dynamic thermal analysis

Very fast transient simulations compatible with system-level exploration

a_{Per simulation time step}

System physical representation Before homogenization After homogenization After reduction # geometries +6k 71 -- # defined materials 23 44 --

(11)

Cliquez pour modifier le style du titre

WIOMING : Thermal Correlation

Simulation vs. Silicon comparison for various profiles :



Steady-state analysis:

 Very good accuracy of hot spot evaluation (avg=3.96% and worst=13.41%)

 CTM is able to capture the spatial temperature distribution



Transient response (staircase stimuli)

 High thermal time constant due to package socket and board

 Good fitting between simulation and measurement data plots

 Thermal time constant error in the 5% – 40% range



Transient response (PWM shape)

 Good fitting between simulation and measurement data

 CTM able to model the multiple thermal time constants of the system

Temp. vs Power for various hot spot distances

(12)

Cliquez pour modifier le style du titre

|

12

&

Accuracy Impact of Material Homogenization



Steady-State analysis experiments with:

 1) No homogenization procedures (all fine-grain structures are ignored)

 2) Homogenization without selecting localized areas (flat)

 Full homogenization approach (reference)



Case 1 -> average error = 51% | worst case error = 81%



Case 2 -> average error = 7% | worst case error = 14%

No Homogenization Flat Homogenization

Properly selecting regions to apply material homogenization brings

considerable accuracy to the spatial temperature distribution

(13)

Cliquez pour modifier le style du titre

Impact of board components on silicon



Not accounting for the components mounted on the board introduces an additional

average error of 24% in the steady-state temperature. Worst case error is 43.66%.



Those results show that :



Poor power modeling of the board elements will have strong accuracy impact !



Thermal modeling approach being focused either only on board-package or silicon

level is not enough for accurate thermal analysis.

(14)

Cliquez pour modifier le style du titre

|

14

&

Exploration of Thermal Impact of Die Thickness

Compared 3D die version with 2D die versions

For various 2D die thickness (200/300/500µm)

For same hotspot power budget (4 Watt HotSpot in die bottom left)

 Very strong effect of die thickness :

o Thin 2D die has worse behavior than 3D die

o Thick 2D die provides better dissipation

3D die temperature

increase versus

2D die versions

(wrt hotspot distance)

?

Industry is driven by reduced form factors

Beware of thermal effects !

(15)

Cliquez pour modifier le style du titre



TSV Thermal Properties :



TSV Ø10µm, pitch 40µm, SiO2 isolation layer 0.25µm



Thermal Conductivity of a TSV array (Homogenized material)



Exploration of WIOMING Circuit Testcase :



Comparing with TSVs vs. without TSVs

Exploration of Thermal Impact of TSVs



TSV does not reduce temperature for uniform power

 Due to very low TSV density (3%)

 But may lead to temperature increase for hotspot

 Must take care of TSV  Hotspot placement !!!

Power dissipation Temperature difference Hotspot – a) + 2.22% Hotspot – b) + 5.89% Uniform - 0.02% Thermal

Conductivity Thermal Impact of TSV

Kxy = 133 increased horizontal resistance negative impact for hotspots

Kz = 159 reduced vertical resistance good for average power

(16)

Cliquez pour modifier le style du titre

|

16

&

Thermal Model in ATM tool can be fully automated

DOCEA™ ATM tool providing an API for Python scripting

Die Floorplan parsed from LEF/DEF database

Material homogenization, to reduce model complexity, maintain accuracy

Thermal correlation with a Memory-on-Logic 65nm 3D circuit

Steady State analysis : less than 4% error, accurate evaluation of Hotspots

Transient step response : 5% – 40% error in thermal response time

System-level thermal model: accuracy versus simulation time

Must focus on all levels: from board & package to die fine grain structures

Efficient compaction engine allowing fast thermal simulation and system-level exploration

System Level Exploration Examples :

 Die thickness impact on temperature : 2D very thin die can be worse than 3D die

 TSV impact on temperature : care must be taken for Hotspot & TSV placement
