Network Programming in java

(1)

Network Programming in java

Lecture

(2)

Socket concepts

A B C X Y Z Mayur villa nirwan villa 2

(3)

Socket concepts

A B C X Y Z Mayur villa nirwan villa I have to write letter to Mr. X. Nirwan Villa 3

(4)

Socket concepts

A B C X Y Z Mayur villa nirwan villa I have to write letter to Mr. X.

?

4

(5)

Socket concepts

A B C X Y Z Mayur villa nirwan villa I have to write letter to Mr. X. Mr. X Nirwan Villa 5

(6)

Socket concepts

A B C X Y Z Mayur villa nirwan villa I have to write letter to Mr. X. I got a letter. 6

(7)

Computer networks

210.23.34.21 118.123.34.11 118.123.34.11

?

7

(8)

Solution

Port Number

(9)

Computer networks

210.23.34.21 118.123.34.11 118.123.34.11, 21 102 678 21 9

(10)

Socket

IP address + Port Number

(11)

Well know port

Service Port Telnet 23 SMTP 25 DNS 53 HTTP 80 HTTPS 443

Apple quick time 458

(12)

What is a socket?

• Socket

– The combination of an IP address and a port number. (RFC 793 ,original TCP specification)

– The name of the Berkeley-derived application programming interfaces (APIs) for applications using TCP/IP protocols.

– Two types

• Stream socket : reliable two-way connected communication streams • Datagram socket

• Socket pair

– Specified the two end points that uniquely identifies each TCP connection in an internet.

– 4-tuple: (client IP address, client port number, server IP address, server port number)

(13)

Host Guest Scenario

Host waiting for guest Receive Guest

Serve them

(14)

Client Server Scenario

Server waiting for client Receive request

Process client request

Request

Response

(15)

Network Application

• You need to develop

–

Server

–

Client

(16)

Developing Server in java

1. Server program waiting for client request. 2. Client Server exchange information

3. Close the connection

(17)

Socket programming

• Tcp/ip

–

Connection Oriented

• Udp/ip

–

Connection Less

17

(18)

Socket class

• Corresponds to active TCP sockets only!

– Socket(Client)

– socket returned by accept();

• Passive sockets are supported by a different class:

– ServerSocket(Server)

• UDP sockets are supported by

– DatagramSocket

(19)

JAVA TCP Sockets

• java.net.Socket

– Implements client sockets (also called just “sockets”).

– An endpoint for communication between two machines.

– Constructor and Methods

• Socket(String host, int port): Creates a stream socket and connects it to the specified port number on the named host.

• InputStream getInputStream() • OutputStream getOutputStream() • close()

• java.net.ServerSocket

– Implements server sockets.

– Waits for requests to come in over the network.

– Performs some operation based on the request.

– Constructor and Methods

• ServerSocket(int port)

• Socket Accept(): Listens for a connection to be made to this socket and accepts it. This method blocks until a connection is made.

(20)

Socket Programming with TCP

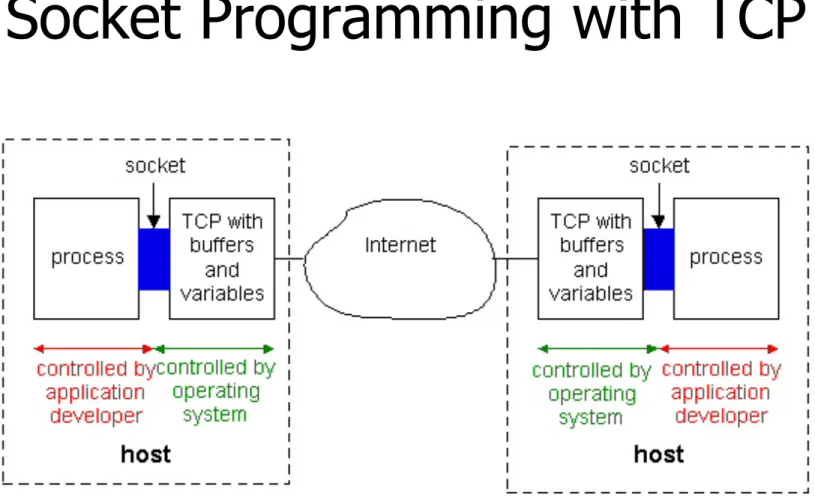

Figure 2.6-1: Processes communicating through TCP sockets

The application developer has the ability to fix a few TCP

(21)

TCP Connection Oriented

Request for connection

Ok connection Data Exchange Connection close request Connection closed 21

(22)

UDP-Connection Less

Data Exchange

(23)

TCP three way handshaking

12350 12349 12348 12347 12346 12345 23123 23122 23121 23120 23119 23118

My data packet sequence start from 1234

SYN

I receiced your sequence number + My data packet sequence start from 23118

SYN + ACK

I have received your sequence number.

ACK

1

2

3

(24)

Creating server in java: Step1

ServerSocket sc=new ServerSocket(<Port Number>);

ServerSocket sc=new ServerSocket(1700);

One server is created.

Port number 1700 will be assigned to this server.

Hint: Can we change this port number

(25)

Creating server in java: Step2

Start Waiting for client

Socket so=so.accept();

(26)

Creating client in java: Step1

Socket so=new Socket(127.0.0.1,1700);

Client making request for connection.

If server running accept() method, then server allow request and

Connection will be established.

Socket so=new Socket(<ip address>,port);

(27)

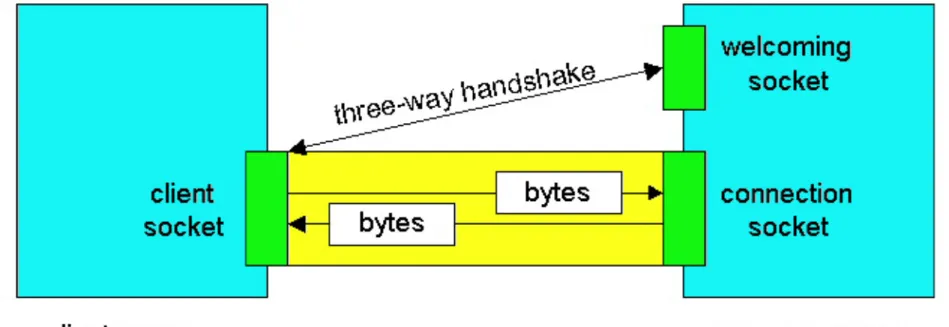

Sockets for server and client

• Server

– Welcoming socket

• Welcomes some initial contact from a client.

– Connection socket

• Is created at initial contact of client.

• New socket that is dedicated to the particular client.

• Client

– Client socket

• Initiate a TCP connection to the server by creating a socket object. (Three-way handshake)

• Specify the address of the server process, namely, the IP address of the server and the port number of the process.

(28)

Socket functional calls

• socket (): Create a socket

• bind(): bind a socket to a local IP address and port #

• listen(): passively waiting for connections

• connect(): initiating connection to another socket

• accept(): accept a new connection

• Write(): write data to a socket

• Read(): read data from a socket

• sendto(): send a datagram to another UDP socket

• recvfrom(): read a datagram from a UDP socket

(29)

Sockets

(30)

Socket-programming using TCP

TCP service:

reliable byte stream transfer

process TCP with buffers, variables socket controlled by application developer controlled by operating system process TCP with buffers, variables socket

internet

client server socket( ) bind( ) connect( ) socket( ) bind( ) listen( ) accept( ) send( ) recv( ) close( ) _{close( )} recv( ) send( ) TCP

conn. request

TCP ACK

(31)

Socket programming with TCP

Example client-server app:

• client reads line from standard

input (inFromUser stream) ,

sends to server via socket

(outToServer stream)

• server reads line from socket

• server converts line to

uppercase, sends back to client

• client reads, prints modified

line from socket

(inFromServer stream)

Input stream: sequence of bytes into process output stream: sequence of bytes out of process

Client

process

client TCP socket

(32)

Client/server socket interaction: TCP

wait for incoming connection request Socket conSocket = wc.accept() create socket, port=x, for incoming request: ServerSocket wc = new ServerSocket(x) create socket,

connect to hostid, port=x

Socket clientSocket = new Socket(server ip, port)

close

connectionSocket

read reply from

clientSocket

close

clientSocket

Server (running on hostid) Client

send request using

clientSocket

read request from

connectionSocket write reply to connectionSocket TCP connection setup 32

(33)

33

TCP Client/Server Interaction

Client

1. Create a TCP socket 2. Communicate

3. Close the connection

Server

1. Create a TCP socket 2. Repeatedly:

a. Accept new connection

class Client1

{

public static void main(String g[]) throws IOException

{

Socket s1=new Socket("localhost",9090);

System.out.println("connect");

}

Importing package required for input/output and socket programming

(44)

Server

import java.io.*;

import java.net.*;

public class Server1

{

public static void main(String g[]) throws IOException

{

ServerSocket ss=new ServerSocket(9090);

Socket s=ss.accept();

System.out.println("Connect");

}

Start server Start waiting for client

(45)

How to exchange information?

Streams

Get a stream from socket and perform read/write operation on that stream.

sc.getOutputStream

();

sc.getInputStream

();

(46)

Reading from keyboard. Uses an input stream like

BufferedReader connected to System.in.

Sending data to the other system what is read from keyboard. Uses an

output stream like PrintWriter connected to getOutputStream() method of

Socket.

Receiving data from the other system. Uses an input stream like

(47)

Server

import java.io.*; import java.net.*

public class myServer {

public static void main(String[] args) throws IOException { ServerSocket listener = new ServerSocket(9090);

try {

Socket socket = listener.accept(); try {

PrintWriter out = new PrintWriter(socket.getOutputStream(), true); out.println(“Hello this is server”);

} catch(Exception e) { System.out.println(e); } } catch(Exception e) { System.out.println(e); } } }

DataOutputStream dos=new DataOutputStream(socket.getOutputStream()); dos.writeUTF(“Hello this is sever”);

Start server Start waiting for client request.

(48)

Client

import java.io.*; import java.net.*; class myClient {

public static void main(String[] args) throws IOException {

Socket s = new Socket(“127.0.0.1”, 9090);

DataInputStream dis=new DataInputStream(s.getInputStream()); String answer=dis.readUTF();

System.out.println(“msg from server”+answer); System.exit(0);

} } }

(49)

49

Example: Java client (TCP)

import java.io.*;

import java.net.*; class TCPClient {

public static void main(String argv[]) throws Exception {

String sentence;

String modifiedSentence;

BufferedReader inFromUser =

new BufferedReader(new InputStreamReader(System.in)); Socket clientSocket = new Socket("hostname", 6789);

DataOutputStream outToServer = new DataOutputStream(clientSocket.getOutputStream()); Create input stream Create client socket, connect to server Create output stream attached to socket

(50)

50

Example: Java client (TCP), cont.

BufferedReader inFromServer = new BufferedReader(new InputStreamReader(clientSocket.getInputStream())); sentence = inFromUser.readLine(); outToServer.writeBytes(sentence + '\n'); modifiedSentence = inFromServer.readLine();

System.out.println("FROM SERVER: " + modifiedSentence);

clientSocket.close(); } } Create input stream attached to socket Send line to server Read line from server

(51)

51

Example: Java server (TCP)

import java.io.*; import java.net.*;

class TCPServer {

public static void main(String argv[]) throws Exception {

String clientSentence;

String capitalizedSentence;

ServerSocket welcomeSocket = new ServerSocket(6789);

while(true) {

Socket connectionSocket = welcomeSocket.accept();

BufferedReader inFromClient = new BufferedReader(new InputStreamReader(connectionSocket.getInputStream())); Create welcoming socket at port 6789 Wait, on welcoming

socket for contact by client Create input stream, attached

(52)

52

Example: Java server (TCP), cont

DataOutputStream outToClient =

new DataOutputStream(connectionSocket.getOutputStream());

clientSentence = inFromClient.readLine(); capitalizedSentence = clientSentence.toUpperCase() + '\n'; outToClient.writeBytes(capitalizedSentence); } } } Read in line from socket Create output stream, attached to socket

Write out line to socket

End of while loop, loop back and wait for another client connection

(53)

Problem

• Communication can be seen by any person on

network.

• Not secure

• Can’t be used for sensitive information

exchange.

(54)

Port Scanner

• Check for port range 0-65535. Is there any

port is open( any network application is

running on target machine or not)

(55)

Port scanner

**import java.io.*;**

**import java.net.*;**

class myClient

{

public static void main(String[] args) throws IOException {

try{

Socket s = new Socket(“128.10.100.2”, 6588);

System.out.println(Port is open”);

}

catch(Exception e)

{ System.out.println(“Port is not open”); }

}

(56)

Efficiency

• Program only check whether 6588 port is

open or not.

• Genarally we want to see how many ports are

open.

(57)

Port scanner

**import java.io.*;**

Socket Programming with UDP

• UDP

– Connectionless and unreliable service.

– There isn’t an initial handshaking phase.

– Doesn’t have a pipe.

–

transmitted data may be received out of order, or lost

• Socket Programming with UDP

– No need for a welcoming socket.

– No streams are attached to the sockets.

– the sending hosts creates “packets” by attaching the

IP destination address and port number to each batch

of bytes.

– The receiving process must unravel to received

packet to obtain the packet’s information bytes.

(61)

Client/server socket interaction: UDP

close

clientSocket

Server (running on hostid)

read reply from

clientSocket

create socket,

clientSocket = DatagramSocket()

Client

Create, address (hostid, port=x, send datagram request

using clientSocket create socket, port=x, for incoming request: serverSocket = DatagramSocket()

read request from

serverSocket write reply to serverSocket specifying client host address, port umber

(62)

Example: Java client (UDP)

Output: sends packet (TCP sent “byte stream”) Input: receives packet (TCP received “byte stream”)

Client

process

client UDP socket

(63)

JAVA UDP Sockets

• In Package java.net

– java.net.DatagramSocket

• A socket for sending and receiving datagram

packets.

• Constructor and Methods

– DatagramSocket(int port): Constructs a datagram socket

and binds it to the specified port on the local host

machine.

– void receive( DatagramPacket p)

– void send( DatagramPacket p)

– void close()

(64)

UDPClient.java

import java.io.*;

import java.net.*;

class UDPClient {

public static void main(String args[]) throws Exception

{

BufferedReader inFromUser =

new BufferedReader(new InputStreamReader(System.in));

DatagramSocket clientSocket = new DatagramSocket();

InetAddress IPAddress =

InetAddress.getByName(“localhost");

byte[] sendData = new byte[1024];

byte[] receiveData = new byte[1024];

String sentence = inFromUser.readLine();

(65)

UDPClient.java

DatagramPacket sendPacket =

new DatagramPacket(sendData, sendData.length,

IPAddress, 9876);

clientSocket.send(sendPacket);

DatagramPacket receivePacket =

new DatagramPacket(receiveData, receiveData.length);

clientSocket.receive(receivePacket);

String modifiedSentence =

new String(receivePacket.getData());

System.out.println("FROM SERVER:" + modifiedSentence);

clientSocket.close();

}

(66)

UDPServer.java

import java.io.*;

import java.net.*;

class UDPServer {

public static void main(String args[]) throws Exception

{

DatagramSocket serverSocket = new

DatagramSocket(9876);

byte[] receiveData = new byte[1024];

byte[] sendData = new byte[1024];

while(true)

{

DatagramPacket receivePacket =

new DatagramPacket(receiveData, receiveData.length);

serverSocket.receive(receivePacket);

(67)

UDPServer.java

InetAddress IPAddress = receivePacket.getAddress();

int port = receivePacket.getPort();

String capitalizedSentence = sentence.toUpperCase();

sendData = capitalizedSentence.getBytes();

DatagramPacket sendPacket =

new DatagramPacket(sendData, sendData.length, IPAddress, port);

serverSocket.send(sendPacket);

}

(68)

Multithreading server

• 1. Create server (using ServerSocket class)

• 2. Start listening (calling accept method)

• 3. When a client request received, create a

new thread and in that thread pass socket

object.

• 4.Put all these three steps in a infinite loop.

(69)

Multithreading server

While(true)

{

ServerSocket ss=new ServerSocket(9999);

Socket so= ss.accept();

ClientHandler ch=new ClientHandler(so);

Thread th=new Thread(ch);

th.start();

}

(70)

Execution of chat server

C:/> java chatserver This is server 1.1 This is client 1.1

This server is not multithreading server Make this multithreading that is better

C:/> java chatclient This is server 1.1 This is client 1.1

This server is not multithreading server Make this multithreading that is better

Server cmd Client cmd

(71)

Chat Server

Chat Client

Create serversocket class object to make server. Call accept method

Make object of input and output stream.

Create socket class object. Make object of input and output stream.

Read from input stream and print.

Read from input stream and print it.

Read from user a string Write that string to output stream.

Read from user a string. Write that string to socket.

(72)

Creating Simple Web Server

www.google.com

Get / http1.1

Host:www.google.com

Accept: image/gif, image/jpeg Accept-language: En

User-Agent: Mozilla/4.0 Connection:keep-Alive

1

(73)

Creating Simple Web Server

www.google.com HTTP/1.1 200 OK Server: server_name Content-length:3001 Content-Type: text/html <html><body> this is demo</body><html> 2 73
