Arizon Structures are available in any size up to 300,000 sq.ft. This price list reflects the most popular sizes to fit most applications. Call 800-325-1303 for custom sizes.
Small Business
Contract Number GS-07F-0303T
See Table of Contents (pg. 2 and 3) for Customer Information, Terms and Conditions.
Contract Period: April 1, 2007 to March 31, 2012
For more information on orderig from Federal Supply Schedules, click on the FSS Schedules button at fss.gsa.gov.
All models listed in the following price list are suitable for SIN# 361-10F and 361-10FRC
Arizon Companies, aka Johnson Heater Corporation
Johnson Air Rotation, MarCraft Custom Air Handling, Arizon Air Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PHONE: 314-739-0037, Toll Free: 800-325-1303 FAX: 314-739-1556
GENERAL SERVICES ADMINISTRATION
Federal Acquisition Service
Authorized Federal Supply Schedule Price List
FSC Group: 54 - Pre-engineered / Prefabricated Buildings and Structures

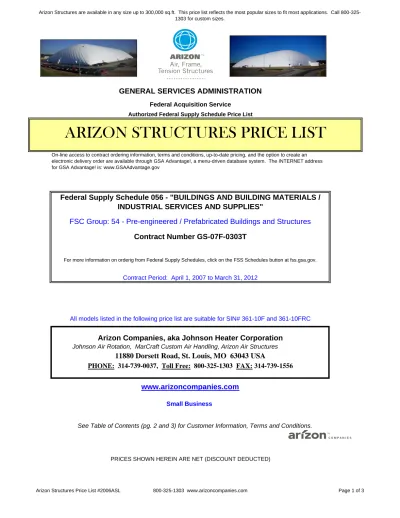

ARIZON STRUCTURES PRICE LIST
On-line access to contract ordering information, terms and conditions, up-to-date pricing, and the option to create an electronic delivery order are available through GSA Advantage!, a menu-driven database system. The INTERNET address for GSA Advantage! is: www.GSAAdvantage.gov
Federal Supply Schedule 056 - "BUILDINGS AND BUILDING MATERIALS /
INDUSTRIAL SERVICES AND SUPPLIES"
www.arizoncompanies.com
PRICES SHOWN HEREIN ARE NET (DISCOUNT DEDUCTED)
Arizon Structures are available in any size up to 300,000 sq.ft. This price list reflects the most popular sizes to fit most applications. Call 800-325-1303 for custom sizes.
CUSTOMER INFORMATION:
1a.
1b.
AR24-80-80-SW, AR24-80-80-DW
AR24-80-120-SW, AR24-80-120-DW
AR24-80-160-SW, AR24-80-160-DW
AR24-80-200-SW, AR24-80-200-DW
AR36-120-120-SW, AR36-120-120-DW
AR36-120-200-SW, AR36-120-200-DW
AR36-120-260-SW, AR36-120-260-DW
AR36-120-320-SW, AR36-120-320-DW
AR48-160-160-SW, AR48-160-160-DW
AR48-160-240-SW, AR48-160-240-DW
AR48-160-300-SW, AR48-160-300-DW
AR48-160-360-SW, AR48-160-360-DW
AR48-160-440-SW, AR48-160-440-DW
AR61-200-200-SW, AR61-200-200-DW
AR61-200-300-SW, AR61-200-300-DW
AR61-200-400-SW, AR61-200-400-DW
AR61-200-500-SW, AR61-200-500-DW
AR61-200-600-SW, AR61-200-600-DW
1c.
2.
3.
4.
5.
6.
7.
8.
9a.
9b.
10.
11a.
11b.
11c.
Geographic Coverage: Domestic; delivery within the 48 contiguous states, Washington, DC, Alaska, Hawaii, Puerto Rico, US Territories and to a port or consolidation point, within the aforementioned areas, for orders receivd from overseas activities.
Minimum order: None SIN: 361-10F and 361-10FRC
Prices shown are the lowest unit price for that model. This price is the Government price based on a unit of one, exclusive of any quantity/dollar volume, prompt payment, or any other concession affecting price.
Hourly Rates: Not Applicable
Maximum order: $250,000 for SIN 361-10F
Description: Tension Fabric Structures, and Canopies and Other Membrane Structures
Contract Pricing for the following Model Numbers start on page 4 of this document:
Points of Production: St. Louis County, St. Louis, MO
Quantity Discounts: Additional 2% for orders of 4 or more units.
Time of Delivery: 120 Days after receipt of order
Expedited Delivery: The Schedule Customer may contact Jan Ligas, Arizon Companies, at 201-264-5547, for availability.
Prompt Payment Terms: 1/2% 10, Net 30
Discount from list prices or statement of net price: Prices shown are net prices; Basic Discounts have been deducted and the prevailing Industrial Funding Fee has been applied.
Government purchase cards are accepted at or below the micro-purchase threshold. Government purchase cards are accepted above the micro-purchase threshold. Foreign Items: None
Overnight and 2-Day Delivery: Overnight and 2-Day Delivery are available on some items for additional shipping charges. The Schedule Customer may contact Arizon Companies (800-325-1303) for Overnight and 2-Day Delivery charges.
Arizon Structures are available in any size up to 300,000 sq.ft. This price list reflects the most popular sizes to fit most applications. Call 800-325-1303 for custom sizes.
11d.
12.
13a.
Arizon Companies 11880 Dorsett Road St. Louis, MO 63043 Fax: (314) 739-155613b.
14.
15.
16.
17.
18.
19.
20.
20a.
21.
22.
23.
24a.
24b.
25.
26.
Export Packing Charges: Not applicable.
Mail Payments to: Arizon Companies, c/o Barbara Scheer, 11880 Dorsett Road, St. Louis, MO 63043
Ordering Procedures: Ordering activities shall use the ordering procedures described in Federal Acquisition Regulations 8.405 when placing an order or establishing a BPA for supplies or services. The ordering procedures, information on Blanket Purchase Agreements (BPA's) and a sample BPA can also be found at the GSA/FSS Schedule Homepage (fss.gsa.gov/schedules).
Ordering Address:
FOB Point: Origin - Prepay and Add
Urgent Requirements: Customers are encouraged to contact the contractor for the purpose of requesting accelerated delivery. To effect a faster delivery, please contact Jan Ligas, Arizon Companies, at 201-264-5547.
Payment Address: Same as ordering address.
Warranty Provision: Standard Commercial Warranty. Customer should contact Arizon Companies for a copy ot the warranty.
Data Universal Number System (DUNS) Number: 607576592
Arizon Companies is registered in the Central Contractor Registration (CCR) database. Registration valid until 3/20/08.
List of participating dealers: N/A
Preventative Maintenance: N/A
Special attributes such as environmental attributes (e.g., recycled content, energy efficiency, and/or reduced pollutants): Energy Efficient
Section 508 compliance for EIT: N/A
Terms and conditions for ay other services: N/A
List of service and distribution points: N/A
Terms and condiditons of Government purchase card acceptance: Arizon Companies will accept government purchasing cards.
Terms and conditions of rental, maintenance, and repair: N/A
Terms and conditions of installation: N/A
Terms and conditions of repair parts indicating date of parts price lists and any discounts from list prices: N/A
Arizon Structures are available in any size up to 300,000 sq. ft. This price list reflects our most popular sizes to fit most applications. Call 1-800-325-1303 for custom sizes. (Lead time on all structures = 8 weeks)
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR24-80-80-SW 24'H x 80'W x 80' L 6,400AIR STRUCTURE, Single-wall $28,608.38 $4.47
AR24-80-80-DW 24'H x 80'W x 80' L 6,400AIR STRUCTURE, Double-wall (Thermaliner) 7,914.68 $36,523.06 $5.71
Cable Grid $5,078.92
Emergency Exit Door $4,502.63
Revolving Door $14,829.42
Vehicular Air Lock $15,214.23
Inflation / Back-up System $12,887.41
Heating System $22,464.29
Air Conditioning System $39,082.60
Anchorage $20,274.57
Indirect Hang Lighting $6,753.47
AIR STRUCTURE, Single-wall - including all above
$169,695.92 $26.51
AIR STRUCTURE, Double-wall - including all
above $177,610.59 $27.75
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR24-80-120-SW 24'H x 80'W x 120' L 9,600AIR STRUCTURE, Single-wall $37,662.22 $3.92
AR24-80-120-DW 24'H x 80'W x 120' L 9,600AIR STRUCTURE, Double-wall (Thermaliner) 11,133.99 $48,796.20 $5.08
Cable Grid $7,183.85
Emergency Exit Door $6,753.94
Revolving Door $14,829.42
Vehicular Air Lock $15,214.23
Inflation / Back-up System $12,887.41
Heating System $28,352.29
Air Conditioning System $55,832.30
Anchorage $24,805.43
Indirect Hang Lighting $10,130.21
AIR STRUCTURE, Single-wall - including all above
$213,651.29 $22.26
AIR STRUCTURE, Double-wall - including all
above $224,785.28 $23.42
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR24-80-160-SW 24'H x 80'W x 160' L 12,800AIR STRUCTURE, Single-wall $46,716.06 $3.65
AR24-80-160-DW 24'H x 80'W x 160' L 12,800AIR STRUCTURE, Double-wall (Thermaliner) 14,353.30 $61,069.35 $4.77
Cable Grid $9,288.78
Emergency Exit Door $9,005.26
Revolving Door $14,829.42
Vehicular Air Lock $15,214.23
Inflation / Back-up System $12,887.41
Heating System $28,352.29
Air Conditioning System $55,832.30
Anchorage $29,336.27
Indirect Hang Lighting $13,506.95
AIR STRUCTURE, Single-wall - including all above
$234,968.97 $18.36
AIR STRUCTURE, Double-wall - including all
above $249,322.27 $19.48
Arizon Structures Prices
Effective 1/1/06 --- Net GSA prices, FOB Origin, Freight Prepay and AddGSA Contract #GS-07F-0303T -
All models suitable for SIN#361-10F and 361-10FRCArizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
www.arizoncompanies.com
Revision 1 - January 29, 2007
Arizon Structures are available in any size up to 300,000 sq. ft. This price list reflects our most popular sizes to fit most applications. Call 1-800-325-1303 for custom sizes. (Lead time on all structures = 8 weeks)
Arizon Structures Prices
Effective 1/1/06 --- Net GSA prices, FOB Origin, Freight Prepay and AddGSA Contract #GS-07F-0303T -
All models suitable for SIN#361-10F and 361-10FRCArizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
www.arizoncompanies.com
Revision 1 - January 29, 2007
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR24-80-200-SW 24'H x 80'W x 200' L 16,000AIR STRUCTURE, Single-wall $55,769.89 $3.49
AR24-80-200-DW 24'H x 80'W x 200' L 16,000AIR STRUCTURE, Double-wall (Thermaliner) 17,572.61 $73,342.51 $4.58
Cable Grid $11,393.72
Emergency Exit Door $11,256.58
Revolving Door $14,829.42
Vehicular Air Lock $15,214.23
Inflation / Back-up System $12,887.41
Heating System $30,157.72
Air Conditioning System $83,748.44
Anchorage $33,867.12
Indirect Hang Lighting $16,883.69
AIR STRUCTURE, Single-wall - including all above
$286,008.22 $17.88
AIR STRUCTURE, Double-wall - including all
above $303,580.83 $18.97
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR36-120-120-SW 36'H x 120'W x 120' L 14,400AIR STRUCTURE, Single-wall $59,076.75 $4.10
AR36-120-120-DW 36'H x 120'W x 120' L 14,400AIR STRUCTURE, Double-wall (Thermaliner) 17,808.02 $76,884.77 $5.34
Cable Grid $10,465.30
Emergency Exit Door $9,005.26
Revolving Door $14,829.42
Vehicular Air Lock $14,533.22
Inflation / Back-up System $12,887.41
Heating System $30,157.72
Air Conditioning System $83,748.44
Anchorage $29,392.61
Indirect Hang Lighting $15,195.32
AIR STRUCTURE, Single-wall - including all above
$279,291.44 $19.40
AIR STRUCTURE, Double-wall - including all
above $297,099.46 $20.63
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR36-120-200-SW 36'H x 120'W x 200' L 24,000AIR STRUCTURE, Single-wall $90,843.45 $3.79
AR36-120-200-DW 36'H x 120'W x 200' L 24,000AIR STRUCTURE, Double-wall (Thermaliner) 27,465.96 $118,309.41 $4.93
Cable Grid $16,533.75
Emergency Exit Door $13,507.90
Revolving Door $14,829.42
Vehicular Air Lock $14,533.22
Inflation / Back-up System $12,887.41
Heating System $35,469.93
Air Conditioning System $111,664.59
Anchorage $38,511.31
Indirect Hang Lighting $25,325.53
AIR STRUCTURE, Single-wall - including all above
$374,106.50 $15.59
AIR STRUCTURE, Double-wall - including all
above $401,572.46 $16.73
Arizon Structures are available in any size up to 300,000 sq. ft. This price list reflects our most popular sizes to fit most applications. Call 1-800-325-1303 for custom sizes. (Lead time on all structures = 8 weeks)
Arizon Structures Prices
Effective 1/1/06 --- Net GSA prices, FOB Origin, Freight Prepay and AddGSA Contract #GS-07F-0303T -
All models suitable for SIN#361-10F and 361-10FRCArizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
www.arizoncompanies.com
Revision 1 - January 29, 2007
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR36-120-260-SW 36'H x 120'W x 260' L 31,200AIR STRUCTURE, Single-wall $112,294.52 $3.60
AR36-120-260-DW 36'H x 120'W x 260' L 31,200AIR STRUCTURE, Double-wall (Thermaliner) 34,709.40 $147,003.92 $4.71
Cable Grid $21,085.08
Emergency Exit Door $16,884.87
Revolving Door $14,829.42
Vehicular Air Lock $14,533.22
Inflation / Back-up System $15,275.72
Heating System $36,652.26
Air Conditioning System $139,580.73
Anchorage $45,350.33
Indirect Hang Lighting $32,923.19
AIR STRUCTURE, Single-wall - including all above
$449,409.32 $14.40
AIR STRUCTURE, Double-wall - including all
above $484,118.73 $15.52
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR36-120-320-SW 36'H x 120'W x 320' L 38,400AIR STRUCTURE, Single-wall $133,745.58 $3.48
AR36-120-320-DW 36'H x 120'W x 320' L 38,400AIR STRUCTURE, Double-wall (Thermaliner) 42,000.71 $175,746.29 $4.58
Cable Grid $25,636.41
Emergency Exit Door $20,261.85
Revolving Door $14,829.42
Vehicular Air Lock $14,533.22
Inflation / Back-up System $15,275.72
Heating System $39,016.92
Air Conditioning System $167,496.88
Anchorage $52,189.36
Indirect Hang Lighting $40,520.84
AIR STRUCTURE, Single-wall - including all above
$523,506.18 $13.63
AIR STRUCTURE, Double-wall - including all
above $565,506.89 $14.73
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR48-160-160-SW 48'H x 160'W x 160' L 25,600AIR STRUCTURE, Single-wall $103,808.91 $4.06
AR48-160-160-DW 48'H x 160'W x 160' L 25,600AIR STRUCTURE, Double-wall (Thermaliner) 31,658.70 $135,467.61 $5.29
Cable Grid $18,033.33
Emergency Exit Door $13,507.90
Revolving Door $14,829.42
Vehicular Air Lock $16,643.68
Inflation / Back-up System $15,275.72
Heating System $35,469.93
Air Conditioning System $111,664.59
Anchorage $38,235.03
Indirect Hang Lighting $27,013.90
AIR STRUCTURE, Single-wall - including all above
$394,482.38 $15.41
AIR STRUCTURE, Double-wall - including all
above $426,141.08 $16.65
Arizon Structures are available in any size up to 300,000 sq. ft. This price list reflects our most popular sizes to fit most applications. Call 1-800-325-1303 for custom sizes. (Lead time on all structures = 8 weeks)
Arizon Structures Prices
Effective 1/1/06 --- Net GSA prices, FOB Origin, Freight Prepay and AddGSA Contract #GS-07F-0303T -
All models suitable for SIN#361-10F and 361-10FRCArizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
www.arizoncompanies.com
Revision 1 - January 29, 2007
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR48-160-240-SW 48'H x 160'W x 240' L 38,400AIR STRUCTURE, Single-wall $145,329.76 $3.78
AR48-160-240-DW 48'H x 160'W x 240' L 38,400AIR STRUCTURE, Double-wall (Thermaliner) 44,535.95 $189,865.71 $4.94
Cable Grid $25,814.60
Emergency Exit Door $18,010.53
Revolving Door $14,829.42
Vehicular Air Lock $16,643.68
Inflation / Back-up System $15,275.72
Heating System $41,381.58
Air Conditioning System $167,496.88
Anchorage $47,324.80
Indirect Hang Lighting $40,520.84
AIR STRUCTURE, Single-wall - including all above
$532,627.79 $13.87
AIR STRUCTURE, Double-wall - including all
above $577,163.74 $15.03
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR48-160-300-SW 48'H x 160'W x 300' L 48,000AIR STRUCTURE, Single-wall $169,089.09 $3.52
AR48-160-300-DW 48'H x 160'W x 300' L 48,000AIR STRUCTURE, Double-wall (Thermaliner) 45,609.85 $214,698.94 $4.47
Cable Grid $35,959.44
Emergency Exit Door $21,387.51
Revolving Door $14,829.42
Vehicular Air Lock $20,441.32
Inflation / Back-up System $15,275.72
Heating System $69,240.84
Air Conditioning System $195,413.01
Anchorage $54,108.63
Indirect Hang Lighting $50,651.06
AIR STRUCTURE, Single-wall - including all above
$646,396.04 $13.47
AIR STRUCTURE, Double-wall - including all
above $692,005.89 $14.42
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR48-160-360-SW 48'H x 160'W x 360' L 57,600AIR STRUCTURE, Single-wall $196,963.40 $3.42
AR48-160-360-DW 48'H x 160'W x 360' L 57,600AIR STRUCTURE, Double-wall (Thermaliner) 53,738.00 $250,701.41 $4.35
Cable Grid $42,595.55
Emergency Exit Door $24,764.48
Revolving Door $14,829.42
Vehicular Air Lock $16,643.68
Inflation / Back-up System $15,275.72
Heating System $72,122.19
Air Conditioning System $223,329.16
Anchorage $60,909.87
Indirect Hang Lighting $60,781.27
AIR STRUCTURE, Single-wall - including all above
$728,214.74 $12.64
AIR STRUCTURE, Double-wall - including all
above $781,952.74 $13.58
Arizon Structures are available in any size up to 300,000 sq. ft. This price list reflects our most popular sizes to fit most applications. Call 1-800-325-1303 for custom sizes. (Lead time on all structures = 8 weeks)
Arizon Structures Prices
Effective 1/1/06 --- Net GSA prices, FOB Origin, Freight Prepay and AddGSA Contract #GS-07F-0303T -
All models suitable for SIN#361-10F and 361-10FRCArizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
www.arizoncompanies.com
Revision 1 - January 29, 2007
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR48-160-440-SW 48'H x 160'W x 440' L 70,400AIR STRUCTURE, Single-wall $240,459.74 $3.42
AR48-160-440-DW 48'H x 160'W x 440' L 70,400AIR STRUCTURE, Double-wall (Thermaliner) 64,575.56 $305,035.30 $4.33
Cable Grid $51,443.67
Emergency Exit Door $29,267.11
Revolving Door $14,829.42
Vehicular Air Lock $20,441.32
Inflation / Back-up System $15,275.72
Heating System $78,033.84
Air Conditioning System $334,993.75
Anchorage $69,978.20
Indirect Hang Lighting $74,288.21
AIR STRUCTURE, Single-wall - including all above
$929,010.97 $13.20
AIR STRUCTURE, Double-wall - including all
above $993,586.53 $14.11
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR61-200-200-SW 61'H x 200'W x 200' L 40,000AIR STRUCTURE, Single-wall $118,331.88 $2.96
AR61-200-200-DW 61'H x 200'W x 200' L 40,000AIR STRUCTURE, Double-wall (Thermaliner) 23,349.13 $141,681.01 $3.54
Cable Grid $36,864.34
Emergency Exit Door $18,010.53
Revolving Door $14,829.42
Vehicular Air Lock $25,993.55
Inflation / Back-up System $15,275.72
Heating System $41,381.58
Air Conditioning System $167,496.88
Anchorage $47,086.87
Indirect Hang Lighting $42,209.21
AIR STRUCTURE, Single-wall - including all above
$527,479.96 $13.19
AIR STRUCTURE, Double-wall - including all
above $550,829.09 $13.77
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR61-200-300-SW 61'H x 200'W x 300' L 60,000AIR STRUCTURE, Single-wall $217,883.01 $3.63
AR61-200-300-DW 61'H x 200'W x 300' L 60,000AIR STRUCTURE, Double-wall (Thermaliner) 58,565.12 $276,448.13 $4.61
Cable Grid $52,675.74
Emergency Exit Door $23,638.81
Revolving Door $14,829.42
Vehicular Air Lock $25,993.55
Inflation / Back-up System $15,275.72
Heating System $73,304.52
Air Conditioning System $223,329.16
Anchorage $59,059.05
Indirect Hang Lighting $63,313.82
AIR STRUCTURE, Single-wall - including all above
$769,302.80 $12.82
AIR STRUCTURE, Double-wall - including all
above $827,867.92 $13.80
Arizon Structures are available in any size up to 300,000 sq. ft. This price list reflects our most popular sizes to fit most applications. Call 1-800-325-1303 for custom sizes. (Lead time on all structures = 8 weeks)
Arizon Structures Prices
Effective 1/1/06 --- Net GSA prices, FOB Origin, Freight Prepay and AddGSA Contract #GS-07F-0303T -
All models suitable for SIN#361-10F and 361-10FRCArizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
www.arizoncompanies.com
Revision 1 - January 29, 2007
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR61-200-400-SW 61'H x 200'W x 400' L 80,000AIR STRUCTURE, Single-wall $279,464.22 $3.49
AR61-200-400-DW 61'H x 200'W x 400' L 80,000AIR STRUCTURE, Double-wall (Thermaliner) 75,498.80 $354,963.02 $4.44
Cable Grid $68,487.14
Emergency Exit Door $29,267.11
Revolving Door $14,829.42
Vehicular Air Lock $25,993.55
Inflation / Back-up System $30,551.43
Heating System $80,398.50
Air Conditioning System $334,993.75
Anchorage $70,508.88
Indirect Hang Lighting $84,418.43
AIR STRUCTURE, Single-wall - including all above
$1,018,912.42 $12.74
AIR STRUCTURE, Double-wall - including all
above $1,094,411.23 $13.68
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost GSA Net Cost Cost per sq. ft. AR61-200-500-SW 61'H x 200'W x 500' L 100,000AIR STRUCTURE, Single-wall $344,210.73 $3.44
AR61-200-500-DW 61'H x 200'W x 500' L 100,000AIR STRUCTURE, Double-wall (Thermaliner) 92,432.48 $436,643.21 $4.37
Cable Grid $100,672.53
Emergency Exit Door $34,895.40
Revolving Door $14,829.42
Vehicular Air Lock $37,952.83
Inflation / Back-up System $45,827.15
Heating System $95,680.12
Air Conditioning System $418,742.19
Anchorage $82,560.27
Indirect Hang Lighting $105,523.03
AIR STRUCTURE, Single-wall - including all above
$1,280,893.66 $12.81
AIR STRUCTURE, Double-wall - including all
above $1,373,326.15 $13.73
Model Description Sq. Ft. Description GSA Net Cost GSA Net Cost Cost per sq. ft. AR61-200-600-SW 61'H x 200'W x 600' L 120,000AIR STRUCTURE, Single-wall $408,957.23 $3.41
AR61-200-600-DW 61'H x 200'W x 600' L 120,000AIR STRUCTURE, Double-wall (Thermaliner) 109,366.15 $518,323.38 $4.32
Cable Grid $119,567.86
Emergency Exit Door $40,523.69
Revolving Door $14,829.42
Vehicular Air Lock $37,952.83
Inflation / Back-up System $61,102.86
Heating System $108,597.09
Air Conditioning System $457,824.80
Anchorage $94,096.04
Indirect Hang Lighting $126,627.64
AIR STRUCTURE, Single-wall - including all above
$1,470,079.45 $12.25
AIR STRUCTURE, Double-wall - including all
above $1,579,445.60 $13.16
Arizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA * PH: 800-325-1303 FAX: 314-739-1556
GSA Contract #GS-07F-0303T
Fabric
Unit of Measure
Net GSA
Price
Lead Time
Fabric,Ext White Linear Yard $ 40.30 4 weeks
Fabric,Ext Green Linear Yard $ 42.32 4 weeks
Fabric,Int White Linear Yard $ 8.06 4 weeks
Fabric,Int Green Linear Yard $ 8.06 4 weeks
Fabric,Int Blue Linear Yard $ 8.06 4 weeks
Heat Seal Gun, Roller and Wire Brush $ 752.46 3 weeks
Cable
Unit of Measure
Net GSA
Price
Lead Time
Galvanized Cable Cable(Jacketed) 1/2 Foot $ 1.69 3 weeks Galvanized Cable Cable(Jacketed) 3/8 Foot $ 0.90 3 weeks
Thimbles 1/2 Inch Each $ 0.57 3 weeks
Thimbles 3/8 Inch Each $ 0.42 3 weeks
Ferruels 1/2 Inch Each $ 2.50 3 weeks
Ferruels 3/8 Inch Each $ 1.29 3 weeks
Heat Shrink Tube Foot $ 3.93 3 weeks
Shackles 1/2 Inch Each $ 10.95 3 weeks
Shackles 3/8 Inch Each $ 9.61 3 weeks
Cable Connector Two Post Each $ 19.83 3 weeks
Cable Connector Four Post Each $ 23.42 3 weeks
Cable Connector Six Post Each $ 31.48 3 weeks
Cross Clips 1/2 Inch Each $ 13.15 3 weeks
Cross Clips 3/8 Inch Each $ 11.32 3 weeks
Crimping Tool Huskie Each $ 5,342.77 3 weeks
Dies/For Crimping Tool Various sizes Each $ 196.46 3 weeks
Lighting
Unit of Measure
Net GSA
Price
Lead Time
Hanging Light Cord Foot $ 2.67 3 weeks
Light Ballasts(Potted) Each $ 139.72 3 weeks
Light Bulb 1000 Watt Each $ 53.90 3 weeks
Light Fixture with Chain and Plug Each $ 594.43 4 weeks
Doors
Unit of Measure
Net GSA
Price
Lead Time
Emergency Exit Door Aluminum Each $ 3,694.50 8 weeks
Personal Air Lock Each $ 14,734.69 8 weeks
Revolving Door 3 Leaf Each $ 12,694.50 8 weeks
Revolving Door 4 Leaf Each $ 10,719.80 8 weeks
Clamp Channels (Aluminum) 4 Ft Length Each $ 19.39 2 weeks Clamp Channels (Aluminum) 6 Ft Length Each $ 29.08 2 weeks Clamp Channels (Aluminum) 10 Ft Length Each $ 49.18 2 weeks
Net GSA Prices
Effective 1/1/2006 --- Prices listed are FOB Origin, Freight Prepay and Add
Arizon Structures Replacement Parts
Arizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
Arizon Structures Price List #2006ASLP
GSA Contract #GS-07F-0303T
Net GSA Prices
Effective 1/1/2006 --- Prices listed are FOB Origin, Freight Prepay and Add
Arizon Structures Replacement Parts
Arizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
AHU Parts
Unit of Measure
Net GSA
Price
Lead Time
Fan Shaft 1 Inch Each $ 126.34 2 weeks
Fan Shaft 1 1/8 Inch Each $ 129.11 2 weeks
Fan Shaft 1 1/4 Inch Each $ 148.50 2 weeks
Fan Bearings 1 Inch Each $ 119.48 2 weeks
Fan Bearings 1 1/8 Inch Each $ 141.42 2 weeks
Fan Bearings 1 1/4 Inch Each $ 166.63 2 weeks
Caulk 1 Tube Each $ 8.82 2 weeks
Touch Up Paint Grey Each $ 6.95 2 weeks
Doors AHU Door Each $ 534.25 4 weeks
Door Gaskets AHU Door Foot $ 2.31 2 weeks
Fuses 1 Amp FLNR Each $ 4.90 2 weeks
Fuses 3 Amp FLNR Each $ 5.50 2 weeks
Fuses 5 Amp FLNR Each $ 6.13 2 weeks
Fuses 10amp FLNR Each $ 6.77 2 weeks
Photohelic Gauge 0-2 Each $ 199.73 2 weeks
Photohelic Gauge 0-3 Each $ 629.23 2 weeks
Door Handles Each $ 34.00 2 weeks
Back Draft Damper Each $ 1,029.22 4 weeks
"Back Up Unit" Parts
Unit of Measure
Net GSA
Price
Lead Time
Fan Shaft 1 Inch Each $ 126.34 2 weeks
Fan Shaft 1 1/8 Inch Each $ 129.11 2 weeks
Fan Shaft 1 1/4 Inch Each $ 148.50 2 weeks
Fan Bearings 1 Inch Each $ 119.48 2 weeks
Fan Bearings 1 1/8 Inch Each $ 141.42 2 weeks
Fan Bearings 1 1/4 Inch Each $ 166.63 2 weeks
Back Draft Damper Each $ 1,032.24 4 weeks
Generator 16 kilo watt Each $ 5,415.31 4 weeks
Arizon™ Air, Frame and Tension Structures
11880 Dorsett Road, St. Louis, MO 63043 USA
PH: 800-325-1303 FAX: 314-739-1556
www.arizoncompanies.com
Arizon Structures Price List #2006ASLP
