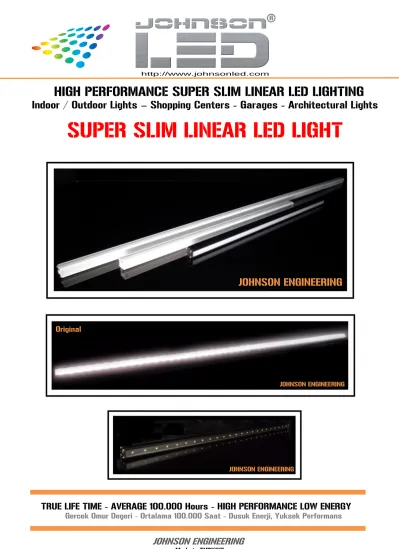

SUPER SLIM LINEAR LED LIGHT

(1)

JOHNSON ENGINEERING

Made in TURKIYE

JOHNSON ENGINEERING

JOHNSON ENGINEERING Original

TRUE LIFE TIME - AVERAGE 100.000 Hours - HIGH PERFORMANCE LOW ENERGY

Gercek Omur Degeri - Ortalama 100.000 Saat - Dusuk Enerji, Yuksek Performans

JOHNSON ENGINEERING

(2)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

Harici Adaptor kullanimi gerektirmeden direkt baglanti.

-

DIRECT 220-240VAC 50/60Hz.

Direkt 220-240VAC 50/60 Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

Super Ince Yuksek Performans LED Aydinlatma.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

Uzun Omurlu, Ortalama 100.000 Saat Omur.

-

LOW ENERGY.

JOHNSON ENGINEERING

Dusuk Enerji Tuketimi.

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Guvenli Malzeme - Guvenli Urun.

Model No : LR-648 WS / WB - LR-648 WWS / WWB Input Voltage : 220-240VAC 50/60Hz.

Power : 30 Watts LED : Made in JAPAN

Beam Angle : 120 Degree Without Lens Luminous Flux : 4400 Lumens / White / WS

: 4200 Lumens / White / WWB

: 3800 Lumens / Warm White / WWS

: 3600 Lumens / Warm White / WWB IP Rating : IP 64

Average Life : 100.000 Hours Max. Life : 150.000 Hours

Dimensions : W22.0 X L600.0 X H22.0 (mm) Material : Aluminium and Acrylic

Weight : 0.35Kg

Manufacturer : JOHNSON LED / Made in TURKIYE

All Designs are Registered – Tum Tasarimlar Tescillidir.

* Glass Versions : S / Transparent Glass – B / Mist Glass

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

(3)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

-

DIRECT 220-240VAC 50/60Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

-

LOW ENERGY.

JOHNSON ENGINEERING

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

Model No : LR-1248 WS/WB - LR-1248 WWS / WWB Input Voltage : 220-240VAC 50/60Hz.

Beam Angle : 120 Degree Without Lens Luminous Flux : 4400 Lumens / White / WS*

: 4200 Lumens / White / WB*

: 3800 Lumens / Warm White / WWS*

: 3600 Lumens / Warm White / WWB* IP Rating : IP 64

Weight : 0.60Kg

Manufacturer : JOHNSON LED / Made in TURKIYE : All Designs are Registered

Tum Tasarimlar Tescillidir.

(4)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

-

DIRECT 220-240VAC 50/60Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

-

LOW ENERGY.

JOHNSON ENGINEERING

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

Weight : 0.75Kg

(5)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

-

DIRECT 220-240VAC 50/60Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

-

LOW ENERGY - EASY MOUNTING.

Dusuk Enerji Tuketimi - Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights- Billboards

Weight : 0.80Kg

(6)

-

12.0V DC

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

JOHNSON ENGINEERING

-

LOW ENERGY.

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

Model No : LR-1224 WS/WB - LR-1224 WWS / WWB Input Voltage : 12.0 VDC

Weight : 0.60Kg

Manufacturer : JOHNSON LED / Made in TURKIYE

All Designs are Registered – Tum Tasarimlar Tescillidir.

(7)

Two Screws With Sliding System – Iki Vida ile Surgulu Sistem

Unit (mm) JOHNSON ENGINEERING LR-12XX LR-16XX Holding Screws Tutucu Vida

Holding Screw Hole Tutucu Vida Yuvasi

Slide Forward Ileriye Dogru itiniz

Slide Backward / Geriye Dogru Cekilmeli

Cable Connection ! 220-240VAC Kablo Baglantisi ! 220-240VAC

Slide Forward / Ileriye Dogru Surulmeli

(8)

Unit (mm) JOHNSON ENGINEERING Model No: LR-6XX LR-12XX LR-16XX

MOUNTING INSTRUCTIONS 2 – MONTAJ TALIMATI 2

(9)

JOHNSON LR Series LR-648 W / WW LR-1248 W / WW LR-1296 W / WW LR-1696 W / WW

Operating Temp. 25C 25C 25C 25C Working Temp. - 40C ~ 85C - 40C ~ 85C - 40C ~ 85C - 40C ~ 85C

INPUT

Input Voltage 175VAC/265VAC 175VAC/265VAC 175VAC/265VAC 175VAC/265VAC Frequency Range 50 ~ 60Hz 50 ~ 60Hz 50 ~ 60Hz 50 ~ 60Hz Efficiency % >90 >90 >90 >90 AC Current 0.10A/230VAC 0.10A/230VAC 0.10A/230VAC 0.10A/230VAC

OUTPUT

Rated Power 30W 30W 60W 60W

LED Qty. 48 Pcs. 48 Pcs. 96 Pcs. 96 Pcs. Current Tolerance +/- 5% +/- 5% +/- 5% +/- 5% Soft Start 500ms / Rise Time 500ms / Rise Time 500ms / Rise Time 500ms / Rise Time

OTHERS

IP Rating IP 64 Approved IP 64 Approved IP 64 Approved IP 64 Approved Grounded Body Yes Yes Yes Yes Internal Fuse Yes Yes Yes Yes Material Insulation Class H Class H Class H Class H Chassis Aluminium Aluminium Aluminium Aluminium Dimensions (mm) (LxWxH) 22.0x600.0x22.0 22.0x1200.0x22.0 22.0x1200.0x22.0 22.0x1600.0x22.0 Weight 0.350Kg/Pc 0.600Kg/Pc 0.800Kg/Pc 0.800Kg/Pc Packing / Box 24 Pcs. 24 Pcs. 24 Pcs. 24 Pcs. JOHNSON ENGINEERING http://www.johnsonled.com

TEKNIK OZELLIKLER

(10)

 Based on 10-hours usage per day.

Gunluk 10 Saat Kullanim esas alinarak hesaplanmistir.

 Comparison is between one LR-1248 and two 36 Watts (Totally 72 Watt) flourescent lamps.

1 Adet LR-1248 ile 2 Adet 36 Watt Floresan Tup Aydinlatma Alani orantilidir.

CONSUMPTION / TUKETIM

Products / Ürünler Watt / TIME / SAAT Watt / MONTH / AY Watt / YEAR / YIL LR-1248 LED LINEAR 30,00 9.000,00 108.000,00 FLUORESCENT 72,00 21.600,00 259.200,00

CONSUMPTION DIFFERENCE / TUKETIM FARKI / WATT 151.200,00

DESCRIPTION / ACIKLAMA :

 Standart flourescent lamps (72 Watts) consume 151,200 Watts more electric energy in a year.

Standart 2 Adet 36 Watt Degerinde (72 Watt) Floresan Bir yilda fazladan 151.200 Watt Elektrik enerjisi tuketmektedir.

 Price per KiloWatt is based on local fares.

Watt Bedeli, Bagli bulundugu Ulkenin tarifesi uzerinden hesaplanmalidir.

 LR-1248 LED Linear does not require maintenance in time.

LR-1248 LED Linear Sonraki Yıllar Bakıma ihtiyaç duymaz.

 Standart flourescent lamps must be serviced or changed in regular time periods.

Standart 36 Watt x 2 Floresan Tupler Sonraki yıllarda Bakım ve değiştirme gerektirmektedir.

 LR-1248 has avrerage life time of 27 Years based on 10-hours usage per day.

LR-1248, Gunluk Ortalama 10 Saat kullanim ile 27 yil omurludur.

 LR-1248 operates directly with 220VAC; It does not require external power supply, balast, starter or any other external component to operate.

LR-1248, direk 220VAC ile Calisir; harici adaptor, balast, starter veya diğer herhangi bir harici komponent gerektirmez.
