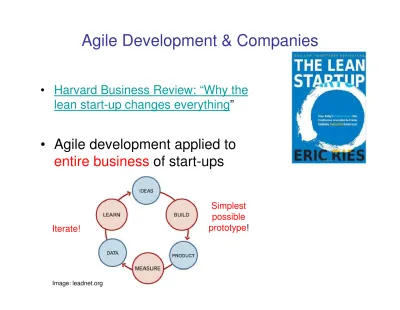

Agile Development & Companies
• Harvard Business Review: “Why the lean start-up changes everything”
• Agile development applied to
entire business
of start-ups
Iterate!
Simplest possible prototype!
Testing
Testing Philosophy
• “If you didn’t test it, it doesn’t work”
– Assume all code broken until proven otherwise – Look at what the program does not what it is
supposed to do
• Scientist: you are testing hypotheses about program
– Think of every case your program should handle cover them all
Testing Time
• Develop tests as
or before
you code
– Test-driven development
Test & Evaluate Refine
Test-Driven Development
• The tests
are
the detailed specification
– And now can be executed, not just read
Less specification document
Types of Tests
Unit Tests
End to End Tests
End-to-end (system) tests
• Test entire system (like end user would)
• Hard to debug a failure problem could be anywhere!
• Fragile: often test some exact user input would produce some exact output text / file
Unit Tests
• Test small pieces of system (single classes / functions) • Much easier to debug a failure start with that class /
function
• Don’t check user interface (I/O): check API / class does what it should with code (testfixture)
Types of Tests
Unit Tests Integration Tests
End to End Tests
Integration Tests
• Bigger unit tests • Work the same way
• But now test multiple classes / bigger functionality • Moderate difficulty to debug
Testing Automation
• You will re-test often
– Every time you change the program – How to speed up?
•
System tests
: save in files
– Use file redirection
• prog.exe < in.txt > out.txt
• diff out.txt out_good.txt // matched known good result? – Less fragile
• Write validity checker instead of checking exact output match
Unit Tests
• Want:
– To test individual classes / functions – How?
• Carefully chosen user input?
struct Point { float x; float y; t_point& operator*=(float rhs); . . . Output ...
No
!Unit Tests
• Write
new code
– To put class in right state
– To directly send it some input / make some calls – To immediately check the responses
Unit Tests
struct Point { float x; float y; t_point& operator*=(float rhs); . . . int test1 () { Point testme (1, 2); testme *= 3; if (testme != Point (3, 6)) { cout << “uh – oh” << endl; return (1); } return (0); } myCode.cpp tester.cpp int main () { int error = 0; error += test1();. . . // Lots more tests
test_main.cpp
g++ myCode.cpp tester.cpp test_main.cpp –o test.exe
Unit Test Frameworks
• Lots of repetitive code to create test drivers
– Set up the test
– Check if the test passed – Run all the tests
– Output appropriate messages – Collect statistics
• Unit Test Frameworks
– Useful macros (#defines) and functions to simplify coding
– We are using UnitTest++ • Powerful, but easy to learn
• ECE 297 Unit Test Quick Start Guide
TEST(..) or TESTFIXTURE (…) CHECK(..)
RunAllTests()
Automatic Automatic
“Test the Seams”
• Overlapping tests good
– Your code + partner’s code • Both unit tested
– Make sure there’s an integration test
Testing Tools
• What tools?
1. Debugger
– Use to debug when a test fails – Use to verify new code
• Step through it and watch execution
2. Memory checker
– Program seg faults?
– Program behaving very strangely?
– Maybe you are accessing memory you shouldn’t be! – Run valgrind
Testing Tools
3. Code coverage
– Tools that can track what lines of your programs have executed over all your tests
int someFunc (int input) { if (input == 0) return (3); else return (7); } MyCode.cpp int main () { int j = someFunc (8);
// Wow I’m bad at testing! }
Testing Tools
3. Code coverage
– Tools that can track what lines of your programs have executed over all your tests
int someFunc (int input) { if (input == 0) return (3); else return (7); } MyCode.cpp int main () { int j = someFunc (8);
// Wow I’m bad at testing! }
main.cpp
No test reaches this line.
Google: Testing so Important, Tutorials in
the Bathroom
1. Use White Space
White space: show code organization
– Indent properly (3 or 4 spaces) per { }.
– Leave blank lines between functions / key blocks int sumVec (int vec[], int nElem) {
int i, result = 0;
for (i = 0; i < nElem; i++) { result += vec[i];
}
return (result); }
void nextFunc (int i) { …
int sumVec (int vec[], int nElem) { int i, result = 0;
for (i = 0; i < nElem; i++) { result += vec[i];
}
return (result); }
float di (float a, float b) { float val, d, x, x2, y; d = 1.e-4; val = 0; for (x = a; x < b; x += d) { x2 = x + d; if (x2 > b) x2 = b; y = 0.5 * ((1. / x) + (1. / x2)); val += y * (x2 - x); } return (val); }
float definite_integral (float x_left, float x_right) {
float integral, step_size, x1, x2, y_average; step_size = 1.e-4;
integral = 0;
for (x1 = x_left; x1 < x_right; x1 += step_size) { x2 = x1 + step_size; if (x2 > x_right) x2 = x_right; y_average = 0.5 * ((1. / x1) + (1. / x2)); integral += y_average * (x2 – x1); } return (integral); }
2. Descriptive Variable Names
• Use
descriptive
names
– Variables, functions, structs/types, … • get_file_name ( ); // Use _ to separate
• getFileName (); // Or use upper case to mark words
• Types: start with a capital letter
• Variables: start with lowercase
– class MyClass { … – MyClass oneVar;
float definite_integral (float x_left, float x_right) {
float integral, step_size, x1, x2, y_average; step_size = 1.e-4;
integral = 0;
for (x1 = x_left; x1 < x_right; x1 += step_size) { x2 = x1 + step_size; if (x2 > x_right) x2 = x_right; y_average = 0.5 * ((1. / x1) + (1. / x2)); integral += y_average * (x2 – x1); } return (integral); }
// Compute the definite integral of 1/x between x_left and x_right via the // trapezoidal method. Smaller values of step_size improve accuracy, but // increase computation time.
float definite_integral_of_one_over_x (float x_left, float x_right) {
float integral, step_size, x1, x2, y_average;
step_size = 1e-4; integral = 0.;
for (x1 = x_left; x1 < x_right; x1 += step_size) { x2 = x1 + step_size;
if (x2 > x_right) // in case (x_right – x_left) is not a multiple of step_size x2 = x_right;
y_average = 0.5 * ((1. / x1) + (1. / x2)); // average of y(x1) and y(x2) integral += y_average * (x2 – x1);
}
return (integral); }
Comment what whole function does
Comment any tricky bits of code
Comments: Usefulness?
/* Functions to simulate transistors.
* We model transistors as nonlinear elements,
* by looking up the source-drain current for each V … */
trans_sim.cpp
/* Main data structure used to store all information * about a U of T student. Linked list.
*/
struct StudentRecord {
int nClassesCurrent; // Number of classes enrolled in. int nClassesComplete; // Number of completed classes,
// not including currently enrolled ones StudentRecord *next; // Pointer to next (linked list) record
StudentRecord.h
// Compute the sum of the array, over all its elements int sum = 0;
for (int i = 0; i < nElem; i++) sum += array[i];
3. “High-Level” Comments
• Most important comments: give the
big picture
– Documentation should be in the comments
– Not a separate document will get out of date
1. Top of files
// Functions to simulate transistors. We proceed in 6 stages … 2. Class / data structure definitions
– Understand the data can understand the program! 3. Start of functions
4. Tricky code
Not very useful comments: – Translate C++ to English
Most important
Least important
Thoughts on This Code?
int checkWeights (int weights[20]) {for (int i = 0; i < 20; i++) { if (weights[i] < 0) return (-1); if (weights[i] == 0) return (0); } return (1); }
1. Using a “magic number”: 20
– Change array size: must find and change all 20’s 2. Returning magic numbers: -1, 0, 1
4. Use Named Constants
const int NUM_WEIGHTS = 20; // 1. Constant variable
#define WEIGHT_ZERO 0 // 2. Pre-processor constant enum WtReturn {HAS_NEG = -1, HAS_ZERO = 0, ALL_POS = 1};
// 3. make an “enumeration” (list) of int constants
int checkWeights (int weights[NUM_WEIGHTS]) { for (int i = 0; i < NUM_WEIGHTS; i++) {
if (weights[i] < 0) return (HAS_NEG); if (weights[i] == 0) return (HAS_ZERO); } return (ALL_POS); }
• Three ways to make constants use any way you like • Name: ALL CAPITALS (convention)
