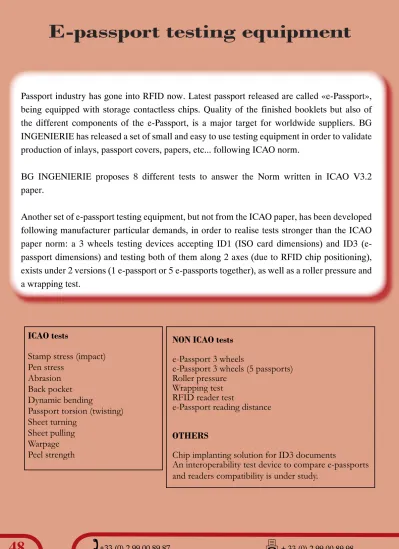

E-passport testing equipment
Passport industry has gone into RFID now. Latest passport released are called «e-Passport», being equipped with storage contactless chips. Quality of the finished booklets but also of the different components of the e-Passport, is a major target for worldwide suppliers. BG INGENIERIE has released a set of small and easy to use testing equipment in order to validate production of inlays, passport covers, papers, etc... following ICAO norm.
BG INGENIERIE proposes 8 different tests to answer the Norm written in ICAO V3.2 paper.
Another set of e-passport testing equipment, but not from the ICAO paper, has been developed following manufacturer particular demands, in order to realise tests stronger than the ICAO paper norm: a 3 wheels testing devices accepting ID1 (ISO card dimensions) and ID3 (e-passport dimensions) and testing both of them along 2 axes (due to RFID chip positioning), exists under 2 versions (1 e-passport or 5 e-passports together), as well as a roller pressure and a wrapping test.
ICAO tests
Stamp stress (impact) Pen stress
Abrasion Back pocket Dynamic bending
Passport torsion (twisting) Sheet turning
Sheet pulling Warpage Peel strength
NON ICAO tests e-Passport 3 wheels
e-Passport 3 wheels (5 passports) Roller pressure
Wrapping test RFID reader test
e-Passport reading distance OTHERS
Chip implanting solution for ID3 documents
An interoperability test device to compare e-passports and readers compatibility is under study.
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comE-passport Testing Equipment - ICAO
Ordering information
Description Reference number
Back pocket testing equipment BGI086
DIMENSIONS
Length Width Height Weight 560 mm 615 mm 595 mm 60kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
PNEUMATIC CHARACTERISTICS
6 bars
FOLLOWS NORMS REFERENCES : ICAO V3.2, paragraph 5.6 IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
- tests the e-passport further than the norm changing only parameters on the interface (strength applied from 150 to 500N, pressure time, number of cycles...)
- simple and easy to use
- screen touch interface in order to create and modify program
Advantages
The BGI086 is a stand alone equipment. This test reproduces the stresses of sitting on a passport kept inside of the back pocket.
BGI086
Back pocket testing equipment
49
E-passport testing equipments
Product description
E-passport Testing Equipment - ICAO
BGI085
Stamp - Pen - Abrasion testing equipment
Product description
The BGI085 is a single equipment that performs ICAO stamp, pen and abrasion tests.
Advantages
- the 3 tests can be purchased individually or all together on 1 single machine
- possibility to test the e-passports further than the norm changing only parameters on the interface ( number of cycles, surface to test...) - simple and easy to use thanks to a screen touch interface
Technical specifications
Ordering information
DIMENSIONS
Length Width Height Weight 650 mm 520 mm 590 mm 37kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
PNEUMATIC CHARACTERISTICS
6 bars
FOLLOWS NORM REFERENCE : ICAO V3.2, paragraphs 5.5, 5.12, 5.11 IN CONFORMITY WITH CE DIRECTIVES
E-passport testing equipments
50
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comDescription Reference number
Stamp - Pen - Abrasion - testing equipment BGI085A-B-C
Stamp stress testing tool BGI085A
Pen stress testing tool BGI085B
Abrasion testing tool BGI085C
Stamp - Pen testing equipment BGI085A-B
Pen - Abrasion testing equipment BGI085B-C
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comE-passport Testing Equipment - ICAO
ICAO V3.2, paragraph 5.5 :
ICAO test that realises stamp (impact) test. Follows ICAO norm (default program 1), but allows to test further than the norm (example : test zone of 2 x 2 cm)
Test for passports and e-passports
BGI085A
Stamp stress testing tool
BGI085C
Abrasion testing tool
BGI085B
Pen stress testing tool
51
ICAO V3.2, paragraph 5.12 : ICAO test that realises pen test.
Follows ICAO norm (default program 1), but allows to test further than the norm (example : test zone of 2 x 2 cm)
Test for passports and e-passports
ICAO V3.2, paragraph 5.11 :
ICAO test that realises abrasion test on the MRZ.
Follows ICAO norm (default program 1), but allows to test further than the norm. Test for passports and e-passports
E-passport Testing Equipment - ICAO
52
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comDescription Reference number
Passport torsion testing equipment x 5 BGI088
Passport torsion calibration tool BGI088A
Ordering information
DIMENSIONS
Length Width Height Weight 375 mm 480 mm 520 mm 22kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
FOLLOWS NORM REFERENCE : ICAO V3.2, paragraph 5.8 IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
- 5 e-passport are tested at the same time on the machine
- possibility to test the e-passports further than the norm changing only parameters on the interface ( number of cycles, frequency, angle...)
- simple and easy to use thanks to a screen touch interface
Advantages
The BGI088 is a stand alone equipment. This test applies torsional stress to the e-passport.
Product description
BGI088
Passport torsion testing equipment x 5
BGI088A Passport torsion calibration tool
Product description
Calibration tool for BGI088 in order to prepare passport for test.
Dimensions : 150 x 170 x 245 mm ; Weight : 4 kg
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comBGI088A Passport torsion calibration tool
53
E-passport Testing Equipment - ICAO
BGI08810
Passport torsion testing equipment x 10
Product description
The BGI08810 is a stand alone equipment. This test applies torsional stress to the e-passport.
Technical specifications
DIMENSIONS
Length Width Height Weight 375 mm 960 mm 510 mm 39kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
FOLLOWS NORM REFERENCE : ICAO V3.2, paragraph 5.8 IN CONFORMITY WITH CE DIRECTIVES
Advantages
- tests 10 e-passports simultaneously
- possibility to test the e-passports further than the norm changing only parameters on the interface ( number of cycles, frequency, angle...)
- simple and easy to use thanks to a screen touch interface
Ordering information
Description Reference number
Passport torsion testing equipment x 10 BGI08810
Passport torsion calibration tool BGI088A
Calibration tool
- BGI088A : Calibration tool for BGI08810 in order to prepare passport for test (p.50).
E-passport Testing Equipment - ICAO
BGI087
Dynamic bending testing equipment
The BGI087 is a stand alone equipment. It tests the bending fatigue resistance of the booklet.
Advantages
- tests 5 e-passports simultaneously
- possibility to test the e-passports further than the norm changing only parameters on the interface ( number of cycles, frequency, length...)
- simple and easy to use thanks to a screen touch interface
Technical specifications
Ordering information
Description Reference number
Dynamic bending testing equipment BGI087
Dynamic bending calibration tool BGI087A
DIMENSIONS
Length Width Height Weight 320 mm 580 mm 480 mm 33kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
FOLLOWS NORM REFERENCE : ICAO V3.2, paragraphes 5.6 IN CONFORMITY WITH CE DIRECTIVES
Calibration tool for BGI087 in order to prepare passport for test.
Dimensions : 200 x 220 x 240 mm ; Weight : 8.5 kg
BGI087A Dynamic bending calibration tool
Product description
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.com54
Product description
BGI087
Dynamic bending testing equipment
BGI087A Dynamic bending calibration tool
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comE-passport Testing Equipment - ICAO
Description Reference number
Sheet turning testing equipment BGI089
Ordering information
DIMENSIONS
Length Width Height Weight 375 mm 690 mm 520 mm 36kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
FOLLOWS NORM REFERENCE : ICAO V3.2, paragraphes 5.9 IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
- 5 e-passport tested simultaneously
- possibility to test the e-passports further than the norm changing only parameters on the interface ( number of cycles, frequency, angle...)
- simple and easy to use
- equipped with a screen touch interface in order to create and modify program
Advantages
The BGI089 is a stand alone equipment. This equipment tests the folding passport sheet resistance at the spine.
BGI089
Sheet turning testing equipment
55
Product description
E-passport Testing Equipment - ICAO
Description Reference number
Sheet pulling testing equipment BGI090
Ordering information
DIMENSIONS
Length Width Height Weight 251 mm 202 mm 480 mm 14kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
FOLLOWS NORM REFERENCE : ICAO V3.2, paragraph 5.10 IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
- possibility to test the e-passports further than the norm changing only parameters on the interface (stength, speed)
- simple and easy to use
- equipped with a screen touch interface in order to create and modify program
Advantages
The BGI090 is a stand alone equipment. This equipment tests the pages tearing resistance and the sewing part resistance.
BGI090
Sheet pulling testing equipment
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.com56
Product description
BGI090
Sheet pulling testing equipment
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comE-passport Testing Equipment - ICAO
Description Reference number
MRP holder equipment BGI104
Ordering information
DIMENSIONS
Length Width Height Weight 130 mm 460 mm 130 mm 0.830kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
FOLLOWS NORM REFERENCE : ICAO V3.2. IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
- 10 e-passports per holder - simple and easy to use - can be topped-up
Advantages
The BGI104 is a stand alone equipment. This is not a testing device but still required by ICAO in order to put e-passport to rest position before starting a test session.
BGI104
MRP holder equipment
57
Product description
E-passport Testing Equipment - ICAO
Ordering information
Technical specifications
- simple and easy to use
- 1 machine for 2 tests : datapage warpage evaluation and book warpage evaluation - quick result
- contactless measure (use of a laser) : no result fluctuation possible
- for passports and e-passports
Advantages
The BGI123 is a stand alone equipment. This equipment measures the MRP warpage extent.
BGI123
Passport warpage testing equipment
58
Product description
E-passport testing equipments
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comDescription Reference number
Passport warpage testing equipment BGI123 DIMENSIONS
Length Width Height Weight 610 mm 400 mm 400 mm 26kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
FOLLOWS NORM REFERENCE : ICAO V3.2, paragraphes 6.5 & 6.6 IN CONFORMITY WITH CE DIRECTIVES
Description Reference number E-passport warping testing equipment BGI107
DIMENSIONS
Length Width Height Weight 160 mm 170 mm 136 mm 3.5 kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
NOT PART OF ICAO PAPER NORM IN CONFORMITY WITH CE DIRECTIVES
BGI123
Passport warpage testing equipment
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.com59
E-passport Testing Equipment - NON ICAO
Ordering information
Technical specifications
- simple and easy to use
- Radius of test : 20mm and 25mm , other radius available on demand
Advantages
The BGI107 testing equipment is not part of ICAO paper norm but was developed by BG INGENIERIE following demands of passport manufacturers. It was developed from standard CQM wrapping for smartcards (BGI083) and adapted to ID3 e-passport document size.
BGI107
E-passport warping testing equipment
Product description
60
Description Reference number
Roller pressure testing equipment BGI108
Ordering information
DIMENSIONS
Length Width Height Weight 554.5 mm 375 mm 530 mm 40kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
PNEUMATIC CHARACTERISTICS 6 bars
NOT PART OF ICAO PAPER NORM IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
- easy to use thanks to a screen touch interface
- force applied : from 5 to 70 kg
The BGI108 testing equipment is not part of ICAO paper norm but was developed by BG INGENIERIE following demands of passport manufacturers. A wheel comes over the all passport surface, on «x» and «y» axes.
Product description
E-passport Testing Equipment - NON ICAO
BGI108
Roller pressure testing equipment
Advantages
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.com61
Description Reference number
Rotary stress testing equipment BGI127
Ordering information
DIMENSIONS
Length Width Height Weight 425 mm 400 mm 450 mm 20 kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
NOT PART OF ICAO PAPER NORM IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
- test for RFID cards, combi cards, dual cards, non homogeneous cards (display cards...) and passports
Advantages
The BGI127 testing equipment is not part of ICAO paper norm but was developed by BG INGENIERIE following demands of passport and card manufacturers. The equipment is based on card CQM requirements 16.4.3, reference P33 (p.41). It tests the stress and impact on 6 cards or passport in order to evaluate their resistance.
BGI107
3 wheels 2 axis ID3 testing equipment x 1
E-passport Testing Equipment - NON ICAO
BGI127
Rotary stress testing equipment
Product description
Contactless card manufacturers: Banking, e-ID card, loyalty card ... Passport manufacturers.
Markets
E-passport testing equipments
62
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.comDescription Reference number
3 wheels 2 axis ID3/ID1 testing equipment x 5 BGI098
Ordering information
DIMENSIONS
Length Width Height Weight 472 mm 1044 mm 515 mm 60kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
NOT PART OF ICAO PAPER NORM IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
Advantages
Product description
E-passport Testing Equipment - NON ICAO
BGI098
3 wheels 2 axis ID3/ID1 testing equipment x 5
The BGI098 testing equipment is not part of ICAO paper norm but was developed by BG INGENIERIE following demands of passport manufacturers. It allows to realise the test on the all card or e-passport surface, on «x» and «y» axes.
- tests e-passports and ID1 cards - tests 5 passports at the same time
- developed from the standard EMV 3 wheels but adapted to ID3 dimensions
- easy to use thanks to a screen touch interface
Markets
Banking, GSM, Telecom, e-ID card, health card, display cards ... Accepts e-passport ID3 dimensions
(
+33 (0) 2 99 00 89 877
+ 33 (0) 2 99 00 89 98@
[email protected]:
www.bginge.com63
Description Reference number
3 wheels 2 axis ID3/ID1 testing equipment x 1 BGI103
Ordering information
DIMENSIONS
Length Width Height Weight 460 mm 450 mm 515 mm 27 kg
TEMPERATURE
Operating Storage
+5°C to +50°C -20°C to +60°C
ELECTRICAL CHARACTERISTICS
Power : 100-240V AC ; Frequency : 50-60Hz single phase ; Intensity : 3,15A
NOT PART OF ICAO PAPER NORM IN CONFORMITY WITH CE DIRECTIVES
Technical specifications
Advantages
Product description
E-passport Testing Equipment - NON ICAO
BGI103
3 wheels 2 axis ID3/ID1 testing equipment x 1
The BGI103 testing equipment is not part of ICAO paper norm but was developed by BG INGENIERIE following demands of passport manufacturers. It allows to realise the test on the all card or e-passport surface, on «x» and «y» axes.
- tests e-passports and ID1 cards - test for 1 card
- developed from the standard EMV 3 wheels but adapted to ID3 dimensions
- easy to use thanks to a screen touch interface
Banking, GSM, Telecom, e-ID card, health card, display cards ... Accepts e-passport ID3 dimensions
