TWO HAND STATION JSTD25

(1)

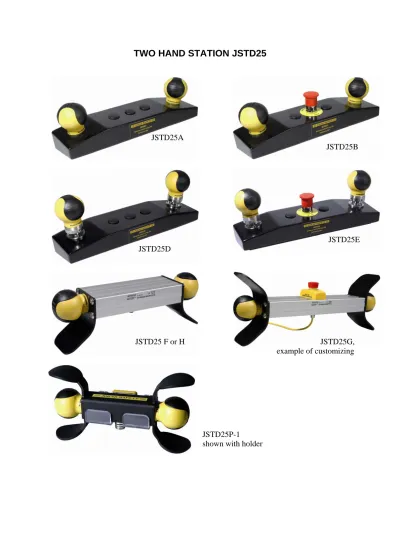

TWO HAND STATION JSTD25

JSTD25A

JSTD25B

JSTD25D

JSTD25E

JSTD25 F or H

JSTD25G,

example

of

customizing

JSTD25P-1

(2)

Specifications subject to changes without notice. Data as delivered. High wattage, high speed operating, high or low temperature, chemicals etc. will affect data.

Technical data – JSTD25

Manufacturer JOKAB SAFETY AB, Sweden Ordering data 20-007-50 20-007-51 20-007-53 20-007-54 20-007-60 20-007-62 20-007-63 20-007-65 JSTD25A JSTD25B, with E-stop

JSTD25D with ball- & socket mount JSTD25E, as D, and with E-stop JSTD25F, with 5-pole connector JSTD25G (customized)

JSTD25H, with 8-pole connector JSTD25P-1, with internal Eva. Material Safeball: Polypropen. Housing: JSTD25 A/B/D/E painted steel,

JSTD25 F/G/H/P-1 anodized aluminium. Gaskets: rubber. Size (Length x Width x Height) JSTD25 A/B

JSTD25 D/E JSTD25 F/H JSTD25 G JSTD25 P-1 400 x 110 x 125 mm 400 x 110 x 156 mm 356 x 91 x 129 mm Customized 315 x 70 x 160 mm Weight without cable JSTD25 A/B/D/E

JSTD25 F/H JSTD25 G JSTD25 P-1 3,3 - 4,0 kg 0,65 kg Customized 0,85 kg

Colour Black and yellow. JSTD25 F/G/H also anodized aluminium. Temperature 0…+55 °C (operation)

-20…+70 °C (storage) Protection class IP65

Connection JSTD25 A/B/D/E

JSTD25 F JSTD25 G JSTD25 H JSTD25 P-1

Screw clamp terminals inside M12 5-pole male contact Cable or contact (customized) M12 8-pole male contact 8+1 pole Zylin male contact

Two-hand (Safeball) Emergency stop push button Operating force Approx. 2 N 40 N

Actuator travel 1.3 ±0.6 mm 5 mm

Mechanical life 1x106 operations 3x105 operations Max operating frequency 1 Hz 0,3 Hz

Isolation voltage 1000 V rms 690 V rms Max switching load 30 V 2 A DC resistive load 240 V 3 A AC Recommended load 24 V 10 mA DC 24 V 20 mA DC Contact resistance 100 mohm 20 mohm Contact type Spring loaded snap-action.

2 NO, 2 NC. True Two-channel.

Direct opening, separated contact blocks. 2 NC. Safety level (if used with corresponding

safety unit from Jokab Safety)

Type IIIC acc. to EN574 (=highest level)

Cat. 4 acc. to EN 954-1 (=highest level) Accessories

(see also product catalog)

JSTS 31 JSM C7 JSM C14 M12-C101 M12-C103 JSTK40S JSTK80S

Floor stand with ring for JSTD25 A/B/D/E Holder/shelf for JSTD25 F/G/H

Holder/shelf for JSTD25P-1 10m cable for JSTD25F 10m cable for JSTD25H 4m spiral cable for JSTD25P-1 8m spiral cable for JSTD25P-1

Standards EN 574, EN ISO 13849-1, EN ISO13850, EN 60947-1, EN 60947-5-1, EN 999, IEC 60529

(3)

125

±2

66-71

163 ±2

50

±2

54,5

50

Subject to change without notice.

D E F C 1 2 3 4 B A 3 2 1 5 C D 4 6 7 8 A B

Material Ytbehandling Dimension

Konstruerad av Granskad av Godkänd av Datum Generell ytjämnhet

Färg Generell tolerans

Vyplacering Format Skala

Ägare Titel/benämning

Ritningsnummer Utgåva Blad

BLACK

TWOHAND STATION

Ra

-purpose. _{COPYRIGHT JOKAB SAFETY AB - 2004}

A3

1/1

1:2.5

JSTD25A

-STEEL

POWDER PAINTED

MB

-

061019

This document shall not be copied without our written permission, and the contents thereof shall not be disclo-sed to any third party, nor be use for anyauthorized

±1 mm

68±2

110 ±2

4,5

48±2

M5 (8X)

TOLERANCE UNLESS OTHER STATED: ±1MM

52

75

±2

118

360

14,5

±2

110

60

For M10(4X)

±4

400

±2

35

240

25

22.5±0.5(2X)

For Button 22 (3X)

Section showing

provision for connection

and earth screws.

(4)

156

±2

66-71

155-158

50

±2

54,5

50

4,5

±2

68±2

110

48±2

1/1

1:2.5

JSTD25E

-STEEL

POWDER PAINTED

MB

-

061019

Ra

-TWOHAND STATION

BLACK

Subject to change without notice.

D E F C 1 2 3 4 B A C D A B

Konstruerad av Granskad av

A3

COPYRIGHT JOKAB SAFETY AB - 2004 purpose.

Godkänd av Datum Generell ytjämnhet

±1 mm

For M10(4X)

400

240

±2

22.5±0.5(2X)

35

±4

25

40

Section showing

provision for connection

and earth screws.

3

For Button 22 (3X)

M5 (8X)

TOLERANCE UNLESS OTHER STATED: ±1MM

118

110

52

360

±2

75

14,5

6060

(5)

(6)

M12, 5-pole male 370 ±2 356 95 220±0.5 ±1 ±2 129 4 90.5 ±0.5 - D E F C 1 2 3 4 B A C D A B

050502

-purpose. COPYRIGHT JOKAB SAFETY AB - 2004

A3 ISO 2768 mK 1/2 1:1

JSTD25F

-- -MABR

(7)

(8)

-1

State dim A

2

State dim B

3

connection

Type of

4

Connector side

U or L

5

Type of Safeball

6

Other request

DO NOT FORGET TO ATTACH ELECTRICAL DIAGRAM TO REQUEST/ORDER!

Blad purpose.

MABR

COPYRIGHT JOKAB SAFETY AB - 2004

A3 ISO 2768 mK 1/1 1:1

JSTD25G

-- - 050502 - D E F C 1 2 3 4 B A C D A B

Konstruerad av

Utgåva Ritningsnummer

Titel/benämning

Granskad av Godkänd av Datum Generell ytjämnhet

-Vyplacering Format Skala

Ägare This document shall not be copied without our written

permission, and the contents thereof shall not be disclo-sed to any third party, nor be use for anyauthorized

-D U C L A+150 A A+136 ±2 129 95 4 B 90,5 ±0,5

(9)

90.5 ±0.5 M12, 8-pole male 370 ±2 356 95 220±0.5 ±1 ±2 129 4 - D E F C 1 2 3 4 B A 3 2 1 5 C D 4 6 7 8 A B

1/2

TWO HAND STATION

JSTD25H

A3 ISO 2768 mK 1:1 -071121 - -MABR

-This document shall not be copied without our written permission, and the contents thereof shall not be disclo-sed to any third party, nor be use for anyauthorized

(10)

(11)

-8+1 POLE

CONNECTOR

50

18,5

315±2

238

158±2

70

purpose.

Ra 1,6

ISO 2768 mK

This document shall not be copied without our written permission, and the contents thereof shall not be

disclo-sed to any third party, nor be udisclo-sed for any unauthorized

1

070706

XX

-B C D 1 2 A 3 2 1 4 B A 5 6 C Titel/Benämning Utgåva Blad Vyplacering Skala

Konstruerad av Granskad av Godkänd av

Ritningsnummer Generell ytjämhet Generell tolerans Ägare Datum

1:2

1/1

Format Färg

JSTD25P-1 New

A4

MABR

Al & PP

-20-007-65

(12)

(13)

This document shall not be copied without our written permission, and the contents thereof shall not be disclo-sed to any third party, nor be udisclo-sed for any unauthorized

purpose.

JSTD25 Accessories 1

For JSTD25 A/B/D/E

JSTK80S

Macromelt

For JSTD25 F/G/H For JSTD25 F/G/H

Smile 10EK

JSTK40S

JSTS31

JSTK0

For JSTD25 F/G/H

Polypropene

Steel

Adam & Eva

M12-C101 (5-pole)

M12-C103 (8-pole)

JSM C14

Polycarbonate

140

55

108

78

6.5

For JSTD25P-1 For JSTD25P-1 For JSTD25P-1 For JSTD25 F/G/H Height 850-1100mm

360

4x 11

JSM C7

Stainless steel

75

64

50

120

84

8
