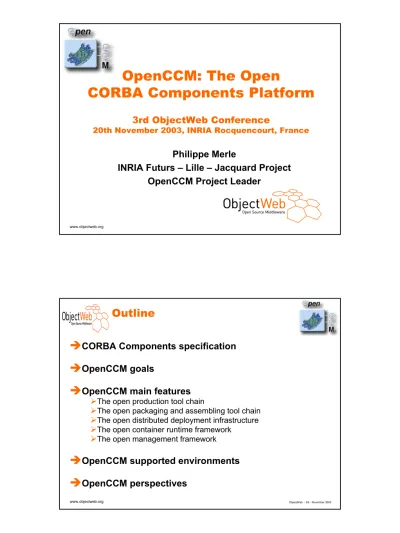

OpenCCM: The Open CORBA Components Platform

(1)

www.objectweb.org

OpenCCM: The Open

CORBA Components Platform

3rd ObjectWeb Conference

20th November 2003, INRIA Rocquencourt, France

Philippe Merle

INRIA Futurs – Lille – Jacquard Project

OpenCCM Project Leader

Outline

Î

CORBA Components specification

Î

OpenCCM goals

Î

OpenCCM main features

¾The open production tool chain

¾The open packaging and assembling tool chain ¾The open distributed deployment infrastructure ¾The open container runtime framework

¾The open management framework

Î

OpenCCM supported environments

(2)

www.objectweb.org ObjectWeb - D3 - November 2003

CORBA Components

Specification

Î

Defined by the Object Management Group (OMG)

Î

A set of concepts, notations, and APIs to

¾Design ¾Implement ¾Package ¾Assemble ¾Deploy ¾Execute

distributed, heterogeneous, secure, transactional,

server-side scalable, CORBA component-based

applications

OpenCCM Goals

Î

Federate a world-wide community around CORBA

component-based middleware and applications

¾Users, developers, and contributors ¾Industrial and academic R&D

zTHALES, Cadena from Kansas University, …

Î

Provide the Open CORBA Components platform

¾Reference implementation ¾ORB product independent

¾Modular, extensible and adaptable for building CCM++

Î

See at

http://openccm.objectweb.org

¾Open source licensed under LGPL ¾Hosted by the ObjectWeb consortium

(3)

Main Features

Î

The open production tool chain

¾Design, define, implement, and compile CORBA components

Î

The open packaging and assembling tool chain

¾Package and assemble CORBA components

Î

The open distributed deployment infrastructure

¾Deploy, install, instantiate, and configure CORBA components

Î

The open container runtime framework

¾Host and execute CORBA components

Î

The open management framework

¾Discover, introspect, manage, monitor and reconfigure CORBA components

The Open Production Tool

Chain

Î

Front-end compilers for

¾OMG Interface Definition Language 3.0 (OMG IDL) ¾OMG Persistent State Definition Language (OMG PSS)

¾OMG Component Implementation Definition Language (OMG CIDL) UML Profile for CORBA Components

Î

Middle-end repository

¾Abstract Syntax Tree (AST) ¾CORBA 3.0.x Interface Repository

Î

Back-end generators for

¾Client and server equivalent OMG IDL 2.x mapping ¾CIDL related Java container code

¾PSDL related Java interfaces and implementations ¾Java templates for implementing components ¾OMG IDL 3.0, PSDL, CIDL, and UML pretty-printers

Î

To do

(4)

The Open Production Tool Chain

Modular & Extensible Architecture

XML Component descriptor XML Component descriptor XML CORBA Component descriptors Container code OMG IDL/PSDL/CIDL Front end Implementation templates XMI files XMI files XMI UML IDL/CIDL files IDL/CIDL files OMG IDL/ PSDL/CIDL IDL/PSDL/CIDL Generators IDL/PSDL/CIDL Generators Stubs/skeletons Generators Container code Generators XML CCD Generators XML CCD Generator XMI Generators XMI UML Generator XMI UML Front end XMI UML files XMI UML files XMI UML IDL CIDL files IDL CIDL files OMG IDL/ PSDL/CIDL UML

OpenCCM

Interface

Repository

Other Files Component Implementation Generators Component Implementation Generators Other Generators Other generators Other Front ends

Other Front ends

Other files Other filesOther Notations

IDE

Cadena

from Kansas University

=

(5)

The Open Packaging and

Assembling Tool Chain

Î

A stand-one packaging and assembling tool

¾All CCM XML descriptors and ZIP archives supported

The Open Packaging and

Assembling Tool Chain

Î

A software framework for building customized

packaging and assembling tools

Î

Users can build their own P&A tool

4 DTD XML

du CCM 4 DTD XML

du CCMCCM XML DTDs

Zeus + Apollon

Generic Browser Framework

XML Plug-in Data Binding

Swing Binding

XML Plug-in ZIP Archives

Code

Zeus = XML DTD ÆJava Data classes Apollon = XML DTD ÆJava GUI classes

(6)

The Open Distributed

Deployment Infrastructure

Î

Main supported features

¾All CCM XML descriptors and ZIP archives

¾CosNaming, CosTrading, and HomeFinder services ¾All Components::DeploymentAPI

Î

Component-based deployment infrastructure

¾

IST COACH Distributed Computing Infrastructure (DCI)

¾

Possible injection of non functional properties as

persistency, transactions, security, etc. via containers

Î

Transactional distributed deployment

¾

Rollback deployment when failures

COACH Distributed Computing

Infrastructure

(7)

Permanent Components

Node_1 Node_2 Node_3

CORBA

Middleware

NodeManager NodeManager NodeManager DCIManager

CORBA Assembly Installation

Node_1 Node_2 Node_3

COACH

Middleware

Installed Assembly Assigned

Assembly

(8)

CORBA Assembly Instantiation

Node_1 Node_2 Node_3 AssemblyMgr

COACH

Middleware

Installed Assembly

instantiate

CORBA Assembly Instantiation

COACH

Middleware

(9)

CORBA Component

Configuration & Interconnection

COACH

Middleware

Installed Assembly Running Assembly

OpenCCM DCI Components

Î

DCIManager= a deployment domain

¾Provides AssemblyFactoryand HomeFinder

Î

NodeManager = a virtual host

¾Provides ComponentInstallationand ServerActivator

Î

ComponentServerManager= a component server

¾Provides ComponentServer

Î

ContainerManager= a container

¾Provides Container

Î

AssemblyManager= an assembly deployment controller

¾Provides Assembly

Î

Each component provides other ports for management and supervision purposes

(10)

The Open Container Runtime

Framework

Î

Built on top of CORBA 2.4

Î

Scripts to start / stop CORBA services

¾CosNaming, CosTrading, and CosTransactions

Î

Runtime library for

session

components

¾Set of classes inherited by generated container code

Î

OMG Persistent State Service (PSS) implementation

¾Built on top of Java Data Object (JDO) ¾Currently Kodo product

¾Soon ObjectWeb Speedo

Î

Flexible Container Framework soon

¾IST COACH Extensible Container Architecture (ECA)

Runtime Architecture

Application Components DCI Components CosNaming Service CosTransactions Service CosTrading Service

CORBA 2.4 or higher

OpenCCM Flexible Container Framework

OpenCCM PSS Runtime Data Stores JDO Runtime Plugin Plugin Domain Node Server CosPersistentState Service Philosopher Observer Fork Assembly

(11)

The Open Management

Framework

Î

A software framework for building graphical UI

management browser

¾Extensible by plug-ins

Î

Various browser plug-ins for

¾CORBA Object, Component and Home ¾Interface Repository

¾CosNaming ¾CosTrading ¾DCI

Î

IST COACH monitoring and testing infrastructure

(12)

IST COACH Monitoring and

Testing Infrastructure

OpenCCM component servers

Portable Interceptors for monitoring

CORBA CORBA Components Interface

Repository

Actor GUI

Logging Components

Web Browser

IST COACH Monitoring and

Testing Infrastructure

(13)

IST COACH Monitoring and

Testing Infrastructure

IST COACH Monitoring and

Testing Infrastructure

(14)

Supported Environments

For All OpenCCM Features

Î

Java 1.2.1, 1.3.x & 1.4.x

Î

Operating systems

¾Linux ¾Solaris ¾Windows

¾Windows CE for PDA

Î

CORBA products

¾Borland Enterprise Server (BES) 5.0.2 & 5.2 ¾IONA ORBacus 4.1.x

¾JacORB 2.0

¾The Community OpenORB 1.2.1, 1.3.0, 1.3.1 & 1.4.0 ¾Potentially any full CORBA 2.4 implementation

Perspectives for OpenCCM 1.0

Î

Improve and complete all current main features

Î

Provide the full container support

¾CORBA Component Descriptor generator ¾Service, Process, andEntitycontainers ¾All CCM container API

¾Services injected in containers

zPersistency, transaction, security, notification

¾IST COACH Extensible Container Architecture

Î

Lightweight CORBA Components in C++

¾THALES contribution in ITEA OSMOSE project

Î

Open Model-Driven CORBA Components platform

¾Design components, implementations, and assemblies with UML ¾Generate all OMG IDL, CIDL, implementations, CAD files ¾Ready to be deployed and managed
