ben ch s ea tin g and s to ols CO L S P E C I F Y : 1. Model number 2. Leg finish 3. Upholstery selection, as applicable 4. Options, as applicable P R O D U C T F E AT U R E S :
Units available individually or in modular combinations with lounge and full size bench models as well as connecting tables (not ganged).
For modular arrangements utilizing shared legs, please refer to models on pages 279. Each unit comes standard with four (4) 51/2"
high Beech wood or metal legs. All standard and custom wood finishes
available on Beech.
For custom finishes (to legs and/or tables), please add one-time upcharge of $270 List per color per order.
Metal legs available in #92 Polished Aluminum and the following powdercoat finishes: #82 Graphite, #83 Metallic Champagne and #90 Metallic Silver.
Maximum weight capacity is 750 lbs. Non-skid glides available for hard surface
floors. Please specify “-NS” after model number and add $20 List per unit. Two-tone upholstery examples and yardage
requirements featured on page 281.
sin #711-16

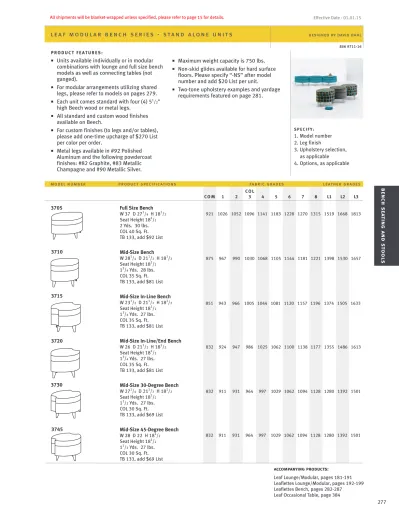

l e a f m o d u l a r b e n c h s e r i e s - s ta n d a l o n e u n i t s
designed by david dahl3705 Full Size Bench
W 37 D 271/4 H 181/2 Seat Height 181/ 2 2 Yds. 30 lbs. COL 40 Sq. Ft. TB 133, add $92 List Mid-Size Bench W 281/4 D 211/2 H 181/2 Seat Height 181/ 2 13/4 Yds. 28 lbs. COL 35 Sq. Ft. TB 133, add $81 List Mid-Size In-Line Bench W 231/2 D 211/2 H 181/2 Seat Height 181/ 2 13/4 Yds. 27 lbs. COL 35 Sq. Ft. TB 133, add $81 List Mid-Size In-Line/End Bench W 26 D 211/2 H 181/2 Seat Height 181/ 2 13/4 Yds. 27 lbs. COL 35 Sq. Ft. TB 133, add $81 List Mid-Size 30-Degree Bench W 271/4 D 211/2 H 181/2 Seat Height 181/ 2 11/2 Yds. 27 lbs. COL 30 Sq. Ft. TB 133, add $69 List 3710 3715 3720 3730
model number product specifications fabric grades leather grades
CO M 1 2 3 4 5 6 7 8 L1 L2 L3 921 1026 1052 1096 1141 1183 1228 1270 1315 1519 1668 1813 875 967 990 1030 1068 1105 1144 1181 1221 1398 1530 1657 851 943 966 1005 1044 1081 1120 1157 1196 1374 1505 1633 832 924 947 986 1025 1062 1100 1138 1177 1355 1486 1613 832 911 931 964 997 1029 1062 1094 1128 1280 1392 1501
278
Effective Date - 01.01.15 All shipments will be blanket-wrapped unless specified, please refer to page 15 for details.
ben ch s ea tin g and s to ols sin #711-16
l e a f m o d u l a r b e n c h s e r i e s - s ta n d a l o n e u n i t s
designed by david dahlS P E C I F Y : 1. Model number 2. Wood species 3. Wood finish 4. Leg finish 5. Options, as applicable TA B L E P R O D U C T F E AT U R E S :
Tables manufactured in Maple, Walnut and White Oak.
All standard and custom wood finishes available.
For custom finishes (to legs and/or tables), please add one-time upcharge of $270 List per color per order.
Laminate and Corian tops available (veneer body as standard, finish must be specified). For Corian tops, specify “-CO” next to model number and select color. Corian top is affixed to table surface increasing overall table height by 1/2".
Each unit comes standard with four (4) 51/2" high Beech wood or metal legs.
Metal legs available in #92 Polished Aluminum and the following powdercoat finishes: #82 Graphite, #83 Metallic Champagne and #90 Metallic Silver. Non-skid glides available for hard surface
floors. Please specify “-NS” after model num-ber and add $20 List per unit.
Tables connect with all lounge, bench and mid-size bench models as well as Leaflette lounge and bench units.
For modular arrangements utilizing shared legs, please refer to models on page 279.
VENEER OR
LAMINATE CORIAN (-CO) In-Line Table W 163/ 4 D 161/2 H 131/4 15 lbs. 30-Degree Table W 181/ 4 D 161/2 H 131/4 15 lbs. 45-Degree Table W 19 D 163/ 4 H 131/4 15 lbs. 90-Degree Table W 23 D 19 H 131/ 4 15 lbs. In-Line/End Table W 19 D 161/ 2 H 131/4 15 lbs. 3750 3750-30 3750-45 3750-90 3755
model number product specifications table top finishes
accompanying products:
Leaf Lounge/Modular, pages 181-191 Leaflettes Lounge/Modular, pages 192-199 Leaflettes Bench, pages 282-287 Leaf Occasional Table, page 384
824 1199
817 1192
824 1199
885 1427
ben ch s ea tin g and s to ols CO L S P E C I F Y : 1. Model number 2. Leg finish 3. Upholstery selection 4. Options, as applicable P R O D U C T F E AT U R E S :
Models feature a shared ganging leg (-G) to connect units together.
For stand-alone units (without ganging connector), please refer to models on pages 277.
Each unit comes standard with four (4) 51/2" high Beech wood or metal legs.
All standard and custom wood finishes available on Beech.
For custom finishes (to legs and/or tables), please add one-time upcharge of $270 List per color per order.
Metal legs available in #92 Polished Aluminum and the following powdercoat finishes: #82 Graphite, #83 Metallic Champagne and #90 Metallic Silver.
Maximum weight capacity is 750 lbs. Non-skid glides available for hard surface
floors. Please specify “-NS” after model number and add $20 List per chair. Two-tone upholstery examples and yardage
requirements featured on page 281.
Note: Please include layout drawings or
sketch with each order.
sin #711-16
l e a f m o d u l a r b e n c h s e r i e s - g a n g e d u n i t s
designed by david dahl3705-G Full Size Bench
W 37 D 271/4 H 181/2 Seat Height 181/ 2 2 Yds. 30 lbs. COL 40 Sq. Ft. TB 133, add $92 List Mid-Size Bench W 281/4 D 211/2 H 181/2 Seat Height 181/ 2 13/4 Yds. 28 lbs. COL 35 Sq. Ft. TB 133, add $81 List Mid-Size In-Line Bench W 231/2 D 211/2 H 181/2 Seat Height 181/ 2 13/4 Yds. 27 lbs. COL 35 Sq. Ft. TB 133, add $81 List Mid-Size In-Line/End Bench W 26 D 211/2 H 181/2 Seat Height 181/ 2 13/4 Yds. 27 lbs. COL 35 Sq. Ft. TB 133, add $81 List Mid-Size 30-Degree Bench W 271/4 D 211/2 H 181/2 Seat Height 181/ 2 11/2 Yds. 27 lbs. COL 30 Sq. Ft. TB 133, add $69 List 3710-G 3715-G 3720-G 3730-G
model number product specifications fabric grades leather grades
CO M 1 2 3 4 5 6 7 8 L1 L2 L3 973 1078 1104 1149 1193 1236 1280 1323 1367 1571 1721 1866 927 1019 1042 1081 1120 1157 1195 1233 1272 1450 1581 1708 903 995 1019 1058 1096 1134 1172 1209 1249 1427 1558 1685 884 976 999 1039 1077 1115 1153 1190 1230 1407 1539 1666 884 963 983 1017 1050 1081 1115 1147 1180 1333 1445 1554
280
Effective Date - 01.01.15 All shipments will be blanket-wrapped unless specified, please refer to page 15 for details.
ben ch s ea tin g and s to
ols VENEER OR LAMINATE CORIAN (-CO)
model number product specifications table top finish
sin #711-16
l e a f m o d u l a r b e n c h e s s e r i e s - g a n g e d u n i t s
designed by david dahl P R O D U C T F E AT U R E S : Models feature a shared ganging leg (-G) to connect units together.
For stand-alone units (without ganging connector), please refer to models on page 278.
Tables manufactured in Maple, Walnut and White Oak.
All standard and custom wood finishes available.
For custom finishes (to legs and/or tables), please add one-time upcharge of $270 List per color per order.
Laminate and Corian tops available (veneer body as standard, finish must be specified).
For Corian tops, specify “-CO” next to model number and select color (refer to page 181 for options). Corian top is affixed to table surface increasing overall table height by 1/2". Legs available in Beech wood or metal. Metal legs available in #92 Polished
Aluminum and the following powdercoat finishes: #82 Graphite, #83 Metallic Champagne and #90 Metallic Silver. Non-skid glides available for hard surface
floors. Please specify “-NS” after model number and add $20 List per unit. Tables connect with all lounge, bench and
mid-size bench models as well as Leaflette lounge and bench units.
Note: Please include layout drawings or
sketch with each order.
In-Line Table W 163/4 D 161/2 H 131/4 15 lbs. 30-Degree Table W 181/4 D 161/2 H 131/4 15 lbs. 45-Degree Table W 19 D 163/4 H 131/4 15 lbs. 90-Degree Table W 23 D 19 H 131/4 15 lbs. In-Line/End Table W 19 D 161/2 H 131/4 15 lbs. 3750-G 3750-30-G 3750-45-G 3750-90-G 3755-G S P E C I F Y : 1. Model number 2. Wood species 3. Wood finish 4. Leg finish 5. Options, as applicable 876 1252 869 1244 876 1252 937 1478 884 1730 accompanying products:
Leaf Lounge/Modular, pages 181-191 Leaflettes Lounge/Modular, pages 192-199 Leaflettes Bench, pages 282-287 Leaf Occasional Table, page 384
ben ch s ea tin g and s to ols sin #711-16
l e a f m o d u l a r b e n c h s e r i e s - t w o -t o n e u p h o l s t e r y
designed by david dahl T W O -T O N E U P H O L S T E R Y CO M B I N AT I O N S : When combining two COM/COV/COL fabrics, or fabrics with the same grade, price will be $60 List (per unit).
When combining three or more COM/COV/COL fabrics, or fabrics with the same grade, price will be $70 List (per unit). When combining different grades of fabric, price will be based on the highest grade specified.
Two-tone upholstery examples and yardage requirements for the most common combinations are listed below. Additional combinations available, please contact Customer Service for yardage requirements and pricing.
Note: Yardage amounts are based on fabric which is plain (i.e. non-directional) and a full 54" wide. Appropriate upholstery code must be included on order.
Code LM4 Model COM Requirement 3705 Seat Cushion = 11/4 yds.
3705-G Seat Box = 3/4 yd.
Code LM5 Model COM Requirement
3705 Top of Seat Only = 1 yd.
3705-G Balance of Bench = 1 yd.
Code LM10 Model COM Requirement 3745 Seat Cushion = 11/4 yds. 3745-G Seat Box = 3/4 yd.
Code LM11 Model COM Requirement 3710 Top of Seat Only = 3/4 yd.
3710-G Balance of Bench = 11/4 yds.
Code LM12
Model COM Requirement 3715 Top of Seat Only = 3/4 yd. 3715-G Balance of Bench = 11/4 yds.
Code LM13
Model COM Requirement 3720 Top of Seat Only = 3/4 yd.
3720-G Balance of Bench = 11/4 yds. Code LM6
Model COM Requirement 3710 Seat Cushion = 11/4 yds.
3710-G Seat Box = 3/4 yd.
Code LM7 Model COM Requirement 3715 Seat Cushion = 11/4 yds.
3715-G Seat Box = 3/4 yd.
Code LM8 Model COM Requirement 3720 Seat Cushion = 11/4 yds.
3720-G Seat Box = 3/4 yd.
Code LM9 Model COM Requirement 3730 Seat Cushion = 11/4 yds.
