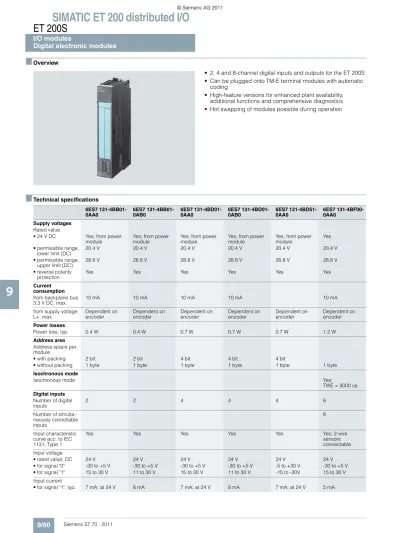

SIMATIC ET 200 distributed I/O

(1)

9

• Can be plugged onto TM-E terminal modules with automatic coding

• High-feature versions for enhanced plant availability, additional functions and comprehensive diagnostics • Hot swapping of modules possible during operation

■

Technical specifications 6ES7 131-4BB01-0AA0 6ES7 131-4BB01-0AB0 6ES7 131-4BD01-0AA0 6ES7 131-4BD01-0AB0 6ES7 131-4BD51-0AA0 6ES7 131-4BF00-0AA0 Supply voltages Rated value

• 24 V DC Yes; from power module

Yes; from power module

Yes; from power module Yes • permissible range, lower limit (DC) 20.4 V 20.4 V 20.4 V 20.4 V 20.4 V 20.4 V • permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V 28.8 V 28.8 V 28.8 V • reverse polarity protection

Yes Yes Yes Yes Yes Yes

Current consumption

from backplane bus 3.3 V DC, max.

10 mA 10 mA 10 mA 10 mA 10 mA

from supply voltage L+, max. Dependent on encoder Dependent on encoder Dependent on encoder Dependent on encoder Dependent on encoder Dependent on encoder Power losses

Power loss, typ. 0.4 W 0.4 W 0.7 W 0.7 W 0.7 W 1.2 W

Address area

Address space per module

• with packing 2 bit 2 bit 4 bit 4 bit 4 bit

• without packing 1 byte 1 byte 1 byte 1 byte 1 byte 1 byte

Isochronous mode

Isochronous mode Yes;

TWE = 3000 us Digital inputs Number of digital inputs 2 2 4 4 4 8 Number of simulta-neously controllable inputs 8 Input characteristic curve acc. to IEC 1131, Type 1

Yes Yes Yes Yes Yes Yes; 2-wire

(2)

■

Technical specifications (continued)

9

6ES7 132-4BB30-0AB0 6ES7 132-4BD32-0AA0 6ES7 132-4FB01-0AB0 6ES7 132-4HB01-0AB0 6ES7 132-4HB12-0AB0 Supply voltages Reverse voltage protection

Yes; when using the same load voltage as on the power module

Yes; when using the same load voltage as on the power module Load voltage L+

• Rated value (DC) 24 V; from power module 24 V; from power module 24 V; from power module 24 V; from power module 24 V; from power module • Reverse polarity protection

Yes Yes Yes Yes Yes

Current consumption

from load voltage L+ (without load), max.

5 mA; per channel 10 mA; per channel 30 mA 30 mA 30 mA

from backplane bus 3.3 V DC, max.

10 mA 10 mA 18 mA 10 mA 10 mA

Power losses

Power loss, typ. 1.4 W 1.6 W 4 W 0.6 W 0.6 W

Address area

• with packing 2 bit 4 bit 2 bit 2 bit 2 bit

• without packing 1 byte 1 byte 1 byte 1 byte 1 byte

Isochronous mode Yes Yes No No

Digital outputs

Number of digital outputs

2 4 2 2 2

Short-circuit protection Yes; per channel Yes; per channel Yes; via fuse in power module

No; external fuse, max. 6 A quick-acting

No; external fuse, max. 6 A quick-acting • Response threshold, typ. 4 A 2.8 to 7.2 A Limitation of inductive shutdown voltage to -55 to -60 V Typ. L+ (-55 to -60 V) -55 to -60 V No No

Lamp load, max. 5 W 10 W 100 W

Controlling a digital input

Yes Yes Yes; possible Yes Yes

Output voltage

• for signal "1", min. L+ (-1 V) L+ (-1.0 V) L+ (-1.5 V) Output current

• for signal "1" rated value

2 A 2 A 2 A 5 A 5 A

• for signal "1" permis-sible range for 0 to 60 °C, min.

7 mA 7 mA 0.1 mA

• for signal "1" permis-sible range for 0 to 60 °C, max.

2.4 A 2.4 A 2.2 A

• for signal "1" minimum load current

8 mA 8 mA

• for signal "0" residual current, max.

0.5 mA 0.5 mA 3 mA

Output delay with resistive load

• 0 to "1", max. 100 μs 50 μs; typically 45μs 15 ms • 1 to "0", max. 400 μs 120 μs; typically 90μs 15 ms Parallel switching of

2 outputs

(3)

9

Switching frequency • with resistive load,

max.

100 Hz 1 000 Hz 10 Hz 2 Hz 2 Hz

• with inductive load, max.

2 Hz; 0.5 H 2 Hz; at 0.5H 0.5 Hz 0.5 Hz 0.5 Hz

• on lamp load, max. 10 Hz 10 Hz 1 Hz 2 Hz 2 Hz

Aggregate current of outputs (per group) • vertical installation - up to 40 °C, max. 4 A; at 55°C and 24V DC • up to 40 °C, max. 2 A • up to 50 °C, max. 1.5 A • up to 60 °C, max. 4 A 4 A 1 A

Load resistance range

• lower limit 12 12

• upper limit 3 400 3 400 Cable length

• Cable length, shielded, max. 1 000 m 1 000 m 1 000 m 1 000 m 1 000 m • Cable length unshielded, max. 600 m 600 m 600 m 600 m 600 m Relay outputs Switching capacity of contacts • Thermal continuous current, max. 5 A 5 A Parameter

Remark 3 byte 1 byte 3 byte 3 byte 3 byte

Diagnostics: wire break Disable/enable Diagnostics: short circuit Disable / enable Behavior on CPU/Master

STOP, channel-wise

Substitute a value/ keep last value, 0/1

Substitute a value / keep last value

Alarms/diagnostics/ status information

Substitute values connectable

Yes; 0/1 Yes; 0/1 Yes; 0/1

Diagnostics

• Diagnostic functions Yes; can be read out No No No No

• Wire break Yes; channel by channel • Short circuit Yes; channel by

channel Diagnostic indication

LED

• Group error SF (red) Yes • Status indicator digital

output (green)

Yes Yes Yes Yes Yes

Isolation

Isolation checked with 500 V DC 500 V DC 2500 V DC tested with

• Channels against backplane bus and load voltage L+ 1500 V AC 2500 V DC • Load voltage L+ against backplane bus 500 V DC 500 V DC

(4)

■

Technical specifications (continued)

9

Galvanic isolation

Galvanic isolation digital outputs

• between the channels No No No Yes Yes

• between the channels and the backplane bus

Yes Yes Yes Yes Yes

• between the channels and the load voltage L+ Yes Yes Permissible potential difference between different circuits 75 V DC / 60 V AC Dimensions and weight Dimensions • Width 15 mm 15 mm 15 mm 15 mm 15 mm • Height 81 mm 81 mm 81 mm 81 mm 81 mm • Depth 52 mm 52 mm 52 mm 52 mm 52 mm Weight • Weight, approx. 40 g 40 g 37 g 50 g 50 g 6ES7 132-4BB30-0AB0 6ES7 132-4BD32-0AA0 6ES7 132-4FB01-0AB0 6ES7 132-4HB01-0AB0 6ES7 132-4HB12-0AB0

6ES7 132-4BF50-0AA0 6ES7 132-4BD50-0AA0

Supply voltages

Reverse voltage protection Yes; when using the same correctly polarized load voltage as on the power module

Yes; when using the same load voltage as

Load voltage L+

• Rated value (DC) 24 V; from power module 24 V; from power module

• Reverse polarity protection Yes Yes

Current consumption

from load voltage L+ (without load), max. 5 mA 5 mA; per channel

from backplane bus 3.3 V DC, max. 10 mA 10 mA

Power losses

Power loss, typ. 1.5 W 0.8 W

Address area

• with packing 4 bit

• without packing 1 byte 1 byte

Isochronous mode Yes Yes

Digital inputs

Cable length

• Cable length, shielded, max. 1 000 m

• Cable length unshielded, max. 600 m

Digital outputs

Number of digital outputs 8 4

Short-circuit protection Yes; per channel Yes; per channel • Response threshold, typ. 1.5 A

Limitation of inductive shutdown voltage to Typ. 47 V

Lamp load, max. 5 W 5 W

(5)

9

I: Subject to export regulations AL: N and ECCN: EAR99H Ordering unit 5 units

• 2 DI 24 V DC Standard I 6ES7 131-4BB01-0AA0

• 2 DI 24 V DC High Feature 6ES7 131-4BB01-0AB0

• 4 DI 24 V DC Standard 6ES7 131-4BD01-0AA0

• 4 DI 24 V DC High Feature 6ES7 131-4BD01-0AB0

• 2 DI 120 V AC 6ES7 131-4EB00-0AB0

• 2 DI 230 V AC 6ES7 131-4FB00-0AB0

• 4 DI 24 ... 48 V UC I 6ES7 131-4CD02-0AB0

• 4 DI 24 V DC SOURCE INPUT 6ES7 131-4BD51-0AA0

Ordering unit 1 unit

• 4 DI 24 V DC NAMUR I 6ES7 131-4RD02-0AB0

• 8 DI 24 V DC Standard 6ES7 131-4BF00-0AA0

• 8 DI, 24 V DC, standard SOURCE INPUT

I 6ES7 131-4BF50-0AA0

Digital output modules

Ordering unit 5 units

• 2 DO 24 V DC/0.5 A Standard 6ES7 132-4BB01-0AA0

• 2 DO 24 V DC/0.5 A High Feature

6ES7 132-4BB01-0AB0

• 2 DO 24 V DC/2 A Standard 6ES7 132-4BB31-0AA0

• 2 DO 24 V DC/2 A High Feature I 6ES7 132-4BB31-0AB0

• 4 DO 24 V DC/0.5 A Standard 6ES7 132-4BD02-0AA0

• 4 DO, 24 V DC / 0.5 A Standard SOURCE OUTPUT I 6ES7 132-4BD50-0AA0 • 4 DO 24 V DC/0.5 A High Feature I 6ES7 132-4BD00-0AB0 • 8 DO 24 V DC/0.5 A High Feature I 6ES7 132-4BF00-0AB0

• 4 DO 24 V DC/2 A Standard 6ES7 132-4BD32-0AA0

• 4 DO 24 V DC/2 A High Feature 6ES7 132-4BD30-0AB0

• 2 DO 24 to 230 V AC/2 A 6ES7 132-4FB01-0AB0

• 2 DO 24 V DC to 230 V AC/5 A relay, NO contact 6ES7 132-4HB01-0AB0 • 2 DO 24...48 V DC/5 A, 24...230 V AC/5 A relay, changeover contact I 6ES7 132-4HB12-0AB0

Ordering unit 1 unit • 2 DO 24...48 V DC/5 A,

24...230 V AC/5 A relay, changeover contact, with manual operation

I 6ES7 132-4HB50-0AB0

• 8 DO 24 V DC/0.5 A Standard 6ES7 132-4BF00-0AA0

• 8 DO, 24 V DC / 0.5 A Standard SOURCE OUTPUT

I 6ES7 132-4BF50-0AA0

Label sheets DIN A4 (10 units)

Each sheet contains 60 labeling strips for I/O modules and 20 labeling strips for interface modules

• petrol 6ES7 193-4BH00-0AA0

• red 6ES7 193-4BD00-0AA0

• yellow 6ES7 193-4BB00-0AA0

(6)

9

■

Overview

• 2, 4 and 8-channel digital inputs and outputs for the ET 200S • Can be plugged onto TM-E terminal modules with automatic

coding

• High-feature versions for enhanced plant availability, additional functions and comprehensive diagnostics • Hot swapping of modules possible

Note:

SIPLUS extreme products are based on Siemens Industry standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

SIPLUS digital input module 4 DI 24 V DC Standard

SIPLUS digital input module 4 DI 24 V DC High Feature

SIPLUS digital input module 8 DI 24 V DC Standard

Order number 6AG1 131-4BD01-2AA0 6AG1 131-4BD01-7AB0 6AG1 131-4BF00-7AA0

Order number based on 6ES7 131-4BD01-0AA0 6ES7 131-4BD01-0AB0 6ES7 131-4BF00-0AA0

Ambient temperature range -25 ... +60 °C -25 ... +70 °C

Conformal coating Coating of the printed circuit boards and the electronic components

Technical data The technical data of the standard product applies except for the ambient conditions.

SIPLUS digital input module 8 DI SOURCE INPUT 24 V DC

SIPLUS digital output module 2 DO 24 V DC/0.5 A High Feature

SIPLUS digital output module 2 DO 24 V DC/2 A High Feature

Order number 6AG1 131-4BF50-7AA0 6AG1 132-4BB01-2AB0 6AG1 132-4BB31-7AB0

Order number based on 6ES7 131-4BF50-0AA0 6ES7 132-4BB01-0AB0 6ES7 132-4BB31-0AB0

Ambient temperature range -40 ... +70 °C -25 ... +60 °C -25 ... +70 °C Conformal coating Coating of the printed circuit boards and the electronic components

SIPLUS digital output module 4 DO 24 V DC/0.5 A Standard

SIPLUS digital output module 4 DO 24 V DC/2 A Standard

SIPLUS digital output module 8 DO 24 V DC/0.5 A Standard

Order number 6AG1 132-4BD02-7AA0 6AG1 132-4BD32-2AA0 6AG1 132-4BF00-7AA0

Order number based on 6ES7 132-4BD02-0AA0 6ES7 132-4BD32-0AA0 6ES7 132-4BF00-0AA0

SIPLUS digital output module 8 DO 24 V DC/0.5 A Standard SOURCE OUTPUT

SIPLUS digital output module 2 DO 24 V DC to 230 V AC/5 A relay, NO contact

SIPLUS digital output module 2 DO 24...48 V DC/5 A, 24...230 V AC/5 A relay, changeover contact

Order number 6AG1 132-4BF50-7AA0 6AG1 132-4HB01-2AB0 6AG1 132-4HB12-2AB0

Order number based on 6ES7 132-4BF50-0AA0 6ES7 132-4HB01-0AB0 6ES7 132-4HB12-0AB0
