Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.

(1)

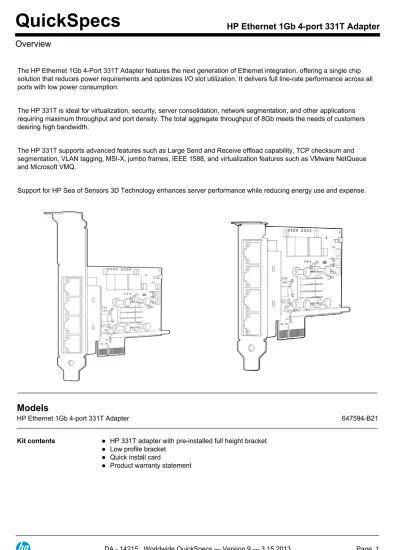

The HP Ethernet 1Gb 4-Port 331T Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements and optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption.

The HP 331T is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 8Gb meets the needs of customers desiring high bandwidth.

The HP 331T supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, and virtualization features such as VMware NetQueue and Microsoft VMQ.

Models

HP Ethernet 1Gb 4-port 331T Adapter 647594-B21

Kit contents HP 331T adapter with pre-installed full height bracket Low profile bracket

Quick install card

Product warranty statement

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(2)

Compatibility

Servers ProLiant DL (rack-optimized): HP ProLiant DL160 Gen8 HP ProLiant DL165 G7 HP ProLiant DL320e Gen8 HP ProLiant DL360e Gen8 HP ProLiant DL360p Gen8 HP ProLiant DL380e Gen8 HP ProLiant DL380p Gen8 HP ProLiant DL385p Gen8 HP ProLiant DL560 Gen8 HP ProLiant DL580 G7 HP ProLiant DL585 G7 HP ProLiant DL980 G7 ProLiant ML (expansion-optimized): HP ProLiant ML310e Gen8 HP ProLiant ML350e Gen8 HP ProLiant ML350p Gen8 ProLiant SL (scalable system): HP ProLiant SL230s Gen8 HP ProLiant SL250s Gen8 HP ProLiant SL270s Gen8 HP ProLiant SL4540 Gen8 Server HP ProLiant SL4545 G7 Server

NOTE: This is a list of supported servers. Some servers may be discontinued.

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(3)

Performance

Product Features Industry-leading hardware integration for low power

Quad-port, PCIe 2.0 1Gb Ethernet adapter for HP ProLiant Gen8 Rack and Tower servers and certain G7 servers

Quad-port 1GbE provide up to 8 Gb full duplex throughput per adapter Energy Efficient Ethernet (EEE) support

Optimized for virtual servers Improved small packet performance

Supports the Preboot eXecution Environment (PXE)

Quad-port 1 Gigabit Ethernet Throughput

The HP 331T adapter provides 2,000 Mbps full duplex Ethernet transfer rate per port (8 Gbps aggregate full duplex) delivers outstanding network performance that improves response time and removes bottlenecks. Four ports on a single adapter are ideal for high density, I/O slot constrained servers, virtualization and security, applications, server consolidation, and increased network segmentation. The total aggregate throughput of 8Gbps in full-duplex mode also meets the needs for customers desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet.

NOTE: Port enumeration on the 331T is from the top down, i.e. the port near the top of the adapter is port #0 and the port closest to the gold teeth is port #3

Jumbo Frames The 331T adapter support for jumbo frames (also known as extended frames) permits up to a 9K byte (KB) transmission unit (MTU) when running Ethernet, which is over five times the size of standard 1500-byte Ethernet frame. Jumbo frames can help achieve higher throughput and better CPU utilization and are particularly useful for database transfer and tape backup operations.

MSI and MSI-X Up to 17 Message Signaled Interrupt (Extended) provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores

802.1Q VLANs IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the HP 331T to be separated into multiple virtual NICs for added network segmentation and enhanced security and performance. VLANs increase security by isolating traffic between users. Limiting the broadcast traffic to within the same VLAN domain also improves performance.

TCP/IP Stateless Offloading

For overall improved system response, the 331T supports standard TCP/IP offloading techniques including:

TCP/IP, UDP checksum offload (TCO) moves the TCP and IP checksum offloading from the CPU to the network adapter.

Large send offload (LSO) or TCP segmentation offload (TSO) allows the TCP segmentation to be handled by the adapter rather than the CPU.

Time synchronization Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations for time sensitive applications

Optimized for Virtualization

I/O Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(4)

SR-IOV The HP 331T does not support SR-IOV ( Single Root - Input Output Virtualization)

HP Sea of Sensors 3D Support for HP Sea of Sensors 3D Technology which is a collection of 32 sensors that

automatically track thermal activity - heat - across the server. When temperatures get too high, sensors can kick on fans and make other adjustments to reduce energy usage. What makes it better is the upgrade from all six fans kicking on at one time to a new system where only one kicks on - the one in proximity of the area that started heating up - thus reducing the amount of energy used for cooling.

Energy Efficient Ethernet

Compliant with IEEE 802.3az, featuring advanced power savings features throttles power usage with network load activity.

Versatility

10/100/1000T Twisted Pair Networks

In addition to Gigabit Ethernet, the HP 331T adapter supports both 10Mbps and 100Mbps providing compatibility with Ethernet and Fast Ethernet twisted pair networks.

Full and Half Height Brackets

The HP331T adapter ships with a pre-installed full height bracket and a half height bracket is also supplied to ensure trouble free installation. The included quick install card guides the user in the bracket exchange process

x4/x8/x16 PCI Express Compatibility

The x4 PCI Express interface on the HP 331T is compatible with x4, x8, and x16 PCI slots. If installed in a x8 or x16 slot, the adapter will operate at the x4 speed.

High Availability

Network Adapter Teaming

ProLiant Network Adapter Teaming provides fault tolerance and load balancing across a team of two or more network adapters. The team of adapters works together as a single virtual adapter. The HP 331T provides support for several different types of teaming enabling IT administrators to optimize availability, improve performance and help reduce costs.

The teaming options offer IT professionals an easy, efficient, and cost-effective way to provide network fault tolerance and increased network bandwidth. For more information, refer to the ProLiant Network Adapter Teaming Whitepaper available at:

http://bizsupport.austin.hp.com/bc/docs/support/SupportManual/c01415139/c01415139.pdf

Network Management

Auto-negotiation The HP 331T automatically senses the speed of the device to which it is attached. It also automatically configures for full duplex, depending on the duplex mode of the switch, hub, or router connected to the adapter.

Management Support Like all HP server adapters, the HP 331T ships with drivers and agents that can be managed from HP Systems Insight Manager, as well as using any other management application that supports SNMP. HP Systems Insight Manager can recognize the HP 331T individually or in teams, and can collect and report SNMP statistics on the adapter events.

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(5)

Server Integration The HP 331T is a completely integrated, tested, and qualified solution that is optimized for HP servers. HP validates a wide variety of major operating systems drivers with the network drivers plus provide a central interface to simplify network management.

Configuration Utilities Each HP 331T ships with a suite of operating system-tailored configuration utilities that allow the user to enable initial diagnostics and configure adapter teaming. This includes a patented teaming GUI for Microsoft Windows operating systems. Additionally, support for scripted installations of teams in a Microsoft Windows environment allow for unattended OS installations.

LED Indicators The colored LEDs on each port of the HP331T adapter indicate network activity, and network link speed. Amber link LED indicates 10/100Mb speed and Green indicates 1000Mb link speed. Per port bracket LED indicators show link integrity, network activity, and network speed for easy troubleshooting.

PXE boot Support Support for pre-boot execution environment (PXE) enables automatic deployment of computing resources remotely from anywhere. It allows a new or existing server to boot over the network and download software, including the operating system, from a management/ deployment server at another location on the network. Additionally, PXE enables decentralized software distribution and remote troubleshooting and repairs.

Warranty

Warranty Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(6)

Service and Support HP Technology Services

HP Technology Services offers you consultants and support experts to solve your most complex infrastructure problems. We help keep your business running, boost availability, and avoid downtime.

Protect your business beyond warranty with HP Care Pack Services

When you buy HP Options, it's also a good time to think about what level of service you may need. HP Care Pack services provide total care and support expertise with committed response choices designed to meet your IT and business need.

HP Foundation Care services deliver scalable support-packages for HP industry-standard servers and software. You can choose the type and level of service that is most suitable for your business needs. New to this portfolio is HP Collaborative Support. If you are running business critical environments, HP offers Proactive Care or Critical Advantage. These services help you deliver high levels of application availability through proactive service management and advanced technical response.

Here is the support service recommendation from the Foundation Care and Proactive Care portfolio. For customized support service solution, HP can work with you to tailor a service solution for your unique support requirements using broader services portfolio of Foundation Care and Proactive Care.

Recommended HP Care Pack Services for optimal satisfaction with your HP

product

Recommended Services

3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service

Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf

OR

3-Year HP 24x7 4 hour Response, HP Collaborative Support

Offers customers a single point of contact for server problem diagnosis, hardware problem resolution, and basic software problem diagnosis, fault isolation, and resolution if available to HP. If the problem is with HP HW, the representative will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged. In case, the issue is with HP or supported third-party software product and cannot be resolved by applying known fixes, HP will contact the third-party vendor and create a problem incident on your behalf.

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(7)

Related HP Care Pack Services to enhance your HP product experience

Related Services 3-Year HP 24x7 4 hour Response, Proactive Care or Critical Advantage

Helps optimize your systems and delivers high levels of application availability through proactive service management and advanced technical response. A skilled Technical Manager will own your query or issue end to end until resolved, delivering a single point of contact for you

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-2140ENW.pdf

OR

3-Year HP 6-hour Onsite Call-to-Repair, HP Collaborative Support

Offers customers a single point of contact for server problem diagnosis, hardware problem resolution to return the hardware in operating condition within 6 hours of the initial service request to the HP Global Solution Center, and basic software problem diagnosis, fault isolation, and resolution if available to HP. In case, the issue is with HP or supported third-party software product and cannot be resolved by applying known fixes, HP will contact the third-party vendor and create a problem incident on your behalf.

HP Proactive Select Service

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Insight Remote Support

Provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. Learn more

http://www.hp.com/go/insightremotesupport

HP Support Center Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

*HP' Support Center Mobile App is subject to local availability

Parts and materials HP will provide HP-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Supplies and consumable parts will not be provided as part of this service; standard warranty terms and conditions apply. Parts and components that have exceeded their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual or the technical product data sheet will not be provided, repaired or replaced as part of this service.

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(8)

Warranty / Service Coverage

For ProLiant servers and storage systems, this service covers HP-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as

consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information To learn more on services for HP ESSN Options, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant or

www.hp.com/services/bladesystem

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(9)

Gigabit Server Adapters

HP NC112T PCI Express Gigabit Server Adapter 503746-B21

HP NC360T PCI-E Dual Port Gigabit Server Adapter 412648-B21

HP NC364T PCI-E Quad Port Gigabit Server Adapter 435508-B21

HP NC365T 4-port Ethernet Server Adapter 593722-B21

HP NC373T PCI-E Multifunction Gigabit Server Adapter 394791-B21 HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter 394793-B21 HP NC375T PCI Express Quad Port Gigabit Server Adapter 538696-B21 HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter 458492-B21

10 Gigabit Server Adapters

NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC522SFP Dual Port 10GbE Gigabit Server Adapter 468332-B21

HP NC523SFP 10Gb 2-port Server Adapter 593717-B21

HP NC524SFP Dual Port 10GbE Module

NOTE: NC524SFP is available only on DL370 G6, ML370 G6, DL580 G7, DL585 G7, and DL980 G7.

489892-B21

HP NC550SFP Dual Port 10GbE Server Adapter 581201-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter 614203-B21

HP Ethernet 10Gb 2-port 530SFP Adapter 652503-B21

HP Ethernet 10Gb 2-port 560SFP+ Adapter 665249-B21

FlexibleLOM Adapters HP Ethernet 1Gb 4-port 331FLR Adapter 629135-B21

HP Ethernet 1Gb 4-port 366FLR Adapter 665240-B21

HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter 647581-B21

HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter 665243-B21

HP FlexFabric 10Gb 2-port 554FLR-SFP+ Adapter 629142-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(10)

General Specifications Network Processor Broadcom BCM5719 chipset

Data rate Four ports, each at 2 Gbps full duplex; 8 Gbps aggregate full duplex theoretical bandwidth.

Data path Four lane (x4) PCI Express compatible with x4, x8, and x16 PCI Express slots

On-board memory 4 Mbit for PCA

Bus type PCIe 2.0

Bus speed Gen 2 x4

Interrupt levels Automatically configured

Connector RJ-45 (Four)

Cable distance Up to 328 ft (100 m)

Wiring Category 5/ (CAT-5) or better twisted-pair cabling

Dimensions 13.21 cm x 6.86 cm [5.2 in x 2.7 in (L x W)] (without bracket) Form factor Low profile card with both full height (pre-installed) and half height

brackets included in kit

IEEE Compliance 802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.1Q, 802.3az, 1588, 802.1as Power and Environmental Specifications Operating Temperature 32° to 131° F (0° to 55° C) Humidity 10% to 90% non-condensing Non-operating Temperature -85° to 185° F (-65° to 85° C) Humidity 5% to 95% non-condensing Power requirement 4.3 W (1000Base-T, maximum traffic)

1.0 W (AUX power with WoL) Emissions

classification

Class B

Agency approvals USA FCC Part 15 Class B

Canada ICES=--3, Issue 4

Japan VCCI V3 (2010.04) Class B

Korea KN22 ClassB, KN24

Australia EN55022:2006+A12007 class B

European Union EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008

International EN55022:2006 + A1:2007 Class B RoHS Compliance 6 of 6

Safety UL Mark (USA and Canada)

CE Mark EN 60590 Operating System

Support

Microsoft Windows Server 2008 (32/64), Enterprise, Web, Embedded, and R2 Microsoft Windows HPC Server 2008

Microsoft certified miniport and teaming drivers Microsoft Windows 2008 Standard (32 and x64) Microsoft Windows 2008 Enterprise (32 and x64)

Microsoft Windows Small Business Server 2011 (SBS V7) - base Microsoft Windows Small Business Server 2011 Essentials RHEL 5.7 x86 and AMD 64 & EM 64T

RHEL 6.1 x86 and AMD 64 & EM 64T SLES10: x86 and AMD 64 & EM 64T

QuickSpecs

HP Ethernet 1Gb 4-port 331T Adapter

(11)

Citrix

HyperV (Windows 2008 32 and 64)

NOTE: For more Linux OS support & certification information, please visit the ProLiant & Bladesystem Server Linux matrix:

http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html Environment-friendly Products and Approach End-of-life Management and Recycling
