Inferring Multilateral Peering

Vasileios Giotsas

University College London

Shi Zhou

University College London

Matthew Luckie

CAIDA / UC San Diego

kc claffy

CAIDA / UC San Diego

ABSTRACT

The AS topology incompleteness problem is derived from difficulties in the discovery of p2p links, and is amplified by the increasing popularity of Internet eXchange Points (IXPs) to support peering interconnection. We describe, implement, and validate a method for discovering currently invisible IXP peering links by mining BGP communities used by IXP route servers to implement multilateral peering (MLP), including communities that signal the intent to re-strict announcements to a subset of participants at a given IXP. Using route server data juxtaposed with a mapping of BGP community values, we can infer 206K p2p links from 13 large European IXPs, four times more p2p links than what is directly observable in public BGP data. The ad-vantages of the proposed technique are threefold. First, it utilizes existing BGP data sources and does not require the deployment of additional vantage points nor the acquisition of private data. Second, it requires only a few active queries, facilitating repeatability of the measurements. Finally, it of-fers a new source of data regarding the dense establishment of MLP at IXPs.

and Subject Descriptors

C.2.5 [Local and Wide-Area Networks]: Internet; C.2.1 [Network Architecture and Design]: Network topology

Keywords

AS relationships; routing policies; multilateral peering; IXP; BGP; topology

1. INTRODUCTION

The Internet inter-domain routing infrastructure is com-posed of self-organized Autonomous Systems (ASes), which connect to each other using the Border Gateway Protocol (BGP). The BGP-induced AS topology has important impli-cations on the performance, security, and quality-of-service of protocols and applications, and has therefore attracted

significant research interest from a variety of disciplines. Many findings have been characterized as controversial due to the widely documented incompleteness of the existing AS topology datasets [22, 31, 23, 35, 21, 33]. The most widely-used data sources for compiling the AS graph use BGP and/or traceroute data. The incompleteness problem derives from the inability of these data sources to observe most p2p links due to policy restrictions imposed by oper-ators that limit propagation of p2p links. The proliferation of Internet eXchange Points (IXPs) to support cost-effective dense peering amplifies the gap between what exists and what can be observed. Researchers have proposed a number of methods to find missing p2p links, such as more effective placement of vantage points [44, 39, 27], aggressive deploy-ment of traceroute monitors at edges of the network [21, 38, 37], or combining different data sources including Internet Routing Registries (IRRs) and looking glass servers [19, 42, 28, 15]. In 2012, Ager et al. used sampled traffic (sFlow) data from a large European IXP to discover more peering links at this single IXP than were previously believed to exist in the whole Internet [14].

In this paper we describe, implement, and validate a new method to reveal currently invisible AS peerings using pub-licly available BGP data sources. Our approach infers peer-ings established over IXP-provided route servers. Most ASes at an IXP use a route server to implement multilateral peer-ing (MLP) and maximize their peerpeer-ing. MLP is the preva-lent peering paradigm in terms of number of p2p links [41, 20], therefore unearthing those links is a critical step to-wards more complete AS topologies. The default behavior of route servers is to advertise all the routes they learn to all connected peers, though many IXPs allow their members to control how their prefixes are advertised by using a set of special-purpose BGP community values. We implement an algorithm to mine these community values, extract the route server participants, and infer their export policies. By combining BGP data from multiple sources we infer more than 206K p2p links from 13 IXPs for May 2013, 88% of which are not visible in publicly available BGP AS paths.

This paper significantly extends our preliminary work, in which we used IXP route servers and BGP community strings to infer 36K peering links [26]. In this work we de-velop additional more efficient methods using public looking glasses, which enable us to infer 206K peering links – 5.7 times more than in [26] – at mostly the same set of IXPs. We validate 26K of these links using 70 publicly available looking glasses, finding at least 98.4% exist. In particular, our new methods find most of the peering at DE-CIX: 54K

(2)

links up from 7K in our previous work. This IXP had more than 50K links in 2011 [14]. The peering we do not find is established bilaterally across the IXP peering fabric; we claim this is a small fraction of the peering at our IXPs be-cause our result for DE-CIX is comparable to that in [14], and the ASes that engage in bilateral peering are more likely to be selective or restrictive in their peering decisions, i.e. peer with a small fraction of members at an IXP. We also analyze revealing topological characteristics of the discov-ered links. Notably, 25K (12.4%) of the links are between two stub ASes, making them impossible to observe via BGP unless a vantage point is present in one. Similarly, 114K in our set (55.6%) involve at least one stub, reinforcing Ager’s reports of dense peering connectivity at the edge [14]. We show that while some ASes publicly advertise a restrictive or selective peering policy, they engage in dense multilateral peering in selected geographical regions.

The rest of this paper is organized as follows. We be-gin with an overview of AS topology data sources and their incompleteness. In section 3 we describe how MLP is im-plemented using route servers and how individual ASes can control which other ASes receive their routes. Section 4 presents our inference algorithm and how we apply it to mul-tiple BGP data sources: BGP data archived by Route Views and RIPE RIS, as well as active queries of looking glasses located at the IXP or clustered close to it. In Section 5 we present our results, demonstrating that 88% of the links we infer were previously invisible, and that at least 98.1% are valid. Section 6 suggests some auspicious next steps for improving our understanding of the Internet topology.

2. BACKGROUND

2.1 Inter-domain Routing

A network of routers under the same administrative en-tity is called an Autonomous System (AS) and comprises a routing domain. Each AS is identified by a unique 32-bit number (ASN). ASes are autonomous in the sense that they can independently decide which Interior Gateway Protocol (IGP) will be used for routing inside their own domains. To achieve global reachability ASes interconnect and exchange prefix reachability information using the inter-domain rout-ing protocol known as Border Gateway Protocol (BGP). In inter-domain routing, physical connectivity does not imply reachability, which is fundamentally determined by routing policies specified by AS operators, which depend largely on business relationships between ASes.

Business relationships define the economics of routing be-tween ASes and are coarsely divided into three categories. A customer-to-provider (c2p) relationship is established when an AS (customer) pays a better-connected AS (provider) to transit traffic to the rest of the Internet. A peer-to-peer (p2p) relationship is when two ASes agree to exchange traf-fic only between themselves and their customers to minimize the costs of sending traffic through their providers. Finally, a sibling relationship expresses a connection between ASes owned by the same organization, which freely exchanges traffic without cost or routing restrictions.

BGP routes are usually exported following the valley-free rule [24], i.e. a customer route can be exported to any neigh-bor, but a route from a peer or a provider can only be ex-ported to customers. Hence, a path (a series of adjacent AS links) is valley-free if it complies with one of the

follow-ing patterns (the siblfollow-ing links can be found in any position of the path without changing the valley-free property): (1) n×c2p + m×p2c; or (2) n×c2p + p2p + m×p2c; where n and m ≥ 0. Most routing paths are valley-free because they follow from the business interests of ASes, i.e. to minimize operation cost and maximize revenue, although exceptions exist [25].

2.2 AS Topology Data Sources

BGP data is the most widely used source of AS topol-ogy data. Route collectors operated by Route Views [12] and RIPE RIS [10] passively collect BGP messages and pro-vide public archives of routing tables and update messages. Routing tables and update messages include an AS Path attribute which identifies the sequence of ASes visited be-fore the route was received, also known as the control path. The AS path is the primary source of AS links and is gener-ally considered a reliable source. However, misconfiguration, route hijacks, and path poisoning may induce false links [33, 36]. Other sources of BGP data include Looking Glass (LG) servers that allow the remote execution of non-privileged BGP commands through a web interface or remote login. In the general case LG servers do not allow full BGP table dumps, and typically they are used in one-off queries and not periodic data collection due to the high cost of performing prefix-specific queries.

A second popular source of topology information is IP-level paths collected through globally distributed traceroute monitors. AS links can be inferred by mapping the col-lected IP addresses to ASNs. However, such mapping is a heuristic and can produce considerable artifacts arising from IP addresses returned by routers in paths that map to a third-party ASes [43]. A third source is the Internet Rout-ing Registry (IRR), a publicly accessible database where AS administrators voluntarily and manually register adjacency and policy information. IRR data are frequently inaccurate, incomplete or intentionally false, although certain databases - notably RIPE - are more reliable. It has been shown that with the proper filtering techniques the IRR can provide a useful source of topology data [40, 16]. Other topology data sources exist, e.g. syslogs, but they are usually proprietary and not available to the research community.

2.3 The Topology Incompleteness Problem

The most significant limitation of the existing BGP data collection projects is the large number of missing links. Miss-ing links are of two types: hidden and invisible [34]. Hidden links are usually backup c2p links that can be observed if the preferred path towards a prefix changes. Other (typi-cally p2p) links are inherently invisible links due to the lim-ited number and placement of vantage points, and the route propagation restrictions on p2p relationships associated with valley-free routing policies of most ISPs. Invisible p2p links constitute the majority of missing links, and are mostly lo-cated in the periphery of the AS graph [35, 33]. BGP feeds are mostly provided by high-tier ASes and some geographic areas are poorly covered. Furthermore, two-thirds of all con-tributing ASes configure their connection with the BGP col-lector as a p2p link, which means they advertise only routes learned from customers. AS paths collected from LG servers suffer from similar limitations [30]. Theoretically optimal placement of BGP monitors might mitigate this incomplete-ness [44, 39, 27], but in practice ASes participate

(3)

voluntar-(b) RS2 RS1

(a)

Figure 1: Bilateral (a) vs Multilateral (b) peering for a full-mesh connection between six ASes. Bilat-eral peering requires n · (n − 1)/2 BGP sessions, while multilateral peering requires only c · n sessions with c route servers.

ily in such data collection projects so optimal placement is not possible. Some researchers suggest highly distributed traceroute monitoring infrastructures [38, 21] are a promis-ing approach to discover invisible AS links, yet the visibility improvement so far is limited compared with the links dis-covered at just a single IXP by Ager et al. [14].

Another increasingly prominent aspect of the Internet in-terconnection ecosystem is the proliferation of IXP infras-tructure to facilitate cost-effective dense peering. Recent work [28, 15] has demonstrated a vast number of p2p links at IXPs, most of which were not visible in any public data set. This hypothesis has been confirmed by an Internet-wide traceroute study that targeted the discovery of IXP peer-ings [15]. In total, 58K IXP links were inferred, of which 44K were not visible in any public dataset. Despite the novelty of these techniques [15, 28] they have not been used to provide periodic data due to the complexities of data acquisition. Conducting large-scale targeted traceroute measurements is computationally expensive as well as time-consuming; the methodology in [15] required 16 million traceroute and LG queries (14 days to complete) to discover 44K links.

Recently, Ager et al. [14] used sFlow traffic data to dis-cover a rich peering fabric at a large European IXP. Based on actual traffic exchanged they inferred more than 50K p2p links at this IXP alone, about 10K more than was visible in public BGP data for the same period, and more than that discovered across all IXPs using traceroute in [15].

3. MULTILATERAL PEERING

An increasing number of IXPs offer two interconnection paradigms, bilateral and multilateral peering, both of which are illustrated in figure 1. Bilateral agreements require es-tablishing a new BGP session for every peering, which scales poorly at IXPs that mostly have participants with open peering policies who wish to maximize their peering. For IXPs with more than 50K reported peerings [14], managing a separate BGP session for each peer would involve consid-erable overhead. MLP offers a scalable way to support such dense peering; participants connect with one or more route servers which reflect routes learned from one participant to other participants. Further, some ASes will not enter into bilateral peering unless traffic requirements are met, but will advertise routes to a route server so that smaller ASes can reach them directly. The most notable example is Google,

0:5410 0:6695

6695:8359 6695:8447

(b) All + Exclude (a) None + Include

6695 5410 X RS 8732 6695:6695 0:8732 6695 8359 8447 X RS

Figure 2: Controlling route advertisements in a route server using BGP communities. In (a), X ad-vertises a route to two selected peers, while in (b) X advertises to all peers except two.

DE-CIX MSK-IX ECIX

RS-ASN 6695 8631 9033

ALL 6695:6695 8631:8631 9033:9033 EXCLUDE 0:peer-asn 0:peer-asn 64960:peer-asn

NONE 0:6695 0:8631 65000:0

INCLUDE 6695:peer-asn 8631:peer-asn 65000:peer-asn

Table 1: Examples of patterns of community values for controlling announcements by a route server. Typically, members use ALL+EXCLUDE or NONE+INCLUDE to control announcements.

whose peering policy requires at least 100Mbps peak traffic to establish bilateral peering; they invite networks with less than 100Mbps traffic to peer with them via route servers [6]. Although connection to route servers is optional, a large per-centage of IXPs’ members opt in. For example, about 77% of the members of the two largest IXPs (DE-CIX and AMS-IX) are connected to the route servers. For the rest of this paper we will use the term RS members to refer to route server members.

By default, routes sent to a route server are advertised to all RS members. However, members can control which net-works receive their routes through the route server. Filtering mechanisms are essential for IXP participants because even ASes with very open routing policy may not wish to peer with everybody at a given IXP. There are several techniques to implement policy filters, but the most popular practice is through the use of BGP communities, an optional 32-bit BGP attribute used to encode additional information on a BGP route [29]. The values of BGP communities are not standardized, but IXPs clearly document the usage of their community values in IRR records or support pages. There are four common community types among all the IXPs we studied that define the following actions:

• ALL: routes are announce to all RS members. This is the default behavior.

• EXCLUDE: block an announcement toward a specific member. This action can be used in combination with the ALL community to exclude specific RS members from receiving a route.

(4)

• NONE: Block an announcement toward all RS mem-bers. When a community type signals this action, no member receives the route unless they are listed with an INCLUDE community.

• INCLUDE: Allow an announcement toward a specific member. This action can be used in combination with the NONE community to allow only specific RS mem-bers to receive a route.

Table 1 shows some examples of community values for dif-ferent IXPs. The peer-asn corresponds to the ASN of the RS member that will be included or excluded from receiving an advertisement. In this paper we label route server com-munity values RS communities. Because the peer-asn part of a community value is 16 bits wide, it is not possible to directly encode 32-bit ASNs. Many IXP operators map the 32-bit ASNs of their members to 16-bit ASNs in the private ASN range to enable filtering of 32-bit ASNs.

Figure 2 illustrates how operators use RS communities to control the announcement of routes by a route server. Fig-ure 2a shows an example of the NONE+INCLUDE scenario listed in table 1. A route tagged with communities 0:6695 6695:8359 6695:8447 is advertised by the route server to ASes 8359 and 8447 only. Figure 2b shows an example of the ALL+EXCLUDE scenario. A route tagged with communi-ties 6695:6695 0:5410 0:8732 is advertised to all members except ASes 5410 and 8732. Therefore, two ASes can peer via a route server if two requirements are satisfied: connec-tivity and reachability. Connecconnec-tivity is enabled by establish-ing a session with the route server. Reachability is enabled by configuring outbound filters using RS communities and inbound AS-PATH filters.

4. LINK INFERENCE ALGORITHM

The discovery of IXP links is key to obtaining complete AS topologies. In this section, we explore how one could dis-cover IXP links on a regular basis, at low cost, with public or reproducible measurements. This section presents a frame-work for the inference of invisible IXP peering links through public BGP data. The key idea behind our methodology is that by obtaining both connectivity and reachability data via IXP infrastructure, it is possible to infer the peering links established with a route server without having to ob-serve them in a BGP or traceroute path.

Connectivity data, namely which ASes are connected to a given route server, can be obtained from three sources of data: (i) looking glass (LG) servers that provide an inter-face to route servers, (ii) RPSL AS-SETs registered in IRRs by AS operators, and (iii) IXP websites that list connected networks. Information obtained from LGs is the most re-liable as it explicitly reports the status of the route server routing table, although previous studies (and our own anal-ysis) have found the other two sources to be accurate and current [28, 15]. Reachability data (RS community strings in route advertisements) can be extracted from public BGP data sources; these include passive BGP measurements (e.g. Route Views and RIS repositories) and active BGP queries of available IXP LG servers.

Before we describe the link inference methodology in de-tail we first illustrate an example in figure 3 to explain the logic behind our algorithm. In figure 3 ASes A, B, C and D are connected to an IXP route server operated by ASN

(b) D D B A C B C 0:6695 6695:B 6695:D 0:6695 6695:A 6695:C 6695:D A P3 P4 RS 6695 P1 P2 6695:6695 6695:6695 (a)

Figure 3: Inferring peering links over a route server using RS communities. The communities sent to the route server are shown in (a) while (b) shows the links that result. C’s routes are received by A, but C blocks A from receiving its routes, so we do not infer a p2p link between A and C.

6695. Each of these ASes advertises routes tagged with a set of RS community values. According to these RS com-munities, all ASes will receive each others’ routes except C which is excluded by A. To infer peering links over the route server we also need to know the import filters because an AS may filter some routes received. However, we do not have import filters of all RS members; we overcome this limita-tion by making the following reciprocity assumplimita-tion: If an RS member i does not exclude another RS member j from receiving its prefix advertisements, i will also not block the incoming advertisements from j. Hence, we infer a p2p link between two RS members if they have a reciprocal ALLOW export policy. In figure 3 (b) only A and C do not have a p2p link. In section 4.4 we validate the correctness of this reciprocity assumption against a 230 IRR-based import and export filters set by AMS-IX RS members.

4.1 Inference based on Active BGP Queries

Many IXPs provide public LG interfaces to their route servers which allow the use of non-privileged BGP com-mands to query the status of the route server routing table. The following steps describe the basic version of our algo-rithm for using the LG commands to infer the peering links over a route server:

Step 1: Obtain the ASNs and IXP IP addresses of the networks connected to the route server using the show ip bgpcommand. Let ARSbe the set of all connected networks

on the route server.

Step 2: For each ASN a ∈ ARS collect the set of

pre-fixes advertised to the route server using the show ip bgp neighbor [address] routes command. Let Pa be the set

of advertised prefixes for an ASN a ∈ ARS.

Step 3: For each ASN a ∈ ARSquery the prefix

informa-tion for a subset of its prefixes P′

a ∈ Pa using the show ip

bgp [prefix] command. The prefix information will give us the set of RS community values Ca,p applied by ASN a

when it advertises a prefix p ∈ P′

ato the route server.

Step 4: From steps 1-3 we have obtained both the con-nectivity data (ARS) and the reachability data (Ca,p), so we

can infer the peering links established via the route server. For each ASN a ∈ ARS we construct a set Na =

T

p

Na,p

(5)

partici-pants toward which all of its routes are advertised. We have two cases depending on the type of RS communities used:

1. ALL + EXCLUDE : Na,p= ARS−Ep, where Epis the

list of the route server participants excluded by the RS communities, with Ep⊂ ARS.

2. NONE + INCLUDE : Na,p = Ip, where I is the list

of the route server participants included by the RS communities, with Ip⊂ ARS.

Step 5: For every pair of ASNs (a, a′_{) ∈ A}

RS we infer a

p2p link between them if a ∈ Na′ and a′ ∈ Na, i.e. only if

both ASes a and a′_{allow each other to receive their routes.}

If the IXP does not provide a LG, we can obtain RS com-munities from third-party LGs of networks connected to the IXP, i.e., RS members. However, these third-party LGs can-not provide the full view of the RS communities for all the RS members, but only for those members that allow their routes to be advertised to the network that operates the LG.

4.2 Inference based on Passive BGP Data

In addition to active BGP querying via LG servers, our al-gorithm also works with passive BGP collections from Route Views and RIPE RIS archives. Using passive BGP collec-tions offers three benefits. First, it allows us to extend our inference of p2p links, since not all IXPs provide LG in-terfaces to their route servers. Second, it can also reduce the number of LG queries necessary, which we explain in this section. Third, it allows us to infer historical peer-ing trends, in conjunction with historical connectivity data through archived IRR records or website archiving services such as the Wayback Machine [13].

Although passive collections do not show the complete route server BGP table, it is still possible to obtain some RS community values. BGP communities are optional tran-sitive attributes; they can be propagated by BGP speakers in the control plane. If at least one route server partici-pant (or one of its customers) provides a vantage point to a Route Views or RIS route collector, it is possible to obtain the RS communities for a large number of IXP participants, depending on the number of RS peerings. For example, we are able to collect the RS communities for 101 of LINX’s RS members from AS11666 which participates in LINX RS and contributes a BGP view to the Route Views EQIX collector. Figure 4 extends the example from figure 3. Suppose that AS E is a customer of AS D and contributes a BGP view to a collector. The IXP links that involve D (D–A, D–B, D–C) will be visible in AS paths archived by the route collector, although links (A–B, B–C) will not be seen in AS paths ob-served by E. However, these paths are also accompanied by the RS communities that B, C and D have applied if RS community values are propagated from the route server to AS D and then to E. Since D is the AS that provides a view of the IXP route server to the BGP collector, we will call it the RS feeder. Even if we have only one RS feeder from an IXP, if this feeder is densely connected we can obtain the RS communities for a large number of RS members.

One challenge with the inference of route server peerings using archived BGP data is to determine which AS applied the RS communities and at which IXP. We are able to deter-mine the IXP based either on the upper or the lower 16 bits of the RS community values which typically encode the ASN of the route server. For example, we infer the RS community

6695:6695 BGP Route Collector E 0:6695 6695:A 6695:C 6695:D D B A 0:6695 6695:B 6695:D C E D A 0:6695 6695:B 6695:D E D B 0:6695 6695:A 6695:C 6695:D E D C 6695:6695

Figure 4: Inference of Route Server peering links through passive BGP measurements. Even though we don’t observe AS paths with A–B and B–C links, we infer they exist through the community values attached to routes received by E.

values in figure 4 were set at DE-CIX route servers because they contain DE-CIX’s ASN (6695). However, sometimes there may be no RS community that encodes the ASN of the IXP. For example, consider the RS community values defined by MSK-IX in table 1. In the ALL+EXCLUDE sce-nario only the ALL community encodes 8631 which is the ASN of MSK-IX route servers. Since the ALL community is unnecessary because it is the default behavior it may be omitted. Instead, the RS communities may only contain an array of EXCLUDE values of type 0:peer-asn which makes it difficult to determine the IXP route server as we described above. In such cases we infer the IXP by examining the ex-cluded ASes; each of the exex-cluded ASes may connect to route servers at different IXPs, but often the combination of ASes is only found at a single IXP.

After the RS communities have been extracted and the route server has been identified, we need to pin-point the AS that applied these communities, which we call the RS setter. We check every AS in the path against the list of the IXP’s participants obtained either through RPSL objects or the IXP’s website. We distinguish the following cases:

1. If the AS path contains less than two IXP participants we cannot pin-point the setter.

2. If the AS path contains two IXP participants, we iden-tify as the RS setter the AS closest to the origin. For the first route in figure 4 we know that D and A are RS members; if AS E is not also a RS member then we infer A is the RS setter.

3. If the AS path contains more than two IXP partici-pants, we need to determine which two have a p2p rela-tionship (normally only one p2p relarela-tionship should be observed in an AS path, as explained in 2.1). For this purpose we use the AS relationships from [32] which have been shown to have over 99% accuracy for c2p relationships inferred. After we find the IXP partic-ipants with the p2p relationship, we identify the RS setter as the AS whose position in the path is closer to the IP prefix. For example, in figure 4, if all E, D and A are members of the route server we check the relationships of the links E – D, and D – A. Since E – D is of c2p type we infer A as the RS setter.

Having identified the RS setters SRSand their community

(6)

fol-CCDF 0.2 0.4 0.6 0.8 1 0 2 4 6 8 10 Number of RS members 0

Figure 5: CCDF of the number of RS members ad-vertising a given prefix to the DE-CIX route server. 48.4% of prefixes were announced by more than one member.

lowing steps 4 and 5 in section 4.1. When both active and passive measurement data are available for the same IXP route server we combine their data before executing steps 4 and 5.

4.3 Querying Cost

The cost of active measurements is expressed in terms of the number of queries that must be issued and processed [15]. Minimizing this querying cost facilitates more frequent col-lection. The cost c of our algorithm is given by the following equation: c = 1 + |ARS| + [ a P′ a (1)

The total number of queries depends on the number of RS members (|ARS|) and the number of prefix information

commands issued for each prefix queried at step 3. During our five month analysis (January - May 2013) we found the community values applied by each RS member were remark-ably consistent among their different prefix announcements toward a specific route server. In fact we found less than 0.5% of cases when a RS member had prefix announcements with different RS communities, and these differences were only found in less than 2% of their prefixes.1

Therefore by randomly selecting 10% of the prefixes advertised by each RS member, with a maximum of 100 prefixes, we can obtain a consistent view of the RS communities.

We further reduce the querying cost by carefully select-ing which IP prefixes to query. Figure 5 shows that 48.4% of prefixes received by the DE-CIX route server were adver-tised by at least two RS members. By strategically querying BGP information from an LG server for a prefix advertised by multiple RS members, we can obtain the RS communi-ties attached by those members with a single prefix query. Consequently, we sort in decreasing order the prefixes in Pa

according to the number of RS members mpthat advertise

each prefix to the RS, and we start querying prefix infor-mation from the prefix with the highest mp. In the case of

the DE-CIX LG this optimization reduces the total number of queries to 8,400, which is the maximum cost we observed among all the route servers. Without these optimizations we would require 18x more queries. To even further reduce the number of LG queries, we exclude from the active queries

1

Here we refer to prefix advertisements toward the same route server. When an AS is member of more than one IXP route servers its prefix announcements can differ sig-nificantly across IXPs, but our algorithm is applied on each route server separately.

the RS members for which the communities are collected through passive BGP measurements. Thus our optimized querying cost can be now expressed as:

c = 1 + |ARS− ApassiveRS | + [ a (P′ a− P passive a ) (2) where Apassive

RS is the set of RS members whose RS

commu-nities can be obtained through passive measurements, and Ppassive

a = ∅ for each a /∈ A passive

RS . Excluding those prefixes

from the active queries reduces the total number of queries to 5,922. By conducting active measurement queries for dif-ferent IXPs in parallel we can complete all measurements in less than 17 hours even with a rate limit of 1 query per 10 seconds.

4.4 Import and Export Filters

At the beginning of this section, we stated a reciprocity assumption according to which we infer the import filters: if a RS member is (not) blocked by the export filter it will also be (not) blocked by the import filter. In other words, if an AS is willing to send traffic to a RS member it will also be willing to accept traffic from it. To validate the correctness of this assumption we use import and export filter data from the members of the AMS-IX route servers. AMS-IX uses an IRR-based filtering mechanism from which the BGP configurations are automatically generated [1], so both import and export filters can be obtained for the AMS-IX members that utilize IRR filtering.

We extracted the filters of 230 AMS-IX RS members by parsing RIPE, ARIN and RADB databases from April 2013. For all of the AMS-IX members the import filters were at most as restrictive as the export filters, and often more per-missive. None of the IRR import filters blocked an AS that was not blocked by the corresponding export filter, confirm-ing our assumption. However, about half of the import fil-ters blocked fewer ASes than the export filfil-ters, meaning that many RS members are more open at receiving traffic, even from ASes which they do not wish to send traffic. Hence, our assumption is conservative, it does not introduce false-positives but it will miss asymmetric peering links where traffic flows in a single direction.

5. RESULTS

We gathered the RS members and supported RS com-munities for 13 large European IXPs listed in table 2. We first collected RS communities through passive BGP data to minimize the querying load on LG servers. We accumulated daily BGP table dumps and update messages from Route Views and RIPE RIS repositories for 1-7 May 2013. We fil-tered out paths that contain (1) reserved, unassigned, and private ASNs (i.e. 23456 and 63488–131071) which should not have appeared in BGP advertisements and (2) path cy-cles that resulted from misconfiguration and poisoning. We also filtered out transient AS paths to avoid inferring short-lived links that may result from misconfigurations in setting community values. The next step is to query the available LGs for the RS communities of the remaining RS members. We wrote a script to automate this (HTTP) querying of LGs and parsing of responses. Nine of the IXPs provided an LG interface to their route servers2

; for the remaining

2

France-IX’s LG does not output RS communities, so we used Renater’s LG which has a feed from France-IX RS.

(7)

IXP LG ASes RS Pasv Active Links AMS-IX N 574 444 296 55 49249 DE-CIX Y 483 369 113 256 54082 LINX N 457 177* 137 39 14759 MSK-IX Y 374 348 23 325 58501 PLIX Y 222 211 37 174 21911 France-IX Y 193 169 103 25 8117 LONAP N 120 109 30 65 4458 ECIX Y 102 83 33 50 2751 SPB-IX Y 89 78 0 78 2828 DTEL-IX Y 74 71 0 66 1725 TOP-IX Y 71 52 19 33 1272 STHIX N 69 42 4 23 340 BIX.BG Y 53 52 0 52 950

Table 2: Results for the inference of MLP links per IXP. The ASes column shows the number of ASes at each IXP, and the RS column shows how many of these ASes are connected to the route server; LINX is marked with an asterisk because it does not provide a list of RS members either from its website or an AS-SET. We could only obtain partial data by searching the IRR records of LINX’s mem-bers for AS8714, the ASN of LINX’s route server. The pasv column shows the number of RS members whose community strings we obtain from passive BGP data, and the active column shows the number of RS members whose community strings we obtain via querying LGs, either directly from the IXP’s LG (Y in the LG column) or from the LG of a member of that IXP. Finally, the links column shows the num-ber of MLP links inferred for each IXP.

IXPs we use 11 LGs provided by their RS members. We can only obtain partial connectivity using only passive BGP data and third-party LGs to collect an IXP’s RS communi-ties; in the future we plan to integrate more data sources to expand our view of these IXPs. By combining connectivity information and the RS communities collected by passive and active measurements, we inferred 206,667 multilateral peering links between 1,363 different ASNs. The summa-tion of links in table 2 is larger than 206,667 because 11,821 of the inferred links appear between ASes that co-locate in multiple IXPs. AMS-IX and DE-CIX have the largest link overlap with 7,502 common route server peerings, which is expected given that 123 of the ASes in our study are con-nected in both IXPs. However, we were only able to collect community data for a part of the AMS-IX and LINX mem-bers and therefore the actual link overlap may be larger.

Figure 6 compares the visibility of the MLP links in our dataset against topological data obtained from passive (BGP AS paths) and active (AS paths inferred from traceroute [2, 3]) measurements during the same period. We ordered the RS members by their inferred MLP links, so the line breaks correspond to clustering of IXPs; that is, the BGP-based visibility of each IXP is relatively consistent for all mem-bers of that IXP. In the Route Views and RIPE RIS data there were 58,952 visible peering links out of 153,837 total AS links. Only 24,511 (11.9%) of the p2p links are com-mon between our dataset and the public BGP view. Hence, our measurements reveal 209% more peering links, and 18% more AS links than the public BGP view. The inferred links

Number of peerings (log)

PassiveMLP 1 10 100 1000 0 200 400 600 800 1000 1200 1400 RS members ranked by peer count

Active

Figure 6: Comparison of the number of MLP links found through our algorithm against passive BGP data (Route Views, RIPE RIS, PCH) and active traceroute data (Ark, DIMES). The inferred MLP links have little overlap with links observed from current active and passive data sources.

Customer Degree (log scale) 12.4% 58.1% 55.6% 1 0.8 0.6 0.4 0.2 0 0 1 10 100 1000 CDF

Smallest cust. degree on link Largest cust. degree on link

Figure 7: For each p2p link inferred from RS com-munities, the number of customers of the ASes in-volved. We plot separate lines representing smallest and largest degrees involved in each peering link. 55.6% of links involve one stub, 12.4% are between two stubs, and 58.1% involve ASes with fewer than 10 customers.

have very little overlap with the links visible to the existing publicly available traceroute topology data: we found only 3,927 links that also appeared in Ark-based and DIMES-based (traceroute-inferred) AS links for the same period [2, 3]. This minimal overlap can be explained by the fact that both Ark and DIMES do not infer links across IXP Route Servers, but report them as links between the RS members and the Route Servers.

To further explore the low visibility of these links in BGP and traceroute-derived AS paths, we examined the customer degrees of the ASes we infer established a p2p link via a route server. The customer degree expresses the number of customers to which an AS provides transit. The customer degree is not affected by the number of invisible links which are almost exclusively p2p links (see section 2.3). Figure 7 shows the degree distributions for the AS with the smallest degree on the link and for the AS with the largest degree. In contrast to what is observable in public BGP data, 12.4% of

(8)

Looking Glasses (ASes) All paths 0.86 0.88 0.9 0.92 0.94 0.96 0.98 1 34867 34863 13249 8400 25074 12779 12573 28929 12989 30925 8839 12301 12859 3267 12615 2854 29608 24482 29014 9070 16097 8879 6939 8641 8492 42979 8246 42456 8648 35548 8767 29076 20632 16073 8359 39792 35297 8304 28717 3327 34308 12316 12902 21230 8664 5467 28870 6768 49300 50763 2854 8426 31323 20555 48559 44583 28855 44141 3255 553 43782 12883 8422 39869 8732 9044 21011 8554 5580 20960 Best path

Figure 8: The fraction of successfully validated MLP links per AS, classified by the LG type used for validation. Circles correspond to ASes whose LG displays all paths, while triangles correspond to ASes whose LG displays only the best path. LGs that display only the best path may result in lower successful validation ratio when less preferred links are hidden.

IXP Links Validated Links Confirmed DE-CIX 6250 11.6% 6152 98.4% AMS-IX 6190 12.6% 6134 99.1% MSK-IX 4171 7.1% 4122 98.8% LINX 3597 24.4% 3492 97.1% PLIX 2565 11.7% 2515 98.1% France-IX 1162 14.3% 1126 96.9% DTEL-IX 732 42.4% 726 99.1% ECIX 553 20.1% 548 99.1% LONAP 460 10.3% 455 98.9% SPB-IX 425 15.0% 422 99.3% TOP-IX 288 22.6% 288 100% STHIX 77 22.6% 76 98.7%

Table 3: Validation of the inferred MLP links per IXP. We validate between 7.1% and 42.4% of the links inferred per IXP, and we confirm between 96.9% to 100% of the links tested.

the p2p links in our MLP-inferred dataset are between two stub ASes at the edge of the network. Because these links occur at the edge they are visible in a path only from the ASes involved; unsurprisingly only 1.4% of these links are present in BGP AS paths at Route Views and RIPE RIS. Reinforcing the dense peering at the edge which is enabled by IXPs, 55.6% of all 206K links involve a stub, and 58.1% of the links involve ASes with at most 10 customers.

5.1 Validation of Link Inference Algorithm

To validate the correctness of our link inference framework we test the agreement of the inferred links against connectiv-ity information extracted from other public LG servers. By querying the PeeringDB database we collected the addresses of 70 LGs that are relevant to the inferred links, meaning the LG offers an interface to the collectors of an RS mem-ber or one of its customers. For every inferred link relevant to a particular LG, we try to confirm its existence by ex-amining the AS paths returned from the command show ip bgp [prefix]. We use up to six different prefixes to ensure that path diversity due to traffic engineering policies will not cause our validation to miss existing links. We select the prefixes to be as geographically distant from each other as possible, based on Maxmind’s geolocation database [5].

We repeated our validation at two different time periods to ensure that the correctness of our algorithm is stable over

time. In May 2013 we tested 18,100 links and we successfully confirmed the existence of 98% of those links. In October 2013 we tested 14,513 links and we were able to confirm 98.9% of them. In total we tested 26,392 different RS peer-ings, and we succeeded in confirming the existence of 98.4% of them. As shown in table 3 the validation results are con-sistently above 97% for all of the IXPs under study. In the intervening period between link inference and link validation some RS members were disconnected from the route servers or became idle. These cases were filtered out from the Oc-tober 2013 results explaining the higher validation rate.

Observing a link in the BGP paths of an LG’s output confirms the existence of this link, but the reverse does not necessarily hold (not observing a link does not necessarily mean that it does not exist). A path can be hidden from a LG if another path with higher local preference or lower hop count is available, and the LG displays only the active (best) path and not all the available paths. As a result the existence of links that are part of less preferred paths cannot be confirmed by querying LGs that only show active paths. Typically, paths learned from customers are assigned with higher local preference and may hide paths learned from peers. We also found that 14 ASes (out of the 70 used for validation) assigned a higher local preference value to bi-lateral peers than route server peers. Moreover, in 3 cases the ASN of the route server was not removed from the path making the path appear artificially longer. In all the Octo-ber 2013 cases where a link failed validation a more preferred path existed. Figure 8 compares the validation results be-tween the looking glass that display all the available paths against the looking glasses that display only the active path. We can see that LGs that only show the active paths restrict our validation effort.

5.2 Peering Policies of RS Members

As shown in table 2, on average 73% of an IXP’s mem-bers chose to participate in MLP via an available route server. To explain this high participation rate, we collect self-reported peering policy information of IXP members from PeeringDB [9] or on the IXPs’ websites where the in-formation is available, e.g., PLIX. We were able to collect policy data for 904 out of the 1,667 IXP members, 72% of which reported an open peering policy, 24% reported a se-lective peering policy, and 4% claimed a restrictive peering policy.

(9)

Does not Does participate participate 0 250 300 DE−CIX AMS−IX PLIX _FR.IX ECIX

MSK−IX _DTEL−IX TOP−IX STH−IX SPB−IX

BCIX 0 20 40 60 80 100 120 140 DE−CIX AMS−IX PLIX _FR.IX ECIX

MSK−IX _DTEL−IX TOP−IX STH−IX SPB−IX

BCIX Selective 0 5 10 15 20 25 DE−CIX AMS−IX PLIX ECIX

MSK−IX _DTEL−IX TOP−IX STH−IX

Restrictive Open 150 100 50 200

Figure 9: Participation in route servers compared to the self-reported peering policy. Most participants have an open peering policy and use the route servers. Route server participation is common among selective ASes, and rare with restrictive ASes.

30.8% 3.3 1.5 1 2 3 4 5 6 7 0 1 3.5 0.8 0.2 14.5 2.0 0.1 0.1 2 3 5.8 0.7 1.7 4 5 0.2 0.2 0.1 0.4 0.3 6 7 0.1 RS Participations IXP Presences 55.8 AS at one IXP, using RS: 55.8% 8.6 ASes at IXP(s), not using RS: 13.4% ASes at multiple IXPs, use of RS:

Figure 10: Number of IXPs an AS is connected to against route server participation at those IXPs. 55.8% of ASes in our set are at a single IXP and use its route server. 13.4% of ASes in our set do not use any route server at any of these IXPs (bottom row).

Figure 9 shows for each of the three self-reported peering policies of IXP members, the distribution of their partici-pation in route servers at 11 IXPs (or only 8 IXPs that in-volved participants with restrictive peering policies). 92% of the ASes with open peering policies are connected to at least one route server, consistent with their self-reported interest in peering. Interestingly, 75% of the ASes with selective policy and 43% of the ASs with restrictive policy are also connected to at least one route server. These ASes decide to connect to a route server depending not only on their peering policy but also on their business strategy at a given IXP location and their desired relationships with that IXP’s candidate peers.

Figure 10 compares the number of route servers where an AS is connected against the total number of the IXPs where the same AS is present. Most (55.8%) ASes in our set are at a single IXP and use its route server. 7.9% of the ASes with presence at multiple IXPs do not have consistent RS participation. For instance, AS9002, a large Ukrainian ISP with a selective peering policy, opts out of connecting to the route servers of Eastern-European IXPs (DTEL-IX and MSK-IX) where many of its customers co-locate, but appears to have an open peering policy in the route servers of Western-European IXPs (DE-CIX and AMS-IX). This suggests peering policies often can have local scope.

96.7% 80.4% 69.2%

0 0.8 1

Open Selective Restrictive 0.4

0.2

Fraction

0.6

Figure 11: Fraction of RS members allowed to re-ceive prefix announcements from an AS via the RS as a function of that AS’s self-reported peering pol-icy in PeeringDB. Nearly all ASes allow either (1) nearly all, or (2) only a small fraction of RS members to receive their routes; the use of RS communities does not scale well for implementing finer-grained filtering. Dots are scattered within each bin to al-low visibility.

5.3 Route Filtering Patterns of RS Members

Export filters determine the set of RS members with which another RS member intends to peer. Figure 11 shows that there is a binary pattern for most ASes: either very few ASes receive routes, or the vast majority do. Specifically, almost all RS members block fewer than 10% or allow fewer than 10% of other RS participants from receiving their paths. This pattern is congruent with the nature of the most com-mon RS community filters (ALL + EXCLUDE and NONE + INCLUDE); the use of these RS communities does not scale well for implementing finer-grained filtering over route servers, especially for IXPs with hundreds of members.

While the fraction of ASes that use an IXP route server is smaller for ASes that self-report their routing policies as se-lective and restrictive than for those self-reporting as open (figure 9), it is still the case that most ASes using route servers have an open peering policy. Also, a network’s ob-servable MLP behavior is not always consistent with its re-ported peering policy. Indeed, 69.2% of ASes self-reporting as restrictive and connecting to route servers are also open in establishing RS peerings, though perhaps in only certain regions. A more meaningful classification of RS participants’ policies relies on observing their export filters, rather than

(10)

Density 0.2 0.4 0.6 0.8 1 DE−CIX _MSK−IX PLIX ECIX SPB−IX TOP−IX BCIX 0.79 0.95 0.95 0.80 0.93 0.94 0.79 0

Figure 12: Density of peering links per RS member per IXP. For each member at each IXP, we plot the fraction of links the member established that it could have possibly formed using the IXP. The red crosses show the mean density of RS peering observed at each IXP. Dots are scattered within each IXP for visibility.

the peering policy they self-report in PeeringDB. Studying individual IXPs reveals region-specific (differences in) peer-ing policies. For example, AS12779, an Italian ISP, allowed only 3 RS members of TOP-IX (an IXP in Italy) to receive its prefixes, but blocked only 5 RS members in DEC-IX (an IXP in Germany).

5.4 Peering Density

Peering density can be expressed as the fraction of peer-ing links that a RS member has established over the num-ber of all possible peering links they could establish via the RS. Figure 12 plots this peering density metric for mem-bers of the route servers for which we have full connectivity data through the corresponding LG interfaces.3

The density of RS peering links is between 80%-95%, depending on the number of RS members with open peering policies. Previ-ous work has found the overall peering density of European IXPs to be around 70%, including multilateral and bilat-eral agreements [15, 14, 17], suggesting that the density of RS-based peering environments is higher than the density of bilateral peering environments.

5.5 Repellers

RS members that are blocked by the EXCLUDE com-munities can be described as repellers by the ASes that set those community values. Of the 1,363 RS members in all the IXPs, 570 are blocked by at least one AS. Figure 13 shows the number of times an AS is blocked compared to the geographic scope of its operations. Although it may seem surprising that global networks are the top repellers of routes by other ASes, these networks are connected to multiple IXPs and there is a significantly larger number of potential RS members they may repel. Of the 1,795 appli-cations of EXCLUDE RS communities, only 12% are set by a provider to block a customer that co-locates in the same route server. To explore the rest of the exclusions, we cal-culate the customer cones for each RS member using the

3

DTEL-IX is excluded because its LG server restricts queries for 5 RS members who do not wish to disclose their connec-tivity. N=214 9002 16265 12389 90 80 70 60 50 40 30 20 10 0 Global N=91 Europe N=162 Geographic Scope N=95 Regional N/A 15169 Blocking Frequency

Figure 13: The distribution of blocking frequency using exclude community values, by geographic scope. ASes with an N/A geographic scope did not register their scope in PeeringDB. Google’s AS (15169) is blocked 82 times by 75 different ASes that have another peering with Google that they prefer.

algorithm in [32]. The customer cone includes the set of ASes in the downstream path of a provider. We find that 77% of the EXCLUDE community values are used to block an AS that is part of the customer cone. Interestingly the most widely blocked network is AS15169 (Google), which is blocked 82 times by 75 different ASes. This filtering behav-ior is counter-intuitive for networks characterized by open peering, as AS15169 is an attractive peering partner due to the large volume of traffic that it carries. But in these cases, the AS that blocks AS15169 has a private peering with it in the same IXP or another PoP and prefers the use of the direct peering over the multilateral peering, which we con-firmed through the available looking glasses and the IRR records of the RS members. The same behavior is also ob-served for other large content providers like AS20940 (Aka-mai), which is blocked 14 times. Hence, the repulsiveness of an RS member is relative to the route server and not necessarily a global characteristic.

5.6 Hybrid Relationships

We observed that 1,230 of the RS links visible in passive BGP data are inferred as provider-customer by CAIDA’s relationship inference algorithm [32]. We attempted to clar-ify whether these relationships are indeed hybrid p2p/p2c relationships, if they have been mistakenly inferred p2c, or if they are actual transit relationships over IXPs which are known to exist although IXP operators discourage such rela-tionships. We collected 422 relationship-tagging and ingress-point tagging BGP community values, defined by 85 dif-ferent ASes that are involved in 440 hybrid relationships. Combining the two community types, we can learn the re-lationship type at the different points-of-presence. We were able to verify 202 of these relationships as location-specific hybrid relationships. However, it is difficult to generalize these findings for all the links given the lack of additional data.

(11)

5.7 The Full Picture

Our results reveal that the incompleteness problem is much larger than previously believed. Not only the publicly avail-able data miss the majority of peering links but also past works on link discovery underestimated the total number of peering links (e.g. [15, 21]). To put into perspective the topology incompleteness problem and the contribution of our work, in this section we attempt to estimate the num-ber of IXP peerings globally.

Past works have found that the peering density of Eu-ropeans IXPs ranges between 60% – 70% [14, 18]. These findings are supported by data obtained through public IXP peering matrices [8, 7, 11]. According to Cardona et al. [18] the peering density depends heavily on the pricing model. Flat-fee pricing encourages the establishment of more peer-ings and results in peering density close to 70%, while usage-based pricing leads to peering density close to 60%. The availability of route servers is a second important factor that leads to increased peering density by enabling multilateral peering [41, 20]. We utilize these findings to calculate the number of peering links within large European IXPs. For the 37 largest European IXPs with at least 50 members, we collected data from peering registries [4, 9] and individual IXP websites on the members, the pricing model, and the availability of route servers. For IXPs with a flat-fee pricing and available route servers we assume a peering density of 70%, for IXPs with usage-based pricing and available route servers we assume a peering density of 60%, while for IXPs with no route servers we assume a peering density of 50%. Based on these assumptions we estimate the number of Eu-ropean IXP peerings to 558,291. In the case of the highest possible link overlap among those IXPs we estimate 399,732 unique AS peering links.

To expand our estimation we gathered data for all the IXPs globally with at least 50 members. In total we com-piled data for 61 IXPs (37 in Europe, 14 in North America, 11 in Asia/Pacific, 1 in Latin America, and 1 in Africa), in which 8,577 different ASes are connected. We maintain the same assumptions on peering density except for the North American IXPs that have a primarily for-profit business model that results in lower peering density [15, 20]. Assum-ing a peerAssum-ing density of 40% for North American IXPs we estimate the global number of IXP peering links to 686,104, and the number of unique AS peering links to 510,870. For a more conservative estimation we assume that no IXP has peering density over 60%; in this case the global number of IXP peerings would be 596,011, while the total number of unique AS peerings would be 422,423.

5.8 Limitations of our methodology

Despite the substantial number of invisible links discov-ered, a large fraction of the AS topology is still missing. First, our methodology is limited to the discovery of mul-tilateral peering agreements, and does not capture bilateral peering links. MLP is more prevalent in the European In-ternet, where we focused this work. IXPs in North America support mostly bilateral peerings, although there are notable exceptions such as Equinix, Any2 and Telx. Moreover, our algorithm requires that a route server utilize BGP commu-nities to control path advertisements, and that these com-munities are not filtered out. Although this configuration is popular, alternative techniques exist. For example, the Vi-enna Internet Exchange (VIX) and the Hong Kong Internet

Exchange (HKIX) provide a web portal to configure export filters, while the Netnod route servers strip out all commu-nity values before propagating paths to its RS members.

6. CONCLUSIONS

Using new techniques to mine IXP route server data with a mapping of BGP community values, we inferred 206K p2p links from 13 large European IXPs, four times more p2p links than are directly observable in public BGP data. Our approach uses only existing BGP data sources, and quires only few active queries of LG servers, facilitating re-producibility of our results.

As discussed in section 2.3, a variety of challenges in sus-tainable measurement instrumentation, the nature of the Internet’s routing architecture, and the complexity of the ecosystem render topology incompleteness an inherent part of Internet science. Since no single source of topological data can provide a complete topology, advancing our understand-ing of Internet topology will require extractunderstand-ing all insights we can from all data sources available, including combin-ing data sources where possible and appropriate. Although we implement and validate a new capability to analyze the dense establishment of peering at IXPs, we emphasize that a significant open question relates to how much traffic such IXP peering links carry, which would be an enlightening measure of their relative importance in the global topology. In the future we plan to apply our methods to additional IXPs and BGP data sources. We will also investigate how our algorithm can reduce the cost of traceroute measure-ments that target the discovery of IXP peerings, to en-able sustainen-able operational measurement infrastructure us-ing such methods.

Acknowledgments

We thank Lynne Salameh for her insightful feedback on an earlier version of this paper. We also thank our shepherd, Steve Uhlig, and the anonymous reviewers for their con-structive comments. Shi Zhou was supported by The Royal Academy of Engineering and EPSRC under grant number 10216/70. Matthew Luckie and k claffy were supported by the National Science Foundation under grants CNS-0958547 and CNS-1017064, and by the U.S. Department of Home-land Security (DHS) Science and Technology (S&T) Direc-torate Cyber Security Division (DHS S&T/CSD) BAA 11-07 and SPAWAR Systems Center Pacific via contract number N66001-12-C-0130. This material represents the position of the authors and not necessarily that of NSF or DHS.

7. REFERENCES

[1] AMS-IX Route Servers. https://www.ams-ix.net/ technical/specifications-descriptions/ ams-ix-route-servers#IRRdb.

[2] CAIDA: Archipelago Measurement Infrastructure. http://data.caida.org/datasets/topology/ipv4. allpref24-aslinks/.

[3] DIMES AS Edges. http://www.netdimes.org/ PublicData/csv/ASEdges4_2012.csv.gz. [4] Euro-IX. https://www.euro-ix.net/. [5] GeoLite IP Geolocaton Database.

http://dev.maxmind.com/geoip/legacy/geolite. [6] Google Peering Policy. https:

(12)

[7] GR-IX Peering Matrix. http:

//www.gr-ix.gr/services/peering-matrix.shtml. [8] INEX Peering Matrix.

https://www.inex.ie/ixp/peering-matrix. [9] PeeringDB. http://www.peeringdb.com. [10] RIPE Routing Information Service.

http://www.ripe.net/ris. [11] RONIX Connection Matrix.

http://www.ronix.ro/matrice.php. [12] RouteViews. http://www.routeviews.org/. [13] The Wayback Machine.

http://archive.org/web/web.php.

[14] B. Ager, N. Chatzis, A. Feldmann, N. Sarrar, S. Uhlig, and W. Willinger. Anatomy of a large European IXP. In SIGCOMM 2012, pages 163–174, 2012.

[15] B. Augustin, B. Krishnamurthy, and W. Willinger. IXPs: mapped? In IMC ’09, pages 336–349, 2009. [16] G. D. Battista, T. Refice, and M. Rimondini. How to

extract BGP peering information from the Internet routing registry. In MineNet ’06, pages 317–322, New York, NY, USA, 2006. ACM.

[17] J. C. Cardona Restrepo and R. Stanojevic. A history of an Internet exchange point. SIGCOMM Comput. Commun. Rev., 42(2):58–64, Mar. 2012.

[18] J. C. Cardona Restrepo and R. Stanojevic. IXP traffic: a macroscopic view. In LANC ’12, pages 1–8. ACM, 2012.

[19] H. Chang, R. Govindan, S. Jamin, S. J. Shenker, and W. Willinger. Towards capturing representative AS-level internet topologies. Comput. Netw., 44(6):737–755, 2004.

[20] N. Chatzis, G. Smaragdakis, A. Feldmann, and W. Willinger. There is more to IXPs than meets the eye. ACM SIGCOMM CCR, 43(5), October 2013. [21] K. Chen, D. R. Choffnes, R. Potharaju, Y. Chen, F. E. Bustamante, D. Pei, and Y. Zhao. Where the sidewalk ends: extending the Internet AS graph using traceroutes from P2P users. In CoNEXT ’09, pages 217–228, 2009.

[22] Q. Chen, H. Chang, R. Govindan, and S. Jamin. The origin of power laws in Internet topologies revisited. In INFOCOM 2002, volume 2, pages 608–617, 2002. [23] R. Cohen and D. Raz. The Internet dark matter - on

the missing links in the AS connectivity map. In INFOCOM 2006, pages 1–12, April 2006. [24] L. Gao and J. Rexford. Stable Internet routing

without global coordination. IEEE/ACM Transactions on Networking, 9:681–692, December 2001.

[25] V. Giotsas and S. Zhou. Valley-free violation in Internet routing: Analysis based on BGP Community data. In IEEE ICC 2012, pages 1193–1197, June 2012. [26] V. Giotsas and S. Zhou. Improving the discovery of

IXP peering links through passive BGP measurements. In 16th IEEE Global Internet

Symposium, pages 3365–3370, Turin, Italy, Apr. 2013. [27] E. Gregori, A. Improta, L. Lenzini, L. Rossi, and

L. Sani. On the incompleteness of the AS-level graph: a novel methodology for BGP route collector

placement. In IMC ’12, pages 253–264, 2012. [28] Y. He, G. Siganos, M. Faloutsos, and

S. Krishnamurthy. Lord of the links: a framework for

discovering missing links in the Internet topology. IEEE/ACM Transactions on Networking, 17(2):391–404, 2009.

[29] N. Hilliard, E.Jasinska, R. Raszuk, and N. Bakker. Internet Exchange Route Server Operations. htp://tools.ietf.org/html/

draft-ietf-grow-ix-bgp-route-server-operations-01, Aug. 2013.

[30] A. Khan, T. Kwon, H.-c. Kim, and Y. Choi. As-level topology collection through looking glass servers. In IMC ’13, pages 235–242, 2013.

[31] A. Lakhina, J. Byers, M. Crovella, and P. Xie. Sampling biases in IP topology measurements. In INFOCOM 2003, volume 1, pages 332–341, 2003. [32] M. Luckie, B. Huffaker, k. claffy, A. Dhamdhere, and

V. Giotsas. AS Relationships, Customer Cones, and Validation. In IMC ’13, pages 243–256, 2013. [33] R. Oliveira, D. Pei, W. Willinger, B. Zhang, and

L. Zhang. The (in)completeness of the observed Internet AS-level structure. IEEE/ACM Transactions on Networking, 18:109–122, February 2010.

[34] R. V. Oliveira, D. Pei, W. Willinger, B. Zhang, and L. Zhang. In search of the elusive ground truth: the Internet’s AS-level connectivity structure. In SIGMETRICS 2008, pages 217–228, 2008.

[35] M. Roughan, S. J. Tuke, and O. Maennel. Bigfoot, sasquatch, the yeti and other missing links: what we don’t know about the AS graph. In IMC ’08, pages 325–330, 2008.

[36] M. Roughan, W. Willinger, O. Maennel, D. Perouli, and R. Bush. 10 lessons from 10 years of measuring and modeling the Internet’s autonomous systems. JSAC, 29(9):1810–1821, 2011.

[37] M. A. S´anchez, J. S. Otto, Z. S. Bischof, D. R. Choffnes, F. E. Bustamante, B. Krishnamurthy, and W. Willinger. Dasu: Pushing experiments to the internet’s edge. In USENIX NSDI, April 2013. [38] Y. Shavitt and E. Shir. DIMES: let the Internet

measure itself. CCR, 35(5):71–74, 2005. [39] Y. Shavitt and U. Weinsberg. Quantifying the

importance of vantage points distribution in Internet topology measurements. In INFOCOM 2009, pages 792–800, Apr. 2009.

[40] G. Siganos and M. Faloutsos. Analyzing BGP policies: methodology and tool. In INFOCOM 2004, volume 3, pages 1640–1651, 2004.

[41] B. Woodcock and V. Adhikari. Survey of characteristics of Internet carrier interconnection agreements. Technical report, Packet Clearing House, May 2011.

[42] B. Zhang, R. Liu, D. Massey, and L. Zhang. Collecting the Internet AS-level topology. CCR, 35(1):53–61, Jan. 2005.

[43] Y. Zhang, R. Oliveira, Y. Wang, S. Su, B. Zhang, J. Bi, H. Zhang, and L. Zhang. A framework to quantify the pitfalls of using traceroute in AS-level topology measurement. JSAC, 29(9):1822–1836, Oct. 2011.

[44] Y. Zhang, Z. Zhang, Z. M. Mao, C. Hu, and B. Maggs. On the impact of route monitor selection. In IMC ’07, pages 215–220, 2007.

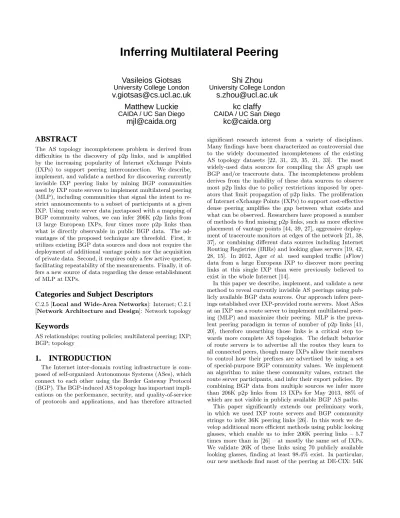

Inferring multilateral peering
