CIM Cable Integrated Mounting System. Mounting Reference Guide - Accessories Valid from January 2011

(1)

CIM Cable Integrated Mounting System

Mounting Reference Guide - Accessories

Valid from January 2011

(2)

General Notes

Consoles with Drawer

Trays

Support Systems for Infusion Pumps and Infusion Bottles

Baskets

Cable Hooks and Cable Management

Table Column / Floor Column

IT Accessories

Wall Channels and European Rails

External Cable Routing

CONTENT

3

6

8

10

15

17

18

19

20

21

(3)

Standard Colours

All decorative plastic parts are available in two different colours:

RAL 5013 (=cobalt blue) or RAL 7024 (= graphite grey). Please specify the colour requested when ordering. If no colour is chosen, all arms will be delivered in cobalt blue.

Custom-Designed Solutions

Please contact us for costum-designed solutions.

Product Marking

All CIM products are CE marked and adhere to the latest regulations MDD 93/ 42 ECC.

(4)

Product Features

Dimensions: Drawer dimensions: Material: Surface: Standard colours: Maximum weight: Product marking: W 440 x D 400 x H 120 mm W 375 x D 335 x H 85 mm

aluminium, HPL (high-pressed laminate), ABS

anodized, HPL and ABS (= scratch-proof, resistant against impact and disinfectants)

apple green (= NSC S1060-G60Y), lagune blue (= NSC 1040-G), ice blue (= NSC 1005-R90B) or white (= NSC 0502-G50Y)

25 kg (4-fold safety) CE

CONSOLE WITH DRAWER

Product marking: CE

(5)

FIXINGS

Fixing/ Adaptation Description Colour Part no.

w/o illustration Fixed Horizontal Rail Clamp

to attach to European rails 10 x 25, 8 x 35, 10 x 30, 10 x 50

also available for Scandinavian rails Unifl ex, Duofl ex, Modura

apple green lagune blue ice blue white 75-001-2F_gg 75-001-2F_lb 75-001-2F_fb 75-001-2F_w

w/o illustration Vertical Rail Clamp

to attach to vertical European rail 10 x 25

(e. g. Dräger pendant)

apple green lagune blue ice blue white 75-001-03_gg 75-001-03_lb 75-001-03_fb 75-001-03_w

w/o illustration Adapter Vertical Wall Channel to mount to CIM wall channel (compatibel with GCX channel)

Please order separately:

CIM Wall Channel

apple green lagune blue ice blue white 75-001-04_gg 75-001-04_lb 75-001-04_fb 75-001-04_w 65-0048 w/o illustration

Universal Pole Mount

V-block for poles 20 - 40 mm apple green lagune blue ice blue white 75-001-1V_gg 75-001-1V_lb 75-001-1V_fb 75-001-1V_w

(6)

Product Features

Dimensions: Drawer dimensions: Material: Surface: Standard colours: Maximum weight: Product marking: W 440 x D 400 x H 240 mm W 375 x D 335 x H 85 mm

aluminium, HPL (high-pressed laminate), ABS

anodized, HPL and ABS (= scratch-proof, resistant against impact and disinfectants)

apple green (= NSC S1060-G60Y), lagune blue (= NSC 1040-G), ice blue (= NSC 1005-R90B) or white (= NSC 0502-G50Y)

25 kg (4-fold safety) CE

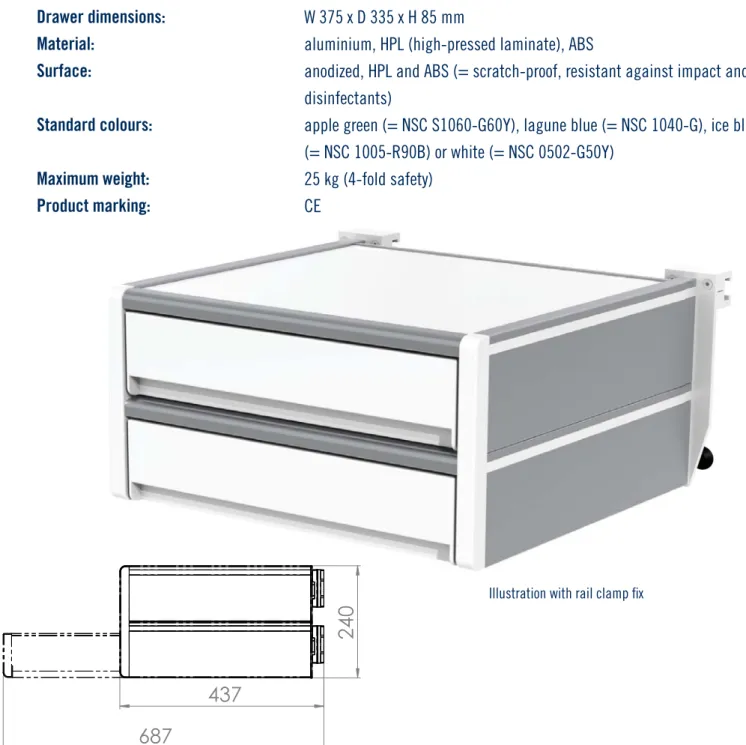

DOUBLE CONSOLE WITH DRAWER

arking: CE

Illustration with rail clamp fi x

(7)

FIXINGS

Please order separately:

CIM Wall Channel

apple green lagune blue ice blue white 75-011-04_gg 75-011-04_lb 75-011-04_fb 75-011-04_w 65-0048 w/o illustration

(8)

Product Features

Dimensions: Material: Surface: Standard colours: Maximum weight: Product marking: W 400 x D 420 mm

aluminium, HPL (high-pressed laminate)

anodized, HPL (= scratch-proof, resistant against impact and disinfectants) apple green (= NSC S1060-G60Y), lagune blue (= NSC 1040-G), ice blue (= NSC 1005-R90B) or white (= NSC 0502-G50Y) 25 kg (4-fold safety) CE

TRAY

(9)

FIXINGS

Please order separately: CIM Wall Channel

apple green lagune blue ice blue white 75-002-04_gg 75-002-04_lb 75-002-04_fb 75-002-04_w 65-0048

w/o illustration Universal Pole Mount

(10)

Product Features

Lateral adjustment: Arm length: Material: Surface: Maximum weight: Product marking: no lateral adjustment 240 mm, 300 mm or 400 mm aluminium

anodised, powder-coated RAL 9002 or RAL 9016 20 kg (6-fold safety factor)

CE

(11)

FIXINGS

Fixing/ Adaptation Description Arm length Part no.

w/o illustration

Fixed Horizontal Rail Clamp

240 mm 300 mm 400 mm 65-124RR-2F 65-130RR-2F 65-140RR-2F

Adapter Vertical Wall Channel

to mount to CIM wall channel (compatibel with GCX channel)

240 mm 300 mm 400 mm 65-124RR-4 65-130RR-4 65-140RR-4 65-0048

V-block for poles 20 - 40 mm 240 mm 300 mm 400 mm

65-124RR-1V 65-130RR-1V 65-140RR-1V

(12)

Product Features

Lateral adjustment: Arm length: Material: Surface: Maximum weight: Product marking: lateral +/- 105° 240 mm, 300 mm or 400 mm aluminium

anodised, powder-coated RAL 9002 or RAL 9016 18 kg (6-fold safety factor)

CE

(13)

FIXINGS

Fixing/ Adaptation Description Arm length Part no.

w/o illustration

240 mm 300 mm 400 mm 65-224RR-2F 65-230RR-2F 65-240RR-2F

240 mm 300 mm 400 mm 65-224RR-4 65-230RR-4 65-240RR-4 65-0048

V-block for poles 20 - 40 mm 240 mm 300 mm 400 mm

65-224RR-1V 65-230RR-1V 65-240RR-1V

(14)

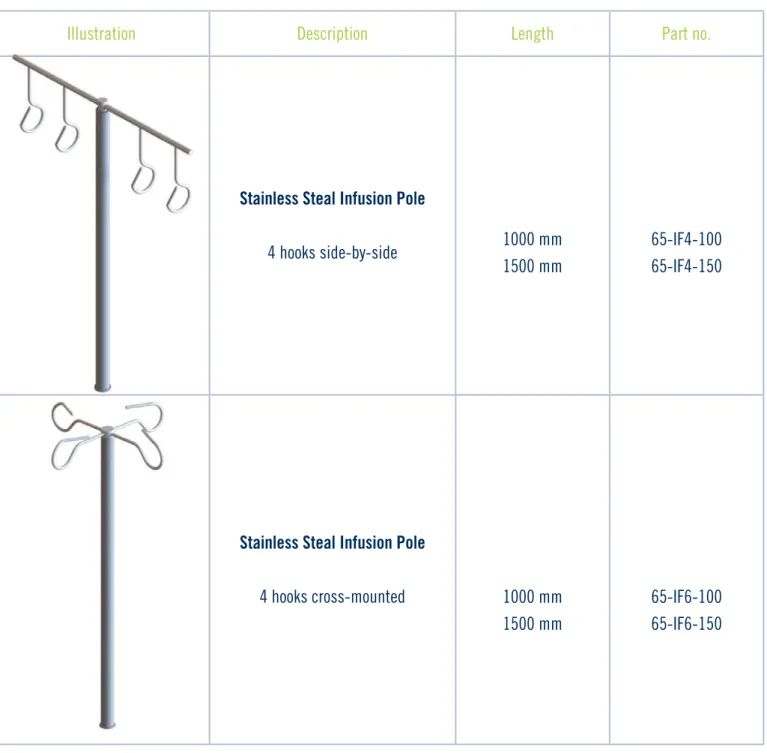

IV SUPPORT SYSTEMS -

Infusion Poles with Bottle Hooks

Illustration Description Length Part no.

Stainless Steal Infusion Pole

4 hooks side-by-side 1000 mm

1500 mm

65-IF4-100 65-IF4-150

Stainless Steal Infusion Pole

4 hooks cross-mounted 1000 mm

1500 mm

65-IF6-100 65-IF6-150

(15)

Product Features

Dimensions: Material: Surface: Product marking: W 300 x D 200 x H 180 mm W 200 x D 150 x H 100 mm aluminium powder-coated RAL 9016 CE

BASKET

(16)

FIXINGS

Fixing/ Adaptation Description Basket dimensions Part no.

w/o illustration

300 x 200 x 180 mm 200 x 150 x 100 mm

65-51-2F 65-52-2F

300 x 200 x 180 mm 200 x 150 x 100 mm 65-51-4 65-52-4 65-0048 w/o illustration

V-block for poles 20 - 40 mm 300 x 200 x 180 mm 200 x 150 x 100 mm

65-51-1V 65-52-1V

Adaptation to Support Arm

non-height adjustable arms

height adjustable arms

300 x 200 x 180 mm 200 x 150 x 100 mm 300 x 200 x 180 mm 200 x 150 x 100 mm 65-51-7 65-52-7 65-51-7-HV 65-52-7-HV

(17)

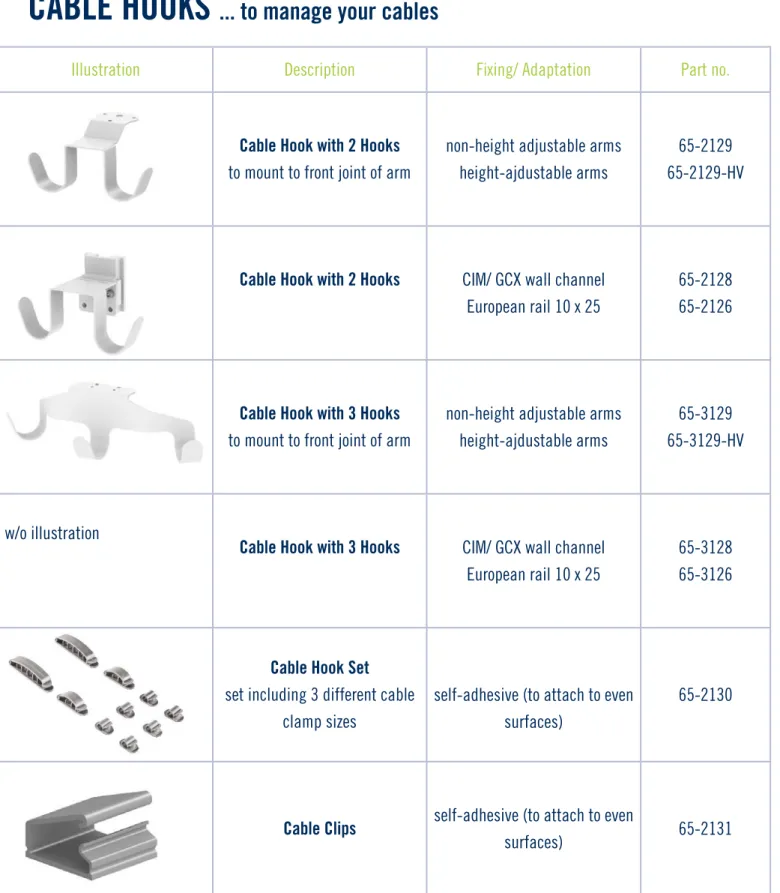

CABLE HOOKS

... to manage your cables

Illustration Description Fixing/ Adaptation Part no.

Cable Hook with 2 Hooks

to mount to front joint of arm

non-height adjustable arms height-ajdustable arms

65-2129 65-2129-HV

Cable Hook with 2 Hooks CIM/ GCX wall channel European rail 10 x 25

65-2128 65-2126

Cable Hook with 3 Hooks

to mount to front joint of arm

non-height adjustable arms height-ajdustable arms

65-3129 65-3129-HV

w/o illustration

Cable Hook with 3 Hooks CIM/ GCX wall channel European rail 10 x 25

65-3128 65-3126

Cable Hook Set

set including 3 different cable clamp sizes

self-adhesive (to attach to even surfaces)

65-2130

Cable Clips self-adhesive (to attach to even

(18)

Product Features

Material: Surface: Product Marking: aluminium, PA6.6 powder-coated RAL 9016 CE

TABLE COLUMN / FLOOR COLUMN

The column profi le can be mounted to table or fl oor. The opposite C-profi les are intended to accept all CIM arms and/ or CIM components.

Besides the standard lengths of the column indicated below, individually required lengths are available on request.

Column H 300 mm to mount to table Part no. 65-COL-3

Column H 500 mm to mount to table Part no. 65-COL-5

Column H 1500 mm to mount to fl oor Part no. 65-COL-15 Illustation with CIM Height Adjustable Arm

(19)

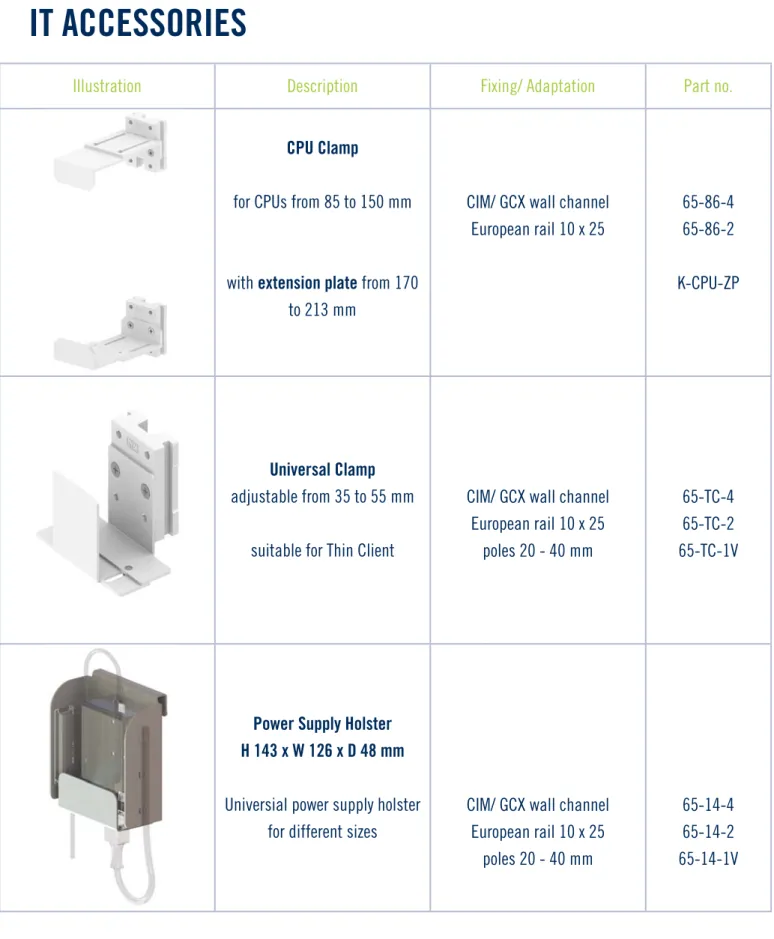

IT ACCESSORIES

Illustration Description Fixing/ Adaptation Part no.

CPU Clamp

for CPUs from 85 to 150 mm

with extension plate from 170 to 213 mm

CIM/ GCX wall channel European rail 10 x 25 65-86-4 65-86-2 K-CPU-ZP Universal Clamp adjustable from 35 to 55 mm

suitable for Thin Client

CIM/ GCX wall channel European rail 10 x 25

poles 20 - 40 mm

65-TC-4 65-TC-2 65-TC-1V

Power Supply Holster H 143 x W 126 x D 48 mm

Universial power supply holster for different sizes

CIM/ GCX wall channel European rail 10 x 25

poles 20 - 40 mm

65-14-4 65-14-2 65-14-1V

(20)

WALL CHANNELS AND EUROPEAN RAILS

Illustration Description Length Part no.

CIM Wall Channel

vertical wall channel including channel cover

Individual lengths on request! Channel cover available in two colours: RAL 9016 white and RAL 7034 graphite grey. Please

indicate requested colour when ordering.

480 mm 720 mm 960 mm 1200 mm 65-0048 65-0072 65-0096 65-0120 European Rail 10 x 25 mm

to mount to CIM wall channel 300 mm 400 mm 500 mm 600 mm 65-NS-WK-300 65-NS-WK-400 65-NS-WK-500 65-NS-WK-600 European Rail 10 x 25 mm

(21)

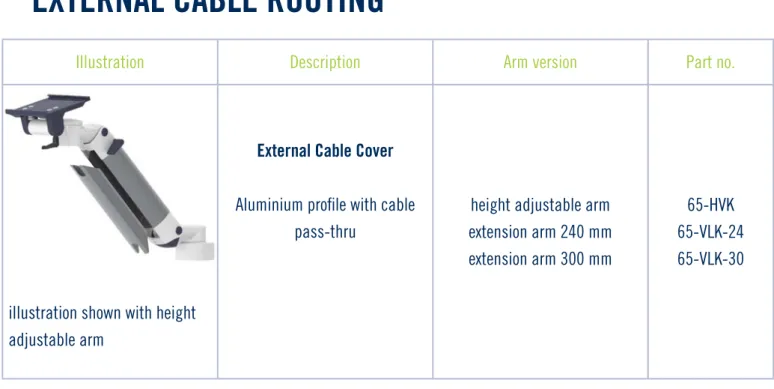

EXTERNAL CABLE ROUTING

Illustration Description Arm version Part no.

illustration shown with height adjustable arm

External Cable Cover

Aluminium profi le with cable pass-thru

height adjustable arm extension arm 240 mm extension arm 300 mm

65-HVK 65-VLK-24 65-VLK-30
