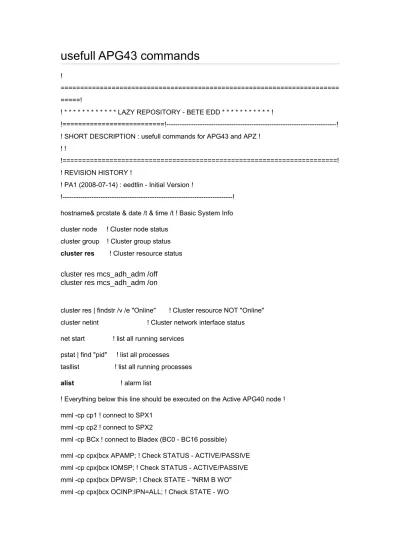

usefull APG43 commands
!======================================================================= =====!
! * * * * * * * * * * * * LAZY REPOSITORY - BETE EDD * * * * * * * * * * * !
!==========================!---! ! SHORT DESCRIPTION : usefull commands for APG43 and APZ !
! !
!======================================================================! ! REVISION HISTORY !
! PA1 (2008-07-14) : eedtlin - Initial Version !
!---! hostname& prcstate & date /t & time /t ! Basic System Info cluster node ! Cluster node status
cluster group ! Cluster group status cluster res ! Cluster resource status
cluster res mcs_adh_adm /off cluster res mcs_adh_adm /on
cluster res | findstr /v /e "Online" ! Cluster resource NOT "Online" cluster netint ! Cluster network interface status net start ! list all running services
pstat | find "pid" ! list all processes tasllist ! list all running processes alist ! alarm list
! Everything below this line should be executed on the Active APG40 node ! mml -cp cp1 ! connect to SPX1
mml -cp cp2 ! connect to SPX2
mml -cp BCx ! connect to Bladex (BC0 - BC16 possible)
mml -cp cpx|bcx APAMP; ! Check STATUS - ACTIVE/PASSIVE mml -cp cpx|bcx IOMSP; ! Check STATUS - ACTIVE/PASSIVE mml -cp cpx|bcx DPWSP; ! Check STATE - "NRM B WO" mml -cp cpx|bcx OCINP:IPN=ALL; ! Check STATE - WO
cpfls -cp cp(x) or bc(x) ! CP file list. FMS is OK?
mml -cp cpx|bcxSYBFP:FILE; ! RELVOLUMSW. FMS is OK? ispprint ! In Service Performance
cpdlist -l ! CP device listing stmotls ! STS working?
hwmls ! HW table for AP boards hwcls ! HW configuration Table hwmscbls ! SCB-RP/4 Table raidmgr -m ! rebuild complete RAID raidmgr -r diskA|diskB ! rebuild RAID vxvolinfo K: ! check RAID on K: vxvolinfo I: ! check RAID on K:
! preparation of MKTR !
mktr yymmdd-hhmm ! mktr (in C:\TEMP\MKTRBUILD) ! Process control and system states !
C:\Program Files\AP\Acs\sys\PRC_ConfigFile ! Process Schedule Config C:\ACS\logs\cluster.log ! Cluster Log
cluster res ! Cluster resource status cluster group ! Cluster group status prcboot ! Reboot AP node
prcboot -s ! Shutdown AP node
hwmreset -n other ! HARD RESET "other" AP node hwmreset -s slotnr ! HARD RESET on specific board ! Manual Stopping/Starting of Services !
net stop clussvc ! will automatically stop ACS_FCH_Server net start clussvc
net start ACS_FCH_Server
! Check Billing !
mml -cp cpx|bcx SAAEP:SAE=500,BLOCK=CHOP; ! check size alterations mml -cp cpx|bcx SAAEP:SAE=446;
mml -cp cpx|bcx SAAEP:SAE=600,BLOCK=CHVIEW; mml -cp cpx|bcx SAAEP:SAE=601,BLOCK=CHVIEW;
mml -cp cpx|bcx APMSP; ! billing xfer OK? CP (issue twice) msdls ! billing xfer OK? AP (issue twice)
mml -cp cpx|bcx CHOPP; ! Is billing interface STATUS = OPEN mml -cp cpx|bcx CHOPE ! Close the billing interface
mml -cp cpx|bcx CHOPI ! Open the billing interface ! Networking & IPN !
ping 192.168.169.1 ! Node A AP1 ping 192.168.170.1 ! Node A AP1 ping 192.168.169.2 ! Node B AP1 ping 192.168.170.2 ! Node B AP1 ping 192.168.169.3 ! Node A AP2 ping 192.168.170.3 ! Node A AP2 ping 192.168.169.4 ! Node B AP2 ping 192.168.170.4 ! Node B AP2
-cp cpx|bcx ALLIP:ALCAT=CP ; ! APZ alarms (OPEN COMMUNICATION ERRORs) -cp cpx|bcx SYRIP:SURVEY; ! Recovery Info (OPEN COMMUNICATION ERRORs) -cp cpx|bcx DIRCP; ! Diagnostic CP events print
-cp cpx|bcx DPWSP; ! CP working state dsdls -a ! AP Directory Service list
cluster netint /prop ! Network interface information
cluster netint /prop | findstr "Public.*Address" ! Get AP nodes IP addresses cluster res "Cluster IP Address" /priv ! Get Cluster I.P. address
ipconfig /all ! NIC setup
netstat -e -s ! networking statistics route print ! routing information netstat -a ! all connections hostname ! get host name
arp -a ! IP/MAC/ethernet addresses
c:\winnt\system32\drivers\etc\hosts ! Hosts file c:\winnt\system32\drivers\etc\services ! Services file c:\Inetsrv\ftproot ! FTP server home dir
Useful MML commands
---ALLIP; ! list all alarms
ALLIP:ALCAT=APZ; ! list APZ alarms (or APT, ALCAT=APT) ALLIP:ALCAT=APZ,ACL=A1; ! list APZ alarms of class A1 ALLIP:PRCA=39; ! APIO related alarms
IOROP; ! CP alarm routing
ALCLP; ! CP alarm class PRINTOUT IOSYP; ! Stand-By device
DPRTP; ! When does the CP run internal checks SYRIP:SURVEY; ! System Recovery Information IOMSP:AP=1,ALL; ! who is logged on the CP IOSTP; ! what devices are logged on the CP ! check for SEIZED devices
IOAFP:IO1=ALL; ! where AF data is being sent in FMS ! Alarm Interface problems !
ALALP; ! ALI status
IOIOP:IO1=AD-1; ! Ensure AD-1 COMMATT is on IOIOP:IO1=AD-2; ! Ensure AD-2 COMMATT is on ALBLI:ALI=x; ! Block ALI (x=0 or 1)
ALBLE:ALI=x; ! Deblock ALI (x=0 or 1) IODAC:ATT; ! Turn on attendance ! FMS commands !
SYBFP:FILE; ! CP Dump list cpfls -ls -cp BCx/CPx ! check of transfer queues !
cdhls -l ! detailed Destination Handling cdhds -l
afpls -l rtrls fdls
! check Timezone !
mtzln -p ! current timezone links tzls ! list of available timezones
mtzln <TIMEZONE from tzls output> 0 ! set new timezone mml "CACLP;" ! CP date & time (SUMMERTIME)
mml "CACLP:ALL;" ! as above + with timezones
! STS !
stmotls ! list all objecttypes and status ! - those with YES under the INCL ! column will be captured.
! - RECORDING should be ON if ! STS is capturing info.
stmotls -l objecttype ! detailed info for objecttyppe stmdbrt -p ! STS recording period
stmttu ! STS translation table update ! MAU (APZ) !
PTCOI; ! initiate CPT access PTWSP; ! Print CP status from CPT PTCOE; ! end CPT access
PTSES; ! separates the SB side of CP PTCPR; ! reboot of CP (APZ21240&50)
PTSRP:REG=FWLIST; ! list the loaded MW (APZ21240&50)
PTCRP:REG=CPSTATUS,PRO=UPBB; ! check if reboot of CP is done (APZ21240&50) ! value had to be 0
! Cluster Resources (with description) ! ACS_ALH_Exec_0 AP Alarm Handler ACS_ALH_Exec_1 AP Alarm Handler
ACS_ALOG_BufMan_0 Audit Log Buffer Manager ACS_ALOG_BufMan_1 Audit Log Buffer Manager ACS_ALOG_Main Audit Log Process
ACS_ALOG_ProcSpwn_0 Audit Log Process Monitor ACS_ALOG_ProcSpwn_1 Audit Log Process Monitor
ACS_CHB_ClockSyncService_0 Syncs AP's Time-of-Day with CP's ACS_CHB_ClockSyncService_1 Syncs AP's Time-of-Day with CP's ACS_CHB_HeartBeatService_0 Heart Beat and CP object service ACS_CHB_HeartBeatService_1 Heart Beat and CP object service ACS_DSD_service_0 Directory & Communication Service
ACS_PRC_ClusterControl_0 Cluster Control ACS_PRC_ClusterControl_1 Cluster Control ACS_PRC_CountReboot_0 Reboot Counter ACS_PRC_CountReboot_1 Reboot Counter ACS_PRC_EventAnalyser_0 Event Analyser ACS_PRC_EventAnalyser_1 Event Analyser
ACS_PRC_IspLogger In Service Performance Logger ACS_SFC_Recovery_0 Soft Function Change Recovery ACS_SFC_Recovery_1 Soft Function Change Recovery ACS_SSU_Monitor_0 System Supervisor Service ACS_SSU_Monitor_1 System Supervisor Service
ACS_SSU_SecMon_0 System Security Supervisor Service ACS_SSU_SecMon_1 System Security Supervisor Service ACS_USA_SyslogAnalyser_0 Systemlog Analyser
ACS_USA_SyslogAnalyser_1 Systemlog Analyser AES_AFP_server AES AP File Processing Service
AES_CDH_server AES Common Destination Handling Service AES_DFO_server AES Direct File Output Service
AP_1
APIO_TFTP_Server Distinct TFTP Server for STOC Network APM_DHCP_Server Microsoft DHCP Server
Cluster IP Address Cluster Name
CPS_BUAP_filemgr CPS Backup/Restore File Manager CPS_BUAP_loader CPS Backup/Restore Loader
CPS_BUAP_parmgr CPS Backup/Restore Parameter Manager CPS_BUFTPD CPS Restore File Transfer Protocol Daemon CPS_BUTFTPD_butftpd CPS Restore Trivial File Transfer Disk Y:
Diskeeper Disks J: K: L: M: Disks N: O: R: S: X: Z:
FMS_CPF_server CP File System Handling Service FOS_FFC FOS Flexible Formatter Service
FOS_FTP FOS FTP Service
FOS_FTP_FileBasedDestination1 FOS FTP InitFTP1 FOS_Messagestore FOS Messagestore service FOS_RPC FOS RPC Service
gthrmain STS Gatherer Service Images
Internal IP Address for SPOE
MAS_CPTASP_cptcentral Central Processor Test MAS_CPTASP_cptheartbeat Central Processor Test MCS_ADH_ADM MCS MML Server
MCS_AIAP_ADM MCS Alphanumeric Terminal Information Server MCS_ALDA_ADM MCS Alarm Display Administration
MCS_ALEC_ADM MCS Alarm External Collection MCS_ALIS_ADM MCS Alarm Interface Services MCS_MTS_ADM MCS MML Telnet Server MPS_ROS_RosService RosService
OCS_IPNAADM IPNA administration service OCS_OCP_echo_0 Echo signalling of CP-AP lans OCS_OCP_echo_1 Echo signalling of CP-AP lans PMCrHW_1 PMCrSDLC_1 Share FMS Share J Share K Share LOGS Share MCS Share N Share O Share R Share S Share X Share Y Share Z
stsmain STS Collection Service
stsopcf STS Output Configuration Service stsprov STS Provisional Service
Time Service
! Backup and Restore !
burbackup -o -p ! backup C:\ -> D:\ burbackup -o ! backup C:\ -> D:\ and M:\
burrestore ! restore D:\ -> C:\ & reboot
burrestore -s ! restore D:\ -> C:\ & don't reboot C:\bur ! Required directory for burbackup
K:\Images\Nodea ! Required directory for burbackup K:\Images\Nodeb ! Required directory for burbackup prcstate ! State of APG = active/passive
prcboot ! Reboot node prcboot -s ! Shutdown node
! Function Changes & Software version ! swrprod ! Summary installed products swrprint ! Detailed installed products swrprint -l ! Long Version of swrprint C:\acs\logs\sfc ! SFC log directory sfcstate ! SFC - current state sfcexec ! SFC - start
sfcend ! SFC - end sfcfb ! SFC - fall back
C:\Program Files\AP\Acs\sys\fch ! FCH directory C:\acs\logs\fch ! FCH log directory
fchstate ! FCH - current state fchcommit ! FCH - commit fchrst ! FCH - restore fchend ! FCH
