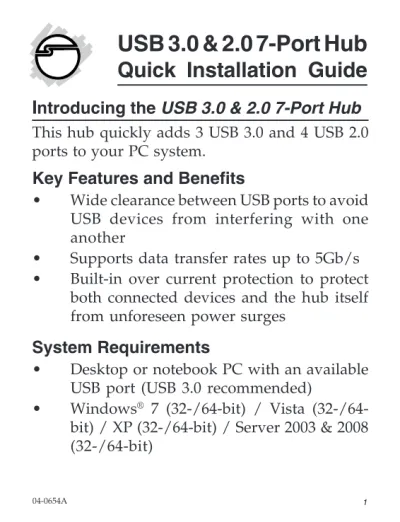

USB 3.0 & 2.0 7-Port Hub
Quick Installation Guide
Introducing the USB 3.0 & 2.0 7-Port Hub
This hub quickly adds 3 USB 3.0 and 4 USB 2.0
ports to your PC system.
Key Features and Benefits
•
Wide clearance between USB ports to avoid
USB devices from interfering with one
another
•
Supports data transfer rates up to 5Gb/s
•
Built-in over current protection to protect
both connected devices and the hub itself
from unforeseen power surges
System Requirements
•
Desktop or notebook PC with an available
USB port (USB 3.0 recommended)
•
Windows
®7 bit) / Vista
Package Contents
•
USB 3.0 & 2.0 7-Port Hub
•
USB 3.0 cable (Type-A to Type-B)
•
Power adapter
•
Quick installation guide
Layout
Power adapter jack Upstream port (Type-B)
USB 3.0 downstream ports
Figure 2: Layout Back
Device Connections
•
Upstream Port (Type-B): connects to an available USB
3.0 port of the computer using the included USB 3.0
cable
•
USB 3.0 downstream ports: connect your USB 3.0
devices here
•
USB 2.0 downstream ports: connect your USB 2.0
devices here
•
Power adapter jack: connect the included power
adapter here
USB 3.0 Cable Connectors
Type-A connector Type-B connector
Figure 3: USB 3.0 Connectors
Installation
Important: This hub only works at USB 3.0 speed
when connected to a USB 3.0 host adapter.
Otherwise it will work as a USB 2.0 or USB 1.1
hub when connected to USB 2.0 or USB 1.1 host
adapter respectively.
1.
Connect the Type-B connector of the
included USB 3.0 cable to the Upstream
port (Type-B) of the hub.
3.
Plug the Type-A connector of the included
USB 3.0 cable into an available USB port
(USB 3.0 recommended) of the computer,
and the driver will install automatically.
4.
The USB 3.0 & 2.0 7-Port Hub is ready for
use.
To Verify Successful Installation
1.
Check in Device Manager to verify
installation.
For Windows 7: Right click Computer, click
Manage, click Device Manager.
For Windows Vista: Right click Computer,
click Manage, click Continue, click Device
Manager.
For Windows XP / Server 2003: Right click
My Computer, click Manage, click Device
Manager.
For Windows Server 2008: Right click
2.
Double click Universal Serial Bus
controllers.
For Windows 7 / Vista / XP
When connected to a USB 3.0 host adapter:
NEC Electronics USB Hub will be listed
three times or Renesas Electronics USB
3.0 Hub will be listed one time and
Renesas Electronics USB 2.0 Hub will be
listed 2 times.
When connected to a USB 2.0 host adapter:
Generic USB Hub should be listed two
times.
For Windows Server 2003 / 2008
Generic USB Hub should be listed two
