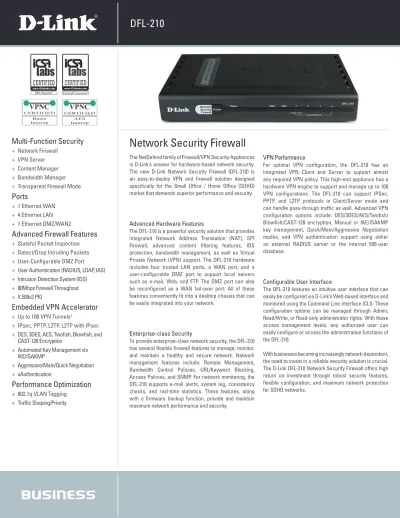

The NetDefend family of Firewall/VPN Security Appliances is D-Link’s answer for hardware-based network security. The new D-Link Network Security Firewall (DFL-210) is an easy-to-deploy VPN and firewall solution designed specifically for the Small Office / Home Office (SOHO) market that demands superior performance and security.
Advanced Hardware Features
The DFL-210 is a powerful security solution that provides integrated Network Address Translation (NAT), SPI Firewall, advanced content filtering features, IDS protection, bandwidth management, as well as Virtual Private Network (VPN) support. The DFL-210 hardware includes four trusted LAN ports, a WAN port, and a user-configurable DMZ port to support local servers such as e-mail, Web, and FTP. The DMZ port can also be reconfigured as a WAN fail-over port. All of these features conveniently fit into a desktop chassis that can be easily integrated into your network.
Enterprise-class Security
To provide enterprise-class network security, the DFL-210 has several flexible firewall features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL/Keyword Blocking, Access Policies, and SNMP. For network monitoring, the DFL-210 supports e-mail alerts, system log, consistency checks, and real-time statistics. These features, along with a firmware backup function, provide and maintain maximum network performance and security.
VPN Performance
For optimal VPN configuration, the DFL-210 has an integrated VPN Client and Server to support almost any required VPN policy. This high-end appliance has a hardware VPN engine to support and manage up to 100 VPN configurations. The DFL-210 can support IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES/3DES/AES/Twofish/ Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or the internal 500-user database.
Configurable User Interface
The DFL-210 features an intuitive user interface that can easily be configured via D-Link’s Web-based interface and monitored using the Command Line Interface (CLI). These configuration options can be managed through Admin, Read/Write, or Read-only administrator rights. With these access management levels, any authorized user can easily configure or access the administrative functions of the DFL-210.
With businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DFL-210 Network Security Firewall offers high return on investment through robust security features, flexible configuration, and maximum network protection for SOHO networks.
Network Security Firewall
Multi-Function Security
+ Network Firewall + VPN Server + Content Manager + Bandwidth Manager + Transparent Firewall Mode
Ports
+ 1 Ethernet WAN + 4 Ethernet LAN + 1 Ethernet DMZ/WAN2
Advanced Firewall Features
+ Stateful Packet Inspection + Detect/Drop Intruding Packets + User-Configurable DMZ Port + User Authentication (RADIUS, LDAP, IAS) + Intrusion Detection System (IDS) + 80Mbps Firewall Throughout + X.509v3 PKI
Embedded VPN Accelerator
+ Up to 100 VPN Tunnels¹
+ IPsec, PPTP, L2TP, L2TP with IPsec + DES, 3DES, AES, Twofish, Blowfish, and
CAST-128 Encryption
Technical Specifications
Firewall Mode of Operation + Layer 3 Mode: Route Mode, NAT Mode + Policy-based NAT + Layer 2 Mode: Transparent Mode + Port Forwarding
+ Network Address Translation (NAT) + Static Address Translation (SAT) + Port Address Translation (PAT) + Time Scheduled Policies
VPN Security + VPN Tunnels: 100 (IPsec, PPTP, L2TP) + IPSec NAT-Traversal
+ IPSec LAN-to-LAN / Roaming User + DHCP over IPSec
+ PPTP/L2TP Server/Client + Encryption Transform: DES, 3DES, AES, Twofish, Blowfish, CAST-128
+ IPsec Hub and Spoke + XAUTH (Extended Authentication) for IPSec
Authentication
Firewall Security + Stateful Packet Inspection (SPI) + RADIUS, LDAP, IAS
+ Policy-based User Authentication + HTTP Traffic Filter: Keyword, URL, Exempt List + DoS/DDoS Attack Protection + Script Filter: Java Applet, Java Scripts, VB Scripts,
Cookies, ActiveX
Network Service + Static IP Address + Static Routes
+ PPPoE for xDSL + Policy-based Routing
+ PPTP/L2TP Client for xDSL + DNS Resolving of Remote Gateway
+ DHCP Client for WAN Interface + Dynamic DNS Poster
+ BigPond Cable, Telia Compliance + Custom Application Layer Gateway
+ Internal DHCP Server + Support for IEEE 802.1q VLAN Tag (8)
+ DHCP Relay + Firewall Policies per VLAN Tag
+ WAN Failover/Load Sharing4 + DHCP Server per VLAN Tag
+ IP Alias
Bandwidth Management + Guaranteed Bandwidth + Policy-based Traffic Shaping
+ Maximum Bandwidth + Time-scheduled Traffic Shaping
+ Priority-bandwidth Utilization + Bandwidth Management in VPN Tunnel
System + SYSLog Support + Simple Network Time Protocol (SNTP)
+ Firewall Configuration Backup + Simple Network Management Protocol (SNMP)
+ E-mail Alerts + Configuration Consistency Checks
+ Management – HTTP/HTTPS/SSH
Intrusion Detection System + NIDS Pattern Auto Update + Attack Alarm via E-mail Notification
Device Ports: + WAN: 1 10/100BASE-TX Port + DMZ/WAN2: 1 10/100BASE-TX Port
+ LAN: 4 10/100BASE-TX Ports + Console Port: Serial COM Port
Diagnostic LED + Power + WAN (Link/Activity per Port)
+ System + DMZ (Link/Activity per Port)
+ LAN (Link/Activity per Port)
Power Input 5VDC, 3.0A Switching External Power Supply
Power Consumption 15 Watts Max.
Dimensions + Item: 9.25” x 6.38” x 1.42” + Packaging: 10.79” x 8.19” x 4.64”
Weight + Item: 1.1 lbs + Packaging: 2.66 lbs
Temperature + Operating: 32°F to 140°F + Storage: -4°F to 158°F
Humidity 5% to 95% (Non-Condensing)
Emission (EMI) + FCC Class A + C-Tick
+ CE
Safety + UL + LVD (EN60950)
+ TUV
Warranty 1-Year Limited²
D-Link Systems, Inc. 17595 Mt. Herrmann Street, Fountain Valley, CA 92708 ©2006-2008 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners. Visit www.dlink.com for more details.
1 Actual performance may vary depending on network conditions and activated services. 2 1-Year Limited Warranty available only in the USA and Canada.
3 The latest software and documentation are available on http://support.dlink.com. 4 DMZ configured as WAN2 required.
Overview
The NetDefend family of Firewall/VPN Security Appliances is D-Link’s answer for hardware-based network security. The new D-Link DFL-800 Network Security Desktop VPN Firewall network security appliance is an easy-to-deploy VPN and firewall solution designed for small-to-medium sized businesses that demand superior performance and security.
Advanced Hardware Features
The DFL-800 is a powerful security solution that provides integrated Network Address Translation (NAT), SPI Firewall, advanced content filtering features, IDS protection, bandwidth management, as well as Virtual Private Network (VPN) support. The DFL-800 hardware includes seven trusted LAN ports, dual-WAN ports for load balancing, and a user-configurable DMZ port to support local servers such as e-mail, Web, and FTP. All of these features conveniently fit into a desktop chassis that can be easily integrated into your network.
Enterprise-class Security
To provide enterprise-class network security, the DFL-800 has several flexible firewall features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL/Keyword Blocking, Access Policies, and SNMP. For network monitoring, the DFL-800 supports e-mail alerts, system log, consistency checks, and real-time statistics. These features along with a firmware backup function provide and maintain maximum network performance and security.
VPN Performance
For optimal VPN configuration, the DFL-800 has both an integrated VPN Client and Server to support almost any required VPN policy. This high-end appliance has a hardware VPN engine to support and manage up to 300 VPN connections. The DFL-800 can support IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES/3DES/AES/Twofish/ Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or the internal 500-user database.
Configurable User Interface
The DFL-800 can be configured via the D-Link Web-based interface and monitored using the Command Line Interface (CLI). These configuration options can be managed through Admin, Read/Write, or Read-Only administrator rights. With these access management levels, any authorized user can easily configure or access the administrative functions of the DFL-800. With businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DFL-800 NetDefend Network Security Desktop VPN Firewall offers high return on investment through robust security features, flexible configuration, and maximum network protection.
NetDefend Network Security Desktop VPN Firewall
Multi-Function Security
+ Network Firewall + VPN Server + Content Manager + Bandwidth Manager + Transparent Firewall Mode
Advanced Firewall Features
+ Stateful Packet Inspection + Detect/Drop Intruding Packets + User-Configurable DMZ Port + User Authentication (RADIUS, LDAP,
IAS)
+ Intrusion Detection System (IDS) + X.509v3 PKI
Embedded VPN Accelerator
+ Up to 300 VPN Tunnels
+ IPsec, PPTP, L2TP, L2TP with IPsec + DES, 3DES, AES, Twofish, Blowfish,
and CAST-128 Encryption + Automated Key Management via
IKE/ISAKMP
+ Aggressive/Main/Quick Negotiation + xAuthentication
Performance Optimization
+ 802.1q VLAN Tagging
+ Dual-WAN Ports for Active Clustering/ Load Balancing
+ Traffic Shaping/Priority
Enhanced Network Services
Technical Specifications
Software
Firewall Mode of Operation + Layer 3 Mode: Route Mode, NAT Mode + Layer 2 Mode: Transparent Mode
+ Network Address Translation (NAT)) + Port Address Translation (PAT) + Static Address Translation (SAT) + Policy-Based NAT
+ Port Forwarding + Time Scheduled Policies
+ Time Scheduled Policies
VPN Security + VPN Tunnels: 300 (IPsec, PPTP, L2TP, L2TP with IPsec) + IPsec LAN-to-LAN / Roaming User
+ PPTP/L2TP Server/Client + IPsec Hub and Spoke
+ IPsec NAT-Traversal + DHCP over IPsec
+ Encryption Transform: DES, 3DES, AES, Twofish, Blowfish,
CAST-128 + XAUTH (Extended Authentication) for IPsec Authentication
Firewall Security + Stateful Packet Inspection (SPI) + Policy-Based User Authentication
+ DoS/DDoS Attack Protection + RADIUS, LDAP, IAS
+ HTTP Traffic Filter: Keyword, URL, Exempt List + Script Filter: Java Applet, Java Scripts, VB Scripts, Cookies, ActiveX
Network Service + Static IP Address + PPPoE for xDSL
+ PPTP/L2TP Client for xDSL + DHCP Client for WAN Interface
+ BigPond Cable, Telia Compliance + Internal DHCP Server
+ DHCP Relay + WAN Failover/Load Sharing
+ IP Alias + Static Routes
+ OSPF Dynamic Routing + Policy-Based Routing
+ DNS Resolving of Remote Gateway + Dynamic DNS Poster
+ Custom Application Layer Gateway + Support for IEEE 802.1q VLAN Tag (16) + Firewall Policies per VLAN Tag + DHCP Server per VLAN Tag
Bandwidth Management + Guaranteed Bandwidth + Maximum Bandwidth
+ Priority-Bandwidth Utilization + Policy-Based Traffic Shaping
+ Time-Scheduled Traffic Shaping + Bandwidth Management in VPN Tunnel
System + SYSLog Support + Firmware Configuration Backup
+ E-mail Alerts + Management – HTTP/HTTPS, SSH
+ Simple Network Time Protocol (SNTP) + Simple Network Management Protocol (SNMP) + Configuration Consistency Checks
Intrusion and Detection System + NIDS Pattern Auto Update + Attack Alarm via E-mail Notification
Physical & Environmental
Diagnostic LEDs + Power + System
+ WAN (Link/Activity per Port) (2) + LAN (Link/Activity per Port) (7) + DMZ (Link/Activity per Port) (1)
Device Ports + WAN: 2 10/100BASE-TX ports + LAN: 7 10/100BASE-TX ports
+ DMZ: 10/100BASE-TX port + Console Port: Serial COM port
Power Input 5VDC, 4.0A switching external power supply
Power Consumption 20 Watts Maximum
Dimensions (W x D x H) 11.0in x 8.43in x 1.73in
Weight 2.8 lbs (Device Only)
Temperature + Operating: 32˚ to 140˚F (0˚ to 60˚C) + Storage: -4˚ to 158˚F (-20˚ to 70˚C)
Humidity 5% ~ 95% (Non-condensing)
Emission (EMI) + FCC Class A + C-Tick
+ CE
Safety + UL + LVD (EN60950)
Warranty 1-Year Limited1
1 1-Year Limited Warranty available only in the USA and Canada.
Overview
The NetDefend family of Firewall/VPN Security Appliances is D-Link’s answer for hardware-based network security. The new DFL-1600 NetDefend Network Security Rackmount VPN Firewall is an easy-to-deploy VPN and firewall solution designed for enterprise and small-to-medium sized businesses that demand superior performance and security.
Advanced Hardware Features
The DFL-1600 is a powerful security solution that provides integrated Network Address Translation (NAT), SPI Firewall, advanced content filtering features, IDS protection, bandwidth management, as well as Virtual Private Network (VPN) support. The DFL-1600 includes six configurable gigabit Ethernet ports that can be used for LAN, WAN, and DMZ. All of these features conveniently fit into a 1U rack-mountable chassis that can be easily integrated into your switch/server rack.
Enterprise-class Security
To provide enterprise-class network security, the DFL-1600 has several flexible firewall features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL/Keyword Blocking, Access Policies, and SNMP. For network monitoring, the DFL-1600 supports e-mail alerts, system log, consistency checks, and real-time statistics. For at a glance monitoring, the 20x2 line LCM display provides hardware status info as well as alert events to enable visual verifications. These features along with a firmware backup function provide and maintain maximum network performance and security.
VPN Performance
For optimal VPN configuration, the DFL-1600 has both an integrated VPN Client and Server to support almost any required VPN policy. This high-end appliance has a hardware VPN engine to support and manage up to 1200 VPN connections. The DFL-1600 can support IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration optionsinclude:DES/3DES/AES/Twofish/Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or the internal 500-user database.
Multiple Network Central Features
Additional network control features supported by the DFL-1600 include 802.1q VLAN tagging and extensive High Availability (HA) features. VLAN tagging supports integration of the DFL-1600 into your rack system with L2/L3 managed switches to segment your network and prioritize traffic. HA options include WAN Fail-Over, Active/Passive Modes, Device Failure Detection, Link Failure Detection, and Session Synchronization. Additionally, support for Active Clustering or Load Balancing optimizes network uptime and performance.
Configurable User Interface
The DFL-1600 can be configured via D-Link’s Web-based interface and monitored using the Command Line Interface (CLI). These configuration options can be managed through Admin, Read/Write, or Read-Only administrator rights. With these access management levels, any authorized user can easily configure or access the administrative functions of the DFL-1600.
With businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DFL-1600 NetDefend Network Security Rackmount VPN Firewall offers high return on investment through robust security features, flexible configuration, and maximum network protection.
NetDefend Network Security Rackmount VPN Firewall
Multi-Function Security
+ Network Firewall + VPN Server + Content Manager + Bandwidth Manager + Transparent Firewall Mode
Advanced Firewall Features
+ Stateful Packet Inspection + Detect/Drop Intruding Packets + Embedded VPN
+ User Authentication (RAIDUS, LDAP, IAS)
+ Intrusion Detection System (IDS) + x.509v3 PKI
Embedded VPN Accelerator
+ Up to 1,200 VPN Tunnels
+ IPsec, PPTP, L2TP, L2TP with IPsec + DES, 3DES, AES, Twofish, Blowfish,
and CAST-128 Encryption + Automated Key Management via
IKE/ISAKMP
+ Aggressive/Main/Quick Negotiation + xAuthentication
Performance Optimization
+ 802.1q VLAN Tagging
+ Dual-WAN Ports for Active Clustering/ Load Balancing
+ Traffic Shaping/Priority
Enhanced Network Services
Technical Specifications
Software
Firewall Mode of Operation + Layer 3 Mode: Route Mode, NAT Mode + Layer 2 Mode: Transparent Mode
+ Network Address Translation (NAT)) + Port Address Translation (PAT) + Static Address Translation (SAT) + Policy-Based NAT
+ Port Forwarding + Server Load Balancing
+ Time Scheduled Policies
VPN Security + VPN Tunnels: 300 (IPsec, PPTP, L2TP, L2TP with IPsec) + IPsec LAN-to-LAN / Roaming User
+ PPTP/L2TP Server/Client + IPsec Hub and Spoke
+ IPsec NAT-Traversal + DHCP over IPsec
+ Encryption Transform: DES, 3DES, AES, Twofish, Blowfish,
CAST-128 + XAUTH (Extended Authentication) for IPsec Authentication
Firewall Security + Stateful Packet Inspection (SPI) + Policy-Based User Authentication
+ DoS/DDoS Attack Protection + RADIUS, LDAP, IAS
+ HTTP Traffic Filter: Keyword, URL, Exempt List + Script Filter: Java Applet, Java Scripts, VB Scripts, Cookies, ActiveX
Network Service + Static IP Address + PPPoE for xDSL
+ PPTP/L2TP Client for xDSL + DHCP Client for WAN Interface
+ BigPond Cable, Telia Compliance + Internal DHCP Server
+ DHCP Relay + WAN Failover/Load Sharing
+ IP Alias + Static Routes
+ OSPF Dynamic Routing + Policy-Based Routing
+ DNS Resolving of Remote Gateway + Dynamic DNS Poster
+ Custom Application Layer Gateway + Support for IEEE 802.1q VLAN Tag (128) + Firewall Policies per VLAN Tag + DHCP Server per VLAN Tag
+ WAN Failover/Load Sharing
Bandwidth Management + Guaranteed Bandwidth + Maximum Bandwidth
+ Priority-Bandwidth Utilization + Policy-Based Traffic Shaping
+ Time-Scheduled Traffic Shaping + Bandwidth Management in VPN Tunnel
System + SYSLog Support + Firmware Configuration Backup
+ E-mail Alerts + Management – HTTP/HTTPS, SSH
+ Simple Network Time Protocol (SNTP) + Simple Network Management Protocol (SNMP) + Configuration Consistency Checks
Intrusion and Detection System + NIDS Pattern Auto Update + Attack Alarm via E-mail Notification
High Availability + Active-Passive HA mode + Network Notification on Failover
+ Device Failure Detection + Configuration Synchronization
+ Firewall/VPN Session Synchronization + Average Failover Time: < 800ms
Physical & Environmental
Diagnostic LEDs + Power + System
+ Gigabit Ethernet (Link/Activity per Port)
Device Ports + Gigabit Ethernet: 6 10/100/1000BASE-T Ports + Console Port: Serial COM port
LCM Module + 20 x 2 Line Liquid Crystal Module + Display HW Status and Events
Power Input AC Input 100 ~ 240VAC 50 ~ 60Hz
Power Consumption 200 Watts Maximum
Dimensions (W x D x H) + 17.3in x 10.0in x 1.73in + 19in 1U Rack Mountable
Weight 8.8 lbs (Device Only)
Temperature + Operating: 32˚ to 140˚F (0˚ to 60˚C) + Storage: -4˚ to 158˚F (-20˚ to 70˚C)
Humidity 5% ~ 95% (Non-condensing)
Emission (EMI) + FCC Class A + C-Tick
+ CE
Safety + UL + LVD (EN60950)
Warranty 1-Year Limited1
1 1-Year Limited Warranty available only in the USA and Canada.
