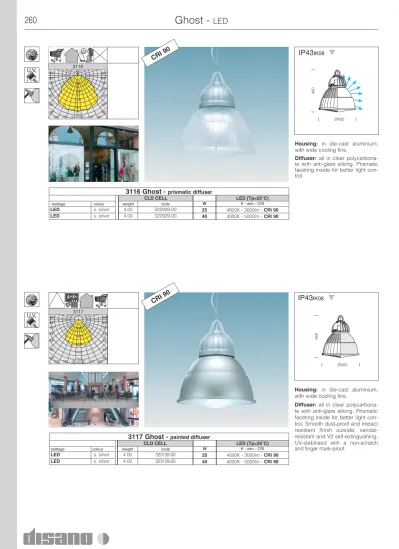

260 Ghost - LED IP43IK08 CRI Ghost - prismatic diffuser CRI Ghost - painted diffuser. with wide cooling fins.

(1)

260 _{Ghost -}

LED

Ø400 460

IP43

IK08 F Ø400 460

IP43

IK08 F 3116 5° 5° 15° 15° 25° 25° 35° 35° 45° 45° 55° 55° 65° 65° 75° 75° 85° 85° 95° 95° 105° 105° 115° 115° 70 140 210 280 350 cd/Klm 3117 5° 5° 15° 15° 25° 25° 35° 35° 45° 45° 55° 55° 65° 65° 75° 75° 85° 85° 95° 95° 105° 105° 115° 115° 150 300 450 600 750 cd/Klm

CRI 90

Housing: in die-cast aluminium,

with wide cooling fins.

Diffuser: all in clear

polycarbona-te with anti-glare silking. Prismatic faceting inside for better light con-trol. Smooth dust-proof and impact resistant finish outside, vandal-resistant and V2 self-extinguishing, UV-stabilised with a non-scratch and finger mark-proof.

Housing: in die-cast aluminium,

with wide cooling fins.

Diffuser: all in clear

polycarbona-te with anti-glare silking. Prismatic faceting inside for better light con-trol.

3117 Ghost -

painted diffuser

CLD CELL LED (Tp=25°C)

wattage colour weight code W K - ølm - CRI

LED s. silver 4.00 323128-00 25 4000K - 3000lm - CRI 90

3116 Ghost -

prismatic diffuser

(2)

261

525 500

IP65

IK08F 1172 5˚ 5˚ 15˚ 15˚ 25˚ 25˚ 35˚ 35˚ 45˚ 45˚ 55˚ 55˚ 65˚ 65˚ 75˚ 75˚ 85˚ 85˚ 95˚ 95˚ 105˚ 105˚ 115˚ 115˚ 150 300 450 600 750 cd/Klm

Argon -

LED

520 110 +30 C° -20

new

SUSPENSION

Housing: die-cast aluminium with

wide cooling fins.

Reflector: pressed prismatic

alumi-nium, anodised (3µ) and polished for higher luminous efficiency.

Diffuser: 5 mm thick, thermal shock

and impact resistant protective tem-pered glass and vandal resistant.

Standard supply: complete with

IP67 airtight connector for mains con-nection.

LED: Power factor ≥0,9

Luminous flux maintenance 70% 50000h (L70B50)

On request: DIMM DALI and

1-10V versions.

acc. 1122

protection guard

0.60 321012-00 Black plastic-coated steel rod protec-tion guard. Screw mounting.

1172 Argon

LED COB s. silver 9.00 322652-00 115 5000K - 15900lm - CRI>70

(3)

262

(4)

263

3333 60 120 180 240 300 15° 30° 30° 45° 45° 60° 60° 75° 75° 90° 90° 105° 105° cd/klm

IP66

IK08 F 790 110 Ø60 790 110 Ø60 110 680 680 680 Ø680 335 680 680 680 680 680 680 3332 3331 3330 24 LED 18 LED 12 LED +40 C° -30 SUSPENSION

Heat sink: the heat dissipation system is specially

designed and made to allow the operation of the LED lights with temperatures ensuring excellent performance/efﬁ ciency and durability.

Photometric performance: designed with an

optical system capable of controlling the poten-tial glare created by the growing light intensity of LEDs while achieving high photometric per-formance.

Disco

LED - suspension

3333 Disco 4

- suspension

CLD CELL LED (Tj=85°C)

wattage 530mA colour weight code W K - ølm 530mA - CRI

LED s. silver 11.50 330030-00 71 4000K - 9720lm - CRI 80

LED s. silver 11.50 330031-00 107 4000K - 14580lm - CRI 80

LED s. silver 12.70 330032-00 142 4000K - 19440lm - CRI 80

On request: possibility for the various options for managing the supply point (see table on p. XVII).

Housing and frame: pressed in

die-cast aluminium and designed with a very small surface exposed to wind. Cooling ﬁ ns are integrated into the cover.

Suspension connection: version

with connector for suspension.

Diffuser: made in plexiglass. Coating: the ﬁ rst stage includes grey

epoxy e-coating, resistant to corro-sion and saline environments. Then the ﬁ xture is coated with an anthracite acrylic based UV-stabilised resin.

Equipment: In case extraordinary

maintenance is needed, the product is supplied with double insulation switch that cuts off electricity when the cover is opened. Automatic temperatu-re control device. In the event of an unexpected LED temperature rise caused by particular weather condi-tions or a LED failure, the system will reduce the luminous ﬂ ux to lower the working temperature and guarantee proper operation.

Standard supply: Supplied with

double insulation switch that cuts off electricity when the cover is opened.

LED: Power factor ≥0,9

Luminous flux maintenance 80% 50000h (L80B50).

(5)

264

120 280 300 19 88 85

Astro

LED - suspension

Housing/Frame: in die-cast

alu-minium with cooling fi ns integrated into the cover and designed with a very small surface exposed to wind.

Diffuser: tempered glass, 4 mm

thick, resistant to thermal shocks and impacts (UNI-EN 12150-1: 2001).

Coating: polyester resin for powder

coating, resistant to corrosion and saline environments.

Standard supply: temperature

con-trol inside the device with automatic resetting. Safety diode to protect against voltage peaks compliant with EN 61547 (4/6KV). Equipped with anti-condensation fi lter; com-plete with quick connection.

LED: Luminous flux maintenance

70% 80000h (L70B20) Power factor ≥0,95.

Dimmable: Standard 1-10V

dim-mer, dimmable from 10% to 100%.

Photometric performance:

desig-ned with an optical system capable of controlling the potential glare cre-ated by the growing light intensity of LEDs while achieving high photo-metric performance.

On request: Presence sensor or

light sensor to wall or ceiling (see acc. Catalogs Disano).

Energy saving: the comparison

shows how Astro can save more energy compared to conventional discharge lamps and meet applica-ble standards.

We recommend using LED techno-logy to save energy in environments where lights stay on for a long time.

fi xture room LUX Qtx P tot W Energy saving

Astro (16 LED) 60m x 40m x 6m 232 40 5000 58%

Refl ector JM-E 250W 60m x 40m x 6m 219 45 12600

fi xture room LUX Qtx Ptot Energy saving

Astro (24 LED) 60m x 40m x 8m 354 40 7480 54%

Refl ector JM-E 400W 60m x 40m x 8m 319 40 17200

acc. 1175

Box

997658-00

To be used when purchasing Astro EM version, with sub-code –07.

acc. 533

adjustable connector

993975-00 Adjustable connector - 120°

(6)

265

163 24 LED 16 LED 12 LED 32 LED 100 Ø462 Ø462 Ø462 Ø512

IP66

IK08 163 24 LED 16 LED 12 LED 32 LED 100 Ø462 Ø462 Ø462 Ø512

IP66

IK08

new

1789 5° 5° 15° 15° 25° 25° 35° 35° 45° 45° 55° 55° 65° 65° 75° 75° 85° 85° 95° 95° 105° 105° 115° 115° 150 300 450 600 750 cd/Klm

new

1788 5° 5° 15° 15° 25° 25° 35° 35° 45° 45° 55° 55° 65° 65° 75° 75° 85° 85° 95° 95° 105° 105° 115° 115° 250 500 750 1000 1250_cd/Klm +40 C° -30 +40 C° -30 EN EC EN_EC SUSPENSION

Optics: in high-performance metallic

V0 polycarbonate with micro-faceted ﬁ nish.

Astro

LED - suspension

Optics: made of PMMA with high

tem-perature resistance and UV rays.

1788 Astro

- suspension - narrow beam

CLD CELL-D (1-10V) CLD CELLD-E LED (Tj=85°C)

wattage 700mA colour weight code code W K - ølm 700mA - CRI

LED s. silver 11.10 330086-00 330086-07 94 4000K - 12960lm - CRI 80 LED graphite 11.10 330087-00 330087-07 LED s. silver 11.10 330080-00 330080-07 125 4000K - 17280lm - CRI 80 LED graphite 11.10 330083-00 330083-07 LED s. silver 12.00 330081-00 330081-07 187 4000K - 25920lm - CRI 80 LED graphite 12.00 330084-00 330084-07 LED s. silver 12.50 330082-00 330082-07 ₂₅₀ 4000K - 34560lm - CRI 80 LED graphite 12.50 330085-00 330085-07

Use Box acc.1175 - code 997658-00, when purchasing Astro EM version, with sub-code –07.

1789 Astro

- suspension - wide beam

CLD CELL-D (1-10V) CLD CELLD-E LED (Tj=85°C)

wattage 700mA colour weight code code W K - ølm 700mA - CRI

LED s. silver 11.10 330096-00 330096-07 94 4000K - 12960lm - CRI 80 LED graphite 11.10 330097-00 330097-07 LED s. silver 11.10 330090-00 330090-07 ₁₂₅ 4000K - 17280lm - CRI 80 LED graphite 11.10 330093-00 330093-07 LED s. silver 12.00 330091-00 330091-07 187 4000K - 25920lm - CRI 80 LED graphite 12.00 330094-00 330094-07 LED s. silver 12.50 330092-00 330092-07 250 4000K - 34560lm - CRI 80 LED graphite 12.50 330095-00 330095-07
