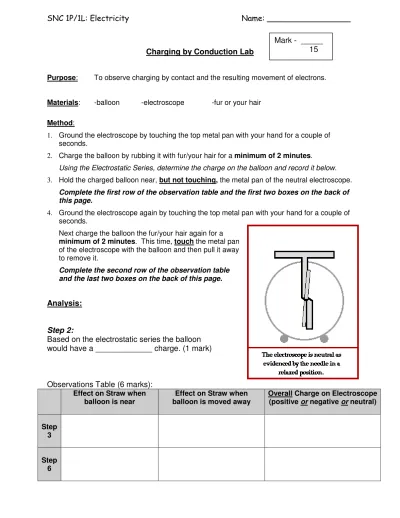

Charging by Conduction Lab

SNC 1P/1L: Electricity Name: _________________

Charging by Conduction Lab

Purpose

:

To observe charging by contact and the resulting movement of electrons.

Materials

:

-balloon

-electroscope

-fur or your hair

Method

:

1.

_{Ground the electroscope by touching the top metal pan with your hand for a couple of}

seconds.

2.

_{Charge the balloon by rubbing it with fur/your hair for a}

_{minimum of 2 minutes}

_.

Using the Electrostatic Series, determine the charge on the balloon and record it below.

3.

_{Hold the charged balloon near,}

_{but not touching,}

_{the metal pan of the neutral electroscope.}

Complete the first row of the observation table and the first two boxes on the back of

this page.

4.

_{Ground the electroscope again by touching the top metal pan with your hand for a couple of}

seconds.

Next charge the balloon the fur/your hair again for a

minimum of 2 minutes

. This time,

touch

the metal pan

of the electroscope with the balloon and then pull it away

to remove it.

Complete the second row of the observation table

and the last two boxes on the back of this page.

Analysis:

Step 2:

Based on the electrostatic series the balloon

would have a _____________ charge. (1 mark)

Observations Table (6 marks):

Effect on Straw when

balloon is near

Effect on Straw when

balloon is moved away

Overall Charge on Electroscope

(positive

or

negative

or

neutral)

Step

3

Step

6

SNC 1D: Electricity

Name:

Explanation

Diagram

Step 3

Describe the movement of electric charges and

indicate the resulting charge on each object.

(2 marks)

Draw charges on each object to show their

overall charge, and add arrows to indicate

any movement of charge. Also, draw in the

straw of the electroscope to show its

position (2 marks)

Step 4

Describe the movement of electric charges and

indicate the resulting charge on each object.

(2 marks)

Draw charges on each object to show their

overall charge, and add arrows to indicate

any movement of charge. Also, draw in the
