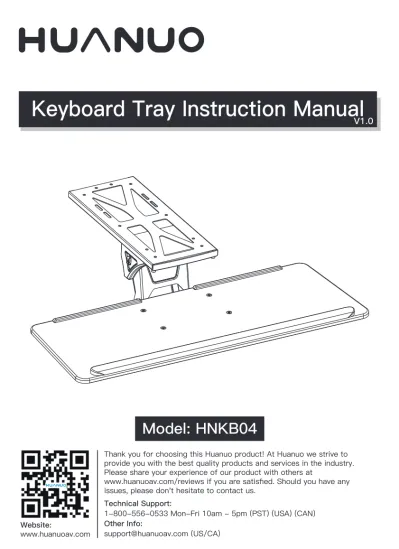

Keyboard Tray Instruction Manual

Model: HNKB04

Keyboard Tray Instruction Manual

Thank you for choosing this Huanuo product! At Huanuo we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at

www.huanuoav.com/reviews if you are satisfied. Should you have any

issues, please don't hesitate to contact us.

Technical Support:

1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN) Other Info:

[email protected] (US/CA) Website:

IMPORTANT SAFETY INFORMATION

Please carefully read all manual before use the product. If you do not

understand the manual or have any concerns or questions about the safety of

the use, please contact our Technical Support line at 1-800-556-0533 or

customer service at [email protected].

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. lf you require replacement parts, please

contact our Technical Support line at 1-800-556-0533 or customer service at [email protected].

Do not use this product for any purpose that is not explicitly specified in this

manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.

CAUTION: Avoid potential personal injuries and property damage!

Warning: Before the drilling, please check your table thickness is greater than

25/32in.(20mm) to prevent damage to your table.

Specifications & Weight Restrictions

+20°

13.8-22.6in. (350-575mm)

26.1in. (664mm)

9.6in.

(245mm)

-16°

8.9in. (225mm)

4.5in. (115mm)

13.3in. (337mm）

5.9in. (149mm)

2.2lbs

/1kg

Tilt

Supplied Parts and Hardware

Tools Needed (Not lncluded)

[A] x8 Screw ST4.8x20mm [B] x8 Washer M5 [C] x2 Bolt M4x8mm [D] x4 Bolt M5x12mm [E] x2 Cable Clip [01] x1

Bottom Plate Plastic Cap[02] x1 Connector[03] x4

[05] x1

Keyboard Tray Support Keyboard Tray[06] x1 Long Pad[07] x4

[04] x8

Bolt M5x6mm

Tape Measure Pencil Drill 5/64in. (2mm)_{Wood Drill Screwdriver}Philips

Option A: For Unobstructed Table Installation

Step 1 Install the Bottom Plate to the Table

For unobstructed table installation, follow Option A

For table with beams installation, follow Option B or Option C

Attention: Install the bottom plate where the keyboard tray should be installed.

1 3/8in.(35mm)

A-1

Position the bottom plate [01] at your desired place. Reserve

1 3/8in.(35mm) spacing

between the bottom plate edge and the table edge and mark the positions for drilling

Drill 6 pilot holes using a

5/64 in. (2mm) diameter

drill bit.

Install the bottom plate [01] under the table with screws [A] and washers [B], and then tighten the screws.

ø5/64 in. (2mm) 45/64 in. (18mm)

A-2

A-3

Note:The bottom plate opening should be outward during the installation.

B

A

Option B: For Table with Beams Installation

B-1

[03]

[04]

Install the bottom plate [01] under the table with screws [A] and washers [B], and then tighten the screws.

2 11/64in. (55mm)

B

A

Drill 8 pilot holes using a

5/64 in. (2mm) diameter drill bit. ø5/64 in. (2mm) 45/64 in. (18mm)

B-2

B-3

B-4

Position the bottom plate [01] at your desired place.

Reserve 2 11/64in. (55mm)

spacing between the bottom plate edge and the table edge and mark the positions for drilling

Option C: For Table with Beams Installation

C-1

[03]

[04]

Drill 6 pilot holes using a

5/64 in. (2mm) diameter drill bit. ø5/64 in. (2mm) 45/64 in. (18mm)

C-2

C-3

Position the bottom plate [01] at your desired place. Reserve

2 11/64in. (55mm) spacing

between the bottom plate edge and the table edge and mark the positions for drilling

[05]

[02]

C-4

B

A

Install the bottom plate [01] under the table with screws [A] and washers [B], and then tighten the screws.

Step 2 Secure the Keyboard Tray Support to Bottom Plate

Install the keyboard tray support [05] to the bottom plate opening.

Install the plastic cap [02] to the bottom plate opening.

Tighten the bolt [C]

Phillips Screwdriver (Not Included)

D

Step 3 Secure the Keyboard Tray to the Keyboard Tray Support

Step 4 Adjust the Keyboard Tray

Choose to install the long pad or not according to your needs.

Tighten the bolts [D]

Note:If the keyboard tray can’t match with the mounting holes, please loosen the knob in the lower right before installation.

[07]

Please loosen the knob, then adjust the height of the keyboard tray for using it in comfort. Tighten the knob after adjusting.

Please loosen the knob, then adjust the tilt angle of the keyboard tray for using it in comfort, tighten the knob after adjusting.

Knob

Knob

Tilt Adjustment

Height Adjustment

Step 5 Manage the Cables

Manage cables: Fix the mouse cable to the table board with cable clip [E]. There is a sticky pad on this side to

organize and fix the cable on the table.

1

2

2
