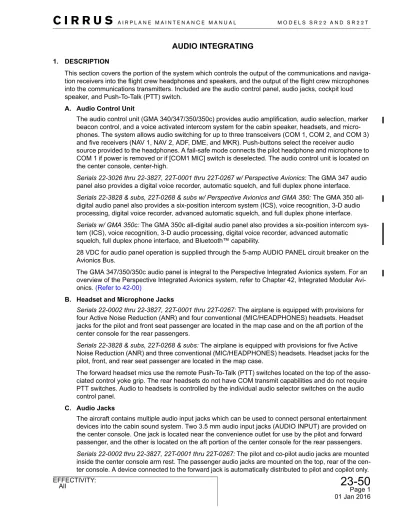

AUDIO INTEGRATING. EFFECTIVITY: All

(1)

23-50

Page 1 All EFFECTIVITY:

AUDIO INTEGRATING

1. DESCRIPTION

This section covers the portion of the system which controls the output of the communications and naviga-tion receivers into the flight crew headphones and speakers, and the output of the flight crew microphones into the communications transmitters. Included are the audio control panel, audio jacks, cockpit loud speaker, and Push-To-Talk (PTT) switch.

A. Audio Control Unit

The audio control unit (GMA 340/347/350/350c) provides audio amplification, audio selection, marker beacon control, and a voice activated intercom system for the cabin speaker, headsets, and micro-phones. The system allows audio switching for up to three transceivers (COM 1, COM 2, and COM 3) and five receivers (NAV 1, NAV 2, ADF, DME, and MKR). Push-buttons select the receiver audio source provided to the headphones. A fail-safe mode connects the pilot headphone and microphone to COM 1 if power is removed or if [COM1 MIC] switch is deselected. The audio control unit is located on the center console, center-high.

Serials 22-3026 thru 22-3827, 22T-0001 thru 22T-0267 w/ Perspective Avionics: The GMA 347 audio panel also provides a digital voice recorder, automatic squelch, and full duplex phone interface. Serials 22-3828 & subs, 22T-0268 & subs w/ Perspective Avionics and GMA 350: The GMA 350 all-digital audio panel also provides a six-position intercom system (ICS), voice recognition, 3-D audio processing, digital voice recorder, advanced automatic squelch, and full duplex phone interface. Serials w/ GMA 350c: The GMA 350c all-digital audio panel also provides a six-position intercom sys-tem (ICS), voice recognition, 3-D audio processing, digital voice recorder, advanced automatic squelch, full duplex phone interface, and Bluetooth™ capability.

28 VDC for audio panel operation is supplied through the 5-amp AUDIO PANEL circuit breaker on the Avionics Bus.

The GMA 347/350/350c audio panel is integral to the Perspective Integrated Avionics system. For an overview of the Perspective Integrated Avionics system, refer to Chapter 42, Integrated Modular Avi-onics. (Refer to 42-00)

B. Headset and Microphone Jacks

Serials 22-0002 thru 22-3827, 22T-0001 thru 22T-0267: The airplane is equipped with provisions for four Active Noise Reduction (ANR) and four conventional (MIC/HEADPHONES) headsets. Headset jacks for the pilot and front seat passenger are located in the map case and on the aft portion of the center console for the rear passengers.

Serials 22-3828 & subs, 22T-0268 & subs: The airplane is equipped with provisions for five Active Noise Reduction (ANR) and three conventional (MIC/HEADPHONES) headsets. Headset jacks for the pilot, front, and rear seat passenger are located in the map case.

The forward headset mics use the remote Push-To-Talk (PTT) switches located on the top of the asso-ciated control yoke grip. The rear headsets do not have COM transmit capabilities and do not require PTT switches. Audio to headsets is controlled by the individual audio selector switches on the audio control panel.

C. Audio Jacks

The aircraft contains multiple audio input jacks which can be used to connect personal entertainment devices into the cabin sound system. Two 3.5 mm audio input jacks (AUDIO INPUT) are provided on the center console. One jack is located near the convenience outlet for use by the pilot and forward passenger, and the other is located on the aft portion of the center console for the rear passengers. Serials 22-0002 thru 22-3827, 22T-0001 thru 22T-0267: The pilot and co-pilot audio jacks are mounted inside the center console arm rest. The passenger audio jacks are mounted on the top, rear of the cen-ter console. A device connected to the forward jack is automatically distributed to pilot and copilot only.

(2)

23-50

Page 2 All

EFFECTIVITY:

The rear jack is automatically distributed to rear passengers audio only. Volume is controlled by the connected entertainment device.

Serials 22-3828 & subs, 22T-0268 & subs: The pilot and co-pilot audio jacks are mounted inside the center console arm rest. The passenger audio jacks are mounted inside the center console arm rest and on the top, rear of the center console. Distribution of a device connected to the forward jack is through the MUS 1 selection on the audio panel. Distribution of the rear jack is by the MUS 2 selection on the audio panel. A third jack on the audio panel will also accept an entertainment input. A device connected to this jack is distributed by selecting the ENTERTAINMENT button (shown as a phone and music-note symbol) on the audio panel. Audio volume can be controlled by the device itself and can be further refined by the audio panel distribution volume control.

D. Cell Phone Input Jack

Serials 22-0002 thru 22-3827, 22T-0001 thru 22T-0267: One 2.5 mm cell phone jack (CELL PHONE INPUT) is provided on the aft portion of the center console near the convenience outlet and is distrib-uted by the TEL selection on the audio panel.

Serials 22-3828 & subs, 22T-0268 & subs: One 2.5 mm cell phone jack is located on the front of the audio panel and is distributed by selecting the ENTERTAINMENT button (shown as a phone and music-note symbol) on the audio panel. Volume is controlled by the volume selector on the audio panel.

E. Push-To-Talk (PTT) Switch

Push-To-Talk (PTT) switches, mounted on the control yokes, allow the pilot and co-pilot to transmit over the selected transceiver.

Serials w/o Perspective Avionics after SB 2X-23-01: A Rear Push-To-Talk jack has been installed on the aft left side of the center console to allow rear passenger push-to-talk capabilities.

(3)

23-50

Page 3 All

EFFECTIVITY:

F. Troubleshooting

Trouble - PA Probable Cause Remedy

Loud squeal is heard while testing PA.

Too much acoustic feedback between the speaker and the mic.

Place speaker and mic further apart.

Use lower volume configuration.

Trouble - Headphones Probable Cause Remedy

Stereo headsets operating with monaural signal.

Any stereo listener loses one channel when another passenger plugs in a monaural headset.

Replace monaural headset with stereo headset.

Trouble - COM Operation - Serials 22-0002 thru 22-3827,

22T-0001 thru 22T-0267

Probable Cause Remedy

When the pilot or the co-pilot transmit, no audio is heard on any other receiver.

Transmit interock is active. The pilot is communicating while the co-pilot transmits on another radio, and all pilot reception is cut off during the time of co-pilot trans-mission.

Deactivate transmit interlock.

Trouble - 3D Audio - Serials 22-3828 & subs w/ Perspective

Avionics, 22T-0268 & subs

Probable Cause Remedy

“3D audio left” message heard in both ears.

“3D audio right” message not heard.

Mono headset in use. Use a stereo headset.

Stereo headset in use with mono/ stereo switch set to ‘mono’.

Set mono/stereo switch on head-set to ‘stereo’.

Aircraft wiring has left audio wired to both left and right channels of stereo headset jack.

Inspect/correct wiring. This wiring fault can cause fail-safe audio not to function.

“3D audio left” message heard in both ears, followed by “3D audio right” message heard in both ears.

Mono headset in use. Use a stereo headset.

Stereo headset in use with mono/ stereo switch set to ‘mono’.

Set mono/stereo switch on head-set to ‘stereo’.

Incorrect aircraft wiring (left/right shorted together).

“3D audio right” message heard in both ears. “3D audio left” not heard.

Incorrect aircraft wiring (right channel used for mono instead of left or left/ right swapped).

(4)

23-50

Page 4 All

EFFECTIVITY: “3D audio left” message heard in

right ear only followed by “3D audio right” message heard in left ear only.

Stereo headset is on backwards. Verify correct orientation from the left/right indication on each side of the headset or the position of the boom mic (usually attached on left side).

If the headset is backwards left/ right position information will be swapped.

Incorrect aircraft wiring (left/right channels swapped).

“3D audio left” message heard in left ear only, no audio heard in right ear.

Aircraft wired for mono intercom. Wire the installation for stereo headsets.

“3D audio right” message heard in right ear only, no audio heard in left ear.

Incorrect aircraft wiring (right channel used for mono instead of left, or left/right swapped).

Trouble - 3D Audio - Serials 22-3828 & subs w/ Perspective

Avionics, 22T-0268 & subs

(5)

23-50

Page 5 Serials w/o Perspective Avionics

EFFECTIVITY:

2. MAINTENANCE PRACTICES

A. GMA 340 Audio Control Unit - Serials w/o Perspective Avionics (See Figure 23-501)

(1) Removal - GMA 340 Audio Control Unit

(a) Set BAT 1, BAT 2, and AVIONICS switches to OFF positions. (b) Insert allen wrench into front panel bolt hole and engage allen bolt.

(c) Turn locking screw counter-clockwise to loosen locking cam. Cam will move the trans-ceiver unit out 1/4-inch and disengage from the electrical connectors.

(d) Remove audio control unit from mounting tray. (2) Installation - GMA 340 Audio Control Unit

(a) With light to medium pressure, push audio control unit into mounting tray to engage elec-trical connectors.

(b) Insert allen wrench into front panel bolt hole and engage allen bolt. (c) Turn bolt clockwise to tighten locking cam.

(d) Perform Functional Test - GMA Audio Control Unit. (Refer to 23-50)

(e) Perform Operational Test - GMA Audio Control Unit. (Refer to 23-50)

(3) Functional Test - GMA 340 Audio Control Unit

Note: Tests should be performed using stereo headsets (set to stereo) and a stereo music source.

(a) Pull STARTER RELAY and FUEL PUMP RELAY circuit breakers. (b) Connect 28 ±1 VDC external power to external power receptacle. (c) Set BAT 1, BAT 2, and AVIONICS switches to ON positions. (d) On audio control unit, set [PILOT] knob to OFF position. (e) Ensure proper operation of the fail-safe function.

1 Select local ATIS frequency in the active frequency on COM 1. 2 Listen with pilot's headset and verify proper reception.

3 Select unused frequency in the active frequency on COM 1. Select same frequency on COM 2.

4 On LH yoke, momentarily press PTT switch and verify TX (transmit) symbol on COM 1 and RX (receive) symbol on COM 2.

(f) Test lights.

1 On audio control unit, set inner volume dials on [PILOT] knob to ON position.

2 Press [TEST].

3 Verify all LED button annunciators and marker lamps illuminate.

4 While holding [TEST], cover photocell on front panel and verify that annunciator lights dim.

5 For INTERIOR/LIGHTS on the bolster panel, adjust INSTRUMENT knob.

6 Verify that instrumentation lighting is functioning and that intensity varies with adjust-ments to INSTRUMENT knob.

(g) Test intercom system.

1 On audio control unit, deselect [PILOT] and [CREW] to set intercom (ICS) to ALL mode.

2 Verify [PILOT] and [CREW] lights are off.

3 Plug in headsets at each position, including ANR headset jacks.

4 For pilot position, adjust outer squelch dial on [PILOT] knob and inner volume dial on [PILOT] knob to verify intercom system is working properly.

5 For co-pilot position, adjust outer squelch dial on [COPILOT] knob and inner volume dial on [COPILOT] knob to verify intercom system is working properly.

(6)

23-50

EFFECTIVITY:

6 For rear passengers, pull out inner volume dial on [COPILOT] knob to verify inter-com system is working properly.

(h) Test headsets.

1 On GNS 430, set COM 1 and COM 2 to local ATIS frequency.

2 On audio control unit, press [COM1], then verify only [COM1] is selected. 3 Verify audio is heard in headsets. Repeat for [COM2].

4 On GNS 430, set active frequency for COM 1 and COM 2 to unused frequency. 5 On audio control unit, select [COM1] and [COM2].

6 Verify [COM1] and [COM2] lights are on.

7 Operate roll and pitch trim motors to verify no interference is heard in headsets or either COM displays RX.

8 On LH yoke, momentarily press PTT switch.

9 On GNS 430 for NAV 1, verify TX (transmit) symbol on COM 1 and RX (receive) symbol on COM 2.

10 Set outer COM/VLOC dial on [C/V] knob to local VOR frequency.

11 On audio control unit, press [NAV1], then verify audio is heard in headsets. 12 On GNS 430 for NAV 1, press [V] knob for VLOC volume to toggle

ENABLE/DIS-ABLE identification tone.

13 Verify ID tone (morse code) is heard. Repeat for NAV 2 if GNC 420 is not installed. (i) Test cabin speaker.

1 On audio control unit, press [SPKR], then verify any selected airplane radio audio is heard over cabin speaker.

2 Press [PA], then verify microphone audio is heard over cabin speaker when corre-sponding mic key is pressed.

(j) Test music system.

1 Connect a stereo music source to AUDIO INPUT 1.

4 Verify stereo music is heard in all headset jacks and that music is muted when ICS squelch is broken.

5 Verify music is muted when any airplane radio audio is being received or PTT switch on LH yoke is pressed.

6 Select [PILOT] to set intercom (ICS) to PILOT mode. 7 Verify [PILOT] light is on and [CREW] light is off.

8 Verify AUDIO INPUT 1 is heard on all but pilot's headset.

9 Select [PILOT] and [CREW] to set intercom (ICS) to CREW mode. 10 Verify [PILOT] and [CREW] lights are on.

11 Verify AUDIO INPUT 1 is heard on pilot's & co-pilot's, but not rear passenger head-sets.

13 Select [CREW] and deselect [PILOT] to set intercom (ICS) to CREW mode. 14 Verify [CREW] light is on and [PILOT] light is off.

15 Verify stereo music is heard in passenger headsets, but not in pilot's or co-pilot's headsets.

16 Set BAT 1, BAT 2, and AVIONICS switches to OFF positions.

17 Disconnect 28 ±1 VDC external power from external power receptacle.

18 Reset STARTER RELAY and FUEL PUMP RELAY circuit breakers.

(7)

23-50

EFFECTIVITY:

CAUTION: Verify proper operation of marker beacon under VFR conditions.

(a) After installing audio control unit, conduct a performance flight test to ensure satisfactory performance of audio and marker beacon receiver functions. Verify proper operation of the marker lamps and marker audio including marker audio mute function. Check proper oper-ation of the sensitivity selection (using [SENS]) by flying towards the outer marker position initially using HI sensitivity. When OM audio is just barely audible, switching to LO sensitiv-ity should reduce or eliminate the audio.

(b) The following adjustments can be made via access holes in top cover of the audio panel:

1 Marker beacon audio level

2 Airplane radio speaker output level 3 Pilot PA microphone speaker output level 4 Copilot PA microphone speaker output level

(8)

23-50

Page 8 Serials 22-3026 thru 22-3827 w/ Perspective Avionics, _{22T-0001 thru 22T-0267}

EFFECTIVITY:

B. GMA 347 Audio Control Unit - Serials 22-3026 thru 22-3827 w/ Perspective Avionics, 22T-0001 thru 22T-0267 (See Figure 23-501)

(1) Removal - GMA 347 Audio Control Unit

(d) Remove audio control unit from mounting tray. (2) Installation - GMA 347 Audio Control Unit

(d) If GMA 347 has been replaced with a new or different unit, or original unit has been repaired, perform Functional Test - GMA 347 Software and Configuration Loading. (Refer to 23-50)

(e) Perform Operational Test - GMA 347 Audio Control Unit. (Refer to 23-50)

(3) Adjustment/Test - GMA 347 Software and Configuration Loading

Note: No software or configuration loading is required if the original GMA 347 is rein-stalled. This does not include units that were returned for repair as the software and configuration files are deleted during the repair testing process.

If a new, repaired, or exchange GMA 347 is installed, load software and configura-tion files from the Cirrus Perspective software loader card.

(a) Connect 28 ±1 VDC external power to external power receptacle. (b) Pull STARTER and FUEL PUMP circuit breakers.

CAUTION: Failure to remove database cards may result in cards becoming corrupted. (c) Remove SD cards from top and bottom slots of MFD and PFD.

(d) Insert Cirrus Perspective software loader card into top slot of PFD. (e) Power on PFD and MFD in Configuration mode.

1 While holding far right softkey on PFD and MFD, set BAT 1 and AVIONICS switches to ON positions.

2 When “INITIALIZING SYSTEM” appears in upper left corner of displays, release softkeys.

3 On PFD, press [NO] softkey at “DO YOU WANT TO UPDATE SYSTEM FILES?”

prompt.

4 On PFD, press [NO] softkey at “DO YOU WANT TO UPDATE SYSTEM SPLASH

SCREEN?”

(f) After System Status page appears on PFD, use inner [FMS] knob to select System Upload page.

(g) Press inner [FMS] knob to activate cursor.

(h) Rotate inner [FMS] knob to display list of AIRFRAME choices, highlight appropriate air-frame model in pop-up window, then press [ENT] key.

(i) In FILE window, rotate inner [FMS] knob to display list of FILE choices, highlight appropri-ate airframe configuration file in pop-up window, then press [ENT] key.

(9)

23-50

Page 9 Serials 22-3026 thru 22-3827 w/ Perspective Avionics,

22T-0001 thru 22T-0267 EFFECTIVITY:

Note: Pressing [ENT] key will check and uncheck highlighted software and config-uration boxes.

(k) Using [FMS] knob and [ENT] key, select the following files: • GMA software

• GMA configuration

(l) Once files are selected, press [LOAD] softkey.

(m) When upload is complete, press [ENT] key to select OK in UPLOAD COMPLETE window. (n) Move curser to AIRFRAME window, rotate inner [FMS] knob to display list of AIRFRAME

choices, highlight “Options” in pop-up window, then press [ENT] key.

(o) In FILE window, rotate inner [FMS] knob to display list of FILE choices, load appropriate files based on aircraft optional equipment.

• KR87 ADF – GMA Configuration file • KN63 DME – GMA Configuration file

(p) Set BAT 1 and AVIONICS switches to OFF positions.

CAUTION: Wait for “flash” of display screens or 5 seconds to ensure backup capacitors have discharged before removing software loader card.

(q) Remove Cirrus Perspective software loader card from PFD. (r) Insert SD cards into top and bottom slots of MFD and PFD.

(s) Reset STARTER RELAY and FUEL PUMP RELAY circuit breakers.

(t) Disconnect 28 ±1 VDC external power from external power receptacle. (4) Operational Test - GMA 347 Audio Control Unit

(a) Pull STARTER RELAY and FUEL PUMP RELAY circuit breakers. (b) Connect 28 ±1 VDC external power to external power receptacle. (c) Set BAT 1, BAT 2, and AVIONICS switches to ON positions. (d) Test lights.

1 On audio control unit, set PILOT intercom volume knob to ON position. 2 Verify all annunciator lights temporarily illuminate during power up. 3 Cover photocell on front panel and verify that annunciator lights dim.

4 On bolster switch panel, adjust INSTRUMENT dimmer switch. Verify that instrumen-tation lighting is functioning and that intensity varies with adjustments to INSTRU-MENT dimmer switch.

(e) Ensure proper operation of the fail-safe function. 1 Pull AUDIO PANEL circuit breaker.

2 On PFD, select local ATIS frequency for the active COM 1 frequency. 3 Listen with pilot's headset and verify proper reception.

4 ON PFD, select an unused frequency for the active frequency of both COM 1 and COM 2.

(10)

23-50

Page 10 Serials 22-3026 thru 22-3827 w/ Perspective Avionics, _{22T-0001 thru 22T-0267}

EFFECTIVITY: (f) Test intercom system.

4 For pilot position, adjust outer squelch dial on [PILOT] knob and inner volume dial on [PILOT] knob to verify intercom system is working properly.

5 For co-pilot position, adjust outer squelch dial on [COPILOT] knob and inner volume dial on [COPILOT] knob to verify intercom system is working properly.

6 For rear passengers, pull out inner volume dial on [COPILOT] knob to verify inter-com system is working properly.

(g) Test headsets.

1 Set COM 1 to local ATIS frequency.

2 On audio control unit, press [COM1], then verify audio is heard in headsets. 3 Set COM 2 to local ATIS frequency.

4 On audio control unit, press [COM2], then verify audio is heard in headsets. 5 Select an unused frequency in the active frequency for both COM 1 and COM 2. 6 On audio control unit, select [COM1] and [COM2].

7 Verify [COM1] and [COM2] lights are on.

8 Operate roll and pitch trim motors to verify no interference is heard in headsets and neither COM 1 or COM 2 display RX on PFD.

9 On audio control unit, select [COM1 MIC] and [COM2]. 10 Verify [COM1 MIC] and [COM2] lights are on.

11 On LH yoke, momentarily press PTT switch.

12 On PFD, verify TX (transmit) symbol on COM 1 and RX (receive) symbol on COM 2. 13 On audio control unit, press [NAV1], then verify audio is heard in headsets.

14 On MFD, press IDENT key to enable/disable IDENT tone. Verify ID tone (morse code) is heard.

15 On audio control unit, press [NAV2], then verify audio is heard in headsets. 16 On MFD, press IDENT key to enable/disable IDENT tone. Verify ID tone (morse

code) is heard. (h) Test cabin speaker.

1 On audio control unit, press [SPKR], then verify selected airplane radio audio is heard over cabin speaker.

2 Press and hold [SPKR] for 2 seconds, then verify microphone audio is heard over cabin speaker when corresponding mic key is pressed.

(i) Test digital voice recorder.

1 Allow COM1 to operate for at least two and a half minutes of active operation. 2 Press PLAY key once to play back latest recorded memory block of COM1 audio. 3 Press PLAY key again to play previous memory block of COM1 audio. Repeat until

listening to first block of audio (a total of 2.5 minutes of audio is recorded). (j) Test music system.

2 On audio control unit, deselect [PILOT] and [COPLT] to set intercom (ICS) to ALL mode.

3 Verify [PILOT] and [COPLT] lights are off.

(11)

23-50

Page 11 Serials 22-3026 thru 22-3827 w/ Perspective Avionics,

22T-0001 thru 22T-0267 EFFECTIVITY:

5 Verify music is only muted when any airplane radio audio is being received or PTT switch on LH yoke is pressed and squelch is broken, but not during normal cabin conversation.

6 Select [PILOT] to set intercom (ICS) to PILOT mode. 7 Verify [PILOT] light is on and [COPLT] light is off.

8 Verify AUDIO INPUT 1 is heard on co-pilot headset only.

9 Select [PILOT] and [COPLT] to set intercom (ICS) to CREW mode. 10 Verify [PILOT] and [COPLT] lights are on.

11 Verify AUDIO INPUT 1 is not heard on pilot's & co-pilot's. 12 Connect a stereo music source to AUDIO INPUT 2.

13 Verify stereo music is heard in passenger headsets, but not in pilot's or co-pilot's headsets.

14 Set BAT 1, BAT 2, and AVIONICS switches to OFF positions.

(12)

23-50

Page 12 Serials 22-3828 & subs w/ Perspective Avionics, 22T-_{0268 & subs}

EFFECTIVITY:

C. GMA 350 / GMA 350c Audio Control Unit - Serials 22-3828 & subs w/ Perspective Avionics, 22T-0268 & subs (See Figure 23-501)

(1) Removal - GMA 350(c) Audio Control Unit

(d) Remove audio control unit from mounting tray. (2) Installation - GMA 350(c) Audio Control Unit

(d) If GMA 350(c) has been replaced with a new or different unit, or original unit has been repaired, perform Functional Test - GMA 350(c) Software and Configuration Loading.

(Refer to 23-50)

(e) Perform Operational Test - GMA 350(c) Audio Control Unit. (Refer to 23-50)

(3) Adjustment/Test - GMA 350(c) Software and Configuration Loading

Note: No software or configuration loading is required if the original GMA 350(c) is rein-stalled. This does not include units that were returned for repair as the software and configuration files are deleted during the repair testing process.

If a new, repaired, or exchanged GMA 350(c) is installed, load software and con-figuration files from the Cirrus Perspective software loader card.

(a) Connect 28 ±1 VDC external power to external power receptacle. (b) Pull STARTER and FUEL PUMP circuit breakers.

(c) Perform software and configuration loading in accordance with the Cirrus Perspective Line Maintenance Manual. (Refer to 05-10)

(d) Reset STARTER and FUEL PUMP circuit breakers.

(e) Disconnect 28 ±1 VDC external power from external power receptacle. (4) Operational Test - GMA 350(c) Audio Control Unit

(a) Pull STARTER RELAY and FUEL PUMP RELAY circuit breakers. (b) Connect 28 ±1 VDC external power to external power receptacle. (c) Set BAT 1, BAT 2, and AVIONICS switches to ON positions. (d) Test lights.

1 Verify all annunciator lights temporarily illuminate during power up. 2 Cover photocell on front panel and verify that annunciator lights dim.

3 On bolster switch panel, adjust INSTRUMENT dimmer switch. Verify that instrumen-tation lighting is functioning and that intensity varies with adjustments to INSTRU-MENT dimmer switch.

(e) Ensure proper operation of the fail-safe function. 1 Pull AUDIO PANEL circuit breaker.

(13)

23-50

Page 13 Serials 22-3828 & subs w/ Perspective Avionics,

22T-0268 & subs EFFECTIVITY:

Note: Use of a true mono headset is required for this test (not a stereo headset with a mono/stereo switch because headset manufactures differ on how they accomplish this switching).

3 On PFD, select local ATIS frequency for the active COM 1 frequency. 4 Listen with pilot's headset and verify proper reception.

5 ON PFD, select an unused frequency for the active frequency of both COM 1 and COM 2.

7 Reset AUDIO PANEL circuit breaker.

(f) Verify installed transceivers (COMs) are able to transmit and receive. 1 Connect headset to pilot’s headset output and mic input jack.

2 Verify that each installed transceiver (COM) can be heard when selected.

Note: Depending on settings, the mic selected COM may mute audio from other COMs.

3 Verify that each installed transceiver keys for transmission and transmits clear audio from pilot’s mic when selected for transmission and PTT switch is pressed.

Note: Because audio panel can be configured to simulate received sidetone internally, verifying transmission with separate radio not in system is recommended.

Depending on configuration and sometimes COM system wiring, other transceivers may be muted during transmit. Also, audio panel may mute speaker during PTT.

4 Repeat transceiver transmit/receive test for co-pilot headset output and mic input jack.

Note: Testing any one installed transceiver is adequate (testing each is not necessary).

(g) Verify audio from installed receiver and alert sources.

1 Connect headset to pilot’s headset output and mic input jack (depending on configu-ration and ICS mode, co-pilot or passenger positions may not hear all of these sources).

2 Verify each installed receiver (NAV/ADF/DME) can be heard when selected (use test signal generators/transmitters when necessary).

3 Verify each installed unswitched (alert) source can be heard when source is instructed to play a simulated alert/message.

(h) Test cabin speaker.

1 On audio control unit, press [SPKR], then verify selected airplane radio audio is heard over cabin speaker.

2 Press and hold [SPKR] for 2 seconds, then verify microphone audio is heard over cabin speaker when corresponding mic key is pressed.

(i) Test intercom system.

1 On audio control unit, select [PILOT], [COPLT], and [PASS] to set intercom (ICS) to ALL mode.

(14)

23-50

Page 14 Serials 22-3828 & subs w/ Perspective Avionics, 22T-_{0268 & subs}

EFFECTIVITY:

4 For pilot position, adjust outer cursor dial on [VOL/CRSR] knob to select [PILOT] and inner volume dial on [VOL/CRSR] knob to set volume.

5 For co-pilot position, adjust outer cursor dial on [VOL/CRSR] knob to select [COPLT] and inner volume dial on [VOL/CRSR] knob to set volume.

6 For passenger position, adjust outer cursor dial on [VOL/CRSR] knob to select [PASS] and inner volume dial on [VOL/CRSR] knob to set volume.

7 From pilot headset position, verify pilot, co-pilot, and all passenger mic inputs can be heard in pilot’s headset when speaking into mic input.

8 Speak into pilot’s mic and verify that pilot mic audio is heard in co-pilot headset and in each passenger headset.

9 Speak into each passenger’s mic and verify that passenger mic audio is heard in pilot headset, co-pilot headset and in other passenger headset.

(j) Test marker beacon operation.

1 With marker signal generator/transmitter test set, generate marker tones. 2 From the pilot headset position, verify that marker audio can be heard when

selected.

3 If the system includes integrated lamp annunciation and/or if external lamps are installed, verify that each marker tone illuminates the proper lamp.

Outer Marker – Blue Lamp – 400 Hz (AM or received audio tone) Middle Marker – Amber Lamp – 1300 Hz (AM or received audio tone) Inner Marker – White Lamp – 3000 Hz (AM or received audio tone)

4 If the system is configured and/or wired to allow both HI and LO sensitivity opera-tion, verify that during HI SENS operaopera-tion, the RF threshold is more sensitive (marker audio/indication occurs as a lower RF power).

(k) Test digital voice recorder.

1 Allow COM1 to operate for at least two and a half minutes of active operation. 2 Press PLAY key once to play back latest recorded memory block of COM1 audio. 3 Press PLAY key again to play previous memory block of COM1 audio. Repeat until

listening to first block of audio (a total of 2.5 minutes of audio is recorded). (l) Test music system and telephone.

2 If volume control cursor is not active press inner volume dial on [VOL/CRSR] knob to switch to Blue-Select mode. If the volume control cursor is active (white flashing cursor), press twice (once to cancel cursor, twice to activate Blue-Select mode).

Note: After approximately ten seconds with no input, Blue-Select mode will automatically cancel.

3 On audio control unit, select [PILOT], [COPLT], and [PASS] to set Blue-Select mode for all positions.

4 Verify [PILOT], [COPLT], and [PASS] annunciators are lit blue. 5 Adjust outer cursor dial on [VOL/CRSR] knob to select [MUS1]. 6 Verify [MUS1] light is on.

7 Verify stereo music is heard in pilot, co-pilot, and passenger headset jacks. 8 Verify music is only muted when any airplane radio audio is being received or PTT

switch on LH yoke is pressed and squelch is broken, but not during normal cabin conversation.

(15)

23-50

Page 15 Serials 22-3828 & subs w/ Perspective Avionics,

22T-0268 & subs EFFECTIVITY:

10 Verify [PILOT] light is off, and [COPLT] and [PASS] annunciators are lit blue. 11 Verify AUDIO INPUT 1 is heard on co-pilot and passenger headsets only. 12 In Blue-Select mode, de-select [PASS], and select [PILOT] and [COPLT]. 13 Verify [PASS] light is off, and [PILOT] and [COPLT] annunciators are lit blue. 14 Verify AUDIO INPUT 1 is heard on pilot and co-pilot headsets only.

16 In Blue-Select mode, de-select [PILOT] and [COPLT], and select [PASS]. 17 Verify [PILOT] and [COPLT] lights are off, and [PASS] annunciator is lit blue. 18 Adjust outer cursor dial on [VOL/CRSR] knob to select [MUS2].

19 Verify [MUS2] light is on.

20 Verify AUDIO INPUT 2 is heard in passenger headsets, but not in pilot's or co-pilot's headsets.

21 Disconnect all audio sources.

22 In Blue-Select mode, de-select [PASS], and select [PILOT] and [COPLT]. 23 Verify [PASS] light is off, and [PILOT] and [COPLT] annunciators are lit blue. 24 Adjust outer cursor dial on [VOL/CRSR] knob to select ENTERTAINMENT button

(shown as a phone and music-note symbol). 25 Verify ENTERTAINMENT button light is on.

26 Connect cell phone to ENTERTAINMENT smartjack on the GMA 350(c) front panel. 27 From pilot’s headset position, initiate a phone call and verify that two-way

communi-cation over telephone can be heard by pilot and co-pilot when selected. 28 Set BAT 1, BAT 2, and AVIONICS switches to OFF positions.

(16)

23-50

Page 16 All

EFFECTIVITY:

D. Audio Jacks (See Figure 23-501)

(1) Removal - Cockpit Audio Jacks

(a) Open center console armrest and remove glove box. (Refer to 25-10)

(b) Remove nut, shoulder washer, and nylon washer securing jack to console. (c) Disconnect audio harness leads from jack and remove from airplane. (2) Installation - Cockpit Audio Jacks

(a) Connect audio harness lead to jack and position in console.

(b) Install nut, shoulder washer, and nylon washer securing jack to console. (c) Insert glove box. (Refer to 25-10)

(3) Removal - Passenger Audio Jacks

(a) Remove aft console rear cover. (Refer to 25-10)

(b) For Stereo Jack: Remove nut securing jack to console.

(c) For Headphone/Headset/Microphone Jacks: Remove nut, shoulder washer, and nylon washer securing jack to console.

(d) Disconnect audio harness leads from jack and remove from airplane. (4) Installation - Passenger Audio Jacks

(a) Connect audio harness lead to jack and position in console. (b) For Stereo Jack: Install nut securing jack to console.

(c) For Headphone/Headset/Microphone Jacks: Install nut, shoulder washer, and nylon washer securing jack to console.

(17)

23-50

Page 17 All

EFFECTIVITY:

E. Cabin Speaker (See Figure 23-501)

(1) Removal - Cabin Speaker

(a) Serials 22-0002 & 22-0003: Remove cabin speaker grill from overhead console. (b) Serials 22-0002 & 22-0003: Remove screws securing cabin speaker to headliner. (c) Serials 22-0002 & 22-0003: Carefully disengage reclosable fasteners securing cabin

speaker to headliner.

(d) Serials 22-0004 thru 22-0820: Remove screws, washers, and nuts securing speaker grill, foam pads, and cabin speaker to headliner.

(e) Serials 22-0821 & subs, 22T-0001 & subs: Remove screws, washers, and nuts securing speaker grill, spacers, and cabin speaker to headliner.

(f) Disconnect cabin speaker electrical connector. (g) Remove cabin speaker from airplane.

(2) Installation - Cabin Speaker

(a) Connect cabin speaker electrical connector.

(b) Serials 22-0002 & 22-0003: Position speaker to headliner and press firmly at reclosable fasteners.

(c) Serials 22-0002 & 22-0003: Install screws securing cabin speaker to headliner.

(d) Serials 22-0004 thru 22-0820: Position speaker, foam pads and speaker grill to headliner and secure with screws, washers, and nuts.

(e) Serials 22-0821 & subs, 22T-0001 & subs: Position speaker, spacers and speaker grill to headliner and secure with screws, washers, and nuts.

(f) Verify cabin speaker operation.

(g) Serials 22-0002 & 22-0003: Install cabin speaker grill.

F. Push-To-Talk (PTT) Switch

The PTT switch is integral to the yoke grip assembly. For maintenance practices pertinent to PTT switch, see Flight Controls. (Refer to 27-10)

(18)

23-50

Page 18 All

EFFECTIVITY:

Figure 23-501

Audio Integration (Sheet 1 of 4)

10

Serials 22-0821 & subs, 22T-0001 & subs. HEADLINER (REF) SR22_MM23_1354E 7 3 9 1 8 2 4 6 3 5 1 2 4 LEGEND 1. Connector 2. Speaker 3. Screw 4. Grill 5. Loop Tape 6. Hook Tape 7. Foam 8. Washer 9. Nut 10. Spacer Serials 22-0004 thru 22-0820. HEADLINER (REF) Serials 22-0002 & 22-0003. HEADLINER (REF) 1 3 4 9 8 2

(19)

23-50

Page 19 Serials 22-0002 & subs w/o Perspective Avionics

EFFECTIVITY:

Figure 23-501

Audio Integration - Serials 22-0002 & subs w/o Perspective Avionics (Sheet 2 of 4) Serials 22-0002 thru 22-0333.

Serials w/o Perspective Avionics.

RADIO RACK (REF) SR22_MM23_1758C 8 8 16 13 8 9 8 9 18 17 16 15 9 8 14 12 13 11 LEGEND 8. Washer 9. Nut 11. Headphone Jack 12. Stereo Jack 13. Headset Jack 14. Microphone Jack 15. Microphone 16. Dual Lock 17. Audio Panel 18. Hex Socket Bolt 19. Cell Phone Jack

9 12

AUDIO INPUT CONV_ENIENCE

OUTLET

(20)

23-50

Page 20 Serials 22-3026 thru 22-3827 w/ Perspective, 22T-_{0001 thru 22T-0267}

EFFECTIVITY:

Figure 23-501

Audio Integration - Serials 22-3026 thru 22-3827 w/ Perspective, 22T-0001 thru 22T-0267 (Sheet 3 of 4)

RADIO RACK (REF) SR22_MM23_3505 8 8 16 8 9 18 17 16 15 9 8 14 12 13 11 LEGEND 8. Washer 9. Nut 11. Headphone Jack 12. Stereo Jack 13. Headset Jack 14. Microphone Jack 15. Microphone 16. Dual Lock 17. Audio Panel 18. Hex Socket Bolt 19. Cell Phone Jack

9 9 12 19 AUDIO INPUT CONV_ENIENCE OUTLET CELL PHONE INPUT

(21)

23-50

Page 21 Serials 22-3828 & subs w/ Perspective, 22T-0268 &

subs

EFFECTIVITY:

Figure 23-501

Audio Integration - Serials 22-3828 & subs w/ Perspective, 22T-0268 & subs (Sheet 4 of 4)

14 13 11 9 9 8 9 8 8 8 9 9 12 AUDIO INPUT CO_NVE NIE_NCE OUT_LET 12 VDC 3 AM PS MAX PIL OT MIC HE ADESONPH AN R AN R MIC HE ADESONPH AN R MIC HE ADESONPH AN R AN R RE AR CO PIL OT RE AR RADIO RACK (REF) SR22_MM23_3497 16 18 17 16 15 LEGEND 8. Washer 9. Nut 11. Headphone Jack 12. Stereo Jack 13. Headset Jack 14. Microphone Jack 15. Microphone 16. Dual Lock 17. Audio Panel 18. Hex Socket Bolt

9

12

(22)

23-50

Page 22 Serials 22-3828 & subs w/ Perspective, 22T-0268 & _subs

EFFECTIVITY: Intentionally Left Blank
