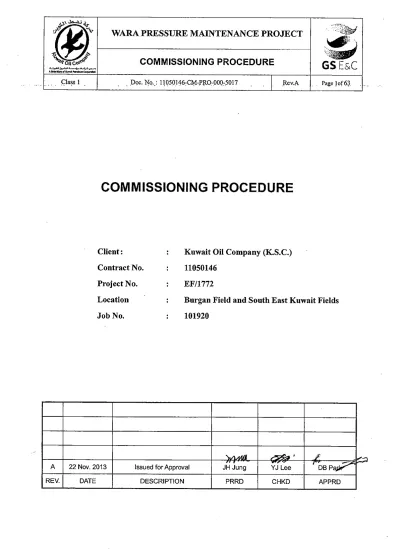

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

Class 1 Doc. No. : 11050146-CM-PRO-000-5017 Rev.A Page 2of 63

REVISION SUMMARY

REV. DATE DESCRIPTION PAGE

(3)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

1. COMMISSIONING PHILOSOPHY

A successful Commissioning for WARA PRESSURE MAINTENANCE PROJECT will require attention to detail and close coordination between COMPANY and CONTRACTOR to successfully produce a safe and reliable operating facility on schedule.

CONTRACTOR’s approach to a successful Commissioning for WARA PRESSURE MAINTENANCE PROJECT is based on the fully integrated involvement of all concerned parties in all aspects, and in each phase, of the project as described below.

This assures that all parties are fully familiar with their respective duties, are fully informed and trained to safely carry out their duties and fully supported by the Team for the successful Start-up and operation of WARA PRESSURE MAINTENANCE PROJECT.

CONTRACTOR will make use of the most experienced and specialized personnel in the execution of the Commissioning.

Key members of this Team will be assigned as early as possible during the Engineering Stage and preparations for the following work.

 Establish an Organization.

 Develop schedules and progress measurement tools for commissioning phases of the works.  Be responsible for the management and direction of all vendor representatives, specialists and

technical service providers

 Manage, supervise, direct and control the Commissioning activities for the safe and assist operation and test activities of the facility for successful turnover to COMPANY

1.1 Execution Plan for the Commissioning Program

The Commissioning program plan is a two distinct-phased approach to Commissioning – the Initial Home Office Planning & Preparation phase and the Site execution phase which is defined as follows: Phase-1 of the Commissioning program plan will be conducted / developed in CONTRACTOR’s home office and will include, but not be limited to, the following activities:

 Coordination with Engineering and Precommissioning on Commissioning requirement

 Development of site specific Commissioning administrative and technical procedures

 Incorporation of COMPANY procedures and testing requirements

 Preliminary Operations and Maintenance Manuals of the area not provided by Licensor will be prepared by process design team for review by COMPANY.

 Preparation of "Scoped" drawings / databases for turnover package development

 Development of Commissioning schedule with input from COMPANY’s project management

 Development of the budget for all Commissioning activities.

Phase -2 of the Commissioning program plan will be conducted on-site and will include, but not be limited to, the following activities:

 Mobilization of the Commissioning Team

 Administration system turnovers from Precommissioning to Commissioning Team.

 Coordinate with precommissioning the completion of system punch lists in preparation for turnover to the Commissioning Team.

 Coordinate and conduct the equipment and systems Commissioning testing program.

(5)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

2. COMMISSIONING ORGANIZATION

CONTRACTOR will provide Commissioning personnel in the applicable disciplines as needed with extensive experience to complete specified / identified Commissioning activities.

Commissioning Manager will have overall responsibility for coordination of all project Commissioning activities. Commissioning Manager reports directly to the Site Manager and to the Project Manager. The discipline test engineers, equipment vendor representatives, precommissioning craft, contract support and Contractor’s Commissioning personnel assisting in the Commissioning effort will work under the direction of the Commissioning Manager as a single Team.

Every effort will be made to maintain the continuity of all Commissioning Team members including assigned support craft and COMPANY’s personnel throughout the duration of all Commissioning activities. This continuity of personnel will aid greatly in the effectiveness and efficiency of the Commissioning Team.

Refer to detailed Commissioning Organization.

3. COMMISSIONING SCHEDULES

The schedules for all Commissioning activities will be developed as early as possible at detail engineering stage. This will include an overview of the sequencing of system preparations and the critical path for these activities.

3.1 Completion Program

The completion of the facility, the preparation of the facility for operation, the Start-up of the facility and the operation of the facility for proof of performance involves several steps or specific sets of activities which are typically referred to as:

 Facility Construction Completion (End of Pre-commissioning)

 System Commissioning

 Facility Initial Start Up

 Facility Turnover (End of Commissioning)

 Performance Test

 Provisional Acceptance

 Final Acceptance

(6)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

CONTRACTOR is responsible for Construction, Pre-commissioning and Commissioning of the Facility including test run. However, COMPANY’s operation team will work hand to hand, gaining experience in plant Commissioning and Start up and ensure seamless transfer of responsibilities during take over of the new facilities on completion of test run.

3.1.1 End of Pre-commissioning and Handover to Commissioning

End of Pre-commissioning is the 2nd key step in the process of overall completion.

This is the stage where the basic commissioning work has been completed and the pre-commissioning quality control inspections and tests have been completed (and duly recorded) for all the elements that make up a particular system within a unit or plant area.

This is attested by the various QA/QC Reports associated with each discipline and item of equipment. These Tests and Records represent volumes of records and, in order to readily determine the status of completion; these records shall be collated on a system- by -system or unit basis.

Pre-commissioning is achieved when the pre-commissioning work for a defined scope of piping, electrical, instrumentation, civil/structural facilities buildings, underground, structural steelwork, and miscellaneous items have been completed.

CONTRACTOR remedy or resolve to the satisfaction of COMPANY all pre-commissioning punch list items classified as needed before starting Commissioning.

(7)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

3.2 Commissioning

As soon as a System has been pre-commissioned and completed in accordance with the Contract and is in compliance with the Scope of Work (excluding such minor items as finishing of insulation and painting, and other items not materially affecting the operation or safety of the System) and has passed any tests required on that System, the system is on ready for Commissioning.

Commissioning is the term used for the final tests, inspections and checks carried out by the commissioning team to confirm that the equipment and systems within the unit and plant are precommissioned in accordance with the approved design and specifications and will function to specified operational requirements.

It is at this stage that the final preparations, checks and line out of the equipment and plant (commissioning of the particular items or systems) can be carried out in preparation for introduction of hydrocarbons and start-up of the facilities.

CONTRACTOR will confirm to COMPANY that all commissioning activities have been successfully carried out. This is reflected by the Commissioning Checklists and “Test Record” Sheets, which record the action taken by the Commissioning Team in the preparation of the systems for Turn-over.

It is typically at this stage, having confirmed for COMPANY that all End of Commissioning activities have been successfully completed, that Turnover Certification for the plant will be issued for performance test..

3.2.1 Scope

Commissioning involves the preparation of systems to achieve ready for Performance test status. In this phase between system end of commissioning and the commencement of Performance test, a considerable amount of operation work is required. This Commissioning work is be carefully planned and executed by CONTRACTOR in close consultation with COMPANY and Manufacturer representatives.

Throughout the Commissioning phase the CONTRACTOR maintain and update the formalized system punch list. At this time the punch list will record any material items which remain outstanding for Turnover (Commissioning Completion) status, and any corrective work which has become evident during commissioning.

On successful completion of all of the required Commissioning work, CONTRACTOR will notify COMPANY a system is Turnover (Commissioning Completion).

Upon successful completion of Commissioning, CONTRACTOR will apply for Turnover Certificate, signifies the end of the commissioning phase.

(8)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

3.2.2 Commissioning Responsibilities

All tools and equipment, all consumable materials, fuels and all services necessary to complete Commissioning shall be planned and furnished by CONTRACTOR.

Certain utilities, such as water and power may be sourced from COMPANY’s utility distribution system. Demineralized(or potable) water for Commissioning flushing and dynamic testing shall be provided by CONTRACTOR.

CONTRACTOR will organize testing and water use to minimize waste of water.

CONTRACTOR will provide the plant air and instrument air used during the Commissioning of instruments.

3.3 Commissioning Execution

Detail and specific commissioning procedures will be prepared for the project and presented for COMPANY’s review and approval.

The following Basic Guidelines are provided only as a “typical” guide to the commissioning activities which are normally involved in the preparation of a plant for operation.

It is important to note that fixed procedures for the execution of every commissioning activity cannot always be applied in the same manner in each and every case. This is due to the nature of the work and conditions of the facility that can vary from case to case.

It is not practical to cover all possible contingencies or emergencies conditions. Therefore, some of the procedures and operating conditions stated herein may be require modification to meet unusual or emergency conditions.

The intent is to ensure that the quality and integrity of plant preparations is maintained; regardless of procedural methods.

The purpose of the Commissioning Guidelines will be to familiarize COMPANY’s operation group with some of the basic aspects of Commissioning activities.

Detail procedures specific to the individual systems and equipment items on this project will be prepared prior to the beginning of commissioning for the project.

All COMPANY’s operating and operations maintenance personnel will become familiar with all details of the Commissioning activities, and the function of all operating equipment, during the course of the On-The-Job training that will be given as they participate in each of the following activities.

3.3.1 P&ID Checks

The following Check List Procedure is intended as a guide to operators to assist in P&ID checking. However, it does not in anyway suggest that the P&ID check is limited to the following list.

It is essential when carrying out the P&ID check the very latest revisions of the P&ID are checked. It is important that items on the Check List are clearly defined and the item number entered on the P&ID.

3.3.2 Check Procedure

(9)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

item, they should immediately contact a member of the site engineering team. This will save future confusion and help to speed up the P&ID check.

(a) List all items, e.g. temperature indicators, pressure indicators, etc. are not installed or incomplete.

(b) Check instrument tag numbers to ensue the correct instrument is mounted in the correct location, note any deviation.

(c) Note whether vents at high point or drains at low point are omitted. (d) Note dead legs and question drainage, purging etc.

(e) Note any obvious materials faults, e.g. carbon steel bolts on stainless steel flanges. (f) Check (note deviation) of orifice plate orientation and tag number.

(g) Note tapping point orientation.

(h) Note if in line strainers are in place, check tag numbers.

(i) Visually check (note deviation) piping runs for abnormality. Ensure exchangers, vessels etc. process/utility piping is routed to the correct nozzle.

(j) Note installation of relief valves, check seals, bolts, gaskets and tag numbers.

(k) Note all safety items, trip hazards, head room hazards, missing gratings, manholes, fire hazards, poor access to emergency equipment etc.

3.3.3 P&ID Check List Control

To ensure that P&ID check results are properly recorded and subsequently acted on the following method is suggested;

(a) P&ID check teams to mark up the P&ID with a highlighter, line by line, to reflect which portions of the system have been checked,

(b) Faulty items are given a check number, this number is marked on the P&ID and corresponding number entered on the Check List with a description of the fault.

(c) Make two photocopies of the Check List. (d) Make two copies of marked up P&ID. (e) Attach Check List to P&ID.

(f) One copy of Check List and P&ID is used as the operations work copy.

(g) One copy of Check List and marked up P&ID is the operating master copy and is kept in the central work area.

(h) The work copy is used for rechecking purposes. The status of all items is noted on the work copy and find out entered into the master copy.

(i) One copy of Check List and marked up P&ID is transmitted to COMPANY’s team who will inform Contractor of any further defective / missing items noted by the COMPANY’s team. (j) Operations will recheck the items to ascertain whether or not the item has been corrected. If

not, a note is made in the Check List.

(k) When Contractor has acted on the items he will inform COMPANY that the work is complete.

3.3.4 Check completion of Pre-commissioning Activities

Please refer to the Pre-commissioning Procedures.

3.4 Testing of Rotating Equipment

Before start of test runs on rotating equipment, the following personnel should be informed. (a) Commissioning and start-up team.

(10)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

(b) COMPANY’s start-up rotating equipment engineers. (c) COMPANY’s operation group.

(d) Vendor service engineer for package items

Contractor maintenance specialists will instruct COMPANY’s team on how to carry out the testing of rotating equipment. They will keep a continuous watch on the rotating equipment and monitor performance.

Where practical, machinery will be operated, performance tested and systems operated prior to start-up of the Plant.

For package systems, Operational performance of instruments and systems will be carried out. Instrument inspection and calibration must be completed prior to this run-in-period.

Before the actual test is carried out, all inspection requirements and preparations, inclusive of manufacturer's vendor representative requirements must be completed.

Inspection on any item of running equipment that could involve personnel coming into contact with moving parts requires the power supply to be isolated and locked off.

Any internal inspection of running equipment, which involves opening of parts, which may contain pressure, requires the suction and discharge to be isolated and the casing vent to be opened.

The casing must be at atmospheric pressure before any attempt is made to open the equipment. If there is any doubt as to the security of the isolation, then blind flanges should be installed on the equipment side of the suction and discharge valves.

Equipment should be isolated using blinds if hydrocarbons are present in the system during the test run.

3.4.1 Electric Motors

Electric motors will be subject to a no-load testing i.e.: the motor is uncoupled from the driven equipment. During the no-load test, the following items should be recorded:

(a) Check direction of rotation. (b) Motor vibration levels. (c) Bearing temperatures. (d) Abnormal noises

Using the subsequent test with the driven equipment connected to the electric motor the following items are to be measured and recorded:

(a) Electric motor current. (b) Motor vibration levels. (c) Bearing temperatures.

(d) The start-up current, and time for fin fan motors.

(11)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

The following steps will be taken for the Pump Test Run Preparation: Pump suction line should be fully flushed before Test Run

(a) The pump should still be uncoupled from the driver.

(b) Install strainers with (20~40) mesh size temporary start-up screens before aligning pumps. Mark all strainers and keep a list similar to the blind list, so as to prevent a 'lost' screen. Connect the suction and discharge flanges to the pumps and simultaneously

(c) Remove pipe stresses.

(d) Connect the pump to the driver and check alignments (cold alignment check). (e) Rotate the shaft manually to check for freedom of movement.

(f) When a test run with water has been planned, carefully isolate the loop system from the rest of the sections. The water should be sufficient to fill the whole loop and provide sufficient head available to the pumps.

(g) A final check should be carried out that correct lubricating oil and grease have been put into the pump, and that the oil glass shows proper level.

(h) Open the suction valve.

(i) Check that the seal does not leak and that seal flushing and cooling water connections are correctly made.

(j) Rotate the centrifugal pump shaft by hand to test for free rotation.

(k) Flush water from the pump drain and the suction drain to remove scale (if possible). (l) Check that the coupling guard is secure.

(m) Start lube oil system (if applicable).

(n) Switch the pump on and off as a final check for correct shaft rotation. (o) Ensure that the pump is liquid full.

3.4.3 Centrifugal Pump Test Run

During the pump test the following items should be checked: (a) Bearing temperatures.

(b) Vibrations.

(c) Abnormal noises, noise levels.

(d) Pump discharge pressure at shut off head and normal flow (if possible). (e) Leaks identified and listed for repair if not pulled up.

(f) A test sheet is to be completed.

(g) The test duration is for a minimum of 30 minutes (if applicable).

3.4.4 Positive Displacement Pump Test Run

During the Initial run, the following items must be confirmed or checked: (a) Confirm the liquid has sufficient lubricating properties.

(b) Supply cooling water where necessary.

(c) Start the pump with open suction and discharge valve. Check the mechanical performance of the pump and watch bearing temperature, if applicable.

(d) Check flushing supply to seals, if applicable.

(e) When discharge pressure drops, stop the pump, inspect and clean the strainer in the suction line.

(f) Check for excessive vibration.

(g) Check motor amperage, if applicable.

(12)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

(i) Check pump for leaks.

(j) A test sheet is to be completed.

(k) The test duration should be for a minimum of 2 hours.

3.4.5 Centrifugal Compressor Test Run

Before test runs on Centrifugal Compressors are carried out, a detail plan of action must be reviewed with the Vendor specialists to confirm readiness. The plan of action should consist of the following elements, as a minimum:

(a) Vendor’s commissioning instructions for review

(b) Detailed schedule of action with actual dates and milestones reached.

(c) All individual equipment tests, lube oil pumps, motors, filters, etc. should be specified separately. In general the criteria for testing and inspection to be described individually for such equipment items.

(d) Tests of all auxiliary systems lube oil, seal oil and cooling water etc. should be included and scheduled well in advance of compressor test run.

(e) Anti surge control system to be tested and line up checked.

(f) In case the test run is carried out with a medium different than the design process gas, restrictions on speed, discharge temperatures, pressures, etc. should be clearly specified. (g) The compressor test run should be scheduled at the end of the test run series of the driver

(steam/gas turbine): however, it is to be carried out as a separate activity.

(h) All test results should be recorded on specified test sheets that are part of the test program. As a minimum, the following parameters should be included:

(a) Oil pressures, temperatures, flows. (b) Gas pressures, temperatures, flows.

(c) Vibration signals (during start-up and at operating speed). (d) Noise levels.

(e) Speeds.

(f) Driver operating data.

3.4.6 Reciprocating Compressor Start-Up Preparations

The following steps will be taken for the Compressor Start-Up Preparations:

(a) Check that the inlet filter and fine mesh screen element is installed and that there is no space between the filter element and the filter casing.

(b) Check that correct lubricating oil has been put in the compressor and oil glass is full. (c) Check that all lines are connected properly to the machine.

(d) Bar the crankshaft over for at least one revolution to make sure that all-moving parts of the compressor run freely.

(e) Check that the shaft guard is installed.

(f) The lubricator settings should be in excess of normal operating settings. Remove suction and discharge compression valves, if required.

3.4.7 Reciprocating Compressor Test Run

(13)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

attention should be paid to restrictions on power demand and discharge temperatures. Restrictions should be clearly specified in the procedure.

The plan of action should consist of the following elements,

(a) Operate the compressor on a start-up procedure while the lube oil pump operates for about five minutes.

(b) After bringing the unit to a standstill, check all bearings and other friction parts for temperature rise. If no excessive temperature is observed and once all items have been verified on tightness, start the compressor again and let it run for available hours.

(c) Regular observations should be made during available hours.

(d) After the mechanical run-in period, the suction and discharge compression valves should be refitted in their respective places and the compressor started again on no-load e.g.: by means of the application of valve unloaders.

(e) Increase to full load gradually and run for specified period, unless observations indicate the presence of a defect.

(f) Check the oil pressures and temperatures of all bearings and seals and check proper functioning of lubricator regularly.

(g) Check the gas pressures and temperatures regularly. (h) Check for any gas leakage, vibration of machine and piping.

(i) Check the automatic loading and unloading device, if installed, for smooth operation. (j) Check for noise levels in excess of specified requirements.

(k) A test sheet is to be completed.

3.4.8 Air Cooler/Condenser Fan Test Run

A test run to be carried out with preferably all fans of the particular bank section simultaneously in operation. The following checks will be made:

(a) Check for vibration levels on electric motor and one point of the structure. (b) Record electric motor amperage.

(c) Check for abnormal noises.

(d) Check whether belt/pulley engagement is over the full width during operation. (e) Check for abnormal structural vibrations or loose bolts during operation.

3.5 Tightness Tests

This is normally the final stage before inerting the Plant prior to the introduction of hydrocarbons. Although the various items of equipment will be “boxed-up” and the piping system lined up for start-up a final “tightness” or leak test must be carried out.

A tightness test is a final check for leaks before the inert/purging step and the introduction of hazardous materials into the plant. It is essential when preplanning this stage that particular attention is paid to pressure breaks in the various sections of the plant, in order to prevent damage to equipment by over pressurizing.

A leak of hydrocarbons during start-up poses a safety risk. It can also prove costly. The opening of equipment after the introduction of hydrocarbons will require gas freeing and will also cause delays. The equipment has to be isolated, drained, depressurized and purged with nitrogen to remove the

(14)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

contents. Then, after repairs are completed, the system is again tightness tested and purged with nitrogen to remove the air. These delays can be costly.

The following procedure is recommended to ensure that the unit is absolutely tight. When correctly done, the chances of equipment having to be opened for leak repairs later will be minimal.

Mark-up the system to be tested on the P&ID, highlighting any pressure breaks within the system and the isolation points for the system. Isolate the system being tested at its extremities by block valves or blinds, closing all vents and drains. Line up valves within system ready for test.

Where block valves are used for isolation, open a vent, drain, or instrument connection to atmosphere downstream of block valve. This will allow checks to be made as to whether block valves are passing and also prevent pressuring of downstream systems.

Tape flanges in the system if required and make a pinhole on the tape at the top, mark clearly the location of the pinhole.

During the test, the system must be protected against over pressuring by putting in service safety relief valves, which have been calibrated and set. In the event that the flare system is operational, the relief valves should be installed with the exhaust turned to atmosphere.

Identify the instruments which will be used to monitor the pressure. Use of control room instruments to monitor the pressure is encouraged at this time, as it proves the output of instrument systems.

Pressure should be monitored and ambient temperatures taken into account for reasonable pressure losses due to ambient temperature reductions. It is useful to set the relevant DCS instruments on ’trend’ to record pressure variations.

Pressurize the system in stages up to the defined pressure by using of plant/instrument air or nitrogen. Ensure soap solution being used is compatible with all metal and gasket materials etc.

As each desired pressure step is reached, spray a small amount of soap solution on the point of the joints. Formation of soap bubbles will indicate a leak.

When the required pressure is reached, shut off the main air/nitrogen supply and monitor the pressure over a fixed period of time. The standard set depends on the process being tested.

3.6 Instruments And Safety Control

The objectives of the instrument section of the Start-Up Team are as follows:

(a) To confirm that the instruments and safeguarding systems function as designed. (b) To confirm that the instruments installation is according to design standards.

(c) To confirm that the instrument documentation reflects the as built status of the Plant.

(d) To advise and assist Production on a smooth transition of Plant from Precommissioning to Operational status.

3.7 Operational Function Test

Operational Function Testing is to be developed in conjunction with and COMPANY’s commissioning team to prove the instrument and safety control systems and the associated operability of equipment.

(15)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

Operational Function Testing is to include the following requirements:

(a) To prove the operation and calibration of each instrument loop from its process connection to final element.

(b) To prove that for all input conditions, the corresponding output actions occur as designed. (c) To ensure the integrity of all safeguarding of equipment.

(d) To ensure that all systems are fully commissioned and ready for Start-Up. Operational Function Testing Documentation is to be developed as follows:

(a) Standard calibration sheets for all instruments incorporating an in-situ calibration procedure. (b) Supporting documents such as loop diagrams, and/or, marked-up logic diagrams.

(c) A cover sheet for documentation approval.

In addition to the above, complex procedures shall include the following:

(a) A planning sheet showing test equipment and manpower required and involvement from other disciplines.

(b) A summary sheet showing a list of all instrument tag numbers involved, supported with drawing numbers.

(c) A functional description of the system.

(d) A detailed step-by-step test procedure typically in the form of an input test condition versus output action matrix.

(e) A diagram showing any independent relationships between test procedures.

The Operational Function Testing is to be witnessed by the COMPANY to ensure that all testing is correctly executed and report sheets made and signed by both parties. If necessary, recommendations are to be made to improve or remedy problems discovered during testing. Testing is to be conducted so as to demonstrate to Operations that the systems operate as designed.

(16)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

SAFETY: During the commissioning phase, the instrument system and operation teams will work very closely, as part of the plant may be under pressure, people will be working in different areas, etc. It is important to stress that function testing of instruments may only be carried out under a Work Permit System, in order to prevent accidental discharge of air, etc.

3.8 Preparation For Start-Up 3.8.1 Introduction

The final activities to make the unit ready for initial start-up are described in this section. These activities include:

(a) Filter media in filters. (b) Loading of chemicals.

(c) Installation of orifice plates. (d) Removal of blinds.

(e) Nitrogen purge.

(f) Dry-out of lines and equipment.(if required)

3.8.2 Packing (Air Dryer)

Confirm that the correct height of packing is installed, that the different layers of stacked packing are crossed in order that the joints are not in line, but there is an overlapping.

Support grids and retaining grids should also be checked.

3.8.3 Filter Media Filling

Before filter medias are loaded in filters, they must have been thoroughly cleaned. They should be free of debris. No excessive rust should be present.

General guidelines for loading include:

(a) Check that all nozzles and supports in and outside are as specification (vessel drawing). (b) Ensure that clearances between screen layers and screen and vessel walls have been

checked and adjusted to prevent filter media falling below the support grid.

(c) Inspect the filter media before loading to ensure that drums have not sustained damage in shipping or storage at site.

(d) Do not load filter media or dryer desiccant in rainy or humid weather.

(e) Only break filter media drum shipping seals as required to steadily supply the loading operation.

(f) Provide loading personnel working inside a vessel with suitable protective equipment, such as dust or mesh air masks. Refer to supplier’s safety recommendations.

(g) Mark in the same way the specified height of the filter media layer. (h) Use a hopper with flexible height for loading.

(i) The sock attachment should be long enough to distribute the material without free fall Otherwise, filter media breakage could occur and too many fines will be produced.

(j) Fill up with specified supporting material until the first mark.

(17)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

(l) Fill up with filter media until the second mark from the screen.

3.8.4 Loading Of Chemicals

Prior to loading of any chemicals, vessels and lines should have been thoroughly cleaned and all equipment and upstream piping work should be free of rust and debris.

If any chemicals are prone to oxidation, the applicable vessel should be inert and isolated as soon as possible after loading is complete.

Safety precautions and procedures must be strictly adhered to (safety equipment used) during all handling and all loading of chemicals.

3.8.5 Installation Of Orifice Plates

Install instrument orifice plates and restriction orifices (R.O's) in accordance with data sheets and P&ID.

(a) Instrument orifice plates and R.O's must not be installed before piping runs have been thoroughly cleaned.

(b) Consult orifice data sheets to determine bore size, use P&ID to determine the direction of flow and plate O.D. size.

(c) Maintain an installation record of orifice plates and restriction orifices, to facilitate control over the installation of the plates and to serve as a reference should problems occur later.

(d) Record the following information in the documentation pack for hand-over to COMPANY:

•

Date of installation.

•

Plate tag number.

•

Bore size.

•

Line number.

•

Signatures of witnesses for correct installation.

(e) All orifice plate to be installed with the inscription stamp on the upstream side of the tab.

(f) Flow orifice plates to have the counter sunk side facing downstream, except conical orifices which have the counter sunk side facing upstream

(g) If vent holes in the orifice plate are specified, locate during installation top or bottom of the pipe dependant on liquid or gas service.

3.8.6 Plant Blinds Check

Inspect all plant equipment and piping for the removal of test blinds. Make a Blind Control list of all operational blinds and spectacle blinds that should be installed. Indicate their operational position clearly.

Check that blinds and spectacle blinds are installed in correct positions ready for plant start-up. The Blind Control list shall be checked and confirmed by the field operators or each shift.

(18)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

3.8.7 O2 Freeing

Before hydrocarbons are introduced into the unit, the O2 content must be reduced to avoid an explosive mixture being created. Nitrogen can be introduced by hose connections or with fixed injection points, hoses are better connected at low points.

•

Pressure up unit being purged with nitrogen to utility service pressure.

•

Then depress as rapidly as possible. Carry out this procedure three more times

•

Ensuring that you purge out all high point vents and low point drains.

•

Commence checking O2 content at several points to ensure the whole unit is virtually O2 free.

•

Continue pressure purging with nitrogen until O2 content of less than 2 % vol. is achieved.

•

The unit should be left under a slight positive pressure of nitrogen until the introduction of hydrocarbons during normal startup.

NOTE: No entry into equipment permitted after introduction of nitrogen. After this step the flare header and stack can be commissioned, if not already in operation.

3.8.8 Dry-out Of Lines And Equipment

Dry-out is necessary in Nitrogen Package units to avoid blocking lines and equipment by ice formation. Drying out is finished when the water content measured with portable moisture analysis is at the levels determined by vendor’s specification. Drying out of systems can be speeded up by using dry air during commissioning and the use of nitrogen during the purging phase.

The early Commissioning work focus on a sequence of activities performed on individual systems. Activities such as followings; these activities may be carried out in a simultaneous manner by individual disciplines.

 Air blowing

 Water flushing

 Leak test

 Filter Media Loading  Piping reinstatement

 Final instrumentation and electrical hook up  Vessel inspection and closure

 Instrument loop / function tests

 Preservation

During the stages of Commissioning, systems are combined to enable wider functionality checks to be carried out, such as trial dynamic operation of pumps and compressors, containment / tightness testing, flow route and flow rate testing, control sequence testing, process initiated trip tests, and others.

The stages of Commissioning therefore require that several interfacing systems are brought to an equivalent status to allow such testing to be carried out. At an appropriate point in the progress of Commissioning, systems shall therefore be combined and integrated to enable multidiscipline dynamic test activities to commence.

(19)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

The tests may simultaneously involve many systems and supporting utility distribution systems. Dynamic testing work is multidiscipline and sequential in nature, and CONTRACTOR will carefully plan and prepare for the activities to ensure all systems, personnel and material are made available when required.

After dynamic testing, all systems within a part of the Plant it is brought to an equivalent state of readiness for commissioning operations to commence. CONTRACTOR will include for Manufacturer specialists if required at site for Commissioning work and advice. This will include, but not limited to the following:

 Nut-shell Filter Package

 Media Filter Package

 Horizontal Induced Gas Floating Vessel(HIGF Vessel) Package  Air Compressors Package including operations

 Chemical Dosing Package

 Large multistage pumps

 Critical Metering Systems

 Safety Systems

 High Voltage Switchgear

 Uninterruptible Power Supply (UPS) system

 Online Analyzers/Sampling system

 Fire and gas monitoring system

 Distributed Control System (DCS) and Safety Instrumented System (SIS)

 Emergency Vent Systems

 Critical HVAC

 Vibration monitoring of rotating equipment

 Flare

Throughout the Commissioning phase, CONTRACTOR provides evidence of the following:  Test, witness, and certification documentation.

 Systems Package records.

 All appropriate procedures and method statements.  All safety plans/permit to work/safety procedures.

Check sheets, record sheets and certificates or documents to support ready for Commissioning are signed as complete by CONTRACTOR and witnessed by COMPANY. They also are recorded in the System Manual.

3.8.9 Equipment and Process Dynamic Testing

Process and equipment dynamic testing have to be carried out during Commissioning in this Project. These activities are to confirm, as much as possible, that equipment will be capable of safe and secure operation when committed to the Start up sequence leading to operational service. Tests will be conducted using relatively safe fluids (e.g. air, water, inert gas) to allow run-in and functionality testing of individual equipment items and parts of the process. This functionality testing involves activities such as followings;

 Water circulation at pressure  Air circulation

 Control system serviceability

(20)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

 Blow down and depressurization tests

CONTRACTOR will develop specific method statements for these activities and address issues of area access and control, and the safety at interfaces. A safety risk analysis will be carried out prior to commencing each activity. CONTRACTOR will arrange for Manufacturer specialists as appropriate to direct, conduct or witness this dynamic testing, if required. CONTRACTOR will notify to COMPANY in writing to start the dynamic testing in advance.

During this phase the Commissioning Team will confirm that the equipment and systems within the unit and facility are pre-commissioned in accordance with the approved design and specifications and will function to specified operational requirements. The Commissioning will be carried out in a system base methodology.

At this stage the final preparations, checks and line out of the equipment and facility (Commissioning of the particular items or systems) will be carried out in preparation for introduction of hydrocarbons and start-up of the facilities.

3.9 Construction Completion (CC) and Ready For Commissioning (RFC)

Once the Pre-commissioning has been completed in accordance with the Contract and has passed any tests required on that System, CONTRACTOR will notify the COMPANY in writing to issue the certificate for “Construction Completion” (CC).

When CONTRACTOR submits a notice of system Construction Completion, There is a COMPANY check of the following before agreement that the system is Construction Completion and then COMPANY signs an accepted Construction Completion certificate for the system:

a) The resolved punch list for the system with all items required for Pre-commissioning is completed. b) Check list of all pre-commissioning items for the system completed

c) Non-destructive Testing (NDT) records and QA/QC documentation for all Materials to confirm checked/inspected/tested/calibrated to the requirements of the Project Standard and the Subcontractor’s instructions and Standards for each separate System.

d) Confirmation of flow direction for all elements including control valves and flow elements. e) Isolation and/or blinding are correct

f) Line by line check of system P&IDs

g) Rotational, alignment and other mechanical consideration are completed

Ready for Commissioning for a system is upon satisfactory completion of pre-commissioning activities, Construction Completion Certificate, a system pre-commissioning review and a Certification of Construction.

COMPANY’s approval of CC status will be governed by the effective administration, resolution of outstanding punch list items, a system Commissioning plan and joint CONTRACTOR / COMPANY safety review. All inspection instructions, witness and documentation for the system will be completed and signed by COMPANY and CONTRACTOR as Construction Completion.

Commissioning safety review for a system (or joint CONTRACTOR / COMPANY safety review) will be carried out based on PSSR (Pre Start up Safety Review) procedure.

Following Completion of Commissioning safety review, CONTRACTOR will commence the Commissioning of the System.

3.10 After Construction Completion (CC)

(21)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

operation, the Start-up of the facility and the operation of the facility for proof of performance involves several steps or specific sets of activities which are typically referred to as:

 System Commissioning

 Facility Initial Start Up

 Performance Test

 Provisional Acceptance

3.10.1 System Base Commissioning Methodology

The tests to be carried out during Commissioning activities will be exhaustive, according to the methodology described below. No equipment or part of the installation will be accepted without associated check and tests prior to energization and Start-Up.

3.10.2 System Base Completion Approach

The checking and testing phase of a new facility is by necessity a relatively detailed and sophisticated process. Not all parts of the facility reach the same degree of completion at the same time, hence some areas or units may be mechanically completed while others are not. It would therefore be a waste of time to wait for the whole facility to reach End of Pre-commissioning before starting Commissioning activities.

The Commissioning activities can start even if all the Pre-commissioning activities are not completed, provided that the system or subsystem concerned is in safe condition for doing the Commissioning activities As examples, the Commissioning activities, such as Mechanical running test for the each rotating equipment can start even if the Pre-commissioning of other piping or instrument portion in the same system or subsystem are not completed, provided that the system or subsystem concerned is in the safe condition for doing the Commissioning activities.

Since HVAC systems and Firefighting equipment inside/outside buildings are independent from the process systems, these systems will be Pre-commissioned and Commissioned separately from the process systems.

3.10.3 System / Subsystem definition

This specific partition of a facility into systems and subsystems for completions activities takes place as early as possible, at Basic Engineering phase and will always be submitted for approval to the COMPANY.

The partition of a facility is a key preparation activity that has a major impact on all aspects of completion operation. The subsystems must be defined so as to be as independent as possible, not too small, but of manageable size, and exactly adapted to the Start-Up sequence.

Refer to “11050146-CM-PRO-000-5013 System Definition Procedure” for system list.

3.10.4 Hand-Over Tool.

A software application tool, called, UNICCS (Unified Construction to Commissioning System), CONTRACTOR In-house system, will be used as hand-over tool in order to cover the aspects of project completion activities and to obtain a smooth transfer of the facilities from CONTRACTOR to COMPANY, as quickly as possible and with the required safety.

(22)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

UNICCS is a database that tracks the completion progress of all tagged item, marked on the P&ID, installed on the project.

Within UNICCS are links to the item which is fundamental to the requirements of inspection, test and commissioning at each stage of the project.

 Manage QC document

 Manage Commissioning job check / Test sheet

 Manage punch list

 Handle output progress reports and the status  Import / Export data by using MS Excel.

4. SYSTEM COMPLETION PRIORITIES

In general, except Early Acceptance Utilities, the facilities will be commissioned and completed to the following priorities to accommodate the staged Commissioning of the plant.

Testing and handover will be completed “system–by–system” (service-by service) basis.

4.1 Early Acceptance Utilities

Some specific facilities, requested by COMPANY, such as Utility Water, Site office complex, interconnecting piping, interconnecting pipe racks will be available to run in advance until fixed schedule.

4.2 Supporting Facilities (Tankage & Utilities)

The Utilities Systems will be commissioned and put onto service first and used for the Commissioning and preparation of the rest of the plant. This generally applies to the water, air, nitrogen etc. services required to prepare the other plants for operation.

The Commissioning of the Tankage Systems involves the final line up of the systems for introduction of feedstock for start-up.

4.3 Process Facilities

The Commissioning and Start-up of the Process facilities involves a number of process steps, with the primary operations/process procedures being outlined in the Operations Manuals.

A system comprises the equipment, piping and all support facilities within defined battery limit, required for carrying out a specific function or service. The objective of defining systems and subsystems is to facilitate sequential End of Precommissioning, Commissioning and Turnover to COMPANY for Initial Start-up and Performance Test. System may comprise a verity of subsystems such as mechanical items, piping, electrical and control systems.

5. EXECUTION PLAN

5.1 Home Office Planning & Preparation Phase

(23)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

This will include participation in the Process Safety Reviews, HAZOP Study and Constructability Reviews to ensure that operational issues are fully anticipated in the design, construction and pre-commissioning of the facility.

This involvement in the early basic design and engineering stage will assure the facility’s ability to be properly commissioned and assist the Team in the development of the Commissioning Execution Plan. During this initial stage, CONTRACTOR’s Commissioning Manager and his planning team will work with COMPANY’s Commissioning Manager and Operating representative to commence basic planning and development of the key execution tools. These Key Execution Tools include;

 The basic Start-up Plan defining the sequential preparation and commissioning plan for the primary processes, units and systems. This sets the overall priorities for Engineering, Procurement and Commissioning.

 The outline of the System Packages that will be used to define and record the completion and readiness of the facilities for commencement of operations. These packages (or System Dossiers) commence with the definition of the basic “systems” and “sub-systems” that will be required for detailed planning for End of Pre-commissioning of the facilities.

 Commencement of preparation of the Commissioning Procedures to be used for the specific facility; in preparation for receipt of specific vendor and licensor data for the specific equipment items and processes.

(24)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

 Commencement of preparation of the Operations Manuals that will include all data and procedures necessary for the safe and efficient start-up and operation of the facility.

Detailed planning and preparation for Commissioning activities will start in CONTRACTOR’s Home Office as early as possible at the Engineering stage.

5.1.1 Participation in Project Meeting & Design Input

CONTRACTOR's Commissioning Manager or his designee will attend daily / weekly engineering meetings, as well as, regular project review meetings held by the Project Team during the home office engineering phase of the project.

The Home Office phase will begin early in the design period of the project when key members of the Commissioning Team will be on hand to input specific requirements for Commissioning and Start-up procedures into the design phase.

CONTRACTOR's Commissioning Manager or his designee will participate in the Constructability, Process Safety and HAZOP reviews if required with the other multi-discipline review Teams to ensure that all operability and operations safety issues are addressed.

As the information becomes available, they will begin to review the basic process and utility system designs with engineering and the design operating parameters for major equipment items and packages.

5.1.2 Review of Project Drawing and Scope

During the engineering phase, the Commissioning Manager or his designee will review project drawings for issues such as; system operability, lessons learned from previous projects to ensure better productivity and system reliability, incorporation of Commissioning flushing connections (If flushing is required), adequate system vents / drains and instrument taps for system Performance Testing.

Electrical single lines and P&ID's will be used to "scope" the systems for development of turnover packages. These scoped drawings will specifically define the system turnover boundaries for pre-commissioning as bulk pre-pre-commissioning finishes and the emphasis turns to system completion. Once the system boundaries are finalized, the scoping boundaries will be included as a development level in each electronically created drawing and maintained as the drawings are revised.

A turnover package numbering system will be developed during the scoping effort. The scoped drawings will be assigned specific turnover package numbers for ease of identification. Engineering databases, which are developed, will incorporate these specific turnover package numbers by adding a turnover package number field to the database list.

These databases include the project's major equipment list, valve list, motor load list, instrument list, cable and I/O lists. These lists will be sorted by turnover package number for inclusion into the individual turnover packages. The combination of scoped drawings and the scoped databases will give a detailed description of each system.

5.1.3 Development of Commissioning Documents

A detailed Commissioning strategy document will be developed for the COMPANY, which includes execution plan for work at the project site with the first objective of optimizing the activities and schedule of the Commissioning phase.

(25)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

It will define the safe working practices, project site organization, responsibilities for the facilities and the interfaces within the CONTRACTOR’s team, the phased MC and RFSU completion objectives by system and Unit, the detailed method statements to be generated, and the completion documentation to be prepared by CONTRACTOR.

The strategy document will also address the sequence and objectives of the Commissioning phase, including outline manpower plans for operations, supervisory, safety, and maintenance functions and technical support until the plant is released to COMPANY. CONTRACTOR will work closely with COMPANY on these items.

Each system turnover from Pre-commissioning to Commissioning will be noted as a turnover milestone activity to begin major testing for the specific system.

CONTRACTOR’s Commissioning Manager, in conjunction with COMPANY Operations, will develop, revise and maintain the Commissioning schedule and will coordinate / schedule activities with CONTRACTOR’s Project Scheduling Group to ensure timely Commissioning updates.

The Commissioning Schedule will identify, by system, the preferred sequence in which commissioning should prepare and complete the scoped project systems. It will also identify walk-down dates for each system, commissioning release dates by system, and specific Commissioning activities required to test and pre-commission individual systems.

The schedule will include, and be used to track system turnover dates and Completion Plan showing, individual commissioning target dates, Commissioning and RFSU targets and activities. CONTRACTOR will develop a commissioning plan and performance test plan in close consultation with COMPANY and ensure the commissioning and RFSU sequence for the Plant is consistent with the Commissioning plan

The sequence and duration for commissioning work leading to RFSU of each system shall be prepared in a system Completion Plan showing, individual commissioning target dates, Commissioning and RFSU targets and activities. CONTRACTOR shall ensure the commissioning and RFSU sequence for the Plant is consistent with the Commissioning plan.

5.1.4 Development of System Manuals

The Commissioning of the facilities will be carried out on a “system-by- system”.

Each operating facility, and the specific units involved, is divided into logical process and/or piping and equipment “systems”.

A System Manual will be prepared for each system. COMPANY shall be furnished updated copy. System Manual “CONTENTS” page will show the following minimum sections:

a.) System Name

b.) Contents Sheet (Index)

c.) System and Sub-system identification d.) System summary sheet

The documentation in each System Manual record the inspection, checking and testing activities required to achieve RFC and RFSU status.

The System Manual will only be complete when all the records of inspections, checks and tests acceptance have been appropriately signed off as approved and summary certifications completed in the System Manual.

(26)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

5.1.5 System/Sub-System Division

CONTRACTOR will divide the Facility into system as a basic approach to Facility Commissioning activities. Systems will be developed such that the individual systems can provide a practical, safe and secure subdivision of the facilities on which to base completion.

The subdivision of the Facility into system provides a workable method to Schedule Commissioning work according to a logical sequence of Commissioning and/or Commissioning activities;

 Conduct Commissioning and/or Commissioning activities of some Facility systems while others are still under pre-commissioning;

 Complete the part on a system-by-system basis and in a systematic and controlled manner. The approach takes full advantage of the fact that any given moment in the Facility, some areas (i.e. systems) are already under Commissioning, while others are under construction or still under pre-commissioning. The overall result of this approach is the earliest start-up date of the Facility as a whole.

A defined subdivision of the Facility into system shall also be used by pre-commissioning staff as the basis of its pressure test program (hydraulic, pneumatic).

Systems are first defined on the Facility P&I Diagrams; these are marked up using a clear identification method to show each system and boundaries between systems and ensure that any requirements for additional isolation for systems and operational areas will be included in the design.

5.2 Site Commissioning Phase 5.2.1 Site Mobilization Plan

Site mobilization of the Commissioning Team will occur to support system turnovers from pre-commissioning and to ensure that subsequent testing will coincide with project schedule requirements. Additional Commissioning Test Personnel will be scheduled onsite, as needed, until full staffing levels are obtained.

The Commissioning Manager will relocate to site after completion of the home office planning and preparations.

This plan will be developed at the beginning of site mobilization for Commissioning team considering the actual progress of Commissioning activities and be reviewed with COMPANY’s Commissioning Team.

5.2.2 Equipment Vendor Support Plan

Contractor will provide Vendor representatives for installation, Commissioning, and Commissioning services. CONTRACTOR will advise the COMPANY Representative when Vendor representatives are ready to mobilize to the Commissioning Site.

For all Vendor representatives providing Commissioning assistance and Training for Company Employee before/after Mechanical Completion, CONTRACTOR will keep a daily time sheet for each Vendor representative.

(27)

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

Punch items are tasks not yet completed or tasks that do not meet project design and specifications and can be related but not limited to

 Equipment that is damaged, defective, inoperable, incomplete or not yet installed.

 Any part of work, including documentation, which does not conform to project scope, specifications, documentation, recognized engineering practices, relevant codes or statutory requirements.

 Any situation that can have HSE impact.

This Punch will not include any approved facility modification which has been implemented but not reported on the master document, but incomplete facility modifications will be included on the Punch. Punch list items will be categorized by priority as shown below.

A. Must be completed prior to Mechanical Completion B. Must be completed prior to Start-up and Commissioning C. Can be completed after Start-up but prior to Turnover

5.3 System Turnover

CONTRACTOR’s Commissioning Personnel will work with “COMPANY” prior to turnover of system to assist Performance Test in the identification and correction of deficiencies that require resolution prior to turnover.

Prior to the system turnover process will consist of system walk-downs by COMPANY’s Commissioning personnel. The walk-down will result in the generation of a "System punch list". The items on this list will be addressed by CONTRACTOR’s Commissioning Team and prior to system turnover and acceptance by COMPANY’s Commissioning Team.

CONTRACTOR’s Commissioning Group will identify components or system activities / tests that will be completed by commissioning prior to turnover.

As pre-commissioning progresses to the point of 65% ~ 70% of End of Precommissioning, where various systems begin to reach mechanical, as well as, electrical completion, precommissioning begins to switch over from a bulk pre-commissioning mode to a systems completion mode.

Turnover packages that define system boundaries using drawings and databases are developed and issued to commissioning well in advance of the first scheduled system turnover dates.

The aim of the turnover packages is to provide commissioning with the necessary information to complete systems or portions of systems (subsystems) in the required sequence for successful project Commissioning.

Each turnover package will contain mechanical, electrical, and instrumentation components that represent a usable part of a system or the entire system depending on system size.

As each of the system / subsystem packages near mechanical and electrical completion, the Commissioning Team will coordinate with pre-commissioning to identify any deficiencies or incomplete items that would prevent the orderly and systematic testing for the turnover package equipment. The format, content, and detail of the Turnover Packages is usually defined through contract

11050146-CM-PRO-000-5017_RA

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE

TABLE OF CONTENTS

1.

COMMISSIONING PHILOSOPHY ... 4

1.1

... 4

2.

COMMISSIONING ORGANIZATION... 5

3.

COMMISSIONING SCHEDULES ... 5

3.1

... 5

3.2

... 7

3.3

... 8

3.4

... 9

3.5

... 13

3.6

... 14

3.7

... 14

3.8

-

... 16

3.9

(

)

(

)... 20

3.10

(

) ... 20

4.

SYSTEM COMPLETION PRIORITIES ... 22

4.1

... 22

4.2

(

&

) ... 22

4.3

... 22

5.

EXECUTION PLAN ... 22

5.1

&

... 22

5.2

... 26

5.3

... 27

5.4

... 29

6.

HEALTH SAFETY & ENVIRONMENT (HSE) ... 29

6.1

... 29

6.2

... 29

6.3

&

... 30

7.

ATTACHMENTS... 31

1:

–

,

-

.

&

... 32

WARA PRESSURE MAINTENANCE PROJECT

COMMISSIONING PROCEDURE
