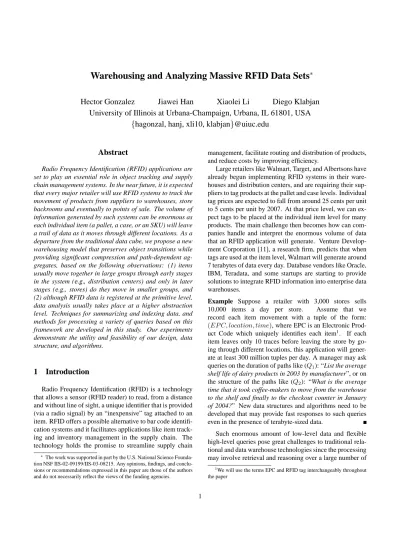

Warehousing and Analyzing Massive RFID Data Sets
∗Hector Gonzalez
Jiawei Han
Xiaolei Li
Diego Klabjan
University of Illinois at Urbana-Champaign, Urbana, IL 61801, USA
{
hagonzal, hanj, xli10, klabjan
}
@uiuc.edu
Abstract
Radio Frequency Identification (RFID) applications are set to play an essential role in object tracking and supply chain management systems. In the near future, it is expected that every major retailer will use RFID systems to track the movement of products from suppliers to warehouses, store backrooms and eventually to points of sale. The volume of information generated by such systems can be enormous as each individual item (a pallet, a case, or an SKU) will leave a trail of data as it moves through different locations. As a departure from the traditional data cube, we propose a new warehousing model that preserves object transitions while providing significant compression and path-dependent ag-gregates, based on the following observations: (1) items usually move together in large groups through early stages in the system (e.g., distribution centers) and only in later stages (e.g., stores) do they move in smaller groups, and (2) although RFID data is registered at the primitive level, data analysis usually takes place at a higher abstraction level. Techniques for summarizing and indexing data, and methods for processing a variety of queries based on this framework are developed in this study. Our experiments demonstrate the utility and feasibility of our design, data structure, and algorithms.
1
Introduction
Radio Frequency Identification (RFID) is a technology that allows a sensor (RFID reader) to read, from a distance and without line of sight, a unique identifier that is provided (via a radio signal) by an “inexpensive” tag attached to an item. RFID offers a possible alternative to bar code identifi-cation systems and it facilitates appliidentifi-cations like item track-ing and inventory management in the supply chain. The technology holds the promise to streamline supply chain ∗The work was supported in part by the U.S. National Science Founda-tion NSF IIS-02-09199/IIS-03-08215. Any opinions, findings, and conclu-sions or recommendations expressed in this paper are those of the authors and do not necessarily reflect the views of the funding agencies.
management, facilitate routing and distribution of products, and reduce costs by improving efficiency.
Large retailers like Walmart, Target, and Albertsons have already begun implementing RFID systems in their ware-houses and distribution centers, and are requiring their sup-pliers to tag products at the pallet and case levels. Individual tag prices are expected to fall from around 25 cents per unit to 5 cents per unit by 2007. At that price level, we can ex-pect tags to be placed at the individual item level for many products. The main challenge then becomes how can com-panies handle and interpret the enormous volume of data that an RFID application will generate. Venture Develop-ment Corporation [11], a research firm, predicts that when tags are used at the item level, Walmart will generate around 7 terabytes of data every day. Database vendors like Oracle, IBM, Teradata, and some startups are starting to provide solutions to integrate RFID information into enterprise data warehouses.
Example Suppose a retailer with 3,000 stores sells 10,000 items a day per store. Assume that we record each item movement with a tuple of the form:
(EP C, location, time), where EPC is an Electronic Prod-uct Code which uniquely identifies each item1. If each
item leaves only 10 traces before leaving the store by go-ing through different locations, this application will gener-ate at least 300 million tuples per day. A manager may ask queries on the duration of paths like (Q1): “List the average shelf life of dairy products in 2003 by manufacturer”, or on
the structure of the paths like (Q2): “What is the average time that it took coffee-makers to move from the warehouse to the shelf and finally to the checkout counter in January of 2004?” New data structures and algorithms need to be
developed that may provide fast responses to such queries even in the presence of terabyte-sized data.
Such enormous amount of low-level data and flexible high-level queries pose great challenges to traditional rela-tional and data warehouse technologies since the processing may involve retrieval and reasoning over a large number of
1We will use the terms EPC and RFID tag interchangeably throughout the paper
inter-related tuples through different stages of object move-ments. No matter how the objects are sorted and clustered, it is difficult to support various kinds of high-level queries in a uniform and efficient way. A nontrivial number of queries may even require a full scan of the entire RFID database. Model Proposal and Justification
In this paper we propose a new RFID data warehouse model to compress and aggregate RFID data in an organized way such that a wide range of queries can be answered effi-ciently. Our design is based on the following key observa-tions.
First, we need to eliminate the redundancy present in RFID data. Each reader provides tuples of the form (EP C, location, time) at fixed time intervals. When an item stays at the same location, for a pe-riod of time, multiple tuples will be generated. We can group these tuples into a single one of the form
(EP C, location, time in, time out). For example, if a supermarket has readers on each shelf that scan the items every minute, and items stay on the shelf on average for 1 day, we get a 1,440 to 1 reduction in size without loss of information.
Second, items tend to move and stay together through different locations. For example, a pallet with 500 cases of CDs may arrive at the warehouse; from there cases of 50 CDs may move to the shelf; and from there packs of 5 CDs may move to the checkout counter. We can register a single stay tuple of the form
(EP C list, location, time in, time out)for the CDs that arrive in the same pallet and stay together in the warehouse, and thus generate an 80% space saving. At this point we can also perform data cleaning to eliminate possible incon-sistencies due to failed scans by the RFID readers. We can, for example, use the assumption that many RFID objects stay or move together, especially at the early stage of dis-tribution, or use the historically most likely path for a given item, to infer or interpolate the missing locations.
An alternative compression mechanism is to store a sin-gle transition record for the 50 CDs that move together from the warehouse to the shelf, that is to group transitions and not stays. The problem with transition compression is that it makes it difficult to answer queries about items at a given location or going through a series of locations. For ex-ample, if we get the query “What is the average time that CDs stay at the shelf?” we can directly get the informa-tion from the stay records withlocation = shelf, but if we have transition records, we need to find all the tran-sition records with origin = shelf and the ones with destination = shelf, join them on EPC, and compute departure time−arrival time.
Third, we can gain further compression by reducing the size of the EPC lists in the stay records by grouping items that move to the same locations. For example, let us say
we have a stay record for the 50 CDs that stayed together at the warehouse, and that the CDs moved in two groups to shelf and truck locations. We can replace the list of 50 EPCs in the stay record for just two generalized identifiers (gids) which in turn point to the concrete EPCs. In this exam-ple we will store a total of 50 EPCs, plus two gids, instead of 100 EPCs (50 in the warehouse, 25 in the shelf, 25 in the truck). In addition to the compression benefits, we can gain query processing speedup by assigning path-dependent names to the gids. In the CDs example we could name the gid for the warehouse 1, and the gid for the shelf 1.1 and truck 1.2. If we get the query “What is the average time to go from the warehouse to the shelf for CDs?” instead of in-tersecting the EPC lists for the stay records at each location we can directly look at the gid name and determine if the EPCs are linked.
Fourth, most queries are likely to be at a high level of abstraction, and will only be interested in the low-level in-dividual items if they are associated with some interesting patterns discovered at a high level. For example, query (Q1) asks about dairy products by manufacturer. It is possible after seeing the results, that the user may ask subsequent queries and drill down to individual items. We can gain significant compression by creating the stay records not at the raw level but at a minimal level of abstraction shared by most applications, while keeping pointers to the RFID tags. This allows us to operate on a much smaller data set, fetching the original data only when absolutely necessary.
The rest of the paper is organized as follows. Section 2 presents the structure of the input RFID data. Section 3 presents data compression and generalization methods im-portant for the design of the RFID warehouse. Section 4 introduces algorithms for constructing the RFID warhouse. Section 5 develops methods for efficient processing of a va-riety of RFID queries. Section 6 reports the experimental and performance results. We discuss the related issues in Section 7 and conclude our study in Section 8.
2
RFID Data
Data generated from an RFID application can be seen as a stream of RFID tuples of the form
(EP C, location, time), where EPC is the unique identifier read by an RFID reader, location is the place where the RFID reader scanned the item, and time is the time when the reading took place. Tuples are usually stored according to a time sequence. A single EPC may have multiple readings at the same location, each reading is generated by the RFID reader scanning for tags at fixed time intervals or on a continuous basis. Table 1 is an example of a raw RFID database where a symbol starting with rrepresents an RFID tag,la location, andta time. The total number of records in this example is 188.
Raw RF ID Records (r1, l1, t1) (r2, l1, t1) (r3, l1, t1) (r4, l1, t1) (r5, l1, t1) (r6, l1, t1) (r7, l1, t1) . . . (r1, l1, t9) (r2, l1, t9) (r3, l1, t9) (r4, l1, t9). . .(r1, l1, t10) (r2, l1, t10) (r3, l1, t10) (r4, l1, t10) (r7, l4, t10) . . . (r7, l4, t19) . . . (r1, l3, t21) (r2, l3, t21) (r4, l3, t21) (r5, l3, t21) . . . (r6, l6, t35) . . . (r2, l5, t40) (r3, l5, t40) (r6, l6, t40). . .(r2, l5, t60) (r3, l5, t60)
Table 1. Raw RFID Records
raw data, data cleaning should be performed. The output after data cleaning is a set of clean stay records of the form
(EP C,location,time in,time out)where time in is the time when the object enters the location, and time out is the time when the object leaves the location.
Data cleaning of stay records can be accomplished by sorting the raw data on EPC and time, and generating
time in and time out for each location by merging
consecu-tive records for the same object staying at the same location. Table 2 presents the RFID database of Table 1 after clean-ing. It has been reduced from 188 records to just 17 records.
EP C Stay(EP C, location, time in, time out)
r1 (r1, l1, t1, t10)(r1, l3, t20, t30) r2 (r2, l1, t1, t10)(r2, l3, t20, t30)(r2, l5, t40, t60) r3 (r3, l1, t1, t10)(r3, l3, t20, t30)(r3, l5, t40, t60) r4 (r4,1, t1, t10) r5 (r5, l2, t1, t8)(r5, l3, t20, t30)(r5, l5, t40, t60) r6 (r6, l2, t1, t8)(r6, l3, t20, t30)(r6, l6, t35, t50) r7 (r7, l2, t1, t8)(r7, l4, t10, t20)
Table 2. A Cleansed RFID Database
3
Architecture of the RFID Warehouse
Before we describe our proposed architecture for ware-housing RFID data, it is important to describe why a tradi-tional data cube model would fail on such data. Suppose we view the cleansed RFID data as the fact table with dimen-sions (EP C, location, time in, time out : measure). The data cube will compute all possible group-bys on this fact table by aggregating records that share the same values (or any *) at all possible combinations of dimensions. If we use count as measure, we can get for example the number of items that stayed at a given location for a given month. The problem with this form of aggregation is that it does not consider links between the records. For example, if we want to get the number of items of type “dairy product” that traveled from the distribution center in Chicago to stores in Urbana, we cannot get this information. We have the count of “dairy products” for each location but we do not know how many of those items went from the first location to the second. We need a more powerful model capable of aggre-gating data while preserving its path-like structure.We propose an RFID warehouse architecture that con-tains a fact table, stay, composed of cleansed RFID records; an information table, info, that stores path-independent in-formation for each item, i.e., SKU inin-formation that is con-stant regardless of the location of the item such as manu-facturer, lot number, color, etc.; and a map table that links together different records in the fact table that form a path. We call the stay, info, and map tables aggregated at a given abstraction level an RFID-Cuboid.
The main difference between the RFID warehouse and a traditional warehouse is the presence of the map table link-ing records from the fact table (stay) in order to preserve the original structure of the data.
The computation of RFID-Cuboids is more complex than that of regular cuboids as we will need to aggregate the data while preserving the structure of the paths at different abstraction levels.
From the data storage and query processing point of view the RFID warehouse can be viewed as a multi-level database. The raw RFID repository resides at the lowest level, on its top are the cleansed RFID database, the min-imum abstraction level RFID-Cuboids and a sparse subset of the full cuboid lattice composed of frequently queried (popular) RFID-Cuboids.
3.1
Key ideas of RFID data compression
Even with the removal of data redundancy from RFID raw data, the cleansed RFID database is usually still enor-mous. Here we explore several general ideas for construct-ing a highly compact RFID data warehouse.
Taking advantage of bulky object movements
Since a large number of items travel and stay together through several stages, it is important to represent such a collective movement by a single record no matter how many items were originally collected. As an example, if 1,000 boxes of milk stayed in locationlocAbetween time
t1(time in) andt2 (time out), it would be advantageous if only one record is registered in the database rather than 1,000 individual RFID records. The record would have the form:(gid, prod, locA, t1, t2,1000), where 1,000 is the count, prod is the product id, and gidis a generalized id which will not point to the 1,000 original EPCs but instead point to the set of new gids which the current set of objects move to. For example, if this current set of objects were split into 10 partitions, each moving to one distinct loca-tion,gidwill point to 10 distinct new gids, each represent-ing a record. The process iterates until the end of the object movement where the concrete EPCs will be registered. By doing so, no information is lost but the number of records to store such information is substantially reduced.
Since many users are only interested in data at a rela-tively high abstraction level, data compression can be ex-plored to group, merge, and compress data records. For example, if the minimal granularity of time is hour, then objects moving within the same hour can be seen as mov-ing together and be merged into one movement. Similarly, if the granularity of the location is shelf, objects moving to the different layers of a shelf can be seen as moving to the same shelf and be merged into one. Similar generalization can be performed for products (e.g., merging different sized milk packages) and other data as well.
Taking advantage of the merge and/or collapse of path segments
In many analysis tasks, certain path segments can be ig-nored or merged for simplicity of analysis. For example, some non-essential object movements (e.g., from one shelf to another in a store) can be completely ignored in certain data analysis. Some path segments can be merged without affecting the analysis results. For store managers, merging all the movements before the object reaches the store could be desirable. Such merging and collapsing of path segments may substantially reduce the total size of the data and speed-up the analysis process.
3.2
RFID-CUBOID
With the data compression principles in mind, we pro-pose, the RFID-Cuboid, a data structure, for storing aggre-gated data in the RFID warehouse. Our design ensures that the data are disk-resident, summarizing the contents of a cleansed RFID database in a compact yet complete manner while allowing efficient execution of both OLAP and tag-specific queries.
The RFID-Cuboid consists of three tables: (1) Info, which stores product information for each RFID tag, (2) Stay, which stores information on items that stay together at a location, and (3) Map, which stores path information necessary to link multiple stay records.
Information Table
The information table stores path-independent dimen-sions such as product name, manufacturer, product price, product category, etc. Each dimension can have an asso-ciated concept hierarchy. All traditional OLAP operations can be performed on these dimensions in conjunction with various RFID-specific analysis. For example, one could drill-down on the product category dimension from “cloth-ing” to “shirts” and retrieve shipment information only on shirts.
Each entry in Info is a record of the form: h(EP C list),(d1, . . . , dm) : (m1, . . . , mi)i, where the
code list contains a set of items that share the same values for dimensionsd1, . . . , dm, andm1, . . . , mi are measures
of the given items, e.g., price.
Stay Table
As mentioned in the introduction, items tend to move and stay together through different locations. Compress-ing multiple items that stay together at a sCompress-ingle location is vital in order to reduce the enormous size of the cleansed RFID database. In real applications items tend to move in large groups. At a distribution center there may be tens of pallets staying together, and then they are broken into in-dividual pallets at the warehouse level. Even if products finally move at the individual item level from a shelf to the checkout counter, our stay compression will save space for all previous steps taken by the item.
Each entry in stay is a record of the form: h(gids, location, time in, time out) : (m1, . . . , mk)i,
wheregidsis a set of generalized record ids each pointing to a list of RFID tags or lower level gids,locationis the location where the items stayed together, time in is the time when the items entered the location, and time out the time when they left. If the items did not leave the lo-cation,time outisN U LL. m1, . . . , mnare the measures
recorded for the stay, e.g., count, average time atlocation, and the maximal time atlocation.
Table 3 presents the stay table for the cleansed data from Table 2. We have now gone from 188 records in the raw data, to 17 in the cleansed data, and then to 7 in the com-pressed data.
gid loc t1 t2 count measure
0.0 l1 t1 t10 4 9 0.1 l2 t1 t8 3 7 0.0.0 l3 t20 t30 3 9 0.1.0 l3 t20 t30 2 19 0.1.1 l4 t10 t20 1 19 0.0.0.0,0.1.0.0 l5 t40 t60 3 19 0.1.0.1 l6 t35 t50 1 14
Table 3. Stay Table
Map Table
The map table is an efficient structure that allows query processing to link together stages that belong to the same path in order to perform structure-aware analysis, which could not be answered by a traditional data warehouse. There are two main reasons for using a map table instead of recording the complete EPC lists at each stage: (1) data compression, and (2) query processing efficiency.
First, we do not want to record each RFID tag on the EPC list for every stay record it participated in. For example, if we assume that 10000 items move in the system in groups of 10000, 1000, 100, and 10 through 4 stages, instead of using 40,000 units of storage for the EPCs in the stay records, we
use only 1,111 units2(1000 for the last stage, 100, 10, and
1 for the ones before).
The second and the more important reason for having such a map table is the efficiency in query processing. Sup-pose each map entry were given a path-dependent label. To compute, for example, the average duration for milk to move from the distribution center (D), to the store back-room (B), and finally to the shelf (S), we need to locate the stay records for milk at each stage. To get three sets of recordsD,B, andS, one has to intersect the EPC lists of the records inD with those inB andS to get the paths. By using the map, the EPC lists can be orders of magnitude shorter and thus reduce IO costs.
The map table contains mappings from higher levelgids to lower level ones or EPCs. Each entry in map is a record of the form: hgid,(gid1, . . . , gidn)i, meaning that, gidis
composed of all the EPCs pointed to by gid1, . . . , gidn.
The lowest levelgidswill point directly to individual items. In order to facilitate query processing we will assign path-dependent labels to high levelgids. The label will con-tain one identifier per location traveled by the items in the gid.
3.3
Hierarchy of RFID-Cuboids
Each dimension in the stay and info tables has an associ-ated concept hierarchy. A concept hierarchy is a partial or-der of mappings from lower levels of abstraction to higher ones. The lowest corresponds to the values in the raw RFID data stream itself, and the associated per item information, which could be at the Stock Keeping Unit (SKU) level. The highest is∗which represents any value of the dimension.
In order to provide fast response to queries specified at various levels of abstraction, it is important to pre-compute some RFID-Cuboids at different levels of the concept hi-erarchies for the dimensions of the info and stay tables. It is obviously too expensive to compute all the possible generalizations, and partial materialization is a preferred choice. This problem is analogous to determining which set of cuboids in a data cube to materialize in order to answer OLAP queries efficiently given the limitations on storage space and precomputation time. This issue has been studied extensively in the data cube research [1, 6], and the princi-ples are generally applicable to the selective materialization of RFID-Cuboids.
In our design, we suggest to compute a set of
RFID-Cuboids at the minimal interesting level at which
users will be interested in inquiring the database, and a small set of higher level structures that are frequently re-quested and that can be used to quickly compute non-materialized RFID-Cuboids.
2This figure does not include the size of the map itself which should use 12,221 units of storage, still much smaller than the full EPC lists
An RFID-Cuboid residing at the minimal interesting level will be computed directly from the cleansed RFID database and will be the lowest cuboid that can be queried unless one has to dig directly into the cleansed data in some very special cases.
4
Construction of an RFID Warehouse
In this section, we study the construction of the RFID warehouse from the cleansed RFID database.In order to construct the RFID-Cuboid, as described in the paper, we need a compact data structure that allows us to do the following efficiently: (1) assign path-dependent labels to the gids, (2) minimize the number of output stay records while computing aggregates that preserve the path-like nature of the data, and (3) identify path segments that can be collapsed. We argue that using a tree-like structure to represent the different paths in the database is an ideal solu-tion, where each node in the tree will represent a path stage; all common path prefixes in the database will share the same branch in the tree. Using the tree we can traverse the nodes in the breath-first fashion while assigning path-dependent labels. We can quickly determine the minimum number of output stay records by aggregating the measures of all the items that share the same branch in the tree. And we can collapse path segments by simply merging parent/child nodes that correspond to the same location. Additionally, the tree can be constructed by doing a single scan of the cleansed RFID database, and it can be discarded after we have materialized the output info, stay, and map tables.
Algorithm 1 summarizes the method for constructing an
RFID-Cuboid from the cleansed RFID database. It takes as
input the clean stay recordsS, the info recordsIdescribing each item, and the level of abstraction for each dimensionL. The output of the algorithm is an RFID-Cuboid represented by the stay, info, and map tables aggregated at the desired abstraction level.
The algorithm first aggregates the information table to the level of abstraction specified byL. Then we call Build-PathTree (Algorithm 2) to construct a prefix tree for the paths in the cleansed database. Using the tree we col-lapse consecutive nodes with the same location, generate the path-dependent gids, create a list of distinct measures at each node, and finally for each node we generate the output stay records.
4.1
Construction of Higher Level RFID-Cuboids
from Lower Level Ones
Once we have constructed the minimum abstraction level
RFID-Cuboid, it is possible to gain efficiency by
construct-ing higher level RFID-Cuboids startconstruct-ing from the existconstruct-ing
data. This can be accomplished by running Algorithm 1 with the stay and info tables of the lower level RFID-Cuboid as input, and using the map table of the input RFID-Cuboid to expand each gid to the EPCs it points to. The benefit of such approach is that the input stay and info tables can be significantly smaller than the cleansed tables, thus greatly gaining in space and time efficiency.
Algorithm 1 BuildCuboid
Input: Stay recordsS, Information recordsI, aggregation levelL
Output: RFID-Cuboid Method:
1: I0= aggregate I to L;
2: path tree = BuildPathTree (S, L);
3: Merge consecutive nodes with the same location in the path tree;
4: Traverse path tree in the breath-first order and assign gid to each node (gid = parent.gid + ‘.’ + unique id), where the parent/children gid relation in the path tree defines the output MAP;
5: Compute aggregate measures for each node, one per group of items with the same information record and in the same leaf;
6: CreateS0 by traversing path tree in the breath-first or-der, and generating stay records for each node (Multiple nodes can contribute to the same stay record);
7: Output MAP,S0, andI0
Observation. Given a cleansed stay and info input tables, the RFID-Cuboid structure has the following properties:
1. (Construction cost) The RFID-Cuboid can be con-structed by doing a single sequential scan on the cleansed stay table.
2. (Completeness) The RFID cuboid contains sufficient information to reconstruct the original RFID database aggregated at abstraction levelL.
3. (Compactness) The number of records in the output
stay and info tables is no larger than the number of
records in the input stay and info tables respectively. Rationale. The first property has been shown in the RFID-Cuboid construction algorithm. The
complete-ness property can be proved by using the map table to expand the gids for each stay record to get the origi-nal data. The compactness property is proved noticing that Algorithm 1 emits at most one output record per distinct measure per node, and the number of distinct measures in a node is limited by the number of input
stay records. The size of the output info table, by
def-inition of the group-by operation is bound by the size of the input info table.
Algorithm 2 BuildPathTree Input: StayS, aggregation levelL
Output: path tree Method:
1: root = new node;
2: for each recordsinSdo 3: s0= aggregate s to level L;
4: parent = lookup node fors0.rfid;
5: if parent == NULL then
6: parent = root;
7: end if
8: node = lookups0.rfid in parent’s children;
9: if node == NULL then
10: node = new node;
11: node.loc = s.loc; 12: node.t1 = s.t1;
13: node.t2 = s.t2;
14: add node to parent’s children;
15: end if
16: node.measure list +=hs0.gid, s0.measurei;
17: end for 18: return root
5
Query Processing
In this section we discuss the implementation of the basic OLAP operations, i.e., drill-down, roll-up, slice, and dice, applied to the RFID data warehouse, and introduce a new operation, Path Selection, relevant to the paths traveled by items.
Given the very large size and high dimensionality of the RFID warehouse we can only materialize a small fraction of the total number of RFID-Cuboids. We will compute the
RFID-Cuboid that resides at the minimum abstraction layer
that is interesting to users, and those RFID-Cuboids that are frequently requested. Initially, the warehouse designer may decide to materialize a subset of RFID-Cuboids that are interesting to the users, and as the query log is built, we can perform frequency counting to determine frequently re-quested RFID-Cuboids that should be pre-computed. When a roll-up or drill-down operation requires an RFID-Cuboid that has not yet been materialized, it would have to be com-puted on the fly from an existing RFID-Cuboid that is close to the required one but at a lower abstraction level.
The slice and dice operations can be implemented quite efficiently by using relational query execution and opti-mization techniques. An example of the dice operation could be: “Give me the average time that milk stays at the shelf”. This query can be answered by the relational expres-sion:
σstay.location=0shelf0,inf o.product=0milk0(stay ./gidinf o).
Path queries, which ask about information related to the structure of object traversal paths, are unique to the RFID warehouse since the concept of object movements is not modeled in traditional data warehouses. It is essential to al-low users to inquire about an aggregate measure computed based on a predefined sequence of locations (path). One such example could be: “What is the average time for milk to go from farms to stores in Illinois?”.
Queries on the paths traveled by items are fundamental to many RFID applications and will be the building block on top of which more complex data mining operators can be implemented. We will illustrate this point with a real example. The United States government is currently in the process of requiring the containers arriving into the coun-try, by ship, to carry an RFID tag. The information can be used to determine if the path traveled by a given container has deviated from its historic path. This application may need to first execute a path-selection query across different time periods, and then use outlier detection and clustering to analyze the relevant paths.
More formally, a path selection query is of the form:
q← hσcinfo,(σc1stage1, . . . , σckstagek)i,
whereσcinfo means the selection on the info table based
on condition c, and σcistagei means the selection based
on condition ci on the stay table. The result of a path
selection query is a set of paths whose stages match the stage conditions in the correct order (possibly with gaps), and whose items match the condition c. The query ex-pression for the example path query presented above is c ← hproduct= “milk”i,c1 ← hlocation = “f arm”i, andc2 ← hlocation= “store”i. We can compute aggre-gate measures on the results of a path selection query, e.g., for the example query the aggregate measure would be the average time.
Algorithm 3 illustrates the process of selecting the gids matching a given query. We first select the gids for the stay records that match the conditions for the ini-tial and final stages of the query expression. For ex-ample, gstart may look like h1.2,8.3.1,3.4i and gend
may look like h1.2.4.3,4.3,3.4.3i. We then compute the pairs of gids from gstart that are a prefix of a gid in
gend. Continuing with the example we get the pairs
h(1.2,1.2.4.3),(3.4,3.4.3)i. For each pair we then retrieve all the stay records. The pair(1.2,1.2.4.3)would require us to retrieve stay records that include gids 1.2, 1.2.4, and 1.2.4.3. Finally, we verify that each of these records matches the selection conditions for each stagei and for
inf o, and add those paths to the answer set.
If we have statistics on query selectivity, it may be pos-sible to find a better optimization query execution plan than that presented in Algorithm 3. If we have a sequence of
stages(stage1, . . . , stagek), we could retrieve the records
for the most selective stages, in addition to retrieving the
stay records forstage1andstagek, in order to further prune
the search space.
Algorithm 3 PathSelection
Input: q ← hσcinfo,(σc1stage1, . . . , σckstagek)i, RFID
warehouse.
Output: the paths that match query conditions,q. Method:
1: gstart= select gids of stay records matching the
condi-tion atstage1;
2: gend = select gids of stay records matching the
condi-tion atstagekand that forinf o;
3: for every pair of gids(s, e)ingstart, gendsuch thatsis
a prefix ofedo
4: path= retrieve stay records for all gids fromstoe;
5: if the stay records inpathmatch conditions for info and for the remaining stages then
6: answer=answer+path;
7: end if
8: end for 9: returnanswer
6
Performance Study
In this section, we perform a thorough analysis of our model and algorithms. All experiments were implemented using C++ and were conducted on an Intel Xeon 2.5GHz (512KB L2 cache) system with 3GB of RAM. The system ran Red Hat Linux with the 2.4.21 kernel andgcc3.2.3.
6.1
Data Synthesis
The RFID databases in our experiments were generated using a tree model for object movements. Each node in the tree represents a set of items in a location, and an edge rep-resents a movement of objects between locations. We as-sumed that items at locations near the root of the tree move in larger groups, while items near the leaves move in smaller groups. The size of the groups at each level of the tree de-fine the bulkiness, B = (s1, s2, . . . , sk), where si is the
number of objects that stay and move together at leveliof the tree. By makingsi ≥sjfori > jwe create the effect
of items moving in larger groups near the factory and dis-tribution centers, and smaller groups at the store level. We generated the databases for the experiments by randomly constructing a set of trees with a given level of Bulkiness, and generating the cleansed RFID records corresponding to the item movements indicated by the edges in the tree.
As a notational convenience, we use the following sym-bols to denote certain dataset parameters.
B= (s1, . . . , sk) Path Bulkiness
k Average path length
P Number of products
N Number of cleansed RFID records
6.2
RFID-Cuboid compression
The RFID-Cuboids form the basis for future query pro-cessing and analysis. As mentioned previously, the advan-tage of these data structures is that they aggregate and col-lapse many records in the cleansed RFID database. Here, we examine the effects of this compression on different data sets. We will compare two different compression strategies, both use the stay and info tables, but one uses the map table as described in the paper (map), whereas the other uses an EPC list to record the items at each stay record (nomap).
Figure 1 shows the size of the cleansed RFID database (clean) compared with the map and nomap RFID-Cuboids. The datasets contains 1,000 distinct products, traveling in groups of 500, 150, 40, 8, and 1 through 5 path stages, and 500 thousand to 10 million cleansed RFID records. The
RFID-Cuboid is computed at the same level of abstraction
of the cleansed RFID data, and thus the compression is loss-less. As it can be seen from Figure 1 the RFID-Cuboid that uses the map has a compression power of around 80% while the one that uses EPC lists has a compression power of around 65%. 0 50 100 150 200 250 300 350 0,1 0,5 1 5 10
Input Stay Records (millions)
S iz e ( M B y te s ) clean nomap map
Figure 1. Compression vs. Cleansed Data Size.P = 1000,B= (500,150,40,8,1),k= 5.
Figure 2 also shows the size of the cleansed RFID database (clean) compared with the map and nomap
RFID-Cuboids. In this case we vary the degree of bulkiness
of the paths, e.g., the number of tags that stay and move together through the system. We define 5 levels of bulki-nessa= (500,230,125,63,31),b= (500,250,83,27,9), c = (500,150,40,8,1), d = (200,40,8,1,1), ande =
(100,10,1,1,1). The bulkiness decreases from dataset a toe. As it can be seen in the figure, for more bulky data the RFID-Cuboid that uses the map clearly outperforms the nomap cuboid; as we move towards less bulky data the ben-efits of the map decrease as we get many entries in the map
that point to just one gid. For paths where a significant por-tion of the stages are traveled by a single item the benefit of the map disappears and we are better off using EPC lists. A possible solution to this problem is to compress all map entries that have a single child into one.
0 5 10 15 20 25 30 35 a b c d e Path Bulkiness S ize ( M B y te s ) clean nomap map
Figure 2. Compression vs. Data Bulkiness. P = 1000,N = 1,000,000,k= 5.
Figure 3 shows the compression obtained by climbing along the concept hierarchies of the dimensions in the stay and info tables. Level-0 cuboids have the same level in the hierarchy as the cleansed RFID data. The three higher level cuboids offer one, two, and three levels of aggregation re-spectively at all dimensions (location, time, product, man-ufacturer, color). As expected the size of the cuboids at higher levels decreases. In general the cuboid using the map is smaller, but for the top most level of abstraction the size is the same as for the nomap cuboid. At level 3 the size of the stay table is just 96 records, and most of the space is ac-tually used by recording the RFID tags themselves and thus it makes little difference if we use a map or not.
0 2 4 6 8 10 12 1 2 3 4 Abstraction Level S ize ( M B y te s ) nomap map
Figure 3. Compression vs. Abstraction Level. P = 1000, B = (500,150,40,8,1), k = 5, N = 1,000,000.
Figure 4 shows the time to build the RFID-Cuboids at the same four levels of abstraction used in Figure 3. In all cases the cuboid was constructed starting from the cleansed database. We can see that cuboid construction time does not significantly increase with the level of abstraction. This is expected as the only portion of the algorithm that incurs ex-tra cost for higher levels of absex-traction is the aggregation of
the info table, and in this case it contains only 1,000 entries. This is common as we expect the cleansed RFID stay table to be orders of magnitude larger than the info table. The computation of RFID-Cuboids can also be done from lower level cuboids instead of doing it from the cleansed database. For the cuboids 1 to 3 of Figure 4 we can obtain savings of 50% to 80% in computation time if we build cuboidifrom cuboidi−1. 0 50 100 150 200 250 300 350 400 0.1 0.5 1 5
Input Stay Records (millions)
S e c o n d s Cuboid 0 Cuboid 1 Cuboid 2 Cuboid 3
Figure 4. Construction Time. P = 1000, B = (500,150,40,8,1),k= 5.
6.3
Query Processing
A major contribution of the RFID data warehouse model is the ability to efficiently answer many types of queries at various levels of aggregation. In this section, we show this efficiency in several settings. We compare query executing under three scenarios: the first is a system that directly uses the cleansed RFID database (clean), the second one that uses the stay table but no map, it instead uses EPC lists at each stay record (nomap), and the third is the RFID-Cuboid described in the paper using stay and map tables (map). We assume that for each of the scenarios we have a B+Tree on each of the dimensions. In the case of the map cuboid the index points to a list of gids matching the index entry. In the case of the nomap cuboid and the cleansed database the in-dex points to the tuple(RF ID tag, record id). This is nec-essary as each RFID tag can be present in multiple records. The query answering strategy used for the map cuboid is the one presented in Algorithm 3. The strategy for the other two cases is to retrieve the (RF ID tag, record id)pairs matching each component of the query, intersecting them, and finally retrieving the relevant records.
For the experiments we assumed that we have a page size of 4096 bytes, and that RFID tags, record ids, and gids use 4 bytes each. We also assume that all the indices fit in mem-ory except for the last level. For each of the experiments we generated 100 random path queries. The query specifies a product, a varying number of locations (3 on average), and a time range to enter the last stage (time out). Semantically this is equivalent to asking “What is the average time for
productX to go through locationsL1, . . . , Lk entering
lo-cationLkbetween timest1−t2? ”.
Figure 5 shows the effect of different cleansed database sizes on query processing. The map cuboid outperforms the cleansed database by several orders of magnitude, and most importantly the query answer time is independent of database size. The nomap cuboid is significantly faster than the cleansed data but it suffers from having to retrieve very long RFID lists for each stage. The map cuboid ben-efits from using very short gid lists, and using the path-dependent gid naming scheme that facilitates determining if two stay records form a path without retrieving all inter-mediate stages. 1 10 100 1.000 10.000 1 2 3 4 5
Input Stay Records (millions)
I/ O O p e ra ti o n s ( lo g s c a le ) clean nomap map
Figure 5. Query Processing I. P = 1000, B = (500,150,40,8,1),k= 5.
Figure 6 shows the effects of path bulkiness on query processing. For this experiment we set the number of stay records constant at 1 million. The bulkiness levels are the same as those used for the experiment in Figure 2. As with the compression experiment since we have more bulky paths, the map cuboid is an order of magnitude faster than the cleansed RFID database. As we get less bulky paths, the benefits of compressing multiple stay records de-creases until the point at which it is no better than using the cleansed database. The difference between the map and nomap cuboids is almost an order of magnitude for bulky paths, but as in the previous case, for less bulky paths the advantage of using the map decreases.
1 10 100 1.000 10.000 100.000 1 2 3 4 5 Path Bulkiness I/ O O p e ra ti o n s ( lo g s c a le ) clean nomap map
7
Related Work
RFID technology has been researched from several per-spectives: (1) the physics of building tags and readers [3, 7], (2) the techniques required to guarantee privacy and safety [9], and (3) the software architecture required to collect,
fil-ter, organize, and answer online queries on tags [2, 4, 8].
The software architecture line of research is the closest to our work but differs in that it is mainly concerned with online transaction processing (OLTP) but not OLAP-based data warehousing. [8] presents a comprehensive framework for online management of RFID data, called the EPC Global Network. [2] presents an overview of RFID data manage-ment from a high-level perspective and it introduces the idea of an online warehouse but without going into the detail at the level of data structure or algorithm.
An RFID data warehouse shares many common princi-ples with the traditional data cube [5]. They both aggregate data at different levels of abstraction in multi-dimensional space. Since each dimension has an associated concept hi-erarchy, both can be (at least partially) modelled by a Star schema. The problem of deciding which RFID-Cuboids to construct in order to provide efficient answers to a variety of queries specified at different abstraction levels is analogous to the problem of partial data cube materialization studied in [6, 10]. However, RFID-Cuboid differs from a traditional data cube in that it also models object transitions in multi-dimensional space.
8
Conclusions
We have proposed a novel model for warehousing RFID data that allows high-level analysis to be performed effi-ciently and flexibly in multidimensional space. The model is composed of a hierarchy of highly compact summaries (RFID-Cuboids) of the RFID data aggregated at different abstraction levels where data analysis can take place. Each
RFID-Cuboid records item movements in the stay, info, and map tables that take advantage of the fact that individual
items tend to move and stay together (especially at higher abstraction levels) to collapse multiple movements into a single record without loss of information. Our performance study shows that the size of RFID-Cuboids at interesting ab-straction levels can be orders of magnitude smaller than the original RFID database and can be constructed efficiently. Moreover, we show the power of our data structures and algorithms in efficient answering of a wide range of RFID queries, especially those related to object transitions.
Our study has been focused on efficient data warehous-ing and OLAP-styled analysis of RFID data. Efficient meth-ods for a multitude of other data mining problems for the RFID data (e.g., trend analysis, outlier detection, path clus-tering) remain open and should be a promising line of future
research.
Notice that our proposal of the RFID model and its subsequent methods for warehouse construction and query analysis is based on the assumption that RFID data tend to move together in bulky mode, especially at the early stage. This fits a good number of RFID applications, such as sup-ply chain management. However, there are also other appli-cations where RFID data may not have such characteristics. We believe that further research is needed to construct effi-cient models for such applications.
References
[1] S. Chaudhuri and U. Dayal. An overview of data ware-housing and OLAP technology. SIGMOD Record, 26:65–74, 1997.
[2] S. Chawathe, V. Krishnamurthy, S. Ramachandran, and S. Sarma. Managing RFID data. In Proc. Intl. Conf. on Very
Large Databases (VLDB’04).
[3] K. Finkenzeller. RFID Handbook: Fundamentals and
Appli-cations in Contactless Smart Cards and Identification. John
Wiley and Sons, 2003.
[4] C. Floerkemeier, D. Anarkat, T. Osinski, and M. Har-rison. PML core specification 1.0. White paper, MIT Auto-ID Center, http://www.epcglobalinc. org/standards technology/Secure/v1.0/ PML Core Specification v1.0.pdf, 2003. [5] J. Gray, S. Chaudhuri, A. Bosworth, A. Layman, D. Reichart,
M. Venkatrao, F. Pellow, and H. Pirahesh. Data cube: A relational aggregation operator generalizing group-by, cross-tab and sub-totals. Data Mining and Knowledge Discovery, 1:29–54, 1997.
[6] V. Harinarayan, A. Rajaraman, and J. D. Ullman. Imple-menting data cubes efficiently. In Proc. 1996 ACM-SIGMOD
Int. Conf. Management of Data (SIGMOD’96).
[7] S. Sarma. Integrating RFID. ACM Queue, 2(7):50–57, Oc-tober 2004.
[8] S. Sarma, D. L. Brock, and K. Ashton. The net-worked physical world. White paper, MIT Auto-ID Center, http://archive.epcglobalinc.org/ publishedresearch/MIT-AUTOID-WH-001.pdf, 2000.
[9] S. E. Sarma, S. A. Weis, and D. W. Engels. RFID systems, security & privacy implications. White paper, MIT Auto-ID Center, http://archive.epcglobalinc.org/ publishedresearch/MIT-AUTOID-WH-014.pdf, 2002.
[10] A. Shukla, P. Deshpande, and J. F. Naughton. Materialized view selection for multidimensional datasets. In Proc. 1998
Int. Conf. Very Large Data Bases (VLDB’98).
[11] Venture Development Corporation (VDC). http://www. vdc-corp.com/.
