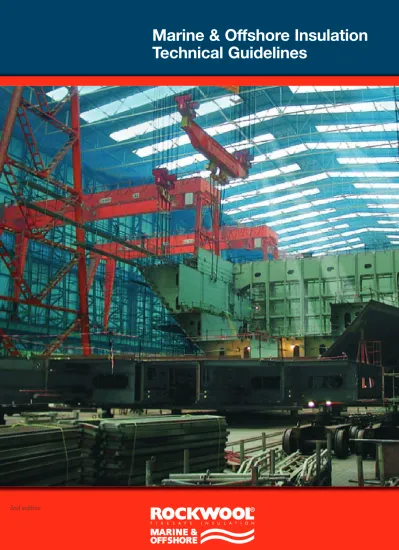

Marine & Offshore Insulation Technical Guidelines

(1)

Marine & Offshore Insulation

Technical Guidelines

Rockwool

Marine

&

Of

fshor

e

Insulation

-

Technical

Guidelines

Rockwool A/S · Hovedgaden 501 · 2640 Hedehusene · Denmark · Tlf. +45 46 56 16 16 · Fax +45 46 56 16 04

To learn more visit

www.rockwool-marine.com

BELGIUM

Rockwool Technical Insulation Phone: +32 271 56820 Fax: +32 271 56848 DENMARK Rockwool A/S Phone: +45 46 56 16 16 Fax: +45 46 56 16 04 FINLAND Rockwool Finland Oy Phone: +358 9 8563 5880 Fax: +358 9 8563 5889 FRANCE

Rockwool Technical Insulation Phone: +33 1 4077 82 11 Fax: +33 1 4077 80 40 GERMANY

Rockwool Technical Insulation Phone: +49 2043 408-0 Fax: +49 2043-408 672

ITALY

Rockwool Italia S.p.A. Phone: +39 02 34 613 1 Fax: +39 02 34 613 321 LATVIA Rockwool SIA Phone: +371 67 03 25 85 Fax: +371 67 03 25 86 LITHUANIA Rockwool UAB Phone: +370 52 12 60 24 Fax: +370 52 12 44 92 NETHERLANDS

Rockwool Technical Insulation Phone: +31 475 35 3618 Fax: +31 475 35 3640 NORWAY A/S Rockwool Phone: +47 22 02 40 00 Fax: +47 22 15 91 78 POLAND Rockwool Polska Sp. z o. o Phone: +48 68 385 0131 Fax: +48 68 385 0122 RUSSIA

ZAO Mineralnaya Vata Rockwool Russia Phone: +7 495 995 77 55 Fax: +7 495 995 77 55 SWEDEN Roxull AB Phone: +46 36 570 5200 Fax: +46 36 570 5283 UNITED KINGDOM Rockwool Limited Phone: +44 871 222 1780 Fax: +44 871 222 1781 UKRAINE LLC Rockwool Ukraine Phone: +380 44 586 49 73/76 Fax: +380 44 586 49 74 HONG KONG (FAR EAST REGION) Rockwool A/S Hong Kong office Phone: +852 2866 6180 Fax: +852 2866 9555 REST OF THE WORLD RMO Export

Phone: +45 46 56 16 16 Fax: +45 46 56 16 04

For further information please visit our website www.rockwool-marine.com or contact our local Rockwool companies.

3B

Reklame

·

0809

(2)

Introduction

Guidelines to be used in your daily work

In the Technical Guidelines you will ﬁ nd:

• General information about stan-dards and test methods within marine and offshore.

• Practical information and advice about insulation and installation procedures.

• Detailed information about our range of products and construc-tions, construction details for e.g. bulkhead, deck and junctions. • Overall information about sound

insulation and measurements of our products.

• Construction details within thermal and technical insulation. • Overview of our product range

and our certifi cates.

The recommendations in this ma-nual should be seen as guidelines only. It is of course important that the insulation work is done accor-ding to the IMO rules and regula-tions from national authorities and classifi cation societies.

Further support and information

We hope that this manual will be useful in your daily work. The manual however forms only a part of our support and information to the market. You are always more than welcome to contact your local Rockwool representative or our marine specialists who are ready to assist you with information and ad-vice. Further information can also be found in our marine & offshore brochures e.g. “Products & Con-structions” and “Acoustic Manual”. To get the most updated

information we recommend the use of our web-site,

www.rockwool-marine.com

Rockwool Marine & Offshore is part of the Rockwool International Group, the world’s largest producer of stone wool and has for several years been one of the leading sup-pliers of insulation for the marine and offshore sector world wide. We offer a wide range of tested and approved products and construc-tions specially developed for marine and offshore. We offer com-petitive solutions within e.g. fi re, sound and thermal insulation and insulation of technical installations. A dedicated team of specialists is daily working to optimize our range of products and constructions. The development and sale are taking place in close cooperation with the local Rockwool companies and a world wide net of agents and dealers.

One of our main tasks is to assist and guide our customers with the right information and advice about our products, constructions and the practical insulation work.

This manual combines all relevant information on marine and offshore insulation and is designed to keep you updated on our knowledge within the fi eld.

We hope that you will ﬁ nd the Technical Guidelines useful in your daily work and inspirational to your future work within marine and offshore insulation.

(3)

Introduction

...2

Marine & Offshore Insulation

- an overview

...4

Insulation in General

...6 Preparation ...6 Cutting ...6 Installation ...7 Securing product ...8 Pins ...8 Washers ...8 Vapour barrier ...9

Storage and stacking ...9

Calculation of materials ...10

Choosing the right product ...11

Regulations for Fire Insulation

...12

Symbol Guide

...14

A-constructions

...15 Steel bulkhead ...15 Steel deck ...25 Aluminium bulkhead ...33 Aluminium deck ...37

H-constructions

...41 Steel bulkhead ...41 Steel deck ...47

Jet Fire & Blast Resistance

...51

Bulkhead and deck jet fi re 30 min. ...52

Blast resistance ...53

Construction Details

...55

Stiffeners ...56

Bulkhead and deck connections ...57

Installation of surface steel plate ...58

Additional Fire Protection

...59

Draught stoppers ...60 Penetrations ...61 B15 extension ...62

Floating Floor

...63 Marine Slab 200 ...64 Marine Slab 140 ...65

Technical Insulation

... 67

Technical insulation in general ...68

Insulation with Pipe Section ...69

Insulation with Marine Lamella Mat ...70

Insulation with Marine Wired Mat ...71

Insulation with Marine Slabs/Batts ...72

Cladding ...72

Sound

... 73

Rules and regulations ...74

Sound absorption ...75

Sound reduction ...76

Thermal Insulation of

Bulkhead and Deck

... 77

Solutions for thermal insulation ...78

Lambda values ...79 Thermal calculations ...80

Certifi cates

...81

Product Guide

...85 Product selector ...86 Products ...87 Surfaces ...93

Aquaduct

...95

Health & Safety

...96

About Rockwool Marine & Offshore

...97

Notes

...98

(4)

Marine & Of fshor e Insulation - an overview

Marine & Offshore Insulation

- an overview

Bridge

At the bridge it is important to secure a high level of fi re protection and sound insulation.

See page 15-40 for A-constructions See page 63-66 for ﬂ oating ﬂ oor See page 73-76 for sound insulation

Storage and tank rooms

In the boiler room, storage rooms and tank rooms it is often important to insulate surfaces, boilers and pipes.

See page 61 for penetrations See page 67-72 for technical insulation

Cabins

On board a passenger ship it is essential to have the right insulation between the cabins. It is crucial to have the needed fi re protection and it is getting more and more important to have a high level of sound and thermal insulation. See page 15-40 for A-constructions See page 73-76 for sound insulation See page 77-80 for thermal insulation

Disco

The discothèque, cinema and bar areas onboard cruise ships are big sources of noise. It is important to have the right sound insulation around these areas towards the neighbouring areas. See page 15-40 for A-constructions See page 63-66 ﬂ oating ﬂ oor See page 73-76 for sound insulation

Corridors

Corridors are part of the emergency escape routes on a vessel. The numbers of horizontal fi re zones passed by the corridor determine the fi re insulation class.

(5)

4 55 Marine & Of fshor e Insulation - an overview Engine room

The engine room contains a lot of fi re risks so fi re protection is essential. The engine room is also source of high and often disturbing noise. It is often fi lled with pipes, tanks, containers and other equipment where technical insulation is required. It is important to have the insulation protected so oil vapour does not get into the insulation material.

See page 15-40 for A-constructions See page 67-72 for technical insulation See page 73-76 for sound insulation See page 93 for surfaces

Offshore

On offshore applications you have more or less the same conditions as on a ship. Furthermore you have the risk of hydrocarbon fi re and need to protect people and material from an HC fi re. See page 41-50 for H-constructions

See page 51-54 for Jet Fire and Blast Resistance

Public area

The public area is requiring all kinds of insulation, depending on the situation. See page 15-40 for A-constructions See page 60 for draught stoppers See page 73-76 for sound insulation See page 77-80 for thermal insulation See page 93 for surfaces

Stairways

The stairways are part of the emergency escape routes on a vessel. The numbers of vertical fi re zones passed by the stair-way determine the fi re insulation class. See page 15-40 for A-constructions

Galley

In the galley you always have a risk of fi re, as you have a mixture of heat and ﬂ am-mable materials. In this case it is also necessary to be aware of the facings as you have oil vapour in the air.

See page 15-40 for A-constructions See page 67-72 for technical insulation See page 93 for surfaces

Control room

In the control room fi re is to be held out as long as possible as this is the last place where all the technical equipment can be controlled. The sound level needs to be low, as engine crew has to spend a lot of time here. It is moreover important that no vapour gets to the machines and computers and that the room has a reasonable sound level. See page 15-40 for A-constructions See page 73-76 for sound insulation See page 93 for surfaces

(6)

Insulation

in

General

Insulation in General

Fig. 1. Welding of pins to the plate (bulkhead/deck).

As fi rst step the pins must be welded to the plate and stiffener. Distance between pins should not exceed 300 mm. For fi re rated constructions the position of pins must follow the offi cial drawings.

Fig.3A. Using an electrical saw to cut large amounts of Rockwool products

When cutting large quantities of Rockwool insulation it is recommended to use an electrical saw. This will ensure a good and angular surface that is easy to tighten against the next Batts/Slabs. 2-5 mm oversize is recom-mended. The pieces of insulation should be min. 150x150 mm.

Fig. 3C. Using a shear to cut Wired Mats

Wired Mats should be cut with a large shear. 2-5 mm oversize is recommended. The pieces of insulation should be min. 150x150 mm.

Fig. 2. Painting of the plate

To avoid corrosion the plate can afterwards be painted with anti corrosion paint.

Fig. 3B. Using a Rockwool knife to cut Rockwool Insulation

Rockwool insulation can easily be cut with a Rockwool knife or a similar sharp knife. When the Batts/Slabs are cut in 2-5 mm oversize (depending on density) the optimal tension and tightness can be obtained when fi tting the wool. The pieces of insulation should be

PREPARATION

CUTTING The installation of insulation material can be done

in different ways. It is up to the insulation contractor to choose the best way for each application. For fi re rated constructions the installation has to follow the offi cial drawings according to the fi re test. Drawings can be found on our website, www.rockwool-marine. com. In the following you will fi nd a general descrip-tion of the way the insuladescrip-tion work can be done:

(7)

6 7

Insulation

in

General

Fig. 6 Fixing the insulation

Fix washers on the pins in order to secure fi xing of the insulation.

Alternative 1, fi g. 4A. Insulation of stiffeners

Depending on the construction it is recommended to start with the insulation of the stiffeners. First by fi lling out the space, behind the stiffener, with Rockwool insulation. The insulation should fi t exactly to the profi le structure. Afterwards insulate around the stiffener with the required thickness of Rockwool insulation.

Alternative 2, fi g. 4A. Insulation between stiffeners

Depending on the construction it can be easier to start with insulation of the plate. Joints must be tight and no air gaps must be found. In connection with solutions with more than one layer of insulation, the joints should be staggered by min. 150 mm to ensure that no joints go straight through both layers.

Alternative 1, fi g. 5A. Insulation between stiffeners

Insulate the plate between stiffeners with Rockwool insulation. Joints must be tight and no air gaps must be found. In connection with solutions with more than one layer of insulation, the joints should be staggered by 150 mm to ensure that no joints go straight through both layers.

Alternative 2, fi g. 5A. Insulation of stiffeners

Insulate with Rockwool insulation around the stiffener. Fill out the space behind the stiffener with Rockwool insulation, the insulation should fi t exactly to the profi le structure.

(8)

Insulation

in

General

Securing the product

When installing the insulation all pieces must be fi t fi rmly with mini-mum one pin approx 10 mm longer than the nominal thickness of the insulation. On A-constructions the material has to be fastened with spring washers.

Different pins

Steel pins are used for steel decks and bulkheads. The steel pins are coated with copper for corrosion protection. Stainless steel pins with aluminium tip are used for aluminium constructions. The pins are normally 3 mm in diameter and can be aquired in different lengths.

Washers

The spring washers used to slide over the pins for securing the insulation should be 38 mm in diameter and of corrosion protected material.

Securing H-constructions

On H-constructions it is recommended that the pins are approx 40 mm longer than the nominal thickness of the insulation and are bent in different directions to ensure that the wool is secured. In case of H-constructions use of wire mesh as a cover is recommended. On H-constructions the material has to be fastened with spring washers.

Covering the steel washers

The washer can be fi t with a plastic cap to cover the steel tip and to create a nice looking surface.

SECURING THE PRODUCT

PINS

(9)

8 9

Insulation

in

General

Using tape to ensure an airtight surface between two batts

All joints must be sealed with a tape width of 75-100 mm to ensure an air tight surface. Make sure that there is no grease on the surface before the tape is applied. Pins and washers should be taped.

Stacking of Rockwool products

The products must not be stacked in more than two layers when delivered on pallets. They must only be stored on the ﬂ at side when delivered in packages and must not be stacked in heights of more than three metres. It is recommended that roll products are stacked upright.

Do not sit on the Rockwool material

The products must at all times during storage remain untouched and must not be affected by any kind og treading, sitting or any other similar kind of exposure.

Storage of Rockwool insulation

The products must at all times be stored dry indoor in closed ware-house facilities.

STORAGE AND STACKING

In rooms where vapour will enter the insulation as a reason of tem-perature/ pressure differences, a vapour barrier is often a demand. When water vapour is moving from the hot room towards colder surfaces, it will often lead to problems with corrosion. If it is oil vapour this will be collected in the wool and endanger the fi re properties of the wool.

To close the surface on the Rockwool products there are several options e.g. reinforced alu foil:

• All joints must be sealed with a tape width of 75-100 mm to ensure an air tight surface.

• Make sure that there is no grease, oil or dirt on the surface before the tape is applied. This will cause the tape to come loose. • Make sure all holes in the surface are closed.

• The surface must have a low ﬂ ame spread approval if it is used for marine applications.

In order to secure the right conditions for storage of Rockwool Marine & Offshore products a special set of conditions have been prepared, e.g. the products:

• Must at all times be stored dry indoor in closed warehouse facilities.

• Must not be stacked in more than two layers when delivered on pallets.

• Must only be stored on the ﬂ at side when delivered in packages and must not be stacked in heights of more than three metres. • Must at all times during storage remain untouched and must not be

affected by any kind of treading, sitting or any other similar kind of exposure.

• Must be transported in closed compartments, e.g. trailers, contain-ers and other cargo holds in order to avoid exposure to weather elements and/or condensation etc.

(10)

Calculation of Materials

Below you will fi nd a rough guidance for estimated need of material. Check your drawings for more detailed calculations.

INSULATION

PINS AND WASHERS

TAPE WASTE

Based on a total amount of insulation for plate + stiffeners:

The plate equals 60%. The stiffeners equals 40%

Alternatively the use of pins and wash-ers can be calculated by the total area of plate and stiffener in m2_{times min. 18.}

Example:

A total quantity of 100 m2_{plate needs to} be insulated; also taking the insulation of stiffeners into consideration. Estimated need of pins and washers: 100 m2_{x 18 pins/m}2_{= 1800 pins}

As guidance the following amount of waste has to be included:

Insulation area < 100 m2_{10 % waste} Insulation area > 100 m2_{5% waste}

Calculation

of

Materials

Based on a plate of X m2_{. The amount} of Batts/Slabs for stiffeners can as guidance be calculated as X times 0.7

Example:

100 m2_{of plate needs to be insulated.} Calculation of material for stiffener: 100 m2_{x 0.7 = 70 m}2

1

2

As guidance the use of pins and washers can be calculated as follows: Plate in m2_{times min. 12.}

Stiffener in m2_{times min. 10.}

Example:

100 m2_{insulation of plate requires} 100 m2_{x 12 pins/m}2_{= 1200 pins} 100 m2_{insulation of stiffeners requires} 100 m2_{x 10 pins/m}2_{= 1000 pins}

As guidance the amount of tape for joints can be calculated by the insulated in m2_{times 4 stated in} running metres

Example:

Tape for 100 m2_{of insulation;} 100 m2_{x 4 m/m}2_{= 400 metres}

(11)

10 11

Choosing the Right Product

To fi nd the correct product it is necessary to know which application it has to be used for e.g.:

• Fire insulation • Sound insulation • Thermal insulation

• Insulation of technical installations • Floating ﬂ oor insulation

• Panels

• Insulation of sub-sea pipelines

• Combinations e.g. ﬁ re and sound insulation

When the application is known, the requirements for product characteristics need to be evaluated e.g.:

• Fire properties • Sound properties • Thickness

• Thermal conductivity • Mechanical strength

In some applications the weight could be of impor-tance. In such cases the lighter products can be chosen, but it is not always the lightest solution that gives the best result. The light products do not protect against noise in the same frequency band as the more heavy products, so here it is necessary to know what result is requested in the end.

All Rockwool products have good fi re properties, but when using the products on ships or offshore rigs it is necessary to choose the right product fulfi lling the needed fi re rating.

Furthermore it can be relevant to evaluate the differ-ent solutions with regard to the working and instal-lation method. Depending on the experience, the labour cost and the prioritisation it might be relevant to include parameters as e.g.:

• Easy handling • Less cutting • Fast installation • Labour intensity

0575/year

Rockwool Marine & Offshore has a large number of certifi cates for the different products and applica-tions from classifi cation companies based on fi re tests made at IMO approved fi re institutes.

When choosing a product it is necessary to choose a product that is approved by the classifi cation com-pany that has to approve the application/newbuilding in the end.

Some customers prefer to work with constructions based on Batts, securing easy handling of small size and fi xed products, others prefer to work with con-structions based on Wired Mat. For some customers it is important to have the best and most safe solutions typically based on a two layer solution where other customers tend to focus on easy and fast installation. Finally, it is important to focus on the right

documentation such as:

• Type approvals • Type certiﬁ cates

When using Rockwool insulation onboard a vessel carrying an EEA fl ag make sure that the product has the MED approval symbol (wheelmark).

It is important to make sure that the products and constructions have the right approval needed in the specifi c project, e.g. construction approval, non-combustible approval and low fl ame spread approval. Remember to check if the certifi cate is valid at the time where the insulation plan is approved by the classifi cation societies.

Choosing the Right Product

To fi nd the correct product it is necessary to know _Choosing

the

Right

Pr

(12)

Requir ements for Fir e Insulation

Regulations for Fire Insulation

According to SOLAS

The requirements for materials and construc-tions to meet specifi ed standards of safety are normally prescribed by international or national laws related to shipping and offshore installa-tions.

In addition to these regulations classifi cation societies such as Det Norske Veritas (DNV) and Lloyds Register of Shipping (LRS) may have ad-ditional requirements.

Approvals and Certifi cation

• Suppliers of materials and constructions to the marine and offshore industry must prove that their products, as a minimum, meet the statutory require-ments.

• The MED directive (EC Council Directive 96/98/ EC - Marine Equipment Directive) has replaced the previous approvals from the maritime authori-ties within EEA countries. All products supplied to marine carrying EEA fl ag must be subject to the MED directive.

• MED-certifi cates are issued by notifi ed bodies accredited by an EEA country. Approved products bear the mark of conformity.

• Classifi cation societies issue type approval certifi -cates stating the permission to use specifi c mate-rials and constructions together with any relative restrictions.

• If there are special circumstances or requirements for special details, it may be required to obtain statements from other authorities.

Approval Requirements

• To satisfy the national authorities and classifi ca-tion societies, materials and construcca-tions must be proven to comply with the national and international requirements. Tests have to been done at interna-tionally recognised test laboratories.

• The tests have to be performed so that the materials or products are exposed to a fi re generated under controlled conditions that simulate as closely as pos-sible a worst case scenario.

Test Requirements

• There are several national and international require-ments regarding the use of materials on ships and offshore installations. These classifi cations are required to prove combustibility characteristics and include ignition properties, heat release and devel-opment of toxic gases and smoke.

• To prove that materials meet the required fi re technical classifi cation, tests are carried out at recognised test institutions according to standard-ised test methods.

Material Test Methods.

Testing of material’s fi re resistance is done according to FTP code for non-combustibility and where a facing is applied for low fl ame spread. The most com-monly accepted test methods are:

• Non-Combustibility: IMO A-799(19) ISO 1182

• Low Flame Spread: IMO A-653(16)

It is important to note that materials which meet the requirements for non-combustibility do not have to be tested for other fi re technical properties.

Construction Test Methods

Testing of a construction’s fi re resistance (decks, bulk-heads, structural steel, penetrations etc.) is normally carried out in a standardised test furnace, where the construction specimen is exposed to a fi re according to a standardised time/temperature curve.

The most common test methods are:

• Recommendation on Fire Test Procedures for “A”, “B” and “F” Class Divisions. IMO A-754 (18)

§

SOLAS, Chapter II-2, Regulation 5.3.1:

Use of non-combustible materials

“Insulating materials shall be non-combustible, except in cargo spaces, mail rooms, baggage rooms and refrigerated compartments of service spaces. Vapour barriers and adhesives used in conjunction with insulation, as well as the insulation of pipe fi ttings for cold service systems, need not be of non-combustible materials, but they shall be kept to the minimum quantity practicable and their exposed surfaces shall have low fl ame-spread characteristics.”

(13)

12 13 Requir ements for Fir e Insulation

Class B Fire Divisions

• Class B ﬁ re divisions must be of non-combustible materials and must prevent the propagation of ﬂ ames for at least 30 minutes during a standard fi re test.

• The divisions must be insulated so that the average temperature on the unexposed side of the division does not exceed 140°C above the initial temperature.

• Furthermore, the temperature at any single point on the unexposed side must not exceed 225°C above the initial temperature within the time limits.

Class A Fire Divisions

• Class A ﬁ re divisions must be of non-combustible materials and insulation materials must be fi re tested at a recognised institution. They must be suffi ciently braced and must prevent the propagation of ﬂ ames and smoke for a minimum of one hour during a standard fi re test.

• The divisions must be insulated so that the average temperature on the unexposed side of the division does not exceed 140°C above the initial temperature.

Class H Fire Divisions

• Class H ﬁ re divisions must be of non-combustible materials and insulation materials must be fi re tested at a recognized institution. They must be suffi ciently braced and must prevent the propagation of ﬂ ames and smoke for a minimum of two hours during a standard fi re test for a hydrocarbon fi re. • The divisions must be insulated so that the average temperature

on the unexposed side of the division does not exceed 140°C above the initial temperature.

Notifi ed Body

Rockwool Marine & Offshore is cer-tifi ed according to the MED directive. As notifi ed body we have chosen Det Norske Veritas which also guaranties our quality by running audits.

Fire Classifications of Divisions

Class B-30

30 minutes Class B-1515 minutes Class B-00 minutes

Class A-60 60 minutes Class A-30 30 minutes Class A-15 15 minutes Class A-0 0 minutes Class H-120

120 minutes Class H-6060 minutes Class H-00 minutes

(14)

Symbol

Guide

One layer solution

The construction is based on a solution where the construction is made with one product in one layer. This leads to faster installation.

Low construction weight

The construction is based on products with a low density and/or low thickness which lead to low total construction weight.

Fast installation

The construction is based on Mats which reduce the cutting especially around stiffeners, and consequently faster installation time.

Safe solution

The construction is based on a multiple, typical two layer solution which results in more safe solutions especially due to staggered joints.

Optimal sound properties

The construction is based on products with higher density and/or more thickness which result in better sound properties.

Easy handling

The construction is based on Batts, where the small size and fi xed structure of the products give an easy handling in respect to cutting and installation. SYMBOL GUIDE

Rockwool Marine & Offshore has made symbols for all fi re rated applications explaining the advantages with each application:

(15)

14 Index of A-constructions - Steel Bulkhead

Index of A-constructions

Steel Bulkhead

Steel - Bulkhead

A-30 Marine Batts 45 page 16

A-30 Marine Wired Mat 90 page 17

A-60 Marine Firebatts 100 page 18

A-60 Marine Firebatts 100 restricted page 22

A-60 Marine Firebatts 130 restricted page 23

Steel Bulkhead

(16)

A-30

Steel

Bulkhead

A-30 Steel Bulkhead

Construction:

• Plate between stiffeners insulated with one layer of 50 mm Rockwool Marine Batts 45

• Stiffeners insulated with min. 25 mm Rockwool Marine Batts 45.

• Standard steel plate 4.5 mm (± _{0.5 mm) thick.} • ø3 mm pins fi xed with approx 300 mm distance. • Insulation secured with washers of ø38 mm.

Application notes:

• All the connections must be tight, no air gaps. • Gap under the stiffener must be fi lled out

completely.

• The pins should exceed the insulation by approx 10 mm.

• Insulation can be placed on either side of the steel plate.

Advantages:

One layer solution Low construction weight Easy handling

Surfaces:

• Reinforced aluminium foil • Glass cloth

Sound:

• Weigthed sound absorption Marine Batts 45, 50 mm αw = 0.75

4.5 mm steel

50 mm Rockwool Marine Batts 45

25 mm Rockwool Marine Batts 45 ø3 mm steel pin w. washer 4.5 mm steel

25 mm Rockwool Marine Batts 45 ø3 mm steel pin w. washer

ø3 mm steel pin w. washer

1000

480 300 mm

300 mm

600

600 1000

Product: Rockwool Marine Batts 45

Density: 45 kg/m3

Thickness: Plate 50 mm insulation

Stiffener 25 mm insulation

16

MED B-4134

TEST: G10148

(17)

A-30

Steel

Bulkhead

A-30 Steel Bulkhead

Construction:

• Plate between stiffeners insulated with one layer of 50 mm Rockwool Marine Wired Mat 90 • Stiffeners insulated with min. 30 mm

Rockwool Marine Wired Mat 90 (min. 340 mm width) • Standard steel plate 4.5 mm (± _{0.5 mm) thick.} • ø3 mm pins fi xed with approx 300 mm distance. • Insulation secured with washers of ø38 mm.

• All the connections must be tight, no air gaps. • The pins should exceed the insulation by

approx 10 mm.

• Wire mesh must be twisted together at joints. • Insulation can be placed on either side of the

steel plate.

Advantages:

Fast installation

Optimal sound properties

Surfaces:

Sound:

• Weigthed sound absorption

Marine Wired Mat 90, 50 mm αw = 0.90

4.5 mm steel

50 mm Rockwool Marine Wired Mat 90

ø3 mm steel pin w. washer minimum 340 mm

4.5 mm steel

30 mm Rockwool Marine Wired Mat 90 ø3 mm steel pin w. washer

300 mm

ø3 mm steel pin w. washer

Product: Rockwool Marine Wired Mat 90

17 MED B-4134

TEST: GV95.33.1

(18)

A-60

Steel

Bulkhead

4.5 mm steel

60 mm Rockwool Marine Firebatts 100

25 mm Rockwool Marine Firebatts 100 ø3 mm steel pin w. washer

4.5 mm steel

A-60 Steel Bulkhead

Construction:

• Plate between stiffeners insulated with one layer of 60 mm Rockwool Marine Firebatts 100 • Stiffeners insulated with min. 25 mm

Rockwool Marine Firebatts 100.

• Standard steel plate 4.5 mm (± 0.5 mm) thick. • ø3 mm pins fi xed with approx 300/400 mm distance. • Insulation secured with washers of ø38 mm.

completely.

• The long side of the insulation to be installed vertically.

Advantages:

Surfaces:

Sound:

Marine Firebatts 100, 60 mm αw = 0.90

• Weigthed sound reduction of the A60 application R_w

application R_w

application R = 45 dB

Product: Rockwool Marine Firebatts 100

ø3 mm steel pin w. washer

300 mm

400 mm

MED B-4188

TEST: 2004cs01428/3

(19)

18 19

A-60 Steel Bulkhead

Construction:

• Plate between stiffeners insulated with two layers of 30 mm Rockwool Marine Firebatts 130.

• Stiffeners insulated with min. 30 mm Rockwool Marine Firebatts 130.

• Standard steel plate 4.5 mm (± 0.5 mm) thick.

• ø3 mm pins fi xed with approx 300 mm distance. • Insulation secured with washers of ø38 mm.

completely.

• Joints to be staggered, 150 mm overlap is recommended.

• Insulation can be placed on either side of the steel plate

Advantages:

Safe solution

Optimal sound properties Easy handling

Surfaces:

Sound:

Marine Firebatts 130, 2x30 mm αw = 0.90 • Weigthed sound reduction of the A-60

application Rw application Rw

application R = 48 dB

4.5 mm steel

2x30 mm Rockwool Marine Firebatts 130

4.5 mm steel

A-60

Steel

Bulkhead

Thickness: Plate 2x30 mm insulation

2480

ø3 mm steel pin w. washer

1000

480 300 mm

300 mm

600

600 1000

MED B-4188 TEST: G10096 Pinning

(20)

20

A-60

Steel

Bulkhead

4.5 mm steel

45 mm Rockwool Marine Wired Mat 90 4.5 mm steel

A-60 Steel Bulkhead

Construction:

• Plate between stiffeners insulated with two layers of 45 mm Rockwool Marine Wired Mat 90

• Stiffeners insulated in the same process with min. 45 mm Rockwool Marine Wired Mat 90. • Standard steel plate 4.5 mm (± _{0.5 mm) thick.}

completely.

• Joints to be staggered, 150 mm overlap is recommended.

steel plate. Advantages: Fa Fa F st installation Safe solution Safe solution

Optimal sound properties Surfaces:

Sound:

Marine Wired Mat 90, 2x45 mm αw = 0.95 • Weigthed sound reduction of the A60

application R_w application R_w

application R = 58 dB (with 1 mm steel sheet in front of the insulation)

1000

480 300 mm

600

600 1000

ø3 mm steel pin w. washer

MED B-4188

TEST: 2006cs13889-1

(21)

20 21

2480

1000

480 300 mm

300 mm

600

600 1000

ø3 mm steel pin w. washer

A-60 Steel Bulkhead

Construction:

• Plate between stiffeners insulated with one layer of 75 mm Rockwool Marine Wired Mat 105. • Stiffeners insulated with min. 30 mm Rockwool

Marine Wired Mat 105.

• ø3 mm pins fi xed with approx 300 mm distance. • Insulation secured with washers of ø38 mm. Application notes:

completely.

steel plate.

Advantages:

One layer solution Fast installation

Optimal sound properties Surfaces:

Sound:

4.5 mm steel

75 mm Rockwool Wired Mat 105

A-60

Steel

Bulkhead

4.5 mm steel

MED B-4188

TEST: 2006CS013889-2

(22)

22 A-60 Steel Bulkhead restricted 4.5 mm steel

4.5 mm steel

A-60 Steel Bulkhead

restricted

Construction:

• Plate between stiffeners insulated with one layer of 40 mm Rockwool Marine Firebatts 100 • Stiffeners insulated with min. 40 mm

Rockwool Marine Firebatts 100.

• Standard steel plate 4.5 mm (± _{0.5 mm) thick.} • ø3 mm pins fi xed with approx 300/400 mm distance. • Insulation secured with washers of ø38 mm.

• Restricted application (fi re against insulated side) • All the connections must be tight, no air gaps. • Gap under the stiffener must be fi lled out

completely.

Advantages:

Surfaces:

Sound:

ø3 mm steel pin w. washer

1000

480 300 mm

400 mm

600

600 1000

MED B-4188 TEST: 2004cs014787 Pinning

(23)

22 23

A-60 Steel Bulkhead

restricted

Construction:

• Plate between stiffeners insulated with one layer of 50 mm Rockwool Marine Firebatts 130.

• Stiffeners insulated with min. 50 mm Rockwool Marine Firebatts 130.

• Standard steel plate 4.5 mm (± 0.5 mm) thick. • ø3 mm pins fi xed with approx 300 mm distance. • Insulation secured with washers of ø38 mm.

completely.

Advantages:

Surfaces:

Sound:

• Weigthed sound absorption of Marine Firebatts 130, 50 mm αw = 0.80

4.5 mm steel

A-60

Steel

Bulkhead

restricted

Stiffener 50 mm insulation MED B-4188

TEST: G10095/5993

2480

ø3 mm steel pin w. washer

1000

480 300 mm

300 mm

600

600 1000

Pinning

(24)

(25)

24 25

Index of A-constructions

Steel Deck

Steel - Deck

A-60 Floating Floor Marine Slab 200 page 31

25

Steel Deck

Index of A-constructions - Steel Deck

(26)

A-30

Steel

Deck

4.5 mm steel

30 mm Rockwool Marine Batts 45 ø3 mm steel pin w. washer 4.5 mm steel

30 mm Rockwool Marine Batts 45 ø3 mm steel pin w. washer

A-30 Steel Deck

Construction:

• Plate between stiffeners insulated with one layer of 50 mm Rockwool Marine Batts 45.

• Stiffeners insulated with min. 30 mm Rockwool Marine Batts 45.

• Standard steel plate 4.5 mm (± _{0.5 mm) thick.}

completely.

Advantages:

Surfaces:

Sound:

• Weigthed sound absorption Marine Batts 45, 50 mm αw = 0.75

Product: Rockwool Marine Batts 45

ø3 mm steel pin w. washer

300 mm

400 mm

MED B-4186 TEST: PG10985 Pinning

(27)

26 27

A-30 Steel Deck

Construction:

• Plate between stiffeners insulated with one layer of 30 mm Rockwool Marine Wired Mat 90. • Stiffeners insulated with min. 30 mm Rockwool

Marine Wired Mat 90.

completely.

• Wire mesh must be twisted or clamped together at joints.

Advantages:

Surfaces:

4.5 mm steel

Stiffener 30 mm insulation A-30 Steel Deck

2480

1000

480 300 mm

600

600 1000

ø3 mm steel pin w. washer

MED B-4186

TEST: GH95.15.1

(28)

A-60

Steel

Deck

4.5 mm steel

A-60 Steel Deck

Construction:

• Plate between stiffeners insulated with one layer of 40 mm Rockwool Marine Firebatts 100. • Stiffeners insulated with min. 25 mm Rockwool

Marine Firebatts 100.

completely.

Advantages:

Surfaces:

Sound:

ø3 mm steel pin w. washer

250 mm

MED B-4189

TEST: 96-DG-348-TO

(29)

28 29

A-60 Steel Deck

Construction:

• Plate between stiffeners insulated with one layer of 40 mm Rockwool Marine Firebatts 130. • Stiffeners insulated with min. 40 mm Rockwool

Marine Firebatts 130.

completely.

• The pins should exceed the insulation by approx 10 mm..

Advantages:

Surfaces:

Sound:

• Weighted sound reduction of the A60 application R_w = 56 dB (with 1 mm steel sheet in front of the insulation)

4.5 mm steel

ø3 mm steel pin w. washer

4.5 mm steel

A-60

Steel

Deck

2480

ø3 mm steel pin w. washer

1000

480 300 mm

200 mm

400 mm

600

600 1000

MED B-4189 TEST: G10141/6026 Pinning A-60 Steel Deck

A-60 Steel Deck

A-60

Steel

(30)

A-60

Steel

Deck

4.5 mm steel

ø3 mm steel pin w. washer

A-60 Steel Deck

Construction:

• Plate between stiffeners insulated with one layer of 45 mm Rockwool Marine Wired Mat 90.

• Stiffeners insulated in the same process with 45 mm Rockwool Marine Wired Mat 90.

• All the connections must be tight, no air gaps. • Wire mesh must be twisted together at joints • The pins should exceed the insulation by

approx 10 mm.

Advantages:

One layer solution Low construction weight Fast installation

Surfaces:

Sound:

300 mm

400 mm

ø3 mm steel pin w. washer

MED B-4189

TEST: PG10984/8384

(31)

30 31

A-60 Floating Floor

Construction:

• The fl oor insulated with two layers of 30 mm Rockwool Marine Slab 200.

• Insulation covered by a 2 mm steel plate spot welded at c/c 150 mm.

• First layer insulation is with butted joints.

• Second layer with butted and staggered joints to avoid overlapping joints.

• Do not step directly on the wool during installation. Always use a board or similar when moving around on the wool.

• To avoid sound from travelling it is recommended to fi nish the construction with a rigid Rockwool product placed edgeways and sealed with a fl exible sealant.

Advantages:

Safe solution

Surface:

• The wool must be covered by a minimum 2 mm thick steel plate.

• Top layer must be evaluated according to static calculations.

Max. load on insulation material: 40 kN/m2

2 mm steel

4.5 mm steel

2x30 mm Rockwool Marine Slab 200

2 mm steel Rockwool Marine Slab 200 Flexible sealant 2x30 mm Rockwool Marine Slab 200

Product: Rockwool Marine Slab 200

Top plate min. 2 mm steel plate

A-60

Floating

Floor

A-60 Floating Floor

2480 1000 480 600 600 600 1000 Steel deck 5 mm Flatbar 30 x 3 mm Stainless steel plate

MED B-4189

(32)

32

A-60 Floating Floor

Construction:

• The fl oor insulated with Rockwool Marine Slab 140 in 60 mm thickness.

• Insulation covered by 1.5 mm + 3 mm steel plate.

• Insulation installed with butted joints.

• Do not step directly on the wool during installation. Always use a board or similar when moving around on the wool.

• To avoid sound from travelling it is recommended to fi nish the construction with a rigid Rockwool product placed edgeways and sealed with a fl exible sealant. • This solution is not recommended in areas with

load on the deck.

• The fi rst layer of steel plate must be 1.5 mm thick, installed with 50 mm overlap and secured with pop rivets. The second layer (top layer) must be 3 mm steel plate with butted joints and spot welded at c/c 150 mm.

Advantages:

Safe solution

Surface:

• The wool must be covered by a minimum 1.5 + 3 mm thick steel plate.

Max. load on insulation material: 12 kN/m2

1.5 mm steel 3 mm steel

4.5 mm steel

60 mm Rockwool Marine Slab 140

Product: Rockwool Marine Slab 140

Top plates 1.5 + 3 mm steel plate MED B-4189

TEST: 22N002.07D

1.5 mm steel Rockwool Marine Slab 140 Flexible sealant

3 mm steel 60 mm Rockwool Marine Slab 140

2480 1000 480 600 600 600 1000 A-60 Floating

(33)

32 3333

Index of A-constructions

Aluminium Bulkhead

Aluminium - Bulkhead

A-60 Restricted Marine Firebatts 130 page 36

33

Aluminium Bulkhead

Index of A-constructions - Aluminium Bulkhead

(34)

34 6 mm alu 9 mm alu 2x30 mm Rockwool Marine Firebatts 130 2x30 mm Rockwool Marine Firebatts 130

ø3 mm alu tipped stainless steel pin w. washer

2x30 mm Rockwool Marine Firebatts 130 ø3 mm alu tipped stainless

steel pin w. washer

A-60 Aluminium Bulkhead

Construction:

• Plate between stiffeners insulated with two layers of 30 mm Rockwool Marine Firebatts 130. Insulation on both sides of the alu plate.

• Stiffeners insulated with two layers of min. 30 mm Rockwool Marine Firebatts 130.

• Standard alu plate min. 6 mm (± 0.5 mm) thick.

• Stiffeners 9 mm alu.

• ø3 mm alu tipped stainless steel pins fi xed with approx 300 mm distance.

• Insulation secured with stainless steel washers of ø38 mm.

completely.

• Joints must be staggered, 150 mm overlap is recommended

Advantages:

Safe solution

Surfaces:

Sound:

• Weighted sound absorption

Marine Firebatts 130, 2x30 mm αw=0.90

Thickness: Plate 2x30 insulation on both sides

Stiffener 2x30 mm

A-60

Aluminium

Bulkhead

ø3 mm alu tipped stainless

steel pin w. washer

1000

480 300 mm

300 mm

600

600 1000

MED B-4190 TEST: PG10699/7735 Pinning

(35)

34 35 6 mm alu 9 mm alu 2x30 mm Rockwool Marine Firebatts 100 2x30 mm Rockwool Marine Firebatts 100

2x30 mm Rockwool Marine Firebatts 100 ø3 mm alu tipped stainless

steel pin w. washer

A-60 Aluminium Bulkhead

Construction:

• Plate between stiffeners insulated with two layers of 30 mm Rockwool Marine Firebatts 100. Insulation on both sides of the alu plate.

completely.

Advantages:

Safe solution

Low construction weight Easy handling

Surfaces:

Sound:

Marine Firebatts 100, 60 mm αw=0.90

Thickness: Plate 2x30 insulation on both sides

Stiffener 2x30 mm

A-60

Aluminium

Bulkhead

ø3 mm alu tipped stainless

steel pin w. washer

300 mm

400 mm

(36)

36

A-60 Aluminium Bulkhead

restricted

Stiffener 2x30 mm insulation

6 mm alu

9 mm alu

2x30 mm Rockwool Marine Firebatts 130 ø3 mm alu tipped stainless steel pin w. washer

Construction:

• Standard alu plate min. 6 mm (± _{0.5 mm) thick.}

completely.

• Insulation can be placed on either side of the alu plate

Advantages:

Safe solution

Surfaces:

Sound:

Marine Firebatts 130, 2x30 mm αw=0.90 MED B-4190 TEST: PG10125/5996 A-60 Aluminium Bulkhead restricted

ø3 mm alu tipped stainless

steel pin w. washer

1000

480 300 mm

300 mm

600

600 1000

Pinning

(37)

36 3737

Index of A-constructions

Aluminium Deck

Aluminium - Deck

A-30 Marine Batts 45/Marine Wired Mat 90 page 38

37

Aluminium Deck

Index of A-constructions - Aluminium Deck

(38)

38

A-30

Aluminium

Deck

A-30 Aluminium Deck

Construction:

• Plate insulated with one layer of 50 mm Rockwool Marine Batts 45

• Stiffeners insulated with min. 45 mm Rockwool Marine Wired Mat 90.

com-pletely.

Advantages:

Surfaces:

Sound:

Marine Batts 45, 50 mm αw = 0.75

Product: Rockwool Marine Batts 45/ Rockwool Marine Wired Mat 90

Density: 45/90 kg/m3

6 mm alu

45 mm Rockwool Marine Wired Mat 90 ø3 mm alu tipped stainless

steel pin w. washer 9 mm alu

6 mm alu

9 mm alu

45 mm Rockwool Marine Wired Mat 90 ø3 mm alu tipped stainless steel pin with washer

1000

480 400 mm

600

600 1000

300 mm

ø3 mm alu tipped stainless

steel pin w. washer

MED B-4187

TEST: PG11045

Pinning

A-30 Aluminium Deck

(39)

38 39

A-60 Aluminium Deck

Construction:

• ø3 mm alu tipped stainless steel pins fi xed with approx 300/400 mm distance.

completely.

Advantages:

Safe solution

Surfaces:

Sound:

Marine Firebatts 130, 2x30 mm αw = 0.90 6 mm alu 9 mm alu 2x30 mm Rockwool Marine Firebatts 130 ø3 mm alu tipped stainless steel pin with washer

2x30 mm Rockwool Marine Firebatts 130 ø3 mm alu tipped stainless steel pin with washer

2480

ø3 mm alu tipped stainless steel

pin with washer

300 mm

400 mm

600

600 1000

A-60 Aluminium Deck MED B-4187 TEST: PG10765 Pinning

A-60 Aluminium Deck

A-60

Aluminium

(40)

ø3 mm alu tipped stainless

steel pin w. washer

300 mm

400 mm

A-60 Aluminium Deck

Construction:

• ø3 mm alu tipped stainless steel pins fi xed with approx 300/400 mm distance.

completely.

Advantages:

Safe solution

Low construction weight Easy handling

Surfaces:

Sound:

Marine Firebatts 100, 60 mm αw = 0.90 6 mm alu 9 mm alu 2x30 mm Rockwool Marine Firebatts 100 ø3 mm alu tipped stainless steel pin with washer

2x30 mm Rockwool Marine Firebatts 100 ø3 mm alu tipped stainless steel pin with washer

Pinning

A-60 Aluminium Deck

A-60

Aluminium

(41)

40 41

Index of H-constructions

Steel Bulkhead

Steel - Bulkhead restricted

H-60 HC Firebatts 150/ HC Wired Mat 150 page 42

Corrugated Steel Bulkhead non-load bearing

41

Steel Bulkhead

Index of H-constructions - Steel Deck
