Learner excellence biased by data set selection: A case for data
characterisation and artificial data sets
Nu´ria Macia
a,n, Ester Bernado´-Mansilla
a, Albert Orriols-Puig
a, Tin Kam Ho
b aGrup de Recerca en Sistemes Intel ligents, La Salle - Universitat Ramon Llull, C/ Quatre Camins, 2, 08022 Barcelona, Spain
bBell Laboratories, Alcatel-Lucent, 600 Mountain Ave., Murray Hill, NJ 07974-0636, USA
a r t i c l e
i n f o
Article history:Received 10 October 2011 Received in revised form 19 September 2012 Accepted 27 September 2012 Available online 5 October 2012 Keywords:
Supervised learning Learner assessment Data complexity
a b s t r a c t
The excellence of a given learner is usually claimed through a performance comparison with other learners over a collection of data sets. Too often, researchers are not aware of the impact of their data selection on the results. Their test beds are small, and the selection of the data sets is not supported by any previous data analysis. Conclusions drawn on such test beds cannot be generalised, because particular data characteristics may favour certain learners unnoticeably. This work raises these issues and proposes the characterisation of data sets using complexity measures, which can be helpful for both guiding experimental design and explaining the behaviour of learners.
&2012 Elsevier Ltd. All rights reserved.
1. Introduction
Increasing interest in pattern recognition and machine learn-ing has led to the development of numerous learnlearn-ing algorithms, most of which are designed with the aim of improving the existing ones. To demonstrate the excellence of a new learner, the trendy approach has been employing benchmarking studies in which the proposed learner is compared with a set of referenced learners. These comparisons usually follow a three-step proce-dure: (1) selection of a collection of data sets, typically from public repositories, (2) selection of some existing learners to compare the new approach with, and (3) extraction of perfor-mance conclusions supported by statistical tests.
Although there is no common agreement on the comparison methodology, recent works have tried to systematise or provide guidelines for some of these phases. Efforts have been made to identify the most influential learning techniques [1], to design procedures to estimate learners’ error [2,3], and to define a statistical framework to extract significant and reliable conclu-sions from results[4,5]. Despite these important advances, which have quickly been accepted and adopted by practitioners, data set selection is still overlooked in the majority of the studies; data sets are selected according to arbitrary criteria without a detailed analysis of their characteristics. This raises our concern since any change of the collection may cause variations on the final claims.
The purpose of this paper is to bring discussion on the implications of data set selection by studying why and how it influences the conclusions resulting from comparisons of super-vised learning techniques. To address these questions, we conduct a systematic comparison of well-known learners on different real-world problems. We first show how data set selection affects conclusions through a case study that uses collections of pro-blems with no apparent differences between them. Then, we focus on why the results are biased to the selection of data sets, from where we motivate the need for characterising the proper-ties of the data sets that are considered in experimental frame-works. A proper characterisation of the data would unveil the linkage between the performance of a classifier and the properties of data sets and thus, would allow us to identify its domain of competence. The paper points out two alternatives for data characterisation by either (1) describing existing data sets with complexity descriptors[6]that explain the geometrical distribu-tions of classes in the feature space, or (2) using artificial data sets synthesised according to previously defined characteristics. These two alternatives set the first steps towards a new methodology for assessing learner performance that does not intend to demon-strate that a particular learner outperforms others in all the domains, but attempts to identify where each learner excels and why.
The remainder of this paper is organised as follows.Section 2
gives a bird’s-eye view of the learner comparison methodologies in machine learning.Section 3reports a case study where three learning techniques are compared over three collections of problems, yielding three contradictory conclusions regarding the excellence of these learners. Next, Section 4 presents data Contents lists available atSciVerse ScienceDirect
journal homepage:www.elsevier.com/locate/pr
Pattern Recognition
0031-3203/$ - see front matter & 2012 Elsevier Ltd. All rights reserved. http://dx.doi.org/10.1016/j.patcog.2012.09.022
n
Corresponding author. Tel.: þ1 412-320-5684. E-mail address: [email protected] (N. Maci a).
complexity analysis as an approach to problem characterisation. This analysis is used inSection 5to characterise the data sets of the case study. It enables us to partially explain the contradictory conclusions initially obtained. The analysis continues by examin-ing how the size and complexity of the test bed influence the statistical conclusions.Section 6introduces the use of artificial data sets as an alternative to the use of real-world problems that would allow for the design of an experimental framework with tailored properties. Finally, Section 7 ends with the summary, conclusions, and suggestions of future work.
2. Literature review
A vast amount of new machine learning techniques have been added to the literature in recent years. How has the research community demonstrated the relevance of these techniques so far? This section presents a review that shows the different ways in which the performance of classifiers has been assessed.
The study considered papers from some of the most relevant journals and conference proceedings of machine learning and pattern recognition, particularly the Pattern Recognition (PR) journal (2008–2010) and the Proceedings of the International Conference on Machine Learning (ICML) (2008–2010). We focused on the papers where a particular classifier was analysed through the comparison of its performance with at least one other classifier on a set of problems, among those papers that were categorised as classification or contained this word and its deri-vatives in the title or abstract. Thus, among 1460 papers, 215 constituted our panel study.

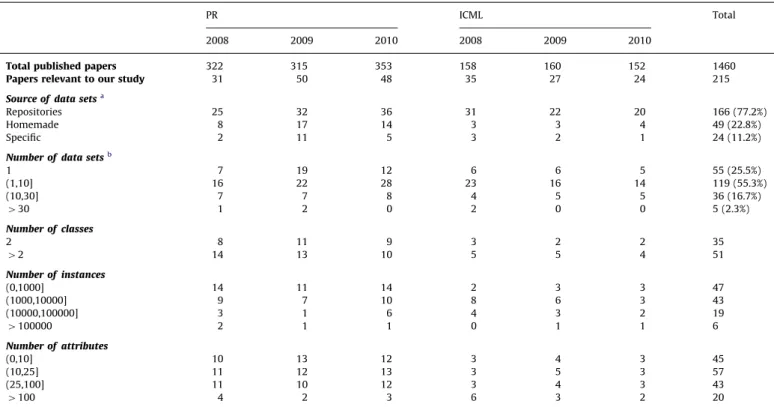

Table 1summarises the characteristics of the test beds used in the papers gathered for our analysis. The table details the sources and number of data sets, and the number of classes, instances,
and attributes of these data sets. If we look at the sources of data sets, we observe that the majority of the papers resort to data sets from public repositories (77.2%), the UCI repository being the most popular (63.9%). Interestingly, certain data sets from the UCI repository are often used, such as Iris classification, Wine recogni-tion, Ionosphere, Glass identificarecogni-tion, and Breast cancer (Wisconsin). This list partly matches the popularity ranking maintained by the UCI repository (see Table 2). Moreover, the communities of PR and ICML agree on the types of data sets selected, as it is shown in
Fig. 1. It seems like there is a set of problems which is established as a standard de facto without any apparent reason—although popularity promotes a higher use of these data sets since authors need to place the learner performance with respect to well known expected performances. Other papers (22.8%) use synthetic data sets specifically designed for the particular purpose of the work, and a smaller percentage (11.2%) uses data from a given applica-tion problem.
Regarding the size of the test bed, the majority of the works select a small set of problems. More than 50% of the papers use around 2–10 data sets. For the rest, the selection is composed of at most 30 data sets (16.7%), and this threshold is exceeded in a very few cases (2.3%). The mean value is eight data sets when problems are picked from the UCI repository, but there is not any defined reason for such a value; it is mostly due to the compro-mise between what is normally understood as a representative amount of problems and the computational cost.
The dimensionality of the problems tends to be small. Data sets with fewer than 1000 instances and with up to 100 attributes are the most commonly chosen. Nonetheless, it is very difficult to parse such information because it is often not included in the papers—albeit this trend is reversing. Since October 2008, most of the papers from PR show a table with the observable (also referred to as extrinsic) characteristics of the data sets—i.e. the number of Table 1
Overview of the current state of data set selection in the experiments.
PR ICML Total
2008 2009 2010 2008 2009 2010
Total published papers 322 315 353 158 160 152 1460
Papers relevant to our study 31 50 48 35 27 24 215
Source of data setsa
Repositories 25 32 36 31 22 20 166 (77.2%)
Homemade 8 17 14 3 3 4 49 (22.8%)
Specific 2 11 5 3 2 1 24 (11.2%)
Number of data setsb
1 7 19 12 6 6 5 55 (25.5%) (1,10] 16 22 28 23 16 14 119 (55.3%) (10,30] 7 7 8 4 5 5 36 (16.7%) 430 1 2 0 2 0 0 5 (2.3%) Number of classes 2 8 11 9 3 2 2 35 42 14 13 10 5 5 4 51 Number of instances (0,1000] 14 11 14 2 3 3 47 (1000,10000] 9 7 10 8 6 3 43 (10000,100000] 3 1 6 4 3 2 19 4100000 2 1 1 0 1 1 6 Number of attributes (0,10] 10 13 12 3 4 3 45 (10,25] 11 12 13 3 5 3 57 (25,100] 11 10 12 3 4 3 43 4100 4 2 3 6 3 2 20 a
The sum of the three sources can be greater than the number of studied papers since some works use, in the experimentation, data sets from different sources at the same time.
b
In subsections number of classes, number of instances, and number of attributes, the number of papers can be lower than the number of studied papers since some works do not specify the characteristics of the data sets used in the experimentation.
attributes, classes, and instances—and justify their selection under the basis of diversity. However, there is no guarantee that diversity of the dimensionality also implies diversity of intrinsic complexity. Even though this happens, it is also debatable that one can conclude any quality of the method across several types of problems[7].
It is also worth mentioning that performance assessment includes some steps to statistically support the results. For instance, cross-validation or leave-one-out methods are usually applied to estimate
the error, which is especially needed when only small data set samples are available. Across the literature, we observed that there is no agreement in the parametrisation of the error estimation, and the well-known k-fold cross-validation can be set as k ¼ f4,5,10,20g arbitrarily. Classifiers’ performance is measured almost exclusively by classification accuracy or error. Statistical tests are used to confer reliability on the observed differences between the methods. How-ever, most of the employed tests are based on pairwise compar-isons even though several classifiers are involved. Multiple Table 2

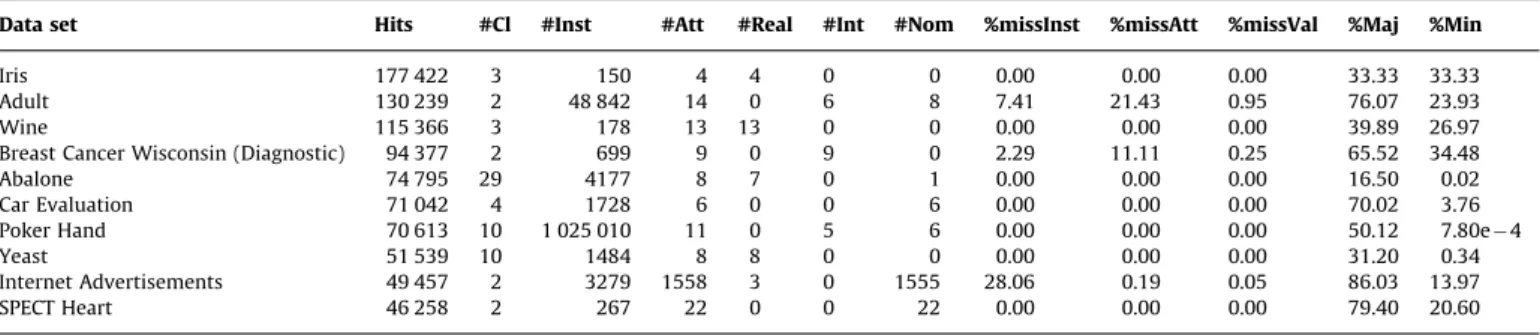

Ranking of the most popular classification data sets from the UCI repository, according tohttp://archive.ics.uci.edu/ml/on January 19, 2010 (Hits counted since 2007), and their characteristic description. #Cl is the number of classes, #Inst is the number of instances, and #Att is the number of attributes. #Real, #Int and #Nom indicate the number of real-, integer- and nominal-valued attributes, respectively. %missInst, %missAtt, and %missVal correspond to the percentage of instances with missing values, attributes with missing values, and the total percentage of missing values, respectively. Finally, %Maj is the percentage of instances of the majority class and %Min is the percentage of instances of the minority class.
Data set Hits #Cl #Inst #Att #Real #Int #Nom %missInst %missAtt %missVal %Maj %Min
Iris 177 422 3 150 4 4 0 0 0.00 0.00 0.00 33.33 33.33
Adult 130 239 2 48 842 14 0 6 8 7.41 21.43 0.95 76.07 23.93
Wine 115 366 3 178 13 13 0 0 0.00 0.00 0.00 39.89 26.97
Breast Cancer Wisconsin (Diagnostic) 94 377 2 699 9 0 9 0 2.29 11.11 0.25 65.52 34.48
Abalone 74 795 29 4177 8 7 0 1 0.00 0.00 0.00 16.50 0.02
Car Evaluation 71 042 4 1728 6 0 0 6 0.00 0.00 0.00 70.02 3.76
Poker Hand 70 613 10 1 025 010 11 0 5 6 0.00 0.00 0.00 50.12 7.80e 4
Yeast 51 539 10 1484 8 8 0 0 0.00 0.00 0.00 31.20 0.34
Internet Advertisements 49 457 2 3279 1558 3 0 1555 28.06 0.19 0.05 86.03 13.97
SPECT Heart 46 258 2 267 22 0 0 22 0.00 0.00 0.00 79.40 20.60
Number of papers using the data set
0 5 10 15 20 25 30 PR ICML
comparison tests still have not been widely applied despite the recommendations by Demˇsar[4]and Garcı´a et al.[5].
Our impression is that the community is aware of the need for a more formal methodology for performance estimation and statistical significance, but has not paid much attention to the data set selection. Many works indicate that data sets are chosen because they vary in size, number of classes, and other character-istics such as class distribution, but this is not accompanied by any analysis. In addition, we find quick justifications added to satisfy some reviewers’ comments and mask the fact that data selection is still shallow.
Choosing data set carelessly from large repositories may thwart the statistical analysis, especially when data sets with similar characteristics are selected; some significant differences may not be detected if certain types of problems are not represented in the test bed. Conversely, having a large collection of data sets with different complexities may lead to the conclu-sion that the learners perform the same on average, as shown in the case study that follows.
3. Learner comparison: a case study
The previous section showed that the literature often analyses the performance of learners by means of comparisons between several techniques on a moderate number of data sets. This section shows an example of this approach that illustrates the risks behind this kind of comparisons. In the following, we present a case study where three learners are compared upon three different collections to empirically show that, although a correct statistical analysis is performed, contradictory conclusions can be reached depending on the collection of data sets used. 3.1. Methodology for learner comparison
For the analysis conducted, we departed from the classical methodology: (1) selection of data sets, (2) selection of learners, and (3) performance analysis which involves the selection of statistical tests to better support the conclusions.
To select the data sets of our collection, we collected 153 data sets—binary and multi-class problems—from the following repo-sitories: the UCI machine learning repository,1 Delve,2LibSVM,3 and Kent Ridge Bio-Medical.4Among them, we deliberately built three collections of 20 data sets each—more than twice the mean number used in the literature as mentioned inSection 2. Each collection enables each particular learner to statistically outper-form the others. Also, following the community’s belief about diversity in data set selection, we chose data sets with vastly different extrinsic characteristics in terms of number of attributes and number of instances, as summarised inFig. 2. We can see that the samples are spread and reach a good coverage in the space defined by these two dimensions.
Secondly, we selected three widely used learning techniques from different learning paradigms: Instance Based (IBk) learning
[10], Random Forest (RF)[11], and Sequential Minimal Optimisa-tion (SMO)[12]. IBk is an implementation of the nearest neigh-bour algorithm. RF builds an ensemble of decision trees which are generated with a group of randomly selected instances and attributes from the original training set. SMO is an efficient implementation for support vector machines [13]. All these methods were run using the Weka package [14] with the
following configurations: (1) k¼7 for IBk, (2) a polynomial kernel of order 5 for SMO, and (3) the rest of the parameters set to their default value. The performance of each technique was estimated with stratified 10-fold cross-validation[3].
Finally, we compared the results of the three learners with multiple comparison procedures based on non-parametric tests as suggested by Demˇsar [4].5 The statistical analysis first applied Friedman’s test[15]to test the null hypothesis, which is that all the learning algorithms perform equivalently on average. If Friedman’s test rejected the null hypothesis, post hoc tests were applied to
1e+01 5 Number of instances Number of attributes Collection 1 Collection 2 Collection 3 5000 500 50 10
1e+02 1e+03 1e+04 1e+05
Fig. 2. Extrinsic characteristics—number of instances and number of attributes—of the data sets included in the three collections. Circles represent data sets from collection 1, triangles, data sets from collection 2, and crosses, data sets from collection 3.
Table 3
Comparison of IBk, RF, and SMO on the first collection of data sets (DS1). The row Frd reports the p-value resulting of applying Friedman’s test and the row Rank provides the average rank of each learner.
DS1 IBk RF SMO AcuteInflammation-NephritisOfRenalPelvisOrigin 100 100 100 BalanceScale 83.84 76.96 72.80 BalloonsAdultStretch 100 100 100 BloodTransfusionServiceCentre 77.14 74.33 76.60 BreastCancerWisconsinDiagnosis 97.19 95.78 96.84 Cardiotocography-10Classes 100 98.59 99.91 CreditApproval 86.52 84.93 78.26 Dermatology 96.17 95.08 96.17 Ecoli 86.61 83.63 85.42 HeartDisease-Processed.hungarian 81.97 79.25 72.45 Hepatitis 84.52 80.00 79.35 Iris 96.67 95.33 90.00 MammographicMass 81.17 76.38 79.29 Parkinsons 93.33 90.26 89.23 PostOperativePatient 71.11 60.00 55.56 SPECTHeart 82.02 79.40 79.03 StatlogAustraliandCreditApproval 86.52 84.35 74.93 StatlogLandsatSatellite 90.89 90.66 88.53 VolcanoesOnVenus-C1 97.59 97.42 97.53 WaveformDatabaseGenerator-Version1 83.24 82.90 80.74 Frd 8:83 106 Rank 1.13 2.35 2.53 1 http://archive.ics.uci.edu/ml/ 2http://www.cs.toronto.edu/ delve/ 3 http://www.csie.ntu.edu.tw/ cjlin/libsvmtools/datasets/ 4 http://datam.i2r.a-star.edu.sg/datasets/krbd/ 5
identify which learners behaved differently. Then, the aim turned to analyse whether all the methods performed equivalently to the best ranked learner. To this end, we used Holm’s test[16], which adjusts the value of
a
in a step down method without making any assumptions about the hypotheses tested. Let p1, . . . ,pm—where mis the number of machine learning techniques—be the p-values increasingly sorted, and H1, . . . ,Hmbe the corresponding
hypoth-eses. Holm’s procedure rejects hypotheses H1 to Hi if i is the
smallest integer such that pi4
a
=ðmi þ1Þ.3.2. Analysis of results: only local superiority
Tables 3,4, and5report the average test classification accuracies obtained by each learner on the problems of collection 1, collection 2, and collection 3, respectively. The row Frd is the p-value obtained from applying Friedman’s test and the row Rank provides the average rank of each learner.
Note that for the three collections Friedman’s test rejected the null hypothesis. The three p-values {FrdDS1¼8:83 106, FrdDS2¼
4:80 107, Frd
DS3¼1:26 106} are less than 0.05, the critical
value, and it can be concluded that at least two of the learners are significantly different from each other. As a consequence, Holm’s test was applied to find out which methods are inferior with respect to the best method at a significance level of 0.05.Table 6
summarises the p-value of Holm’s test. Thus, for the first collection of data sets, IBk presents significantly better results than RF and SMO. For the second collection, RF presents significantly better results than IBk and SMO. And, for the third collection, SMO presents significantly better results than IBk and RF.
Apparently each collection has its own best classifier. How-ever, no significant differences can be found when all the data sets are considered in a single comparison. Friedman’s test does not reject the null hypothesis ðFrdDS1 þ DS2 þ DS3¼0:542Þ. The reliability
of this assessment methodology is therefore challenged by an arbitrary selection of data sets. The experimental results evidence the principal limitation of the typical comparisons as well: conclusions reached over a collection of data sets are strictly valid only for this collection. Trying to extrapolate the conclusions to other domains may lead to incorrect claims.
To sum up, the case study exemplifies two of the most common situations that can be found in comparative analyses. On the one hand, a comparison that considers just a single collection of data sets may result in conclusions too specialised to the chosen domains. Particular learning techniques may be overrated if the comparison is made over collections that contain data sets with certain characteristics which happen to be well-suited to the given learner. On the other hand, a comparison that considers all the data sets from the three collections yields the conclusion that all techniques are equivalent on average, provid-ing no valuable information to the practitioner. Actually, this conclusion is aligned with the interpretation of the No Free Lunch theorem6 [7], which formally demonstrates that no learner can systematically outperform any other if all possible classification problems are contemplated.
These observations not only exhibit how tricky multiple learner comparisons are, but also how relevant the study of data set characteristics is to the comparative analysis. Some studies have designed complexity estimates of data sets and have related them to the classifiers’ behaviours[6,17]. Complexity character-isation of the data sets could thus be used to identify the sweet spot in the problem complexity space where each learner actually excels. With this idea in mind, the next section introduces data complexity analysis.
4. Data complexity in supervised learning
This section briefly describes the source of problem difficulty and introduces a set of complexity measures to estimate the geometry of the class boundary. It also gathers the different usage of complexity measures so far and sketches out our proposal. Table 4
Comparison of IBk, RF, and SMO on the second collection of data sets (DS2). The row Frd reports the p-value resulting of applying Friedman’s test and the row Rank provides the average rank of each learner.
DS2 IBk RF SMO Arrhythmia 58.76 66.74 63.86 ArtificialCharacters 54.16 57.13 35.70 AudiologyStandardised 56.64 76.55 73.01 BreastTissue-6Classes 68.87 70.75 49.06 Flags 54.12 65.46 64.95 GlassIdentification 64.49 73.36 69.16 HillValleyWithoutNoise 55.69 61.06 56.85 LungCancer 37.50 56.25 40.63 MAGICGammaTelescope 83.91 86.92 86.08 Madelon 57.00 57.88 57.85 Monks-2 58.40 84.69 76.71 RobotExecutionFailures-LP1 61.36 84.09 70.45 SoybeanSmall 100 100 100 Spambase 90.18 94.83 61.60 StatlogGermanCredirCard-Numeric 90.00 96.40 93.30 StatlogHeart 79.26 82.59 75.56 SteelsPlatesFaults 69.65 78.46 71.87 TeachingAssistantEvaluation 45.70 64.24 58.94 StatlogShuttle 99.86 99.99 99.72 WineQualityRed 57.47 68.04 59.60 Frd 4:80 107 Rank 2.70 1.05 2.25 Table 5
Comparison of IBk, RF, and SMO on the third collection of data sets (DS3). The row Frd reports the p-value resulting of applying Friedman’s test and the row Rank provides the average rank of each learner.
DS3 IBk RF SMO Abalone-29Classes 23.82 22.41 27.03 Abalone-3Classes 63.63 62.03 65.33 AutoUni-au4_2500 48.64 51.32 56.28 ChessKingRookVsKing 73.05 65.06 92.34 Connect4 80.90 79.99 82.46 HabermanSurvival 72.55 69.28 73.20 HayesRoth 66.88 75.00 79.38 LibrasMovement-9 8.89 17.78 17.78 LibrasMovement-10 73.70 82.96 88.15 LowResolutionSpectrometer 42.94 51.98 58.76 MetaData 0.00 0.00 0.19 MolecularBiology-PromoterGeneSequences 79.25 77.36 83.02 MolecularBiology-SpliceJunctionGeneSequences 81.85 89.44 91.10 Nursery 98.06 98.20 99.97 OpticalRecognitionOfHandwrittenDigits 98.59 96.69 99.11 PimaIndiansDiabetes 74.74 72.40 75.13 StatlogVehicleSilhouttes 71.28 77.19 83.10 TicTacToeEndgame 98.75 91.34 99.69 Trains 40.00 50.00 50.00 Zoo 89.11 91.09 93.07 Frd 1:26 106
Rank 2.53 2.43 1.05 6The NFL theorem is not valid for classifier systems such as boosting, bagging, and ensemble; just only for simple classifiers.
4.1. Sources of difficulty and complexity measures
After recognising that the empirically observed behaviour of learners is strongly dependent on the particularities of the data, some authors have started studying different sources of problem difficulty. Among them, Ho and Basu [6] suggested three main sources for classification problems: (1) the class ambiguity, (2) the boundary complexity, and (3) the sample sparsity and feature space dimensionality.
Class ambiguity refers to the situation where two instances belonging to different classes cannot be distinguished by the given attributes. This ambiguity is often a consequence of (1) the problem formulation, i.e. concepts are intrinsically inseparable or not well defined, or (2) a lack of discriminative attributes, i.e. the chosen attributes are not sufficient to indicate such difference between classes. None of these causes can be solved at the classifier level. Boundary complexity comes from the nature of the problem and the choice of the attributes, i.e. from the geometrical description of data. Sample sparsity and feature space dimensionality concern the representativeness of the training sample and to what extent it affects the learner’s generalisation mechanism.
Among these sources, research has mainly focused on the characterisation of boundary complexity. For this purpose, a set of 12 metrics was proposed in[6]and updated in[18].Table 7lists these measures, which are classified into three categories: (1) the overlap in feature values from different classes, (2) the separ-ability of classes, and (3) the geometry, topology, and density of manifolds.
From the set of complexity measures, we used only eight of them that are independent of specific classifiers—several com-plexity measures use the trained classifier’s error to describe the difficulty of data; we discarded them to avoid underlying correla-tions with error estimates of learners that follow a similar concept with the complexity measure itself. In addition, all the measures involved in the study can be applied to both two-class problems and multi-class problems, as explained inAppendix A.
4.2. Usage of complexity measures
These complexity measures have been employed (1) to study the sources of problem difficulty that affect particular learners
[8,17,19], (2) to study the effect of feature selection[20], (3) to compare different learners on collections of problems of bounded difficulty [9,21], (4) to guide data preprocessing techniques
[20,22], and even (5) to guide the formulation of boundary-difficult problems[23].
In this work, we propose the inclusion of complexity measures in the design of the experimental framework in order to char-acterise which kind of data sets the learner is exposed to. This idea is further elaborated in the next section, which considers the problem complexity in the analysis of the results obtained in
Section 3.
5. Data complexity and learners’ behaviour
Why do learners’ rankings vary depending on the test bed? Characteristics of data sets and their complexity may provide an answer to this question. In order to gain understanding of which problems are harder for the different learners, the case study in
Section 3is taken to the complexity space. To this end, we used the Data Complexity Library (DCoL)7[18]to characterise each of the three data set collections and related these characteristics to the performance of the learners. In the following, we describe the experiments and provide some clues of how complexity dimen-sions explain learners’ behaviour and how the number of data sets affects statistical analyses.
5.1. Classifiers’ domain of competence
First, we tried to see whether it was possible to automatically infer patterns that related the performance of the three learners with the characteristics of the data sets. For this purpose, we built three data sets (referred to as meta-learning problems (MLPs)), where each instance represented one of the 60 data sets used inSection 3. Each instance of the MLP data set was characterised by eight attributes, each attribute being a complexity descriptor. That is, F1, F2, F3, F4, N1, N2, T1, and T2 (seeAppendix Afor the terminology). The meta-learning problems are set up as two-class problems, where we evaluated when each classifier outperformed the two others. Thus, MLP-1 focused on IB7 vs. the rest, MLP-2 focused on RF vs. the rest, and MLP-3 focused on SMO vs. the rest. Those cases where ties were found—i.e. several classifiers were equivalent—were removed. Then, we ran a classification algorithm to verify whether the complexity descriptors could act as predictors of the classes and indicate when the studied classifier was the best according to the inherent char-acteristics of the data sets.
We ran the algorithm JRip from Weka, which is an implemen-tation of the Repeated Incremental Pruning to Produce Error Table 6
p-Values resulting of applying the post hoc Holm’s test for each data set collection. Holm’s procedure rejects those hypotheses that have a p-valuer0:05, which are marked in bold. Hypotheses sustain that classifiers behave differently in pairwise comparisons. If the hypothesis is rejected, there is no statistical evidence that classifiers are different.
DS1 DS2 DS3 a=ðmi þ 1Þ
IB7 vs SMO 0.000010 IB7 vs RF 0 IB7 vs SMO 0.000003 0.016667
IB7 vs RF 0.000107 RF vs SMO 0.000148 RF vs SMO 0.000014 0.025000
RF vs SMO 0.579991 IB7 vs SMO 0.154729 IB7 vs RF 0.751830 0.050000
Table 7
Taxonomy of the complexity measures.
Measures of overlap in feature values from different classes F1 Maximum Fisher’s discriminant ratio
F1v Directional-vector maximum Fisher’s discriminant ratio F2 Overlap of the per-class bounding boxes
F3 Maximum (individual) feature efficiency F4 Collective feature efficiency
Measures of separability of classes
L1 Minimised sum of the error distance of a linear classifier L2 Training error of a linear classifier
N1 Fraction of points on the class boundary
N2 Ratio of average intra/inter class nearest neighbour distance N3 Leave-one-out error rate of the one-nearest neighbour classifier Measures of geometry, topology, and density of manifolds
L3 Non-linearity of a linear classifier
N4 Non-linearity of the one-nearest neighbour classifier T1 Fraction of maximum covering spheres
T2 Average number of points per dimension
7
Reduction (RIPPER) algorithm [24]. By creating conditions that maximise the information gain and cover the positive examples, this propositional rule learner is able to extract small and under-standable (readable) sets of rules. The models obtained by the algorithm are plotted inFig. 3. Their testing accuracies are about 60–70%, which means that the algorithm correctly predicts the best classifier given a data set characterised by the complexity descriptors in 60–70% of the cases. This tells us that there seems to be somewhat separable domains of competence of the algorithms, and that these domains can be identified by the characteristics of data described by the complexity measures. Looking at the rules extracted by JRip (seeFig. 3), we observe that
IBk outperforms the others when N2r0:633. Since N2 measures the compactness of examples of the same class, IBk’s domain of competence is identified by problems whose classes are compact in the feature space, i.e. whose points are distributed in a way that they are closer to points of the same class rather than points of a different class. RF is the best performer when: (1) F2 is very low and N1 40:364 and (2) N2r0:683 and N2Z0:643. In the first case, a low value of F2 represents that the classes are easily separable by the attribute values. The second case represents moderate values of N2, that is, problems where classes are more spread out than the problems where IBk was outperforming. Finally, SMO is the best classifier when F2 Z 0:12 and N2 Z0:801, i.e. for complex problems where there is poor discriminative power of attributes and the classes are highly interleaved.
Thus, the relations automatically found by JRip show that the domains of competence of the three learners can be separated by measures F2, N1, and N2, which estimate the discriminative power of attributes and the proximities between classes in the feature space. We plotted the performance of the three learners against the complexity measures for a visual analysis of the relations.Fig. 4

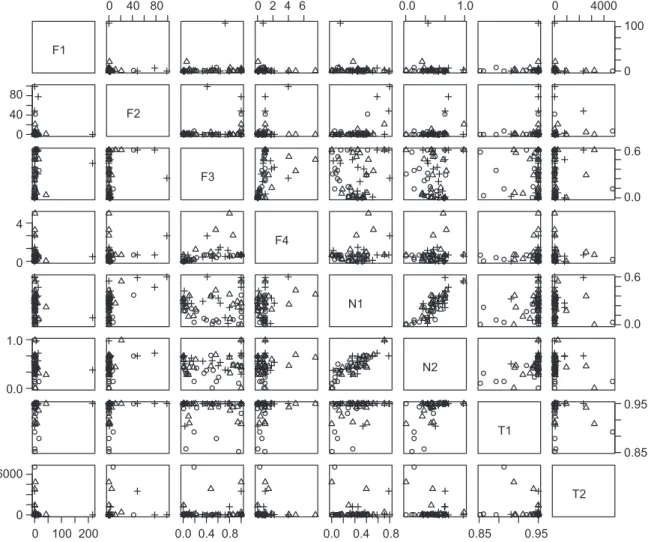

gathers the scatter plots of all pairs of complexity measures. Each data set represents a point in the space, which is characterised by a given value of two complexity measures. The symbol used to represent this point is: (1) a circle if the data set belonged to the first collection (that is, IB7 outperformed RF and SMO), (2) a triangle if the data set belonged to the second collection (RF outperformed IB7 and SMO), and (3) a cross if the data set belonged to the third collection (SMO outperformed IB7 and RF).
Fig. 3. Rules obtained by applying JRip over the meta-learning problems.
F1 0 0 0.0 0 0 0 F2 F3 0.0 0 F4 N1 0.0 0.0 N2 T1 0.85 0 0 0.0 0.0 0.85 T2 80 40 4 1.0 6000 100 200 0.4 0.8 0.4 0.8 0.95 0.95 0.6 0.6 100 4000 1.0 2 4 6 40 80
We found that the most valuable information was supplied by the projection on N1 (seeFig. 5). In this complexity space, RF and SMO outperformed in problems with greater complexity on the class boundary.
1. The data sets from the first collection present the lowest N1 and N2. This means that instances of different classes are lightly interleaved and instances of the same class are close in the feature space. Therefore, this type of problems should be easily classified by instance-based learners due to the proxi-mity of the instances of the same class. The experiments made
in Section 3confirmed that IBk performs significantly better than the other two learners on this collection.
2. Some data sets from the second collection have moderate values of N1 and N2. So, there is a greater degree of interleaving among instances of different classes, and instances of the same class are more disperse. Thus, approaches that are able to approximate complex class boundaries and handle sparsity and noise may be a better option for this type of problems. This is the conclusion in the case study regarding the second collection, where RF achieved the most accurate classification models.
3. Some data sets from the third collection reach the highest values of N1 and N2. In most of these problems, more than half of the instances lay on the class boundary, drawing a narrow class boundary and increasing the difficulty of the problem. The experimental analysis demonstrates that SMO significantly out-ranked the other two methods. For this type of problems, the high interleaving between instances of different classes seems to prevent decision trees with local splits of a fixed shape from identifying the decision boundaries accurately. Yet, the flexibil-ity provided by the polynomial kernel used enables SMO to accurately approximate more complex class boundaries. The description of the class boundary appears as a valuable dimension of complexity that is intimately bound to the perfor-mance of learners as shown in the next section.
5.2. Boundary complexity as an estimate of classifiers’ performance We extended the study of the boundary complexity by projecting all the 153 data sets on N1 and running more learners—C4.5, Logistic, Multilayer Perceptron, Naive Bayes, PART, and Simple CART. These methods were run using the Weka package without tuning any of their hyper-parameters.
We observe that the values of N1 are the most correlated with the learners’ performance (seeFig. 6). For all the learners, the more instances on the class boundary, the worse the accuracy is. In
X0.002 0 N1 Accuracy (%) C4.5 IB7 Logistic Multilayer Perceptron Naive Bayes PART Random Forest SMO Simple Cart 100 80 60 40 20 X0.05 X0.079 X0.133 X0.193 X0.32 X0.438 X0.545 X0.644 X1
Fig. 6. Accuracies of C4.5, IB7, Logistic, Multilayer Perceptron, Naive Bayes, PART, Random Forest, SMO, and Simple Cart projected on N1. The coloured boxplot indicates the learner that outperforms the others. The circles correspond to outliers according to the R representation. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)
N1 N2 0.0 0.5 1.0 1.5 0.0 Collection 1 Collection 2 Collection 3 0.2 0.4 0.6 0.8 1.0
addition, we can see that the increasing complexity of the boundary enlarges the differences between learners’ performance. This may indicate that test beds should be composed of problems whose value of N1 is greater than the threshold 0.3—which makes sense since any algorithm should perform well on simple boundaries. On the other hand, we can say that Logistic and Random Forest cover the region for medium values of N1. SMO and Simple CART seem suitable for complex problems.Fig. 7plots the worst learners per data set, which provides interesting information about which learners should not be applied. For instance, Naive Bayes should be ruled out according our results, as well as Simple CART, except for problems with complex boundaries.
Therefore, experimental frameworks should care about the analysis of data complexity that is able to differentiate the rival learners used in the comparisons. By limiting the assessment to specific complexities and learners, we still need to elucidate how many data sets we have to use in the experiments. As reported in
Section 2, the number of data sets used in experimentation has tended to increase, since researchers aim to demonstrate the excellence of new techniques across a larger variety of domains. Nevertheless, the size of these collections has not been incre-mented by a substantial extent due to, as derived from the NFL theorem, the risk of not finding significant conclusions if too many domains with different characteristics are considered. In any case, it is not clear how the conclusions change as new data sets are considered in multiple learner comparisons. The next section analyses how the collection size affects the conclusions through the prism of data complexity by examining the effect of progressively including problems of bounded difficulty into the collection of data sets.
5.3. Use of large collections of data sets in experimental frameworks The analysis continues with an enlarged version of the collec-tion used in Section 5.2, characterised by the complexity mea-sures proposed by [6]. For problems that contained more than
two classes, each discrimination of a class with respect to all the other classes was considered as an individual data set. Therefore, for an m-class problem ðm Z 2Þ, the data set was transformed into m two-class problems. This data preprocessing resulted in 266 binary classification problems. For each complexity measure, we sorted the data sets from the simplest to the most complex according to that particular dimension of complexity, and built 266 collections of data sets, where the first collection contains only the first data set, the second collection contains the first two data sets, and so forth, until the 266th collection contains all the data sets. Then, we evaluated the classification accuracy of the three learners in each collection and applied Bonferroni–Dunn’s test—because it is easier to visualise—to identify which learners yield significantly inferior results to those obtained with the best ranked learner.
The results showed how the differences between learners progressively decrease as new data sets are introduced into the comparison, providing empirical evidence of the NFL theorem. When all the collections of data sets are considered, the rank of all the learners is approximately the same, which means that the accuracy of the three learners is equivalent. On the other hand, significant differences are not found for small collections (0–20) of data sets. In these cases, the critical distance required by the statistical tests is large due to the low number of data sets, and the difference of ranks between learners is small; as a conse-quence, the statistical analysis cannot detect significant differ-ences. Thence, if significant differences exist, they can be found in collections that contain, approximately, from 20 to 150 data sets. This analysis illustrates that, once a collection contains a certain number of data sets, the progressive inclusion of new domains with similar characteristics results in a systematic decrease of the rank differences between learners. Although our results may be limited to the current test bed, we emphasise the necessity for working in this direction, by enhancing these experiments with large number of data sets and with the use of data sets artificially designed. The next section presents how to X0.002 0 N1 Accuracy (%) C4.5 IB7 Logistic Multilayer Perceptron Naive Bayes PART Random Forest SMO Simple Cart 100 80 60 40 20 X0.05 X0.079 X0.133 X0.193 X0.32 X0.438 X0.545 X0.644 X1

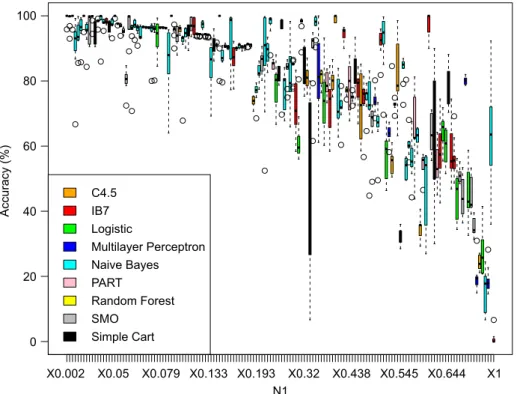

Fig. 7. Accuracies of C4.5, IB7, Logistic, Multilayer Perceptron, Naive Bayes, PART, Random Forest, SMO, and Simple Cart projected on N1. The coloured boxplot indicates the learner that performs the worst with respect to the others. The circles correspond to outliers according to the R representation. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)
address the generation of artificial data sets so that it can serve as a new methodology in the design of experiments to test the performances of learners.
6. Artificial data sets
This paper has motivated the need for redefining the purpose of learner comparison experiments. Rather than trying to demon-strate that a given learner outperforms others in all the problems, domains of competence of learners should be investigated. The characterisation of real-world data sets seems useful in seeking patterns that relate the performance of the learner to the com-plexity of the data set. However, publicly available real-world data sets are limited. And even though hundreds of data sets were available, they could hardly be well spread in the complexity space. For instance, Holte[25]reviewed the features of real-world data sets from the UCI repository and concluded that most of them contain very simple target concepts. We also observed that there are regions of the complexity space that are not represented by any data set (seeFig. 5). Thus, to conduct significant knowl-edge extraction from pairs of characterised data sets and learners’ performance, a large number of data sets is required. Due to the scarcity of available real-world problems, we should consider synthetic problems. The following subsections describe the design of such a collection of artificial data sets (ADS) and provide results that show the benefits of their use.
6.1. Requirements for a collection of synthetic data sets
The collection of data sets for the aforementioned investiga-tion should satisfy the requirements of (1) being complete, i.e. the complexity spectrum has to be covered without significant gaps, and (2) exhibiting enough resolution, i.e. providing sufficient granularity to reveal differences among problems. To tackle these requirements we decomposed the properties of the data sets into two types: (1) extrinsic properties and (2) intrinsic properties. Extrinsic properties refer to the external characteristics that are measurable (such as the number of instances, number of attri-butes, and type of attributes), structural anomalies (such as labelling noise, missing values, and class imbalances), and the relevance of attributes. Note that all these characteristics are often used in the literature to confer a degree of difficulty to the data set, without considering the class boundaries. Intrinsic properties refer to the inherent complexity of the target concept; in particular, the geometry of class boundaries. Table 8 sum-marises the properties taken into account in the synthetic gen-erator. The collection of data sets should contain a given number of data sets whose properties would range across the set of values specified by the user. The next section details how to design the synthetic generator to fulfil these requirements.
6.2. Multi-objective design
As stated above, the generation of the data sets departs from the specification of the values of the meta-parameters detailed inTable 8. Given N data sets, the generator should spread these data sets along the specified ranges. Each data set should satisfy a given value for each property. Tuning extrinsic characteristics is straightforward. However, creating a data set with a specific inherent geometry poses many difficulties. The key point of our approach is to rely on the complexity measures described inSection 4. InSection 5, we used a set of complexity descriptors to analyse the geometrical complexity of data and realised that certain patterns arose. Now, we use the measures as generators of specified complexities. There are several ways by which one could obtain a set of instances in a data set fulfilling given values of the aforementioned properties. After analys-ing some of them, we decided to impose an additional constraint, which was to build artificial data sets that could resemble structures from real-world problems or contain known learning concepts. This led us to consider different problems as representative seeds of our collection, from where we expanded a full range of data sets with different complexities. The chosen procedure was by sampling instances from the input problems until the given properties were satisfied. The data set generator problem was then formulated as: given a seed problem and a set of extrinsic and intrinsic properties, search through the space of instance samplings until the properties are satisfied. Because some of the intrinsic properties gave rise to conflicting objectives, the search was refined to be a multi-objective search and formulated as follows: given a seed problem and a set of extrinsic properties, optimise simultaneously a set of intrinsic properties, by searching through the space of instance samplings. Multi-objective Evolutionary Algorithms (MOEAs)[26]have extensively been used in the literature to solve multi-objective problems. Thus, we relied on these algorithms and adapted a version of the well-known Non-dominated Sorting Genetic Algorithm (NSGA-II)[27]. The particular design of the algorithm and the study of the evolutionary compo-nents are detailed in [23]. We used this algorithm to generate a collection of 80000 data sets. We ran the evolutionary synthetic generator over five seed problems: Checkerboard (a classical non-linear problem with heavily interleaved classes following a checker-board layout), Spiral (a problem with a non-linear class boundary following a spiral layout), Wave Boundary (a linearly separable problem defined by a sinusoidal function), Yin Yang (a linearly problem with small disjuncts), and the Pima Indians Diabetes from Table 8
Taxonomy of meta-parameters grouped into two main categories: (1) extrinsic characteristicsy18and (2) intrinsic characteristicsyM.
Label Meta-parameters Additional information
y1 Number of instances Also called examples or points
y2 Number of attributes Also called features, variables, or dimensions y3 Labelling noise Erroneous labelling or outliers
y4 Missing values Unknown values
y5 Class imbalance Presence of a majority and minority class y6 Type of attributes Continuous or nominal
y7 Relevance of attributes y8 Data distribution yM Complexity measures
Fig. 8. 80000 artificial data sets mapped onto the two principal complexity components.
the UCI repository. The five seed data sets were evolved for different objective configurations, plus all the combinations of the optimisa-tion of three complexity measures at each time. The selecoptimisa-tion of three complexity measures resulted in eight experiments which consisted in maximising or minimising each dimension of complex-ity. Each combination put together the two least correlated measures with respect to a third one. As a proof of concept, this experimenta-tion was thus limited to the three chosen measures; future studies should extend it with more seeds and complexity measures.
The next section presents some results that validate the proposed method.
6.3. Complexity of generated artificial data sets
The collection of 80000 data sets was mapped onto the measurement space defined by the two principal components derived from a singular decomposition value analysis, as sug-gested in[21]. We observe that such collection provides a large coverage of the measurement space and better granularity than real-world problems (seeFig. 8).Fig. 8also shows how the ADS spread from the original data sets. The synthetic generator seems promising since we were able to reach farther regions in the complexity space by using only five seed problems.

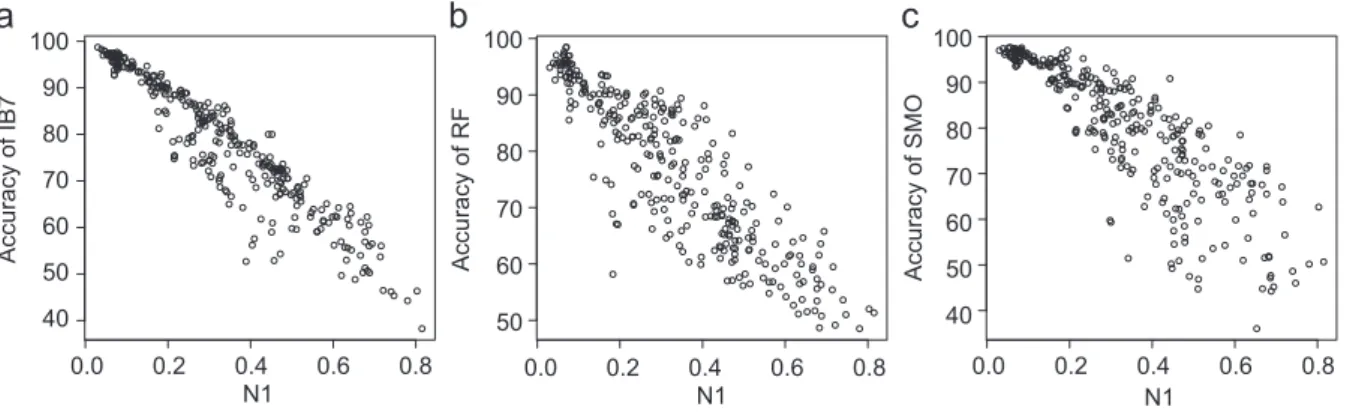

Fig. 9(a), (b), and (c) plot the performance of IB7, RF, and SMO with respect to the complexity N1. The correlation between this complexity measure and the performance of the learners still exists. This indicates that the data synthesis does not affect the measurement scheme and the validity of the generative techni-que is hence established.
Further work can be pursued to generate richer ADS by using a large and diverse set of seeds and raising the optimisation up to seven complexity measures at the same time. We believe that the generator gives a powerful tool both to create artificial bench-marks and to study the relation between data characteristics and the behaviour of learners in a systematic way.
7. Summary, discussion, and future work
Within the scope of this paper, we have shown that some traditional studies that advocate for the superiority of a given learner over a limited set of problems may be biased, and that further studies regarding the superiority of the learner on a given domain characterised by some complexity measures might be more accurate. We have taken an empirical approach to answer (1) why and (2) how data sets selection can alter the conclusions extracted from multiple learner comparisons.
With the new insights provided by the inclusion of data complexity study in the analysis of results, we also have recog-nised aspects that need to be addressed in further work. In
particular, we seek to design new measures and generate ADS to provide a more extensive coverage of the complexity space. Although the complexity measures provide informative descrip-tions of the problem difficulty, the experiments have shown that they are not sufficient to fully discriminate between problems. In practice, noise and extreme outliers can also affect the computa-tion of the complexity measures and require robust statistics that involve the use of quantiles, especially for measures F1 and F2. Changing the measures to more robust versions could be useful. However, the paper was devised with the use of the original complexity measures as proposed in[6]. A more detailed study on variations of the measures and addition of new ones could be provided as an extension of this work.
Furthermore, a drawback experienced along this research has been the lack of resources in terms of storage and computational capacity. We find an implicit combinatorial problem—number of complexity characteristics to evolve and the granularity of the scale of each characteristic—which increases the number of experiments exponentially. However, the performed experiments have pointed out the importance of different kinds of data sets and problem structures. In order to better understand the learners’ behaviour and to make guidelines for choosing the right learner for each case, we have to deal with three key points related to the construction of the testing framework: (1) complex-ity measures, (2) structural dimension, and (3) completeness.
Complexity measures. It is important to analyse the contribu-tion of each measure and how the problem distribucontribu-tion may be modified depending on the insertion of more complexity mea-sures or the deletion of some. Moreover, it would be interesting to determine whether this space suffices to provide some guidelines that link data characteristics to learner properties.
Structural limits from seeding data. The coverage of the com-plexity space is based on the difficulty of the problems originated from the number of seed data sets each representing different class concepts. The nature of the seed distributions may influence the resulting testing framework. Further work should be planned to determine the effect of the seed data on the resulting coverage. Completeness. The two aforementioned aspects lead to the concern about whether and how the completeness of the space could be guaranteed. What is the minimum number of dimen-sions needed to fully represent the difficulty of a problem? Which of these dimensions are most suitable? What would be the proper seed data that have the furthest reach over the space?
If we believe in the power of classification using numerical features in real-world applications, we should also believe in the ability of a meta-classifier in helping to choose among different classifiers. The missing piece is how to obtain a sufficiently discrimi-native set of numerical features that describe the real-world problems in ways relevant to the classifier performances. This paper offers a few case studies and some steps in moving towards this goal.
0.0 40 N1 Accuracy of IB7 0.0 N1 Accuracy of SMO 100 90 80 70 60 50 40 100 90 80 70 60 50 Accuracy of RF 100 90 80 70 60 50 0.2 0.4 0.6 0.8 0.0 N1 0.2 0.4 0.6 0.8 0.2 0.4 0.6 0.8
Acknowledgements
The authors would like to thank the Ministerio de Educacio´n y Ciencia for its support under Project TIN2008-06681-C06-05, Fundacio´ Credit Andorra, and Govern d’Andorra.
Appendix A. Data complexity measures
The complexity measures provide quantitative estimates of different notions of difficulty associated with the boundary complexity. The aim of these measures is to serve as a replace-ment for non-computable measures such as Kolmogorov com-plexity and characterise the problems without specific reference to a fixed family of functions or learning mechanisms. This appendix describes the following measures: F1, F2, F3, F4, N1, N2, T1, and T2.
Maximum Fishe’s discriminant ratio (F1). This measure computes the maximum discriminative power of each attribute, that is,
F1 ¼ maxm
j ¼ 1 FDRj, ðA:1Þ
where m is the number of input attributes, and FDRjis Fisher’s
discriminant ratio of each attribute. FDRjis calculated differently
depending on whether the data set has two classes or more than two classes.
1. For two-class data sets, the ratio for each attribute j is computed as FDRj¼ ð
m
ðjÞ 1m
ðjÞ 2Þ 2 ðs
ðjÞ1Þ 2 þ ðs
ðjÞ2Þ 2, ðA:2Þwhere, for continuous attributes,
m
ðjÞ k and ðs
ðjÞ kÞ
2
are the mean and the variance of the attribute j for class k, respectively. For nominal attributes, each value is mapped onto an integer number. Then,
m
k is the median value of the attribute j forclass k and ð
sk
Þ2 is the variance of the attribute j for class k computed as the variance of the binomial distribution, that is,sk
¼ þ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi pmkð1pmkÞnnk q , ðA:3Þ where pmkis the frequency of the median value
mk
, and nkis thetotal number of instances of class k.
2. For m-class data sets (m4 2), the ratio for each attribute j is computed as FDRj¼ PC k ¼ 1 PC l ¼ k þ 1pkplð
m
km
lÞ2 PC k ¼ 1pkðsk
Þ2 , ðA:4Þwhere C is the maximum number of classes and pk is the
proportion of instances of class k.
High values of F1 indicate that at least one of the attributes enables the learner to separate the instances of different classes with partitions that are parallel to an axis of the feature space. Low values of this measure do not imply that the classes are not linearly separable, but that they cannot be discriminated by hyperplanes parallel to one of the axis of the feature space. The overlap of the per-class bounding boxes (F2). This measure computes the overlap of the tails of distributions defined by the instances of each class.
The definition of this measure for two-class data sets is the following. For each attribute, it computes the ratio of the width of the overlap interval (i.e. the interval that has instances of both classes) to the width of the entire interval. Then, the measure returns the product of the ratios calculated for each attribute,
which is defined as F2 ¼ Y m j ¼ 1 MIN_MAXjMAX_MINj MAX_MAXjMIN_MINj , ðA:5Þ
where m is the number of input attributes and,
MIN_MAXj¼minðmaxðj,1Þ,maxðj,2ÞÞ, ðA:6Þ
MAX_MINj¼maxðminðj,1Þ,minðj,2ÞÞ, ðA:7Þ
MAX_MAXj¼maxðmaxðj,1Þ,maxðj,2ÞÞ, and ðA:8Þ
MIN_MINj¼minðminðj,1Þ,minðj,2ÞÞ, ðA:9Þ
where max(j,k) and min(j,k) are, respectively, the maximum and minimum values of the attribute j for class k. Nominal values are mapped to integer values to compute this measure.
For m-class data sets ðm4 2Þ, we compute F2 for each pair of classes, get the absolute value of all them, and return the sum of all these values. Low values of this measure mean that the attributes can discriminate the instances of different classes. The maximum (individual) feature efficiency (F3). This measure computes the discriminative power of individual features and returns the value of the attribute that can discriminate the largest number of training instances.
For each attribute, we consider the overlapping region (i.e. the region where there are instances of both classes) and return the ratio of the number of instances that are not in this overlapping region to the total number of instances. Then, the maximum discriminative ratio is taken as measure F3.
Note that a problem is easy if there is one attribute for which the ranges of the values spanned by each class do not overlap (in this case, this would be a linearly separable problem). High values of this measure indicate that there is an attribute which is able to discriminate between instances of different classes.
The collective feature efficiency (F4). This measure follows the same idea presented by F3, but now it considers the discrimina-tive power of all the attributes.
First, we select the most discriminative attribute, i.e. the attribute that can separate the majority of instances of one class. Then, all the instances that can be discriminated are removed from the data set, and the following most discriminative attribute (with regards to the remaining instances) is selected. This procedure is repeated until all the instances are discriminated or all the attributes in the feature space are analysed. Finally, the measure returns the proportion of instances that have been discriminated. Thus, it gives us an idea of the fraction of instances whose class could be correctly predicted by building separating hyperplanes that are parallel to one of the axes in the feature space.
Like F3, high values of this measure indicate that there is an attribute which is able to discriminate between instances of different classes.
The fraction of points on the class boundary (N1). This measure, inspired by the test proposed by [28], gives an estimate of the length of the class boundary.
For this purpose, it builds a Minimum Spanning Tree over the entire data set by first connecting all the points using the Euclidean distance. It returns the ratio of the number of nodes of the spanning tree that connect different classes to the total number of instances in the data set. If a node niis connected to
more than one node of a different class, niis counted only once.
High values of this measure indicate that the majority of the points are located near the class boundary, and so, that it may be more difficult for the learner to model this class boundary accurately.
The ratio of average intra/inter class nearest neighbour dis-tance (N2). This measure compares the intra-class spread to the inter-class spread.
For each input instance xi, we calculate the distance to its
nearest neighbour within the class ðintraDistðxiÞÞand the distance
to its nearest neighbour of any other class ðinterDistðxiÞÞ. Then, the
result is the ratio of the sum of the intra-class distances to the sum of the inter-class distances for each input instance, i.e. N2 ¼ Pn i ¼ 1 intraDistðxiÞ Pn i ¼ 1 interDistðxiÞ , ðA:10Þ
where n is the number of instances in the data set.
Low values of this measure suggest that the instances of the same class lie closely in the feature space. High values indicate that the instances of the same class are disperse.
The fraction of maximum covering spheres (T1). This measure originated in the work of[29], which described the shapes of class manifolds with the notion of an adherence subset. An adherence subset is a sphere centred on an instance of the data set which is grown as much as possible before touching any instance of another class. Therefore, an adherence subset contains a set of instances of the same class and cannot grow more without including instances of other classes. The measure considers only the biggest adherence subsets or spheres, removing all those that are included in others. Then, the measure returns the number of spheres normalised by the total number of points.
Low values of this measure means that the instances are grouped in compact clusters.
The average number of points per dimension (T2). This mea-sure returns the ratio of the number of instances in the data set to the number of attributes. It is a rough indicator of sparseness of the data set.
References
[1] X. Wu, V. Kumar, J.R. Quinlan, J. Ghosh, Q. Yang, H. Motoda, G.J. McLachlan, A. Ng, B. Liu, P.S. Yu, Z.-H. Zhou, M. Steinbach, D.J. Hand, D. Steinberg, Top 10 algorithms in data mining, Knowledge and Information Systems 14 (1) (2007) 1–37.
[2] R. Kohavi, A study of cross-validation and bootstrap for accuracy estimation and model selection, in: International Joint Conferences on Artificial Intelli-gence, vol. 14, 1995, pp. 1137–1145.
[3] T.G. Dietterich, Approximate statistical tests for comparing supervised classification learning algorithms, Neural Computation 10 (7) (1998) 1895–1924.
[4] J. Demˇsar, Statistical comparisons of classifiers over multiple data sets, Journal of Machine Learning Research 7 (2006) 1–30.
[5] S. Garcı´a, F. Herrera, An extension on ‘‘statistical comparisons of classifiers over multiple data sets’’ for all pairwise comparisons, Journal of Machine Learning Research 9 (2008) 2677–2694.
[6] T.K. Ho, M. Basu, Complexity measures of supervised classification problems, IEEE Transactions on Pattern Analysis and Machine Intelligence 24 (3) (2002) 289–300.
[7] D.H. Wolpert, The lack of a priori distinctions between learning algorithms, Neural Computation 8 (7) (1996) 1341–1390.
[8] J. Luengo, F. Herrera, Domains of competence of fuzzy rule based classifica-tion systems with data complexity measures: a case of study using a fuzzy hybrid genetic based machine learning method, Fuzzy Sets and Systems 161 (1) (2010) 3–19.
[9] A. Orriols-Puig, J. Casillas, Fuzzy knowledge representation study for incre-mental learning in data streams and classification problems, Soft Computing 15 (12) (2010) 2389-2414. http://dx.doi.org/10.1007/s00500-010-0668-x. [10] D.W. Aha, D. Kibler, M.K. Albert, Instance-based learning algorithms, Machine
Learning 6 (1) (1991) 37–66.
[11] L. Breiman, Random forests, Machine Learning 45 (1) (2001) 5–32. [12] J.C. Platt, Fast training of support vector machines using sequential minimal
optimization, Advances in Kernel Methods: Support Vector Learning MIT Press, 1999, pp. 185–208.
[13] V.N. Vapnik, The Nature of Statistical Learning Theory, Springer Verlag, 1995. [14] I.H. Witten, E. Frank, Data Mining: Practical Machine Learning Tools and
Techniques, second ed., Morgan Kaufmann, San Francisco, 2005.
[15] M. Friedman, A comparison of alternative tests of significance for the problem of m rankings, Annals of Mathematical Statistics 11 (1940) 86–92. [16] S. Holm, A simple sequentially rejective multiple test procedure,
Scandina-vian Journal of Statistics 6 (1979) 65–70.
[17] E. Bernado´-Mansilla, T.K. Ho, Domain of competence of XCS classifier system in complexity measurement space, IEEE Transactions on Evolutionary Com-putation 9 (1) (2005) 82–104.
[18] A. Orriols-Puig, N. Macia, T.K. Ho, Documentation for the data complexity library in Cþþ, Technical Report, La Salle – Universitat Ramon Llull, 2010. [19] J.S. Sa´nchez, R.A. Mollineda, J.M. Sotoca, An analysis of how training data
complexity affects the nearest neighbor classifiers, Pattern Analysis and Applications 10 (2007) 189–201.
[20] S. Garcı´a, J.R. Cano, E. Bernado´-Mansilla, F. Herrera, Diagnose of effective evolutionary prototype selection using an overlapping measure, International Journal of Pattern Recognition and Artificial Intelligence 23 (8) (2009) 1527–1548.
[21] N. Macia, T.K. Ho, A. Orriols-Puig, E. Bernado´-Mansilla, The landscape contest at ICPR’10, ICPR 2010, Lecture Note in Computer Science, vol. 6388, Springer, 2010, pp. 29–45.
[22] J. Luengo, A. Ferna´ndez, S. Garcı´a, F. Herrera, Addressing data complexity for imbalanced data sets: Analysis of SMOTE-based oversampling and evolu-tionary undersampling, Soft Computing.Soft Computing 15 (10) (2011) 1909-1936. http://dx.doi.org/10.1007/s00500-010-0625-8.
[23] N. Macia, A. Orriols-Puig, E. Bernado´-Mansilla, In search of targeted-complexity problems, in: Proceedings of the 11th Annual Conference on Genetic and Evolutionary Computation, ACM, 2010, pp. 1055–1062. [24] W.W. Cohen, Fast effective rule induction, in: International Conference on
Machine Learning, 1995, pp. 115–123.
[25] R.C. Holte, Very simple classification rules perform well on most commonly used datasets, Machine Learning 11 (1993) 63–90.
[26] C.A. Coello, G.B. Lamont, D.A.V. Veldhuizen, Evolutionary Algorithms for Solving Multi-objective Problems (Genetic and Evolutionary Computation), Springer-Verlag New York, Inc., Secaucus, NJ, USA, 2006.
[27] K.D. Deb, A. Pratap, S. Agarwal, T. Meyarivan, A fast and elitist multiobjective genetic algorithm: NSGA-II, IEEE Transactions on Evolutionary Computation 6 (2) (2002) 182–197.
[28] J.H. Friedman, L.C. Rafsky, Multivariate generalizations of the Wald– Wolfowitz and Smirnov two-sample tests, Annals of Statistics 7 (7) (1979) 697–717.
[29] F. Lebourgeois, H. Emptoz, Pretopological approach for supervised learning, Proceedings of the 13th International Conference on Pattern Recognition, vol. 4, IEEE Computer Society, Washington DC, USA, 1996, pp. 256–260.
Nu´ria Maci a received the Ph.D. in Computer Engineering in 2011 from La Salle – Universitat Ramon Llull (Spain). Her research has concentrated on data complexity in supervised learning and generation of synthetic data sets.
Ester Bernado´-Mansilla received a M.Sc. degree in Electronic Engineering in 1995 and a Ph.D. degree in Computer Science in 2002 from La Salle – Universitat Ramon Llull (Spain), where she is currently an associate professor. Her research interests focus on genetic algorithms, machine learning, and pattern recognition.
Albert Orriols-Puig received a Ph.D. in Computer Engineering in 2008 from La Salle – Universitat Ramon Llull (Spain). His research interests include evolutionary learning, fuzzy modelling, and data complexity. He is currently a software engineer at Google.
Tin Kam Ho received a Ph.D. in Computer Science from State University of New York at Buffalo in 1992. She pioneered research in decision combination in multiple classifier systems, random decision forests, data complexity analysis. She is currently leading the Statistics and Learning Research Department of Bell Labs at Murray Hill, NJ.
