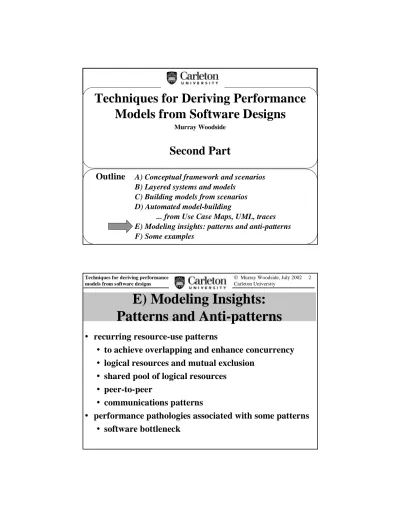

E) Modeling Insights: Patterns and Anti-patterns

(1)

A) Conceptual framework and scenarios

B) Layered systems and models C) Building models from scenarios D) Automated model-building

... from Use Case Maps, UML, traces E) Modeling insights: patterns and anti-patterns F) Some examples

Outline

Techniques for Deriving Performance

Models from Software Designs

Murray Woodside

Second Part

Techniques for deriving performance models from software designs

E) Modeling Insights:

Patterns and Anti-patterns

• recurring resource-use patterns

• to achieve overlapping and enhance concurrency

• logical resources and mutual exclusion

• shared pool of logical resources

• peer-to-peer

• communications patterns

• performance pathologies associated with some patterns

• software bottleneck

(2)

Pattern: Overlapped execution and

multi-threading or virtual threads

Single-threaded A Multi-threaded A can take a second

... blocks for reply request while blocked on first

... server is “busy” while ... higher capacity

blocked ... each thread has a long service time

... long service time ... in model terms, a multiserver

... saturated server, ... many servers, one queue

lightly loaded processor

A B A B A B A _A B

Overlapping: Multi-threading and virtual threads

• Multi-threading is supported in the kernel (Mach,

Solaris, Linux, NT) or by user-level thread packages

• Virtual threads are programmed by the user

• save the context of the blocked operation in a data

table

• accept another message and deal with it

• if it is a reply to a previous request, get out the

state of the blocked operation and resume it

• called an “asynchronous style of programming”

(3)

Threading: A web server needs threads

• the server blocks on the

disk, and for the TCP transfer to complete

• CPU time is a small

portion of the thread service time

• multi-threaded, it can

serve many other requests

• thread-per-request,

fixed thread pool, adaptive pool size

Server [.01] Net [2] Web user [.005] Srvr Processor 2 1 Srvr Disks [.01] TCP Ack Delay n v

Overlapping through early response, or second

phase service

• Idea: Give a reply as early as possible

• Do postponeable work after the reply, as phase 2 • E. G.: Database server update operation:

• write to log file before returning, • execute final writes later. • Second-phase model may

• (a) place this work right after the return (approx), or

• (b) send an asynchronous message to a clean-up process that queues it and

does it later

phase 1 phase 2, asynchronous and parallel client

(4)

Overlapping through asynchronous RPC

A can execute activity b while the remote call to server B is proceeding At some point A must wait

for the result

A

B

A

B

a b c

Modeling: the entry of A is defined by:

a b _c

B

This parallel activity defines a subthread that makes a request to B and blocks

Join

Overlapping through forwarding

• typical of

• a service dispatcher

• a pipeline

• overlapped service:

• a second request can enter

taskB as soon as it has

forwarded to taskC

• A is synchronous, B is not

• message-handling pipeline, call

setups

ta sk A

ta sk B

ta sk C

(5)

Forwarding in CORBA

• Alternative interaction patterns provided by an ORB:

App

ORB

method1 method2

1. ORB acts as RPC intermediary

App

ORB

method1 method2

2. ORB forwards to method

App ORB method1 method2 3. ORB provides a handle (acts as name server)

Forwarding in a web-telephony system

• Support automated call answering by web pages

• speech playout is from a file encoded in a web page

• user enters tones; logic of decoding is also in the web page

• VoiceXML standard (vxmlforum.org)

Call Control Playout Device Web Page Cache Web Page Interpreter Remote Web Server

(6)

Pattern of logical resources: critical sections

• Tasks A and B must enter a critical

section (call it CS) for some work....

• this shows the call to enter CS • but it doesn’t express the resource

context effect of CS

• So:

• Separate out the computation

within CS into Shadow Tasks A|CS and B|CS

• to direct the call from A to A|CS,

make CS a pseudo-task with two

pseudo-entries

A B

not a suitable model

PA _PB

A

B B|CS A|CS CS PB PA CS Manager

...using the critical section pattern

• the shadow task A|CS is really part

of A

• A always blocked when A|CS

runs, so separating them does not produce false concurrency

• it does place A|CS in a separate resource context

... this is a general modeling pattern for separating resource contexts

• both A and A|CS can make any

calls to other tasks as servers

A

B B|CS A|CS CS PB PA SERV

(7)

Logical resources: buffers

• a set of Application tasks share a pool of B buffers, managed by

BufMgr

• a task needing a buffer queues until it is provided

• while holding the buffer, the Applications execute operations

called App|Buf... the same for all of them... or different

B “threads” N applications Applications Applications Applications BufMgr ApplicationsApp|Buf App2 App1

BufEntry1 BufEntry2 ... BufMgr

App2|Buf App1|Buf P1

...

P2

Models with buffered communications

• Source sends a message to a finite buffer pool (space for B

messages)

• if pool is full, Source blocks until there is space

• Buffers replies at once to source, then sends in phase 2 to

Destination

• if Destination needs to hold the buffer, it does its work in phase 1 • if it does not, it “replies” at once to Buffers and does its work

in phase 2.

Applications Destination

Source Buffers (0,1)

B “threads” May be several tasks

(8)

Pattern: Peer-to-peer interaction

• Peers are symmetrical

• they make blocking requests to each other • potential exists for cyclic interactions • to give layered behaviour:

• each peer has a Main part, and a Responder part that

responds to requests from others

• simplest case: the Responder part does not make requests to

other sites

• more complex, with cycles: a mechanism is needed to handle

possible deadlock due to cycles.

Example of peer-to-peer interaction: Distributed

database (Sheikh)

• transform a peer-to-peer relationship to reveal layered behaviour

Original view Layered view

DataManagerA DataStoreA DataStoreB DataManagerB UserA UserB DataManagerA DataStoreA DataStoreB DataManagerB UserA UserB ApplicationB ApplicationA

(9)

Communications patterns

• overhead execution at the sender and the receiver, to

make the messages and execute the protocol

• protocol delays

• for flow control

• network latency as a representation

• network bandwidth limitation

Communications Patterns (1): Overhead “tasks”

• send-request executes the

protocol overhead at the sender, in both directions

• send-reply executes the

overhead at the server, before the logical reply gets back to the client

• send-reply execution is lumped together and possibly misplaced in sequence, but the total work to provide the reply is right client send-request server send-reply 1 1 1

(10)

Communications Patterns (2):

overhead and latency

• net delay is

included in the

send, and again in

the reply

• one latency each

way

client send-request Net delay server send-reply Net delay 1 1 1 INF 1 INF

Communications Patterns (3):... add a bandwidth

limitation to admit messages to the network

• “Rate Limiter” RL

has zero first phase, second phase is T = 1/rate

• next message is

admitted only after second phase is over

• only shown for send • if the limitation is

shared between the directions, the RL “task” may be shared too. client send-request Net delay server send-reply Net delay 1 1 1 INF 1 Rate Limiter INF

(11)

admission control admission control admission control

Communications Patterns (4): .... add layered flow

control

• all packets must

complete their admission and

latency before logical delivery of the

request to the server

client send-request admission control W threads for window tokens Net delay server send-reply W

threads _delayNet n packets 1 1 1 m packets 1 1 INF _INF

Anti-Pattern: software bottleneck

• potential bottleneck pattern

wherever there are multiple clients and multiple servers

• software bottleneck must be

observed via utilizations

(saturated at S and above, not saturated below)

• S is saturated because it is

blocked on other servers

• cure is

• multiplicity (e.g. multiple

threads, partitioned subsystems),

• reducing the blocking times

Server S

Processor

multiple requesters

multiple lower servers unsaturated

(saturated)

Hourglass pattern of tasks

(12)

Examples of software bottlenecks

• in general, due to serialization at the bottleneck

• single threaded web server

• routing table

• single exclusive lock on an entire data base

• small buffer pool

• small flow control window

Multiplicity to cure a software bottleneck

• server level

• multithread a server

• replicated servers (this adds processing and network resources

too)

• data level

• partition the data and lock each partition separately (locks on

objects or pages)

• copies of the entire data service (distributed replicas of a

routing table)

• subsystem level:

(13)

Reduced delay to cure a software bottleneck

• batched requests across a network of long latency

• avoid retrieval across a network of long latency

• cache data

• prefetch

• move functions out of this server (minimize the critical

section)

• use worker threads or parallel operations or fetches

F) Experience in building and using models

• Examples:

• web integration with telephony

• router software and hardware

• web-based application

• Concerns:

• accuracy

• modeling power

• interpretation

(14)

Example: “WebTalk” (web server+telephony)

• Support automated call answering by web pages • speech playout is from a file encoded in a web page

• user enters tones; logic of decoding is also in the web page • VoiceXML standard (vxmlforum.org)

• User scenario for one interaction

1. DTMF (tone) or begin call event 2. playout begins and continues

3. user listens and enters next DTMF event 4. next playout OR forward the call

3

1 WAIT LISTEN/THINK STOP PLAYOUT₂

Web-based telephone dialogue:

Scenario over system components

Call Control Playout Device Web Page Cache Web Page Interpreter Remote Web Server

(15)
