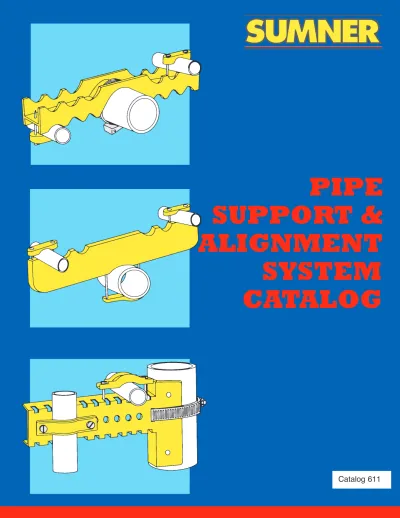

PIPE SUPPORT & ALIGNMENT SYSTEM CATALOG

(1)

PIPE

SUPPOR

T &

ALIGNMENT

SYSTEM

CATALOG

Catalog 611

(2)

The Fastest and Most

Economical Method to

Postion and Support

Plumbing Chase Piping.

The Sumner Pipe Support System is designed to eliminate the

problems and costs of supporting small diameter pipe in the

chase – here’s how:

1. Sumner Pipe Supports are pre-dimensioned and

specifically designed for the application.

The Sumner Pipe Support System maximizes a plumber’s time by

eliminating the time consuming measuring process. Each support is

pre-measured and pre-dimensioned for quick, easy installation.

Everything a plumber needs is included except a screwdriver!

2. With Sumner, search and decision time is reduced.

Forget searching around the supply shack for those bits and pieces

necessary to complete the pipe support job. It’s all there in each neat,

compact Sumner package.

3. Sumner Supports mean more efficient inventory.

Sumner eliminates the cost of carrying excess inventory! Now you can

inventory only what you need. The Sumner product line is pre-packaged,

labeled and so compact in size that further savings can be realized by

reducing storage area.

4. Sumner Supports provide electrolytic isolation with the

use of tape.

We all know that the use of tape to isolate a pipe is far from an exact

science, and certainly time consuming. Sumner Supports virtually

eliminate the use of tape – all you need is a Sumner Pipe Support

and a screwdriver.

5. Sumner Supports are structurally strong and rigid.

Sumner Supports are strong enough to withstand the abuse of other

tradesmen working in the chase and allows for piping expansion. Let’s

face it – the Sumner Pipe Support System is the most revolutionary

product to appear in the plumbing industry in years!

(3)

OPERTATIONS REQUIRED

$4.93 $3.84

3 _{FIXED DIMENSIONS ELIMINATE COSTLY MEASURING TIME}

3 _{PRE-PACKAGED TO REDUCE EXPENSIVE SEARCH TIME}

3 _{ALLOWS FOR EXPANSION AND CONTRACTION}

3 _{IMPROVES QUALITY AND PRODUCTIVITY}

3 _{NOISE DAMPENING}

3 _{ELECTROLYTIC ISOLATION}

$5.92

(4)

POSIFIX

®

PIPEFIX

®

The Posifix is the smallest support specifically designed to fit between studs. Its application is to align and support hot and cold lines with waste piping in a lavatory or sink rough-in. The Posifix is pre-slotted to hold 1/2" or 3/4" supply pipe 4", 6" or 8" apart. The unit mounts on 1" through 1-1/2" waste pipe for perfect alignment.

4-27/32" 4" 6" 8" 9-11/16" 11/16" 1-13/16" 4" 6" 8" 9-9/16"

Similar to Posifix, the Pipefix can be used in lavatory or sink rough-ins. The Pipefix application holds and aligns 1/2" and 3/4" supply lines with waste pipe, specifically in tight applications. Only 3-1/2" of wall clearance is required to mount the Pipefix. The support is pre-slotted to hold supply piping 4", 6" or 8" apart. The Pipefix attaches to 1-3/8" through 6-5/8" O.D. vent or waste piping by means of a stainless steel band.

The Pipefix is available in two materials: • A-503 Polystyrene (yellow)

• A-603 ABS (orange)

STANDARD PACKAGE

includes two 1/2" – 3/4" clamps, one 1" – 1-1/2" clamp and attaching screws. The Posifix is available in A-501

Polystyrene (yellow).

STANDARD PACKAGE

includes one 7" Quik-Lok stainless steel band, two 1/2" – 3/4" clamps and attaching screws.

ECONOMY PACKAGE

includes one 5" continuous feed stainless steel band, two 1/2" – 3/4" clamps and attaching screws.

LOAD CAPACITY

4" pipe centers 410 lbs 6" pipe centers 325 lbs 8" pipe centers 260 lbs

LOAD CAPACITY

4" centers 782 lbs 6" centers 185 lbs 8" centers 145 lbs

(5)

STAKFIX

®

1-3/4" O.D. 1-1/2" I.D. 6" 1-1/4" 4-1/4" 4-1/4" 4-1/8"

The Stakfix is used strictly inside of the chase and attaches to 1-3/8" – 6-5/8" O.D. pipe vents or stacks by means of a stainless steel band similar to the Pipefix. The Stakfix has three mounting surfaces for supporting a combination of piping up to 1-1/2", running vertically and/or horizontally. The Stakfix also can be strapped onto metal struts or nailed to wood. Two to three-inch pipe can be supported on the Stakfix by using the U-bolts. The P-551 U-bolt is copper plated to prevent electrolysis. Smaller pipe can be mounted on the Stakfix using either style of clamp.

The Stakfix is available in two materials: • A-502 Polystyrene (yellow)

• A-602 ABS (orange)

STANDARD PACKAGE

includes one 7" Quik-Lok stainless steel band, three 1" – 1-1/2" clamps, attaching screws and P-556 clips.

ECONOMY PACKAGE

includes one 5" continuous feed stainless steel band, three 1" - 1/2" clamps, attaching screws and P-556 clips.

LOAD CAPACITY

Outer End Point 125 lbs

Center Point 202 lbs

Innermost Point 357 lbs

Part

No. Description Pieces/carton Weightlbs POSIFIX

781998 A-501 POSIFIX (Polystyrene) 50 14

PIPEFIX STANDARD PACKAGE

782002 A-503 PIPEFIX (Polystyrene) 50 20 782005 A-603 PIPEFIX (ABS) 50 20

PIPEFIX ECONOMY PACKAGE

782514 A-503 PIPEFIX (Polystyrene) 50 18 782513 A-603 PIPEFIX (ABS) 50 18

STAKFIX STANDARD PACKAGE

782007 A-502 STAKFIX (Polystyrene) 50 22 782000 A-602 STAKFIX (ABS) 50 22

STAKFIX ECONOMY PACKAGE

782512 A-502 STAKFIX (Polystyrene) 50 21 782511 A-602 STAKFIX (ABS) 50 21

PIPE SUPPORT

PART NUMBERS

(6)

ACCESSORIES:

PLASTIC CLAMPS – Standard package consists of 100 clamps and

necessary attaching screws.

CLAMPS FOR 1/2" – 3/4" PIPE:

A-553 CLAMPS/Polystyrene (PN 782016)

A-653 CLAMPS/ABS (PN 782017)

CLAMPS FOR 1 – 1-1/2" PIPE:

A-554 CLAMPS/Polystyrene (PN 782018)

A-654 CLAMPS/ABS (PN 782019)

U-BOLT – P-551 (PN 782009) – Copper-plated U-Bolt for

supporting pipe and tubing with outside diameter of 2" through

2-7/8". U-Bolt works best on Stakfix and comes in standard

package of 50 pieces with necessary washers and nuts.

STAINLESS STEEL BANDS – Stainless steel bands are used

with Stakfix and Pipefix for holding pipe and tubing to

structural members. Bands can be used in a series for

greater capacity. Bands come in the two styles below. A

standard pack consists of 50 pieces.

PN 782010 – P-552 Quik-Lok Stainless steel bands for

attaching to 1-3/8 – 6-5/8" O.D. pipes.

PN 782515 – 5" continuous feed stainless steel bands for

attaching to 1-7/8" – 5" O.D. pipes.

METAL CLIP – P-556 (PN 782011) – Clips provide a firm

mounting plate for attaching screws onto Stakfix. Package

consists of 50 pieces.

MOUNTING SCREWS – Three hex-head/slotted attaching

screws available in packages of 50 pieces.

PN 782022 – 1-1/2" screws (for 1/2 – 3/4" clamp on

POSIFIX & STAKFIX)

PN 782020 – 2" screws (for 1/2 – 3/4" clamp on POSIFIX

and 1 – 1-1/2" clamps on STAKFIX)

PN 782021 – 2-1/2" screws (for 1 – 1-1/2" clamp on

POSIFIX & STAKFIX)

Package

Weight

4 lbs

3 lbs

5 lbs

6 lbs

5 lbs

1 lb

(7)

TECHNICAL

INFORMATION:

ASTM Test

Method

Polystyrene

ABS

Material High impact Polystyrene KJA Cycolac DH self-extinguishing

Tensile Strength D-638 4,900 P.S.I. 6,300 P.S.I.

Flexural Strength D-790 6,050 P.S.I. at 73° F 10,000 P.S.I. at 73° F

Rockwell Hardness D-785 "L" 66 "M" 40 R100 -120

Flammability UL-94 H.B. 1.5 inch/min. V.O. non-dripping/self-extinguishing

Flash Point D-1929 725°

Non-toxic, when burning emits black smoke with the same properties as wood.

680°

Cyclolac KJA, as with wood, paper or other natural product fires, the primary hazards are believed to be heat, steam, soot and carbon monoxide.

Suggested Spacing of Supports for

Horizontal and Vertical Piping

1-1/2" thru 2-1/2" 3/4" thru 1-1/4" 1/2" and smaller 10' on centers maximum 7' on centers maximum 5' on centers maximum

Specifications for Weights of Various Pipe Sizes and

Materials Full of Water in Pounds Per Foot

Pipe Size

Steel Pipe

IPS Plastic

Copper

1/2" .998 0.2886 0.385 3/4" 1.361 0.4401 0.665 1" 2.053 0.684 1.000 1-1/4" 2.921 1.068 1.439 1-1/2" 3.600 1.386 1.910 2" 5.108 2.131 3.085 2-1/2" 7.869 3.146 4.540

NATIONAL AND CITY CODES

Uniform Plumbing Code File #1958

City of New York Calendar #679-76-SM

(8)

The Sumner Pipe Support &

Alignment System is

economical, quick to install,

and can be adapted to unique

installations.

7514 Alabonson Road Houston, Texas 77088 Telephone: (281) 999-6900 Fax: (281) 999-6966
