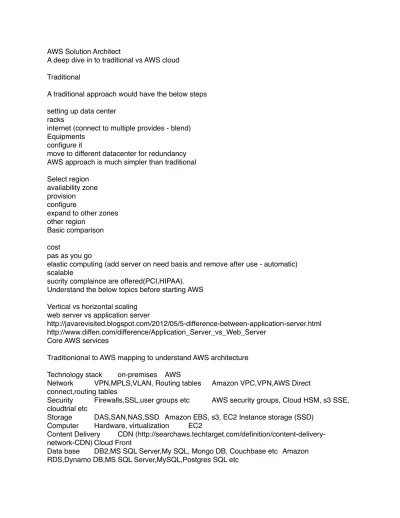

AWS Solution Architect
A deep dive in to traditional vs AWS cloud Traditional
A traditional approach would have the below steps setting up data center
racks
internet (connect to multiple provides - blend) Equipments
configure it
move to different datacenter for redundancy AWS approach is much simpler than traditional Select region
availability zone provision configure
expand to other zones other region
Basic comparison cost
pas as you go
elastic computing (add server on need basis and remove after use - automatic) scalable
sucrity complaince are offered(PCI,HIPAA). Understand the below topics before starting AWS Vertical vs horizontal scaling
web server vs application server
http://javarevisited.blogspot.com/2012/05/5-difference-between-application-server.html http://www.diffen.com/difference/Application_Server_vs_Web_Server
Core AWS services
Traditionional to AWS mapping to understand AWS architecture Technology stack on-premises AWS
Network VPN,MPLS,VLAN, Routing tables Amazon VPC,VPN,AWS Direct connect,routing tables
Security Firewalls,SSL,user groups etc AWS security groups, Cloud HSM, s3 SSE, cloudtrial etc
Storage DAS,SAN,NAS,SSD Amazon EBS, s3, EC2 Instance storage (SSD) Computer Hardware, virtualization EC2
Content Delivery CDN (http://searchaws.techtarget.com/definition/content-delivery-network-CDN) Cloud Front
Data base DB2,MS SQL Server,My SQL, Mongo DB, Couchbase etc Amazon RDS,Dynamo DB,MS SQL Server,MySQL,Postgres SQL etc
Load balancing Hardware and software balancing, HA proxy (https://
www.digitalocean.com/community/tutorials/an-introduction-to-haproxy-and-load-balancing-concepts) Elastic load balancing,software and hardware balancing,HA proxy
Scaling Clustering,Zookeeper Auto scaling,software clustering DNS DNS providersAmazon route 53
Analytics Hadoop, Cassandra,spark Amazon elastic map reduce Data warehousing Specialized HW/SW Amazon redshift
Messaging and workflow Messaaging and workflow software Amazon SQS,SNS,SWF Caching memcached,SAP Hana (http://en.wikipedia.org/wiki/SAP_HANA),(http:// memcached.org/) Amazon Elastic Cache
Archiving Tape Library,tape storage Amazon Glacier Email Email software Amazon simple Email Storage Identity Management LDAP AWS IAM,LDAP
Deployment Chef,Puppet AMIs,CloudFormation,OpsWorks,Elastic Beanstalk Management and Monitoring CA,BMC,Rightscale AWS cloudwatch,cloudtrial The security model in AWS
Amazon Web Services (AWS) delivers a scalable cloud computing platform with high availability and dependability, providing the tools that enable customers to run a wide range of applications. Helping to protect the confidentiality, integrity, and availability of our customers’ systems and data is of the utmost importance to AWS, as is maintaining customer trust and confidence. Shared Security Responsibility Model
http://d0.awsstatic.com/whitepapers/Security/AWS%20Security%20Whitepaper.pdf http://media.amazonwebservices.com/AWS_Security_Best_Practices.pdf
http://aws.amazon.com/compliance/
AWS products that fall into the well-understood category of Infrastructure as a Service (IaaS)— such as Amazon EC2, Amazon VPC, and Amazon S3—are completely under your control and require you to perform all of the necessary security configuration and management tasks AWS managed services like Amazon RDS or Amazon Redshift provide all of the resources you need in order to perform a specific task—but without the configuration work that can come with them. With managed services, you don’t have to worry about launching and maintaining
instances, patching the guest OS or database, or replicating databases—AWS handles that for you.
AWS Account Security Features AWS Credentials
Passwords
AWS Multi-Factor Authentication (AWS MFA) Access Keys
Key Pairs
X.509 Certificates
Individual User Accounts Secure HTTPS Access Points Security Logs
Data stored in Amazon EBS volumes is redundantly stored in multiple physical locations as part of normal operation of those services and at no additional charge. However, Amazon EBS replication is stored within the same availability zone, not across multiple zones; therefore, it is highly recommended that you conduct regular snapshots to Amazon S3 for long-term data durability.
AWS Global Infrastructure Deciding between Regions Latency
Cost Features Legal
Regions and availability zones
Region level services and AZ level services Region level AZ level Global
S3 EC2 IAM
Dynamo DB EBS Route 53 Auto Scaling CloudFront Cloud search
Highly available Not highly available
Managed by AWS managed by user Managed by AWS Services
Elastic Load Balancing
Auto scale group (based on time , metric, load) S3 (span across AZs)
Dynamo DB (stored in SDD)
Amazon Machine image (basic unit of deployment) RDS (back up, patch mgmt,native access to mySQL) EC2
Accessing AWS AWS is API driven
Can do much more than 'management console' using API calls REST API
Identity and Access Management (IAM)
IAM is not applicable for application management Dont use 'root' account
Enable MFA as a best practice with IAM
IAM roles can be assigned for shot span of time Two policies while creating roles
- trust policy (principal) - access (what actions)
Accessing AWS through Mgmt Console(username/password), AWS CLI(access key + secret key), SDK,APIs (access key + secret key).
Create policies using template,policy generator, custom, check with simulator Role based Access management
AWS Security Token Service using Federation
http://docs.aws.amazon.com/STS/latest/APIReference/Welcome.html STS lightweight web service can request temp credentials for IAM users federated user
STS identity broker with federation user
To access by a third party , using their AWS account id and external id we define a truested entitly for the role. After creating the role, we can share Amazon resource Name (ARN) with the 3rd party.
SSO Federation Using SAML 2.0 Single sign-on
Use existing identity management software to manage access to AWS resources open standard
one username and password Assume Role with SAML API AWS Directory Service Active Directory to AWS AD connector
Simple AD powered by Samba 4 Web Identity Federation
temporary access to AWS
support for Amazon,google,facebook IAM
templates
Administrative access Power User access Read only access Automated policy consolidated billing MFA
API access with roles VPC
Its like on premise private data centers NAT is way to connect to private network load balancing and auto scaling possible extend current private network to AWS Regular VPC and default VPC
no more classic EC2, atleast default VPC public IP only for default VPC
can access only through elastic IP,VPN or gateway instance VPC Peering
VPC with public subnet only (default) - single tier - just a web server VPC with public and private subnet - database instance and web server VPC with public and private subnet with hardware VPN
VPC with private subnet with hardware access (AD in cloud) gateway = no of VPC
even if you have a gateway setup, still EC2 instances needs either load balancer or elastic IP to access internet
Network Access control List
IGW (Internet Gateway) provides access to internet Virtual Gateway - access to datacenter
NAT (Network Address translation) server provides internet to your private instance Subnet maps to availability zones
Network Access Control Lists Network ACLs vs Security groups
NACL stateless,subnet based, both allow and deny. Security groups only whitelist
AWS Direct between datacenter and AWS by using VPN (for big data transfers)- extending on premise connection to AWS
As NAT is a single point of failure, we can use HA NAT (Auto scaling as well) EC2
Virtualization of physical server Amazon Machine Image Different AMIs available Basic AMi by Amazon AWS market place Community AMI our own AMI VM import
EC2 instance types
- General Purpose T2 and M3 - Compute Optimize C3 - Memory Optimize R3 - GPU G2
- Storage I2,HS1 (Hadoop,map reduce) Isolation via Xen hypervisior
epheremal disks are directly attached to hypervisor Ec2 classic
EBS(Elastic Block storage - Network Attached), we can specify IOPS 1GD to 1TB
Snapshots are the best
User data/cloud init (will take longer than from AMI) User data will run the script which is specified
