Fiber Access Terminal Closure

(1)

OMC INDUSTRY CO.LIMTED

2018|En version1.0

DATASHEET

Fiber Access Terminal Closure

For FTTH, PON ,OBD Cabling system

(2)

Fiber Access Terminal Closure（FATC） is made of Modified polymer plastic, It is able to hold up to 24-288 splicing points as closure. It is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage

Description

OMC’s FATC Family

Fiber Access Terminal Closure（FATC） Application

FATC series are applicable in FTTH project and suitable for outdoor application. They can distribute cables with a split-ter. They have the subsequent functions of mechanical splice, fusion splice, distributions, etc.

OMC Fiber Access Terminal Closure（FATC） are designed for either pre-connectorized cables, field installation of connectors, or field splicing of pigtails. They offer an ideal solution for building entrance terminals, telecommunication closets, main cross-connects, computer rooms and other controlled environments.

8 cores FATC………6

16 cores FATC ………7

24 cores FATC………11

288 cores FATC ………15

AFATC-002………17

Working Environmental conditions： 1. Working temperature：-40°C+60°C； 2. Relative humidity: ≤93%(at +40°C)； 3. Atmospheric pressure：62kpa~101kpa（Approximate elevation 0～5000m）； 4. Insert Loss：≤0.35dB； 5. Return Loss：≥50 dB； 6. Plug durability：>1000 times； 7. Insulation resistance：≥1000MΩ/500v(DC)； 8 Grounding resistance ： >3000V (DC)/1min without breakdown, flashover 8 cores FATB………3

(3)

Fiber Access Terminal Box-FATB-8A

Fiber Access Terminal Box-FATB-8A hold up to 8 subscribers and 2pcs of 12F splice trays. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

The box can be used in the end termination of residential buildings and villas, to fix and splice with pigtails; can be installed on the wall; may adapt variety of optical connection styles; optical fiber can be managed effectively

Description

Features

Industry Standard User Interface, be made of high impact plastic. Can accommodate 1x4 & 1X8 PLC splitter.

Anti-UV, Ultra violet resistant and rainfall resistant, suitable for outdoor harsh climate condition Can assembly two splice trays and accommodate 24 FTTH optic cables

Wall and pole mountable. 2 inlet ports, 24 outlet ports.

Bracket of four adapters of SC duplex

Two open cable ports can be realized without breaking the cabl Screw-type closure and the function for special key to open

Specification:

Model FATB-8A

Adapter 8pcs of SC /16pcs of LC

Cable Ports 1 in/8 out Drop cable ports Applicable cable OD 7-10mm

Box Dimensions(mm) 200*150*46

Material ABS/PC

Application

Widely used in FTTH access network. Telecommunication Networks CATV Networks

Data communications Networks Local Area Networks

(4)

Description

Features

Water-proof design with IP-65 Protection level.

Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition. Easy to maintain and extend the capacity.

Industry Standard User Interface,

Be made of high impact plastic. Anti-UV, Ultra violet resistant and rainfall resistant. Can accommodate 1×8 or 1×4 PLC splitter Up to 8 FTTH drops.

Unique middle panel≥180°,clear area for splicing and distribution, less cross-connection for cables

Specification:

Application

Model FATB-8B

Adapter 8pcs of SC /16pcs of LC Cable Ports 2 in/8 out Drop cable ports Applicable cable OD 7-10mm

Box Dimensions(mm) 192mm(W)×133mm(D) ×47mm(H)

Material ABS/PC

Max capacity(F) 8

Installation method Wall mount and pole mount

This product integrates the function of splicing with splitting, suitable for the straight through or branch connection, and terminal connection in optical system, as well as protection connection for cables and distribution pigtails. The cables can be spliced with indoor cables by splitting, to meet the requirement of traditional network.

Standard Accessories

Installation nuts, Splice sleeves，3x100 cable tie，M4×25 expansion screws………..

Technical data

Fiber bend radius:≥40mm Splice tray excess loss：≤0.01dB Temperature Range : - 40℃+ 60℃ Anti lateral pressure : ≥2000N / 10 cm Shock resistance：≥20N.m

(5)

Fiber Access Terminal Box-FATB-8T Description

Features

Water-proof design with IP-65 Protection level.

Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition. Easy to maintain and extend the capacity.

Industry Standard User Interface,

Be made of high impact plastic. Anti-UV, Ultra violet resistant and rainfall resistant. Can accommodate 1×8 or 1×4 PLC splitter Up to 8 FTTH drops.

Unique middle panel≥180°,clear area for splicing and distribution, less cross-connection for cables

Specification:

Application

Model FATB-8T

Adapter 8pcs of SC /16pcs of LC Cable Ports 2 in/8 out Drop cable ports Applicable cable OD 7-10mm

Box Dimensions(mm) 192mm(W)×133mm(D) ×47mm(H)

Material ABS/PC

Max capacity(F) 8

Installation method Wall mount and pole mount

This product integrates the function of splicing with splitting, suitable for the straight through or branch connection, and terminal connec-tion in optical system, as well as protecconnec-tion connecconnec-tion for cables and distribution pigtails. The cables can be spliced with indoor cables by splitting, to meet the requirement of traditional network.

FATB-8T hold up to 8 subscribers and 2pcs of 24F Splice tray. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, dis-tribution, storage and cable connection in one solid protection box.

Standard Accessories

Installation nuts, Splice sleeves，3x100 cable tie， M4×25 expansion screws………..

Technical data

Fiber bend radius:≥40mm Splice tray excess loss：≤0.01dB Temperature Range : - 40℃+ 60℃ Anti lateral pressure : ≥2000N / 10 cm Shock resistance：≥20N.m

(6)

Fiber Access Terminal Closure-FATC-8A

Water-proof design with IP-68 Protection level. Integrated with flap-up splice trays

Maximum 120F splice capacity, stainless anti-rust bolts and nuts.

Easy for maintenance and expansion, neat cabling Fiber bend radius control more than 40mm 180 degree access with buckled lock structure. 1*8 or 1*16 PLC Splitter can be installed in each splice tray as option.

8 pcs of pre-installed reinforced water-proof adapter for SC. 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 re-served cable entrances for distribution cable gland(8-13.5mm) Wall mount and pole mount installation

Configuration

Material Size Max Capacity Reinforced Adaptor Weight Color

PC+ABS L*W*H(mm) 340*210*95 Splice 120 Fibers ( 5trays, 24 fiber/tray) PLC Splitter 1pcs of 1x8 8pcs SC/UPC or SC/APC 1.85kg Grey/ Black

Fiber Access Terminal Closure-FATC-8B

1 x Oval, 2 x Round Input port ；24 x Drop Cable output port Impact test: IK10, Pull Force: 100N, Full rugged design

Maximum 96F splice capacity, stainless anti-rust bolts and nuts. Plug-and-play installation, easy for maintenance and expansion Fiber bend radius control more than 40mm

180 degree access with buckled lock structure.

1*8 or 1*16 PLC Splitter can be installed in each splice tray as option. Mechanical sealing structure and mid-span cable entry.

8 pcs of pre-installed reinforced water-proof adapter for SC. 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 re-served cable entrances for distribution cable gland(8-13.5mm） Wall mount and pole mount installation

Configuration

Modified polymer plastic L*W*H(mm) 385*245*130 Splice 120 Fibers

( 5trays, 24 fiber/tray) PLC Splitter _{1pcs of 1x8}

(7)

Fiber Access Terminal Closure-16 cores Fiber Access Terminal Closure-FATC-16A

Specification

1*8 or 1*16 PLC Splitter can be installed in each splice tray as op-tion.

Mechanical sealing structure and mid-span cable entry. Rotatable and dis-mountable spice tray for easy splicing

1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 re-served cable entrances for distribution cable gland(8-13.5mm) Wall mount and pole mount installation

Description:

FATC-16A, which made of Modified polymer plastic, It is able to hold up to 16 subscribers and 96 splicing points as closure. Itis used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features with ruggedness, which is tested under harsh conditions and stand up to even the most severe condition of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment

Features:

Model FATC-16A

Adapter 16pcs of SC

Cable Ports 1 uncut port 2 round ports

Applicable cable OD 10-17.5mm 8-17.5mm

Drop cable ports 16 ports

Applicable cable OD 2x3mm FTTH Drop cable, 2x5mm Figure 8 FTTH drop cable

Dimension 385*245*130mm

Material Modified polymer plastic

Color Black

Max Splicing Capacity 96Fibers(4Trays, 24Fibers/Tray)

Applicable Splitter 1pcs of 1x16 PLC splitter or 2pcs of 1x8 PLC splitter

IP Grade IP 68

Impact test K10

Pull Force 100N

Midspan Entry YES Storage(Tube/Micro cable) YES Net weigth (Kg) 4kg Gross weigth (Kg) 5kg

Applications

FTTH pre-installation and filed installation

4-7mm cable port suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable Standard Accessories Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,

hose clamp, cable tube, wreath, cover holder,

rubber seal for cable en-trance.

Optional Accessories ： Pole ring

(8)

Specification

1*8 or 1*16 PLC Splitter can be installed in each splice tray as option.

Mechanical sealing structure and mid-span cable entry. Rotatable and dis-mountable spice tray for easy splicing 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm ) Wall mount and pole mount installation

Description:

FATC-16B, which made of Modified polymer plastic, It is able to hold up to 16 subscribers and 96 splicing points as closure. Itis used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features:

Model FATC-16B

Adapter 16pcs of pre-installed reinforced water-proof adapter for SC

Drop cable ports 16 pcs

Color Black

IP Grade IP 68

Impact test K10

Pull Force 100N

Applications

(9)

Fiber Access Terminal Closure-16 cores

Fiber Access Terminal Closure-FATC-16C1

Water-proof design with IP-68Protection level. Integrated with flap-up splice trays

Maximum 120F splice capacity, stainless anti-rust bolts and nuts. Easy for maintenance and expansion, neat cabling

Fiber bend radius control more than 40mm 180 degree access with buckled lock structure.

1*8 or 1*16 PLC Splitter can be installed in each splice tray as option. 16 pcs of pre-installed reinforced water-proof adapter for SC. 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm) Wall mount and pole mount installation

Configuration

Fiber Access Terminal Closure-FATC-16D

Impact test: IK10, Pull Force: 100N, Full rugged design

Mechanical sealing structure and mid-span cable entry. 16 pcs of pre-installed reinforced water-proof adapter for SC. 1 mid- span cable entrance(10-16.5mm) for uncut cable Wall mount and pole mount installation

Configuration

(10)

Fiber Access Terminal Closure-FATC-16E

Water-proof design with IP-68Protection level.

Integrated with splice trays and two-steps splitter cassettes. Maximum 12F splice capacity, stainless anti-rust bolts and nuts. Easy for maintenance and expansion, neat cabling

1*8 PLC Splitter can be installed in each splice tray as option. 16 pcs of mechanical ports for 3-7mm drop cable.

1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 re-served cable entrances for distribution cable gland(8-13.5mm). Wall mount and pole mount installation

Configuration

PC+ABS L*W*H(mm) 340*210*95 Splice 12 Fibers PLC Splitter 2pcs of 1x8 18pcs SC/UPC or SC/APC 1.85kg Grey/ Black

Fiber Access Terminal Closure-FATC-16F

Configuration

Material Size Maximum Splitter Capacity Weight Color

PC+ABS L*W*H(mm) 340*210*95 LGX Cassette Splitter 2pcs of 1x8(SC) LGX Cassette Splitter 1pc of 1x16(SC) 1.85kg Grey/Black

Water-proof design with IP-68Protection level. Integrated with splice trays and LGX splitter holder.

1*8 or 1*16 PLC Splitter can be installed in each splice tray as option. 16 pcs of mechanical ports for 3-7mm drop cable.

1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 re-served cable entrances for distribution cable gland(8-13.5mm). Wall mount and pole mount installation

(11)

Fiber Access Terminal Closure-24 cores Fiber Access Terminal Closure-FATC-24A

Specification

1*8 or 1*16 PLC Splitter can be installed in each splice tray as option. Mechanical sealing structure and mid-span cable entry.

Rotatable and dis-mountable spice tray for easy splicing

1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 re-served cable entrances for distribution cable gland(8-13.5mm ) Wall mount and pole mount installation

Description:

FATC-24A, which made of Modified polymer plastic, It is able to hold up to 24 subscribers and 96 splicing points as closure. Itis used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features:

Applications

Model FATC-16A

Adapter 24pcs of SC

Cable Ports 1 uncut port

Applicable cable OD 10-17.5mm

Color Black

IP Grade IP 68

Impact test K10

Pull Force 100N

Midspan Entry YES

Storage(Tube/Micro cable) YES

Net weigth (Kg) 4kg

(12)

Specification

Description:

Features:

Applications

Model FATC-24B

Adapter 24pcs of SC

Color Black

Max Splicing Capacity 96Fibers(4Trays, 24Fibers/Tray)，

IP Grade IP 68

Impact test K10

Pull Force 100N

(13)

Fiber Access Terminal Closure-24 cores Fiber Access Terminal Closure-FATC-24C

Specification

Description:

Features:

Applications

Model FATC-24C

Adapter 24pcs of SC

Color Black

Max Splicing Capacity 144Fibers(6Trays, 24Fibers/Tray)，

IP Grade IP 68

Impact test K10

Pull Force 100N

(14)

Fiber Access Terminal Closure-FATC-24D

Water-proof design with IP-68Protection level.

Integrated with splice trays and two-steps splitter cassettes. Maximum 120F splice capacity, stainless anti-rust bolts and nuts. Easy for maintenance and expansion, neat cabling

1*8/1*16 PLC Splitter can be installed in each splice tray as option. 24 pcs of mechanical ports for 3-7mm drop cable.

1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm). Wall mount and pole mount installation

Configuration

PC+ABS L*W*H(mm)

340*210*95

Splice 120 Fibers (5 trays x24F)

PLC Splitter

2pcs of 1x8 24pcs SC/UPC or SC/APC 1.85kg Grey/Black

Fiber Access Terminal Closure-FATC-24E

Configuration

Material Size Maximum Splitter Capacity Numbers of

adapters Color PC+ABS L*W*H(mm) 340*210*95 Splice 12 Fibers PLC Splitter 3pcs of 1x8(SC) 27pcs of SC/UPC or SC/APC Grey/Black Weight 1.85kg

Water-proof design with IP-68Protection level. Integrated with splice trays and LGX splitter holder.

1*8 PLC Splitter can be installed in each splice tray as option. 24 pcs of mechanical ports for 3-7mm drop cable.

1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm). Wall mount and pole mount installation

(15)

Fiber Access Terminal Closure-288 cores Fiber Access Terminal Closure-FATC-288

Specification

Maximum 288F splice capacity, stainless anti-rust bolts and nuts. Fiber bend radius control more than 40mm

Full mechanical sealing mechanism.

Full rugged design for underground, pole/wall mounted. Rotatable and dis-mountable spice tray for easy splicing 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm )

Description:

FATC-288 which made of Modified polymer plastic, It is able to hold up to 288 splicing points as closure. Itis used as a splic-ing closure and a termination point for the feeder cable to con-nect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features with ruggedness, which is tested under harsh condi-tions and stand up to even the most severe condition of mois-ture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environ-ment

Features:

Applications

4-7mm cable port suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable Material _Dimension

(mm）

Max. capacity

(Single fiber) Cable ports Sealing type Single splice tray _{capacity(Single fiber)}Splice tray _Qty

Modified polymer

plastic

395×245×130 288

2 input cable port for un-cut cable from diameter

from10~17.5mm.

6 output cable ports for cable diameter from 8~17.5mm.

(16)

Main Accessories：

S/N Description Quantity Note

1 Lid 1 337(L)×242(W)×63(H)mm.

2 Base 1

3 Sealing ring 1 Box sealing

4 Splice tray 12 For cable splicing and storage

5 Splice tray cover 1

6 Splice tray bandage 1 Fixing several splice trays 7 Fastener bolt 2 Fixing lid and cover of closure

8 Buckle 4 Fixing lid and cover of closure

9 Tight tool 1 Special for tight the nuts 10 Cable fixing panel 1 Fixing un-cut cable

11 installation panel 4 An adaptor panel for 6 SC simplex adaptors 12 Splice tray bracket 1 Install 4 splice trays

13 Top cover stopper 1 Limit top cover

14 Plastic nuts 2 Fixing cable

Standard parts

15 Wall mounting kit 1 For wall mounting

16 Expansion anchor bolt 2 Parts of the wall mounting kit 17 Hexagon bolt 2 Parts of the wall mounting kit

18 Nylon tie（3*120mm） 12 Fixing cable

19

Fusion sleeve(Φ1.0*60mm) According to the fiber cores.

Cable splicing

20 0.2m coil tube 1 Protect the fiber

21 Insulation tape 1 Accessorial fixation

22 0.5m EVA tube 1 Protect fiber

23 Drier 1

24 M6 internal hexagonal wrench 1 Tool to open the box

25 14# grommet 2 For cable dia. From 12-17.5mm

26 41# grommet 2 For cable dia. From 8-12mm

27 Plastic plug 4 Seal the cable port

38 Iron spanner 1 Tool

Optional parts

25 Pole mounting kit 1 For pole mounting

(17)

Aerial Fiber Access Terminal Closure -AFATC-002 Aerial Fiber Access Terminal Closure -AFATC-002

Specification

The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;

Anti-ultraviolet,anti- impact and waterproof function;

Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing; Fiber optic cable can go in and out of the box without cut the cable.

Description:

Aerial Fiber Access Terminal Closure（AFATC）is integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suit-able for fiber optic csuit-ables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or mainte-nance. If remove the board, it can bed as a splice closure to meet different choices.

Features:

AFATC-002A AFATC-002L AFATC-002S

Technical parameters

Optical fiber radius of curvature: ≥40mm Splice tray additional loss: ≤0.1dB Temperature range: -40°C ~ +60°C Anti side pressure: ≥2000N/10cm Impact resistance: ≥20N.m Protection class: IP68

Model AFATC-002A AFATC-002L AFATC-002S

Material Modified polymer plastic +GF

Dimension (mm) 285*175*110 285*175*110 285*175*90

Cable diameter (mm) Φ7-18

Cable port

2pcs 8-20mm round ports, 4pcs 5-16mm round cable, 16pcs 3-7mm drop cable ports

2pcs 8-20mm round ports, 4pcs 5-16mm round cable Max. Split ratio 2pcs 1x8 steel tube splitter 1pcs 1x8 LGX splitter N/A

Max. Adapter number 18pcs 9pcs N/A

Max. Splice tray 1pc 4pcs

(18)

Installation procedure

TYPE 1-- AFATC-002A

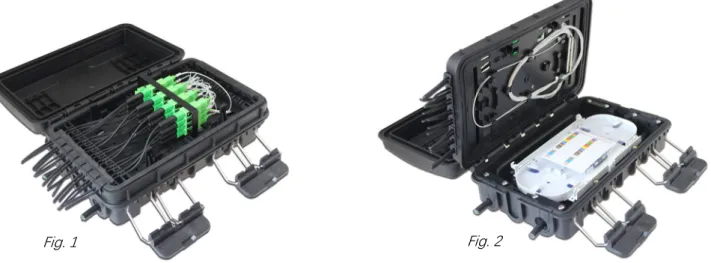

1,Open box, install the adapters on the plastic holder. (See fig. 1)

2,Strip the outer jacket,inner jacket, loose tube off the cable, remove the oil filling paste inside the cable, keep the fiber length of 1-1.6m and the steel core of 30-50mm; insert feeder cable through the entry and lock with hoop, strength plate to fix the fiber core. The excess optical cable is coiled at the bottom, and the fused fiber optic cable is introduced into the fiber tray. Superfluous optical fiber cable will be fixed and stored at the bottom of the box, bring the cable into the splice tray. (See fig. 2)

Fig. 1 Fig. 2

Insert the pigtail connector into the input port on adapter holder, then introduced into the splice tray through the holes opened in the tray core. After being coiled and finished, the other end of the pigtail is led to the heat shrinkable tube installed in the splicing groove, and heat the sleeve appropriately to make the fiber and the protection tube inte-grated into one, and the protected optical fiber connector is snapped into the splicing groove; put on the PVC cover to prevent falling off.

3,Insert the drop cable connectors into the splitter module adapter (output side), then fix the cable into the fixing slots, then through the rubber seal to lead out the cable. (See. Fig. 3)

4,Insert the cable pigtail into the fixing slot, and then pass through the outlet sealing rubber to lead out the cable. 5,Close the lid,snap the buckle to complete the installation,install the metal hooks then hook up on the aerial cable. (See. Fig. 4 )

(19)

Aerial Fiber Access Terminal Closure -AFATC-002L Installation procedure

TYPE 2-- AFATC-002L

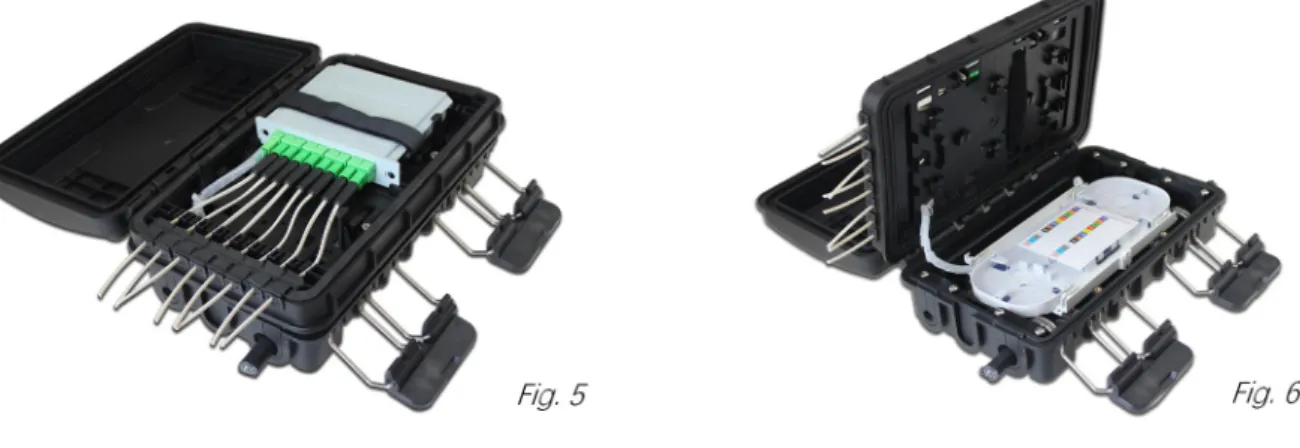

1，Open box, fix the splitter LGX module with nylon cable tie. (See fig. 5)

2，Strip the outer jacket,inner jacket, loose tube off the cable, remove the oil filling paste inside the cable, keep the fiber length of 1-1.6m and the steel core of 30-50mm; insert feeder cable through the entry and lock with hoop, strength plate to fix the fiber core. The excess optical cable is coiled at the bottom, and the fused fiber optic cable is introduced into the fiber tray. Superfluous optical fiber cable will be fixed and stored at the bottom of the box, bring the cable into the splice tray. (See fig. 6)

Fig. 5 Fig. 6

3, Insert the pigtail connector into the splitter module adapter (input side), then introduced into the splice tray through the holes opened in the tray core. After being coiled and finished, the other end of the pigtail is led to the heat shrink-able tube installed in the splicing groove, and heat the sleeve appropriately to make the fiber and the protection tube integrated into one, and the protected optical fiber connector is snapped into the splicing groove; put on the PVC cov-er to prevent falling off.

4,Insert the drop cable connectors into the splitter module adapter (output side), then fix the cable into the fixing slots, then through the rubber seal to lead out the cable. (See. Fig. 7)

5,Insert the cable pigtail into the fixing slot, and then pass through the outlet sealing rubber to lead out the cable. 6, lose the lid,snap the buckle to complete the installation, install the metal hooks then hook up on the aerial cable. (See. Fig. 8)

(20)

Installation procedure

TYPE 2-- AFATC-002S

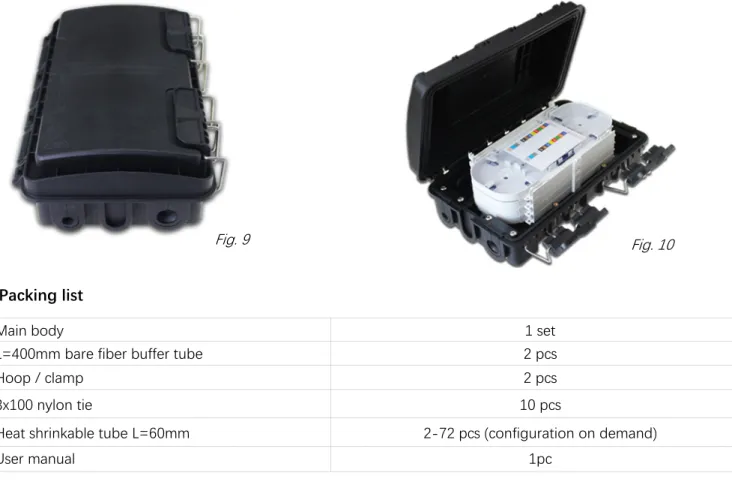

1，Strip the outer jacket,inner jacket, loose tube off the cable, remove the oil filling paste inside the cable, keep the fiber length of 1-1.6m and the steel core of 30-50mm; insert feeder cable through the entry and lock with hoop, strength plate to fix the fiber core. The excess optical cable is coiled at the bottom, and the fused fiber optic cable is introduced into the fiber tray. Superfluous optical fiber cable will be fixed and stored at the bottom of the box, bring the cable into the splice tray. (See fig. 9)

2，Lead the one end of the cable into the heat shrinkable tube on fusion splicing slots, heat appropriately to make the fiber and the protection tube integrated into one, and the protected optical fiber connector is snapped into the wiring groove; put on the PVC cover to prevent falling off. ( See fig. 10)

Fig. 7 Fig. 8

Fig. 9 _{Fig. 10}

Packing list

Main body 1 set

L=400mm bare fiber buffer tube 2 pcs

Hoop / clamp 2 pcs

3x100 nylon tie 10 pcs

Heat shrinkable tube L=60mm 2-72 pcs (configuration on demand)
