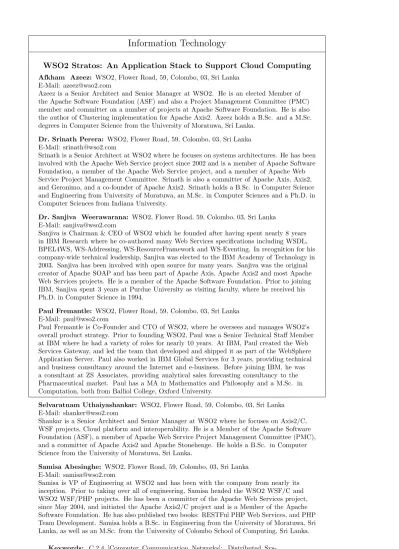

WSO2 Stratos: An Application Stack to Support Cloud Computing

E-Mail: [email protected]

Azeez is a Senior Architect and Senior Manager at WSO2. He is an elected Member of the Apache Software Foundation (ASF) and also a Project Management Committee (PMC) member and committer on a number of projects at Apache Software Foundation. He is also the author of Clustering implementation for Apache Axis2. Azeez holds a B.Sc. and a M.Sc. degrees in Computer Science from the University of Moratuwa, Sri Lanka.

Dr. Srinath Perera: WSO2, Flower Road, 59, Colombo, 03, Sri Lanka E-Mail: [email protected]

Srinath is a Senior Architect at WSO2 where he focuses on systems architectures. He has been involved with the Apache Web Service project since 2002 and is a member of Apache Software Foundation, a member of the Apache Web Service project, and a member of Apache Web Service Project Management Committee. Srinath is also a committer of Apache Axis, Axis2, and Geronimo, and a co-founder of Apache Axis2. Srinath holds a B.Sc. in Computer Science and Engineering from University of Moratuwa, an M.Sc. in Computer Sciences and a Ph.D. in Computer Sciences from Indiana University.

Dr. Sanjiva Weerawarana: WSO2, Flower Road, 59, Colombo, 03, Sri Lanka E-Mail: [email protected]

Sanjiva is Chairman & CEO of WSO2 which he founded after having spent nearly 8 years in IBM Research where he co-authored many Web Services specifications including WSDL, BPEL4WS, WS-Addressing, WS-ResourceFramework and WS-Eventing. In recognition for his company-wide technical leadership, Sanjiva was elected to the IBM Academy of Technology in 2003. Sanjiva has been involved with open source for many years. Sanjiva was the original creator of Apache SOAP and has been part of Apache Axis, Apache Axis2 and most Apache Web Services projects. He is a member of the Apache Software Foundation. Prior to joining IBM, Sanjiva spent 3 years at Purdue University as visiting faculty, where he received his Ph.D. in Computer Science in 1994.

Paul Fremantle: WSO2, Flower Road, 59, Colombo, 03, Sri Lanka E-Mail: [email protected]

Paul Fremantle is Co-Founder and CTO of WSO2, where he oversees and manages WSO2’s overall product strategy. Prior to founding WSO2, Paul was a Senior Technical Staff Member at IBM where he had a variety of roles for nearly 10 years. At IBM, Paul created the Web Services Gateway, and led the team that developed and shipped it as part of the WebSphere Application Server. Paul also worked in IBM Global Services for 3 years, providing technical and business consultancy around the Internet and e-business. Before joining IBM, he was a consultant at ZS Associates, providing analytical sales forecasting consultancy to the Pharmaceutical market. Paul has a MA in Mathematics and Philosophy and a M.Sc. in Computation, both from Balliol College, Oxford University.

Selvaratnam Uthaiyashankar: WSO2, Flower Road, 59, Colombo, 03, Sri Lanka E-Mail: [email protected]

Shankar is a Senior Architect and Senior Manager at WSO2 where he focuses on Axis2/C, WSF projects, Cloud platform and interoperability. He is a Member of the Apache Software Foundation (ASF), a member of Apache Web Service Project Management Committee (PMC), and a committer of Apache Axis2 and Apache Stonehenge. He holds a B.Sc. in Computer Science from the University of Moratuwa, Sri Lanka.

Samisa Abesinghe: WSO2, Flower Road, 59, Colombo, 03, Sri Lanka E-Mail: [email protected]

Samisa is VP of Engineering at WSO2 and has been with the company from nearly its inception. Prior to taking over all of engineering, Samisa headed the WSO2 WSF/C and WSO2 WSF/PHP projects. He has been a committer of the Apache Web Services project, since May 2004, and initiated the Apache Axis2/C project and is a Member of the Apache Software Foundation. He has also published two books: RESTFul PHP Web Services, and PHP Team Development. Samisa holds a B.Sc. in Engineering from the University of Moratuwa, Sri Lanka, as well as an M.Sc. from the University of Colombo School of Computing, Sri Lanka.

Keywords: C.2.4 [Computer Communication Networks]: Distributed

Sys-tems—Client/server; D.2.11 [Software Engineering]: Software Architectures—Service-oriented architecture (SOA)

Abstract

Cloud computing has heralded many advantages including self-service, elasticity, pay as you go, improved accessibility to computation resources, and ease of deployment and deployment automation. However, to extend those advantages to a larger audience, higher-level abstractions such as Software as a Service (SaaS) or Platform as a Service (PaaS) are needed. This paper presents Stratos, which is a Platform-as-a-Service based around the principles and design of Service Oriented Architecture (SOA). Furthermore, we introduce the concept of Cloud Native attributes, which we argue are properties essential to extend the benefits of the underlying Cloud to PaaS and SaaS users. We present Stratos as a Cloud Native PaaS offering, discuss the architecture that enables Cloud Native attributes, and discuss scenarios where Stratos can be useful to the end user.

Zusammenfassung abstract in german

1

Introduction

Cloud Computing [1], the idea that computing power, storage, etc. can be rented on demand, used and re-leased without worrying about where they are physi-cally located, has shown much promise and already has many real-world applications. Although there is no uni-versal consensus on what the Cloud is, “Cloud” is often categorized into three forms:

• Software as a Service (SaaS): applications that are available for use without having to buy, deploy and manage.

• Platform as a Service (PaaS): middleware that of-fers a computing platform which leverages an un-derlying IaaS and is the basis for building SaaS applications.

• Infrastructure as a Service (IaaS): low-level com-puting resources such as CPU, memory, storage and networking.

Proponents of Cloud often cite self-service, elastic-ity, pay as you go, improved accessibility to computing resources, and ease of deployment automation as its key benefits (e.g. Carr [8]). Those benefits have far reaching consequences. Let us look at a few.

Cloud makes large-scale computing resources acces-sible to average computing users, which were previously only accessible to large organizations, thus democratiz-ing computations. For example, a small research group can now run a reasonably large analysis in the Cloud, or a small business can store its data in geographically distributed replicas, thus achieving high reliability.

Unlike before, Cloud virtualizes hardware and lets users provision or de-provision them programmatically. As a result, Cloud has increased the reach of automa-tion. This enables organizations to do changes or create new solutions faster, thus enabling them to react fast and adapt themselves to changes in their environment, which is a crucial competitive advantage.

One important aspect of this is elasticity. For in-stance, capacity planning is done for the peak load, not for the average load where the latter is often only

a fraction of the former. Consequently, most

orga-nizations have a significant portion of their hardware idling throughout the year waiting for the peak load. However, Cloud enables organizations to autoscale their systems— that is, to expand when there is high load and contract when there is low load.

However, most importantly, Cloud enables organiza-tions to outsource their non-competitive funcorganiza-tions where maintaining and operating infrastructure is a significant portion of the IT budget. For example, according to Saat et al. [2], IT labor represents about 70% of IT costs. The ideal solution to this problem comes in the form of Software as a Service (SaaS) where a part of

the system is outsourced to an external Service. For an example, Salesforce provides Customer Relationship Management (CRM) as a Service, Google Apps provide office software suite as a Service, and Dropbox provides storage as a Service.

However, such packaged solutions are available only for well-defined application categories like CRM, Email etc. In order for organizations to achieve competitive differentiation in an IT-dominated world, it is crucial that they write and manage their own business-critical systems. Platform as a Service (PaaS) provides a middle ground between these two interests where PaaS infras-tructures let users build their custom applications and host them in the Cloud.

Although several PaaS offerings (e.g. Google App Engine and Microsoft Azure) are available they do not employ many of the lessons learnt from Service Ori-ented Architecture (SOA) [4] or SOA platforms. SOA has become the defacto standard for building complex, distributed and integrated enterprise systems and has achieved wide market adoption. Therefore, providing a SOA platform as a Service within the Cloud will enable users to outsource most enterprise applications, thereby reducing costs. More importantly, SOA is a design pat-tern for building large-scale applications and compos-ite applications that can support evolutionary lifecycles, where SOA enables parts of the applications to be up-dated independently of each other, under a governance model. This design pattern is very important within the Cloud and therefore a SOA-based PaaS is an important design point for Enterprise applications in the Cloud.

This paper focuses on PaaS architectures for SOA. It makes two contributions. First, we propose a model to evaluate PaaS architectures based on what we call Cloud Native properties. Second, we present WSO2 Stratos, which is a Cloud-based platform for hosting SOA appli-cations and artefacts as a Service (PaaS).

While providing such higher levels of abstractions, those SOA PaaS offerings should extend the benefits of the Cloud to application owners. We have identi-fied six properties that are necessary for a cloud plat-form that extends the benefits of the cloud to the end user. We call them cloud-native properties and they are distributed/dynamically wired (run in many machines), Elastic, multi-tenant, support self-service, Granularly billed and metered, and Incrementally Deployed and Tested.

Stratos provides most aspects of SOA like Web Ser-vice Hosting, Enterprise SerSer-vice Bus, SerSer-vice Registry, and Identity and authorization as a Service. Stratos’ programming model uses the same SOA programming model, which means that users can deploy in Stratos, the same artifact they have in their local machines.

Furthermore, the SOA programming model has evolved over years, and developers have grown accus-tomed to it. Therefore, we have taken the best effort to retain the programming model used in non-Cloud

setups within the Cloud setup as well, which reduces the burden on end users. Furthermore, Stratos hosts those applications in a multi-tenanted environment and supports auto-scaling together with other Cloud-native properties out of the box.

The rest of the paper is organized as follows. The next section discusses the cloud-native properties and PaaS architectures and Section 3 describes few motivat-ing usecases for Stratos. Section 4 describes the archi-tecture of Stratos and how cloud-native properties are realized. Section 5 compares Stratos with other PaaS offerings. Finally, Section 6 concludes the paper.

2

Cloud-Native Properties and

SOA Cloud Framework

Let us look at each of cloud-native properties in detail.

1. Distributed/Dynamically Wired: end user

application can run on multiple machines and can discover and dynamically wire its parts at runtime 2. Elastic (Uses the Cloud efficiently): the ap-plications develop using the platform can scale based on load incurred on the application. This includes monitoring the load, allocating more com-putation units when the load is increasing, allocating computation units when the load is de-creasing, and managing that process to minimize the cost.

3. Multi-Tenant (Only costs when you use it): Multi-Tenancy enables a single server to support multiple tenants (users) while providing the user experience that each has its own server. Chong et al. [13] discusses Multi-Tenancy in detail.

4. Self-Service (in the hands of users): decen-tralized creation and management of tenants and automated Governance across tenants. This en-ables pay-as-you-go, because, this model enen-ables users to scale up without waiting for a manual processe.

5. Granularly Billed and Metered (pay for just what you use): Users only have to pay for what they use, not a fix rental.

6. Incrementally Deployed and Tested (seam-less live upgrades): supports users to change, test, and update their applications within the PaaS infrastructure. Furthermore, the platform should enable users to run multiple versions of the same application side by side, and this will sim-plify the rollout cycle of applications by a great extent.

Service Oriented Architecture (SOA) is based on Ser-vices that are working together in a loosely coupled man-ner. A middleware platform for SOA includes support to develop, run, manage, and consume Services, as well as support for Service mediation, Service discovery, and add-on functionalities like security, transactions etc. As shown in Figure 1, those functionalities are provided by few servers. For example, Web Service Application Server (WSAS) provides support for Web Service de-velopment, hosting, and management, Enterprise Ser-vice Bus (ESB) provides SerSer-vice mediation, and Reg-istry provides data storage and governance. Each server often provides a web-based console, which enables users to create, configure, and manage SOA artifacts.

The idea of a Cloud-based SOA platform (Stratos) and its Cloud-native properties are best described through a usecase. Let us assume that a user has a sys-tem that consists of three Web Services, and he needs to mediate messages received by those Web Services through an Enterprise Service Bus and wants to com-pose those Web Services together as a workflow through a Workflow Engine.

In a conventional setup, the architecture would in-clude several servers—a WSAS, ESB, and a Workflow Engine—that runs a Web Service, Service mediation logic, and a workflow, respectively. User would setup servers, configure them to talk to each other, and deploy Services etc. However, in contrast, WSO2 Stratos pro-vides a one platform to support the entire SOA, where users can log into a Web console and create required SOA Services (servers).

For instance, in this usecase, the user logs into the Web console and requests WSAS, ESB, and BAM as a Service, where Stratos creates a virtual instance of each type. When the user clicks on a Service (e.g. ESB), Stratos presents a UI similar to the UI of the ESB stan-dalone server, where he can add ESB configurations the same way as the standalone product. Consequently, a user can deploy his Web Services and a workflow into Stratos just the same way he would deploy those arti-facts in the standalone servers. However, unlike with standalone deployments, the Stratos-based deployment carries several crucial benefits.

If the user’s system is getting a very high load that cannot be handled through a single machine, he has to manually set up new servers and configure cluster-ing, thus setting up a large-scale deployment. However, WSO2 Stratos scales up and down the servers based on application load, while allocating and releasing re-sources as needed. The user is spared the burden of

managing a large-scale deployment. Furthermore, in

the Stratos implementation, each Stratos node supports multiple users (tenants) while providing isolation and maximizing resource usage. Therefore, multiple users may share many resources, resulting inefficient resource sharing. Also, with the Stratos architecture, SOA arti-facts incur only a very small cost when not in use. In

addition, users can expand or change their systems with-out any help from the hosting party, which gives them the benefit of a self-service model. Users are only billed for what they use, based on the storage, bandwidth, and the number of requests received by Services. Moreover, users can run multiple versions of SOA artifacts side by side and can easily revert to an older version if needed. This allows users to incrementally change their systems. To summarize, Stratos provides a one-stop place to deploy and run any SOA artifact, while keeping the stan-dalone programming model and user experience intact for the most part. The Cloud-native properties make sure that the benefits of the Cloud such as self-service, elasticity, auto-scaling, and pay-as-you-go are extend to the users of the PaaS platforms like Stratos.

3

Motivating Use Cases

To understand Stratos and how it can make a difference to the end user, lets us look at few usecases of Stratos.

In matter of few clicks, Stratos enables users to cre-ate their own complete SOA platform comprised of Ser-vices like Web Service container, ESB, Workflow Engine, Registry, and BAM. Users may have only a specific Ser-vice (e.g. Registry), pick and choose few SerSer-vices, or ex-pand current Services later. Each Service is integrated with the other, liberating the users from having to con-figure and integrate them. Importantly, Stratos sup-ports normal SOA artifacts, thus, keeping the SOA pro-gramming model intact. For an example, with Stratos, a user can deploy his existing Web Service archive with-out any changes, and even the User Interfaces in the Stratos Web console have the same functionality as well as the look and feel of the normal standalone version. Therefore, Stratos provides seamless migration with a flat learning curve.

Stratos supports auto-scaling for applications by monitoring the load and automatically allocating and

deallocating resources. This enables optimal use of

computational resources and removes the need for com-plex clustering configuration and management. Further-more, auto-scaling enables the end-user to start small and to scale up gradually while only paying for what

they use. Since resources are allocated on demand

through multi-tenancy, the cost of having an application deployed in Stratos is minimal. A rarely used applica-tion will actually use very little resources, and the owner will be only billed accordingly. Therefore, it is an ideal setup for startups and small & medium businesses with varying computing demands. Also, through self-service, Stratos allows users to change their setup within min-utes, enabling them to react to changes faster. This is a valuable competitive advantage.

Stratos can be deployed in both public and pri-vate Clouds. In addition to well-known Cloud benefits, multi-tenancy also provides a natural setup to support

different parts (e.g. departments) within an organiza-tion. It provides partitioning while enabling high-level of resource sharing across different parts of the organi-zation.

Stratos gives organizations that already use SOA ar-tifacts, an opportunity to outsource their SOA infras-tructure and to focus on their key functions. Although the same is true for most other Cloud offerings, Stratos enables outsourcing at the SOA level, which is a much higher-level of abstraction and hence can provide more cost savings. By securely pooling organizational func-tions with others, Stratos enables cost saving through economics of scale.

Furthermore, Stratos includes an inbuilt Business Activity Monitor (BAM), which monitors applications

and lets users drill down to details. Often BAM is

an after-thought in most SOA deployments. However, within Stratos, once enabled it automatically integrates and monitors your applications. Organizations can use this to drive their decisions and to be notified about

changes. Through BAM, Stratos enables access to

billing and metering information collected from end-user applications, which enables application developers to charge their users based on the usage. Stratos can be an ideal environment to sell SOA-based applications, which can give rise to a culture of creating and sell-ing Web Services, maksell-ing the vision of Services market place a reality.

Finally, Stratos is a great tool for learning and for users who want to play with SOA. It lets users to skip download, install, configure path and directly play with SOA. It makes Web Service hosting more accessible. For example, a user may choose to implement the backend of his web site as a Web Service and host the Web Ser-vice in Stratos. Furthermore, Stratos provides an ideal environment to collaboratively build systems with geo-graphically distributed teams, by sharing Web Services and other SOA artifacts.

4

Stratos Architecture

WSO2 Carbon is a component-based framework for building SOA servers, and it supports an end-to-end SOA platform. WSO2 Stratos provides the function-ality of Carbon “as a Service”, and it is built using the Carbon platform. Carbon builds on OSGI and provides services like Web Service hosting, security, data storage, and UIs as core Services. Carbon has built each concept like Web Service hosting, mediation, Service orchestra-tions, logging, and Service registries etc., as carbon com-ponents. End-users can define their own servers (prod-uct) by composing a subset of features together. For an example, a user can either extend an existing server (e.g. add Business Activity Monitoring Support to the ESB) or define his own product by mixing and matching dif-ferent features. Fremantle et al. [6] provides a detailed

discussion on the Carbon Platform and its implementa-tion.

Stratos architecture has three aspects:

multi-tenancy support, how Stratos nodes are arranged in a scalable and flexible topology, and how it supports elas-ticity.

4.1

Multi-tenancy

Stratos is comprised of server nodes where each can sup-port multiple tenants within the same node while pro-viding isolation between tenants through multi-tenancy. This enables Stratos to avoid assigning a physical server for each tenant. Starting a VM instance for each tenant is also possible, but that runs a different OS instance for each tenant whereas with multi-tenancy, isolation is achived at the middleware level. Hence, multi-tenancy provides greater sharing. Azeez et al. [7] discusses this and presents Stratos multi-tenancy architecture in de-tail. Stratos supports multi-tenancy in three parts: stor-age, security, and execution.

Security: Stratos has extended the security and permission model of WSO2 carbon to support multiple tenants.

Storage: The Registry component enables users to store data products, artefacts and configuration items in a hierarchical tree, and it is available across the platform

within every product. The Registry supports

multi-tenancy by introducing a new tenant ID row to resource tables of the underlying database. Registry API pro-vides isolation by checking all the calls and authorizing them based on multi-tenant security models. This gives each tenant the user experience that he has his own reg-istry instance although many users are in fact sharing a single instance.

Execution: Each Carbon component uses Axis2 as the core, and multi-tenanting Axis2 has extended the multi-tenancy support to most components. By design, Axis2 keeps the state and execution logic separate where all the states of an execution are contained within a context hierarchy. We have enabled multi-tenant execu-tions by creating a different context hierarchy for each tenant and using the correct context when an execution is aimed at a specific tenant. Since the rest of Axis2 is stateless, the execution code does not need any changes. (see [7])

4.2

Scalability Architecture

Since tenants are completely isolated from each other, Stratos can use distribution techniques to scale up the architecture in the following manner. Information about each tenant is stored in the registry. Therefore, we have scaled up Stratos in two parts: scaling up the registry and scaling up executions.

To scale up, Stratos statically partitions tenants across a group of registries. However, the tenant

stor-age costs much less compared to the cost of executions. Therefore, Stratos statically allocates storage, but dy-namically allocates computation resources as late as pos-sible. In other words, we do not move tenants’ informa-tion around at the runtime and allocainforma-tion is done based on maximum quotas available to users. When a new tenant joins, he will be assigned to a new registry based on the available space in the registry nodes. Stratos manager holds the mapping from tenants to their re-sources, and that index is replicated across two Stratos managers to handle potential failures.

Stratos scales executions in the following manner. Although most of the information about a tenant is stored, read, and written directly to the registry, there is information like deployed web Services, mediation sequences, workflows, permissions etc, that has to be loaded into the memory within a Stratos node. There-fore, Stratos nodes cannot run off the persistent storage. They need to load and unload tenants as needed.

Scaling up should be in two dimensions. Firstly, we need to be able to scale up an individual application, and secondly we need to support many tenants. For scaling up an application, we create a cluster per application and use group communication based state replication to keep all nodes up-to-date. Conceptually, we create a cluster for each application that runs within a ten-ant. However, to maximize resource sharing, the same cluster handles multiple tenants and their applications. This tenant’s count is decided based on the load received by applications.

Two clusters that support different applications do not share any state. Therefore, Stratos can scale up to support many tenants and many types of Services using a shared-nothing model [12] where we run enough in-stances and load balance the requests among inin-stances. When Stratos receives a message, it is forwarded to a specific application running in a specific Service (e.g. ESB), and belonging to a specific tenant. We handle this by a hierarchy of load balancers, and we have ex-plored two potential architectures for load balancers.

Figure 2 shows the two options. The service-major architecture first categorizes requests based on different Services (e.g. ESB vs. WSAS) and then categorizes them by tenants at the next level. On the other hand, the tenant-major architecture first categorizes requests by tenants and then categorizes them by Services at the next level. One of the main advantages of the Service-major approach is that we could use DNS domain names as the first level of load balancer; however, the tenant-major approach has isolated units that we can replicate at will for scaling up. We have chosen the tenant-major approach in Stratos.

Let us explore how Stratos handles an incoming re-quest with the tenant-major approach. When a rere-quest is received, it is routed to one of the tenant-aware load balancers through a DNS round robin setup. Then the tenant-aware load balancer directs the request to a

spe-cific cluster group that handles the target tenant of the message. The cluster-group is fronted by a service-aware load balancer, which redirects the request to a specific cluster that supports the specific type of Service(server) for the message. If the target tenant is not active, the cluster-group load balancer assigns the tenant to a ter before forwarding the message and instructs the clus-ter to load the tenant. Afclus-ter loading, each node in the cluster supports the loaded tenant. If all clusters are full, Stratos will create a new cluster and assign the tenant. After that, the cluster-group load balancer for-wards the request to a clustered load balancer, which sends it to a node to process the request. The cluster load balancer supports sticky sessions, so that requests from the same client are sent to the same back-end node, allowing him to maintain a session.

4.3

Auto-Scaling

Each cluster is elastic, or in other words auto-scales. That is, the cluster load balancer monitors the load of each node and distributes the load across nodes, and when all nodes are overloaded, it adds new nodes. Con-versely, if the load has gone down, it shuts some nodes

down. Furthermore, the cluster-group load balancer

keeps track of the number of requests received by each tenant and when a tenant is inactive for an extended pe-riod, it instructs the corresponding cluster to unload the tenant. However, holding a tenant only occupies mem-ory, and therefore, we only unload a tenant sparingly.

To summarize, Stratos statically allocates storage to tenants, but allocates computation nodes dynamically as needed. Hence, Stratos can truly support a “pay for what you use” model.

Applications in Stratos can use WS-Discovery to dis-cover other services and wire themselves. WS-Disdis-covery implementation in Stratos uses a well-known address-based schema. Furthermore, underline group communi-cation keeps cluster nodes up-to-date about other nodes in the same cluster.

Stratos lets users run multiple versions of the same Web Service side-by-side. It does so by deploying mul-tiple Web Services within Axis2 with their versions ap-pended to the name, and then redirecting Web Service requests to the correct Web Service version. Axis2 in-cludes an extension point called “message dispatcher”, which enables users to extend the logic that redirects requests to Web Services. We support versions using a new Axis2 Dispatcher that routes service requests to the current active version.

5

Related Work

As described earlier, Azeez et al. [7] discusses multi-tenancy support for Stratos in detail, and that compares and contrasts Stratos multi-tenancy support with

ear-lier work like [14, 13]. Among other PaaS offerings are Google App Engine [10] and Windows Azure [9], and let us look at them in detail.

Both Azure and Google App Engine support deploy-ing HTTP-based services in the cloud, which are auto-scaled and managed by the platform. With Azure, ap-plications are written in C# while with Google applica-tions are written in Java or Python. In contrast, Stratos deploying in SOA artifacts like Web Services, Business Process, and Mediation Logic etc. and services may be written in java, java scripts, and python. Hence, Stratos provides a much higher-level abstractions than App En-gine and Azure. Furthermore, Stratos keeps the normal SOA programming model intact, which is an added ad-vantage.

Azure does not provide multi-tenancy and only

pro-vides VM level sharing. AppEngine provides

multi-tenancy through a sandbox implemented with Java

Security manager. Further details are not available.

Stratos supports multi-tenancy at the Axis2 level, and it provides isolation through separate state hierarchies and Java Security manager (see [7]).

Azure, App Engine, and Stratos have stateless ex-ecution units that keep all their states within a highly scalable storage. They elastically scale the applications up and down by creating and shutting down execution units as needed. Stratos also supports stateful execution units as well, where Stratos places nodes in a cluster and keeps them up-to-date through group communication. However, such a stateful application can scale to only about eight nodes, which is a limitation of group com-munication. However, Stratos can scale to handle mul-tiple applications and tenants by running many clusters as described in the architecture section. One important limitation is that each request to the App Engine has to finish within 30 seconds, after which it will abort the request.

Azure and App Engine provide scalable storage that provides optimistic concurrency. That is, if a concur-rent write is attempted, the first one goes through, and others are rejected. To access data, AppEngine provides a JDO interface and supports SQL like query language called GQL and transactions. Stratos provides user ac-cess to an Amazon RDS (database) instance or they may use a Cassandra storage space available with Stratos.

Stratos applys most of the best practices of Cloud architecture (e.g. [15] ) to applications by default. For example, applications scale elastically out of the box, Stratos starts a new instances of applications if an ap-plication has failed, and parts of the apap-plications can be dynamically wired. Furthermore, Stratos automates application deployment and management, and incorpo-rates security best practices as discussed in [15].

Stratos, as of now, is designed for interactive appli-cations in contrast to batch-like appliappli-cations, and we are exploring the possibilities of also adding support for batch jobs by integrating Apache Hadoop. Azure also

provides worker nodes, which can be used for batch-like applications.

Currently Stratos assigns tenants to the next avail-able resource and does not optimize tenant assignments. However, optimizing tenant assignment will be a useful addition. For example, Fehling et al. [16] discusses such a optimization technique that uses simulated annealing.

6

Summary

This paper presents WSO2 Stratos, which is an

SOA-based PaaS architecture that enables end-users to host their applications and SOA artifacts in the

Cloud. We identify Cloud Native properties:

Dis-tributed/Dynamically Wired, Elastic, Multi-Tenant, Self-Service, Granularly Billed and Metered, and Incre-mentally Deployed and Tested, and argue that a Cloud platform that supports Cloud Native properties will ex-tend the benefits of the Cloud fully to its end-users.

We present the architecture of Stratos and discuss in detail how that architecture enables Cloud Native prop-erties. While keeping the SOA programming model in-tact, Stratos lets users deploy SOA artifact-like Services, Mediation logic, Workflows etc., in a virtual server pro-vided by Stratos. Stratos monitors the load received by those applications, and automatically scales them up and down by allocating and deallocating resources. Fur-thermore, as we discussed in Section 4, Stratos allocates resources to those artifacts as late as possible, and there-fore, a deployed application that only receives a minimal load will incur very small cost, thus enabling granular billing and metering as well as pay for what you use.

Finally, Section 3 discusses few usecases for Stratos

and their potential impact. In summary, it will

en-able elastic, pay-as-you-go hosting of SOA artifacts, which could potentially impact the way SOA is

de-ployed and used. Stratos is available publicly at

http://cloud.wso2.com/ and is free within storage and computation allocation limits. Paid accounts, which al-low higher levels of resource usage will be made available soon. The entire system is 100% open source and can be downloaded and run on your own infrastructure from http://wso2.org/.

There is a lot of future work to be done. For an example, some of the key areas are Quality of Service (QOS) and supporting Service Level Agreements (SLA). A key enhancement we are working on is to support agreed-upon latency and throughput based on different packages by adding resources and prioritizing requests at load balancers. Other important aspects are explor-ing fault tolerance scenarios, data backup and recovery, and monitoring and managing the resulting infrastruc-ture. Furthermore, we are working on Carbon Studio, which is an eclipse-based single Integrated Development Environment (IDE) that simplify application develop-ment for Stratos.

References

[1] M. Armbrust and A. Fox et. al. A view of cloud com-puting, Communications of the ACM, 2010

[2] J. Saat and S. Discher. The Benefits of Cloud Com-puting, IBM Cooperation white paper, 2003 [3] M. Turner and D. Budgen and P. Brereton. Turning

Software into a Service, Computer, pp. 3844, 2003. [4] M. Papazoglou and P. Traverso et al. F.

Service-oriented computing: State of the art and research challenges, Computer, pp. 3845, 2007.

[5] J. Saat and S. Discher. Economic Justification of SOA, Joint SAP, University of St. Gallen Research Study

[6] P. Fremantle and S. Perera et al. Carbon: Towards a Server Building Framework for SOA Platform, 5th Workshop on Middleware for Service Oriented Com-puting(MW4SOC), 2010

[7] A. Azeez and S. Perera et al., Multi-Tenant SOA Middleware for Cloud Computing, 3rd IEEE Con-ference on Cloud Computing, 2010

[8] N. Carr. The Big Switch: Rewiring the World, from Edison to Google. W.W. Norton & Co., 2009. [9] D. Chappell. Introducing Windows Azure,

Mi-crosoft, Dec, 2009

[10] James W Smith. A Comparison of

Pub-lic Cloud Platforms: Microsoft Azure and

Google App Engine,

http://www.cs.st-andrews.ac.uk/files/PlatformComparison.pdf [11] F. Chang and J. Dean et al. Bigtable: A distributed

storage system for structured data, ACM Transac-tions on Computer Systems, 2008.

[12] F. Chong, G. Carraro, and M. Stonebraker, The Case for Shared Nothing. Database Engineering Bul-letin, 9(1):4-9, 1986.

[13] Architecture strategies for catching the long tail, MSDN Library, Microsoft Corporation, 2006. [14] C. Guo, W. Sun, et al., A framework for native

multi-tenancy application development and man-agement, in International Conference on Enterprise Computing, E-Commerce, and E-Services, 2007, pp. 551558.

[15] J. Varia, Architecting for the cloud: Best practices, Amazon Web Services, 2010

[16] C. Fehling and F. Leymann and R. Mietzner, A Framework for Optimized Distribution of Tenants in Cloud Applications, IEEE International Conference on CloudComputing, CLOUD 2010

Delivery Channel Architecture Portals Fat Clients ... IVR

Shared Services Infrastructure

Presentation Services Business Processes Business Services Data Services

Non Service-Enabled Assets

Legacy Packaged SAP Databases & File Systems Service-Enabled Applications Applications Gadget Server

Data Services Server

En te rp ris e S er vic e Bu s Services Repository Common Services Security Services Service Registry Cell PDA Go ve rn an ce Re gis try Ide nt ity S er ve r Bu sin es s A ct ivi ty M on ito r

Business Process Server Mashup Server Business Rules Server Complex Event Processing Server

Connectivity

Services Web Services Framework

Message Broker Application Server

Figure 1: SOA Platform Architecture

Tenant-aware Loadbalancers T1-T10 T21-T30 T11-T20 Application Server T1-T10 T21-T30 T11-T20 Enterprise Service Bus T1-T10 T21-T30 T11-T20 Businuss Process Server

...

...

Tenant-aware Loadbalancers Tenant-aware Loadbalancers

Service-aware Loadbalancers

Cluster Group 1 Cluster Group 2 Cluster Group 3

Cluster 1 Service-aware Loadbalancers ESB 1 BPS 1 AS 1 AS 1 BPS 2 ESB 1 AS 1 BPS 1 ESB 2

...

Service-aware Loadbalancers Service-aware Loadbalancers

Tenant -aware Loadbalancers

Cluster Group 1 (T1-T10) Cluster Group 2 (T11-T20) Cluster Group 3 T21-T30

Service-Major Design Tenant-Major Design

AS 2

BPS 1 ESB 1
