Intercopy * ALTERNATIVE ASSEMBLY * ENSEMBLAGE ALTERNATIVE

Aluminum Flat Black Flat Brown Gloss Black Gloss Dark Green Gunmetal Ivory Semigloss Black Steel Tan Transparent Red

If you have any questions or comments, call our hotline at:

(800) 833-3570

or, please write to:

Revell-Monogram Consumer Service Department, 725 Landwehr Road, Northbrook, Illinois 60062

Be sure to include the plan number (85238700200), part number, description, your return address and phone number.

Visit our website: www.revellmonogram.com

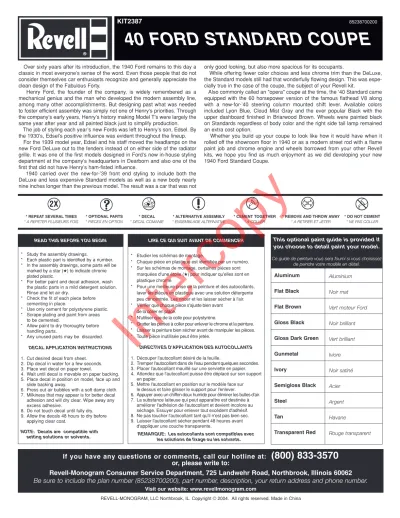

40 FORD STANDARD COUPE

KIT2387

85238700200

* REPEAT SEVERAL TIMES

* A REPETER PLUSIEURS FOIS

* CEMENT TOGETHER

* A COLLER

* ALTERNATIVE ASSEMBLY

* ENSEMBLAGE ALTERNATIVE

* REMOVE AND THROW AWAY

* A RETIRER ET JETER * DO NOT CEMENT * NE PAS COLLER * OPTIONAL PARTS * PIECES EN OPTION * DECAL * DECAL COMANIE

REVELL-MONOGRAM, LLC Northbrook, IL. Copyright © 2004. All rights reserved. Made in China Over sixty years after its introduction, the 1940 Ford remains to this day a

classic in most everyone’s sense of the word. Even those people that do not consider themselves car enthusiasts recognize and generally appreciate the clean design of the Fabulous Forty.

Henry Ford, the founder of the company, is widely remembered as a mechanical genius and the man who developed the modern assembly line, among many other accomplishments. But designing past what was needed to foster efficient assembly was simply not one of Henry’s priorities. Through the company’s early years, Henry’s history making Model T’s were largely the same year after year and all painted black just to simplify production. The job of styling each year’s new Fords was left to Henry’s son, Edsel. By the 1930’s, Edsel’s positive influence was evident throughout the lineup. For the 1939 model year, Edsel and his staff moved the headlamps on the new Ford DeLuxe out to the fenders instead of on either side of the radiator grille. It was one of the first models designed in Ford’s new in-house styling department at the company’s headquarters in Dearborn and also one of the first that did not have Henry’s ham-fisted influence.

1940 carried over the new-for-’39 front end styling to include both the DeLuxe and less expensive Standard models as well as a new body nearly nine inches longer than the previous model. The result was a car that was not

only good looking, but also more spacious for its occupants.

While offering fewer color choices and less chrome trim than the DeLuxe, the Standard models still had that wonderfully flowing design. This was espe-cially true in the case of the coupe, the subject of your Revell kit.

Also commonly called an "opera" coupe at the time, the ’40 Standard came equipped with the 60 horsepower version of the famous flathead V8 along with a new-for-’40 steering column mounted shift lever. Available colors included Lyon Blue, Cloud Mist Gray and the ever popular Black with the upper dashboard finished in Briarwood Brown. Wheels were painted black on Standards regardless of body color and the right side tail lamp remained an extra cost option.

Whether you build up your coupe to look like how it would have when it rolled off the showroom floor in 1940 or as a modern street rod with a flame paint job and chrome engine and wheels borrowed from your other Revell kits, we hope you find as much enjoyment as we did developing your new 1940 Ford Standard Coupe.

Aluminium Noir mat Vert moteur Ford Noir brilliant Vert brilliant Iviore Noir satiné Acier Argent Havane Rouge transparent This optional paint guide is provided if you choose to detail paint your model. Ce guide de peinture vous sera fourni si vous choisissez

de peindre votre modèle en détail.

* Study the assembly drawings.

* Each plastic part is identified by a number. * In the assembly drawings, some parts will be

marked by a star (★) to indicate chrome plated plastic.

* For better paint and decal adhesion, wash the plastic parts in a mild detergent solution. Rinse and let air dry.

* Check the fit of each piece before cementing in place.

* Use only cement for polystyrene plastic. * Scrape plating and paint from areas

to be cemented.

* Allow paint to dry thoroughly before handling parts.

* Any unused parts may be discarded. DECAL APPLICATION INSTRUCTIONS 1. Cut desired decal from sheet.

2. Dip decal in water for a few seconds. 3. Place wet decal on paper towel.

4. Wait until decal is movable on paper backing. 5. Place decal in position on model, face up and

slide backing away.

6. Press out air bubbles with a soft damp cloth. 7. Milkiness that may appear is for better decal

adhesion and will dry clear. Wipe away any excess adhesive.

8. Do not touch decal until fully dry. 9. Allow the decals 48 hours to dry before

applying clear coat.

NOTE: Decals are compatible with setting solutions or solvents.

READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER

* Etudier les schémas de montage.

* Chaque pièce en plastique est identifiée par un numéro. * Sur les schémas de montage, certaines pièces sont

marquées d'une étoile (★) pour indiquer qu'elles sont en plastique chromé.

* Pour une meilleure prise de la peinture et des autocollants, laver les pièces en plastique avec une solution détergente peu concentrée. Les rincer et les laisser sécher à l'air. * Vérifier que chaque pièce s'ajuste bien avant

de la coller en place.

* N'utiliser que de la colle pour polystyrène.

* Gratter les parties à coller pour enlever le chrome et la peinture. * Laisser la peinture bien sécher avant de manipuler les pièces. * Toute pièce inutilisée peut être jetée.

DIRECTIVES D'APPLICATION DES AUTOCOLLANTS 1. Découper l'autocollant désiré de la feuille.

2. Tremper l'autocollant dans de l'eau pendant quelques secondes. 3. Placer l'autocollant mouillé sur une serviette en papier. 4. Attendez que l'autocollant puisse être déplacé sur son support

en papier.

5. Mettre l'autocollant en position sur le modèle face sur le dessus et faire glisser le support pour l'enlever.

6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air. 7. La substance laiteuse qui peut apparaître est destinée à

améliorer l'adhésion de l'autocollant et devient incolore au séchage. Essuyer pour enlever tout excédent d'adhésif. 8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec. 9. Laisser l'autocollant sécher pendant 48 heures avant

d'appliquer une couche transparente.

REMARQUE: Les autocollants sont compatibles avec les solutions de fixage ou les solvants.

ENGINE ASSEMBLY

1

FRAME ASSEMBLY

2

73 LEFT ENGINE BLOCK HALF GLOSS DARK GREEN 72 RIGHT ENGINE BLOCK HALF GLOSS DARK GREEN

106 INTAKE MANIFOLD

GLOSS DARK GREEN

74 CYLINDER HEAD GLOSS DARK GREEN (PAINT NUTS GUNMETAL)

77 LEFT EXHAUST MANIFOLD GUNMETAL 86 AIR CLEANER TOP

GLOSS BLACK 114 AIR CLEANER BOTTOM GLOSS BLACK ★76 FUEL PUMP CHROME (PAINT BREATHER CAP AND PIPE SEMIGLOSS BLACK; PAINT SHADED FUEL PUMP ALUMINUM)

91 OIL FILTER GLOSS BLACK

82 FAN BELT FLAT BLACK WITH SEMIGLOSS BLACK PULLEYS 83 FAN SEMIGLOSS BLACK 84 GENERATOR SEMIGLOSS BLACK ★85 CARBURETOR CHROME (PAINT ALUMINUM)

(PAINT SHADED CARB BASE SEMIGLOSS BLACK)

50 FRAME SEMIGLOSS

BLACK

99

DRIVER SIDE FRAME BRACE SEMIGLOSS BLACK

100

PASSENGER SIDE FRAME BRACE SEMIGLOSS BLACK 112 MUFFLER HALF ALUMINUM 111 MUFFLER HALF ALUMINUM 52 LEFT X-MEMBER HALF SEMIGLOSS BLACK 98 X-MEMBER CENTER SEMIGLOSS BLACK

NOTE: OPEN UP SMALL HOLE IN X-MEMBER

CENTER

51

RIGHT X-MEMBER HALF SEMIGLOSS BLACK

A

B

Intercopy

FRONT END AND SUSPENSION ASSEMBLY

3

✱

✱

✱

FLAT BLACK RADIATOR CORE

71 RADIATOR REAR SEMIGLOSS BLACK WITH FLAT BLACK RADIATOR CORE

89

LOWER RADIATOR HOSES FLAT BLACK WITH GUNMETAL HOSE

CLAMPS 87 UPPER RADIATOR HOSE FLAT BLACK WITH GUNMETAL

HOSE CLAMPS 88

UPPER RADIATOR HOSE FLAT BLACK WITH GUNMETAL

HOSE CLAMPS 62 TIE ROD SEMIGLOSS BLACK 61 FRONT SPRING &

RADIUS ROD SEMIGLOSS BLACK 54 BRAKE BACKING PLATE SEMIGLOSS BLACK 49 FRONT AXLE SEMIGLOSS BLACK ALUMINUM 60 FRONT SHOCK SEMIGLOSS BLACK 63 STABILIZER BAR SEMIGLOSS BLACK 59 FRONT SHOCK SEMIGLOSS BLACK 54 BRAKE BACKING PLATE SEMIGLOSS BLACK 66 LEAF SPRING AND

RADIUS RODS FLAT BLACK (SEMIGLOSS BLACK) 54 BRAKE BACKING PLATE SEMIGLOSS BLACK 64 AXLE HALF AND

DRIVESHAFT SEMIGLOSS BLACK

57

REAR DRIVER SIDE SHOCK SEMIGLOSS BLACK 102 REAR SPRING CROSS MEMBER SEMIGLOSS BLACK 58 REAR PASSENGER SIDE SHOCK SEMIGLOSS BLACK 54 BRAKE BACKING PLATE SEMIGLOSS BLACK 65 AXLE HALF SEMIGLOSS BLACK

A

B

C

D

INSERT PIPE ENDS INTO HOLES IN MUFFLER BEFORE ATTACHING ENGINE ASSEMBLY

WHEEL AND TIRE ASSEMBLY

4

WINDOW AND FIREWALL ASSEMBLY

5

★36 REAR VIEW MIRROR

CHROME 175 WINDSHIELD CLEAR 176 REAR WINDOW CLEAR 181 REAR SIDE WINDOW CLEAR 177 FRONT SIDE WINDOW CLEAR 178 FRONT SIDE WINDOW CLEAR 182 REAR SIDE WINDOW CLEAR 1 BODY 33 FIREWALL BODY COLOR (PASSENGER SIDE FLAT BLACK)

105 HEATER IVORY

✱

✱

✱

✱

✱

✱

✱

✱

✱

OUTER WHEEL) ★104 HUB CAP CHROME 35 PASSENGER SIDE VISOR TAN 34

DRIVER SIDE VISOR TAN

INTERIOR ASSEMBLY

6

(SHADED AREAS FLAT BROWN)

43 STEERING WHEEL

IVORY

(SHADED AREAS SEMIGLOSS BLACK)

48 BRAKE PEDAL FLAT BLACK 48 CLUTCH PEDAL FLAT BLACK 46 DRIVER SIDE DOOR PANEL TAN 45 PASSENGER SIDE DOOR PANEL TAN 39 FRONT SEAT FRONT TAN 38 REAR JUMP SEAT TAN 38 REAR JUMP SEAT TAN 40 FRONT SEAT BACK

TAN 37 INTERIOR FLOOR TAN 110 DRIVER SIDE FENDER APRON SEMIGLOSS BLACK ★95 HORN CHROME (GLOSS BLACK) 93 VOLTAGE REGULATOR SEMIGLOSS BLACK 94 BATTERY SEMIGLOSS BLACK

(PAINT CAPS RED)

109 PASSENGER SIDE FENDER APRON SEMIGLOSS BLACK COMPLETED ASSEMBLY 8 7

NOTE: OPTIONAL DECAL (9) MAY BE APPLIED TO FRONT SEAT. DO NOT SLIDE FROM BACKING PAPER,

CUT OUT DECAL (9) AND GLUE TO FRONT SEAT USING WHITE GLUE.

9

BODY ASSEMBLY

7

12

PASSENGER SIDE RUNNING BOARD FLAT BLACK TOP SIDE (PAINT UNDERSIDE SEMIGLOSS BLACK)

11 REAR PASSENGER

SIDE FENDER BODY COLOR

13

DRIVER SIDE RUNNING BOARD FLAT BLACK TOP SIDE (PAINT UNDERSIDE SEMIGLOSS BLACK)

10

REAR DRIVER SIDE FENDER BODY COLOR

(PAINT GAS CAP MOUNTING AREA FLAT BLACK)

101 MASTER CYLINDER SEMIGLOSS BLACK ★31 TAILLIGHT CHROME (PAINT SHADED AREA

TRANSPARENT RED)

★30 GAS TANK CAP

CHROME

(PAINT RECESSED RING TRANSPARENT RED AND NECK SEMIGLOSS BLACK)

★18 TRUNK HANDLE CHROME ★96 LICENSE PLATE CHROME 26 BUMPER BRACKET SEMIGLOSS BLACK ★8 BUMPER CHROME SEMIGLOSS BLACK BUMPER GASKETS 27 BUMPER BRACKET SEMIGLOSS BLACK 107 FLOOR PAN (SHOWN IN PLACE) SEMIGLOSS BLACK

NOTE: YOUR REVELL KIT HAS TWO TAILLIGHTS INCLUDED. THE STANDARD ONLY HAD ONE TAILLIGHT. THE DELUXE

BODY ASSEMBLY

CONTINUED

7

HOOD AND BUMPER ASSEMBLY

8

★5 GRILL CHROME (FLAT BLACK WASH IN

RECESSED AREAS) 179 HEADLIGHT LENS CLEAR ★6 HEADLIGHT BEZEL CHROME (PAINT GLOSS BLACK) ★108 PASSENGER SIDE MIRROR ARM CHROME ★16 SIDE MIRROR FACE

CHROME 179 HEADLIGHT LENS CLEAR ★6 HEADLIGHT BEZEL CHROME (PAINT GLOSS BLACK)

★15 DOOR HANDLE CHROME ★29 WIPER CHROME (PAINT BLADE SEMIGLOSS

BLACK) _★28 WIPER CHROME (PAINT BLADE SEMIGLOSS BLACK) ★15 DOOR HANDLE CHROME ★16 SIDE MIRROR FACE

CHROME ★14 DRIVER SIDE MIRROR ARM CHROME ★23 HOOD TRIM CHROME 2 HOOD 4 PASSENGER SIDE HOOD HINGE SEMIGLOSS BLACK 3 DRIVER SIDE HOOD HINGE SEMIGLOSS BLACK ★9 BUMPER CHROME 25 BUMPER BRACKET SEMIGLOSS BLACK ★97 FRONT LICENSE PLATE CHROME 24 BUMPER BRACKET SEMIGLOSS BLACK

Intercopy

85238700200

DECAL

PLACEMENT

9

Intercopy
