* ALTERNATIVE ASSEMBLY * ENSEMBLAGE ALTERNATIVE

(1)

Chevy Engine Red

Semi Gloss Black

Gloss Black Gloss Turquoise Gloss White Aluminum Silver Steel * REPEAT SEVERAL TIMES

* A REPETER PLUSIEURS FOIS

* CEMENT TOGETHER * A COLLER * ALTERNATIVE ASSEMBLY

* ENSEMBLAGE ALTERNATIVE

* REMOVE AND THROW AWAY * A RETIRER ET JETER * DO NOT CEMENT * NE PAS COLLER * OPTIONAL PARTS * PIECES EN OPTION * DECAL * DECAL COMANIE

This paint guide is provided to complete this kit as shown on the box.

Ce guide de peintures est fourni pour reproduire le modèle réduit qui apparaît sur la boîte.

Rouge moteur Noir satiné Noir brilliant Bleu-vert brilliant Blanc brilliant Aluminum Argent Acier

* Study the assembly drawings.

* Each plastic part is identified by a number. * In the assembly drawings, some parts will be

marked by a star (★) to indicate chrome plated plastic.

* For better paint and decal adhesion, wash the plastic parts in a mild detergent solution. Rinse and let air dry.

* Check the fit of each piece before cementing in place.

* Use only cement for polystyrene plastic. * Scrape plating and paint from areas

to be cemented.

* Allow paint to dry thoroughly before handling parts.

* Any unused parts may be discarded.

DECAL APPLICATION INSTRUCTIONS

1. Cut desired decal from sheet. 2. Dip decal in water for a few seconds. 3. Place wet decal on paper towel.

4. Wait until decal is movable on paper backing. 5. Place decal in position on model, face up and

slide backing away.

6. Press out air bubbles with a soft damp cloth. 7. Milkiness that may appear is for better decal

adhesion and will dry clear. Wipe away any excess adhesive.

8. Do not touch decal until fully dry. 9. Allow the decals 48 hours to dry before

applying clear coat.

NOTE: Decals are compatible with setting solutions or solvents.

READ THIS BEFORE YOU BEGIN LIRE CE QUI SUIT AVANT DE COMMENCER

* Etudier les schémas de montage.

* Chaque pièce en plastique est identifiée par un numéro. * Sur les schémas de montage, certaines pièces sont

marquées d'une étoile (★) pour indiquer qu'elles sont en plastique chromé.

* Pour une meilleure prise de la peinture et des autocollants, laver les pièces en plastique avec une solution détergente peu concentrée. Les rincer et les laisser sécher à l'air. * Vérifier que chaque pièce s'ajuste bien avant

de la coller en place.

* N'utiliser que de la colle pour polystyrène.

* Gratter les parties à coller pour enlever le chrome et la peinture. * Laisser la peinture bien sécher avant de manipuler les pièces. * Toute pièce inutilisée peut être jetée.

DIRECTIVES D'APPLICATION DES AUTOCOLLANTS

1. Découper l'autocollant désiré de la feuille.

2. Tremper l'autocollant dans de l'eau pendant quelques secondes. 3. Placer l'autocollant mouillé sur une serviette en papier. 4. Attendez que l'autocollant puisse être déplacé sur son support

en papier.

5. Mettre l'autocollant en position sur le modèle face sur le dessus et faire glisser le support pour l'enlever.

6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air. 7. La substance laiteuse qui peut apparaître est destinée à

améliorer l'adhésion de l'autocollant et devient incolore au séchage. Essuyer pour enlever tout excédent d'adhésif. 8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec. 9. Laisser l'autocollant sécher pendant 48 heures avant

d'appliquer une couche transparente.

REMARQUE: Les autocollants sont compatibles avec les solutions de fixage ou les solvants.

'

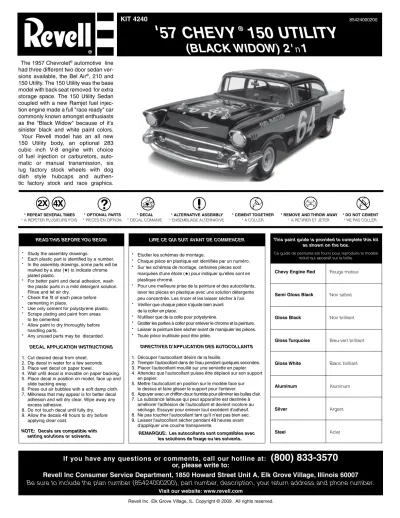

57 CHEVY

®

150 UTILITY

(BLACk wIDOw) 2 ' 1

KIT 4240

85424000200

If you have any questions or comments, call our hotline at:

(800) 833-3570

or, please write to:

Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007

Be sure to include the plan number (85424000200), part number, description, your return address and phone number.

Visit our website: www.revell.com

The 1957 Chevrolet

®

_{automotive line}

had three different two door sedan

ver-sions available, the Bel Air

®

_{, 210 and}

150 Utility. The 150 Utility was the base

model with back seat removed for extra

storage space. The 150 Utility Sedan

coupled with a new Ramjet fuel

injec-tion engine made a full "race ready" car

commonly known amongst enthusiasts

as the "Black Widow" because of it's

sinister black and white paint colors.

Your Revell model has an all new

150 Utility body, an optional 283

cubic inch V-8 engine with choice

of fuel injection or carburetors,

auto-matic or manual transmission, six

lug factory stock wheels with dog

dish style hubcaps and

authen-tic factory stock and race graphics.

(2)

45 RIGHT ENGINE HALF CHEVY ENGINE RED 44 LEFT ENGINE HALF CHEVY ENGINE RED

47 INTAKE MANIFOLD CHEVY ENGINE RED 58

FRONT COVER CHEVY ENGINE RED

62 OIL FILTER SEMI GLOSS BLACK

46 OIL PAN CHEVY ENGINE RED

51 CYLINDER HEADS

CHEVY ENGINE RED

53 ROCKER COVER CHEVY ENGINE RED

53 ROCKER COVER CHEVY ENGINE RED 55

COIL SEMI GLOSS BLACK

59 STARTER SEMI GLOSS BLACK 54

DISTRIBUTOR SEMI GLOSS BLACK

57 WATER PUMP CHEVY ENGINE RED

H369 CARBURETOR CHROME H370 FUEL PUMP CHROME

RIGHT SIDE OF ENGINE

150 ENGINE ASSEMBLY

1 ?

DECAL 29 DECAL 11 DECAL 11

(3)

150 engine assembly

COnTinUeD

49

AIR CLEANER TOP SEMI GLOSS BLACK

389 EXHAUST MANIFOLD STEEL 390 EXHAUST MANIFOLD STEEL 50 AIR CLEANER BOTTOM SEMI GLOSS BLACK 56 OIL FILLER SEMI GLOSS BLACK

388 RIGHT ENGINE HALF

(3 SPEED) CHEVY ENGINE RED

387 LEFT ENGINE HALF

(3 SPEED) CHEVY ENGINE RED

64 FAN BELT ALUMINUM PULLEY'S WITH SEMI GLOSS BLACK

BELT DECAL 28 DECAL 10 65 FAN SEMI GLOSS BLACK

66 GENERATOR SEMI GLOSS BLACK

blaCk wiDOw engine

assembly

2 ?

1 ?

58 FRONT COVER CHEVY ENGINE RED

62 OIL FILTER SEMI GLOSS BLACK

46 OIL PAN CHEVY ENGINE RED

DECAL 29 51

CYLINDER HEADS CHEVY ENGINE RED

(4)

black widow ENGiNE

aSSEMblY

2 ?

H370 FUEL PUMP CHROME H351 PLENUM CHROME H350 MANIFOLD PLATE CHROME H355 OIL FILLER TUBE CHROME

RiGHT SidE oF ENGiNE

53 ROCKER COVER CHEVY ENGINE RED

55 COIL SEMI GLOSS BLACK 54

DISTRIBUTOR SEMI GLOSS BLACK

57 WATER PUMP CHEVY ENGINE RED

389 LEFT EXHAUST HEADER STEEL 390 RIGHT EXHAUST HEADER STEEL H352 AIR METER CHROME H357 FUEL METER CHROME 64 FAN BELT ALUMINUM PULLEY'S WITH SEMI GLOSS BLACK

BELT

DECAL 28

65 FAN SEMI GLOSS BLACK

66 GENERATOR SEMI GLOSS BLACK 59

STARTER SEMI GLOSS BLACK

DECAL 11 DECAL

(5)

FRONT chassis assEMBLY

3

EXhaUsT assEMBLY

4

84 FRONT SPRINGS SEMI GLOSS BLACK 75 LOWER-A-ARM SEMI GLOSS BLACK

ENGiNE TO chassis

77 UPPER-A-ARM

SEMI GLOSS BLACK 76

UPPER-A-ARM SEMI GLOSS BLACK

74 CHASSIS SEMI GLOSS BLACK

71 STEERING GEAR BOX

SEMI GLOSS BLACK

395 STEERING GEAR BOX SEMI GLOSS BLACK

FiRsT

BLacK WiDOW VERsiON

391 LEFT EXHAUST STEEL 392 RIGHT EXHAUST STEEL 94 GAS TANK SEMI GLOSS BLACK

(6)

REAR SHOCKS ASSEMBLY

6

FRONT wHEEL ANd TiRE

ASSEMBLY

7

78 REAR AXLE SEMI GLOSS BLACK

86 SHOCK ABSORBER

SEMI GLOSS BLACK

86 SHOCK ABSORBER

SEMI GLOSS BLACK 83

LEFT SPRING LEAF SEMI GLOSS BLACK

82 RIGHT SPRING LEAF SEMI GLOSS BLACK

79

DIFFERENTIAL COVER SEMI GLOSS BLACK

87 DRIVESHAFT STEEL 309 OUTER WHEEL BODY COLOR 88 INNER WHEEL SEMI GLOSS BLACK TIRE

REAR SUSPENSiON ASSEMBLY

5

H327 DOG DISH HUBCAP

CHROME

150 VERSiON

ONLY

(7)

REAR whEEl And tiRE

AssEmbly

8

315 OUTER WHEEL BODY COLOR 88 INNER WHEEL SEMI GLOSS BLACK

TIRE H327

DOG DISH HUBCAP CHROME

150 VERsiOn

Only

windOw AssEmbly

9

Q

Q Q Q Q Q Q Q Q

intERiOR AssEmbly

10

375 WINDSHIELD CLEAR 382 LEFT VENT WINDOW CLEAR 335 FRONT SEAT TOP

LIGHT GRAY

336 FRONT SEAT BOTTOM

LIGHT GRAY

334 RIGHT INTERIOR SIDE

LIGHT GRAY (PAINT HIGHLIGHTS ALUMINUM)

333 LEFT INTERIOR SIDE LIGHT GRAY (PAINT HIGHLIGHTS ALUMINUM) 330 INTERIOR FLOOR

SEMI GLOSS BLACK 301 BODY 383 RIGHT VENT WINDOW CLEAR 378 LEFT SIDE WINDOW CLEAR 384 DOME LIGHT CLEAR 376 REAR WINDOW CLEAR 377 RIGHT SIDE WINDOW CLEAR H367

REAR VIEW MIRROR CHROME DECAL 25 (27 other side) DECAL 24 (26 other side) DECAL 19 DECAL 17 DECAL 16 DECAL 18

(8)

INTERIOR assEmbly

CONTINUED

10

bODy / INTERIOR / CHassIs

assEmbly

11

303 FIREWALL SEMI GLOSS BLACK

70 MASTER CYLINDER

GUNMETAL 345

ROLL BAR SEMI GLOSS BLACK 346

RIGHT ROLL BAR BRACE

SEMI GLOSS BLACK

347 LEFT ROLL BAR BRACE

SEMI GLOSS BLACK

337 DASHBOARD BODY COLOR 332 STEERING WHEEL BODY COOR SILVER 331 STEERING COLUMN BODY COLOR

SEMI GLOSS BLACK

blaCK WIDOW VERsION

OPEN UP

HOlEs IN

CHassIs

FOR

ROllbaR

COmPlETED

CHassIs

COmPlETED

INTERIOR

Q

H386 TACH CHROME

blaCK WIDOW

VERsION ONly

DECAL 20 DECAL 21 DECAL 22 DECAL 23

(9)

RADIATOR ASSEMBLY

12

FRONT ASSEMBLY

13

400

UPPER RADIATOR HOSE SEMI GLOSS BLACK

356

UPPER RADIATOR HOSE SEMI GLOSS BLACK 41 RADIATOR GLOSS BLACK 310 RADIATOR WALL SEMI GLOSS BLACK

43 LOWER RADIATOR HOSE SEMI GLOSS BLACK

ATTAch

LOwER

hOSE

hERE

306 BATTERY SEMI GLOSS BLACK

H317 HEADLIGHT BEZEL CHROME H317 HEADLIGHT BEZEL CHROME 379 HEADLIGHT LENS CLEAR 379 HEADLIGHT LENS CLEAR 311 BUMPER CUSHIONS SEMI GLOSS BLACK

H318 FRONT BUMPER CHROME 307 LEFT HORN SEMI GLOSS BLACK 308 RIGHT HORN SEMI GLOSS BLACK 380 TURN SIGNAL LENS CLEAR 304 LEFT HEATER BOX HALF

SEMI GLOSS BLACK 305 RIGHT HEATER BOX HALF

SEMI GLOSS BLACK

150 VERSION

ONLY

ATTAch TO ThE

FIREwALL.

AIR cLEANER

REMOVED FOR

cLARITY

H326

HEADLIGHT FILLER PLATE CHROME

BLAcK wIDOw

VERSION

150 VERSION

ONLY

H326 HEADLIGHT FILLER PLATE CHROME

BLAcK wIDOw

VERSION

(10)

black widow aiR dUcT

assembly

14 ?

ReaR assembly

15

H325 BACKUP LIGHT BLOCK OFF PLATE

CHROME H320 REAR BUMPER CHROME H321 LEFT TAILLIGHT SURROUND CHROME H322 RIGHT TAILLIGHT SURROUND CHROME TAILLIGHT385 TRANSPARENT RED 381 BACKUP LIGHTS CLEAR 385 TAILLIGHT TRANSPARENT RED H353 LEFT AIR CLEANER CHROME H354 RIGHT AIR CLEANER CHROME H323 SHORT FIN SPEAR CHROME H323 SHORT FIN SPEAR CHROME H368 REAR LICENSE PLATE

CHROME H319 TRUNK "V" ORNAMENT CHROME 358 AIR DUCT SEMI GLOSS BLACK

black widow

VeRsioN

(11)

hood assembly

16

final assembly

17

302 HOOD H313 HOOD FRONT MOLDING

CHROME

H363 SIDE VIEW MIRROR

CHROME

H364

SIDE VIEW MIRROR STEM CHROME H314 HOOD ORNAMENT CHROME H314 HOOD ORNAMENT CHROME 38 LEFT HOOD HINGE SEMI GLOSS BLACK 39

RIGHT HOOD HINGE SEMI GLOSS BLACK

H316 HOOD "V" ORNAMENT CHROME H361 LEFT DOOR HANDEL CHROME H362 RIGHT DOOR HANDEL CHROME H365 LEFT WINDSHIELD WIPER CHROME H366 RIGHT WINDSHIELD WIPER CHROME
