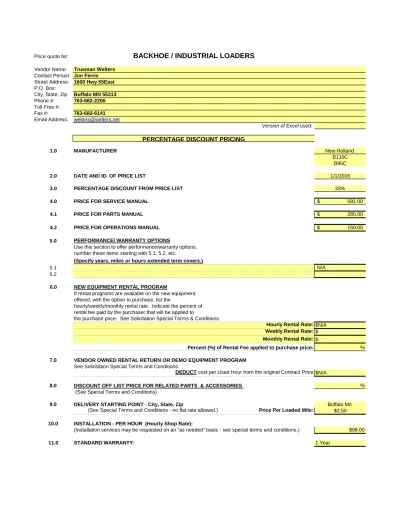

BACKHOE / INDUSTRIAL LOADERS

(1)

Street Address: 1600 Hwy 55East P.O. Box:

City, State, Zip Buffalo MN 55313 Phone #: 763-682-2200 Toll Free #:

Fax #: 763-682-6141

Email Address: [email protected]

PERCENTAGE DISCOUNT PRICING

1.0 MANUFACTURER

B110C B95C 2.0 DATE AND ID. OF PRICE LIST

3.0 PERCENTAGE DISCOUNT FROM PRICE LIST

4.0 PRICE FOR SERVICE MANUAL $ 591.00

4.1 PRICE FOR PARTS MANUAL $ 285.00

4.2 PRICE FOR OPERATIONS MANUAL $ 150.00

5.0 PERFORMANCE/ WARRANTY OPTIONS

Use this section to offer performance/warranty options, number these items starting with 5.1, 5.2, etc.

(Specify years, miles or hours extended term covers.)

5.1 N/A

5.2

6.0 NEW EQUIPMENT RENTAL PROGRAM

If rental programs are available on the new equipment offered, with the option to purchase, list the

hourly/weekly/monthly rental rate. Indicate the percent of rental fee paid by the purchaser that will be applied to

the purchase price. See Solicitation Special Terms & Conditions.

Hourly Rental Rate:$N/A Weekly Rental Rate:$ Monthly Rental Rate:$

Percent (%) of Rental Fee applied to purchase price: % 7.0 VENDOR OWNED RENTAL RETURN OR DEMO EQUIPMENT PROGRAM

See Solicitation Special Terms and Conditions.

DEDUCT cost per Used Hour from the original Contract Price $N/A

8.0 DISCOUNT OFF LIST PRICE FOR RELATED PARTS & ACCESSORIES %

(See Special Terms and Conditions)

9.0 DELIVERY STARTING POINT - City, State, Zip Buffalo Mn

(See Special Terms and Conditions - no flat rate allowed.) Price Per Loaded Mile: $2.50 10.0 INSTALLATION - PER HOUR (Hourly Shop Rate):

(Installation services may be requested on an "as needed" basis - see special terms and conditions.) $98.00

11.0 STANDARD WARRANTY: 1 Year

Version of Excel used:

New Holland

1/1/2016 33%

(2)

B95C T4 FINAL TRACTOR LOADER BACKHOE US PRICE LIST

Standard Equipment

ENGINE (Tier 4 Final): Converter Oil temperature

Electronic 4 Cylinder Diesel, Direct Fuel Level

Injection, Turbo aftercooler DEF Level

3.4L (207 cu. in.) Displacement Tachometer/hourmeter

Power - ISO14396 Voltmeter

- Gross 97 SAE hp Backlit gauges with illuminated

- Net 95 SAE hp pointers

Full flow engine oil filter Dashboard with speedometer

Aspirated air cleaner (Powershift model only)

Air Cleaner - Replaceable dry type with Warning Lights:

radial seal Air cleaner restriction

Glow Plugs Cold Start Alternator

Cooled EGR Cold Start

Fuel Tank - useable capacity 34.6 A/C Low High Pressure

US gal (131 L) Engine Oil Pressure

Radiator with Expansion bottle Parking Brake Engagement

Antifreeze -34ºF (-37ºC) Low Fuel

Diesel Oxidation Catalyst (DOC) Low DEF

Selective Catalytic Reduction (SCR) Master Warning

Muffler Master Stop

Diesel Exhaust Fluid (DEF) Tank 108 dB(A) alarm at 2100 Hz for

Useable Canopy units

Capacity 3.5 us gal (13.2L) 109 dB(A) alarm at 2100 Hz for Cab

Throttle, both hand and foot units

Viscous fan drive Audible Warning Alarm for:

Self adjusting belt tensioner Coolant Temperature

Engine Oil Pressure

POWERTRAIN: Parking brake engagement

4F-4R Power shuttle Synchromesh Shuttle engagement

Transmission (PT units) Backup Alarm

4F-3R Power shift transmission with Horn, dual switched @ Front & Rear kick down in loader (PS units) Two buttons for screen navigation

300mm Torque Converter and control

On the go 4WD control Turn Signal indicators with switch

Electric F/R Shuttle Control 4 signal indicator emergency

Electric Differential Lock control with Low DEF push button activation, located on

the loader control lever

2-4WD Mode Selector ELECTRICAL:

22 mph max travel speed 12V System

Single 95Ah 900A Battery

High Capacity Alternator 160 Amp

INSTRUMENTATION ILLUMINATED: Key Start

Gages: Prewired for radio (CAB only)

(3)

Standard Equipment

console Outboard Planetary Final Drive

Neutral start switch

Sealed Fuseblock Compartment REAR AXLE/BRAKES:

Water Resistant Main Fuseblock 68 in. Fixed Tread Width

Lights: Internal Planetary Final Drive

Cab, Front: Multi-Plate Hydraulic, Self-Adjusting,

2 Amber Turn flashed lights Self-Equalizing Wet Disc Brakes

4 Individual 55 W works lights Spring applied hydraulic released

Cab, Rear: (SAHR) wet parking brake located

2 Amber Turn/flasher lights (21 W) on transmission output shaft

with integrates red stops (21 W) Differential Lock (electric actuated) and Tail lights (5 W)

4 Individual 55 W work lights OPERATOR STATION:

Canopy, Front: ROPS/FOPS Certified Canopy & Cab

2 Amber Turn flashed lights Flat Deck

4 Individual 55 W work lights Dual Side Entry

Canopy, Rear: Fixed Steering Column

2 Amber Turn/flasher lights (21 W) (Powershuttle model only) with integrates red stops (21 W) Tilted Steering Column

and Tail lights (5 W) (Powershift model only)

4 Individual 55 W work lights Rear Fenders/extensions Hand and Foot Throttle

HYDRAULICS: Right-Hand Instrument Console

Open center hydraulic system Right & Left external rearview mirrors (Mechanical control) Rearview Mirror - Interior & Exterior Twin Gear Pump 40GPM (151 L/min) Overhead document storage (Cab) @ 2200 RPM (Mechanical control) 60,790 BTU Heater -3 Speed Fan(Cab) Load sensing, closed center hydraulic Retractable Sun Shade (Cab)

system (Pilot control) Mechanical Cloth Suspension Seat

Variable Displacement Pump from 1.5 (Cab) with 2" retractable seat belt to 41 GPM (6 to 156 L/min) @ 2200 Mechanical Vinyl suspension seat

RPM (Pilot control) (Canopy) with 2" retractable seatbelt

7 Micron Spin oil filter Antivandalism Cover for dash (Canopy) Heavy duty Hydraulic oil cooler

O-Ring Face Seal Fittings

OPERATOR STATION (Continued):

FRONT AXLE: Adjustable opening windows

74 in. Tread Width 2 door access

8-bolt Wheel Hub Rear window open access

Hydrostatic Power Steering All tinted glass

with priority Front and rear winshield wipers

Intergrated Steering Cylinder

2WD: Cast Construction LOADER:

4WD: 4WD Center Drive with Electrical Straight Loader Arms

(4)

Standard Equipment

Lift, Dump, Clutch Cut out, Diff lock Pilot operated control system:

4-Bar Bucket Linkage Fingertip proportional electrohydraulic

Mechanical Strut lock Thumb operated Proportional

Bucket Level Indicator electrohydraulic extendahoe control

Return-to-Dig Feature Thumb operated horn button

Dual Lift and Bucket Cylinders Indefinitely adjustable towers

Hydromechanical Self-Leveling (raise In Cab pattern change control

and lower) Thumb operated auto-Idle

Heavy Duty 1.1 Cu. Yd. Bucket with

Bolt-on Cutting Edge SAFETY AND SECURITY:

4-Post ROPS/FOPS

BACKHOE: Lockable Compartments for:

161.5 degree bkt rotation in power Engine, Hydraulic System, Battery,

hole Lockable Fuel Cap

200 degree bucket rotation in speed Horn

hole Backup Alarm

Dirt Stabilizer Pads

Mechanical operated control system: WARRANTY:

2 lever control - NH New Holland Construction

Horn button Warranty Applies

Pedal command for extendable dipper

(mechanical) SHIPPING POINT:

6 spool backhoe control valve Port of Entry

(machine with Std dipperstick) 7 spool backhoe control valve

(5)

Models

COMMERCIAL MODEL VERSION TRANSMISSION TRACTION BACKHOE CONTROL

Weight Factory Data List Price

B95C T4 FINAL Rops Power Shuttle 2WD Mechanical 16,077 LB $89,882.00 B95C T4 FINAL Rops Power Shuttle 2WD Pilot 16,077 LB $93,721.00 B95C T4 FINAL Rops Power Shuttle MFD Mechanical 16,463 LB $103,895.00 Includes the following Equipment

PN 16.9-28 EZ Rider Galaxy (8366964) $720.00 PN 14-17.5 GALAXY (8278741) $590.00

B95C T4 FINAL Rops Power Shuttle MFD Pilot 16,463 LB $107,734.00 Includes the following Equipment

B95C T4 FINAL Cab Power Shuttle 2WD Mechanical 16,474 LB $97,554.00 B95C T4 FINAL Cab Power Shuttle 2WD Pilot 16,474 LB $101,393.00 B95C T4 FINAL Cab Power Shuttle MFD Mechanical 16,860 LB $111,567.00 Includes the following Equipment

B95C T4 FINAL Cab Power Shuttle MFD Pilot 16,860 LB $115,406.00 Includes the following Equipment

B95C T4 FINAL Cab Power Shift MFD Mechanical 16,860 LB $116,398.00 Includes the following Equipment

B95C T4 FINAL Cab Power Shift MFD Pilot 16,860 LB $120,237.00 Includes the following Equipment

(6)

Factory Supplied Options

Order Code Description Weight Factory Data List Price

SD_BC BACKHOE CONTROL

MECH Mechanical ($3,839.00)

PILOT Pilot No Charge

SD_TR TRACTION

2WD 2WD No Charge

4WD MFD $12,703.00

SD_TS TRANSMISSION

PSE Power Shuttle No Charge PSHIFT Power Shift $4,831.00

SD_VE VERSION

ROPS Rops No Charge

CAB Cab $7,672.00

WHEELS

SD_13006 FRONT WHEELS For use with 2WD Models

8138664 PN 11L-16 INDUSTRIAL GALAXY No Charge For use with 4WD Models

8279741 PN 12-16.5 GALAXY

Select Front Axle option 742030 when ordering this option.

No Charge

8278741 PN 14-17.5 GALAXY

$590.00

8279641 PN 12-16.5 HULK GALAXY

$1,490.00

8288641 PN 12.5-80 18 BEEFY BABY

Select Front Axle option 742031 when ordering this option. Requires 19.5L-24 rear tire

$2,050.00

SD_09006 REAR WHEELS

8393664 PN 19.5L-24 EZ Rider Galaxy No Charge 8362694 PN 21L-24 EZ Rider Galaxy $405.00 8366964 PN 16.9-28 EZ Rider Galaxy $720.00 8362794 PN 19.5L-24 Jumbo Hulk Galaxy

Available on 4WD commercial models only

(7)

AXLES

SD_12003 AXLES For use with 2WD Models

X12003X Standard 2 Wheel Drive Axle No Charge For use with 4WD Models

742030 Front Axle - 13.3 Ratio

For use with 12-16.5 Front Wheels.

No Charge

For use with 12.5 - 80 18 Front Wheels.

No Charge

BACKHOE

SD_L7010 HED/STD DIPPERSTICK 728514 Standard Dipperstick (4.42 M)

digging depth of 14.6 ft (175.2 in) (4450 mm)

No Charge

728902 HED Dipperstick (4.42 M)

digging depth of 18.3 ft (219.2 in) (5570 mm) Requires Heavy Front Counterweight option 742292

$6,825.00

742900 Standard Dipperstick (4.72 M)

$3,000.00

$9,825.00

SD_40020 FRONT BALLAST

742290 Front Counterweight No Charge 742291 Medium Front Counterweight

(530 lbs)

$685.00

742292 Heavy Front Counterweight

(700 lbs) Required with all Hydraulically Extendable Dippers (HED).

$1,050.00

SD_20037 BACKHOE CONTROL VALVE For use with Mechanical Models 742024 6 Spool Valve - Mechanical

For use with Standard Dipperstick

No Charge

720721 7 Spool Valve - Mechanical

For use with HED Dipperstick

(8)

728727 7 Spool with Auxiliary Circuit

Valve and control only. No plumbing from valve to dipper. For mechanical control models only with standard dipperstick backhoe.

$635.00

For use with Pilot Models 742331 6 Spool Valve - Pilot

No Charge

742333 7 Spool Valve - Pilot

No Charge

742335 7 SPOOL WITH AUXILIARY_CIRCUIT

Valve and control only. No plumbing from valve to dipper. For pilot control models only with standard dipperstick backhoe.

$635.00

SD_20038 BACKHOE CONTROLS

X20038X Standard Controls No Charge For use with Mechanical Models

728393 2-Lever Backhoe Controls No Charge 720394 2-Lever ISO Backhoe Controls

Excavator Pattern

$560.00

742012 4 Lever Backhoe Controls

Ford Style

$560.00

SD_L5215 BACKHOE BUCKET

XL5215X No Backhoe Bucket No Charge Standard Duty

742388 24" Standard Duty Bucket

Short lip - 7.5 cu. ft. with 5 teeth

$1,380.00

High Capacity Heavy Duty

728515 12" Hi-Capacity HD Bucket

Long lip - 3.9 cu. ft. with 3 teeth

$1,190.00

$1,345.00

$1,450.00

$1,640.00

$1,810.00

Severe Duty

728520 18" Severe Duty Bucket

$1,550.00

SD_L5247 BACKHOE MECH QUICK COUPLER

XL5247X No Backhoe Mech. Quick Coupler No Charge 728733 Backhoe Mech. Quick Coupler

Pins are not included with this option.

(9)

SD_L5401 STABILIZER PADS

720535 Stabilizer Pads CP Dirt No Charge 720536 Reversible Stabilizer Pads $890.00

LOADER

SD_20221 LOCKING VALVES LOADER - MACH.

X20221X No Loader Locking Valves No Charge 742010 Loader Locking Valves

Protection device to hold the loader arms in position

$1,585.00

SD_L5302 LOADER BUCKET XL5302X Without Loader Bucket

If this opion is selected on the TC version, the hydraulic coupler is not included.

($1,390.00)

728527 1.1 cu. yd. Bkt w/Cutting Edge

1.1 cu. yd. (.88 cu. m.) - heaped capacity

No Charge

728537 1.3 cu. yd. bkt w/Cutting Edge

1.3 cu. yd. (1 cu. m.) - heaped capacity

If this option is selected on TC version, the hydraulic coupler is not included

$530.00

728536 1.3 cu. yd. HD Bucket w/Teeth

$685.00

728525 1.3 cu. yd. Bkt w/Forks & Edge

$1,200.00

742471 4x1 Loader Bkt w/Cutting Edge

If this option is selected on TC version the hydraulic coupler is not included

$2,300.00

742472 4x1 Loader Bkt w/Teeth

If this option is selected on the TC version, the hydraulic coupler is not included

$2,360.00

742473 6x1 Bkt w/Forks & Cutting Edge

$3,170.00

742474 6x1 Loader Bkt w/Forks & Teeth

$3,255.00

SD_L5303 MECHANICAL QUICK COUPLER

XL5303X No Loader Mech Quick Coupler No Charge 720734 Loader Mech Quick Coupler

Not for use with standard pin on buckets

(10)

HYDRAULICS

SD_05111 STABILIZER CONTROL For use with Mechanical Models

X05111X Stabilizer Control No Charge For use with Pilot Models

742095 Stabilizer Control w/o Auto-Up No Charge 742096 Stabilizer Control w/Auto-Up $220.00

SD_20135 LOADER HYDRAULIC CIRCUIT For use with Mechanical Models

728336 2-Spool Loader Valve No Charge 720725 LOADER AUXILIARY HYD-MECH CTRL

3 spool loader valve with a 4-in-1 control handle

$1,585.00

For use with Pilot Models

742302 2 Spool Loader Valve No Charge 742700 LOADER AUXILIARY HYD-PILOT CTL

$1,585.00

CAB/ROPS FEATURES

SD_05011 CAB CONDITIONING For use with ROPS units

X05011X No Cab Conditioning No Charge For use with Cab units

742013 Cab Heating No Charge 742014 Cab Heating & Air Conditioning $2,515.00

SD_05128 STEERING WHEEL

742650 Fixed Steering Wheel No Charge

742651 Tilt Steering Wheel $510.00

SD_05133 SEAT For use with ROPS units

720856 Vinyl Seat w/2" Seat Belt No Charge 728856 Vinyl Susp Seat w/3" Belt-ROPS $90.00

For use with Cab units

720851 Deluxe Seat w/2" Seat Belt No Charge 728851 Cloth Susp Seat w/3" Belt -Cab $90.00 728855 Super Delx Seat w/3" Belt -Cab $1,350.00

SD_05157 FRONT DASHBOARD X05157X No Front Dashboard

For use with power shift models only.

(11)

742787 Front Dashbrd w/o Speedometer

For use with 2WD power shuttle models.

No Charge

742011 Front Dashbrd w/ Speedometer

Not available with Glide Ride option 742019. Only for use with 4WD power shuttle models.

$295.00

423095 Front Dashboard

with speedometer, without speed sensor For use with Glide Ride option 742019 Only for use with 4WD power shuttle models.

No Charge ADDITIONAL EQUIPMENT SD_34007 COLD START 861131 Single Battery 1200 CCA battery No Charge 861321 Dual Batteries

1200 CCA battery with Second 900 CCA battery to assist with cold weather starting

$215.00

SD_43004 TOOL BOX RH

X43004X No Tool box No Charge

747875 Tool box 747875 $170.00

SD_47083 OPERATOR'S MANUAL

742974 English Operator Manual No Charge 742975 French Operator Manual No Charge 742976 SPANISH OPERATOR MANUAL No Charge

LOADER ACCESSORIES

SD_20217 LTS GLIDE RIDE CONTROL SYSTEM

X20217X No LTS- Glide Ride Ctrl System No Charge 423099 Glide Ride (2 WD) $1,780.00 742019 Glide Ride $1,780.00

AUXILIARY CIRCUITS

SD_20211 HAMMER CIRCUIT

X20211X No Hammer Circuit No Charge 742017 Rear Hammer Circuit $2,470.00

SD_20215 HAND TOOL CIRCUIT

X20215X No Handtool Circuit No Charge 742018 Hand Tool Circuit $1,765.00

(12)

ADDITIONAL BACKHOE BUCKETS

SD_L5216 ADDITIONAL BACKHOE BUCKET

718557 12" HC Heavy Duty Backhoe Bkt $1,190.00 XL5216X No 12" HC HD Backhoe Bucket No Charge

718562 18" Severe Duty Backhoe Bkt $1,780.00 XL5219X No 18" Severe Duty Backhoe Bkt No Charge

718559 24" HC Heavy Duty Backhoe Bkt $1,450.00 XL5220X No 24" HC HD Backhoe Bkt No Charge

741388 24" Heavy Duty Backhoe Bucket $1,380.00 XL5242X No 24" Heavy Duty Backhoe Bkt No Charge

TELEMATICS

SD_21051 TELEMATICS ON BOARD

745122 NH FLEETFORCE ON-BOARD $816.00 X21051X No Telematics No Charge

(13)

B95C TC T4 FINAL TRACTOR LOADER BACKHOE US PRICE LIST

Standard Equipment

ENGINE (Tier 4 Final): Fuel Level

Electronic 4 Cylinder Diesel, Direct DEF Level

Injection, Turbo aftercooler Tachometer/hour meter

3.4L (207 cu. in.) Displacement Voltmeter

Power - ISO14396 Backlit gauges with illuminated

- Gross 97 SAE hp pointers

- Net 95 SAE hp Dashboard with speedometer

Full flow engine oil filter (Powershift model only)

Aspirated air cleaner Warning Lights:

Air Cleaner - Replaceable dry type with Air cleaner restriction

radial seal Alternator

Glow Plugs Cold Start Cold Start

Cooled EGR A/C Low High Pressure

Fuel Tank - useable capacity 34.6 Engine Oil Pressure

US gal (131 L) Parking Brake Engagement

Radiator with Expansion bottle Low Fuel

Antifreeze -34ºF (-37ºC) Lox DEF

Diesel Oxidation Catalyst (DOC) with Master Warning

Selective Catalytic Reduction (SCR) Master Stop

Muffler 108 dB(A) alarm at 2100 Hz for

Diesel Exhaust Fluid (DEF) Tank – Canopy units

useable 109 dB(A) alarm at 2100 Hz for Cab

Capacity 3.5 US gal (13.2L) units

Throttle, both hand and foot Audible Warning Alarm for:

Viscous fan drive Coolant Temperature

Self adjusting belt tensioner Engine Oil Pressure

Parking brake engagement

POWERTRAIN: Shuttle engagement

4F-4R Power shuttle Synchromesh Backup Alarm

Transmission (PT units) Horn, dual switched @ Front & Rear

4F-3R Power shift transmission with Two buttons for screen navigation

kick down in loader (PS units) and control

300mm Torque Converter Turn Signal indicators with switch

On the go 4WD control 4 signal indicator emergency

Electric F/R Shuttle Control Low DEF

Electric Differential Lock control with

push button activation, located on ELECTRICAL:

the loader control lever 12V System

2-4WD Mode Selector Single 95Ah 900A Battery

22 mph max travel speed High Capacity Alternator 160 Amp

Key Start

INSTRUMENTATION ILLUMINATED: Prewired for radio (CAB only)

Gages: Fuses/Relays located in the right

Engine Coolant Temperature console

(14)

Standard Equipment

Sealed Fuseblock Compartment 68 in. Fixed Tread Width Water Resistant Main Fuseblock Internal Planetary Final Drive

Lights: Multi-Plate Hydraulic, Self-Adjusting,

Cab, Front: Self-Equalizing Wet Disc Brakes

2 Amber Turn flashed lights Spring applied hydraulic released 4 Individual 55 W works lights (SAHR) wet parking brake located

Cab, Rear: on transmission output shaft

2 Amber Turn/flasher lights (21 W) Differential Lock (electric actuated) with integrates red stops (21 W)

and Tail lights (5 W) OPERATOR STATION:

4 Individual 55 W work lights ROPS/FOPS Certified Canopy & Cab

Canopy, Front: Flat Deck

2 Amber Turn flashed lights Dual Side Entry 4 Individual 55 W work lights Fixed Steering Column

Canopy, Rear: (Powershuttle model only)

2 Amber Turn/flasher lights (21 W) Tilted Steering Column with integrates red stops (21 W) (Powershift model only)

and Tail lights (5 W) Rear Fenders/extensions

4 Individual 55 W work lights Hand and Foot Throttle

Right-Hand Instrument Console

HYDRAULICS: Right & Left external rearview mirrors

Open center hydraulic system Rearview Mirror - Interior

(Mechanical control) Overhead document storage (Cab)

Twin Gear Pump 40 GPM (151 L/min) 60,790 BTU Heater -3 Speed Fan(Cab) @ 2000 RPM (Mechanical control) Retractable Sun Shade (Cab)

Load sensing, closed center hydraulic Mechanical Cloth Suspension Seat

system (Pilot control) (Cab) with 2" retractable seat belt

Variable Displacement Pump from Mechanical Vinyl suspension seat

1.5 to 41 GPM (6 to 156 L/min) (Canopy) with 2" retractable seatbelt @ 2200 RPM (Pilot control) Anti- vandalism Cover for dash

7 Micron Spin oil filter (Canopy)

Heavy duty Hydraulic oil cooler

O Ring Face Seal Fittings OPERATOR STATION (Continued):

Adjustable opening windows

FRONT AXLE: 2 door access

74 in. Tread Width Rear window open access

8-bolt Wheel Hub All tinted glass

Hydrostatic Power Steering Front and rear windshield wipers with priority

Intergrated Steering Cylinder LOADER:

4WD: 4WD Center Drive with Electrical Curved Loader Arms

Engage and Indicator Light Single lever 4 function loader control; Outboard Planetary Final Drive Lift, Dump, Clutch Cut out, Diff lock

4-Bar Bucket Linkage

(15)

Standard Equipment

Bucket Level Indicator Fingertip proportional electrohydraulic

Return-to-Dig Feature Thumb operated Proportional

Dual Lift and Bucket Cylinders electrohydraulic extendahoe control

Hydromechanical Self-Leveling (raise Thumb operated horn button

and lower) Infinitely adjustable towers

Hydraulic Quick Coupler In Cab pattern change control

Heavy Duty 1.3 cu. yd. Bucket with Thumb operated auto-Idle Bolt-on Cutting Edge

SAFETY AND SECURITY:

BACKHOE: 4-Post ROPS/FOPS

161.5 degree bucket rotation in power Lockable Compartments for:

hole Engine, Hydraulic System, Battery,

200 degree bucket rotation in speed Lockable Fuel Cap

hole Horn

Dirt Stabilizer Pads Backup Alarm

Mechanical operated control system:

2 lever control - NH WARRANTY:

Horn button New Holland Construction

Pedal command for extendable dipper Warranty Applies 6 spool backhoe control valve

(machine with Standard dipperstick) SHIPPING POINT: 7 spool backhoe control valve Port of Entry

(machine with HED dipperstick) Pilot operated control system:

(16)

Models

B95C TC T4 FINAL

Rops Power Shuttle MFD Mechanical ₁_7,333_LB $110,267.00 Includes the following Equipment

PN 16.9-28 EZ Rider Galaxy (8366964) $720.00 PN 14-17.5 GALAXY (8278741) $590.00 1.3 cu. yd. Bkt w/Edge & H (742432) $6,975.00 B95C TC T4

FINAL

Rops Power Shuttle MFD Pilot 17,333 LB $114,106.00 Includes the following Equipment

FINAL

Cab Power Shuttle MFD Mechanical 17,730 LB $117,939.00 Includes the following Equipment

FINAL

Cab Power Shuttle MFD Pilot 17,730 LB $121,778.00 Includes the following Equipment

FINAL

Cab Power Shift MFD Pilot 17,730 LB $126,609.00 Includes the following Equipment

PN 16.9-28 EZ Rider Galaxy (8366964) $720.00 PN 14-17.5 GALAXY (8278741) $590.00 1.3 cu. yd. Bkt w/Edge & H (742432) $6,975.00

(17)

Factory Supplied Options

SD_TR TRACTION

4WD MFD $12,703.00

SD_TS TRANSMISSION

PSE Power Shuttle No Charge PSHIFT Power Shift $4,831.00

SD_VE VERSION

ROPS Rops No Charge

CAB Cab $7,672.00

WHEELS

SD_13006 FRONT WHEELS For use with 4WD Models 8279741 PN 12-16.5 GALAXY

No Charge

8278741 PN 14-17.5 GALAXY

$590.00

$1,490.00

8288641 PN 12.5-80 18 BEEFY BABY

$2,050.00

(18)

AXLES

SD_12003 AXLES

No Charge

BACKHOE

No Charge

$6,825.00

(530 lbs)

$685.00

$1,050.00

No Charge

$635.00

(19)

No Charge

$635.00

$560.00

Ford Style

$560.00

$1,380.00

$1,190.00

$1,345.00

$1,450.00

$1,640.00

$1,810.00

Severe Duty

$1,550.00

$1,270.00

(20)

LOADER

$1,585.00

($1,390.00)

$530.00

$685.00

742432 1.3 cu. yd. Bkt w/Edge & Hyd

1.3 cu. yd. (1 cu. m.) - heaped capacity Includes Hydraulic Quick Coupler

$6,975.00

$2,300.00

$2,360.00

HYDRAULICS

X05111X Stabilizer Control No Charge For use with Pilot Models

(21)

720725 LOADER AUXILIARY HYD-MECH CTRL

$1,585.00

No Charge

$295.00

(22)

B95C TC T4 FINAL TRACTOR LOADER BACKHOE US PRICE LIST ADDITIONAL EQUIPMENT SD_34007 COLD START 861131 Single Battery 1200 CCA battery No Charge 861321 Dual Batteries

$215.00

747875 Tool box 747875 $170.00

LOADER ACCESSORIES

X20217X No LTS- Glide Ride Ctrl System No Charge 742019 Glide Ride $1,780.00

AUXILIARY CIRCUITS

(23)

TELEMATICS

(24)

B110C T4FINAL TRACTOR LOADER BACKHOE US PRICE LIST

Standard Equipment

ENGINE (Tier 4 Final): Tachometer/hourmeter

Electronic 4 Cylinder Diesel, Direct\ Voltmeter

Injection, Turbo aftercooler Backlite gauges with illuminated

3.4L (207 cu. in.) Displacement pointers

Power - ISO14396 Warning Lights:

- Gross 110 SAE hp Air cleaner restriction

- Net 108 SAE hp Alternator

Full flow engine oil filter Cold Start

Aspirated air cleaner A/C Low High Pressure

Air Cleaner - Replaceable dry type with Engine Oil Pressure

radial seal Parking Brake Engagement

Glow Plugs Cold Start Low Fuel

Cooled EGR Master Warning

Fuel Tank - useable capacity 34.6 Master Stop

US gal (131 L) 108 dB(A) alarm at 2100 Hz for

Radiator with Expansion bottle Canopy units

Antifreeze -34ºF (-37ºC) 109 dB(A) alarm at 2100 Hz for Cab

Diesel Oxidation Catalyst (DOC) with units

Selective Catalytic Reduction (SCR) Audible Warning Alarm for:

Muffler Coolant Temperature

Diesel Exhaust Fluid (DEF Tank)- Engine Oil Pressure

useable Parking brake engagement

Capacity 3.5 US gal (13.2L) Shuttle engagement

Throttle, both hand and foot Backup

Viscous fan drive Horn, dual switched @ Front & Rear

Self adjusting belt tensioner Two buttons for screen navigation

and control

POWERTRAIN: Turn Signal indicators with switch

4F-4R Power shuttle Synchromesh 4 signal indicator emergency

Transmission (PT units) Low DEF

300mm Torque Converter

On the go 4WD control ELECTRICAL:

Electric F/R Shuttle Control 12V System

Electric Differential Lock control with Dual 60Ah 600A Battery

push button activation, located on High Capacity Alternator 160 Amp

the loader control lever Key Start

2-4WD Mode Selector Prewired for radio (CAB only)

23 mph max travel speed Fuses/Relays located in the right

console

INSTRUMENTATION ILLUMINATED: Neutral start switch

Gages: Sealed Fuseblock Compartment

Engine Coolant Temperature Water Resistant Main Fuseblock

Converter Oil temperature Lights:

Fuel Level Cab, Front:

(25)

Standard Equipment

4 Individual 55 W works lights (SAHR) wet parking brake located

Cab, Rear: on transmission output shaft

2 Amber Turn/flasher lights (21 W) Differential Lock (electric actuated) with integrates red stops (21 W)

and Tail lights (5 W) OPERATOR STATION:

4 Individual 55 W work lights ROPS/FOPS Certified Canopy & Cab

Canopy, Front: Flat Deck

2 Amber Turn flashed lights Dual Side Entry 4 Individual 55 W work lights Fixed Steering Column

Canopy, Rear: Rear Fenders

2 Amber Turn/flasher lights (21 W) Hand and Foot Throttle

with integrates red stops (21 W) Right-Hand Instrument Console

and Tail lights (5 W) Right & Left external rearview mirrors 4 Individual 55 W work lights Rearview Mirror - Interior & Exterior

Overhead document storage (Cab)

HYDRAULICS: 60,790 BTU Heater -3 Speed Fan(Cab)

Open center hydraulic system Retractable Sun Shade (Cab)

(Mechanical control) Mechanical Cloth Suspension Seat

Twin Gear Pump 43 GPM (164 L/min (Cab) with 2" retractable seat belt @ 2200 RPM (Mechanical control) Mechanical Vinyl suspension seat

Load sensing, closed center hydraulic (Canopy) with 2" retractable seatbelt system (Pilot control) Antivandalism Cover for dash (Canopy) Variable Displacement Pump from Adjustable opening windows

1.5 to 41 GPM (6 to 156 L/min) 2 door access

@ 2200 RPM (Pilot control) Rear window open access

7 Micron Spin oil filter All tinted glass

Heavy duty Hydraulic oil cooler Front and rear winshield wipers

O-Ring Face Seal Fittings Rear fender extensions

LOADER:

FRONT AXLE: Straight Loader Arms

74 in. Tread Width Single lever 4 function loader control;

8-bolt Wheel Hub Lift, Dump, Clutch Cut out, Diff lock

Hydrostatic Power Steering 4-Bar Bucket Linkage

with priority Mechanical Strut lock

Integrated Steering Cylinder Bucket Level Indicator 4WD: 4WD Center Drive with Electrical Return-to-Dig Feature

Engage and Indicator Light Dual Lift and Bucket Cylinders Outboard Planetary Final Drive Hydromechanical Self-Leveling (raise

and lower)

REAR AXLE/BRAKES: Heavy Duty 1.3 cu. yd. Bucket with

68 in. Fixed Tread Width Bolt-on Cutting Edge

Internal Planetary Final Drive

Multi-Plate Hydraulic, Self-Adjusting, BACKHOE:

Self-Equalizing Wet Disc Brakes 161.5 degree bucket rotation in power

(26)

Standard Equipment

200 degree bucket rotation in speed Thumb operated auto-Idle hole

Dirt stabilizer pads SAFETY AND SECURITY:

Mechanical operated control system: 4-Post ROPS/FOPS

2 lever control - NH Lockable Compartments for:

Horn button Engine, Hydraulic System, Battery,

Pedal command for extendable dipper Lockable Fuel Cap

(mechanical) Horn

6 spool backhoe control valve Backup Alarm (machine with Standard dipperstick)

7 spool backhoe control valve WARRANTY:

(machine with HED dipperstick) New Holland Construction Pilot operated control system: Warranty Applies

Fingertip proportional electrohydraulic

Thumb operated Proportional SHIPPING POINT:

electrohydraulic extendahoe control Port of Entry Thumb operated horn button

Infinitely adjustable towers In Cab pattern change control

(27)

Models

B110C T4 FINAL Rops Power Shuttle MFD Mechanical 18,128 LB $119,912.00 Includes the following Equipment

PN 16.9-28 EZ Rider Galaxy (8366964) $720.00 PN 14-17.5 GALAXY (8278741) $590.00 1.3 cu. yd. bkt w/Cutting (728537) $530.00 Standard Dipperstick (4.7 (742900) $3,000.00

B110C T4 FINAL Rops Power Shuttle MFD Pilot 18,128 LB $123,751.00 Includes the following Equipment

B110C T4 FINAL Cab Power Shuttle 2WD Pilot 18,139 LB $117,410.00 Includes the following Equipment

1.3 cu. yd. bkt w/Cutting (728537) $530.00 Standard Dipperstick (4.7 (742900) $3,000.00

B110C T4 FINAL Cab Power Shuttle MFD Mechanical 18,525 LB $127,584.00 Includes the following Equipment

B110C T4 FINAL Cab Power Shuttle MFD Pilot 18,525 LB $131,423.00 Includes the following Equipment

(28)

Factory Supplied Options

SD_TR TRACTION

2WD 2WD No Charge

4WD MFD $12,703.00

SD_TS TRANSMISSION

PSE Power Shuttle No Charge

SD_VE VERSION

ROPS Rops No Charge

CAB Cab $7,672.00

WHEELS

SD_13006 FRONT WHEELS For use with 4WD Models 8279741 PN 12-16.5 GALAXY

No Charge

8278741 PN 14-17.5 GALAXY

$590.00

$1,490.00

8288641 PN 12.5-80 18 BEEFY BABY

$2,050.00

(29)

AXLES

SD_12003 AXLES

No Charge

BACKHOE

$3,000.00

$9,825.00

(530 lbs)

$685.00

$1,050.00

No Charge

$635.00

(30)

No Charge

$635.00

$560.00

Ford Style

$560.00

$1,380.00

$1,190.00

$1,345.00

$1,450.00

$1,640.00

$1,810.00

Severe Duty

$1,550.00

$1,270.00

(31)

LOADER

$1,585.00

($1,390.00)

$530.00

$685.00

728525 1.3 cu. yd. Bkt w/Forks & Edge

$1,200.00

$2,300.00

$2,360.00

742473 6x1 Bkt w/Forks & Cutting Edge

$3,170.00

742474 6x1 Loader Bkt w/Forks & Teeth

$3,255.00

SD_L5303 MECHANICAL QUICK COUPLER

XL5303X No Loader Mech Quick Coupler No Charge 720734 Loader Mech Quick Coupler

Not for use with standard pin on buckets

$3,680.00

HYDRAULICS

(32)

728336 2-Spool Loader Valve No Charge 720725 LOADER AUXILIARY HYD-MECH CTRL

$1,585.00

No Charge

(33)

No Charge ADDITIONAL EQUIPMENT SD_34007 COLD START 861131 Single Battery 1200 CCA battery No Charge 861321 Dual Batteries

$215.00

747875 Tool box 747875 $170.00

LOADER ACCESSORIES

X20217X No LTS- Glide Ride Ctrl System No Charge 742019 Glide Ride $1,780.00

AUXILIARY CIRCUITS

(34)

TELEMATICS

(35)

Standard Equipment

ENGINE (Tier 4 Final): Tachometer/hourmeter

Electronic 4 Cylinder Diesel, Direct DEF gauge

Injection, Turbo aftercooler Backlite gauges with illuminated

3.4L (207 cu. in.) Displacement pointers

Power - ISO14396 Dashboard with speedometer

- Gross 110 SAE hp Warning Lights:

- Net 108 SAE hp Air cleaner restriction

Full flow engine oil filter Alternator

Aspirated air cleaner Cold Start

Air Cleaner - Replaceable dry type with A/C Low High Pressure

radial seal Engine Oil Pressure

Glow Plugs Cold Start Parking Brake Engagement

Cooled EGR Low Fuel

Diesel Particulate filter - spark arresting Low DEF

Fuel Tank - useable capacity 34.6 Master Warning

US gal (131 L) Master Stop

Radiator with Expansion bottle 109 dB(A) alarm at 2100 Hz for Cab

Antifreeze -34ºF (-37ºC) units

Diesel Oxidation Catalyst (DOC) with Audible Warning Alarm for: Selective Catalytic Reduction (SCR) Coolant Temperature

Muffler Engine Oil Pressure

Diesel Exhaust Fluid (DEF) Tank – Parking brake engagement

Useable Shuttle engagement

Capacity 3.5 US gal (13.2L) Backup

Throttle, both hand and foot Horn, dual switched @ Front & Rear

Viscous fan drive Two buttons for screen navigation

Self adjusting belt tensioner and control

Turn Signal indicators with switch

POWERTRAIN: 4 signal indicator emergency

4F-3R Power shift transmission with Low DEF

kick down in loader (PS units)

300mm Torque Converter ELECTRICAL:

On the go 4WD control 12V System

Electric F/R Shuttle Control Dual 60Ah 600A Battery

Electric Differential Lock control with High Capacity Alternator 160 Amp push button activation, located on Key Start

the loader control lever Prewired for radio (CAB only)

2-4WD Mode Selector Fuses/Relays located in the right

23 mph max travel speed console

Neutral start switch

INSTRUMENTATION ILLUMINATED: Sealed Fuseblock Compartment

Gages: Water Resistant Main Fuseblock

Engine Coolant Temperature Lights:

Converter Oil temperaturre Cab, Front:

(36)

Standard Equipment

4 Individual 55 W works lights Tilted Steering Column

Cab, Rear: Rear Fenders

2 Amber Turn/flasher lights (21 W) Hand and Foot Throttle

with integrates red stops (21W) Right-Hand Instrument Console

and Tail lights (5 W) Right & Left external rearview mirrors 4 Individual 55 W work lights Rearview Mirror - Interior & Exterior

Overhead document storage (Cab)

HYDRAULICS: 60,790 BTU Heater -3 Speed Fan(Cab)

Open center hydraulic system Retractable Sun Shade (Cab)

(Mechanical control) Mechanical Cloth Suspension Seat

Twin Gear Pump 43 GPM (164 L/min (Cab) with 2" retractable seat belt @ 2200 RPM (Mechanical control) Adjustable opening windows

Load sensing, closed center hydraulic 2 door access

system (Pilot control) Rear window open access

Variable Displacement Pump from All tinted glass

1.5 to 41 GPM (6 to 156 L/min) Front and rear winshield wipers @ 2200 RPM (Pilot control) Rear fender extensions

7 Micron Spin oil filter

Heavy duty Hydraulic oil cooler LOADER:

O Ring Face Seal Fittings Straight Loader Arms

Single lever 4 function loader control;

FRONT AXLE: Lift, Dump, Clutch Cut out, Diff lock

74 in. Tread Width 4-Bar Bucket Linkage

8-bolt Wheel Hub Mechanical Strut lock

Hydrostatic Power Steering Bucket Level Indicator

with priority Return-to-Dig Feature

Intergrated Steering Cylinder Dual Lift and Bucket Cylinders 4WD: 4WD Center Drive with Electrical Hydromechanical Self-Leveling (raise

Engage and Indicator Light and lower)

Outboard Planetary Final Drive Heavy Duty 1.3 Cu. Yd. Bucket with Bolt-on Cutting Edge

REAR AXLE/BRAKES:

68 in. Fixed Tread Width BACKHOE:

Internal Planetary Final Drive 161.5 degree bucket rotation in power Multi-Plate Hydraulic, Self-Adjusting, hole

Self-Equalizing Wet Disc Brakes 200 degree bucket rotation in speed

Spring applied hydraulic released hole

(SAHR) wet parking brake located Dirt stabilizer pads

on transmission output shaft Mechanical operated control system: Differential Lock (electric actuated) 2 lever control - NH

Horn button

OPERATOR STATION: Pedal command for extendable dipper

ROPS/FOPS Certified Cab (mechanical)

Flat Deck 6 spool backhoe control valve

(37)

Standard Equipment

7 spool backhoe control valve Lockable Compartments for:

(machine with HED dipperstick) Engine, Hydraulic System, Battery, Pilot operated control system: Lockable Fuel Cap

Fingertip proportional electrohydraulic Horn

Thumb operated Proportional Backup Alarm

electrohydraulic extendahoe control

Thumb operated horn button WARRANTY:

Infinitely adjustable towers New Holland Construction In Cab pattern change control Warranty Applies

Thumb operated auto-Idle

SHIPPING POINT:

SAFETY AND SECURITY: Port of Entry

(38)

Models

B110C T4 FINAL Cab Power Shift MFD Mechanical 18,525 LB $132,415.00 Includes the following Equipment

B110C T4 FINAL Cab Power Shift MFD Pilot 18,525 LB $136,254.00 Includes the following Equipment
