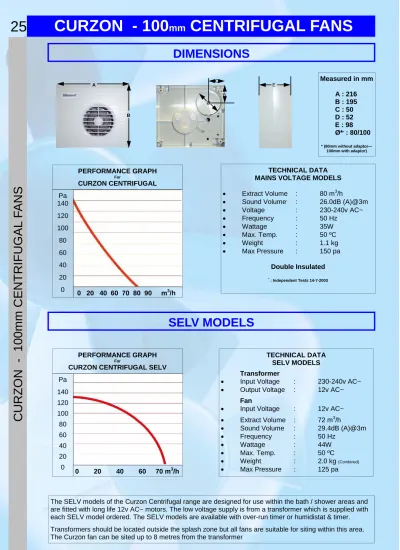

DIMENSIONS SELV MODELS

(1)

TECHNICAL DATA MAINS VOLTAGE MODELS • Extract Volume : 80 m3/h

• Sound Volume* : 26.0dB (A)@3m

• Voltage : 230-240v AC~ • Frequency : 50 Hz • Wattage : 35W • Max. Temp. : 50 ºC • Weight : 1.1 kg • Max Pressure : 150 pa Double Insulated * : Independent Tests 14-7-2003

DIMENSIONS

CURZON - 100

mm

CENTRIFUGAL FANS

SELV MODELS

TECHNICAL DATA SELV MODELS Transformer

• Input Voltage : 230-240v AC~ • Output Voltage : 12v AC~

Fan

• Input Voltage : 12v AC~ • Extract Volume : 72 m3/h

• Sound Volume : 29.4dB (A)@3m

• Frequency : 50 Hz • Wattage : 44W • Max. Temp. : 50 ºC • Weight : 2.0 kg (Combined) • Max Pressure : 125 pa

CURZO

N

100m

m CENT

RI

F

U

G

A

L

F

A

NS

A B Ø C Measured in mm A : 216 B : 195 C : 50 D : 52 E : 98 Ø**_{: 80/100} * (80mm without adaptor— 100mm with adaptor)

The SELV models of the Curzon Centrifugal range are designed for use within the bath / shower areas and are fitted with long life 12v AC~ motors. The low voltage supply is from a transformer which is supplied with each SELV model ordered. The SELV models are available with over-run timer or humidistat & timer. Transformers should be located outside the splash zone but all fans are suitable for siting within this area. The Curzon fan can be sited up to 8 metres from the transformer

PERFORMANCE GRAPH For CURZON CENTRIFUGAL 0 20 40 60 70 80 90 m3/h Pa 140 120 100 80 60 40 20 0 PERFORMANCE GRAPH For

CURZON CENTRIFUGAL SELV Pa 140 120 100 80 60 40 20 0 0 20 40 60 70 m3/h D E

25

(2)

High Performance Levels 80m3/h (22 l/s) BEAB Approved

IP24 Rated

Humidity Versions Now Fitted With “Intelligent” Humidistat Control Boards Integral Back Draught Shutters

Mains Voltage and SELV Models Available Surface Mount or In-Line Models Available

3 Year Replacement Warranty on All Models

SPECIFICATION & INSTALLATION OVERVIEW

CU

RZO

N

- 10

0 mm

CE

NT

RIF

U

GAL

F

A

NS

Code Model CUR 7001B Standard

CUR 7002B Pull - cord

CUR 7003B Over - run Timer

CUR 7004B Humidistat & Timer CUR 7005B Timer & PIR

CUR 7006B Humidistat, Timer & PIR

CUR 9003LV SELV Single Speed - Over-run Timer CUR 9004LV SELV Single Speed – Humidistat & Timer

CUR 501A Fire Shutter Back Plate (1 Hour Rated) CUR 7001BKIT In Line Version - Standard

CUR 7003BKIT In Line Version - Timer

The Silavent Curzon range of fans are ideal for bathrooms and toilets where longer duct runs are required. Made from high gloss ABS, these fans produce an impressive pressure performance required to extract air along longer ducting runs and are capable of extracting up to 80m3/h. Easy to install, the Curzon fans are built to the highest quality with the motor mounted on rubber bushes for quietness and long life.

This range of fans is designed for wall or ceiling fixing and for use with all Silavent 100mm duct and flatduct. It can also be used in conjunction with an integral fire shutter back plate which is rated to 1 hour (FLA501A). The pull cord model is not suitable for ceiling mounting.

The humidistat versions are now fitted with the new “Intelligent” electronic humidity controls which work as intelligent humidistat. Unlike traditional humidity controls which trigger when humidity reaches a pre-set level, the “Intelligent” board reacts to a significant rate of change in a location’s humidity level - See Mayfair Range for full explanation of how “Intelligent” controls operate.

The in-line versions of the CURZON are designed to provide a powerful centrifugal fan to fit out of sight within the roof area. Giving the same performance as the surface mounted version, this model is ideal for use with the Silavent SPOTVENT shower light products.

PRODUCT SUMMARY

MODELS AVAILABLE

“Intelligent” Humidity Controls Fitted

to

Humidistat Models

(3)

TECHNICAL DATA MAINS VOLTAGE MODELS • Extract Volume : 70 m3/h (HIGH)

: 43m3/h (LOW)

• Sound Volume*_: _22.0dB_(A)@3m

(HIGH) : 12.0dB (A)@3m(LOW) • Voltage : 230-240v AC~ • Frequency : 50 Hz • Wattage : 35W (HIGH) • : 20W (LOW) • Max. Temp. : 50 ºC

• Weight : 1.7 kg (FAN ONLY)

• Max Pressure : 105 pa Double Insulated

*

: Independent Tests 14-7-2003

For Single Sped Models, Use Higher Extract Figures

DIMENSIONS

MAYFAIR - SERIES 70 CENTRIFUGAL FANS

MA

YF

AI

R

- SE

RIE

S

70 C

E

NT

RI

F

U

GA

L

F

A

NS

A A 0 10 20 30 40 50 60 70 m3/h Pa 105 90 75 60 45 30 15 0 PERFORMANCE GRAPH For

MAYFAIR SERIES 70 CENTRIFUGAL

FAN OPERATION

Ø D E

27

Measured in mm A : 250 C : 115 D : 40 E : 80 F : 115 Ø : 85 (FAN) C SINGLE SPEED

Standard : Single Speed Fan operated by separate light switch / remote switch (not supplied) Pull Cord : Single Speed Fan is operated by integral pull cord

Timer : Single Speed Fan operated by separate light switch / remote switch (not supplied). The integral adjustable timer allows the fan to continue operating up to 25 minutes after

being switched off

Humidistat : Single Speed Fan. Manual and Automatic operation. The “Intelligent” Humidity Control (IHC) works on detection of a significant change in the rate of increase in humidity levels. Whilst traditional humidistat controls wait for the humidity to reach a pre-set level, IHC detects a significant increase in a location’s humidity level and activates the extract fan immediately. Once the humidity is reduced, the integral adjustable timer allows the fan to continue operating for between 2 minutes and 25 minutes. This fan is operated by separate light

switch / remote switch (not supplied)

Infra Red : The fan is activated by movement within the detection area of up to 5 metres. When movement is no longer detected, the integral adjustable timer allows the fan to continue operating for between 2 minutes and 25 minutes

TWIN SPEED

Standard : Twin Speed Fan designed to operate continuously at low speed. High speed is activated by separate light switch / remote switch (not supplied)

Timer : As the standard model but incorporates an integral adjustable timer. The timer will operate for between 2 minutes to 25 minutes after the switch has been turned off and the fan will return to running at the low speed. This fan is operated by separate light switch / remote switch

(not supplied)

(4)

Recessed or Surface Fixing on Wall / Ceiling (In-Line Option Also Available)

Integral Back Draught Shutters (SINGLE SPEED FANS ONLY) BEAB Approved

Extract Rate 70m3/h (20 l/s) (HIGH SPEED) 43m3/h (12 l/s) (LOW SPEED) IPX4 Rated

Plug In Fan Design -

Ideal For Large Building Projects “Intelligent” Humidistat Technology 3 Year On-Site Warranty on All Models

SPECIFICATION & INSTALLATION OVERVIEW

MA

YF

AIR -

SERIES

70 C

E

NTRIF

U

G

A

L

F

A

NS

Code Model MSS 070B Single Speed - Standard MTD 070B Single Speed - Over - run Timer MPC 070B Single Speed - Pull Cord

MCC 070B Single Speed - Humidistat & Pull Cord MIR 070B Single Speed - Timer & PIR

MTS 070B Twin Speed - Continuous Trickle With Boost

MTT 070B Twin Speed - Continuous Trickle With Boost & Timer MCT 070B Twin Speed - Humidistat, Timer & Pull Cord

The Mayfair Series 70 is designed to be installed in 2 parts—the building in frame first to reduce initial installation costs and on-site damage, followed by a plug-in fan body which allows easy maintenance and replacement. This is a system used effectively over the past 40 years by Silavent and proves to be highly effective on large building projects.

The unit is constructed of high gloss ABS with a motor mounted on rubber bushes to provide high pressure performance combined with an impressive quietness.

PRODUCT SUMMARY

MODELS AVAILABLE

RECESSED FITTING ¬ USE MAY 905B SURFACE MOUNTING

(REMOVE FAN MOTOR DOME COVER)

¬ _{MAY 504A}USE

IN-LINE MOUNTING

(NOT PIR, HUMIDISTAT MODELS)

¬ _{MAY 908B}USE

CEILING MOUNTING

(With 225mm x 25mm Flatduct)

¬ _{FLA 105A}USE

CEILING MOUNTING (With 110mm x 54mm Flatduct) ¬ _{PFL 420A}USE WASHABLE FILTER COVER

¬ _{MAY 901A}USE

to

Humidistat Models

(5)

TECHNICAL DATA MAINS VOLTAGE MODELS • Extract Volume : 97 m3/h (HIGH)

: 50m3/h (LOW)

(HIGH) : 12.0dB (A)@3m(LOW) • Voltage : 230-240v AC~ • Frequency : 50 Hz • Wattage : 50W (HIGH) • : 20W (LOW) • Max. Temp. : 50 ºC

• Max Pressure : 150 pa Double Insulated

*

For Single Speed Models, Use Higher Extract Figures

DIMENSIONS

MAYFAIR -

SERIES 100 CENTRIFUGAL FANS

MA

Y

F

AI

R - SERI

ES 1

0 0 C

E

NTRIFUGA

L

F

A

N

S

A A 0 20 40 60 70 80 90 100m3/h Pa 140 120 100 80 60 40 20 0 PERFORMANCE GRAPH For

SINGLE SPEED

being switched off

Infra Red : The fan is activated by movement within the detection area of up to 5 metres. When movement is no longer detected, the integral adjustable timer allows the fan to continue operating for between 2 minutes and 25 minutes

TWIN SPEED

Standard : Twin Speed Fan designed to operate continuously at low speed. High speed is activated by separate light switch / remote switch (not supplied)

Timer : As the standard model but incorporates an integral adjustable timer. The timer will operate for between 2 minutes to 25 minutes after the switch has been turned off and the fan will return to running at the low speed. This fan is operated by separate light switch / remote switch

(not supplied)

FAN OPERATION

Ø D E

29

Measured in mm A : 250 C : 115 D : 40 E : 80 F : 115 Ø : 85 (FAN) C

(6)

Recessed or Surface Fixing on Wall / Ceiling (In-Line Option Also Available)

Integral Back Draught Shutters (SINGLE SPEED FANS ONLY) BEAB Approved

Extract Rate 97m3/h (27 l/s) (HIGH SPEED) 50m3/h (14 l/s) (LOW SPEED) IPX4 Rated

Ideal For Large Building Projects

“Intelligent” Humidistat Technology

3 Year On-Site Warranty on All Models

SPECIFICATION & INSTALLATION OVERVIEW

MA

YF

AIR -

SERIES

10

0 CENT

RIF

U

G

A

L

F

A

NS

MCC 100B Single Speed - Humidistat & Pull Cord MIR 100B Single Speed - PIR & Timer

MTS 100B Twin Speed - Continuous Trickle With Boost

MTT 100B Twin Speed - Continuous Trickle With Boost & Timer MCT 100B Twin Speed - Humidistat, Timer & Pull Cord

PRODUCT SUMMARY

MODELS AVAILABLE

RECESSED FITTING ¬ USE MAY 905B SURFACE MOUNTING

(REMOVE FAN MOTOR DOME COVER)

¬ MAY 504A USE

IN-LINE MOUNTING

¬ _{MAY 908B}USE

CEILING MOUNTING

(With 225mm x 25mm Flatduct)

¬ _{FLA 105A}USE

¬ _{MAY 901A}USE

to

Humidistat Models

(7)

TECHNICAL DATA MAINS VOLTAGE MODELS • Extract Volume : 140 m3/h

• Voltage : 230-240v AC~

• Frequency : 50 Hz

• Wattage : 60W

• Max. Temp. : 50 ºC

• Max Pressure : 175 pa

Double Insulated

*

DIMENSIONS

MAYFAIR -

SERIES 140 CENTRIFUGAL FANS

MA

YF

AIR

S

E

R

IES 140

CE

NTRI

FUG

A

L

F

A

NS

A A Measured in mm A : 250 C : 115 D : 40 E : 80 F : 115 Ø : 85 (FAN) 0 40 80 120 160m3/h Pa 175 150 125 100 75 50 25 0 PERFORMANCE GRAPH For

being switched off

Humidistat : Single Speed Fan. Manual and Automatic operation. The “Intelligent” humidity control (IHC) works on detection of a significant change in the rate of increase in humidity levels. Whilst traditional humidistat controls wait for the humidity to reach a pre-set level, IHC detects a significant increase in a location’s humidity level and activates the extract fan immediately. Once the humidity is reduced, the integral adjustable timer allows the fan to continue operating for between 2 minutes and 25 minutes. This fan is operated by separate light

Infra Red : Single Speed Fan activated by movement within the detection area of up to 5 metres. When movement is no longer detected, the integral adjustable timer allows the fan to continue operating for between 2 minutes and 25 minutes

FAN OPERATION

Ø

D E

31

(8)

Recessed or Surface Fixing on Wall / Ceiling Integral Back Draught Shutters

Extract Rate 140m3/h (39 l/s) IPX4 Rated

Ideal For Large Building Projects

“Intelligent” Humidistat Technology 3 Year On-Site Warranty on All Models

SPECIFICATION & INSTALLATION OVERVIEW

MA

YF

AIR -

SERIES

14 0 CENT

RIFUG

A

L

F

A

NS

MCC 140B Single Speed - Humidistat & Pull Cord MIR 140B Single Speed - PIR & Timer

PRODUCT SUMMARY

MODELS AVAILABLE

RECESSED FITTING ¬ USE MAY 905B SURFACE MOUNTING ¬ USE FLA 106A IN-LINE MOUNTING ¬ NOT AVAILABLE ON SERIES 140 CEILING MOUNTING (With 225mm x 25mm Flatduct)

¬ _{FLA 105A}USE

¬ _{MAY 901A}USE

to

Humidistat Models

(9)

TECHNICAL DATA MAINS VOLTAGE MODELS

• Extract Volume : 79 m3/h (HIGH) : 36 m3/h (LOW)

• Sound Volume : 38.8dB (A)@3m(HIGH)

: 16.8dB (A)@3m(LOW) • Voltage : 230-240v AC~ • Frequency : 50 Hz • Wattage : 35W (HIGH) : 20W (LOW) • Max. Temp. : 50 ºC

• Weight : 1.5 kg (FAN ONLY) • Max Pressure : 70 pa

DIMENSIONS

MAYFAIR CLASSIC - CENTRIFUGAL FANS

MA

YF

AIR C

L

ASSIC - CEN

T

RIF

U

GAL

F

A

NS

A A Measured in mm A : 197 B : 98.5 Ø : 80 0 20 40 60 70 80 90 m3/h Pa 70 60 50 40 30 20 10 0 PERFORMANCE GRAPH For

MAYFAIR CLASSIC CENTRIFUGAL

SINGLE SPEED

Standard : Fan operated by separate light switch / remote switch (not supplied) Timer : Fan operated by separate light switch / remote switch (not supplied).

The integral adjustable timer allows the fan to continue operating up to 25 minutes

after being switched off

TWIN SPEED

Timer : Fan designed to operate continuously at low speed. High speed is activated by separate light switch / remote switch (not supplied). The integral adjustable timer allows the fan to continue operating at high speed up to 25 minutes after being switched off before reverting to the lower speed

FAN OPERATION

33

(10)

Recessed Fan,

Available With Fire Rated With Integral Shutter Variable Spigot Position

Extract Rate 79m3/h (22 l/s) IPX4 Rated

Thermal Overload Protection

Maintenance Free Ball Bearing Motor Motor Mounted On Rubber Bushes - Significantly Reduces Vibration

SPECIFICATION & INSTALLATION OVERVIEW

MA

YF

AIR CL

ASSIC - CE

NTRIF

U

G

A

L

F

A

NS

Code Model

MAY 102B Single Speed - Standard

MAY 202B Single Speed - Over - run Timer

MAY 402B Twin Speed - Over - run Timer

MAY 502A Fire Shutter - 1 Hour Fire Rated - Gravity - Wall Installation MAY 502S Fire Shutter - 1 Hour Fire Rated - Spring - Wall/Ceiling Installation MAY 907A Building In Frame - 1 Hour Fire Rated

The Mayfair Classic is one of Silavent’s most successful products spanning over 40 years and still very popular in the marketplace. The centrifugal fan is in two parts, a fire protected building in frame that reduces initial cost and a plug-in fan body with fire shutters fitted. This design offers proven ease of maintenance and replacement.

This centrifugal fan offers impressive pressure performance making it ideal for the longer duct runs.

PRODUCT SUMMARY

MODELS AVAILABLE

WALL FITTING

¬

USE MAY907A

CEILING FITTING

¬

USE MAY907A

MAY 907A View From Back

MAY 907A View From Front

(11)

• Extract Volume : 90 m3/h

• Sound Volume* : 38dB (A)@3m

DIMENSIONS

PVS 100

-

100 mm

BATHROOM CENTRIFUGAL FANS

PVS

100 -

1

0 0mm

BA

TH

ROOM C

E

NT

RIFUGAL

F

A

NS

A A Ø C Measured in mm A : 230 B : 20 C : 105 Ø : 97

Standard : Single Speed Fan operated by separate light switch / remote switch

(not supplied)

Timer : Single Speed Fan operated by separate light switch / remote switch (not supplied). The integral adjustable timer allows the fan to continue operating up to 25 minutes after being switched off

Humidistat / Timer : Single Speed Fan with a integral humidity control which switches the fan on if the humidity levels exceed the pre-set level above 50% RH. Once the

humidity level is reduced, the adjustable timer continues to operate the fan for up to 25 minutes

FAN OPERATION

B Pa 120 100 80 60 40 20 0 0 20 40 60 70 80 90 m3/h PERFORMANCE GRAPH For PVS 100 BATHROOM CENTRIFUGAL

35

(12)

High performance levels 90m3/h (25 l/s) IPX4 Rated

Variable Spigot Position

Backdraught Shutters

Washable Air Inlet Filter fitted as Standard

Maintenance Free Motor with Thermal Protection

High Pressure Performance for Longer Duct Runs

SPECIFICATION & INSTALLATION OVERVIEW

PVS 1

00 - 1

0 0m

m BA

TH

RO

O

M

CE

N

T

RIF

U

GAL

F

A

NS

Code Model PVS 100BB Standard PVS 100TBB Over-run Timer

PVS 100HTBB Humidistat & Timer

Made from white, fire retardant ABS, the PVS 100mm Bathroom Centrifugal fans are designed to produce high pressure performance to operate effectively over longer duct runs.

The variable spigot position allows flexibility in the positioning of the fan and often allows the installer to position the discharge ducting close to the ceiling in any corner of the room and be able to fit the front cover correctly. These centrifugal fans are suitable for use with longer duct runs.

The case is made from a white, fire retardant ABS and includes a maintenance free motor with thermal protection. The fans are supplied with a washable air inlet filter as standard

PRODUCT SUMMARY

MODELS AVAILABLE

(13)

• Extract Volume : 260 m3/h

• Sound Volume*_: _41dB_(A)@3m

DIMENSIONS

PVS 100 - 100

mm

KITCHEN CENTRIFUGAL FANS

PV

S 100 - 1

0 0mm K

IT

C

H

E

N CE

NT

RI

F

U

GA

L

F

A

NS

A A Ø C Measured in mm A : 265 B : 20 C : 115 Ø : 97

Standard : Single Speed Fan operated by separate remote switch (not supplied)

Timer : Single Speed Fan operated by separate light switch / remote switch (not supplied). The integral adjustable timer allows the fan to continue operating up to 25 minutes

Humidistat : Single Speed Fan with a integral humidity control which switches the fan on if the humidity levels exceed the pre-set level above 50% RH. Once the humidity level is reduced, the fan switches off. This fan is operated by separate remote switch

(not supplied)

Humidistat / Timer: Single Speed Fan with a integral humidity control which switches the fan on if the humidity levels exceed the pre-set level above 50% RH. Once the humidity level is reduced, the adjustable timer continues to operate the fan for up to 25 minutes. This fan is operated by separate remote switch (not supplied)

FAN OPERATION

B 0 40 80 120 160 200 240 m3/h PERFORMANCE GRAPH For PVS 100 KITCHEN CENTRIFUGAL Pa 400 350 300 250 200 150 100 50 0

37

(14)

High performance levels 260m3/h (72 l/s) IPX4 Rated

Variable Spigot Position

Backdraught Shutters

Washable Air Inlet Filter fitted as Standard

Maintenance Free Motor with Thermal Protection

High Pressure Performance for Longer Duct Runs

SPECIFICATION & INSTALLATION OVERVIEW

PVS 1

0 0 - 1

00m

m KIT

C

H

E

N CE

NT

RIF

U

G

A

L

F

A

NS

Code Model PVS 100BK Standard PVS 100TBK Over-run Timer PVS 100HBK Humidistat

PVS 100HTBK Humidistat & Timer

Made from high gloss white, fire retardant ABS, the PVS 100mm kitchen centrifugal fans are designed to produce high pressure performance to operate effectively over longer duct runs. The variable spigot position allows flexibility in the positioning of the fan and often allows the installer to position the discharge ducting close to the ceiling in any corner of the

room and be able to fit the front cover correctly.

These centrifugal fans are suitable for use with longer duct runs. The fans are fitted with maintenance free motors incorporating thermal protection.

The fans are supplied with a washable air inlet filter as standard

PRODUCT SUMMARY

MODELS AVAILABLE

(15)

• Extract Volume : 240 m3/h (HIGH) : 120m3/h (LOW)

(HIGH) : 12.0dB (A)@3m(LOW) • Voltage : 230-240v AC~ • Frequency : 50 Hz • Wattage : 90W • Max. Temp. : 50 ºC

• Max Pressure : 300 pa

*

DIMENSIONS

KITCHENAIRE - CENTRIFUGAL FANS

KI

TCHE

NAI

R

E - CE

NT

RI

FU

GA

L

F

A

N

S

A B Measured in mm A : 337 B : 294 C : 74 D : 121 Ø : 100 0 40 80 120 160 200 240m3/h Pa 350 300 250 200 150 100 50 0 PERFORMANCE GRAPH For KITCHENAIRE CENTRIFUGAL SINGLE SPEED

Timer : Single Speed Fan operated by separate light switch / remote switch (not supplied). The integral adjustable timer allows the fan to continue operating up to 25 minutes

TWIN SPEED

Pull Cord : Twin Speed Fan is operated by the 3-position pull cord. The operation of the pull

cord is Off, Low, Boost, Off

Humidistat : Manual and Automatic operation. If humidity exceeds the pre-set level above 50% RH, the fan switches to low speed. The pull cord offers a manual boost facility to

high speed operation.

FAN OPERATION

Ø C C D

39

(16)

Integral Back Draught Shutters & Integral Filter Extract Rate 240m3/h (67 l/s)

IP23 Rated

Thermal Overload Protection

Maintenance Free Ball Bearing Motor

Motor Mounted On Rubber Bushes - Significantly Reduces Vibration

SPECIFICATION & INSTALLATION OVERVIEW

KIT

CHE

NAIR

E - CENT

RI

F

U

GAL

F

A

N

S

Code Model

KIT 102B Single Speed - Standard

KIT 103B Single Speed - Over - run Timer

KIT 104B Single Speed - Pull Cord

KIT 107B Single Speed - Humidistat & Pull Cord

KIT 201B Twin Speed - Pull Cord

KIT 203B Twin Speed - Humidistat

The Kitchenaire range of fans are, as the name implies, designed specifically for the kitchen area of the home. The large inlet grille provides a maximum area for extraction and filtration with the overall design of the product aimed to facilitate the removal and cleaning of the integral filter (ANC 303A). The Kitchenaire is a powerful, yet quiet, centrifugal fan made of high gloss ABS built with an exceptionally long life external rotor type motor with sealed for life ball bearings and thermal protection. It offers the ideal alternative to obtrusive cooker hoods.

This range of fans can be wall or ceiling mounted and can be used in conjunction with Silavent range of flatduct.

Please note that models fitted with a pull cord are not suitable for ceiling mounting.

PRODUCT SUMMARY

MODELS AVAILABLE

WALL FITTING

¬

HOLE SIZE 110mm

¬

USE ANC 841D

CEILING FITTING

(With Flexible Ducting)

¬

HOLE SIZE 110mm

¬

USE ANC503BT,ANC596 A etc CEILING FITTING (With Flatduct)

¬

INSTALL CEILING

BOX

¬

USE FLA 007A
