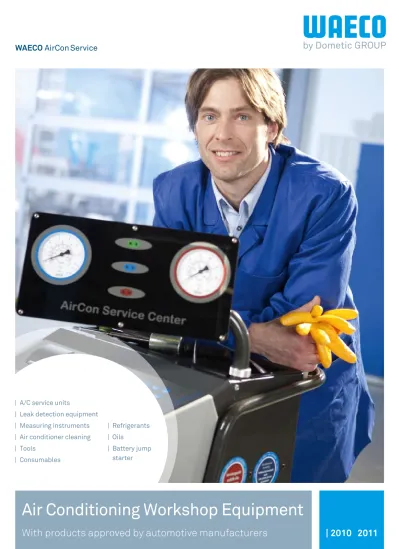

Air Conditioning Workshop Equipment

(1)

| A/C service units

| Leak detection equipment

| Measuring instruments

| Air conditioner cleaning

| Tools

| Consumables

Air Conditioning Workshop Equipment

With products approved by automotive manufacturers

| Refrigerants

| Oils

| Battery jump

starter

(2)

Ausführungen, dem technischen Fortschritt dienende Änderungen, Irrtümer und Liefermöglichkeiten vorbehalten.

WAECO – development partner

of the automotive industry

New vehicle models, new technologies and new legislation call for constantly improving A/C

work-shop equipment. Numerous vehicle manufacturer approvals document that WAECO AirCon Service

products have been designed in close cooperation with the automotive industry. Dometic WAECO’s

AirCon professionals are committed to excellence every day. Their know-how is also appreciated in

expert committees and associations of the automotive industry:

›

VDA German Association of the Automotive Industry

(task group workshop equipment for alternative refrigerants)

›

ZdK Central Association of the German Motor Trade

›

SAE Society of Automotive Engineers (development of specifications for A/C service equipment)

›

ASA German Association of Manufacturers and Importers of Automotive Service Equipment

›

GvA General Association of Independent Distributors of Automotive Parts

All of this ensures that the WAECO AirCon Service range meets the demands of tomorrow’s

vehicles.

(3)

Contact

We are glad to help!

Your service contact details:

Mo – Thur 7:30 am – 5:30 pm, Fr 7:30 am – 5:00 pm

Technical service:

Tel +49 (0) 2572 879-191

Fax +49 (0) 2572 879-391

[email protected]

Technical matters, documentation (installation instructions, spare part lists)

Sales team:

Tel +49 (0) 2572 879-199

Fax +49 (0) 2572 879-390

[email protected]

Orders, inquiries, conditions, lead times

| Products approved by major vehicle

manufacturers

| Original replacement parts

| Universal components

| Components for special A/C applications

| Retrofit air conditioners

| A/C workshop equipment

| Consumables

| Technical advice and support

| Tailor-made training concepts

| Proof of competence according to §5 of

the German Chemicals Climate Protection

Ordinance

| Battery charger + jump starter

What WAECO offers

(4)

Training and seminars

AirCon Service

New proof of expertise required!

Compact courses 2010

According to the Chemicals Climate Protection

Ordinance (§ 5, paragraph 3) all persons responsible

for the maintenance or repair of vehicle air

condi-tioners must acquire the new proof of expertise in

compliance with VDA/VDIK/ZDK. The time limit set

by legislation expires on 04.07.2010, the latest date

to present the new authorisation.

Dometic WAECO International is authorised to

orga-nise qualification seminars and issue certificates as

proof of expertise. Corresponding one-day compact

courses are arranged at different locations in the

whole of Germany. Applicants must be qualified in

a trade related to motor vehicle technology to

be accepted. The number of participants in each

seminar is limited so that timely and binding

registration is advisable. For information on current

schedules please contact www.airconservice.eu or

phone +49 2572 879-141.

Seminar topics:

The one-day seminars convey the expert knowledge

required by law in a hands-on manner and confirm its

command by a certificate of participation. The

semi-nar topics are officially prescribed and comprise,

among others:

› General introduction to vehicle A/C systems

› Effects on the environment

› European legislation, ordinances, directives,

waste treatment regulations

› Basic physical principles

› Construction/function of vehicle A/C systems

› Repair and maintenance of vehicle A/C systems

› Pressure testing on vehicle A/C systems

› Guided fault detection

› Final control/performance testing

› Alternative refrigerants

(5)

Alternative refrigerants:

What happens when R134a is banned?

In years to come, too:

R 134a A/C service units will remain indispensable

for everyday workshop needs!

The introduction of alternative refrigerants in vehicle

A/C systems has been a topic of discussion for some

time now. Possibilities include the introduction of

processes based on extremely high operating

pressures (e.g. a CO2 system), but also alternatives

such as the HFO-1234yf refrigerant.

Vehicle manufacturers will be using alternative

refri-gerants by 2011 at the latest. From then on

fluoro-carbons such as R134 may no longer be used in newly

built vehicles, following Commission Regulation (EC)

No. 706/2007.

For the everyday workshop routine this means that

starting with the introduction of a new refrigerant

– regardless whether CO

₂

or HFO-1234yf –

work-shops (especially the brand-bound ones) will

initially have to work with two different service

systems.

Likewise, the above mentioned regulation commits

the vehicle industry to stop using R134a as a

refrige-rant for vehicle A/C systems (in new vehicles) from

1st January 2017.

What does this regulation imply?

The fact that

even in year 2016 vehicle A/C systems

containing R134a refrigerant are likely to be

launched in the market

means that workshops must

be prepared to adapt their technical equipment and

handle two different refrigerants.

Taking an average

service time of 20 years into account, vehicles using

R134a refrigerant will be taken to workshops for

maintenance and service until the end of 2036!

This is why R134a A/C service stations will remain

vitally important for workshops in future, too – for

twenty years and more!

(6)

28 – 29

Refrigerants

and oils

30 – 35

Air conditioner

flushing

10 – 27

A/C service units

R134a refrigerant PAO compressor oil, universal

PAG compressor oil PAG compressor oil (in patented container) Denso ND8 compressor oil (in patented container) Vacuum pump oil ESTER compressor oil ASC 1000

ASC 2000 ASC 3000 ASC 2000RPA Accessories for A/C service units

Universal flush container Flushing adapter kit Universal flushing adapter kit

A/C system flushing connector

Flushing adapter set Set of chip filters Oil checker Recycle Guard

36 – 37

Recovery and

evacuation

Vacuum pumps Refrigerant recovery unit Charging cylinder for R134a Refrigerant scales

38 – 47

Leak detection

equipment

UV leak detection kit Borescope leak detection lamp

UV leak detection lamps TRACER®_sticks TRACER®_cartridges Patented container for UV additive charging TRACER®_bottles TRACER®_dyes TRACER®_GLO-AWAY Hand pump R134a leak detector R134a reference leak Leak detection spray Safety gloves, goggles Nitrogen leak detection

(7)

52 Measuring

instruments

53 – 59

Tools, hoses and

accessories

48 – 51

Air conditioner

cleaning

LCD digital thermometer Pocket-size digital temperature meter Infrared laser thermometer Pressure meter

Refresh-o-mat ultrasonic atomiser

Ultrasonic disinfector AirCon Refresh air conditioner cleaner Car Refresh smell stopper Air conditioner spray can Disinfectant

Service quick couplers Spring lock repair set Spring lock disconnect tool set

Thread cutting tools Disconnect tools Valve fitting tool Slide hammer puller for drier cores

Crimping tool for refrigerant fittings

Manuli case set Easy repair kit

Set of special ring spanners O-ring pick tool

Hoses and adapters

60 – 63

Kits and

insulating material

Set of chip filters Valve cores

Plugs for refrigerant lines Orifice tubes

Original replacement O-rings O-rings for retrofit air conditioners Original replacement special O-rings Insulating material

64 – 65

Charging and

starting

W-curve automatic battery charger plus jump starter Multi-functional battery jump starter

(8)

Ausführungen, dem technischen Fortschritt dienende Änderungen, Irrtümer und Liefermöglichkeiten vorbehalten.Contents, specifications and availability are subject to change serving the technical improvement.

Mailing cards

How to be a successful A/C professional

›

Professional workshop equipment

›

Spare parts service

›

Reliable guarantee services

›

Professional A/C training courses

›

Marketing & sales promotion

›

Technical support

This unique and complete air conditioning

concept gives your business an edge on

efficiency and success. Benefit from a

comprehensive scope of services that keep

you a step ahead of your competitors.

Mailing cards to match the “A/C check” and

“A/C clean-up” posters.

Make your customers aware of potential

problems with vehicle air conditioners and

generate extra sales!

Here’s how the mailing cards can be adapted

to your wishes and requirements:

Your Logo

Your specific special offer period

Your special prices/discounts

Your corporate address as the sender

And here’s your part of the deal

Order the mailing cards plus the poster. Place

the poster in a prominent place. Affix

custo-mer address labels to the 5,000 mailing cards

supplied by Dometic WAECO. Don’t forget the

stamps, and off you go! Then start making

dates for A/C checks and A/C clean-ups!

Your contact for any questions you may have

about this offer: Ms Kreimer, phone: + 49

2572 879-437.

5.000 Stück mailing cards: 150,00 €.

WAECO AirCon expertise

AirCon Service

1

2

3

4 NEW!

For your

advertising

Mailing card “A/C check-up weeks”

Mailing card “Breathe again” Poster

1 1 2 3 4 1 1 3 4

(9)

Basic package

Bonus package

Basic

package

1x fly flag 100 x 300 cm (W x H) or 1x strap 300 x 0.85 cm (W x H)

Free of

charge

245 pieces

for

32,– €

1x poster “A/C check-up” 59,4 x 84,1 cm (W x H) 1x poster “A/C clean-up” 59.4 x 84.1 cm (W x H) 1x poster

“A/C check-up technic” 59.4 x 84.1 cm (W x H)

50x

Bags of fruit gums

30x

Air freshener “Eddy”

30x A/C label 30x “Service passport” 10.5 x 14.8 cm 50x

Leaflet “Breathe again”

1x Counter display 21 x 29 cm (W x H) optional 50x Mirror tags

+

NEW

(10)

ASC A/C service units – for professionals

Service work on automotive air conditioners can be

a lucrative source of revenues for motor garages

and A/C shops – provided they have the right

tech-nical equipment!

ASC A/C service units work

fully

automatic.

Once started the units perform all A/C

service functions 100% autonomously – which gives

you the chance to do other things in the meantime.

Unlike with other manufacturers‘ service units,

there‘s no need to check the process or interfere

manually. ASC Service Centers are absolutely safe,

accurate and efficient in operation. Their unique

benefits make them unbeatable companions in

everyday workshop practice.

AirCon Service Center

AirCon Service

MADE IN GERMANY

Comply with

SAE J 2788

and

SAE J 2099

(11)

No mistakes possible: fully automatic unit – often copied, never matched!

Units with manual check valves involve the risk of erroneously charging the air conditioner from the low pressure side. Automatic units are safer! Genuine automatic systems can be identified by the fact that they have no check valves.

Patented feeding system for fresh oil and UV additive

Automotive manufacturers warn against using plastic containers because they let moisture into the oil. In ASC A/C service units fresh oil is stored moisture-free in laminate bags contained in protective metal cylinders. No blockage of valves, no solvent penetration! Automotive manufacturers’ specifications on the use of UV additives and PAG oils are met.

Integrated charging amount database

The database contains many vehicle-specific data. The type of oil and the precise amount of oil and refrigerant to be used for specific vehicles are shown on the display. Updates are made available on a regular basis (WAECO flash memory card). New now is the option to create a personalised charging amount database for up to 100 vehicles.

NEW: Also suitable for modern-day hybrid vehicles

ASC-series A/C service units are suitable for service work on modern-day hybrid vehicles of German make, because standard PAG oils are used here. Hybrid vehicles (or air conditioners) from Japanese manufacturers use ester oils. ASC units may be used here, too (check manufacturer’s specifications).

NEW: Integrated refrigerant charging amount / recovery amount management

The total amount of refrigerant charged or recovered can be displayed on the unit or printed out by the thermal printer. The data can be stored for 24 months.

Customised flushing process and flush bottle

The flushing process, including its custom adaptation, is developed in cooperation with the automotive industry. This results in an efficient and safe flushing process.

TÜV-approved refrigerant purity

An official inspection certificate issued by TÜV Rheinland confirms that the effectiveness of the refrigerant cleaning function of WAECO A/C service units complies with the international SAE J 2099 / J 2210 directive.

NEW: Protected access with individual user codes

To prevent unauthorised use of WAECO A/C service units, up to 10 user names can be programmed in combination with individual PIN codes.

1

2

9

3

5

4

6

7

8 The benefits at a glance

NEW: Operational software available in more than 20 languages

DE GL EN CA FR ES IT EU SR FI HR ET SL CS TR RO NL PL DA NO PT

(12)

1 Swivel-mount display and information unit

2 Data printer to be activated as required, with multiple print-out and paper feed options

3 Large membrane keypad for safe and reliable data entry

4 Patented, professional feeding system for fresh oil and UV additive

NEW: Now supplied with test bottles

5 Large and sturdy wheels

6 Manometer with 100 mm diameter

7 High-contrast LED display for process supervision from a long distance

1

2

3

4

5 Made in Germany – the inner riches

Professional air conditioning workshops

require

fully automatic equipment to meet today’s ad-

vanced service requirements. Even for specialists, it

is important that the equipment is

fast and easy to

use

and works virtually “on its own” without the

need to keep a constant eye on it. User friendliness,

operational safety and easy maintenance are other

issues that count, because they help

save time and

money.

With today’s workshop needs in mind Dometic

WAECO has designed a service unit that meets and

exceeds these requirements at a

most convincing

cost/benefit ratio.

All WAECO ASC A/C service units

are

approved by the automotive industry.

Well

thought-out in every detail, they provide many

unique advantages, which become obvious as you

take a look at the

modular design:

(13)

8 3 separate weighing cells for oil management (used oil/fresh oil/UV additive) are a distinctive feature of the fully automatic unit

9 Large display for easy readability and reliable data entry

10 Refrigerant tanks with preassembled condenser and fan for accurate indication of the recovered amount of refrigerant

11Special 8-bearing weighing platform with heavy-duty weighing cell (100 kg load capacity)

12 Vacuum pump with 60-hour oil change interval 13 Heating tape

6

7

8

9

10

11

13

12

(14)

AirCon Service Center

AirCon Service

Patented feeding system

for fresh oil and UV additive

ASC series complies with

SAE standard J 2788

Automotive manufacturers

warn against using plastic

containers because they let

moisture into the oil. In ASC

A/C service units fresh oil is

stored

moisture-free

in

laminate bags contained in

protective metal cylinders.

No blockage of valves,

no solvent penetration.

Approved by many

automo-tive manufacturers.

The standard developed by the

S

ociety of

A

uto-motive

E

ngineers (SAE) is valid for the USA, while it

can also be found in the factory specifications of

several German automotive manufacturers.

What are the most significant requirements, and

which are relevant for daily workshop operation?

Requirements for SAE J 2788 approval:

›

The unit must be able to recover 95% of the

refrigerant contained in the automotive air con-

ditioner within 30 minutes, at ambient tempera-

tures between 20 and 24°C. In other words, no

more than 5% of the refrigerant may be left in

the air conditioner.

›

Refrigerant must be charged with an accuracy

of +/- 15 g.

›

Measurements must be made and displayed

with an accuracy of +/- 30 g.

To comply with these requirements the WAECO

AirCon Service team has modified the hardware

and software of ASC-series units. Among other

things, they have developed a new weighing

plat-form.

A/C service units meet tomorrow’s requirements

already today!

Now included

in the delivery

kit!

Special, 8-bearing weighing platform with heavy-duty weighing cell (100 kg load capacity)

Laminate bags

(15)

AirCon Service

Dometic WAECO:

Partner to the automotive industry

A/C service unit

Leak detection equipment

Air conditioner cleaning Consumables (UV additives / compressor oils) Mercedes Benz BMW Nissan Automotive manufacturers Hyundai Opel/ GM VW

Renault Fiat Ford Volvo Jaguar Land-rover

Aston Martin

Mazda MAN DAF Scania

Approved by automotive manufacturers

Service and repair of automotive air conditioners is

a multi-faceted business driven by continuous

innovation. In order to comply with vehicle

manu-facturers’ requirements, Dometic WAECO works

closely with the automotive industry when

develo-ping workshop equipment for service and repair on

automotive air conditioners.

We see to it that all

requirements included in the manufacturers’

specification manuals are precisely met. Every

piece of equipment is checked inside out for

compliance.

WAECO workshop equipment:

› Made in Germany

› With future-orientated technologies

› Approved by the automotive industry

The experienced WAECO AirCon team can answer

even the most specific questions, and they are

always available for a helpful hint. Where a

prob-lem cannot be solved over the phone, a WAECO

consultant will be sent to your workshop without

delay!

Get in touch – our WAECO AirCon team welcomes

the challenge.

(16)

ASC 1000 – fully automatic

AirCon Service Center

Fully automatic AirCon Service Center for all AirCon

specialists.

This unit has all it takes to perform

stan-dard service work on automotive air conditioners.

With

quick-start function:

simply enter the amount

of refrigerant to be charged, make a total of three

input instructions, and the unit will automatically do

all the required functions:

› Refrigerant recovery and recycling

› Residual pressure measurement

› Used oil drainage

› Evacuation

› Leak check

› Charging of fresh oil and UV additive

› Refrigerant charging with charging amount

compensation of the service hoses

All process steps are done fully automatic,

self-monitored by the system. Errors are indicated by

acoustic and visual signals from the swivel-mount

display unit.

AirCon Service Center

AirCon Service

With special

software for A/C

flushing to vehicle

manufacturer’s

specifications

(17)

New ASC 1000 features

ASC1000 – fully automatic A/C service unit

› Sturdy metal housing

› Charging cylinder storage capacity: 10 kg, vacuum pump capacity: 4 cars/hour

› New: patented feeding system for fresh oil and UV additive including test bottles › Print-out of important service data, several

print-outs possible

› Fully automatic refrigerant recycling, oil and additive management

› Automatic vacuum check

› Automatic charging of leak detection additive › New: integrated refrigerant charging and

recovery amount management › Integrated charging amount database › Complies with SAE J 2099 and SAE J 2788 › New: personalised charging amount

database

› Operator guidance via large display and manometer

› Swivel-mount display and information unit (patented)

› Heated charging cylinder for high-speed charging, heat-up also possible during the charging process

› Special, 8-bearing weighing platform

› Special air conditioner flush function › Large recessed tray for tools

› 500 ml used oil container for longer change intervals

› Also suitable for German-make hybrid vehicles

Ref. No.

8885200076 (see page 24 for specifications)

New design: the swivel-mount display unit › for convenient measurement reading › for process status monitoring

Large recessed tray for tools Super-bright function LEDs enable process supervision even from a long distance

Individual user code:

To prevent unauthorised use of WAECO A/C

service units, up to 10 user names can be

programmed in combination with individual

PIN codes.

Patented fresh oil and UV additive feeding system now standard

on all ASC service units!

Advantages:

› Moisture-free, clean storage of refrigerant oils

› Prevents contaminant penetration

› High storage capacity for longer change intervals

› Complies with automotive manufacturers’ specifications

Personalised charging amount database:

ASC-series units built as of 2010 provide

the option to create a personalised

charging amount database for 100

different vehicles.

(18)

ASC 2000 – with patented feeding system

for fresh oil and UV additive

This high-end unit is backed by a wealth of WAECO

know-how and experience. Designed for profes-

sional, fully automatic A/C service on

trucks and

cars,

the ASC 2000 minimises operator effort and

significantly speeds up throughput times.

The ASC 2000 performs the following

processes

fully automatic:

› Refrigerant recovery and recycling

› Residual pressure measurement

› Used oil drainage

› Evacuation

› Leak check

› Fresh oil and UV additive charging

› Refrigerant charging with charging amount

compensation of the service hoses

On top of that, the ASC 2000 offers:

› Large charging cylinder storage capacity (21 kg)

› Dust cover

› Accurate oil management with 3 separate micro

scales

AirCon Service Center

AirCon Service

With special

software for A/C

flushing to vehicle

manufacturer’s

specifications

(19)

Large, illuminated display with quick-select menu and integrated printer

Flush container (available as option)

New ASC 2000 features

ASC2000 – fully automatic A/C service unit

› Charging cylinder storage capacity: 21 kg,

vacuum pump capacity: 5 cars/hour

› Print-out of important service data, several print-outs possible

› New: patented feeding system for fresh oil and UV additive including test bottles › Dust cover included in the delivery kit

› Fully automatic refrigerant recycling, oil and additive management

› Automatic vacuum check

› Automatic charging of leak detection additive › New: integrated refrigerant charging and

recovery amount management › Integrated charging amount database › New: personalised charging amount

database

› Complies with SAE J 2099 and SAE J 2788 › Operator guidance via large display and

manometer

Ref. No.

The built-in data printer offers the following

features:

› Measurements can be printed out as often as desired

once the service process has been completed

› Measurements of the amount of recovered refrigerant

can be blanked out if required

NEW

Measurement print-out showing the amount of recovered and recycled refrigerant

Individual user code:

To prevent unauthorised use of WAECO A/C

service units, up to 10 user names can be

programmed in combination with individual

PIN codes.

Personalised charging amount database:

ASC-series units built as of 2010 provide

the option to create a personalised

charging amount database for 100

different vehicles.

(20)

ASC 3000 – high-volume AirCon Service Center

for buses, rail cars, helicopters and custom

applications

Time is valuable, especially when it comes to air

conditioning service on large vehicles such as

buses

and rail cars

where downtimes are extremely costly

for the operators. Speed and reliability are vital. Key

service tasks such as refrigerant recovery,

evacua-tion and refrigerant recharging need to be performed

in a tight timeframe. The ASC 3000 perfectly meets

these requirement. Its

2-stage vacuum pump

evacuates

132 litres per minute.

An additional

fluid pump ensures fast refrigerant recharging.

The following processes are performed fully

automatic:

› Refrigerant recovery and recycling

› Residual pressure measurement

› Used oil drainage

› Evacuation

› Leak check

› Fresh oil and UV additive charging

› Refrigerant charging with charging amount

compensation of the service hoses

The ASC 3000, too, offers:

› Patented fresh oil and UV additive feeding

system

(allows moisture-free and clean storage of

refrigerant oils even over longer periods of time,

which cuts A/C service costs)

› Integrated printer

for service data documentation

On top of that, the ASC 3000 offers:

› Integrated fluid pump for high-volume

refrigerant recharging on buses and rail cars, etc.

› High-volume charging cylinder with 30 kg storage

capacity and extra-long, 8 m service hoses

(21)

ASC3000 – fully automatic AirCon Service Center

› Charging cylinder storage capacity: 30 kg,

vacuum pump capacity: 132 l/min

› Integrated fluid pump for high-volume refrigerant recharging on larger vehicles such as buses and rail cars

› 2-stage vacuum pump designed in coopera-tion with utility vehicle manufacturers

› New: patented feeding system for fresh oil and UV additive including test bottles › Dust cover included in the delivery kit › Fully automatic refrigerant recycling, oil and

additive management

› Automatic vacuum check and charging of leak detection additive

› Complies with SAE J 2099 and SAE J 2788

› New: integrated refrigerant charging and recovery amount management

› Integrated charging amount database › New: personalised charging amount

database

› Operator guidance via large display and manometer, large recessed tray for tools › Swivel-mount display and information unit

(patented)

› Special air conditioner flush function › 500 ml used oil container for longer change

intervals

Ref. No.

New ASC 3000 features

Simply perfect:

› Easy-to-read manometer

› Patented feeding system for

fresh oil and UV additive

› Unit suitable for mobile use

› Complies with automotive

manufacturers’ requirements

NEW

Super-bright function LEDs enable process

supervision even from a long distance Large recessed tray for tools

Swivel-mount display for convenient

measurement reading and process monitoring The storage compartment protects service hoses from damage Large, illuminated display with quick-select menu

Individual user code:

To prevent unauthorised use of WAECO A/C

service units, up to 10 user names can be

programmed in combination with individual

PIN codes.

Personalised charging amount database:

ASC-series units built as of 2010 provide

the option to create a personalised

charging amount database for 100

different vehicles.

(22)

ASC 2000RPA –

Fully automatic refrigerant analysis

Refrigerants that are contaminated or mixed with

air inevitably cause damage. In order to be on the

safe side it is advisable to choose the WAECO

ASC 2000RPA service unit.

RPA stands for Refrigerant Purity Analyser – a system

which controls whether the vehicle A/C system and

A/C service unit really contain pure R134a and nothing

else.

The most frequent reasons for refrigerants

contami-nation are

› Refrigerants imported from the Far East

› Air in the vehicle A/C system

A vehicle A/C system can only operate successfully

when filled with pure R134a. Air entering the system

means a serious problem.

Possible consequences:

› Increased operating pressure and functional

problems of the A/C system

› Corrosion caused by the humidity admitted with

the air

› Substantial strain on the compressor suction and

pressure valves through increased pressure in the

system

› Substantial reduction of the refrigeration

performance

Nitrogen leak check

Environmental protection is not just a catchword – it

is a commitment. In order to protect our environment

it is necessary to release as little refrigerant as

pos-sible into the atmosphere.

In addition to the existing,

fully automatic vacuum leak test function

integra-ted in the service unit it is possible to admit

nitro-gen to the system.

In this manner the disadvantage

of leak tests solely by vacuum (components such as

A/C tubes might contract and thus close a leak) can

be eliminated.

Exposure to pressurised nitrogen

during A/C service tells you immediately whether

the system is tight.

Testing is carried out fully

automatically by the ASC 2000RPA.

AirCon Service Center

AirCon Service

With automatic

refrigerant analysis

and fully automatic

nitrogen leak

check

(23)

ASC 2000RPA features

ASC 2000RPA – fully automatic A/C service unit

› Sturdy metal housing

› Fully automatic refrigerant analysis

› Charging cylinder storage capacity: 21 kg

› Vacuum pump capacity 5 cars/h

› New: patented feeding system for fresh oil and UV additive including test bottles › Dust cover included in the delivery kit › Fully automatic refrigerant recycling, oil and

additive management › Automatic vacuum check › Fully automatic nitrogen leak test › Automatic charging of leak detection

additive

› New: integrated refrigerant charging and recovery amount management

› Complies with SAE J 2099 and SAE J 2788

› Integrated charging amount database › New: personalised charging amount

database

› Operator guidance via large display and manometer

› Special transport safety device for the refrigerant tank allows service work in mobile applications

Ref. No.

Fully automatic nitrogen leak test

Information displayed after refrigerant analysis Intake filter of the analysis unit

Fully automatic testing of refrigerant purity

The ASC 2000RPA A/C service unit ensures that the A/C

system only contains pure R134a, neither contaminated

with unauthorised refrigerants nor mixed with air.

Prior to the actual recycling process the service unit

automatically removes and analyses a small refrigerant

sample (9.5 g). The results are shown on the unit display.

The operator receives a significant, qualified assessment

of the refrigerant in the A/C system connected to the

service station and can exactly determine what repairs or

maintenance may be required.

If the refrigerant is fine, the ASC 2000RPA continues its

fully automatic programme in the same manner as the

WAECO ASC 2000 system.

Extra features provided by the WAECO ASC 2000RPA:

› Refrigerant analysis module for identification of

refrigerants or gases such as:

R12, R134a and R22

HC (propane; used in retrofit gas

Iscon 49, R413a)

Non-condensable gas (air)

› Fully automatic nitrogen leak test

Gas cylinder trolley on page 47

(24)

Ausführungen, dem technischen Fortschritt dienende Änderungen, Irrtümer und Liefermöglichkeiten vorbehalten.Contents, specifications and availability are subject to change serving the technical improvement. • included in the delivery kit

AirCon Service Center – specifications

AirCon Service

Specifications ASC ASC 1000 ASC 2000 ASC 2000 RPA ASC 3000

Ref. No. 8885200076 8885200063 8885200072 8885200080

Recovery / recycling

Suitable for refrigerant R134a R134a R134a R134a

Manufactured to UL standards of the USA • • • •

Purity of recovered refrigerant according to SAE J 2099 • • • •

Refrigerant recovery rate in kg/h 30 30 30 30

Vacuum pump capacity 4 cars/h 5 cars/h 5 cars/h 132 l/min. Capacity of the hermetic compressor in kW 0.32 0.32 0.32 0.32

Dry filter capacity in kg 150 150 150 150

Charging

Charging cylinder/useful capacity in kg 10 kg 21 kg 21 kg 30 kg Charging amount indicated by Display Display Display Display

Processes

Refrigerant analysis - - automatic

-Recovery/recycling automatic automatic automatic automatic Purging of non-condensable gases automatic automatic automatic automatic Purging of used oil automatic automatic automatic automatic

Evacuation automatic automatic automatic automatic

Vacuum check automatic automatic automatic automatic

Nitrogen leak check - - automatic

-Injection of leak detection additive automatic automatic automatic automatic Injection of oil into the A/C system automatic automatic automatic automatic Refrigerant charging automatic automatic automatic automatic

Control panel

High/low pressure indicated by Manometer Manometer Manometer Manometer

Vacuum indicated on Display Display Display Display

Total process control via display • • • •

Option to set the evacuation time • • • •

Protocol print-out with printer • • • •

Scope of delivery

Printer • • • •

Service hoses (SAE standard), 3 m • • •

-Service hoses (SAE standard), 8 m - - - •

Valve adapter for WAECO refrigerant bottles • • • •

Operating instructions • • • •

Adapter for 500 ml fresh oil and UV tracer dye bottle • • • •

Closed container for used oil (500 ml) • • • •

Charging device for A/C compressor oil • • • •

Injection device for UV additive • • • •

Heated refrigerant tank / fluid pump (F) • • • F

Dust cover Option • • •

Goggles / safety gloves • • • •

Test bottles UV additive for approx. 10 applications • • • -Bottle of fresh PAG oil ISO 46, 500 ml 8887200013 8887200013 8887200013 -Bottle of fresh PAG oil ISO 100, 500 ml 8887200014 8887200014 8887200014

-Accessories/consumables

Fresh PAG oil ISO 46, 500 ml bottle 8887200013 8887200013 8887200013 8887200013 Fresh PAG oil ISO 100, 500 ml bottle 8887200014 8887200014 8887200014 8887200014 Fresh PAG oil ISO 150, 500 ml bottle 8887200019 8887200019 8887200019 8887200019 Universal oil, 500 ml 8887200017 8887200017 8887200017 8887200017 UV tracer dye, 500 ml bottle TP-3820-500 TP-3820-500 TP-3820-500 TP-3820-500 Adapter for 500 ml bottle of fresh oil and UV tracer dye 4440600026 4440600026 4440600026 4440600026 Universal oil container, plastic (250 ml) 4440600034 4440600034 4440600034 4440600034 Container for used oil, 500 ml 4440600033 4440600033 4440600033 4440600033 Spare filter for service work 4440400008 4440400008 4440400008 4440400008

Dust cover 4445900081 4445900081 4445900081 4445900081

Refill bottle for TRACER®_{injection device, 236 ml} _TP-3820-0008 _TP-3820-0008 _TP-3820-0008 _TP-3820-0008

Refill bottle for TRACER®_{injection device, 475 ml} _TP-3820-0016 _TP-3820-0016 _TP-3820-0016 _TP-3820-0016

TRACER®_{injection device (sep. additive container, 250 ml)} _4440600034 _4440600034 _4440600034 _4440600034

Spare roll of thermal paper for printer (sales pack 4 pcs.) 4445900088 4445900088 4445900088 4445900088 Service hose for high-pressure side (SAE standard), 5 m 8885100026 8885100026 8885100026 8885100026 Service hose for low-pressure side (SAE standard), 5 m 8885100025 8885100025 8885100025 8885100025

Goggles 8885400066 8885400066 8885400066 8885400066 Safety gloves 8885400065 8885400065 8885400065 8885400065 Dimensions/weight/power supply W x H x D in mm 560 x 1300 x 650 560 x 1300 x 650 560 x 1300 x 650 560 x 1300 x 650 Weight in kg 95 100 100 110 Power supply 220/240 V – 50/60 Hz • • • •

(25)

AirCon Service

WAECO A/C service units:

Compliance with new automotive industry requirements

WAECO ASC A/C service stations are the first fully

automatic units in the market – with a host of quality

features:

Made in Germany // Patented feeding system for fresh

oil and UV additive // Integrated charging amount

data-base // Refrigerant purity according to SAE J 2099 /

J 2210 // 8-bearing weighing technology

The ASC series includes a matching unit for all

applications:

› For entry-level needs:

ASC 1000

› For professional requirements:

ASC 2000

› For safety’s sake:

ASC 2000RPA

with refrigerant

analysis function

› For high-capacity charging:

ASC 3000

for buses,

rail cars and helicopters

ASC-series units are also suitable for A/C service work

on modern-day hybrid vehicle of German make.

Today’s vehicle A/C systems have been developed

to a very high technical standard. Consequently,

A/C service stations are more and more becoming

important measuring systems designed to

safe-guard A/C system functionality. Certain factors must

be considered to realise this aim:

› The accurate observation of the refrigerant

charging level, allowing for very low deviations,

i.e. +/- 15 g

› The optimum oil balance, also with very low

deviations, i.e. +/- 1 g.

A/C service stations should therefore be selected

considering the following:

› High refrigerant charging accuracy?

Only with synchronised charging process!

ENGINEERED IN GERMANy

Synchro-nised charging process

Electromagnetic block valve

Has to be weighed as well Small capacity weighing cell (8 kg) Condenser Weighing cell

› A/C system noises? Check the charging level,

by all means!

Does the display really show the accurate amount of

refrigerant which has been recovered? Yes – but only

if all components of the A/C service unit that

refrige-rant adheres to are weighed as well!

The synchronised

charging process

is clearly

“audible”!

› Too much or too little oil in the vehicle A/C system

will inevitably cause problems.

Therefore only use A/C service units with high

charging level accuracy!

› How to find a system with high oil (UV additive)

charging accuracy?

It’s quite simple: such systems have only

one

small-capacity weighing cell (typically 8 kg). This is what

makes charging in 1-g steps actually possible!

Disregarding these factors may have the following

consequences:

› Performance loss of the vehicle A/C system

(insufficient cooling capacity)

› Functional problems through overpressure

shut-off (refrigerant charging level too high)

› Undesirable noise (caused by charging level too

(26)

AirCon Service Center – accessories

AirCon Service

Universal flush container

Unique oil charging system for professional use,

500 ml

›

Moisture-free and clean storage

›

Prevents penetration of contaminants into the A/C service unit

›

Long shelf life without quality loss

›

High-capacity containers, need to be replaced less often

For easy fitting on A/C service units

› Integrated into the flushing circuit to speed up the process to the required

level

Accessory: Replacement filter

Ref. No. 8880700246 Ref. No.

8887200013 (low viscosity, ISO 46)

8887200014 (high viscosity, ISO 100)

8887200019 (ultra-high viscosity, ISO 150)

8887200017 (universal oil, 500 ml)

8887200021 (Denso ND8, 500 ml)

Ref. No.

8885200088 (universal flush container)

8880700246 (spare filter)

Compressor oil (in patented containers)

PAG compressor oil

The right oil for all currently available A/C compressors

›

PAG oil (R134a), 0.25 litres

Ref. No.

8887200008 (ultra-high viscosity, ISO 150)

Charging and vacuum hoses

Service hoses in various colours for all A/C technology

applications

›

Suitable for all standard refrigerants

›

Highly flexible material allows use even in hard-to-access areas of automotive A/C systems

›

Connection thread as per SAE standard (see also page 58 – 59)

Ref. No.

8885100065 (hose colour: red, length: 3000 mm)

(27)

Service quick couplers

Special printer paper for

ASC-series thermal printers

For fast connection of A/C service units to automotive

air conditioners

› Suitable for use on all WAECO A/C service units › High-quality special couplers for long-term use

Ref. No.

4445900088 (sales pack: 4 pieces)

Ref. No.

8885400026 (low-pressure coupler for R134a with M14 x 1.5" inside thread)

8885400027 (high-pressure coupler for R134a with M14 x 1.5" inside thread)

8885400024 (low-pressure coupler for R134a with 3/8" SAE outside thread)

8885400025 (high-pressure coupler for R134a with 3/8" SAE outside thread)

8885400089 (low-pressure coupler for R134a with 1/4" SAE outside thread)

8885400090 (high-pressure coupler for R134a with 1/4" SAE outside thread)

Spare rolls for printer

Bottle set for ASC series

Set of universal oil and UV additive bottles for

ASC-series service units

›

250 ml capacity

Ref. No.

4440600110 (sales pack: 2 pieces)

Flash memory card

The 2010 update comprises 164 new vehicle models

›

Includes charging amount data for truck air conditioners, too

›

Flash memory card – just slot in and play!

›

6.000 vehicle data

ASC 3000 card on request. Please specify serial number and software version used.

Ref. No.

4441000041 (ASC 1000 up to serial number 109999)

4441000042 (ASC 2000 up to serial number 209999)

4441000090 (ASC 1000 from serial number 110000)

4441000091 (ASC 2000 from serial number 210000)

Updated

edition

(28)

The complete product range for

professional use – never out of stock

Type-tested refillable steel bottle for extraction in gas or liquid form

PAO compressor oil for universal use

Reusable system with refill safety device

Capacity: 12 kg of R134a refrigerant

›

Sturdy design, good stability, stand-up collar and practical extraction valve, bottle without riser tube

›

Suitable for all charging units in mobile or stationary use

Synthetic multi-grade A/C compressor oil for universal use on all

car and truck air conditioners

Ref. No.

8887100007 (fill of WAECO refillable bottle)

8887100008 (purchase of bottle*)

8885400129 (bottle adapter)

Ref. No.

8887200009 (universal oil, 1 litre)

* Purchase price is refunded if bottle is returned within 2 years

Adapter

(29)

PAG compressor oil

Vacuum pump oil / ESTER compressor oil

Unique oil charging system for professional use

›

Moisture-free and clean storage

›

Prevents penetration of contaminants into the A/C service unit

›

Long shelf life without quality loss

›

High-capacity containers, need to be replaced less often

Accessory: 4440600026 (adapter)

Special compressor oil for factory-fitted Denso compressors,

fits professional oil charging system

›

Compressor oil with special additives

Accessory: 4440600026 (adapter)

Ref. No.

8887200013 (low viscosity, ISO 46, 500 ml)

8887200014 (high viscosity, ISO 100, 500 ml)

8887200019 (ultra-high viscosity, ISO 150, 500 ml)

8887200017 (universal oil, 500 ml)

Ref. No.

8887200021 (Denso compressor oil, 500 ml)

Ref. No.

8887200018 (vacuum pump oil, 1.0 litre)

8887200006 (ESTER compressor oil, R134a, 1.0 litre)

Denso ND8 compressor oil

PAG compressor oil

The right oil for all currently available A/C compressors

›

PAG oil (R134a), 0.25 litres

Ref. No.

(30)

Flush A/C components instead of replacing

them – save on repair costs

A defective A/C compressor

can have serious

conse-quences. It often occurs that

abrasion particles from

the compressor

enter the A/C system. The abrasion

particles then circulate within the refrigerant circuit

and build up over time. This can lead to time

consu-ming and costly repairs, because all components in

contact with refrigerant usually need to be replaced.

The universal flush container as well as the flush

adapter kit provide a cost-effective solution in such

cases. Using this equipment, which is approved by

major vehicle manufacturers, you can flush the entire

A/C circuit without having to remove a single

compo-nent. Just fit a new refrigerant compressor and the

A/C system is ready for use again.

The universal flush container can also be used with

other manufacturers‘ A/C service units. In that case

the flush process needs to be controlled manually,

though.

The following service units already come

with a software for automatic flush control:

RHS-1050 A/C service units from series 1...,

ASC 1000, ASC 2000, ASC 2000RPA and ASC 3000.

To use the flush function of these A/C service units,

just retrofit the universal flush container (Ref. No.

8885200088).

Flushing air conditioners with R134a

AirCon Service

With special

software for A/C

flushing to vehicle

manufacturer’s

specifications

(31)

Working clean:

It pays to flush!

Professional service on automotive A/C systems

naturally also includes flushing the system to clear

away aggressive substances and contaminants from

the refrigerant circuit. Flushing protects all parts

of the air conditioner from damage, especially the

compressor being its core component.

You will never get a hundred per cent clean

refrigerant circuit, though. This is because of the

parallel flow evaporator technology commonly used

these days.

We strictly recommend you

to add a

chip

filter

to the suction line when you flush the system.

This will

protect the compressor

and is especially

advisable when you’ve replaced the compressor, as

it will keep the remaining particles away from the

newly fitted unit.

Important note: The chip filter (Ref. No. 8880700246)

should be replaced after every flushing process (for

each vehicle)!

The benefits of air conditioner flushing

› Prevents costly and annoying repeat repairs › Reduces subsequent costs for the workshop › Prevents problems with guarantee claims › Enhances the workshop’s A/C service package › Recommendation for the workshop

(32)

Universal flush container

A/C flush adapter kit

To be fitted on A/C service units

Integrated into the flushing circuit to speed up the process to the required level

Scope of delivery Pressurised container with 2-way extraction valve Universal mounting bracket for pressurised container Purifier filter

Sight glass

Hose to connect the container to the air conditioner and the A/C service unit connected

For bypassing expansion valves and dryers

› For direct connection of A/C service hoses to the compressor’s suction and pressure hoses

› Made of high-quality brass-aluminium materials to withstand the rigours of workshop use

› Supplied in sturdy workshop case

Scope of delivery Universal flush adapter kit for many Audi and VW models as well as for other makes

A/C flush adapter set for removal of harmful substances

from the refrigerant circuit

› Set includes a variety of adapters, e.g. for expansion valves and compressors › Air conditioner is flushed with refrigerants, no need to dispose cleaning agents › Ideal for removing oil from the system

› Flexible use with various adapter options

› Refrigerant is recycled by the A/C service unit and can then be reused › Causes no damage to gaskets and components

Ref. No.

8885200088 (universal flush container)

Ref. No.

8885300089 (A/C flush adapter kit)

Ref. No.

SK43 (universal A/C flush adapter set)

8885300090 (repair set of 6 gaskets)

Universal A/C flush adapter set

(33)

A/C flush connector

A/C flush adapter set

For targeted flushing of condensers and evaporators

› For bypassing expansion valves and dryers

› Special clamps with brass connectors › Connectors for 3/8“ service hoses

Spares Repair set of gaskets, Ref. No. 8881500878

A/C flush adapter set for removal of harmful substances from

the refrigerant circuit

› Set includes a variety of adapters, e.g. for expansion valves and compressors › Air conditioner is flushed with refrigerants, no need to dispose cleaning agents › Ideal for removing oil from the system

› Flexible use with various hose connection options

› Refrigerant is recycled by the A/C service unit and can then be reused › Causes no damage to gaskets and components

Filter catches contaminants coming from the system to

protect the compressor

› Keeps a newly installed compressor free from chips › Easy to fit; no need to cut pipes or insert fittings

› No need to make new connections, which might cause leaks › Choice of sizes to suit different A/C systems

Scope of delivery 60 filters in 20 different sizes, SK 47 including set of tools New: Accessory for Audi A3,

VW Golf V and VW Touran Filter 22,25 mm, Ref. No. 13317 Ref. No.

SK46 (A/C flush connector)

8881500878 (repair set of 4 gaskets)

Ref. No.

8885300080 (A/C flush adapter set)

Ref. No.

SK47 (set of chip filters with tools)

SK48 (set of chip filters without tools)

13317 (filter for Audi A3, VW Golf V and VW Touran)

Set of chip filters

(34)

Contaminants harm the air conditioner –

the oil checker detects this danger

The performance of an A/C system stands or

falls with the state of the refrigerant oil.

Serious damage is often caused by

contami-nated oil containing abrasive particles or

metal chips. Another common source of

failure is refrigerant leakage leading to

over-heating of the refrigerant oil and hence to

impaired lubrication. Therefore, it is

absolu-tely necessary to check the compressor oil

before repair work is started.

The oil checker is a safe and simple tool for

“oil sampling” in automotive air conditioners.

It is simply connected to the A/C system‘s two

service ports.

Scope of delivery

Oil checker, one-way manifold, blue service hoses, red service hoses, red service coupler

Ref. No.

8885100086 (Oil checker)

Oil Checker

Dark red/black

Overheated oil: check the condition of the compressor, oil flush required

Orange/yellow

Oil starts to overheat: check the condition of the compressor, oil flush required

Pale yellow/white

Oil OK

Oil checker

AirCon Service

3 ₂

1

2

(35)

Separates and removes sealants from A/C systems

› During refrigerant recovery the Recycle Guard is connected between the

A/C service unit and the air conditioning system

› Reliably separates sealants before they can enter and cause damage to the service unit

› Integrated filter insert can be used several times

Recycle Guard

Ref. No.

8885200060 (Recycle Guard)

8880600008 (universal mounting bracket)

Universal mounting bracket, fits all A/C service units

Sealant separator protects A/C service units

from harmful sealant contamination

Over the last few years additives have been launched

to the market that are claimed to be able to seal

minor leaks. Caution is advised here, however:

sealants may cure within the system, which may lead

to blockages and cause

damage, e.g. to the dryer

and expansion valve.

For this reason, WAECO does

not use any sealant additives!

Sealants can also harm your A/C service unit.

For

example, a vehicle coming in for service may already

have leak sealants in the air conditioning system.

During refrigerant recovery the sealant will enter –

and possibly damage – your A/C service unit.

A/C service units have various areas where moisture

accumulates (e.g. filters, dryers, oil separators).

These areas are

especially susceptible to sealant

build-up, which can cause serious damage to your

valuable equipment.

The Recycle Guard protects your service unit from

sealant contamination.

This special filter is

con-nected to the unit’s service hoses where it reliably

separates and removes the sealant from the

refrige-rant.

Suitable for A/C service units of all

makes
