Certification of Discontinuous Composite Material Forms for Aircraft Structures

(1)

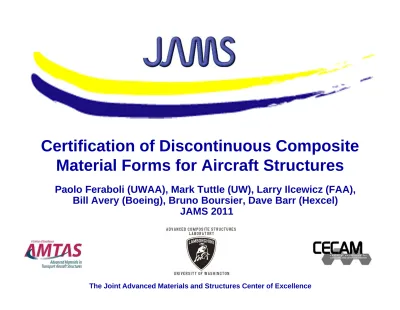

Certification of Discontinuous Composite

Material Forms for Aircraft Structures

Paolo Feraboli (UWAA), Mark Tuttle (UW), Larry Ilcewicz (FAA),

Bill Avery (Boeing), Bruno Boursier, Dave Barr (Hexcel)

(2)

Aluminum Clamps Pivots Bottom Load Point HexMC Angle Strain Gage Wiring

to Data Acquisition System Steel Linkages Top Load Point

Tuttle and Shifman

Angle beams with 3 different flange lengths were

tested:

•

3.5 inch (Large Angle Beam, 4 plies)

•

2.5 inch (Medium Angle Beam, 4 plies)

•

1.75 inch (Small Angle Beam, 2 plies)

Four point bending loads were applied to the

Test 1: 0°

+z

+y

+z

Test 2: ‐135° (unsymmetric)

+z

+y

Test 3: ‐45° (unsymmetric) 3 5,6 2 7,8

(3)

Beam Theory

Distances from centroid to extremities of angle beam and moments of inertia:

t a yc zc z (major principal centroidal axis) y (minor principal centroidal axis)

T

M

(4)

Shell elements with MPC

y

x

z

Centroidal axis

Section at C1 & C2

M

(5)

FEM Analysis (Orthotropic/ Quasi-Isotropic Tape)

Typical Strain behavior showing match

between model & beam theory with an

Longitudinal Strain (x-direction)

Orthotropic mechanical

properties:

5.97

0.28

1.8 Average values

for

&

based

(6)

Normalized Strain Curves

EMIN

EAVG

EMAX

Highlighted region is admissible for HexMC based on modulus

variability

EAVG=5.97 EMAX=8.68

Normalized strain is a function of 1/E, hence non linear

EMIN=4.12

Typical Plot of Results

,

∝

1

• ,

,

: three different values for

(7)

Comparison between Experiment and Simulation (Large Angle

Beams, 0 degree)

EMIN EAVG EMAX E BEST FIT

(8)

Comparison between Experiment and Simulation (Large Angle Beams, 180 degree)

(9)

Comparison between Experiment and Simulation (Large Angle Beams,90 degree)

EMIN EAVG

EMAX

E BEST FIT

(10)

Comparison between Experiment and Simulation (Large Angle Beams, -90 degree)

(11)

Comparison between Experiment and Simulation (Large Angle Beams, -45 degree)

(12)

Comparison between Experiment and Simulation (Large Angle Beams,-135 degree)

(13)

Comparison between Experiment and Simulation (Medium Angle Beams, 0 degree)

(14)

Comparison between Experiment and Simulation (Medium Angle Beams,180 degree)

(15)

Comparison between Experiment and Simulation (Medium Angle Beams,90 degree)

EMIN EAVG

EMAX

E BEST FIT

(16)

Comparison between Experiment and Simulation (Medium Angle Beams,-90 degree)

(17)

Comparison between Experiment and Simulation (Medium Angle Beams, -45 degree)

(18)

Comparison between Experiment and Simulation (Medium Angle Beams, -135 degree)

(19)

Comparison between Experiment and Simulation (Small Angle Beams, 0 degree)

EMIN EAVG EMAX EBEST FIT

(20)

Comparison between Experiment and Simulation (Small Angle Beams, 180 degree)

EMIN EAVG EMAX EBEST FIT

(21)

Comparison between Experiment and Simulation (Small Angle Beams, 90 degree)

EMIN EAVG

EBEST FIT

EMAX

(22)

Comparison between Experiment and Simulation (Small Angle Beams, -90 degree)

EMIN EAVG EBEST FIT EMAX

(23)

Comparison between Experiment and Simulation (Small Angle

Beams, -45 degree)

(24)

Comparison between Experiment and Simulation (Small Angle

Beams, -135 degree)

(25)

Modulus Best Fit

Angle [

̊

]

Modulus [Msi]

(Large Angle Beam)

Modulus [Msi]

(Medium Angle Beam)

Modulus [Msi]

(Small Angle Beam)

0

4.93

5.71

11.9

180

4.89

5.62

12.1

90

5.41

5.87

11.2 -90

5.48

6.07

11.5 -45

6.17

5.52

11.8 -135

5.13

6.61

12.4 AVG

5.33

5.90

11.8 CoV

9%

7%

4%

(26)

FEM Analysis (Randomized Orthotropic)

• The models were discretized in:

- 312 RRVE for the large angle beam

- 216 RRVE for the medium angle beam

- 168 RRVE for the small angle beam

• Each RRVE has elastic orthotropic material properties assigned independently

from the neighboring ones and generated by running the stochastic laminate

analogy code in Matlab.

• The discretization of the specimen into RRVE’s has no relation with the mesh size.

The nodes of neighboring RRVE’s are merged to ensure displacement compatibility.

• For each geometry (large, medium, small):

• 30 FEM runs

(27)

Modulus: Global Properties & Distribution

Overall Modulus

MAX [Msi] AVG [Msi] MIN [Msi]

9.18 6.34 3.96

Global properties same as orthotropic with EAVG

x-x y-y 1 2 3 4 5 6 7 Section Modulus

RRVE # _{Section x-x [Msi]}Modulus at _{Section y-y [Msi]}Modulus at 1 6.57 6.64 2 6.63 5.15 3 6.44 5.44 4 5.92 6.77 5 5.16 4.33 6 5.99 5.52 x-x

(28)

Large Angle Beam: Max, Avg, Min @ SG #1 (0 degree)

FEM prediction of strain values with QI Tape approach (MIN, AVG, MIN

predicted modulus) FEM prediction of strain values

with stochastic approach (MIN, AVG, MAX over 30 runs)

NOTE:

Experimental strain value

falls OUTSIDE of range of

random

prediction

(29)

Large Angle Beam: Max, Avg, Min @ SG #2 (0 degree)

FEM prediction of strain values with QI Tape approach (MIN, AVG, MIN

NOTE:

Experimental strain value

falls OUTSIDE of range of

random

prediction

(30)

Large Angle Beam: Max, Avg, Min @ SG #3 (0 degree)

FEM prediction of strain values with QI Tape approach (MIN, AVG,

MAX predicted modulus) FEM prediction of strain values

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(31)

Large Angle Beam: Max, Avg, Min @ SG #4 (0 degree)

MAX predicted modulus) FEM prediction of strain values

NOTE:

Experimental strain value

falls OUTSIDE of range of

random

prediction

(32)

Large Angle Beam: Max, Avg, Min @ SG #5 (0 degree)

MAX predicted modulus) FEM prediction of strain values with

stochastic approach (MIN, AVG, MAX over 30 runs)

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(33)

Large Angle Beam: Max, Avg, Min @ SG#6 (0 degree)

FEM prediction of strain values with QI Tape approach (MIN, AVG, MAX

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(34)

Medium Angle Beam: Max, Avg, Min @ SG#1 (0 degree)

FEM prediction of strain values with stochastic approach (MIN,

AVG, MAX over 30 runs)

MAX predicted modulus)

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(35)

Medium Angle Beam: Max, Avg, Min @ SG#2 (0 degree)

FEM prediction of strain values with QI Tape approach (MIN, AVG, MAX

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(36)

Medium Angle Beam: Max, Avg, Min @ SG#3 (0 degree)

MAX predicted modulus)

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(37)

Medium Angle Beam: Max, Avg, Min @ SG#4 (0 degree)

NOTE:

Experimental strain value

falls OUTSIDE of range of

random

prediction

(38)

Medium Angle Beam: Max, Avg, Min @ SG#5 (0 degree)

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(39)

Medium Angle Beam: Max, Avg, Min @ SG#6 (0 degree)

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(40)

Medium Angle Beam: Max, Avg, Min @ SG#7 (0 degree)

NOTE:

Experimental strain value

falls INSIDE of range of

random

prediction

(41)

Medium Angle Beam: Max, Avg, Min @ SG#8 (0 degree)

NOTE:

Experimental strain value

falls OUTSIDE of range of

random

prediction

(42)

Conclusions

• Prediction based on orthotropic (quasi isotropic) layered with E

₁

=E

₂

=E

_AVGEXPER

are not

sufficient

• All data points fit in the admissible region for the large & medium beams. Small beams fall

outside region. Admissible region based on EMAX, EAVG, EMIN obtained from

experiments

• E

_BESTFIT

shows non negligible error in prediction of elastic response if using E

_AVGEXPER

• Need to define a suitable E for the material (statistical B-basis value?)

• For small beams (2 plies), predictions are too off to be due to normal variability. Different

explanations exist, confirmation will follow.

• If multiple beams of same size are tested, different results are expected. So far only 1

beam per geometry and orientation has been strain gaged & tested. Not possible to

measure the variability of the same location strain over multiple specimens.
