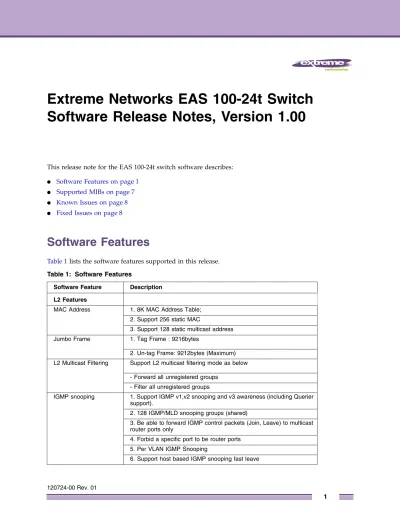

Extreme Networks EAS 100-24t Switch
Software Release Notes, Version 1.00
This release note for the EAS 100-24t switch software describes:
● Software Features on page 1
● Supported MIBs on page 7
● Known Issues on page 8
● Fixed Issues on page 8
Software Features
Table 1 lists the software features supported in this release. Table 1: Software Features
Software Feature Description
L2 Features
MAC Address 1. 8K MAC Address Table; 2. Support 256 static MAC
3. Support 128 static multicast address Jumbo Frame 1. Tag Frame : 9216bytes
2. Un-tag Frame: 9212bytes (Maximum) L2 Multicast Filtering Support L2 multicast filtering mode as below
- Forward all unregistered groups - Filter all unregistered groups
IGMP snooping 1. Support IGMP v1,v2 snooping and v3 awareness (including Querier support).
2. 128 IGMP/MLD snooping groups (shared)
3. Be able to forward IGMP control packets (Join, Leave) to multicast router ports only
4. Forbid a specific port to be router ports 5. Per VLAN IGMP Snooping
Software Features
MLD Snooping 1. Support MLD v1 snooping
2. Support MLD v2 awareness (source filter not supported) 3. 128 IGMP/MLD snooping groups (shared)
4. Be able to forward MLD control packets (Report, Done) to multicast router ports only
5. Forbid a specific port to be router ports 6. MLD per VLAN
7. Can config unregistered group filtering Spanning Tree 1. Support 802.1D STP
2. Support 802.1w RSTP 3. Support 802.1s MSTP 4. Support 4 MSTP Instances
5. Support per port / device BPDU filtering 6. Support 802.1D 2004 edition
7. Support Root Restriction(defined in 802.1Q-2005) Loopback Detection 1. Support per port shutdown
802.3ad Link Aggregation 1. Support max 8 groups
2. The max port number of group is 8 ports 3. Support following load sharing mechanism - Source MAC
- Destination MAC
- Source MAC + Destination MAC 4. Load-balancing with multicast traffic Mirroring 1. Support 1 mirroring group
2. Mirroring support following mode - One-to-one port
- Many-to-one port - Flow-based mirroring
3. Support Mirroring for Tx/Rx/Both VLAN
802.1Q 802.1Q-2005 edition (STP Root Restriction ) VLAN Group 1. Total 4094 VLAN groups
2. Configurable VID from 1~4094 Port-based VLAN Support VLAN tagging based on PVID Protocol-based VLAN 802.1v Port and Protocol-based VLAN MAC based VLAN
GVRP 1. Support 255 dynamic VLANs
Table 1: Software Features (Continued)
Software Features
3. GVRP enabled/disabled per port/system basis Asymmetric VLAN
Double VLAN (Q-In-Q)
1. Support Port-based Q-in-Q
2. Add SVLAN to either untagged or single tagged packets 3. Support Policy based Q-in-Q. Add SVLAN based on 1)- MAC address
2)- Ether type 3)- CVLAN tag
4. Support untagged / single tagged / double tagged at same physical port
UNI Port:
? - For packets ingress from UNI port, the packet can be untagged, or c tagged
? - The packets may be add S tag or replace C tag by S tag based on user configuration.
? - The learning and forwarding is based on SVLAN. NNI Port:
? - For packets ingress from NNI, it can be untag/single S tag / double tag with S+C, the switch learning and forwarding is based on SVLAN. (C tag is identified by C-TPID, S-tag is identified by S-TPID.) 5. Per System Configurable SVLAN TPID
6. Support only 1 SVLAN TPID (per system) VLAN Translation Support up to 16 entries/rules (per system) QoS
Bandwidth Control 1. Support Port and Flow based bandwidth control 2. Minimum granularity 64Kb/s
3. Ingress bandwidth control (for Port and Flow based) 4. Egress bandwidth control (Only for Port based)
5. Switch and client need to enable flow control for RX(upload) traffic. Number of Queues 4 Outbound Queues
Queue handling Support WRR/Strict mode in queue handling Support Weighted Round Robin (WRR) Table 1: Software Features (Continued)
Software Features
Class of Service (CoS) Be able to classify packets according to follow contents: - 802.1p priority - VID - MAC address - Ether type - IP address - TOS - DSCP - Protocol type
- TCP/UDP port number - User defined packet content - Switch Port
QoS Flow Actions Remark DSCP to 802.1p priority tag ACL
Access Profiles/Rules 1. Max 256 Profiles, 256 Rules 2. Support 256 rules/per port.
3. If you apply one rule to all port (1-28), it just takes one rule. 4. Rule id 1 to 65535
ACL Policy Support following ACL policy packet contents: - 802.1p priority - VID - MAC address - Ether type - IP address - DSCP - Protocol type
- TCP/UDP port number - User defined packet content - Switch Port
ACL Statistic Security
SSH Support v2
SSL Support v1/v2/v3
Port Security Support 64 MACs per port
Broadcast Storm Control 1. Allow specifying when broadcast/multicast/unknown unicast traffic hit the definable threshold, switch will disable the port. Only after the broadcast/ multicast traffic fall below the definable threshold, the port will be activated again
2. Min granularity: 64kbps Table 1: Software Features (Continued)
Software Features
AAA
802.1X 1. Support Port-based Access Control 2. Support Host-based Access Control - Maximum 16 MACs per port
3. 802.1X packet transparent when 802.1X is disabled. 4. Support EAP, OTP, TLS, TTLS and PEAP
5. Support MD5 authentication 6. Support Dynamic VLAN Assignment 7. Support session timeout attribute
RADIUS Accounting Support Network accounting (for 802.1x user) (RFC2866) RADIUS Auth. For Mgmt
Access
RFC2138, RFC2139 TACACS+ Authentication
For the Management Access
RFC1492
User Account Privilege for the Management Access
Support 2 level user account - User (Read only)
- Administrator (Read / Write) MAC-based Access
Control
1. Support the following methods - Local authentication
- Radius authentication 2. Support the following modes - Port-based authentication - Host-based authentication
3. Dynamic VLAN Assignment after successful authentication Multiple Authentication MAC/802.1X Authentication
Management
Web-based GUI Compatible with following browsers (Support RFC2068) - IE5.5 or later version
- Firefox (Mozilla) CLI
Editable Login Banner Editable System Prompt
Telnet Server RFC854
Telnet Client
TFTP client RFC783
Z modem
Table 1: Software Features (Continued)
Software Features
SNMP SNMP v1/v2c/v3 (RFC1157, RFC1901, RFC1905, RFC1908, RFC2570, RFC2575)
RMON v1 Support 4 groups (RFC2819) RMON v2 Support Probe config group BootP/DHCP client RFC951, RFC1541
DHCP relay
System Log RFC3164
Trap/ Log Severity Control
Allow to divide the severity of logs into 3 levels, and config to trigger logging only for certain level of logs specify what 3 levels
Dual Image
Port Description Port definition and naming
CPU Monitoring Allow monitoring the utilization of CPU via Web/ CLI
Time Setting SNTP
LLDP
Cable Diagnostics
Configurable Auto MDI/MDIX
IPv6 Management IPv6 Host Ready certification
SMTP RFC2821
Technical Support Report Support the command "show tech support" to provide the information for debugging MIB MIBII RFC1213 Bridge MIB RFC1493 SNMPv2 MIB RFC1907 RMON MIB RFC1757, RFC2819
RMONv2 MIB Support Probe Config group (RFC2021) Ether-like MIB RFC1643, RFC2358, RFC2665 802.1p MIB RFC4363 IF MIB RFC2233, RFC2863 RADIUS Accounting Client MIB RFC2620
Ping & TRACEROUTE MIB
RFC2925
IE8021x MIB
SNMP related MIB RFC2571, RFC2574, RFC2575, RFC2576 Table 1: Software Features (Continued)
Supported MIBs
Supported MIBs
The supported MIBs are:
● IANA-ADDRESS-FAMILY-NUMBERS.mib ● IANAifType-MIB.mib ● INET-ADDRESS-MIB.mib ● lldp.mib ● lldp-dot1.mib ● lldp-dot3.mib ● rfc1155-SMI.mib ● rfc1212.mib ● rfc1213.MIB ● rfc1215.mib ● rfc1271.mib ● rfc1354.mib ● rfc1493.MIB ● rfc1907.mib ● rfc2021.MIB ● rfc2096.mib ● rfc2571.MIB ● rfc2572.MIB ● rfc2573n.mib ● rfc2573t.mib ● rfc2574.MIB ● rfc2575.MIB ● rfc2576.MIB ● rfc2620.MIB ● rfc2665.MIB ● rfc2819.MIB ● rfc2863.MIB ● rfc2925p.mib ● rfc2925t.mib ● RFC4293.MIB ● RFC4363.MIB LLDP MIB LLDP-DOT1 MIB LLDP-DOT3 MIB
Table 1: Software Features (Continued)
Known Issues ● token-ring-rmon-mib.MIB ● ie8021x.mib ● SNMPv2-CONF.mib ● SNMPv2-SMI.mib ● SNMPv2-TC.mib
Known Issues
This known issues in this version of the switch software include:
● [CLI][ComboPort] The default of fiber port is disabled, it is different with EAS 200-24p.
● [Bandwidth Control] The Effective rate is wrong. It should be the closest smaller multiple of 64kbps granularity.
● [LBD/Ling Aggregation] The Loopback Detection cannot work on the LACP trunk port. When master port is linked down.
● [System/MBA] The device would reboot when a large amount of clients request to the MAC Authentication.
● [CLI][IPv6] "show ipif_ipv6_link_local_auto" fails when the IP address of IPv4 interface doesn't be set.
● [CLI][Ports] Difference of Port Status Results by "Show ports "command and "show tech_support" command.
● [ACL] Only 4 kinds of ACL profile can be created at the same time. And IP and Ethernet type profile have reserved.
● [ACL] IPv6 with source IP address and IPv6 without source IP address will be 2 type profile.
● [ACL] The ACL rules are grouped per type and the priority is Ethernet> IP> IPv6 with IP> IPv6 without IP> packet_content.
● For every type, the matched rule with the lowest profile_id / access_id will be selected.
● [Mirror] The egress mirrored packets is always tagged.
Fixed Issues
Fixed Issues
