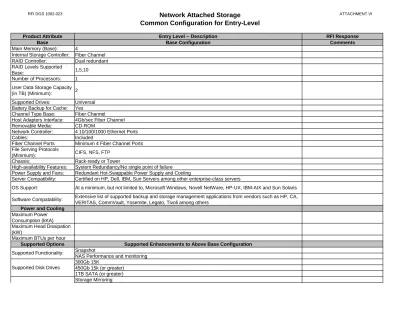

RFI DGS 1002-023
Network Attached Storage
Common Configuration for Entry-Level
ATTACHMENT VI
Product Attribute Entry Level -- Description RFI Response
Base Base Configuration Comments
Main Memory (Base): 4
Internal Storage Controller: Fiber Channel RAID Controller: Dual redundant RAID Levels Supported
Base: 1,5,10
Number of Processors: 1 User Data Storage Capacity (in TB) (Minimum): 2
Supported Drives: Universal Battery Backup for Cache: Yes
Channel Type Base: Fiber Channel
Host Adapters Interface: 4Gb/sec Fiber Channel Removable Media: CD-ROM
Network Controller: 4 10/100/1000 Ethernet Ports
Cables: Included
Fiber Channel Ports Minimum 4 Fiber Channel Ports File Serving Protocols
(Minimum): CIFS, NFS, FTP
Chassis: Rack-ready or Tower
High-availability Features: System Redundancy/No single point of failure Power Supply and Fans: Redundant Hot-Swappable Power Supply and Cooling
Server Compatibility: Certified on HP, Dell, IBM, Sun Servers among other enterprise-class servers
OS Support: At a minimum, but not limited to, Microsoft Windows, Novell NetWare, HP-UX, IBM-AIX and Sun Solaris Software Compatability: Extensive list of supported backup and storage management applications from vendors such as HP, CA,
VERITAS, CommVault, Yosemite, Legato, Tivoli among others Power and Cooling
Maximum Power Consumption (kKA)
Maximum Head Dissipation (kW)
Maximum BTUs per hour
Supported Options Supported Enhancements to Above Base Configuration Snapshot
NAS Performance and monitoring 300Gb 15K
450Gb 15k (or greater) 1TB SATA (or greater) Storage Mirroring Supported Functionality:
RFI DGS 1002-023
Network Attached Storage
Common Configuration for Entry-Level
ATTACHMENT VI
Product Attribute Entry Level -- Description RFI Response
Base Base Configuration Comments
Storage Replication Storage Utilization Storage Reporting
Cabinets/Frame and associated hardware (Loopback switches, drive cages/DAE's, modules) Associated cabling kits
Associated installation services
Optional Optional Enhancements to Base configuration
Optional Functionality Data De Duplication option
Networking Adaptors Dual-Port 10/100/1000 Ethernet Card Dual-Port Gigabit Ethernet Card Dual Optical 10 Gigabit Ethernet Card 4 Fiber Channel ports
8 Fiber Channel ports
High-availability Features: Non-disruptive controllers firmware upgrades / No-disruptive installation of cache, channels or hard drives 1GB Total Memory 2GB Total Memory 4GB Total Memory 8GB Total Memory 16GB Total Memory 32GB Total Memory Other Accessories Add Rack-mount Kit
Add Extra Power Supply Options
Fiber Channel Host Bus Adapters (HBA)
Fiber Channel Switches and Directors
Virtual Machine Support Storage Virtualization Compression
Solid State Devices Encryption
Thin Provisioning Hierarchical Storage Umbrella Storage Systems File Serving Protocols
(Optional): iSCSI
Upgrades and Memory
Software
Expansion options
RFI DGS 1002-023
Network Attached Storage
Common Configuration for Entry-Level
ATTACHMENT VI
Product Attribute Entry Level -- Description RFI Response
Base Base Configuration Comments
Please attach a list of available hardware and software
RFI DGS 1002-023
Network Attached Storage
Common Configuration for Mid-Range
Attachment VI
Product Attribute Midrange -- Description RFI Response
Base Base Configuration Comments
Main Memory (Base): 4
Internal Storage Controller: Fiber Channel RAID Controller: Dual redundant RAID Levels Supported
Base: 1,5,10
Number of Processors: 2 User Data Storage Capacity (in TB) (Minimum): 5 Supported Drives: Universal Battery Backup for Cache: Yes
Channel Type Base: Fiber Channel
Host Adapters Interface: 4Gb/sec Fiber Channel Removable Media: CD-ROM
Network Controller: 4 10/100/1000 Ethernet Ports
Cables: Included
Fiber Channel Ports Minimum 4 Fiber Channel Ports File Serving Protocols
(Minimum): CIFS, NFS, FTP, and iSCSI Chassis: Rack-ready or Tower
High-availability Features: System Redundancy/No single point of failure Power Supply and Fans: Redundant Hot-Swappable Power Supply and Cooling
Server Compatibility: Certified on HP, Dell, IBM, Sun Servers among other enterprise-class servers
OS Support: At a minimum, but not limited to, Microsoft Windows, Novell NetWare, HP-UX, IBM-AIX and Sun Solaris Software Compatability: Extensive list of supported backup and storage management applications from vendors such as HP, CA,
VERITAS, CommVault, Yosemite, Legato, Tivoli among others Power and Cooling
Maximum Power Consumption (kKA) Maximum Head Dissipation (kW)
Maximum BTUs per hour
Supported Options Supported Enhancements to Above Base Configuration
Snapshot
NAS Performance and monitoring 300Gb 15K
450Gb 15k (or greater) 1TB SATA (or greater) Storage Mirroring Storage Replication Supported Functionality:
RFI DGS 1002-023
Network Attached Storage
Common Configuration for Mid-Range
Attachment VI
Storage Utilization Storage Reporting
Cabinets/Frame and associated hardware (Loopback switches, drive cages/DAE's, modules) Associated cabling kits
Associated installation services
Optional Optional Enhancements to Base configuration
Optional Functionality Data De Duplication option
Networking Adaptors Dual-Port 10/100/1000 Ethernet Card Dual-Port Gigabit Ethernet Card Dual Optical 10 Gigabit Ethernet Card 4 Fiber Channel ports
8 Fiber Channel ports 1GB Total Memory 2GB Total Memory 4GB Total Memory 8GB Total Memory 16GB Total Memory 32GB Total Memory Other Accessories Add Rack-mount Kit
Add Extra Power Supply Options
Fiber Channel Host Bus Adapters (HBA)
Fiber Channel Switches and Directors
Virtual Machine Support Storage Virtualization Compression Solid State Devices Encryption
Thin Provisioning Hierarchical Storage Umbrella Storage Systems File Serving Protocols
(Optional): iSCSI
Upgrades and Downgrades Please attach a list of available hardware and software
upgrades/downgrades available for this configuration Fiber Channel Ports
Memory Software
RFI DGS 1002-023
Network Attached Storage
Common Configuration for Large
Attachment VI
Product Attribute Large -- Description RFI Response
Base Base Configuration Comments
Main Memory (Base): 4GB
Internal Storage Controller: Fiber Channel RAID Controller: Dual redundant RAID Levels Supported
Base: 1,5,10
Number of Processors: 4 User Data Storage Capacity (in TB) (Minimum): 10 Supported Drives: Universal Battery Backup for Cache: Yes
Channel Type Base: Fiber Channel
Host Adapters Interface: 4Gb/sec Fiber Channel Removable Media: CD-ROM
Network Controller: 4 10/100/1000 Ethernet Ports
Cables: Included
Fiber Channel Ports Minimum 4 Fiber Channel Ports File Serving Protocols
(Minimum): CIFS, NFS, FTP, and iSCSI Chassis: Rack-ready or Tower
High-availability Features: System Redundancy/No single point of failure Power Supply and Fans: Redundant Hot-Swappable Power Supply and Cooling
Server Compatibility: Certified on HP, Dell, IBM, Sun Servers among other enterprise-class servers
OS Support: At a minimum, but not limited to, Microsoft Windows, Novell NetWare, HP-UX, IBM-AIX and Sun Solaris Software Compatability: Extensive list of supported backup and storage management applications from vendors such as HP, CA,
VERITAS, CommVault, Yosemite, Legato, Tivoli among others Power and Cooling
Maximum Power Consumption (kKA) Maximum Head Dissipation (kW)
Maximum BTUs per hour
Supported Options Supported Enhancements to Above Base Configuration
Snapshot
NAS Performance and monitoring 300Gb 15K
450Gb 15k (or greater) 1TB SATA (or greater) Storage Mirroring Storage Replication Supported Functionality:
RFI DGS 1002-023
Network Attached Storage
Common Configuration for Large
Attachment VI
Storage Utilization Storage Reporting
Cabinets/Frame and associated hardware (Loopback switches, drive cages/DAE's, modules) Associated cabling kits
Associated installation services
Optional Optional Enhancements to Base configuration
Optional Functionality Data De Duplication option
Networking Adaptors Dual-Port 10/100/1000 Ethernet Card Dual-Port Gigabit Ethernet Card Dual Optical 10 Gigabit Ethernet Card 4 Port Fiber Channel Controller 8 Port Fiber Channel Controller
High-availability Features: Non-disruptive controllers firmware upgrades / No-disruptive installation of cache, channels or hard drives 1GB Total Memory 2GB Total Memory 4GB Total Memory 8GB Total Memory 16GB Total Memory 32GB Total Memory Other Accessories Add Rack-mount Kit
Add Extra Power Supply Options
Fiber Channel Host Bus Adapters (HBA)
Fiber Channel Switches and Directors
Virtual Machine Support Storage Virtualization Compression Solid State Devices Encryption
Thin Provisioning Hierarchical Storage Umbrella Storage Systems File Serving Protocols
(Optional): iSCSI
Upgrades and Downgrades Fiber Channel Controllers
Memory Software
RFI DGS 1002-023
Network Attached Storage
Common Configuration for Large
Attachment VI
Please attach a list of available hardware and software
