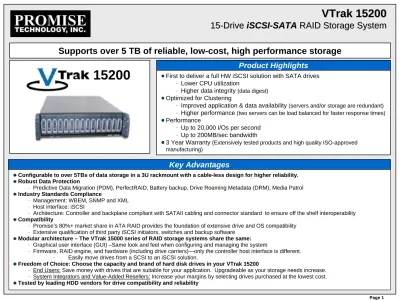

VTrak SATA RAID Storage System

(1)

Supports over 5 TB of reliable, low-cost, high performance storage

First to deliver a full HW iSCSI solution with SATA drives

- Lower CPU utilization

- Higher data integrity (data digest)

Optimized for Clustering

- Improved application & data availability (servers and/or storage are redundant)

- Higher performance (two servers can be load balanced for faster response times)

Performance

- Up to 20,000 I/Os per second - Up to 200MB/sec bandwidth

3 Year Warranty (Extensively tested products and high quality ISO-approved manufacturing)

Product Highlights

15200

Key Advantages

Configurable to over 5TBs of data storage in a 3U rackmount with a cable-less design for higher reliability. Robust Data Protection

- Predictive Data Migration (PDM), PerfectRAID, Battery backup, Drive Roaming Metadata (DRM), Media Patrol

Industry Standards Compliance

- Management: WBEM, SNMP and XML

- Host interface: iSCSI

- Architecture: Controller and backplane compliant with SATAII cabling and connector standard to ensure off the shelf interoperability

Compatibility

- Promise’s 80%+ market share in ATA RAID provides the foundation of extensive drive and OS compatibility

- Extensive qualification of third party iSCSI initiators, switches and backup software

Modular architecture – The VTrak 15000 series of RAID storage systems share the same:

- Graphical user interface (GUI) –Same look and feel when configuring and managing the system

- Firmware, RAID engine, and hardware (including drive carriers)—only the controller host interface is different.

- Easily move drives from a SCSI to an iSCSI solution.

Freedom of Choice: Choose the capacity and brand of hard disk drives in your VTrak 15200

- End Users: Save money with drives that are suitable for your application. Upgradeable as your storage needs increase.

- System Integrators and Value-Added Resellers: Increase your margins by selecting drives purchased at the lowest cost.

(2)

What is iSCSI?

iSCSI, or internet SCSI, is an IETF standard which maps SCSI blocks into Ethernet packets. The iSCSI protocol is a method for transporting standard SCSI blocks across IP networks. Traditionally, this is done over Ethernet to take advantage of the massive installed base and knowledge base.

iSCSI also allows you to build storage area networks over IP using something you already know and use everyday: Ethernet. In this way, iSCSI removes the limitations of direct attached storage, including the inability to share storage resources across servers and to expand capacity without shutting down applications.

What are the advantages of iSCSI?

An iSCSI SAN solution costs less than 1/3rd the cost of Fibre Channel and uses standard Ethernet and TCP/IP, so all the same management and knowledge is leveraged. Easy setup, simpler management and lowered costs.

What do I need to use iSCSI connected

storage?

You need an iSCSI based RAID external storage subsystem like the Promise VTrak 15200, a standard Cat5E or Cat6 Ethernet cable, either a standard Gigabit Ethernet NIC with a free iSCSI software initiator or a hardware iSCSI /TOE HBA. If you want to connect more than two servers or build a SAN then you can use any standard Ethernet switch and connect it to that.

iSCSI

Target Applications (Reference Data)

- Any application that requires TBs of data storage with faster access than tape libraries

- Clustering

- Archival data (medical/legal/financial records, e-mail, source code, doc control, records)

- Nearline storage (disk based backup)

- Document/Medical imaging

- Digital Video Surveillance

- Audio/Video editing, archive, distribution and scratch disk

Storage Requirements

- Performance – 75-200 MB/sec (depending on application & connectivity ports)

- Scalability – Support growing requirements for increasing volumes of data, cost : capacity ratio is a key factor

- Fault Tolerance – High data availability and protection

- Connectivity – Multiple user access to a storage box

Product Overview

First vendor to reach compliance with the “SATA II Cabling and Connector” RAID controller and backplane standards

72 hour Battery backup included at no extra charge - Most competitors charge extra for battery backup Predictive Data Migration (PDM)

- Part of our robust data protection suite. Delivers high levels of data protection by migrating data AHEAD of failure

Drive Roaming Metadata (DRM)

- Allows upgrade from the millions of Promise RAID HBAs Compliant with open management standards including WBEM and SNMP.

- Ensures simple and standards based management and third party integration

(3)

Controller

– Industry standard SATA2 controller and backplane enclosure design

– High performance 600 MHz Intel®_{80321 I/O Processor with PCI-X internal bus,}

HW XOR assist and local memory control – 16 independent SATA ports

– 2 independent iSCSI ports with full iSCSI/TOE offload engines – Gigabit Ethernet ports for iSCSI

– One 10/100 Ethernet port for out of band LAN based Management – One RS-232 for configuration CLI

– 256 command queue depth – 256MB DDR DRAM data cache,

supports up to 512

– 72 Hour Battery Backup Unit standard

iSCSI Controller

Product Information

Feature Set

- HW RAID 0,1,10,5,50,0+1

- Full remote monitoring and management of all functions, status and alerts

- Embedded OS with kernel driver and management application support - Global and Dedicated Hot Spares - Online Capacity Expansion (OCE) - RAID and Stripe Level Migration (RLM) - Capacity Coercion

- Robust data and error handling - Write hole prevention, Read Check table, SMART and Multi-dead prevention

- Non-Volatile error logging

- Cluster support with dual IDs per array - LUN Mapping

- Metadata On Disk (MDD) support drive roaming within the enclosure or drive group roaming between subsystems

- Predictive Data Migration (PDM)

preemptively detects possible drive loss and migrates data ahead of failure

- Bad sector remapping and management - Read cache, Write cache, write back & write

through modes

- Background Activities – Rebuild,

Initialization, Synchronization, Redundancy (consistency) Check, Media Patrol, Bad block management

Management Software

– Remotely manage multiple Promise arrays in same interface from ANY computer on the web

– Full remote monitoring and management of all functions, status and alerts

– Remote notification and alerts

– Out of Band Management through Management Ethernet port or RS-232

– SNMP, WBEM/ Standards support – CLU over RS-232 or Telnet

– HTTP Web based HTML GUI

– SSL security, User Access privilege control and authentication

(4)

Product Information (cont’d)

Front View

Power FRU Status Logical Drive Status iSCSI-1 Activity iSCSI-2 Activity Controller Activity 3U Rackmount Fits standard 19” rack space

15 Drive Carriers

Drive Carrier Latch Handle VTrak Chassis

Enclosure Hardware

– 3U enclosure with 15 drive slots – Hot swappable Field Replaceable

Units (FRUs): I/O controller, power supplies, fans, disk drives and carriers

– Completely cable-less design for all components

– Dual N+1 redundant 500 watt PSUs

– Dual N+1 redundant cooling units with dual blowers and one battery

Drive Carrier

– 15 Hot swap drive carriers for 3.5” x 1” drive form factor

– Direct SATA drive connection to the backplane

– PATA Drive Adapter (Optional) – Drive status and activity LED – Positive camming action ensures

(5)

iSCSI SAN Configurations

iSCSI One Server SAN

VTrak 15200 Server

(e.g. E-mail server)

Switch

iSCSI Two Server SAN

Server

(e.g. Web server)

Switch

VTrak 15200

Switches

Server

(e.g. Web server)

Benefit: Easy configuration with

flexibility for future expansion and long distance support of Ethernet

Benefit: Reduced storage hardware cost for cost-effective access to

advanced storage features for server applications

Additional VTrak 15200 systems

Server

(e.g. File server)

VTrak 15200

Ethernet cable

Switch

Multiple VTrak SAN

Benefit: Flexible

(6)

iSCSI SAN Cluster Configurations

Two servers act like one server (with clustering software) for redundant server failover

protection, load-balancing, and improved performance

iSCSI Four Server SAN Cluster

iSCSI Two Server SAN Cluster

Server

Clustered

VTrak 15200

Switches

Server

(e.g. File server)

Server

(e.g. File server)

Clustered

iSCSI Multiple

Server SAN

Cluster with

Multiple VTraks

VTrak 15200 Switches Server

Server

(e.g. File server)

Server

(e.g. File server)

Clustered

VTrak 15200 Benefit: Reduced storage hardware cost for

cost-effective access to advanced storage features for

server applications Benefit: Excellent application availability and improved application performance

Benefit: Excellent application

(7)

iSCSI Multiple Server SAN

iSCSI SAN Configuration

NOTE: If you have

more than two servers

in your configuration,

we strongly suggest

using clustering, SAN

Management or

virtualization software

or else risk corrupting

your data.

VTrak 15200

Switches

Server

(e.g. Application server)

Server

(e.g. Web server)

Server

(e.g. File server)

Benefit: Reduced storage

hardware cost for cost-effective access to advanced storage features for server applications

System Configuration:

• HP ProLiant DL380 G3

• Dual 2.4GHz Pentium 4 Xeon CPUs w/ Hyperthreading

• 6GB Registered DDR266 memory

• Isolated Windows 2003 Server boot drive • VTrak FW: v2.0

• VTrak Hard Disk Drives: 15 x Western Digital 10,000RPM (74GB) Serial ATA • PHYSICALDISK is raw without any OS

partitioning

• Outstanding IO’s is set to 32 Queues

VTrak 15200 HBA

• 2 x Qlogic QLA4010C PCI-X (133MHz) to 1Gb iSCSI TOE DAS connection

Performance

1 Channel

2 Channels

Access Specification Name RAID Level: RAID 5 Access Specification Name RAID Level: RAID 0 64K Sequential READ [MB/Sec] 95.15 64K Sequential READ – Aggregated [MB/Sec] 204.70 64K Sequential WRITE [MB/Sec] 75.57 64K Sequential WRITE – Aggregated [MB/Sec] 200.65 8K Random READ [IO/Sec] 986.07

8K Random READ –

Aggregated [IO/Sec] 1416.31

8K Random WRITE [IO/Sec] 515.3

8K Random WRITE –
