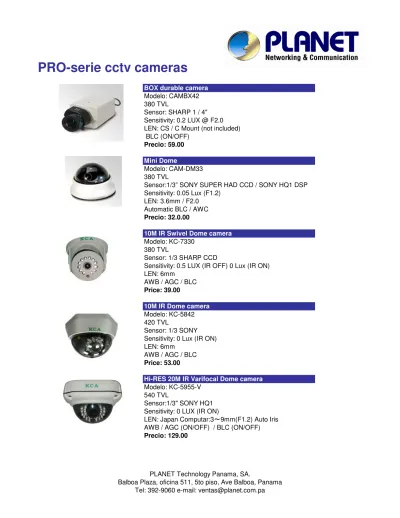

PRO-serie cctv cameras

BOX durable camera Modelo: CAMBX42 380 TVL

Sensor: SHARP 1 / 4" Sensitivity: 0.2 LUX @ F2.0 LEN: CS / C Mount (not included) BLC (ON/OFF)

Precio: 59.00

Mini Dome

Modelo: CAM-DM33 380 TVL

Sensor:1/3” SONY SUPER HAD CCD / SONY HQ1 DSP Sensitivity: 0.05 Lux (F1.2)

LEN: 3.6mm / F2.0 Automatic BLC / AWC

Precio: 32.0.00

10M IR Swivel Dome camera Modelo: KC-7330

380 TVL

Sensor: 1/3 SHARP CCD

Sensitivity: 0.5 LUX (IR OFF) 0 Lux (IR ON) LEN: 6mm AWB / AGC / BLC Price: 39.00 10M IR Dome camera Modelo: KC-5842 420 TVL Sensor: 1/3 SONY Sensitivity: 0 Lux (IR ON) LEN: 6mm

AWB / AGC / BLC

Price: 53.00

Hi-RES 20M IR Varifocal Dome camera Modelo: KC-5955-V

540 TVL

Sensor:1/3" SONY HQ1 Sensitivity: 0 LUX (IR ON)

LEN: Japan Computar:3～9mm(F1.2) Auto Iris AWB / AGC (ON/OFF) / BLC (ON/OFF)

(2)

Fake Smoke Detector Camera Modelo: KC-5130

380TVL

Sensor: 1/3 SHARP CCD + SHARP DSP Sensitivity: 0.5 LUX (F1.2) LEN: 4.3mm pinhole AWB / AGC / BLC Price: 42.00 PT Indoor 10M IR Camera Modelo:AD-500 380TVL

Sensor: 1/3 SONY Super-HAD CCD Sensitivity: 0 LUX (IR ON)

LEN: 6mm Aperture: F2.0

PAN (0-355) TILT (90)

Precio: 249.00

All-in-One 22X Zoom Camera Modelo:DSP-220X

480TVL

Sensor: 1/4 SONY Super-HAD CCD Sensitivity: 0.1 LUX

LEN: 3.9 - 85.8mm Zoom: 22X

Precio: 179.00

Bullet Miniature Camera Modelo: LBWBS

420 TVL

Sensor: 1/3 SHARP CCD + SHARP DSP Sensitivity: 0.5 LUX (F1.2) LEN: 3.6mm AWB / AGC / BLC Price:58.00 HiRes 20M IR Camera Modelo: KIRCN20 540 TVL Sensor: 1/3 SONY Sensitivity:0.001 Lux/F2.0 LEN: 3.6mm/F2.0 AWB / AGC / BLC Price: 65.00

(3)

HiRes 20M Dome IR Camera Modelo: KIRSH20 540 TVL Sensor: 1/3 SONY Sensitivity:0.001 Lux/F2.0 LEN: 3.6mm/F2.0 AWB / AGC / BLC Price: 60.00

Ultra HiRes 40M IR Camera Modelo: KIRCK40

700 TVL

Sensor: 1/3 SONY Super HAD CCD Sensitivity: 0.001 Lux/ F2.0

LEN: 4 ~ 9mm manual zoom OSD

Price: 120.00

High Speed Dome 37X PTZ Modelo: QMD 3437W 525 TVL

Sensor: 1/4 SONY ExView CCD Sensitivity: 0.002 Lux (slow shutter) LEN: 3.5 ~ 129mm

360° Pan / 180° Tilt / 37X optical Zoom IP 66

Pelco D, Pelco P support

Price: 1,190.00

PRO-serie DVRs

4 CH h.264 DVR Modelo: KA-6714

Video Channels: 4 channels

OS System: Embeded Linux 2.6 kernel Compression: h.264-video, ADPCM-audio Multiplex Operation: Octaplex

Frames: 25 fps per channel Live digital zoom: X2, X4 1 audio input / 1 audio output 4 alarm input / 1 alarm out

1 HDD SATA (up to 1TB) not included VGA and muse support

(4)

8 CH h.264 240 fps DVR Modelo: DVR-872

Video Channels:8 channels

OS System: Embeded Linux 2.6 kernel Compression: h.264-video, ADPCM-audio Multiplex Operation: triplex

Frames: 240 fps @ 360X240 recording Live digital zoom: X2, X4

4 audio input / 2 audio output 4 alarm input / 1 alarm out

2 HDD SATA (up to 1TB each) not included VGA and mouse support

PTZ control RS-485

I.E. software for multiple device (up to 64 cameras) Support mobile phone / PDA 3G

Precio: 445.00

16 CH h.264 400 fps DVR Modelo: KA-7916

Video Channels:16 channels

OS System: Embeded Linux 2.6 kernel Compression: h.264-video, ADPCM-audio Multiplex Operation: Octaplex

Frames: 480 fps @ 360X240 recording Live digital zoom: X2, X4

4 audio input / 1 audio output 4 alarm input / 1 alarm out

2 HDD SATA (up to 1TB each) not included VGA and mouse support

PTZ control RS-485

I.E. software for multiple device (up to 64 cameras) Support mobile phone / PDA 3G

Precio: 695.00

Brackets

Plastic bracket 3.0 Kg

Modelo: GEM-BRACKET PLASTIC Material: plastic

Dimenssion: 160 mm Max. Load: 3.5Kg

(5)

Metal bracket 10.0 Kg Modelo:PL-ICA-WMB Material: aluminio Dimenssion: 285 mm Max. Load: 10.0Kg Precio: 10.00

Video Baluns

Passive Video balun kit, easy connect Modelo: STT-102A

Distance: 330 mts (color video) Connector: Press-fit terminal Attenuation: 0.5dB

CMRR: 60db

Frequency: DC to 8 MHz Impedance: 75 Ohm

Precio: 7.90

Passive Video balun kit, with pigtail Modelo: STT-102C

Distance: 330 mts (color video)

Connector: Press-fit terminal and pigtail Attenuation: 0.5dB

CMRR: 60db

Frequency: DC to 8 MHz Impedance: 75 Ohm

Precio: 8.90

Passive Video and power balun kit Modelo: STT-206

Distance: 330 mts (color video)

Connector: RJ-45 Jack, and power plug Attenuation: 0.5dB

CMRR: 60db

Frequency: DC to 8 MHz Impedance: 75 Ohm

Precio: 11.80

Passive Video, audio and power balun kit Modelo: STT-206A

Distance: 330 mts (color video)

Connector: RJ-45 Jack, RCA and power plug Attenuation: 0.5dB

(6)

16CH Passive Video balun Rack mounted Modelo: STT-1600

Distance: 330 mts (color video)

Connector: BNC X 16, RJ-45 Jack X 4, terminal block Attenuation: 0.5dB

CMRR: 60db

Frequency: DC to 8 MHz Impedance: 75 Ohm 19 inch rack mounted

Precio: 79.00

Active Receiver Video balun Modelo: STT-111R

Distance: 1,500mts (with passive balun) Connector: RJ45 Jack, terminal block Attenuation: 0.5dB CMRR: 60db Frequency: DC to 8 MHz Impedance: 75 Ohm Power: 12V dc Precio: 16.00

Active Receiver + Transmitter Video balun kit Modelo: STT-113R + STT113T

Distance: 2,400mts video y data Connector: RJ45 Jack, terminal block Attenuation: 0.5dB CMRR: 60db Frequency: DC to 8 MHz Impedance: 75 Ohm Power: 32V dc Precio: 49.00

8CH Active Video balun Rack mounted Modelo: STT-811R

Distance: 1,500mts (with passive balun)

Connector: BNC X 8, RJ-45 Jack X 2, terminal block Attenuation: 0.5dB

CMRR: 60db

Frequency: DC to 8 MHz Impedance: 75 Ohm 19 inch rack mounted Power 110V ac

(7)

16CH Active Video balun Rack mounted Modelo: STT-1611R

Distance: 1,500mts (with passive balun)

Connector: BNC X 16, RJ-45 Jack X 4, terminal block Attenuation: 0.5dB

CMRR: 60db

Frequency: DC to 8 MHz Impedance: 75 Ohm 19 inch rack mounted Power 110V ac

Precio: 159.00

Video Ground Loop Isolator Modelo: GB-600

Frequency response : 0-3dB a 10MHz Isolation Voltage: 600V dc

Isolation resistance: 100 Ohms Built in transient voltage supressor Built in video balun

Precio: 19.00

BNC - BNC patch cable 3 pies Modelo: BNC-BNC

Conectores: BNC Male - BNC Male, set de 4 Length: 3 pies

Impedance: 75 Ohms

Precio: 7.00 USD

Power supplies and adapters

9CH 10A Power Supply Modelo: GEN-FUENTE 9CH 9A 9 Canales

12V en cada canal 9A corriente total máxima 110V ac power

Precio: 69.00

12V 1A switching adapter Modelo:GEN-12V 1A Switching power adapter 12V dc

(8)

DC Plug and Jack

Modelo: DC Plug / DC Jack

Precio: 1.30

Lentes

Lente Varifocal CS Mount CS Mount

Focal Length: 3.5 - 8mm Aperture: F1.4

View Angle: 42 - 96 g

Precio: 14.00

Lente Varifocal Autoiris CS Mount CS Mount Focal Length: 3.5 - 8mm Aperture: F1.4 View Angle: 42 - 96 g Autoiris: DC drive Precio: 22.00

Microfonos

Microphone Modelo: GEN-MICROFONO 12V in line microphone

Utiliza la misma fuente de alimentacion de la camara
